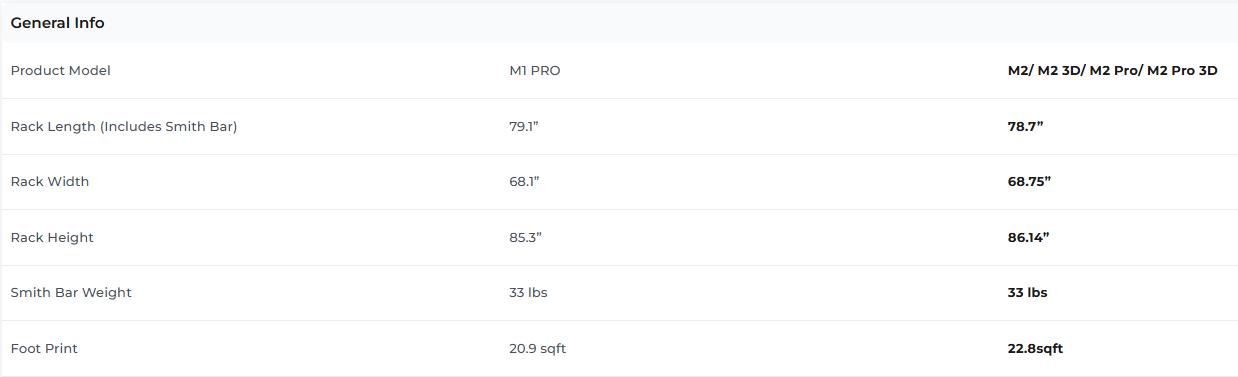

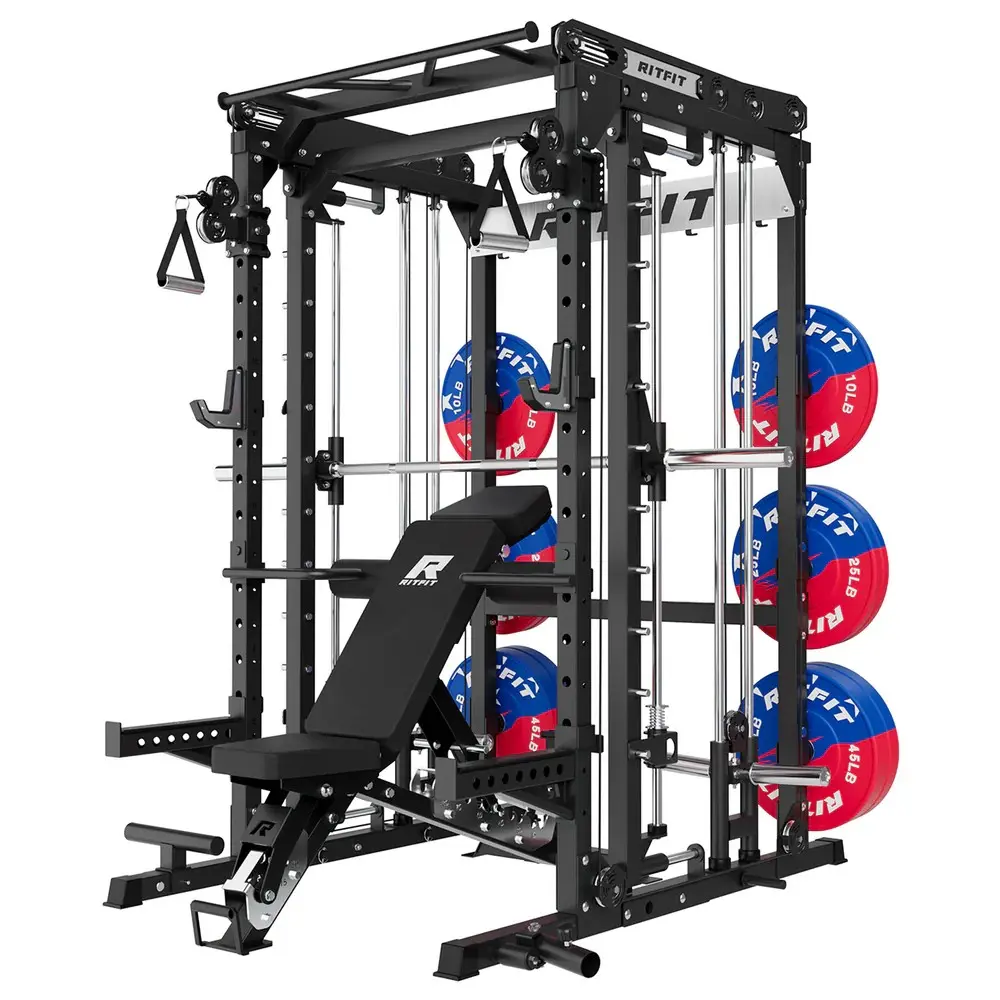

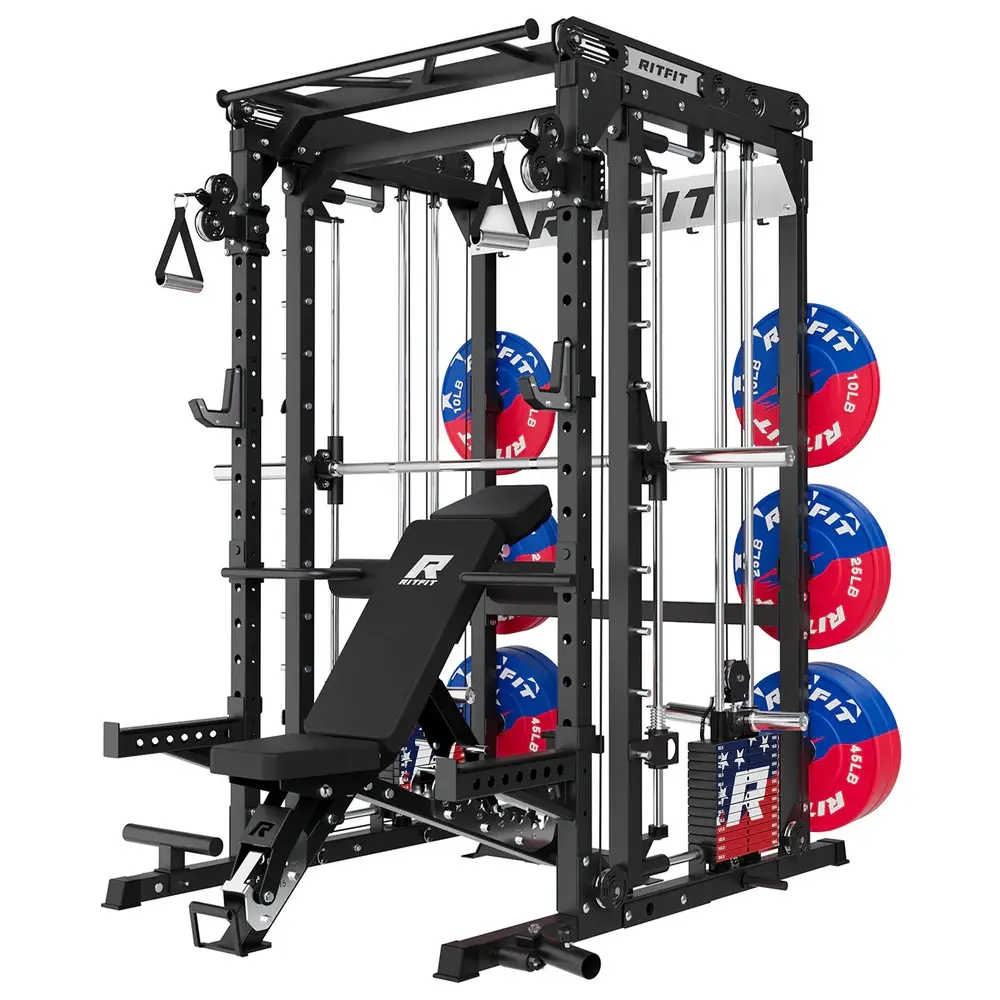

Product Model: M2/ M2 3D/ M2 Pro/ M2 Pro 3D

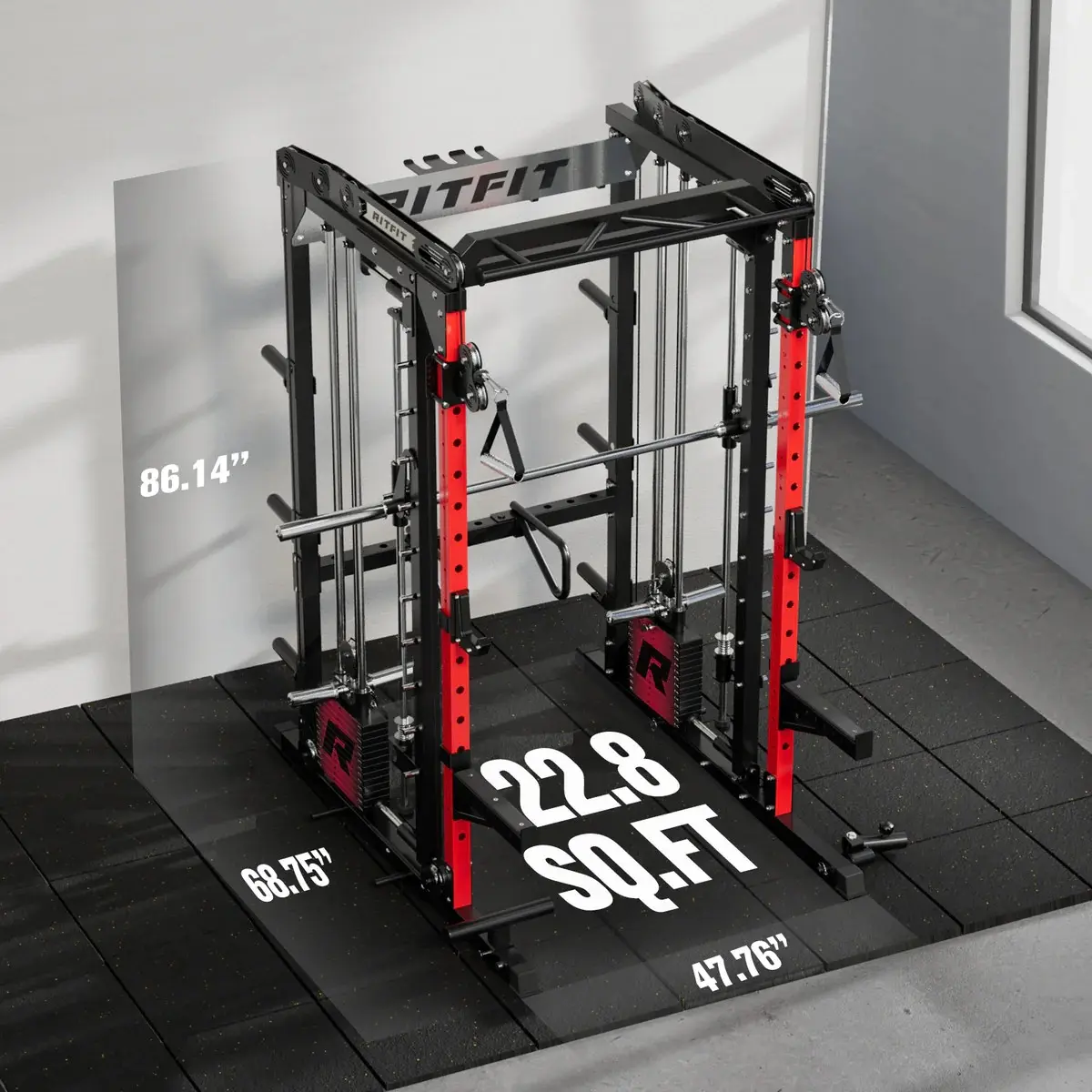

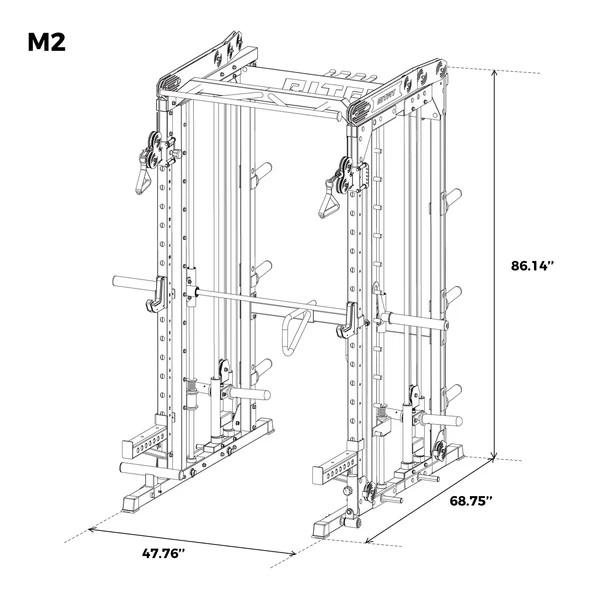

Rack Length (Includes Smith Bar): 78.7”

Rack Width: 68.75”

Rack Height: 86.14”

Foot Print: 22.8sqft

Smith Bar Weight: 33 lbs

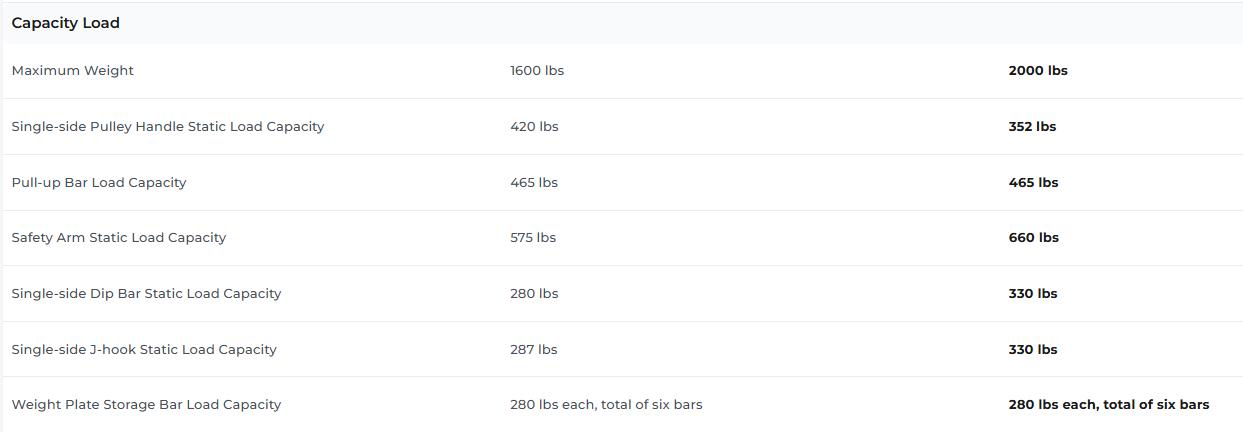

Maximum Weight: 2000 lbs

Single-side Pulley Handle Static Load Capacity: 352 lbs

Pull-up Bar Load Capacity: 465 lbs

Safety Arm Static Load Capacity: 660 lbs

Single-side Dip Bar Static Load Capacity: 330 lbs

Single-side J-hook Static Load Capacity: 330 lbs

Weight Plate Storage Bar Load Capacity: 280 lbs each, total of six bars

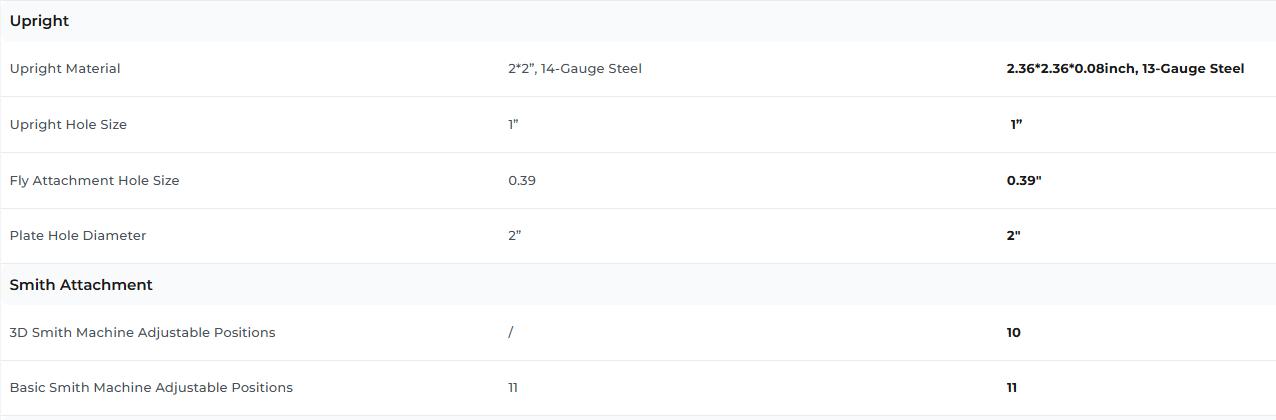

Upright Material: 2.36*2.36*0.08inch, 13-Gauge Steel

Upright Hole Size: 1”

Fly Attachment Hole Size: 0.39"

Plate Hole Diameter: 2”

Cable System Rail Material: Stainless steel

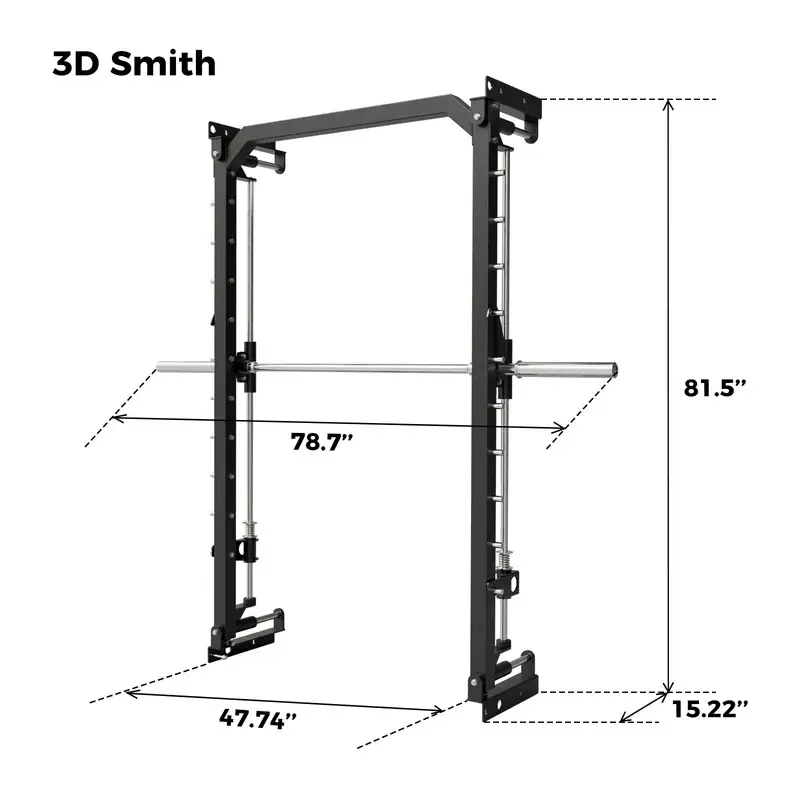

3D Smith Machine Adjustable Positions: 10

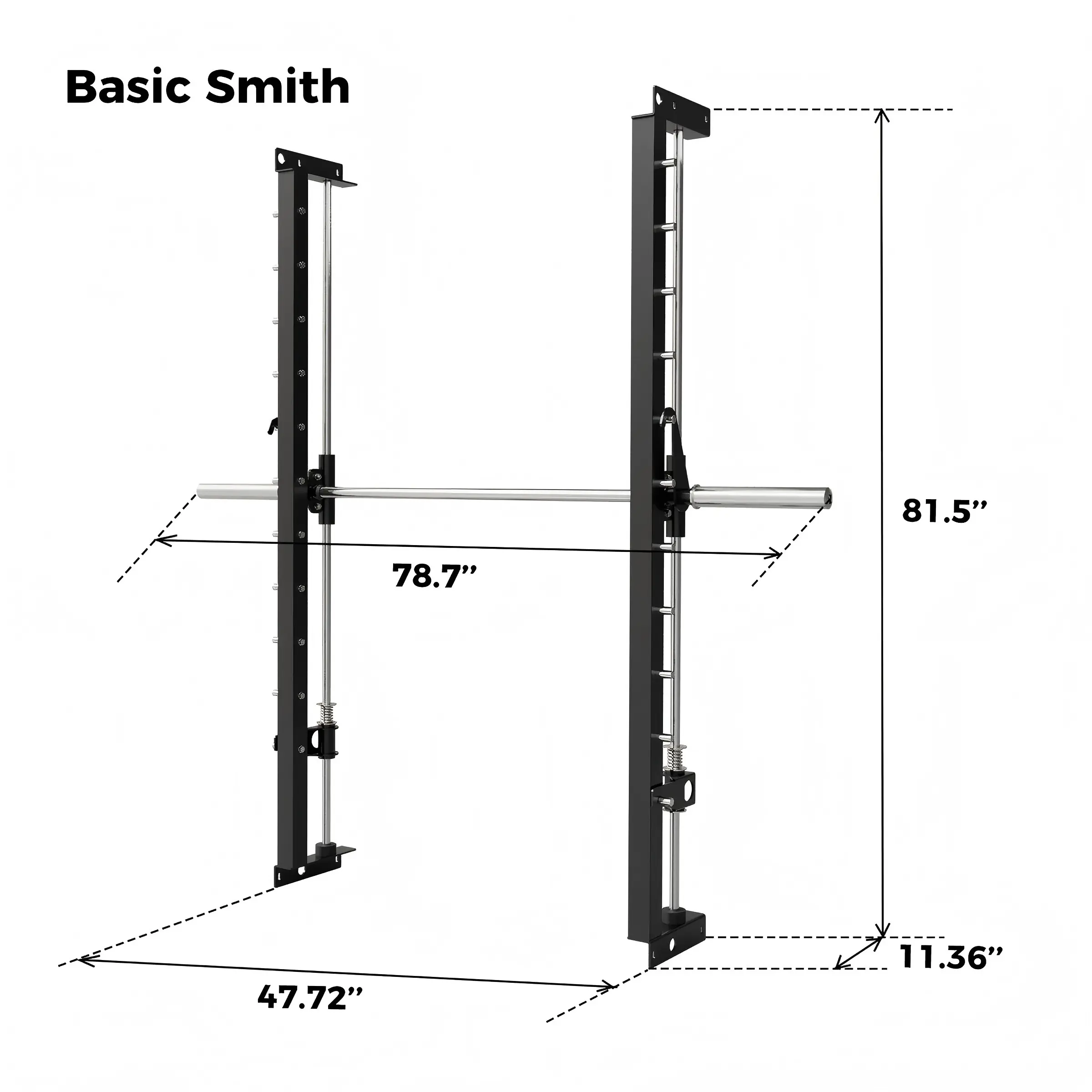

Basic Smith Machine Adjustable Positions: 11

Cable Pulley Ratio: 2:1

Suitable Attachments: WSM2, LPM2, ASM2, LAM2

Features

One Machine. Four Configurations. No Limits.

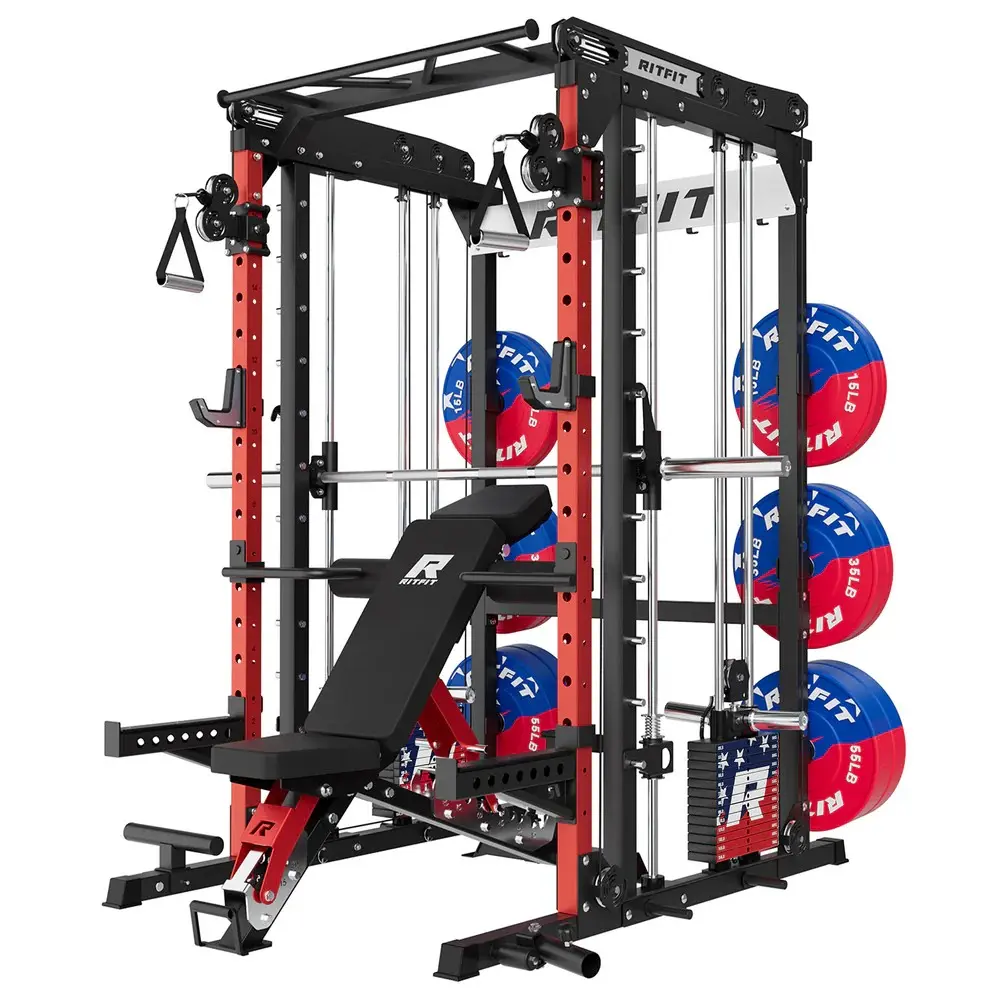

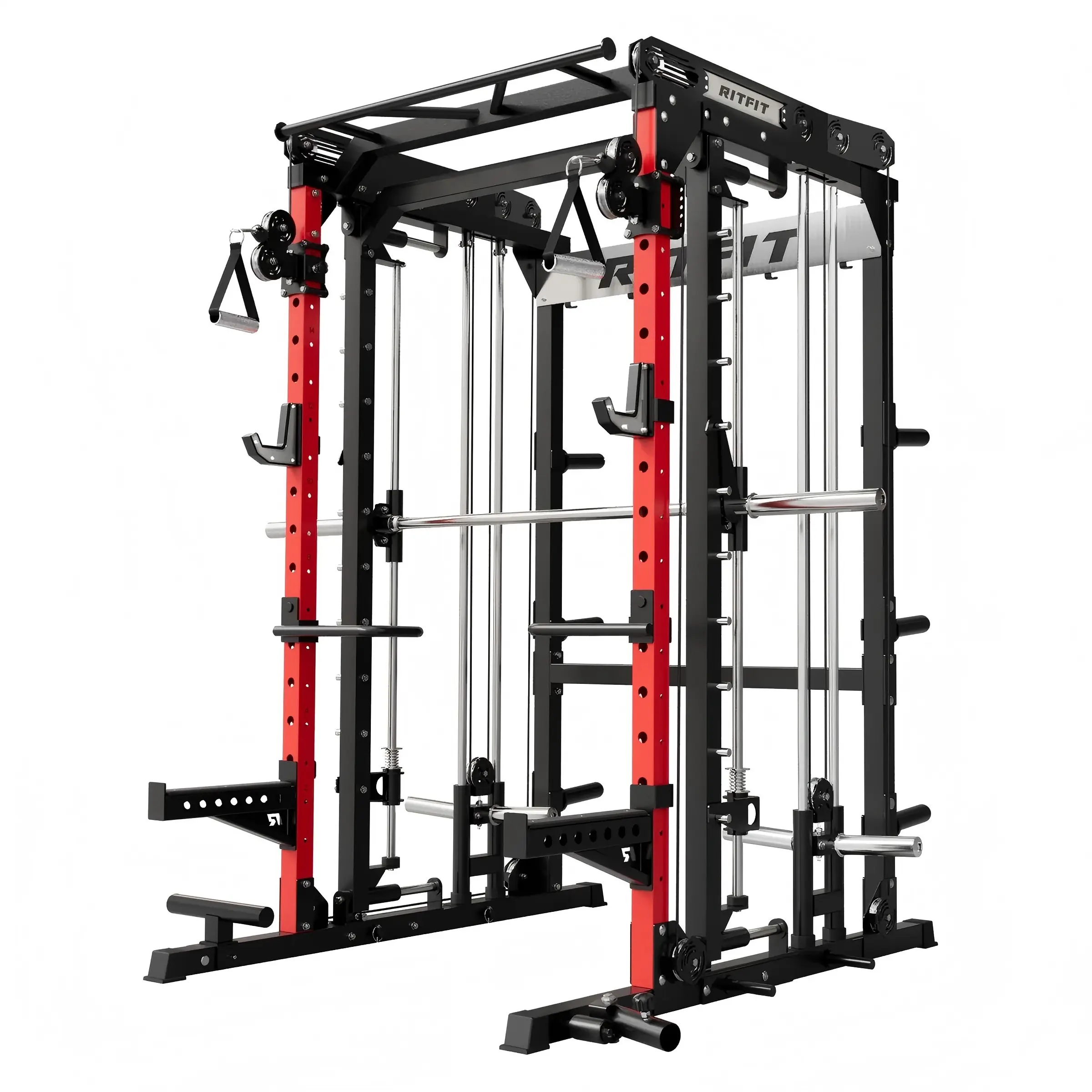

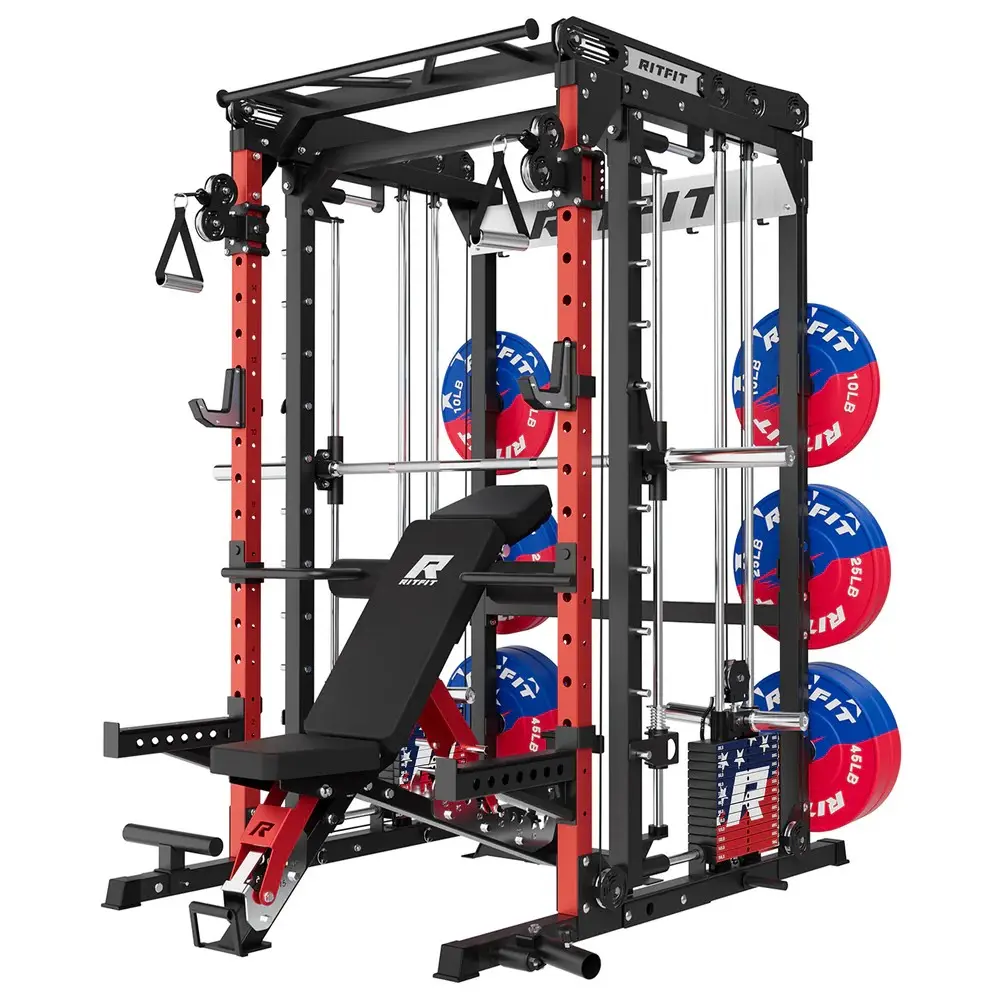

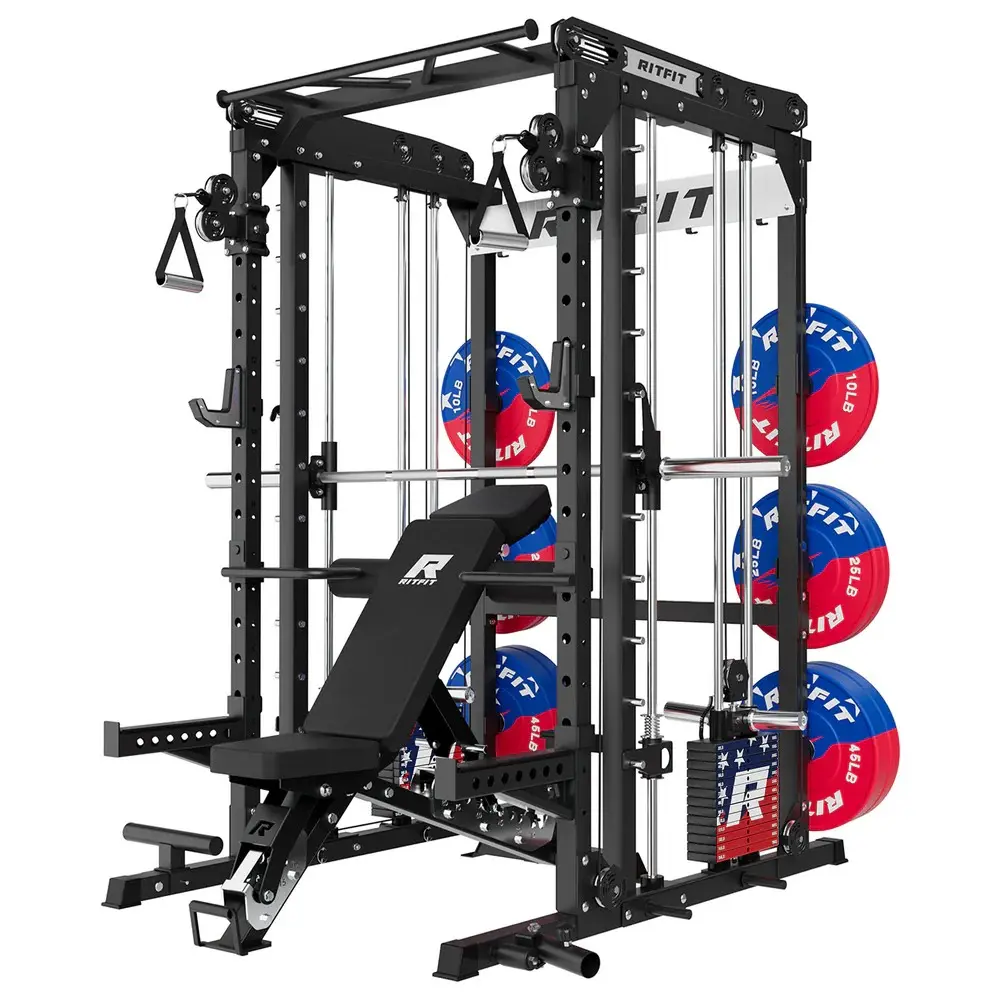

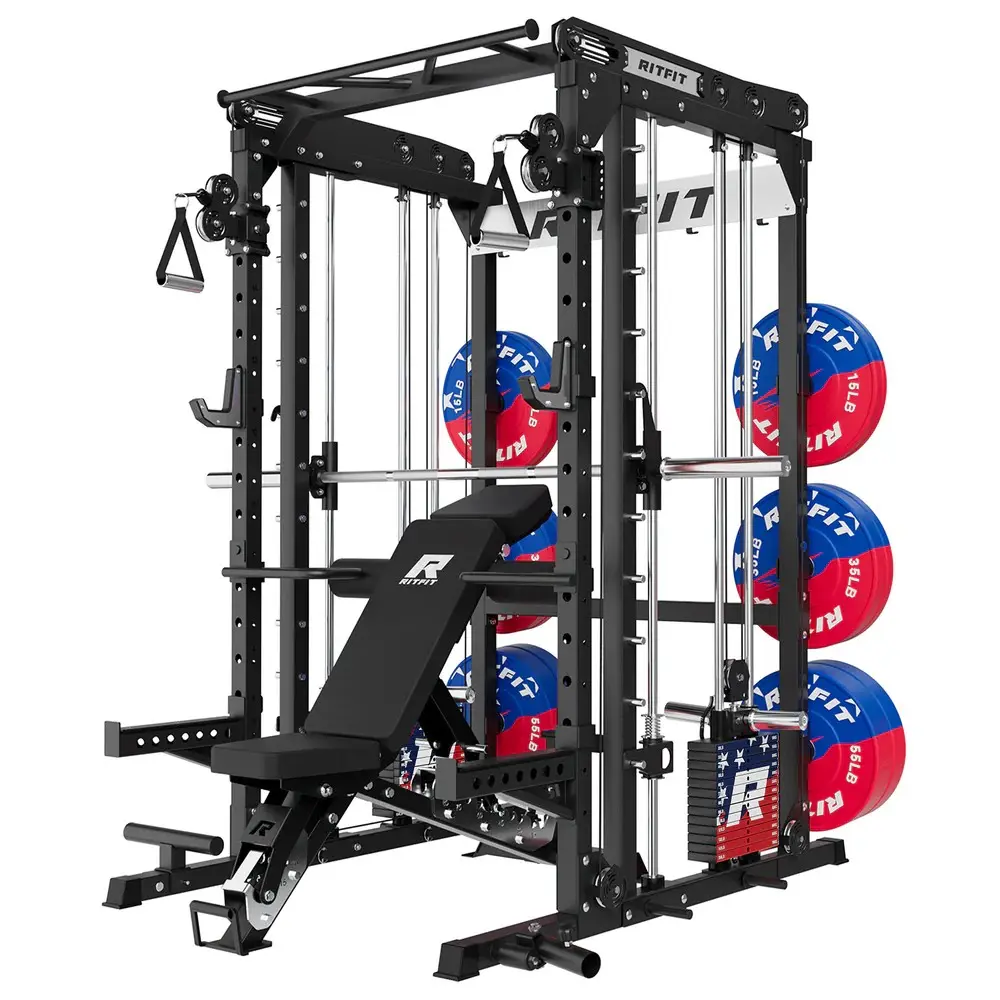

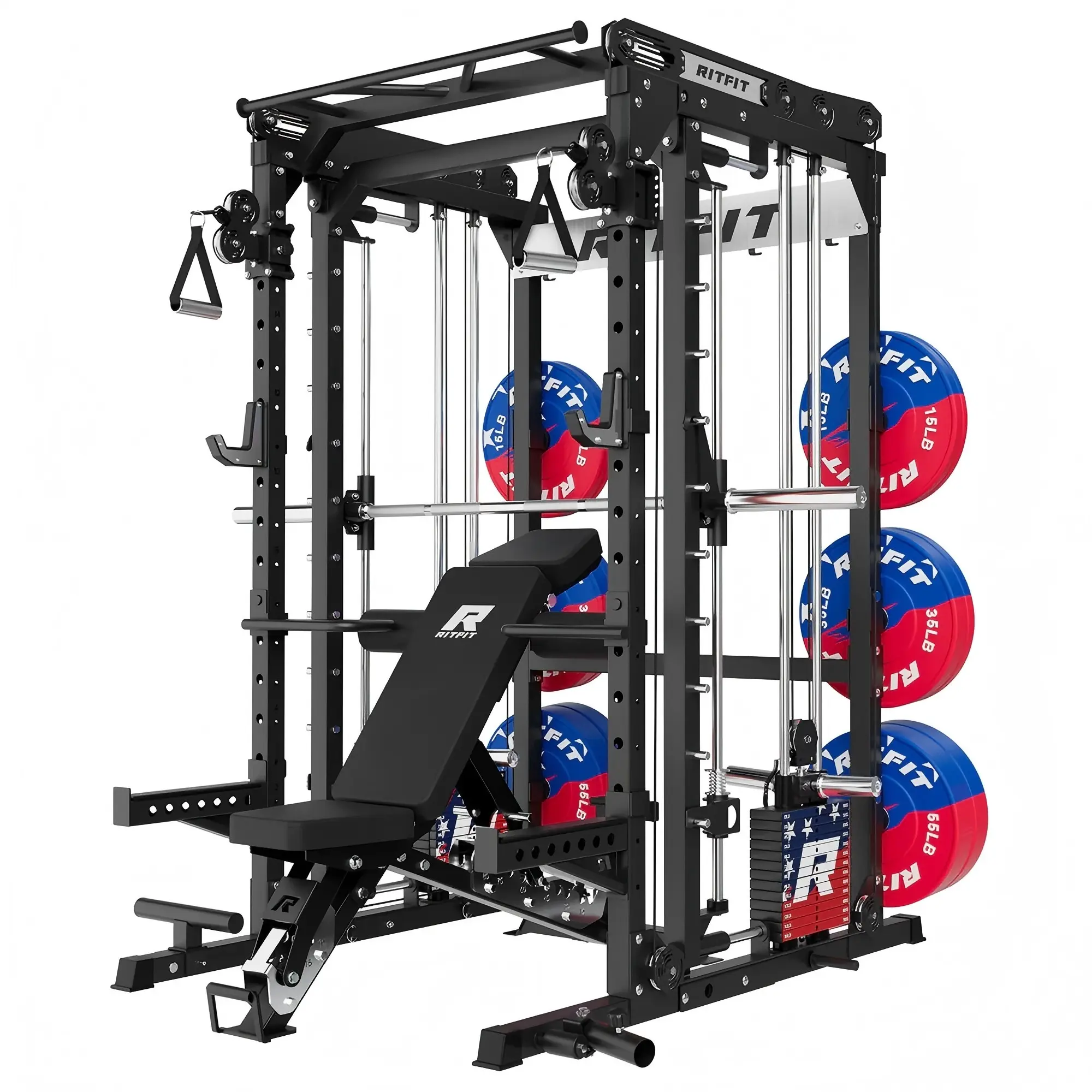

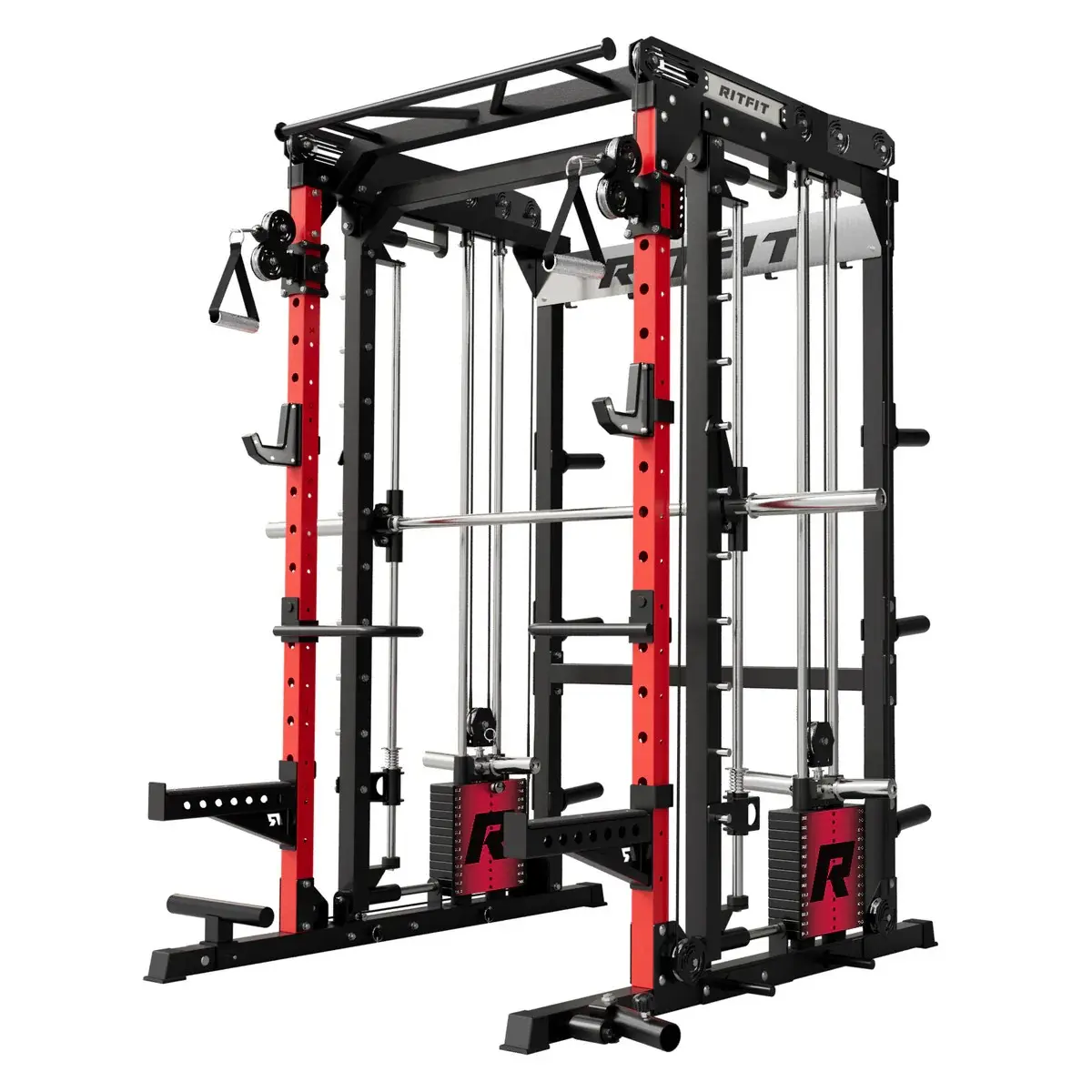

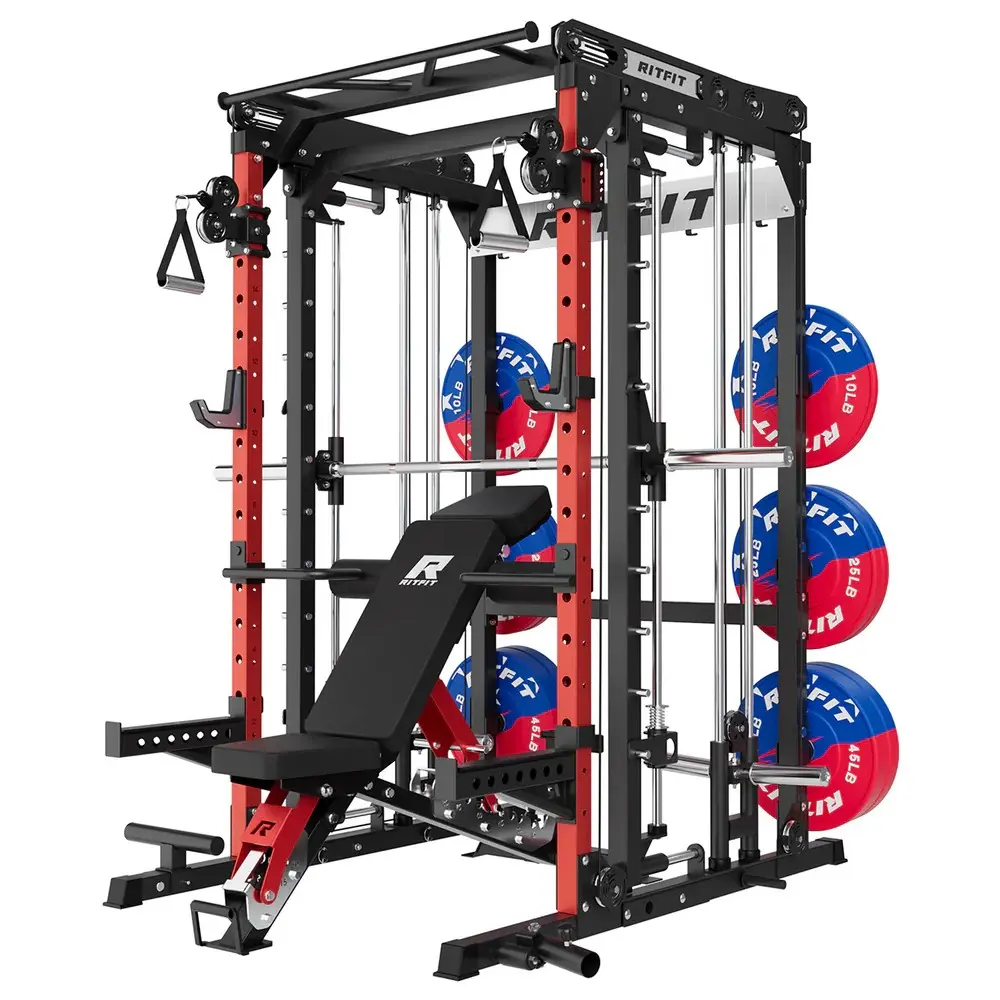

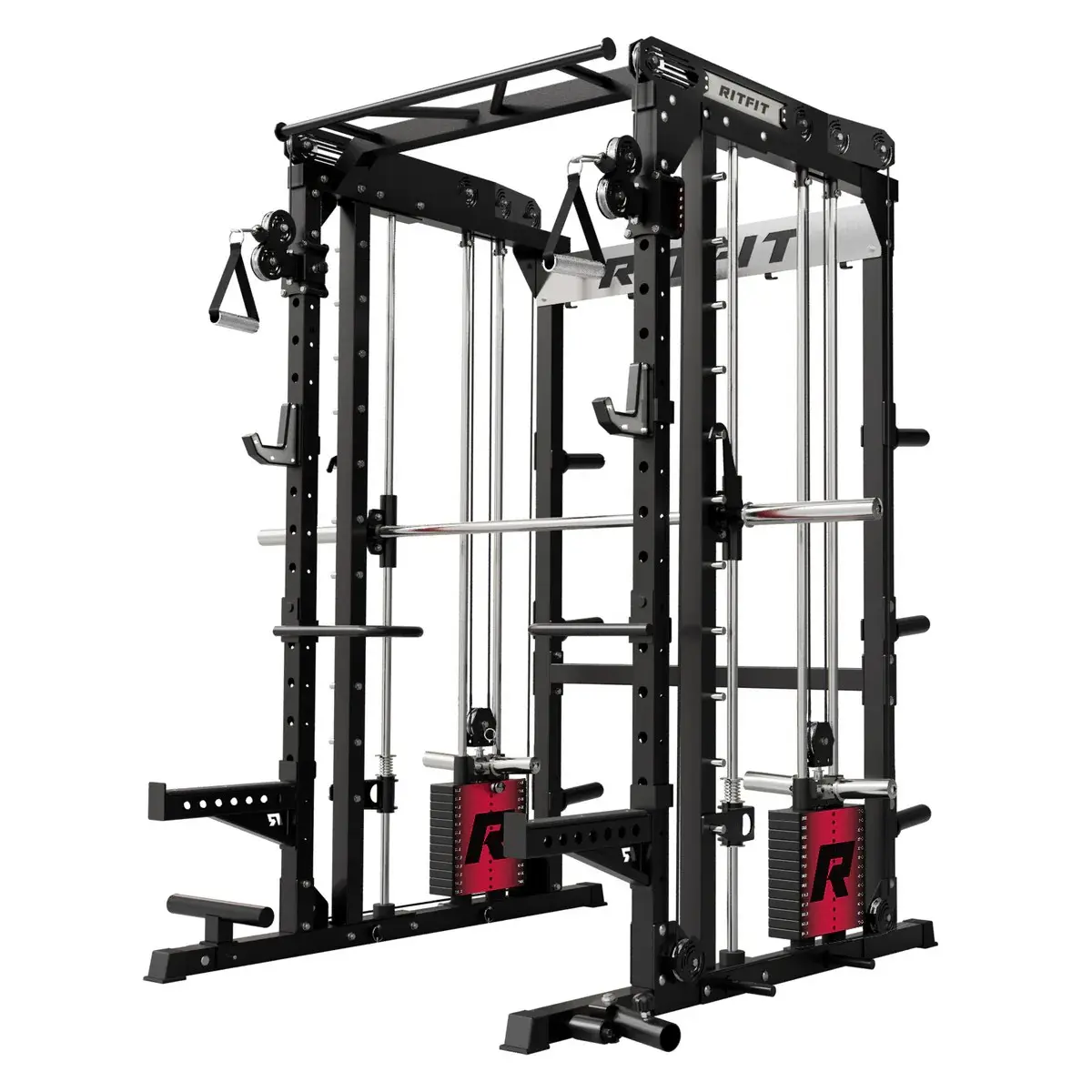

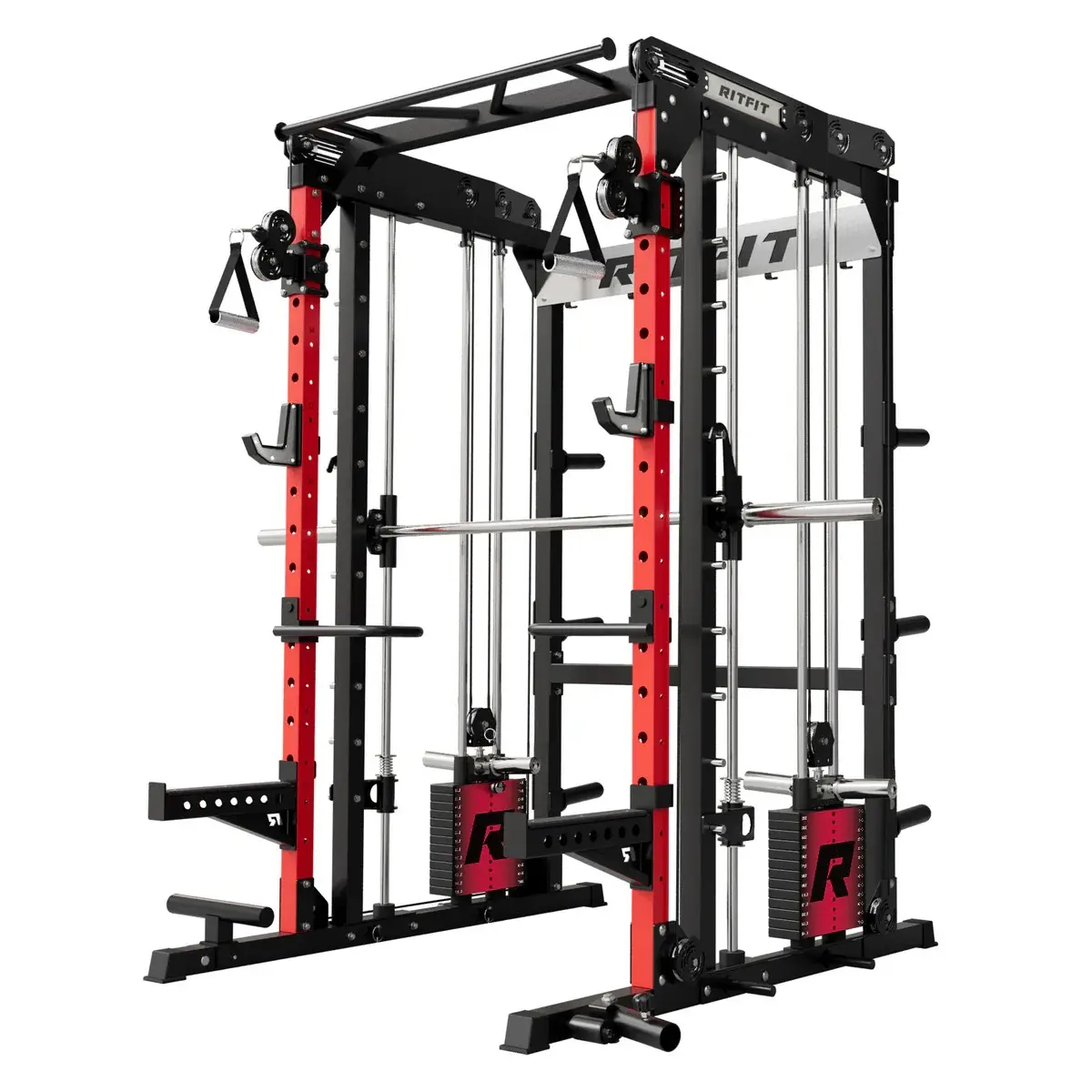

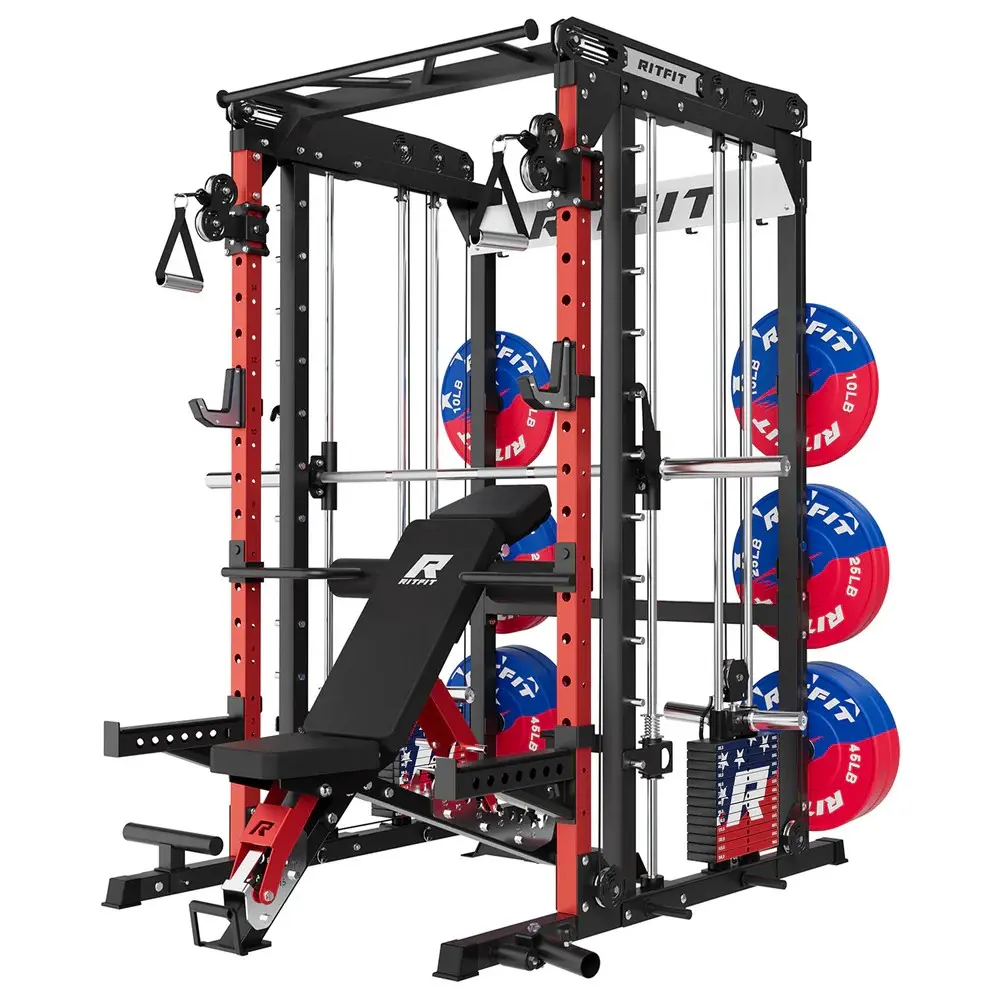

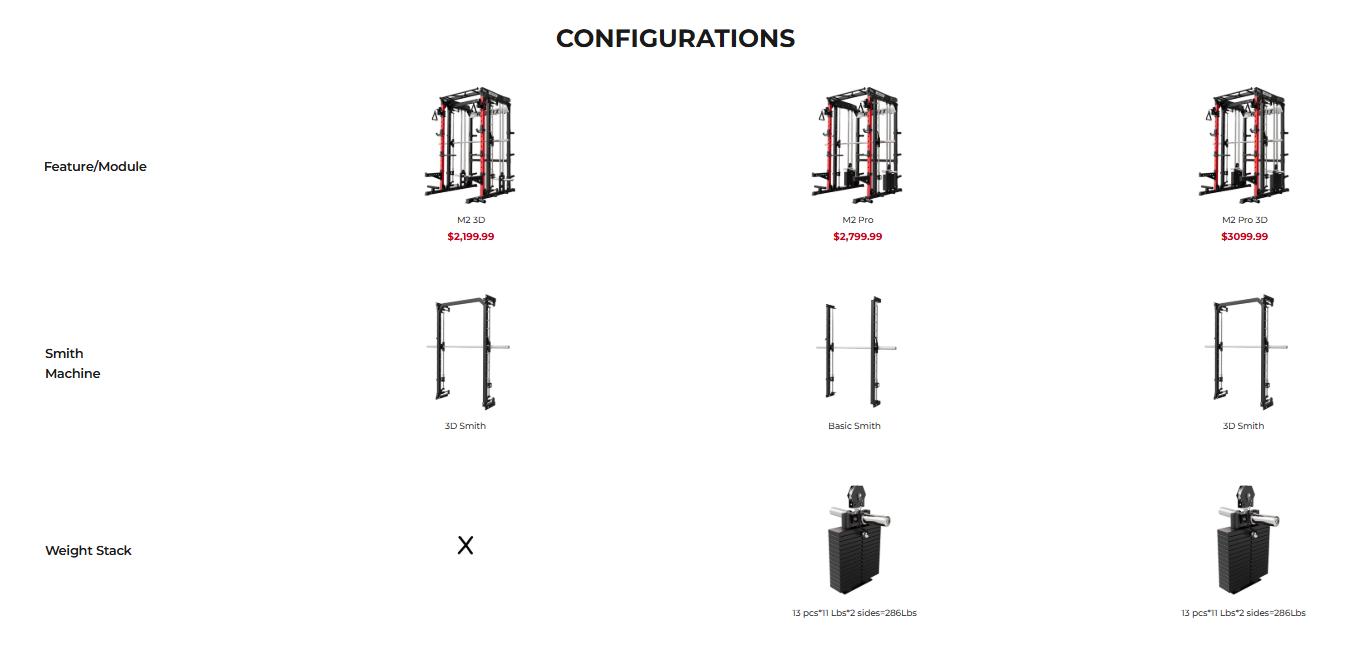

With the RitFit M2, you’re never stuck with equipment you’ll outgrow. Choose from four configurations: M2 (Rack + Basic Smith)(No Longer Available), M2-3D (Rack + 3D Smith), M2 Pro (Weight Stack + Basic Smith), and M2 Pro-3D (Weight Stack + 3D Smith). This flexible selection ensures you get the exact features and functionality you need for your personal workout style.

All Your Workout Needs, One Compact Solution

The M2 isn’t just a Smith Machine. It’s a complete home gym. You get a Smith machine, power rack, cable crossover, pull-up station, low row, and landmine, all in one. This means you can target every muscle group and perform hundreds of exercises without needing extra equipment. You’ll save space, money, and time, all while keeping your workouts fresh and effective.

Natural Movement, Better Results

Unlike traditional Smith machines, the M2’s unique 3D movement technology lets you move naturally, both vertically and horizontally, enabling more natural, multi-directional exercises that closely mimic real-life motions. This helps you build real-world strength, avoid injuries, and get more from every workout.

No More Wasting Time Changing Weights

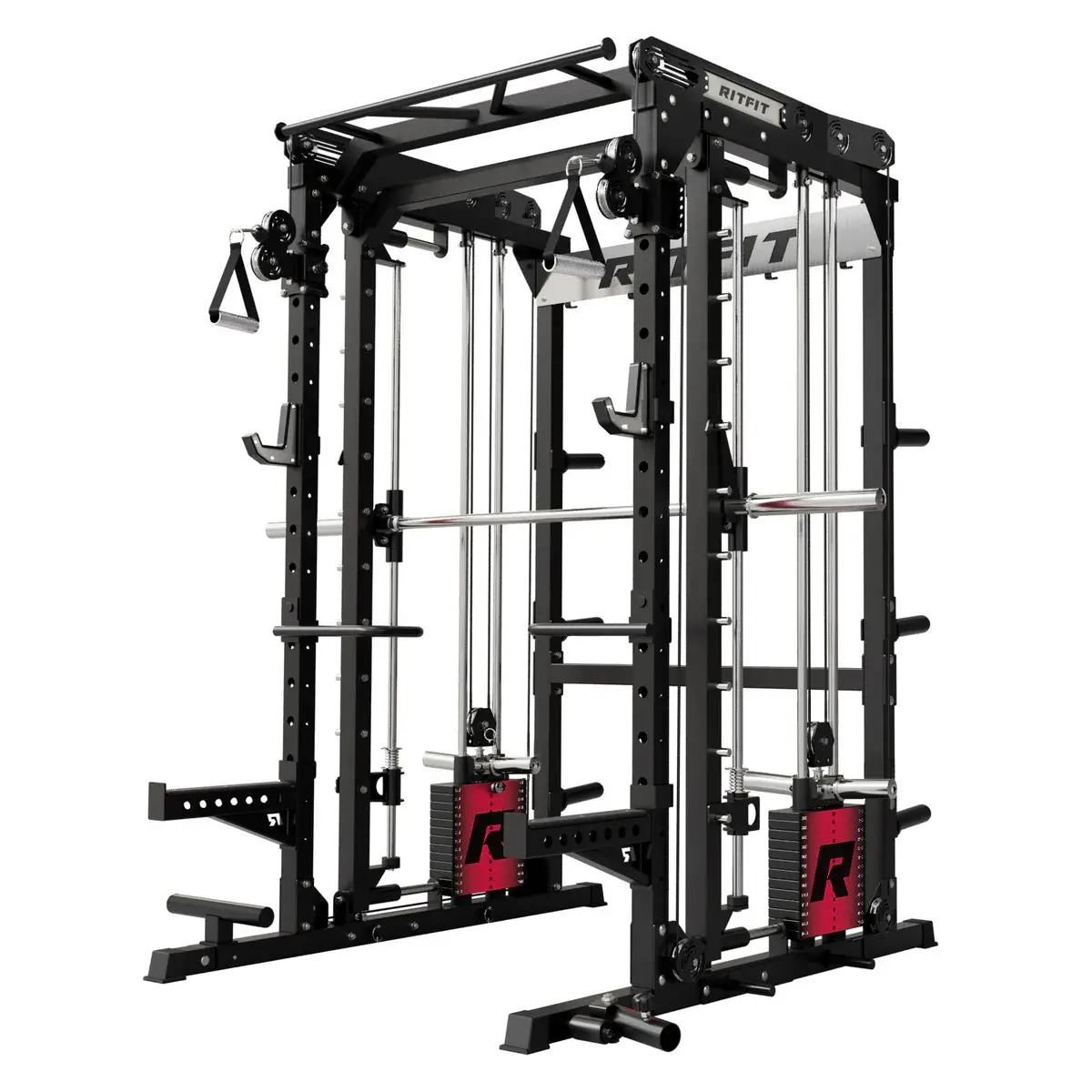

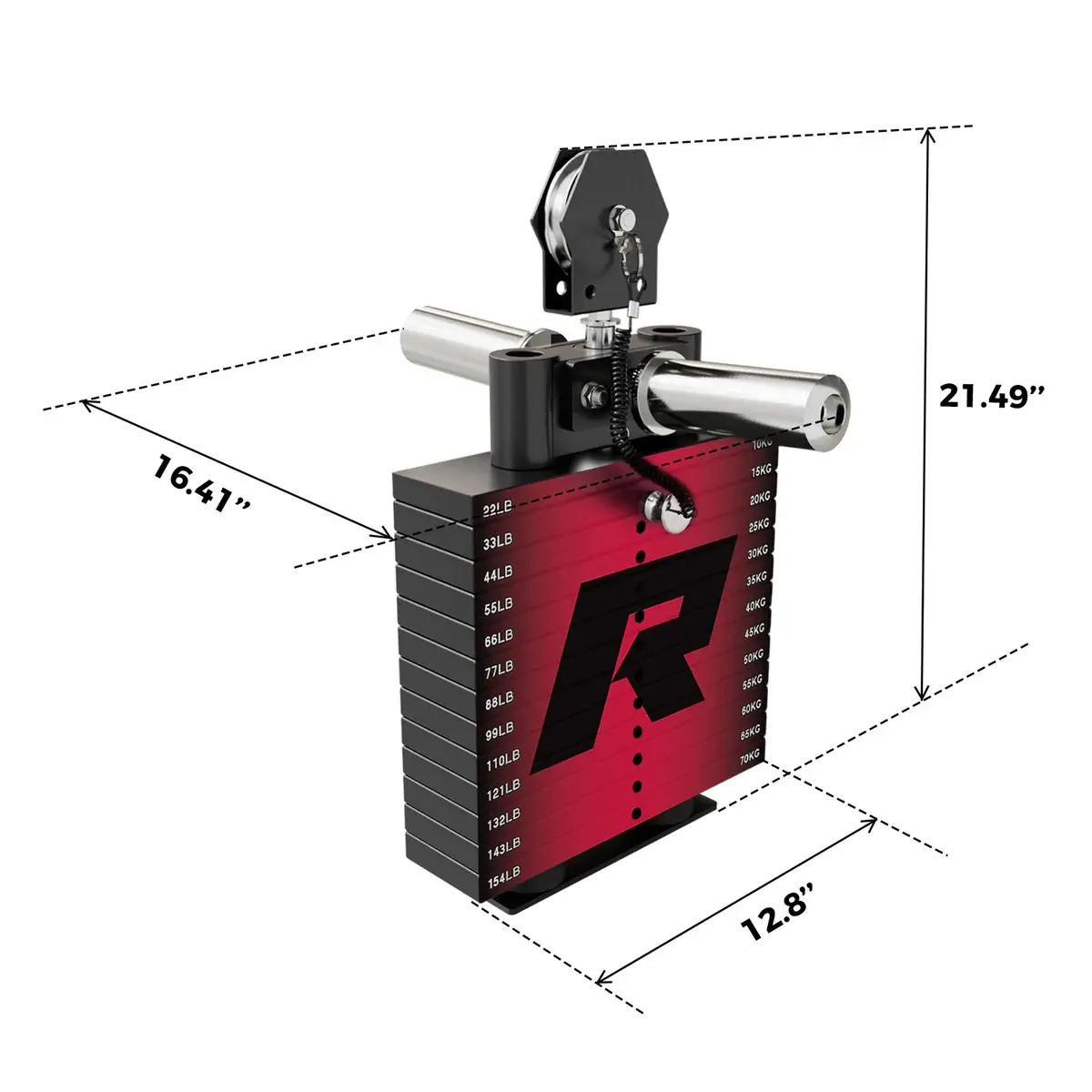

The M2 Pro and Pro-3D versions include dual 143lbs weight stacks (13 plates per side, 11lbs each). With easy selector pins, you can change resistance instantly, no more fumbling with plates. You’ll move quickly between exercises, keep your heart rate up, and stay focused on your workout. It’s perfect for fast-paced training, drop sets, and sharing your gym with family.

Custom Fit for All Body Types

Everyone is different, so the M2 features 16 adjustment holes on both main and fly slider uprights (a huge upgrade from the M1 PRO). This means you can set the bar and pulleys to fit your height and exercise. You’ll get better form, safer workouts, and more effective results.

High Storage Capacity for an Organized Space

Keeping your space tidy is easy. With six storage pegs and four accessory hooks, all your plates and attachments have a place. Your gym stays organized, motivating, and ready to use, no more tripping over equipment or wasting time searching for gear.
