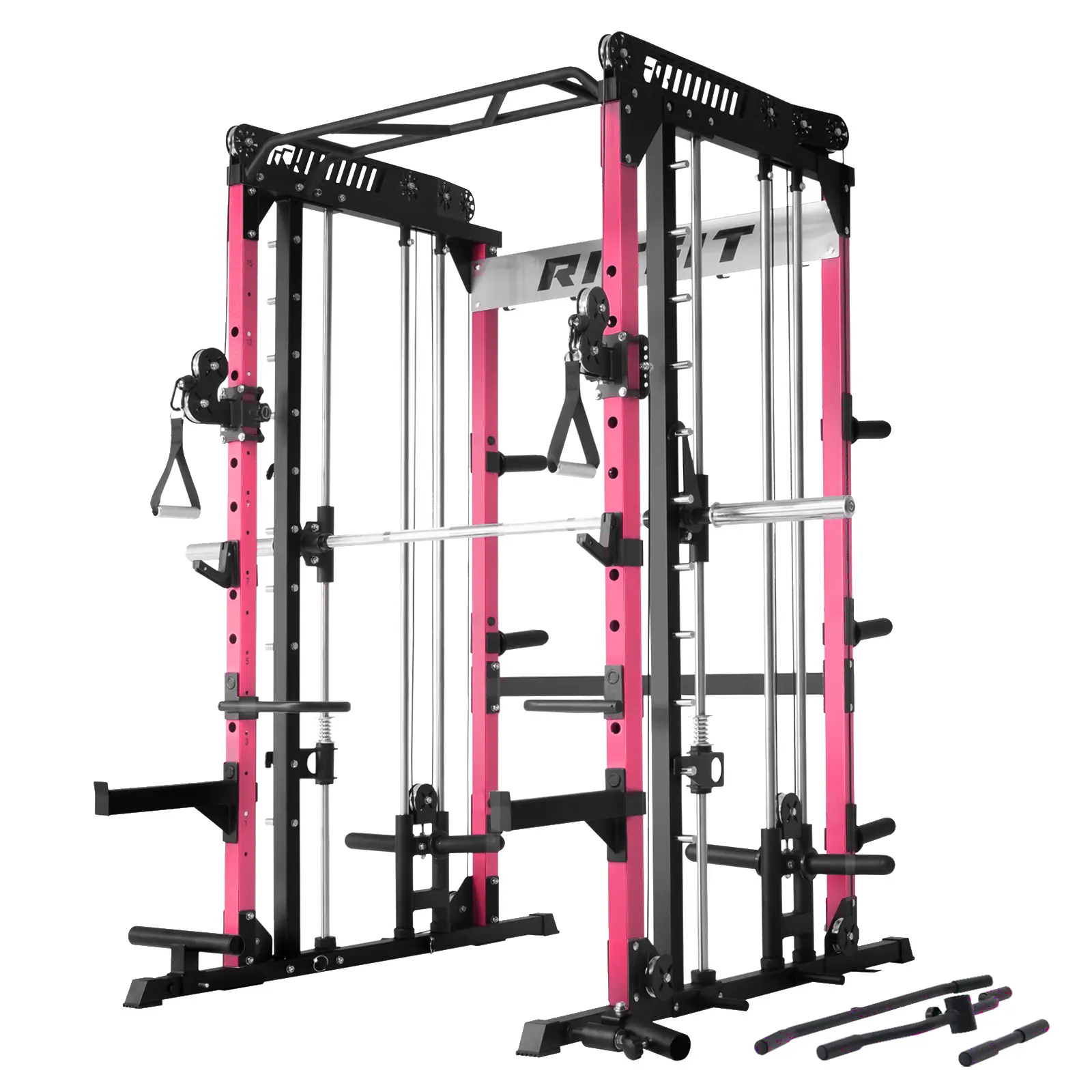

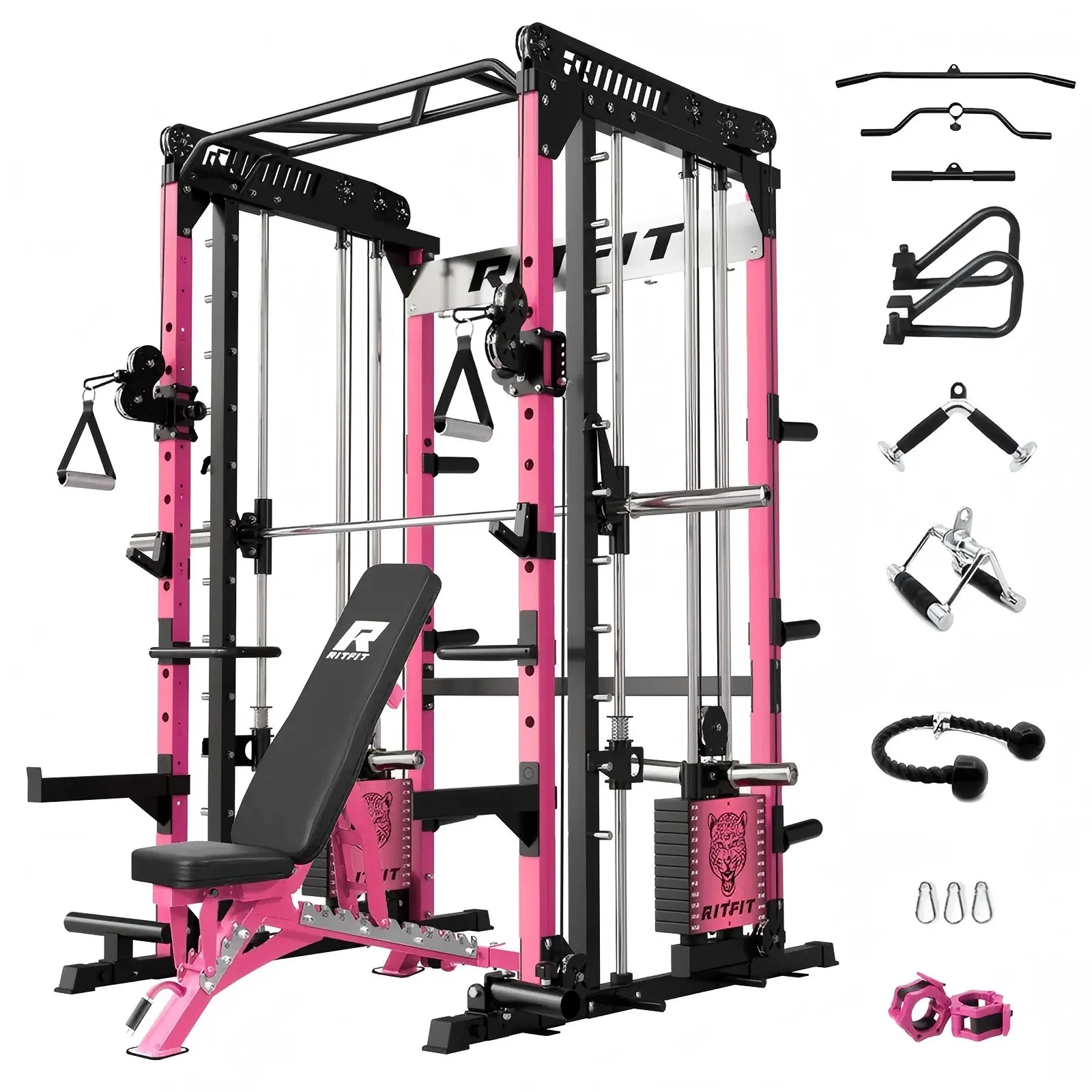

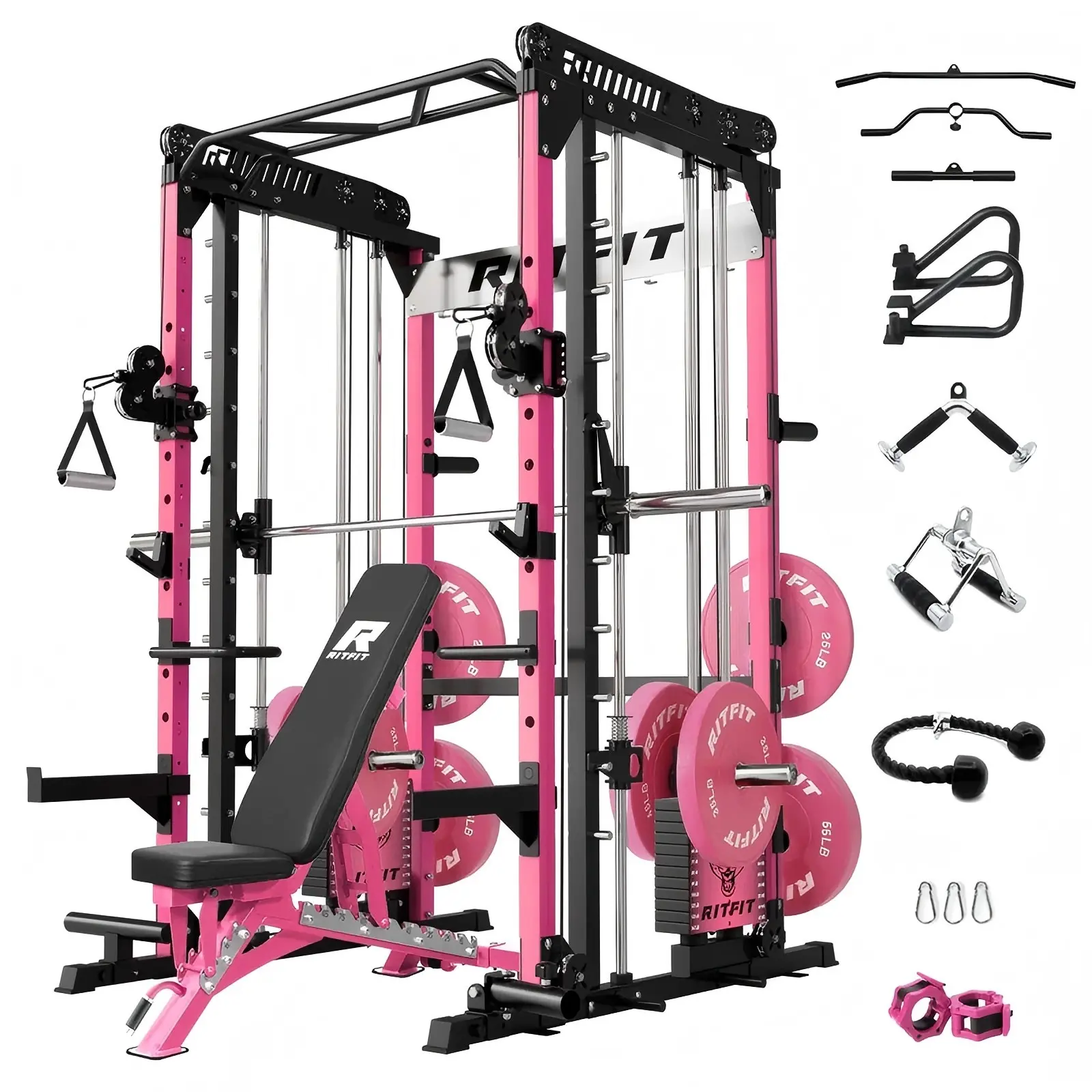

GENERAL INFO

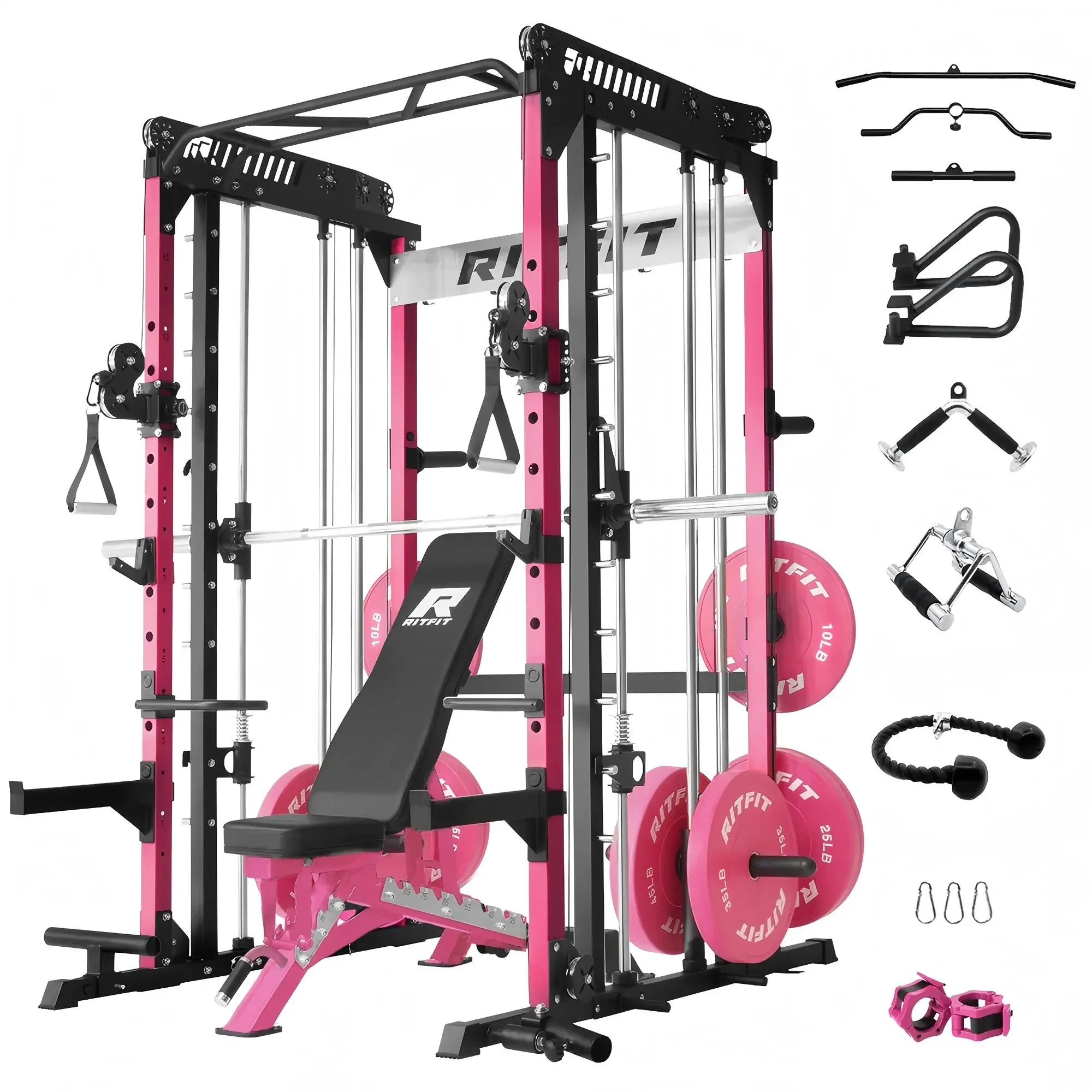

·Product Model: M1 PRO

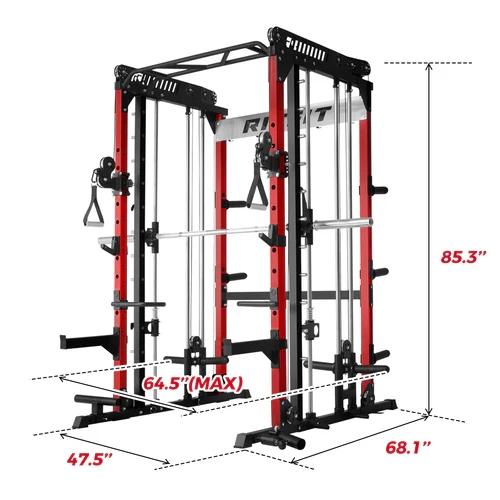

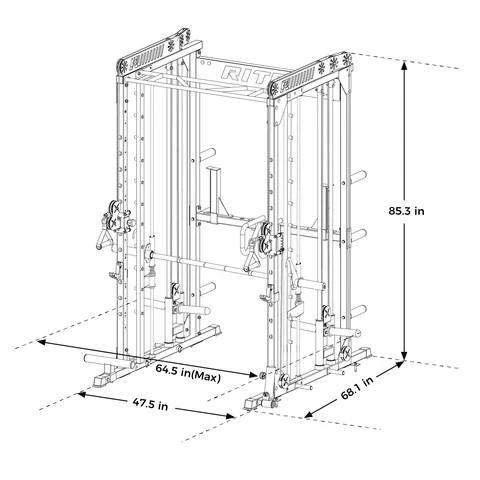

·Rack Height (Includes Pull-up Bar): 85.3″
·Rack Length (Includes Smith Bar): 79.1″
·Rack Width: 68.1″
·Foot Print (Soft): 20.9 sq ft
·Rack Weight: 339 lbs
·Rack Material: 2″×2″ 14-Gauge Steel
UPRIGHTS & FRAME
·Upright Material: 2″×2″ Steel

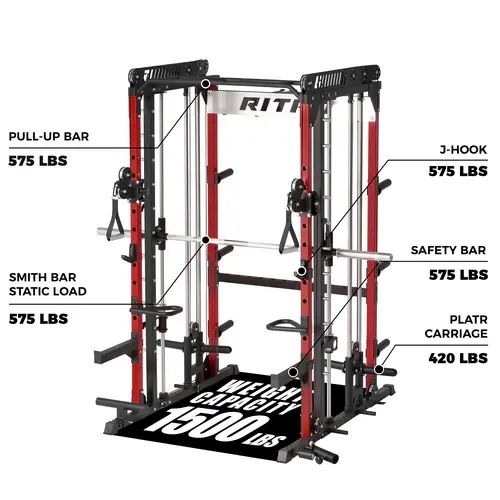

·Frame Capacity: 1,600 lbs
·Upright Hole Size: 1″
·Upright Hole Spacing: 4.33″
·Number of 1" holes per side: 12
·Number of Holes for Cable System Adjustments: 15
·Fly Attachment Hole Size: 0.39″
·Pull-up Bar Load Capacity: 465 lbs
SMITH MACHINE
·Smith Capacity: 352 lbs
·Smith Bar Weight: 33 lbs
·Basic Smith Machine Adjustable Positions: 11 Height Settings
·Smith Attachment: Linear-Bearing Smith Bar System
·3D Smith Machine Adjustable Positions: ×
·Adjustable Settings for the Smith Machine: 11
CABLE & PULLEY SYSTEM
·Pulley Ratio: 2:1
·High Pulley Ratio: 2:1
·Low Pulley Ratio: 2:1
·Single-Side Pulley Load Capacity: 420 lbs
·Cable System Rail Material: Stainless Steel
·Pulley Material: Aluminum

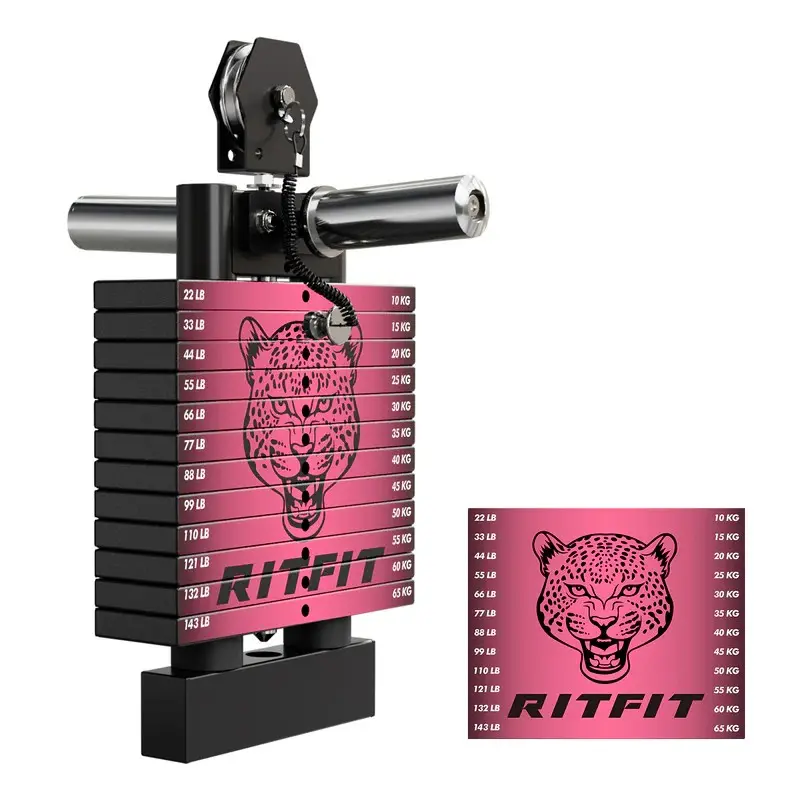

·Total Weight Stack lbs / Optional Add-on: 264 lbs
·Weight Carriage Capacity (No Weight Stack): 420 lbs
·Weight Carriage Capacity (With Weight Stack): 308 lbs
·Carriage Weight Horn Length (One Side,No Weight Stack): 8.66″(220 mm)
·Carriage Weight Horn Length (One Side,With Weight Stack): 5.51″(140 mm)
J-HOOKS & SPOTTER ARMS
·Single-Side J-Hook Load Capacity: 287 lbs
·Safety Arm Capacity: 575 lbs
PLATES & STORAGE
·Number of Plate Storage Bars: 6 Bars
·Weight Plate Storage Bar Diameter: 2″ Hole Plates Compatible
·Suitable for Both 2" and 1" Hole Plates: Yes
·Weight Plate Storage Bar Capacity: 280 lbs each

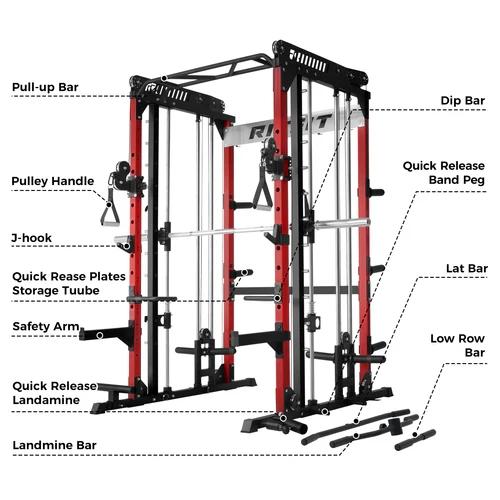

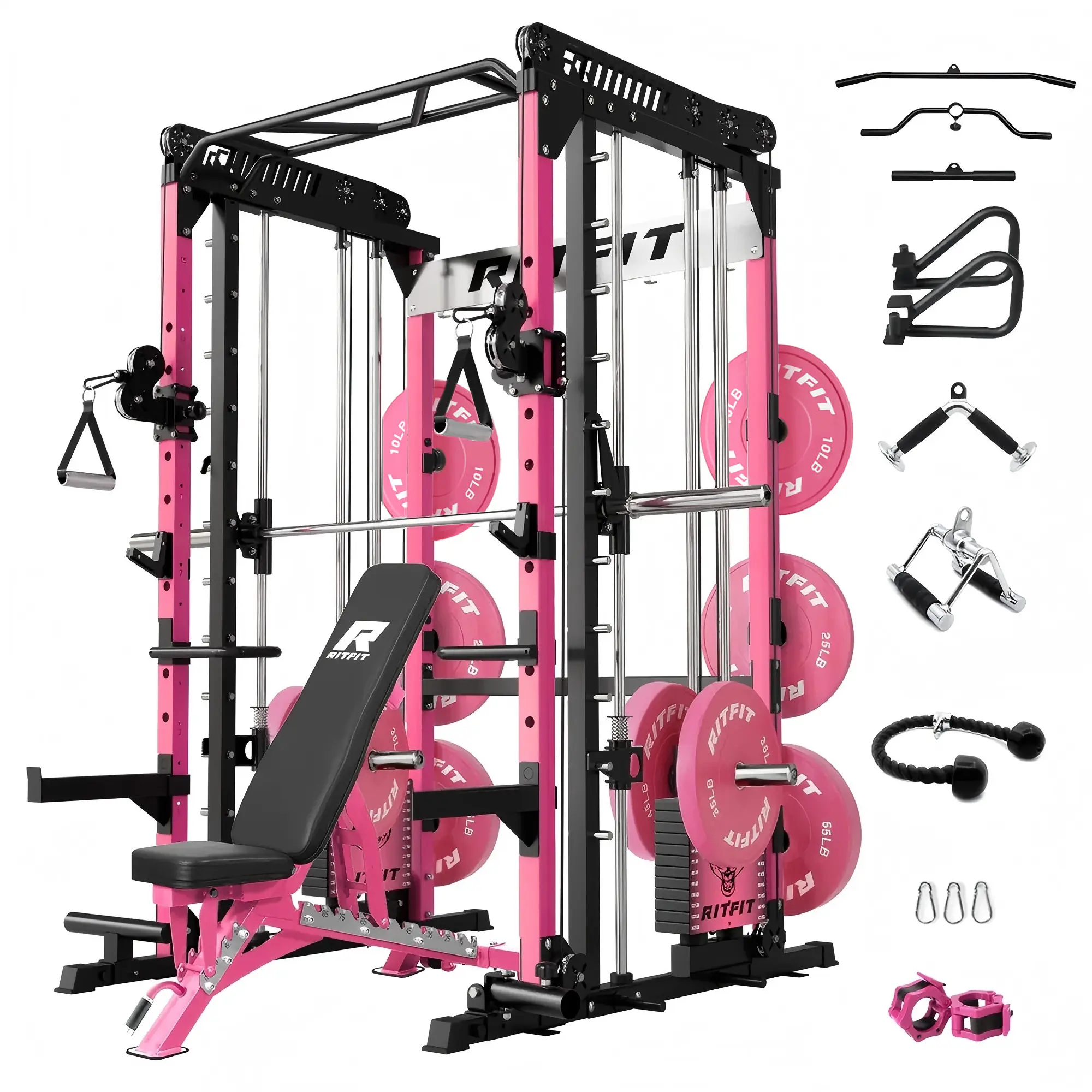

ATTACHMENTS & ACCESSORIES

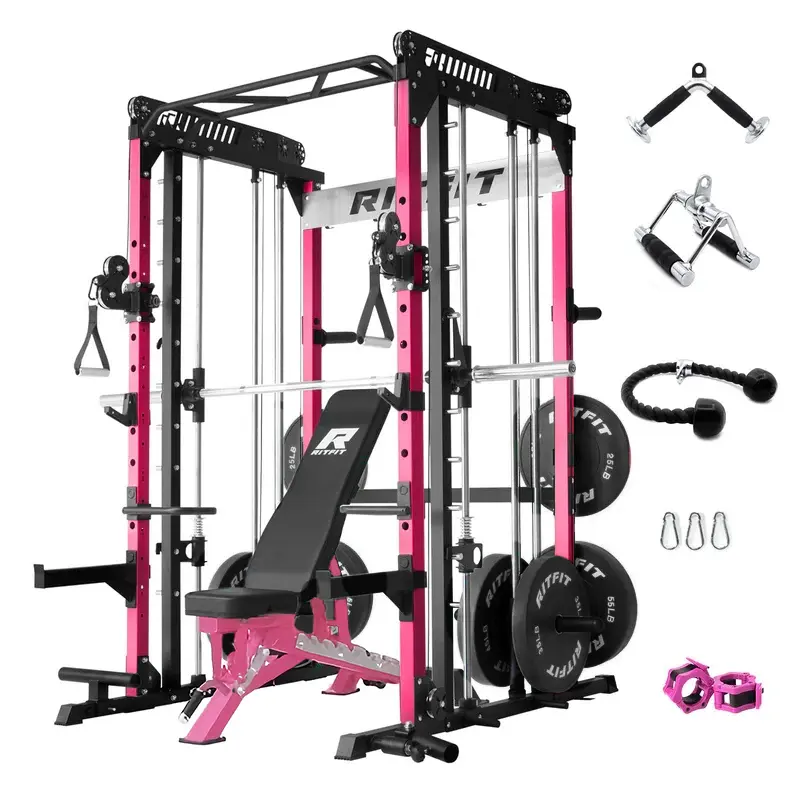

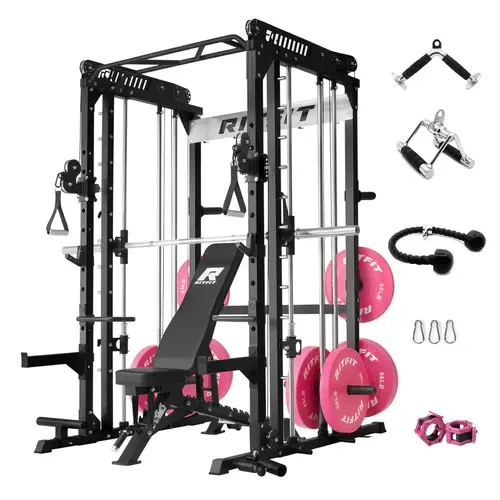

·Included Attachments / Accessories: WSM1, AT03, AT02A, AT04

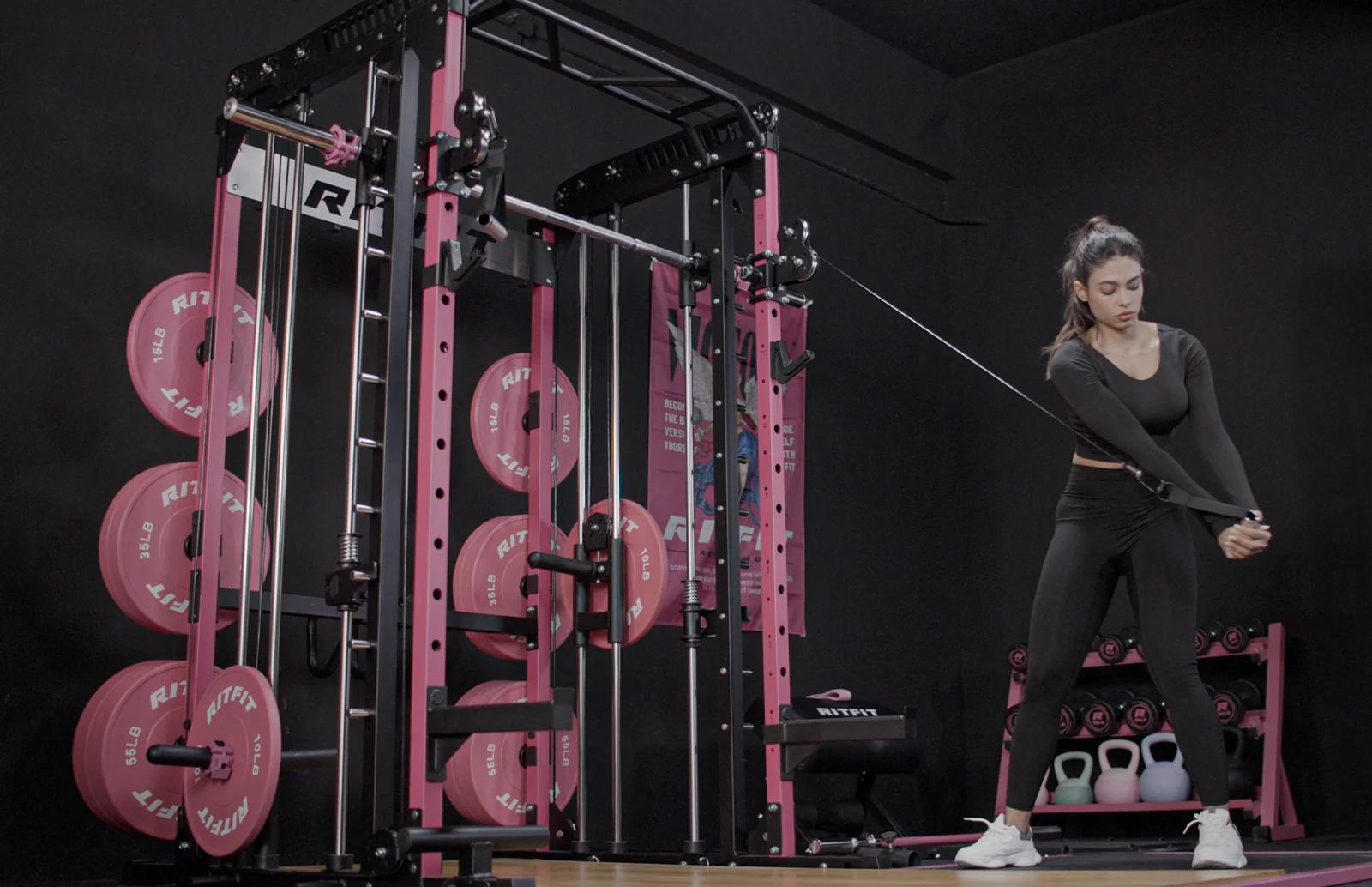

Smooth Cable Crossover System
Benefit from the power rack cable crossover system with 15 adjustable positions and a 2:1 pulley ratio. The dual slide rail structure, combined with stainless steel composite material and high-strength steel wires, ensures smooth and durable operation. Perfect for exercises like low crossover, high crossover, chest press, mid row, lat pushdown, and overhead triceps extension.

Professional Smith Attachment System
The M1 Smith system features a linear bearing design with professional spring protection, ensuring a smooth and secure lifting experience. With a high weight capacity of up to 1500 lbs and 11 adjustable height settings, perfect for heavy lifting and various strength training exercises.

Maximize Pull-Up Performance
The M1 Smith Machine's pull-up bar features an ergonomic 1.1 inches diameter for a comfortable grip. Its 2.36 inches upward bend enhances height, ensuring a smooth pull-up experience. With multiple grip positions, this pull-up bar offers excellent versatility for diversifying your workout routines. Perfect for both beginners and seasoned fitness enthusiasts, it helps maximize your training potential.

Enhanced Flexibility and Safety
The M1 Smith Machine features 12 large adjustable holes on the uprights, allowing for easy customization of J-hooks, safety bars, and dip bars. This innovative design provides flexibility and ensures safety and stability during various strength training routines and home workouts. Perfect for both beginners and experienced lifters, the M1 Smith Machine helps you tailor your fitness experience to achieve your goals more effectively.

Powerful Storage System
The M1 Smith Machine features an innovative advanced storage system designed for efficiency and organization in your home gym. This system includes 4 top rear hooks for hanging accessories, an Olympic bar storage hook that accommodates up to 3 Olympic bars, a robust central crossbeam, and 6 weight plate holders for easy access and storage. This thoughtful design maximizes space utilization, ensuring your exercise area is always neat, organized, and clutter-free.
