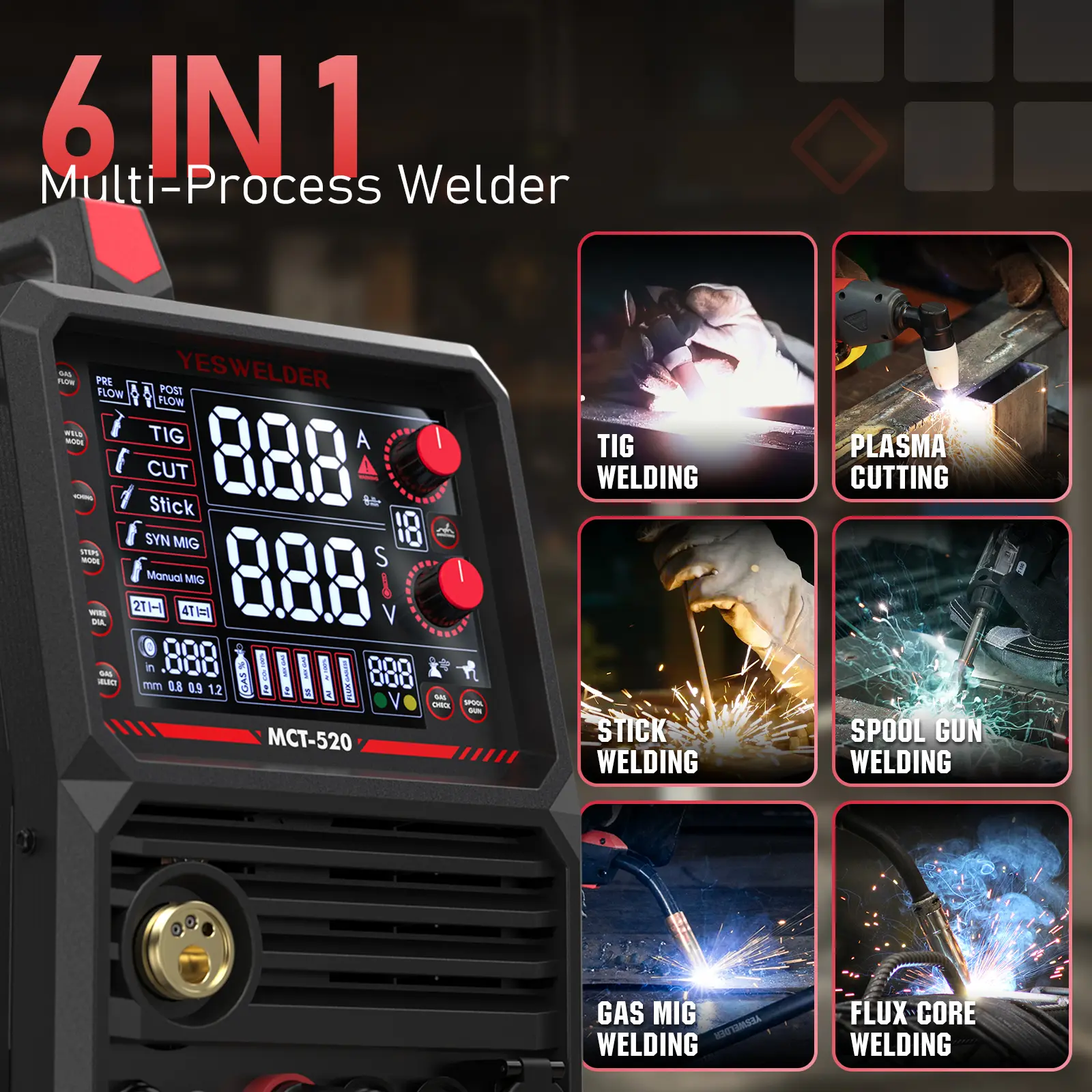

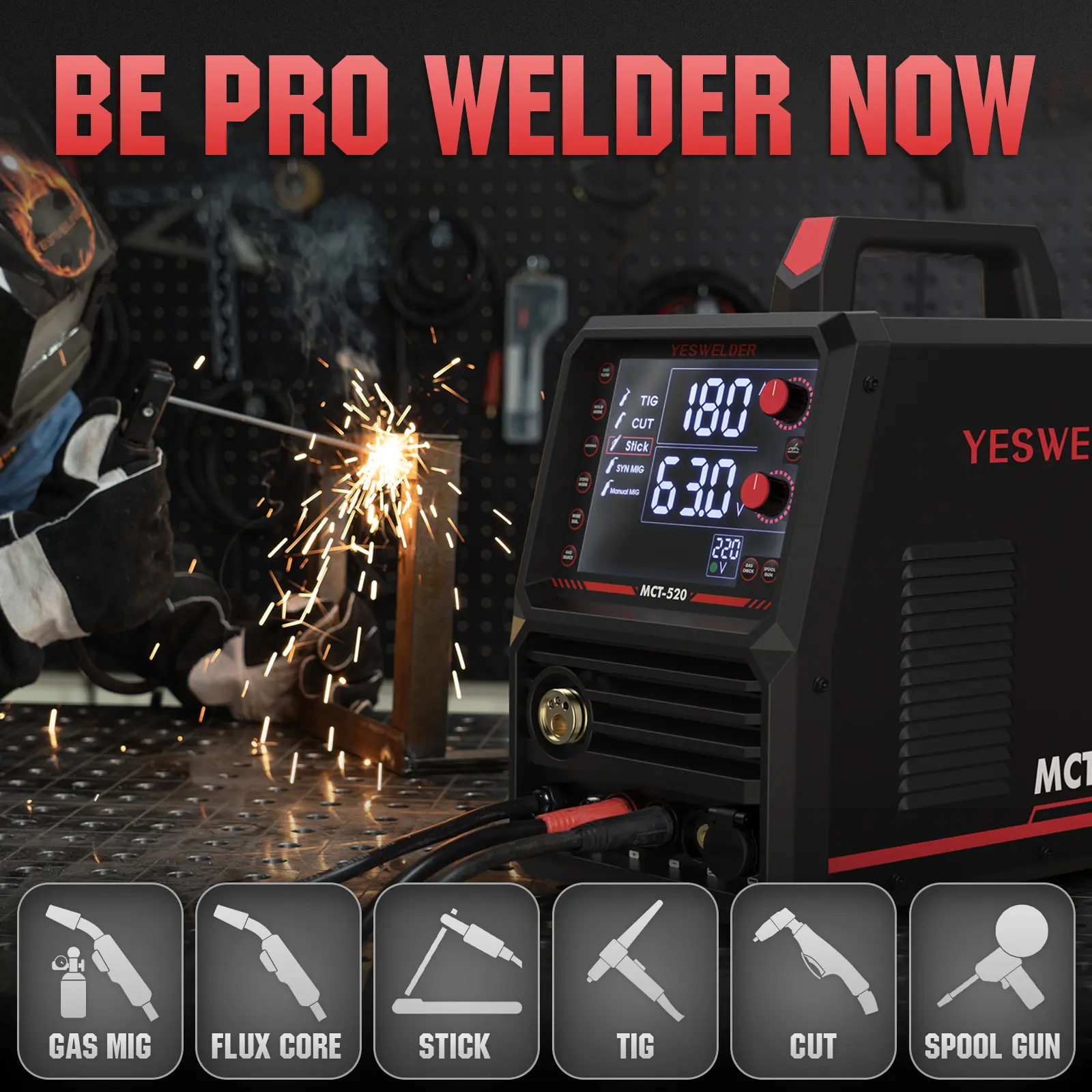

VERSATILE 6-IN-1 FUNCTIONALITY
·A professional-grade machine combining Synergic MIG, Manual MIG, Flux-Core, Spool Gun Aluminum MIG, HF TIG, Stick, and Plasma Cutting.
·Designed to handle a wide range of metal fabrication and repair tasks in a single compact unit.
Notice: LBT150 aluminum spool gun is sold separately.

SMART MIG OPERATION
·Synergic MIG Mode: Automatically matches voltage based on selected wire feed speed for simplified setup and consistent weld quality.
·Manual MIG Mode: Enables independent control of voltage and wire speed for fine-tuned performance.
·Spool Gun Ready: One-button activation for aluminum welding with auto-switch to Manual MIG mode.
·Wire Compatibility: Fe/SS - 0.8mm, 0.9mm; Aluminum - 0.9mm, 1.2mm.
·Gas Options: Supports 100% Argon for aluminum, 100% CO₂ for carbon steel, and mixed shielding gases for carbon steel and stainless steel, flux-cored (gasless) wires for carbon steel.

PRECISE TIG WELDING
·HF TIG enables non-contact arc initiation, improving weld start quality and minimizing tungsten contamination.
·Supports foot pedal control for both switch activation and amperage adjustment.
·Designed for DC TIG applications on stainless steel and carbon steel.
Notice: This welder cannot TIG weld aluminum. The foot pedal is sold separately.

POWERFUL HF CUT
·20-50A output cuts up to 5/8" (16mm) at 220V or 1/2" (12mm) at 110V.
·Equipped with high-frequency contact arc starting, it effortlessly slices through rough, painted, and rusty surfaces with minimal slag by using safe compressed air.
·Air Flow Control: Adjustable pre-gas and post-gas times to extend consumable life and improve cut quality.
·Works on stainless steel, alloy steel, carbon steel, copper, and aluminum.

STICK WELDING ENHANCEMENT
Optimized for stable and reliable stick welding performance, this machine includes the following pre-configured, non-adjustable features:
·Hot Start – Improves arc ignition by momentarily increasing current during start-up.
·Arc Force – Enhances arc stability, especially under low-voltage conditions.
·Anti-Stick – Automatically reduces current to prevent electrode sticking.
These features are factory-set and not user-adjustable, ensuring consistent operation without the need for manual tuning.

SPOOL GUN COMPATIBLE
Capable of welding aluminum by using 100% argon.
Recommend aluminum welding wire(1-lb): Silicon aluminum ER4043 and magnesium aluminum ER5356.

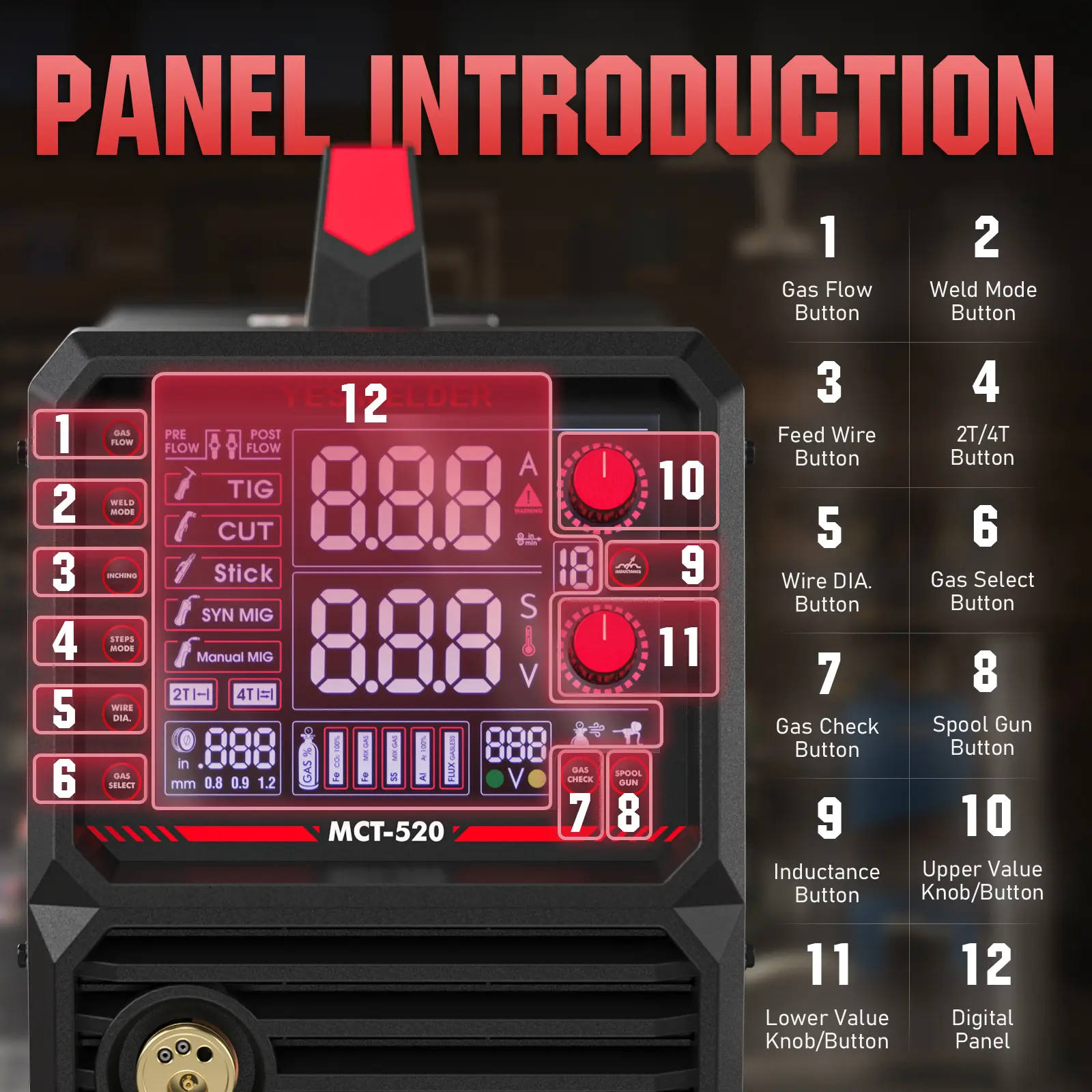

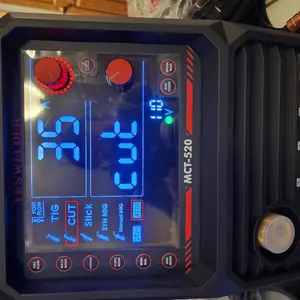

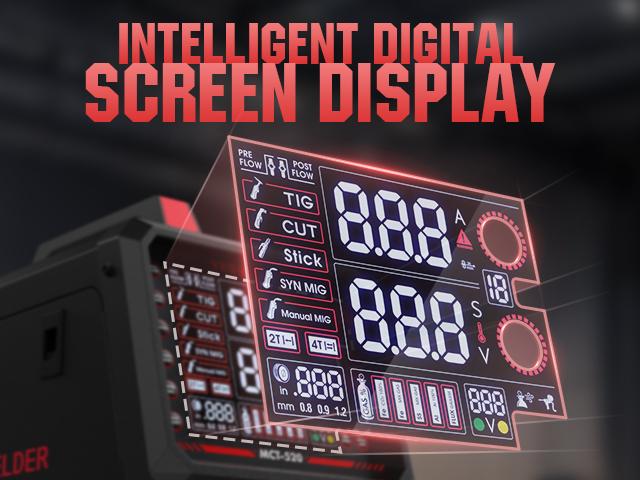

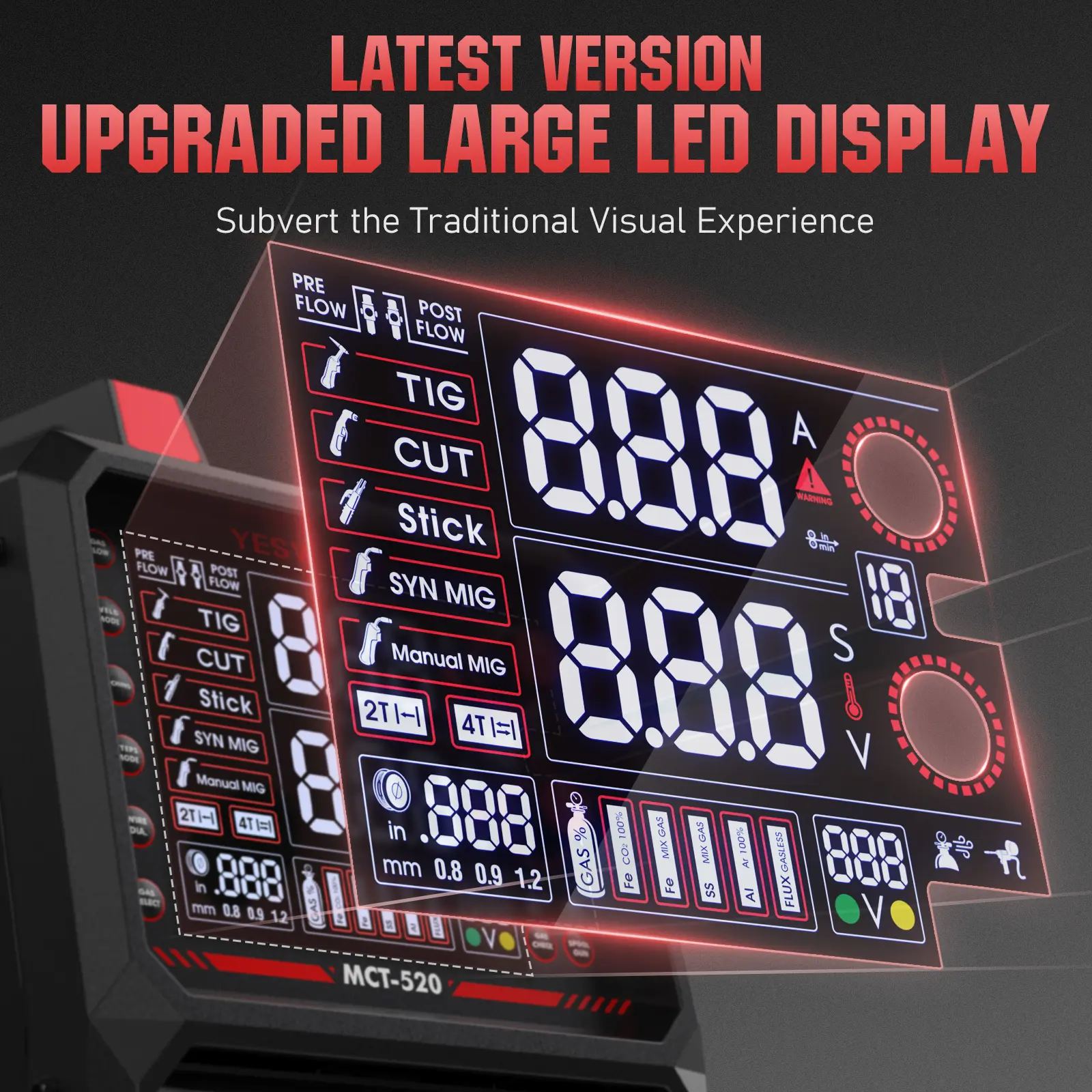

HIGH-PRECISION DIGITAL DISPLAY
·Featuring a high-resolution screen, it delivers crystal-clear visibility for real-time monitoring of welding/cutting parameters.
·The intuitive interface enables precise adjustments with instant feedback, ensuring optimal control over voltage, amperage, and speed, which is designed to streamline workflows.

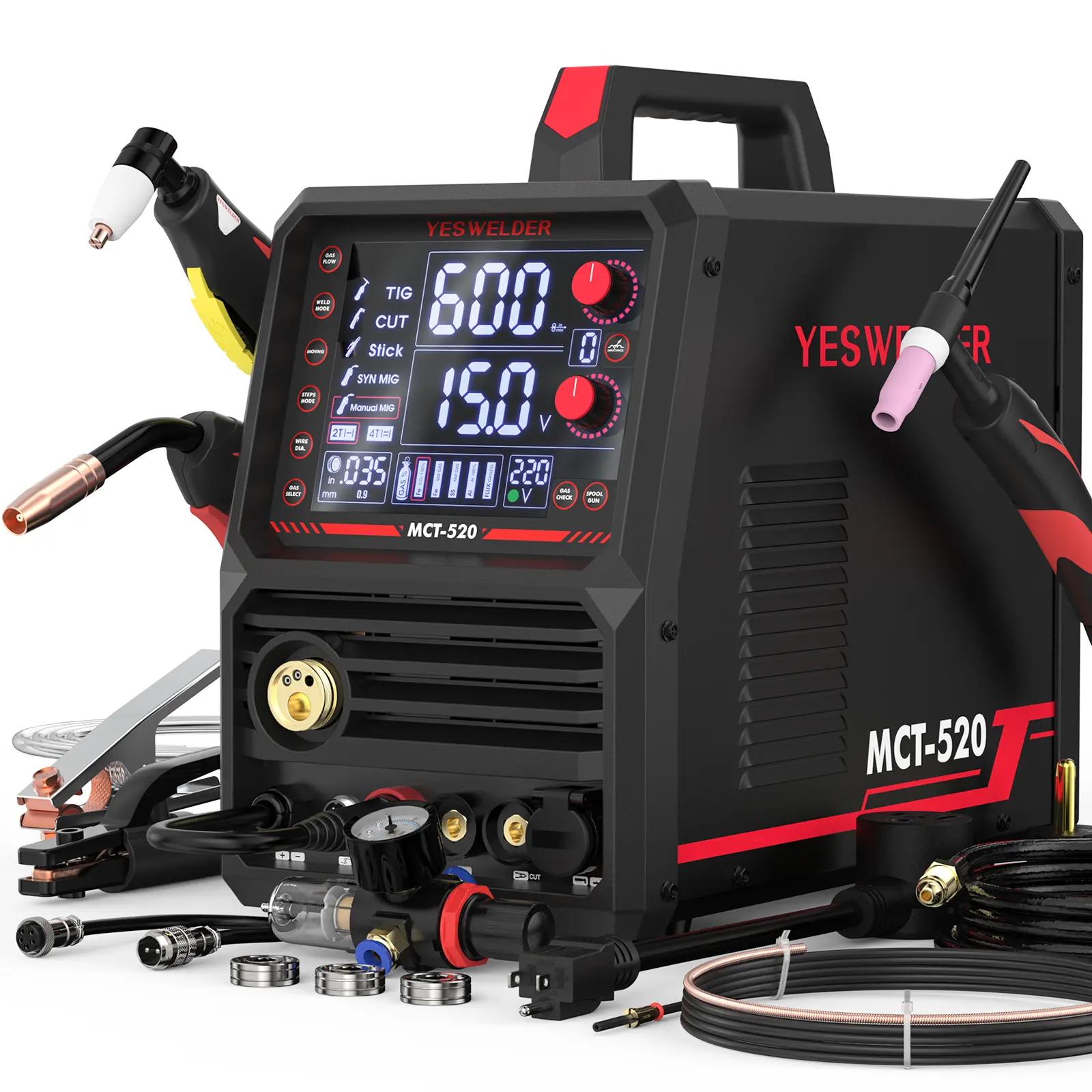

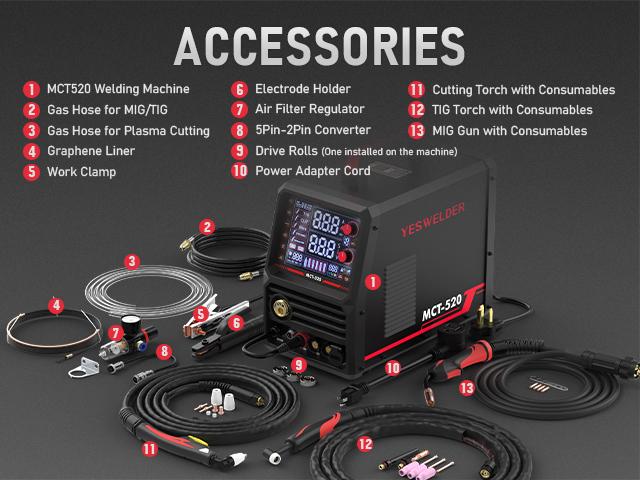

ACCESSORIES

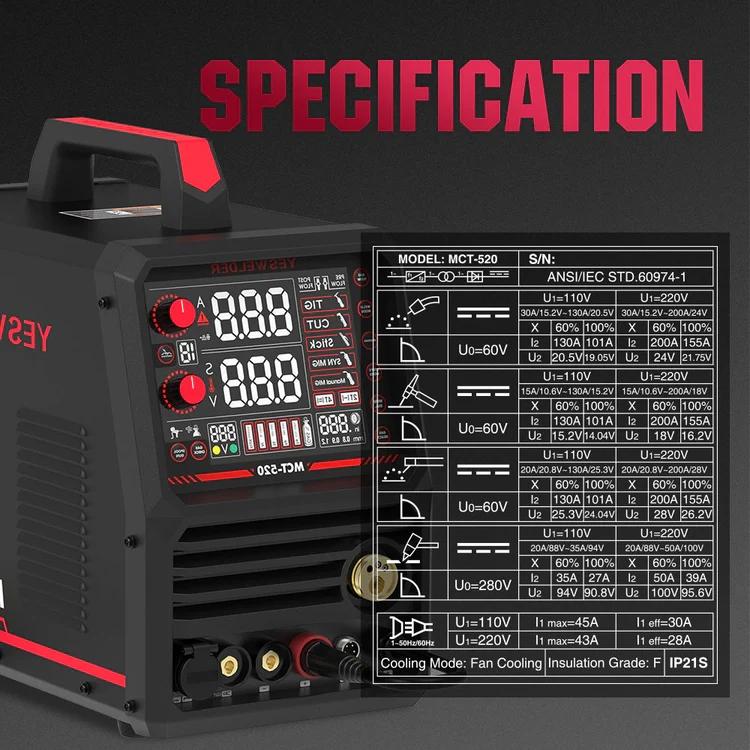

SPECIFICATIONS
·Product Weight: 47.3lb
·Product Dimensions: 19.75"*16.87"*15.62" Inches
·Input Voltage: 110V/220V, 50/60Hz
·Input Current: At least 30A
·Recommended Receptacle: NEMA 6-50@240V, NEMA 5-30@120V
·Welding Material: Carbon steel/Stainless steel/Aluminum
·Protection Class: IP21S
