NOTE
·WP-17V-10 lift TIG torch is NOT included and sold separately.
·This welder is NOT aluminum weldable.
·Arc welding rods and MIG welding wire are sold separately.
4-In-1 Welding Flexibility
·4-in-1 function: Gas MIG / gasless MIG / lift TIG (TIG Torch NOT Included) / stick.
·Allows for easy switching between different welding modes to meet various welding requirements.

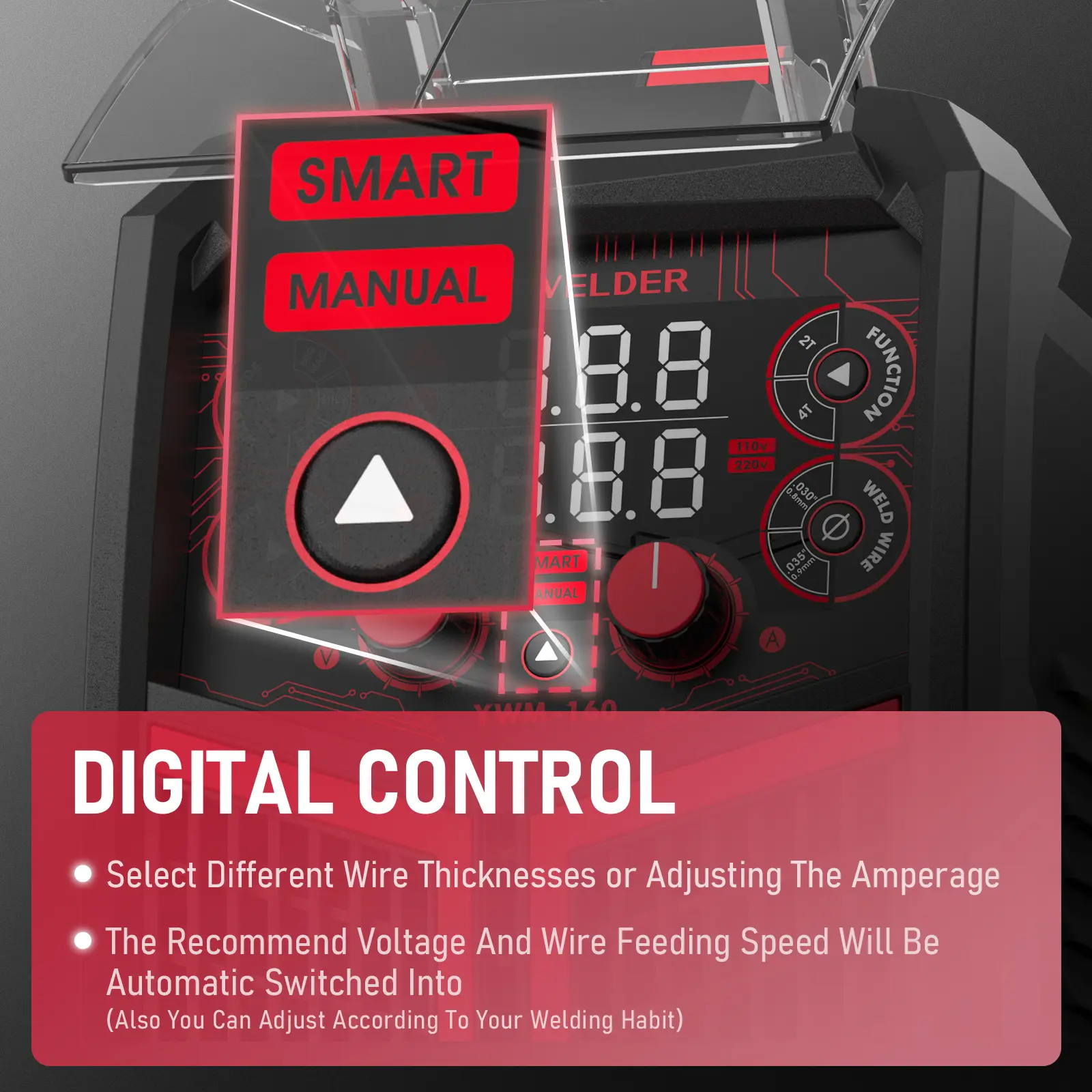

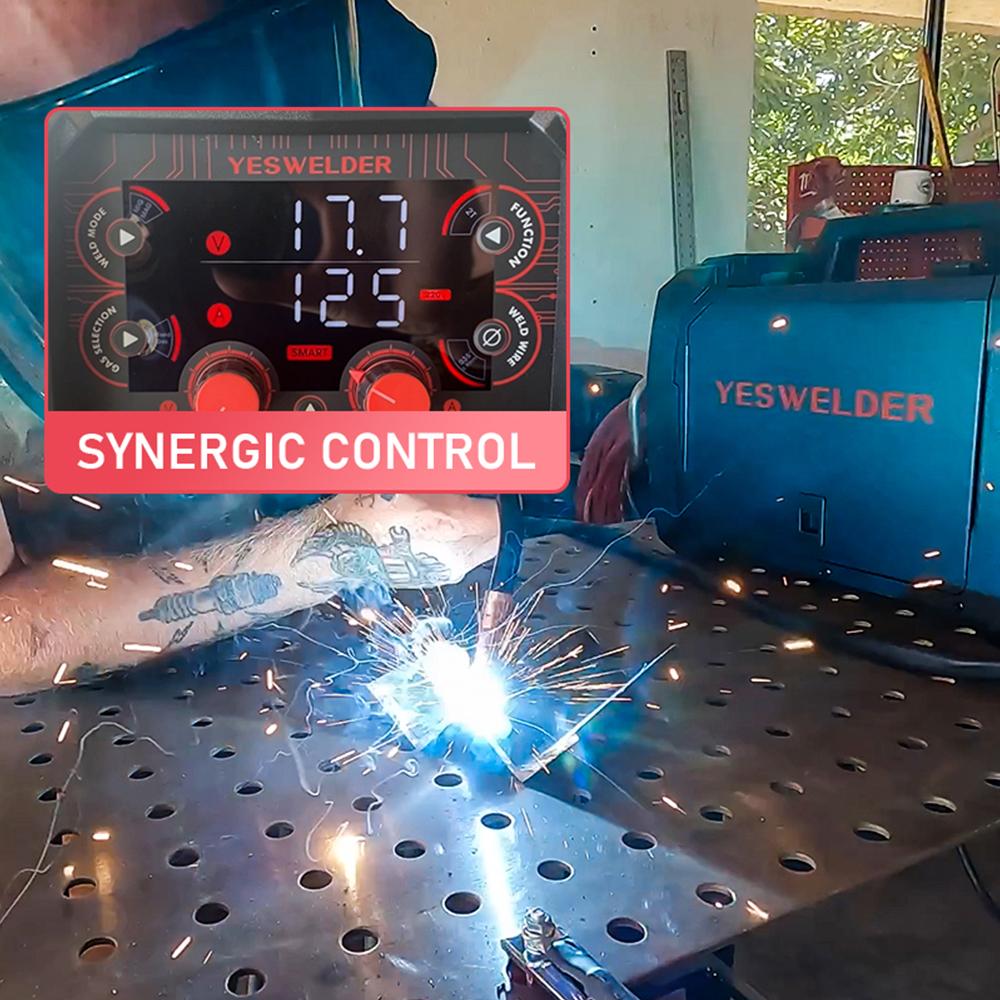

Smart MIG Operation
The synergic MIG setting makes welding easy with pre-set MIG machine settings.
·Simply choose the wire thickness and the desired gas, then set the amperage to match the recommended value for the material thickness indicated in the welding chart.
·Will automatically adjust the rest of the settings to achieve an ideal arc condition.
·Also allows for fine-tuning the auto-adjusted voltage to ±5V to personalize the settings for optimal results.

Manual MIG Setting
·Features a manual MIG setting, allowing experienced welders to customize wire feed speed and voltage on their preference.
·No limitations on wire thickness or shielding gas choice, providing flexibility for various applications.

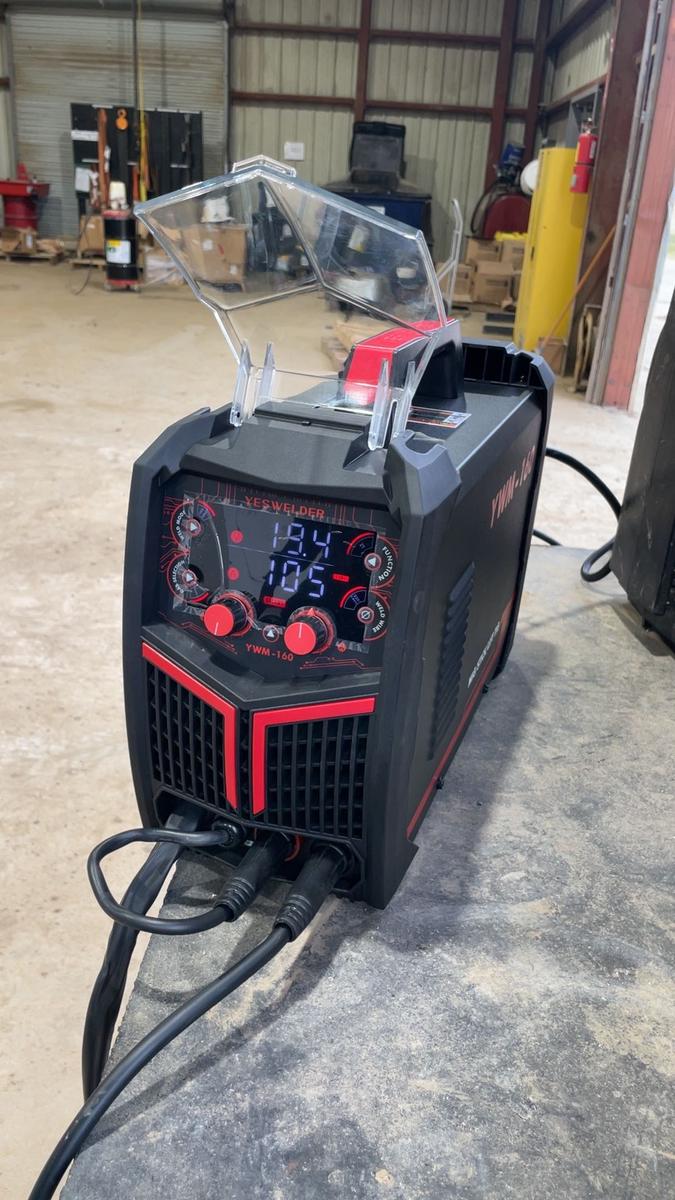

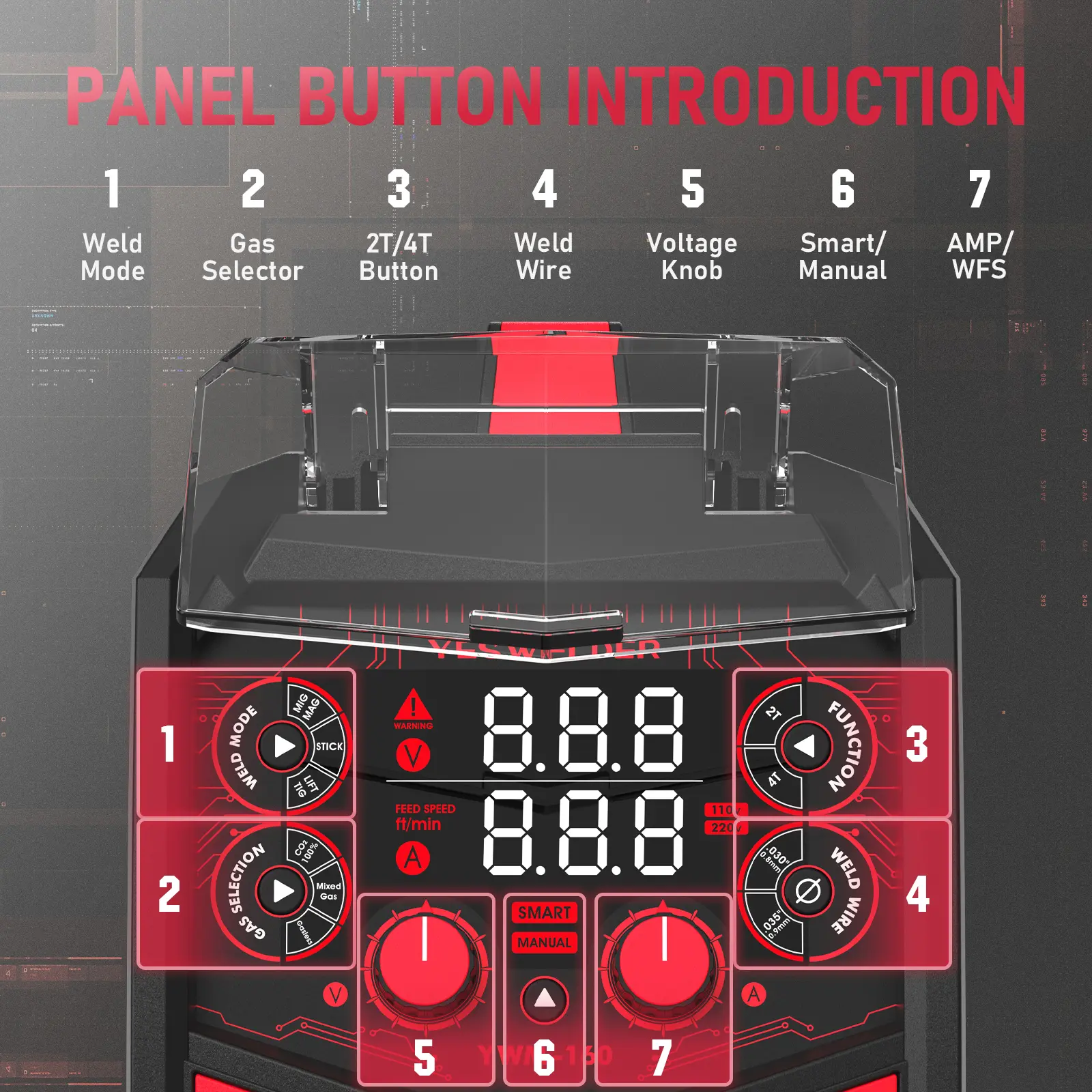

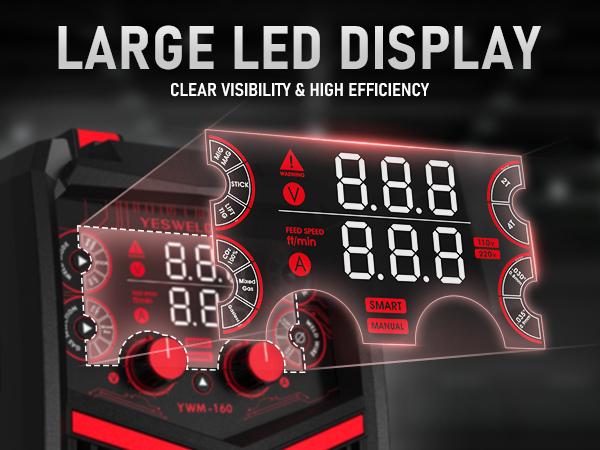

Super Digital Panel
·Comes with an intuitive and easy-to-use control panel, subverting the traditional visual experience.
·Visualizes the welding process and displays parameters such as shield gas, 2T/4T trigger preference, voltage, wire feed speed, and wire diameter.

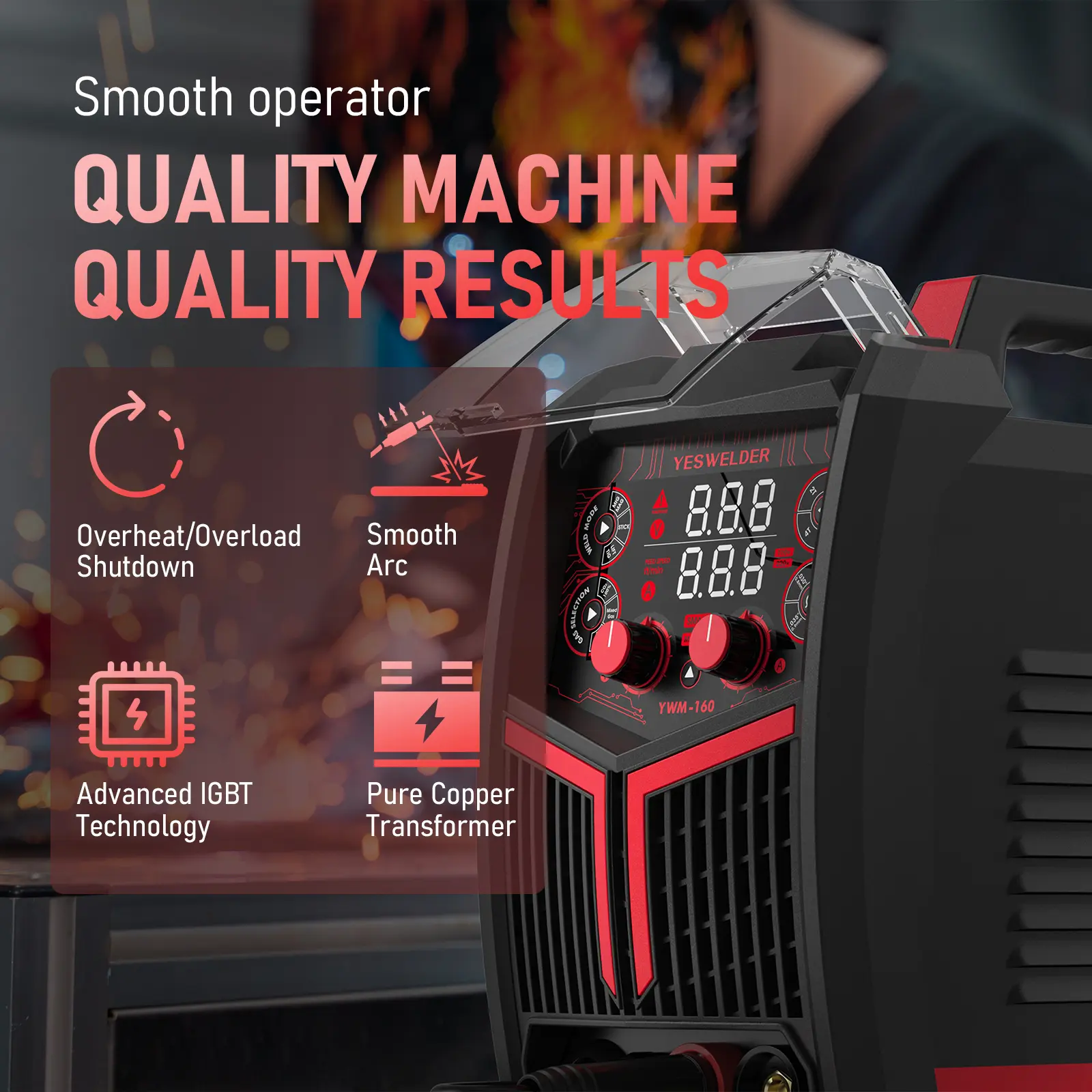

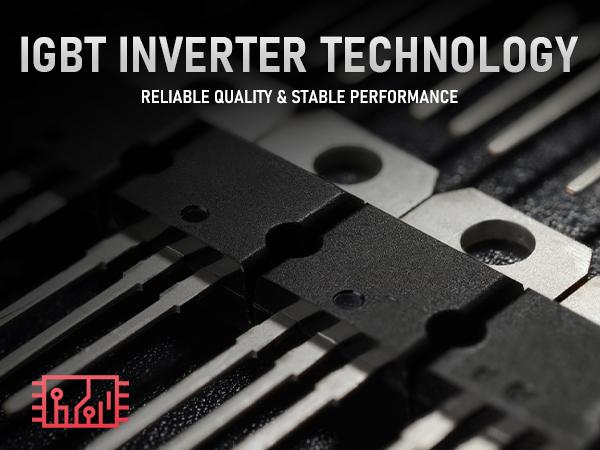

IGBT Inverter Technology
·Utilizes IGBT inverter technology, ensuring reliable quality and stable performance for a superior welding experience.
·Delivers a smooth arc, while the digital display simplifies monitoring of voltage and amperage settings.

Wire Recommendation
Compatible with 2-lbs and 10-lbs welding wire (4" or 8" wire diameter: D100/D200).
·.030"/.035" ER70S-6 mild steel MIG welding wire and E71T-GS flux core wire for welding carbon steel workpiece.
·.030"/.035" ER308L stainless steel wire for welding stainless steel workpiece.

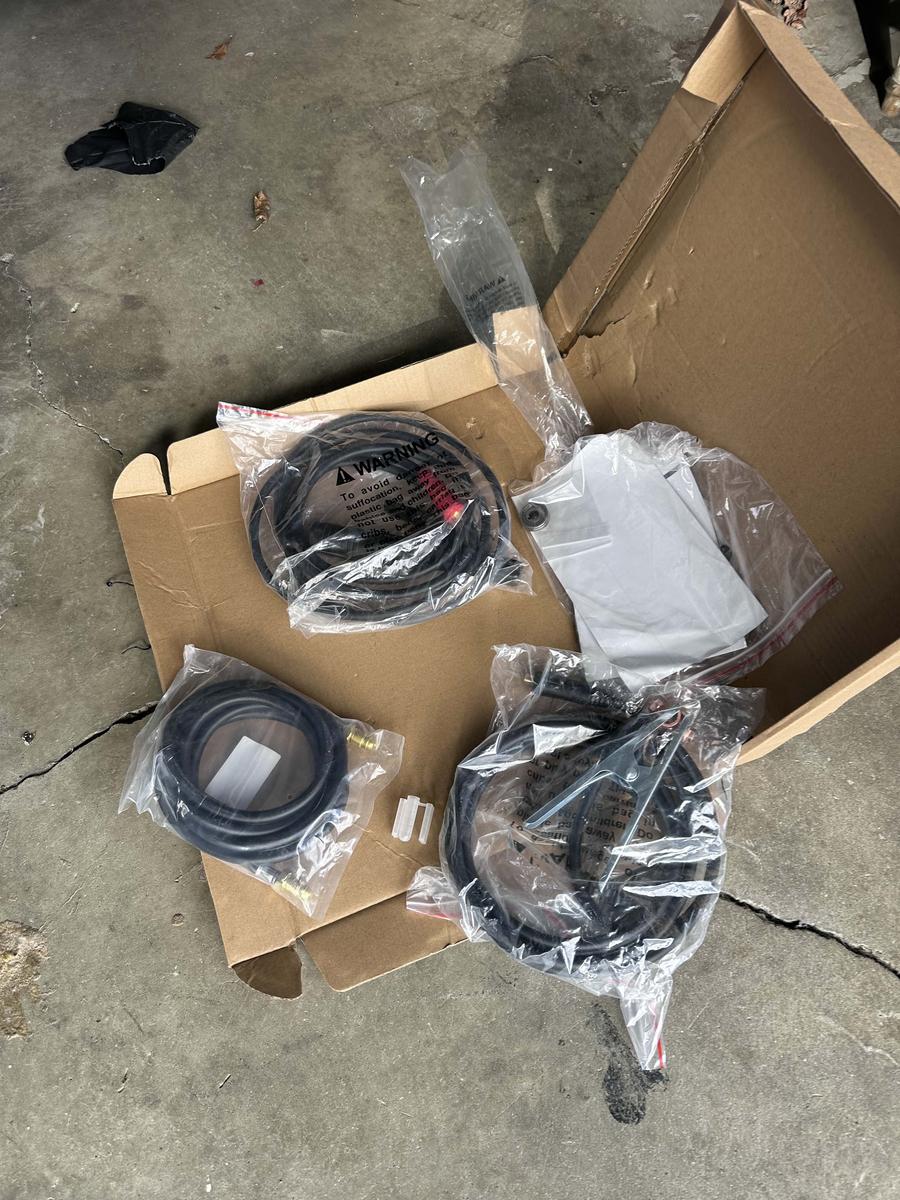

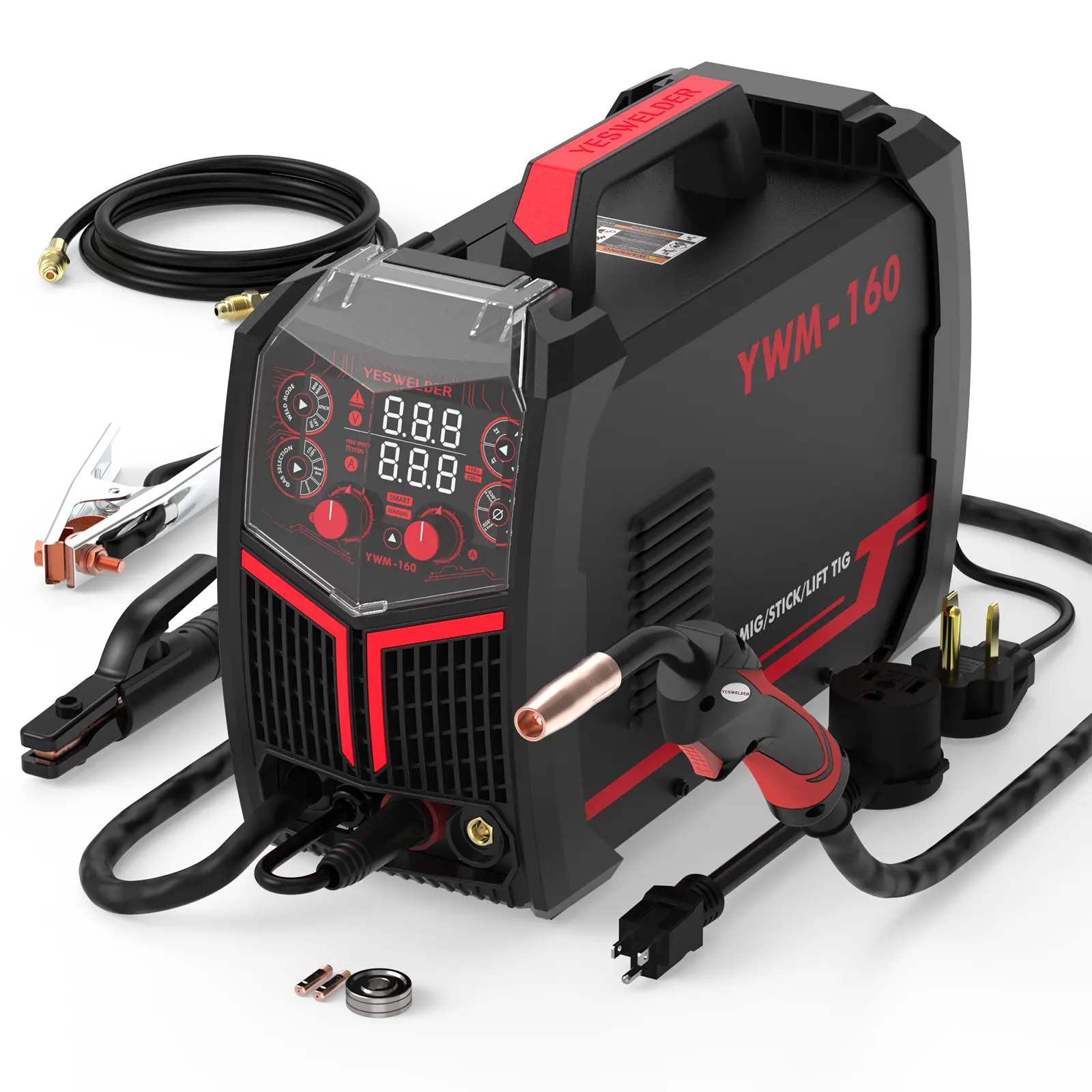

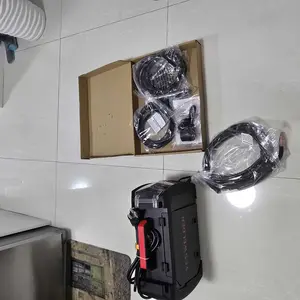

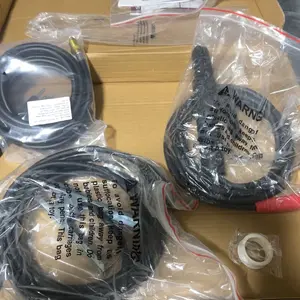

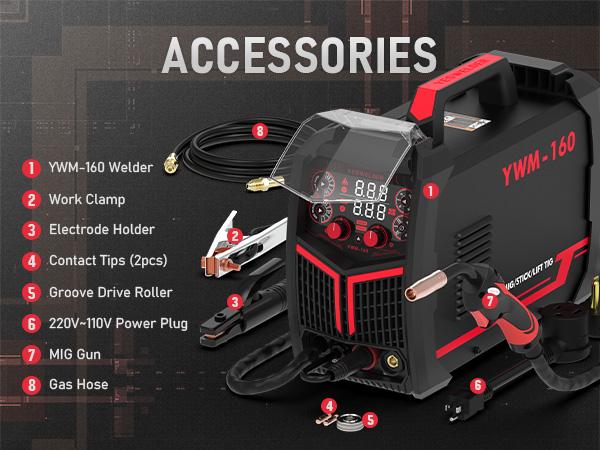

Accessories

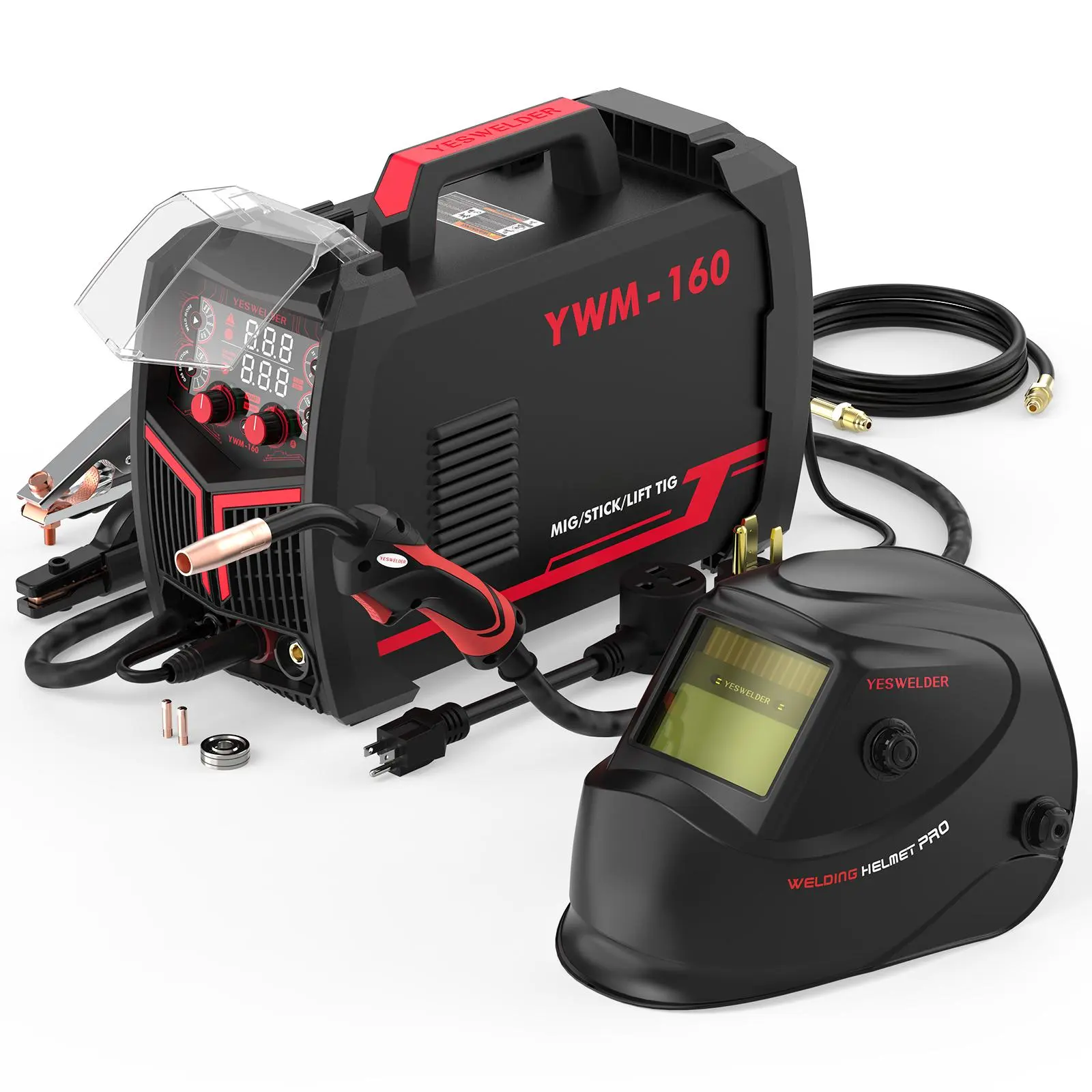

·YWM-160 Welder
·Ground Clamp

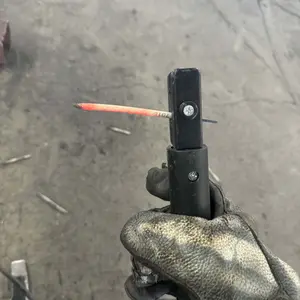

·Electrode Holder
·Contact Tips (2pcs)
·W-type Groove Drive Roller
·220V-110V Power Adapter Plug
·MIG Welding Gun
·Gas Hose

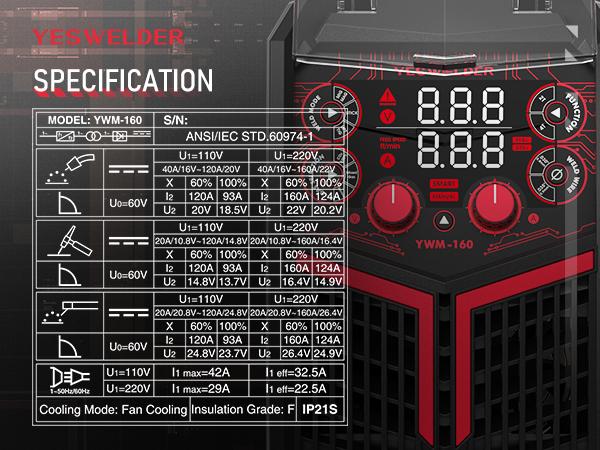

Specifications

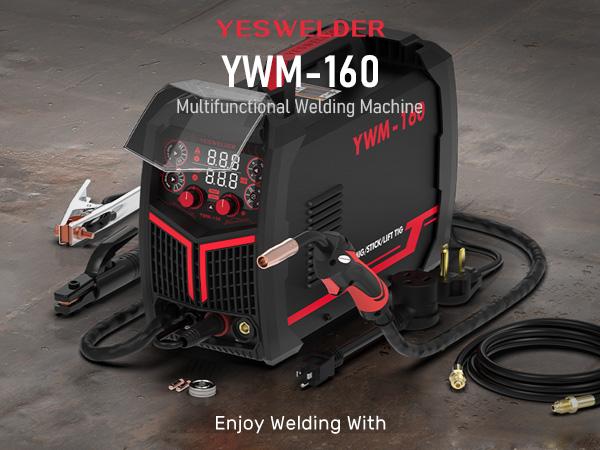

·Model: YWM-160
·Product weight: 19.4LB
·Product dimension: 17.52*13.58*6.49 Inches
·Supply voltage: 110V/220V, 50/60Hz
·Input current: 50A@110V, 30A@220V
·Wire spool: 2LB/10LB
·Welding material: Carbon steel/Stainless steel

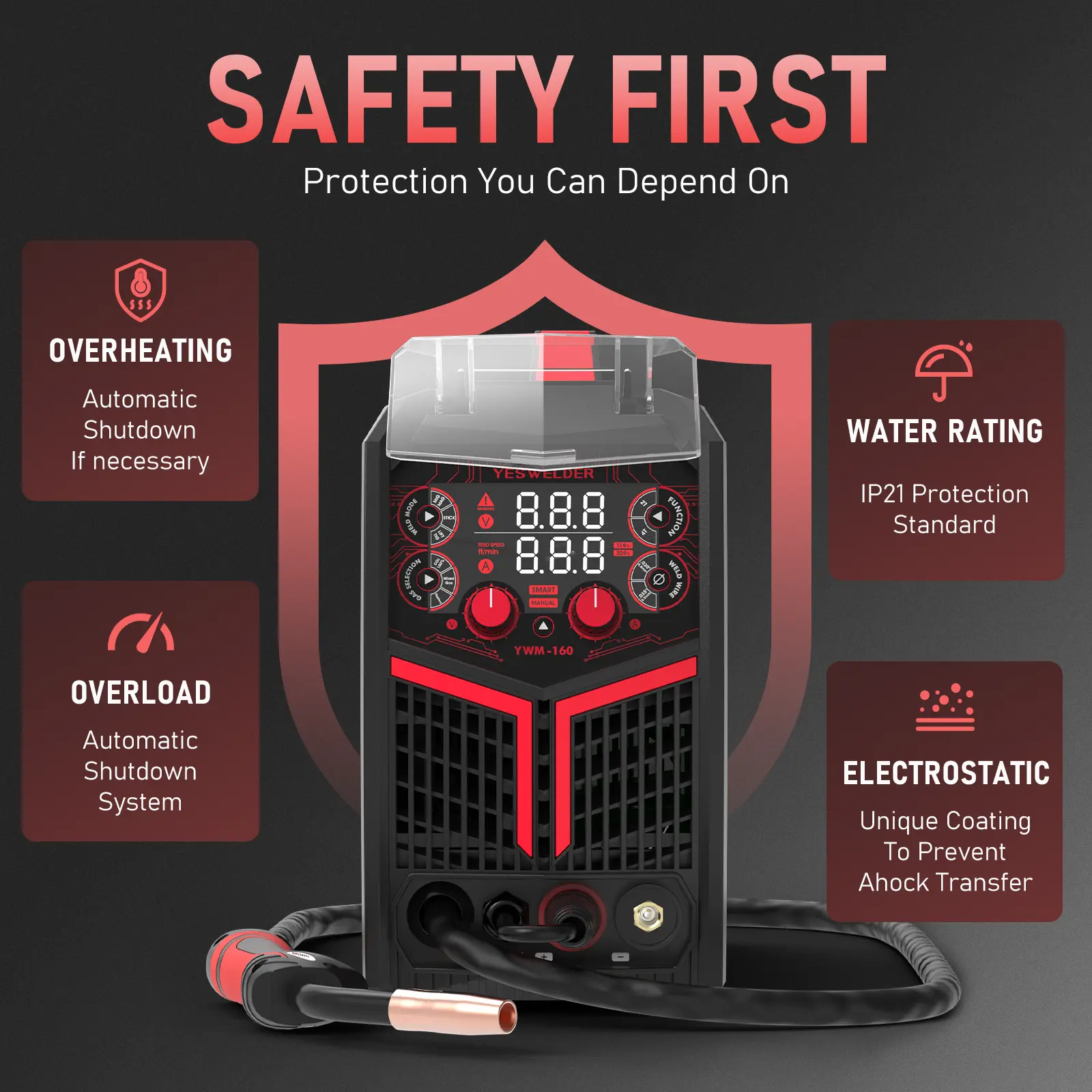

·Protection class: IP21S
