NOTE
·TIG foot pedal compatible with CT-520 (purchased separately).
·Welding rods, TIG filler rods and tungsten electrode are sold separately.

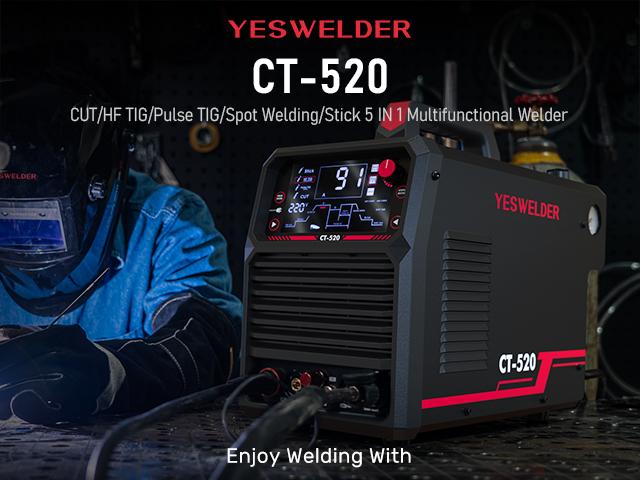

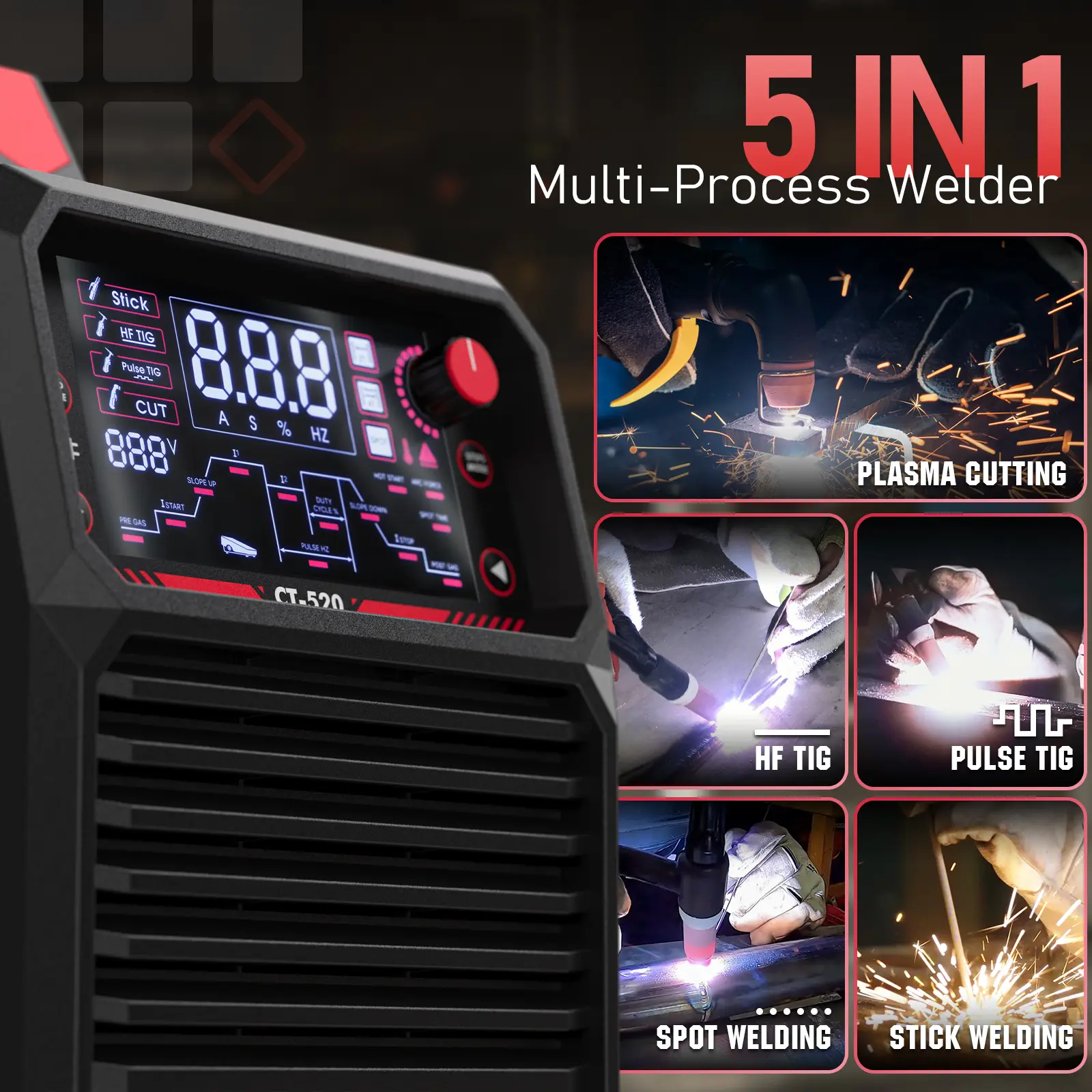

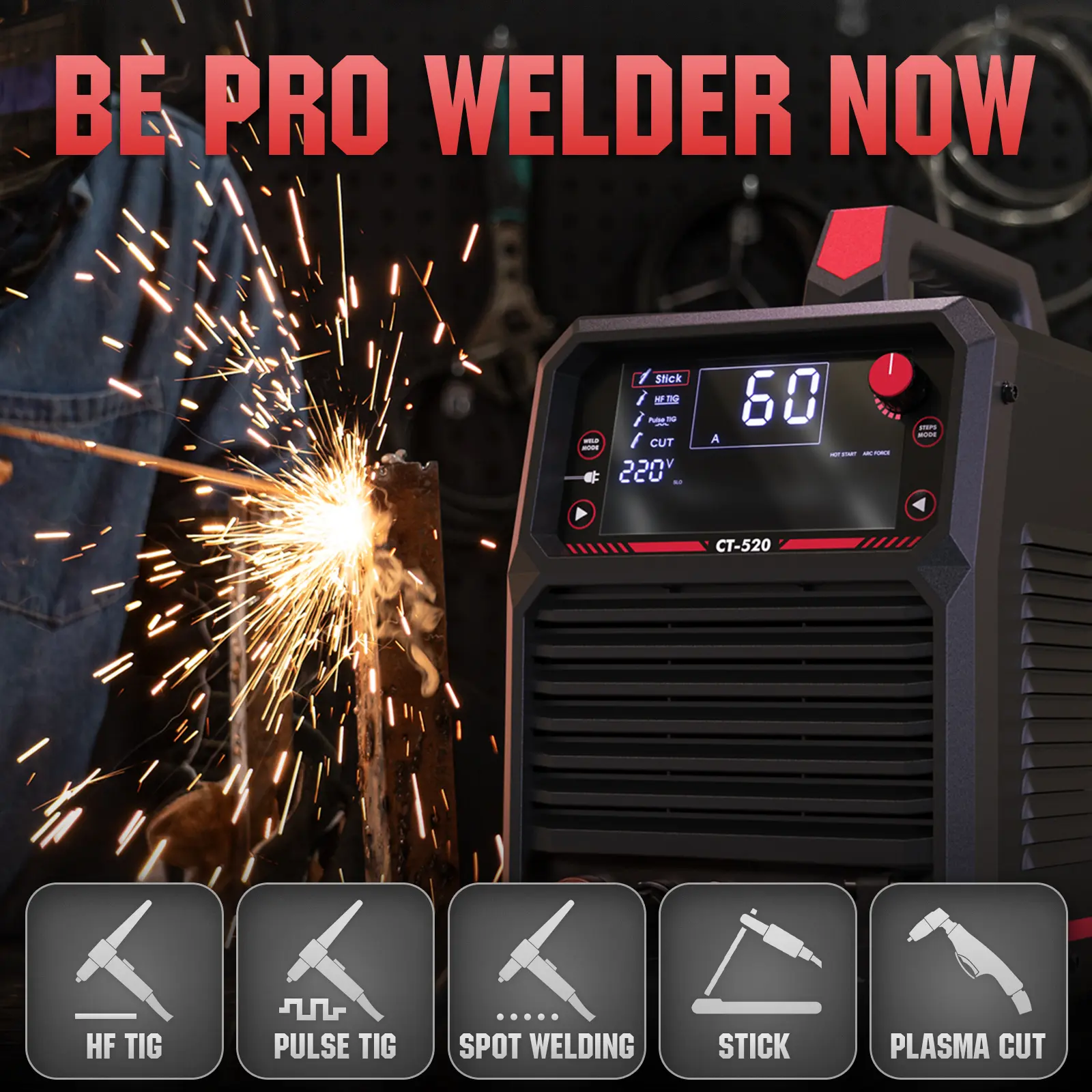

5-in-1 Weld & Cut
·HF DC TIG for clean, precise welding with non-touch arc start.
·HF DC Pulse TIG for better heat control, ideal for thin and heat-sensitive metals.
·Spot Welding Mode with adjustable spot time for fast, repeatable welds.
·Plasma Cutting (CUT) with high-frequency non-contact arc ignition.
·Stick (SMAW) with Built-in Hot Start, Arc Force (adjustable), and Anti-Stick.

Advanced TIG Welding Performance
·The High-Frequency (HF) arc ignition ensures clean, reliable starts without touching the workpiece.
·Use Pulse TIG for precise heat control, perfect for welding thin materials and minimizing distortion.
·A foot pedal (sold separately) can be used for seamless current and trigger control, with automatic detection.
·You can choose from 2T, 4T, and Spot modes to suit any project.
·Adjustable pre-gas and post-gas settings protect your welds for a professional, clean finish.

Stick Welding Enhancement
·Hot Start: Easy arc ignition even on dirty or rusty metal.
·Arc Force (Adjustable): Maintains arc stability under different welding conditions.
·Anti-Stick: Prevents electrode sticking for smoother operation.

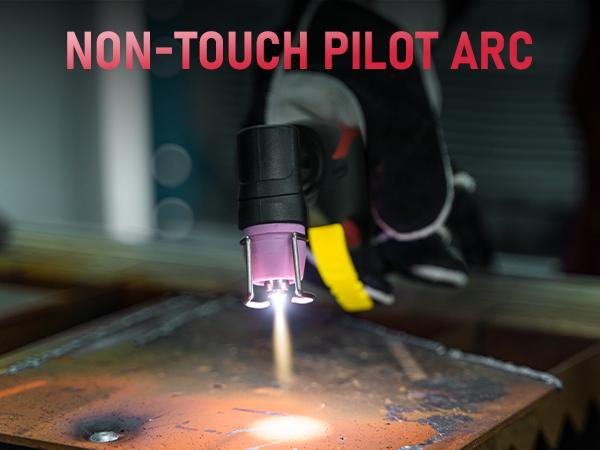

Powerful HF Plasma Cutting
·Features HF non-touch arc start to easily cut through expanded metal.
·Adjustable 20-50A output to cleanly slice through 1/2" (12mm) steel and handle maximum thicknesses up to 3/4" (20mm) on 220V.
·Uses compressed air to cut various metals like stainless steel and copper.

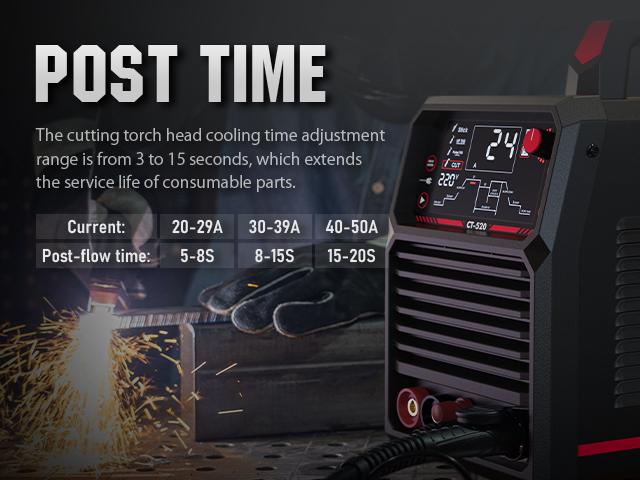

Post-Flow Time Adjustment
·Features an adjustable post-flow cooling time (ranging from 3 to 15 seconds) to extend their lifespan.
·Prevents premature wear by reducing oxidation and heat damage to improve cut quality.

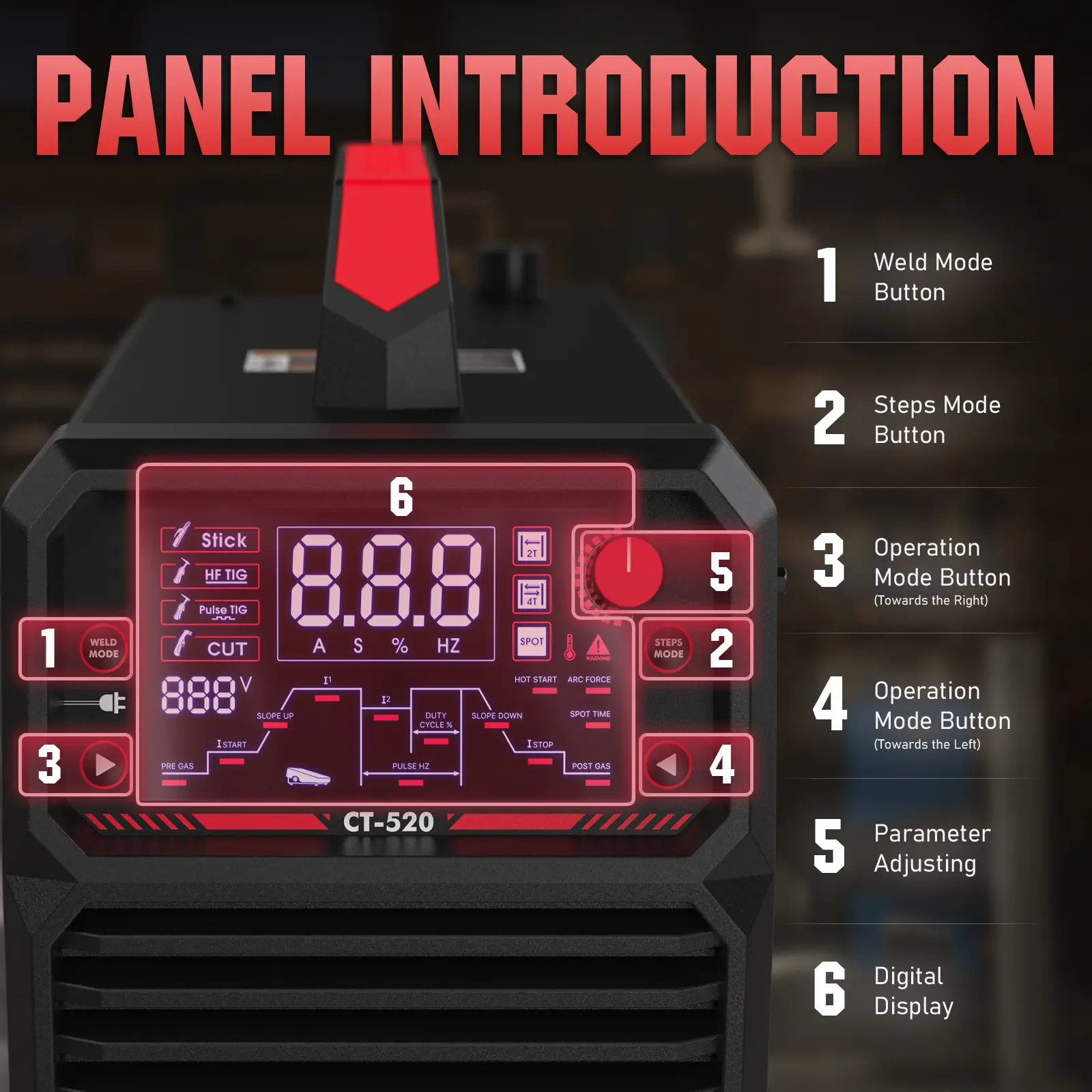

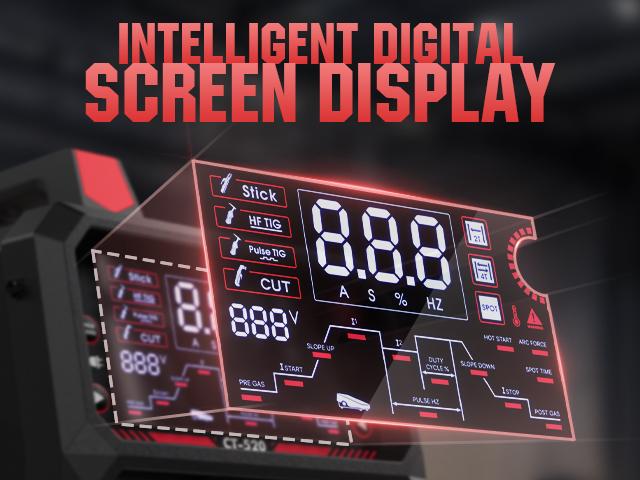

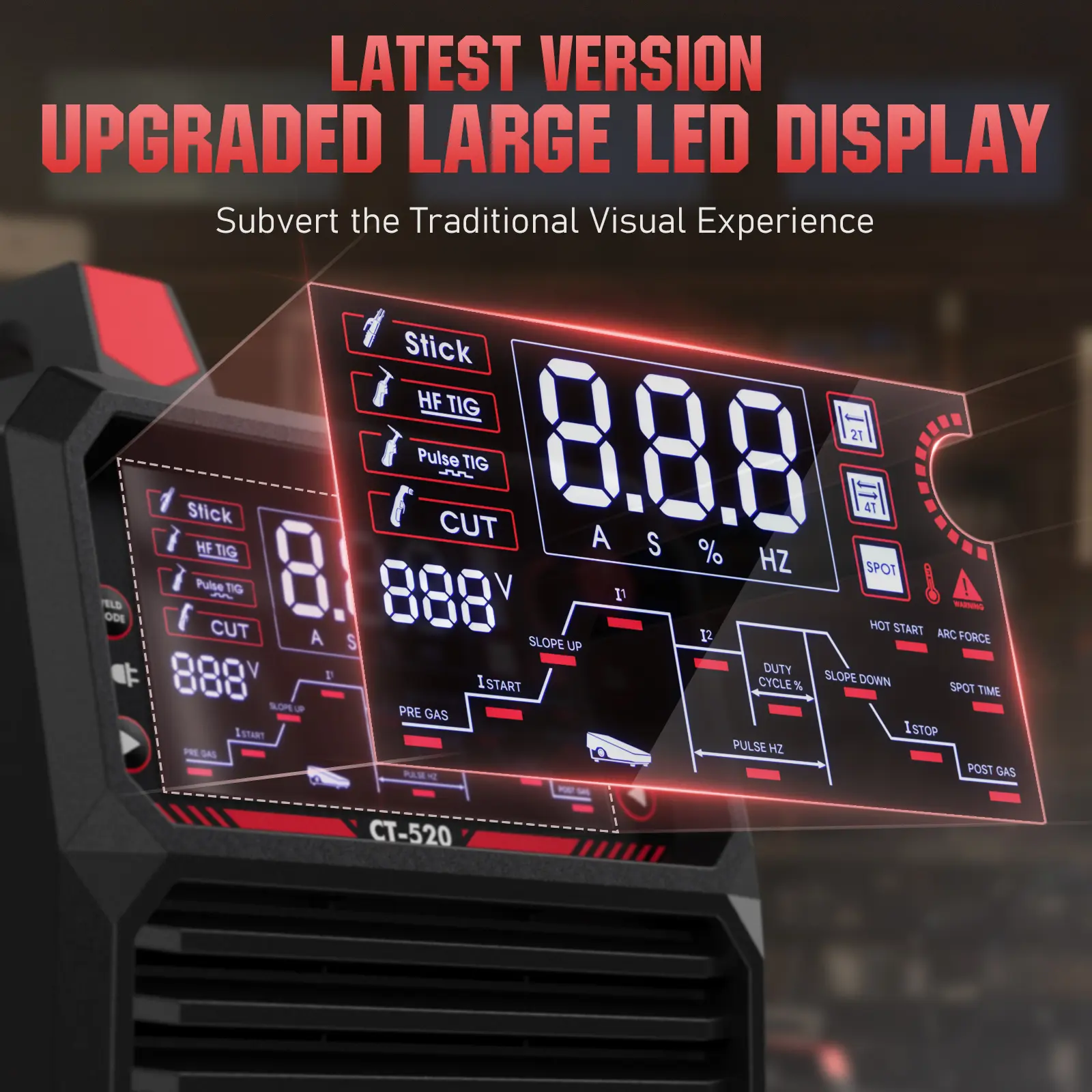

High-Definition Digital Display
·HD digital screen delivers real-time feedback for amperage, voltage, and selected mode.
·Streamlines workflow and enhances control.
·Intuitive interface designed for users of all skill levels.

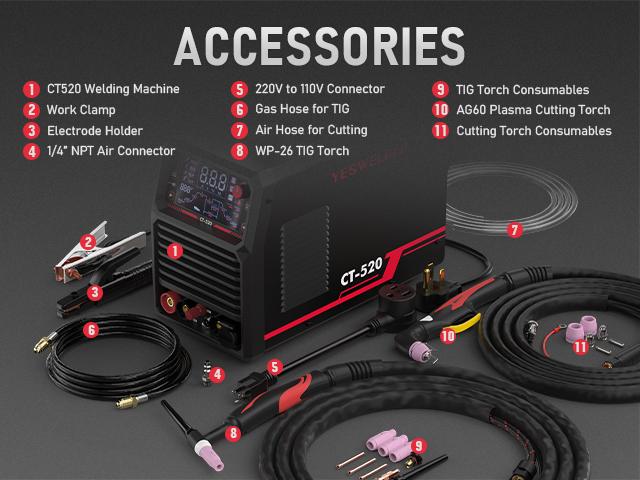

Accessories

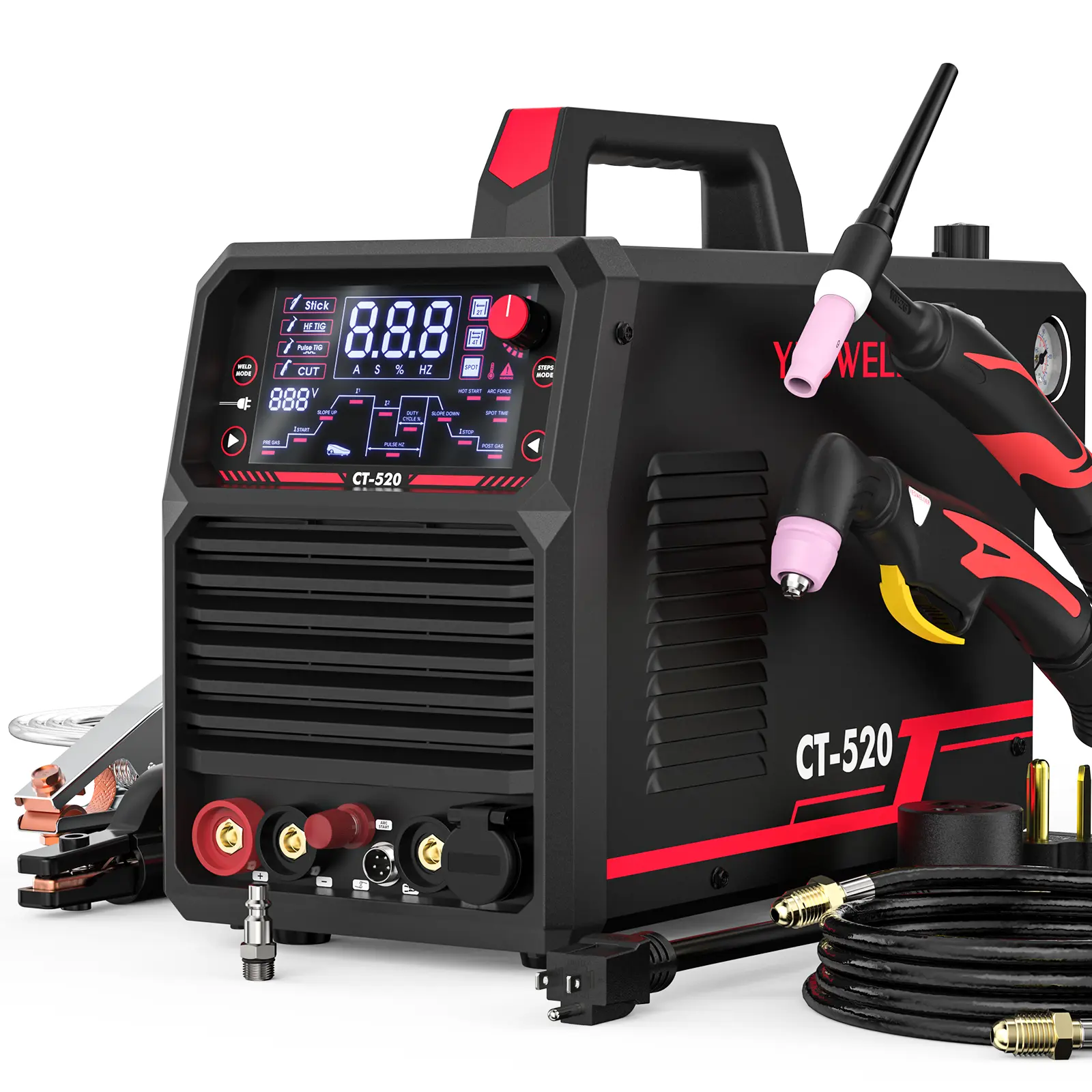

·CT-520 Welding Machine
·Work Clamp
·Electrode Holder
·Air Regulator Filter & NPT 1/4" connector
·Power Adapter Cord (220V to 110V Plug)
·Gas Hose for TIG
·Air Hose for Cutting
·WP-26 TIG Torch with 5-pin Plug
·TIG Torch Consumables
·AG60 Plasma Cutting Torch with 5-pin Plug
·Cutting Torch Consumables

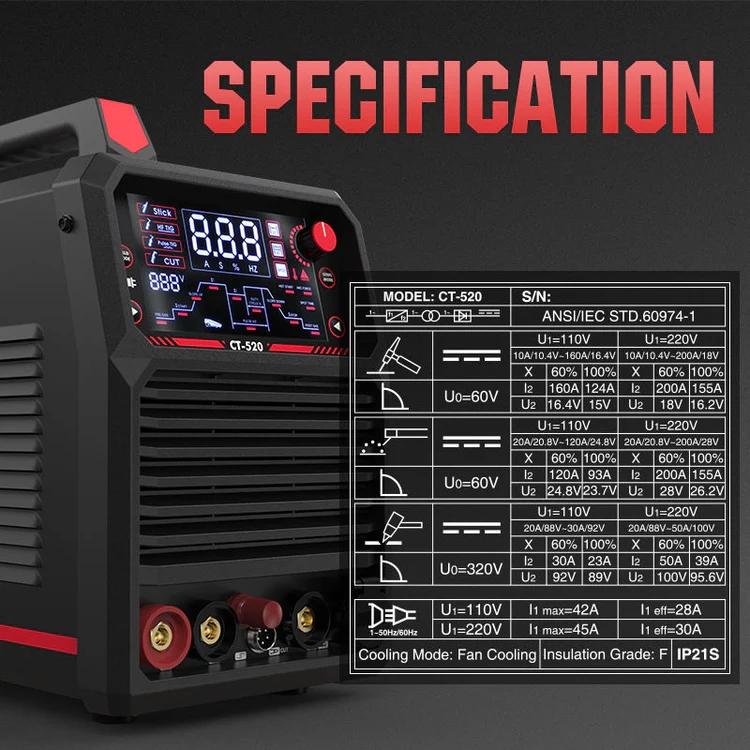

Specifications
·Product Weight: 34.5lb
·Product Dimensions: 21" × 16" × 15" Inches
·Input Voltage: 110V/220V, 50/60Hz
·Input Current: 30A
·Recommended Receptacle: NEMA 6-50@240V, NEMA 5-30@120V
·Welding Material: Carbon Steel/Stainless Steel
·Protection Class: IP21S
