NOTE: The air supply pressure should be 45-60 PSI at 110V and 60-90 PSI at 220V, or it will break the air compressor filter.
Powerful Cutting Performance
·20-50A output, Ideal clean cut: 3/25"@110V, 1/5"@220V, Max cut: 2/5"@110V, 16/25"@220V.
·Initiates the plasma arc with high-frequency (HF) contact, providing an efficient and cost-effective solution.
·Comes with non-hazardous compressed air to cut stainless steel, alloy steel, mild steel, copper, and aluminum.

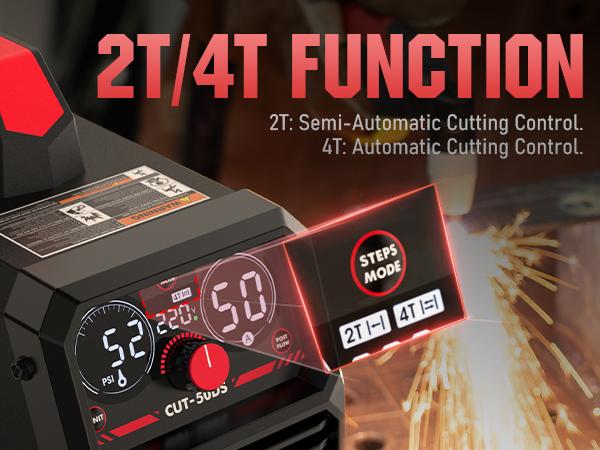

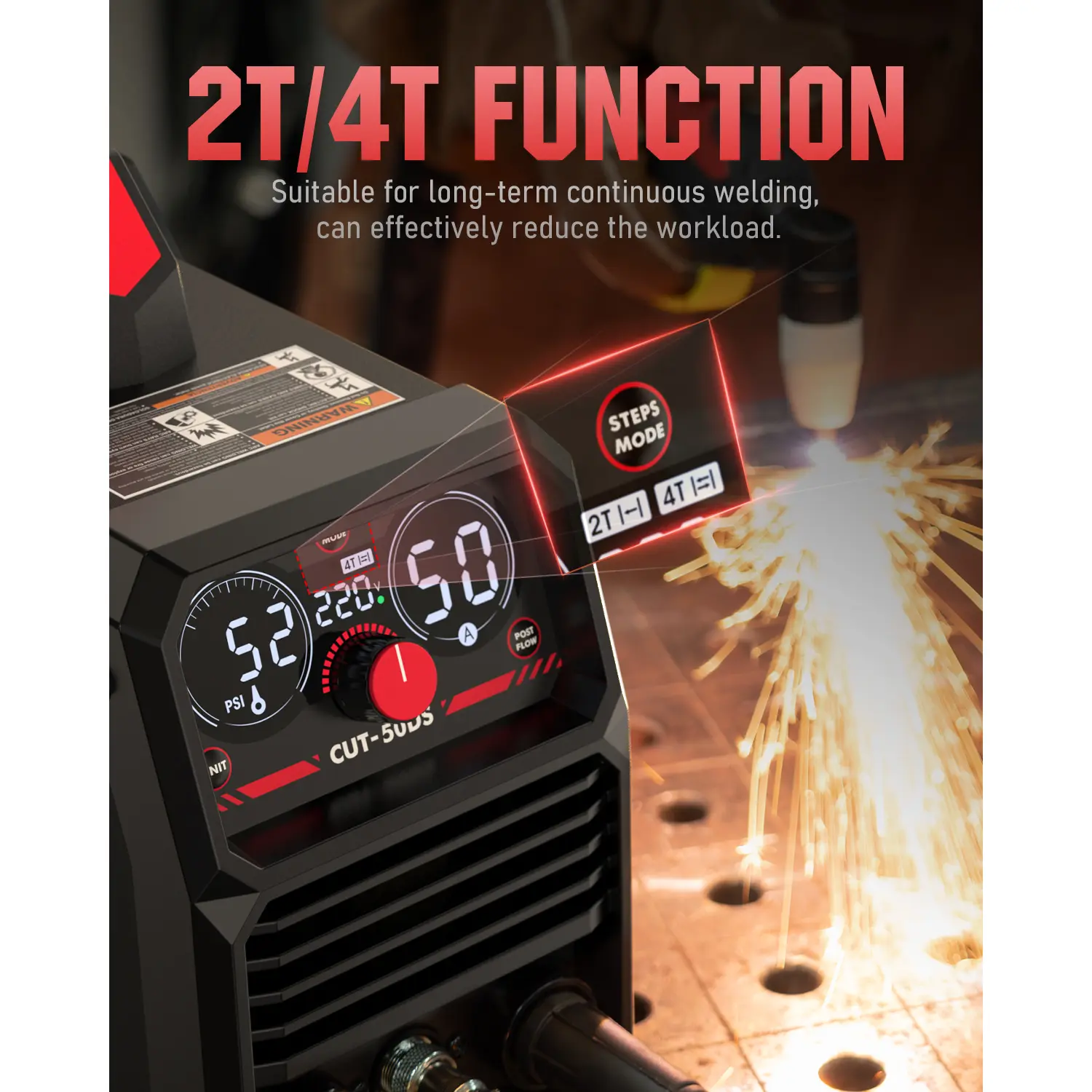

Smart 2T/4T Torch Control
Experience greater comfort and more intelligent control with the 2T/4T control modes.
·2T Mode: Press and hold to cut. Engineered for simple, precise, and quick cuts.
·4T Mode: Press to start, press to stop. Designed to minimize fatigue and dominate long, continuous cutting tasks.

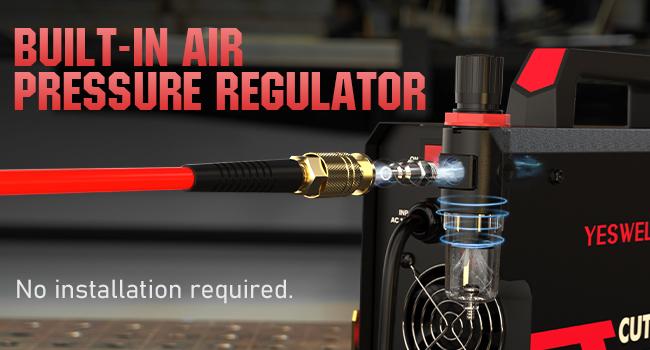

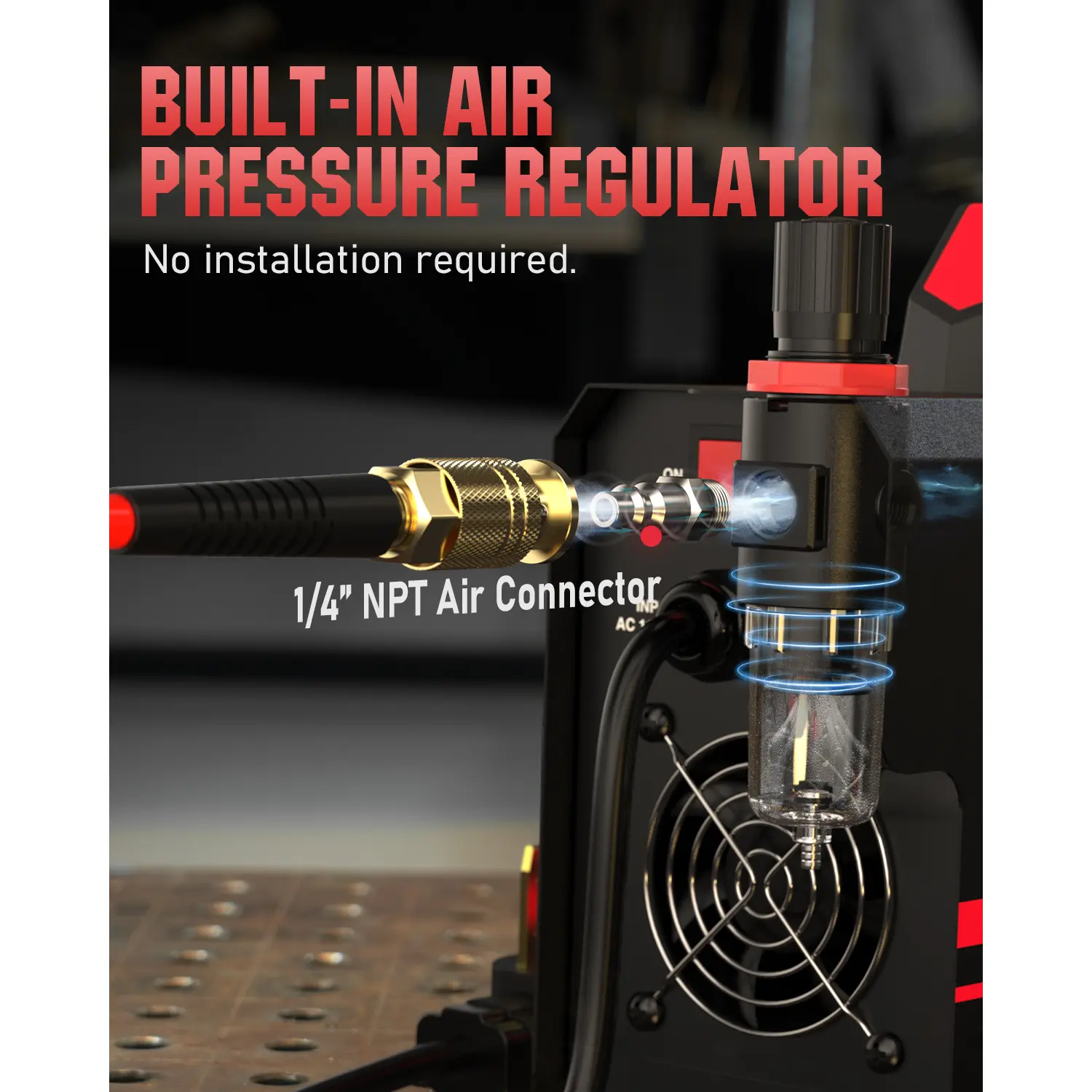

Built-in Air Pressure Filter
·Strategically positioned at the rear of the machine, the air filter ensures a swift connection.
·Not only slashes installation time but also significantly ramps up overall operational efficiency.

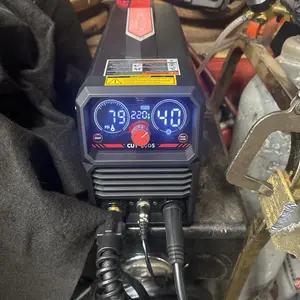

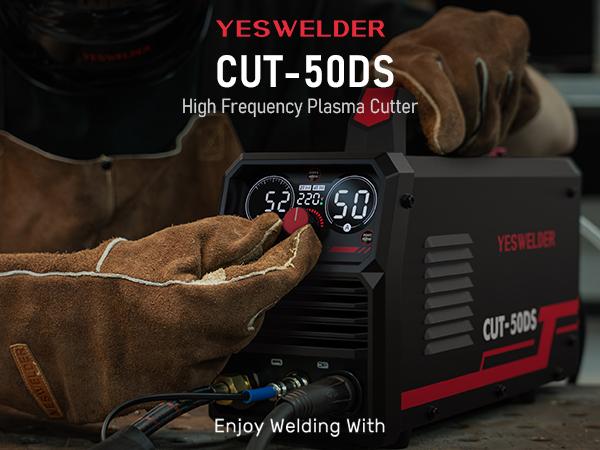

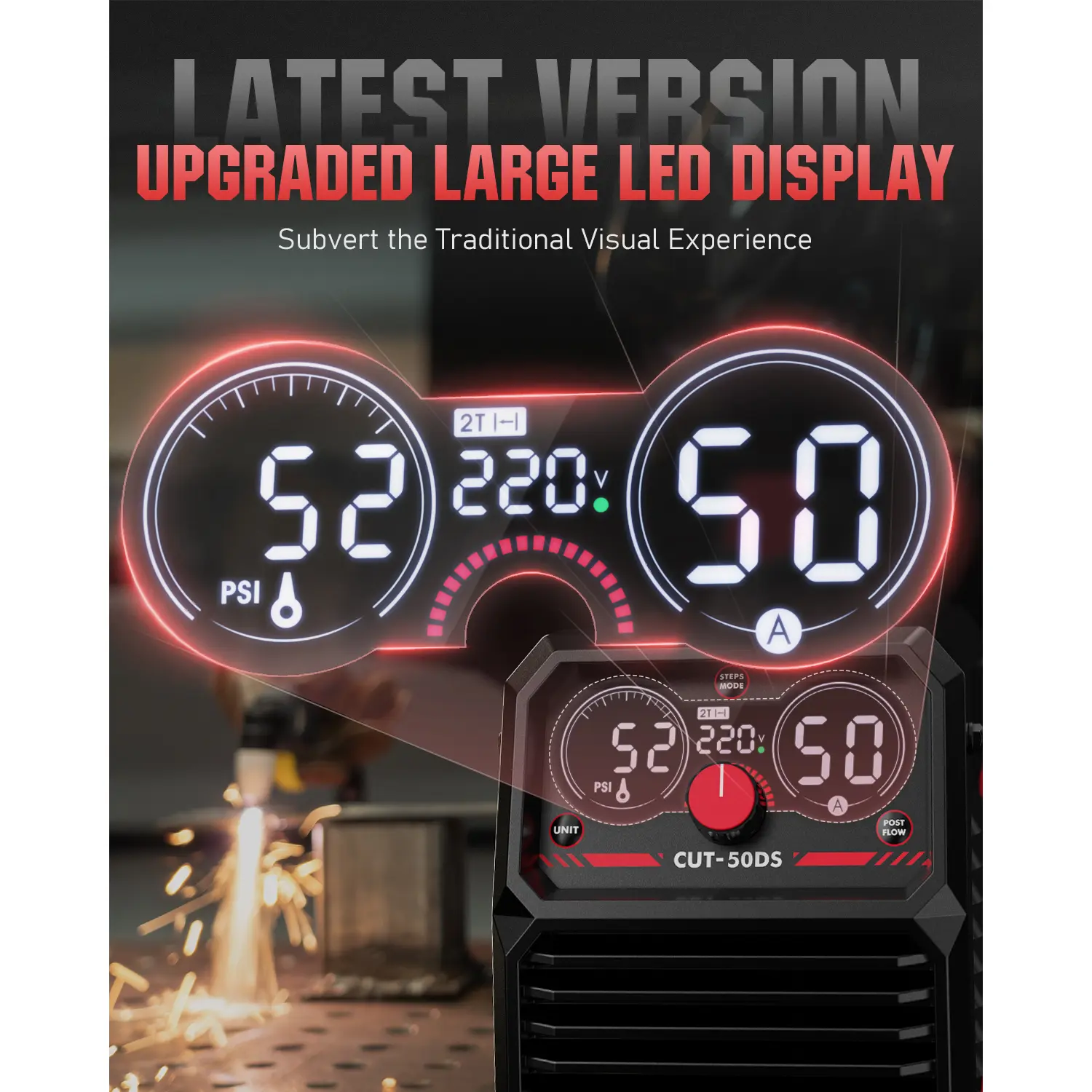

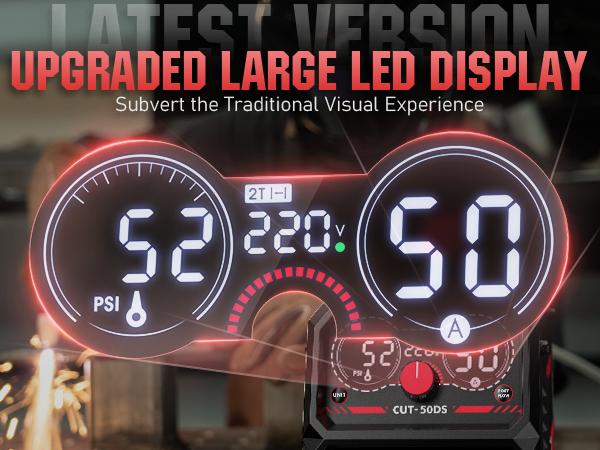

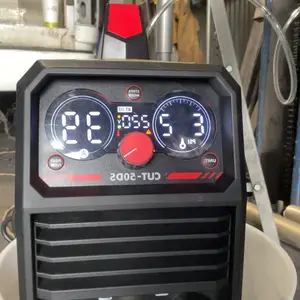

Intuitive Digital Display & Alerts
·This intuitive digital display centrally shows parameters such as air pressure, voltage, current, etc.
·Allows users to view the status of the equipment in real time, adjusting the operation in a timely manner.
·There will be an error code system on the screen if there is a problem with the machine.

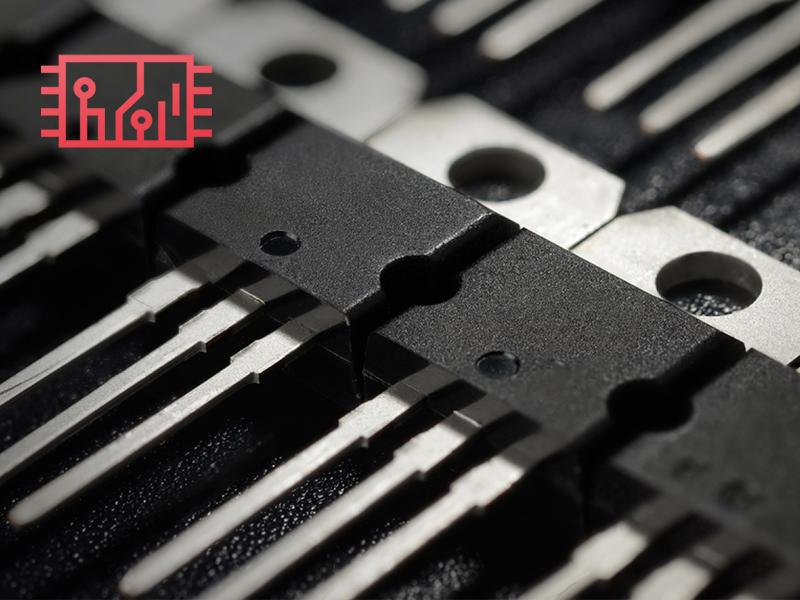

IGBT Inverter Technology
·Utilizes IGBT inverter technology, significantly enhancing its conversion efficiency.
·Suitable for switching frequencies that are beyond audio range, which almost eliminates noise pollution.

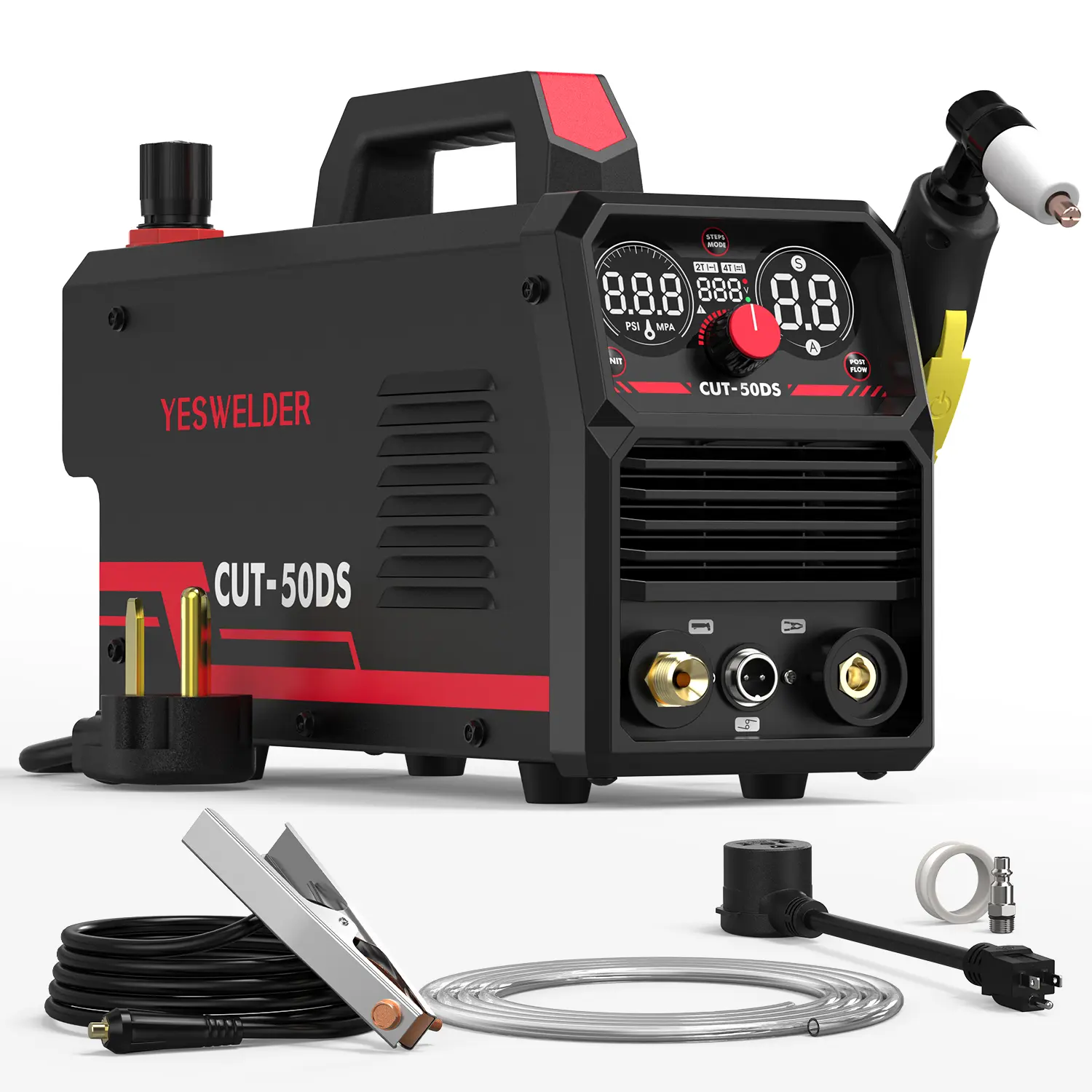

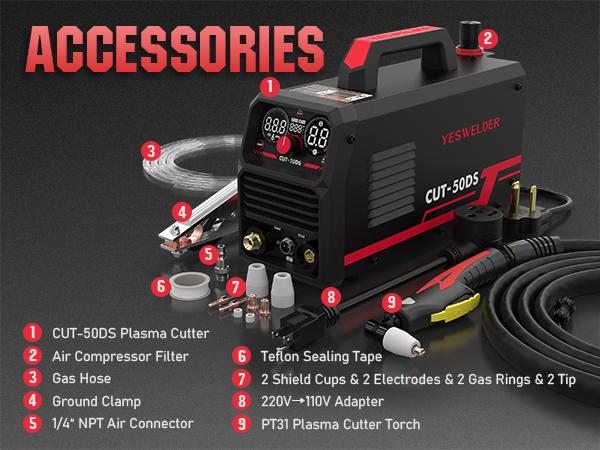

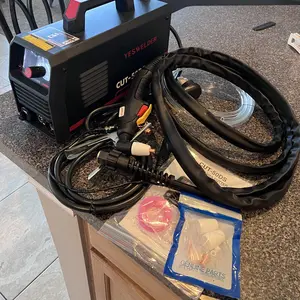

Accessories
·CUT-50DS plasma cutter
·Pre-installed air compressor filter
·Air hose
·Ground clamp
·1/4" NPT air connector
·Teflon sealing tape
·Plasma cutting consumables: 2 × shield cups & 2 × electrodes & 2 × gas rings & 2 × tips
·220V→110V power adapter
·PT31 plasma cutting torch

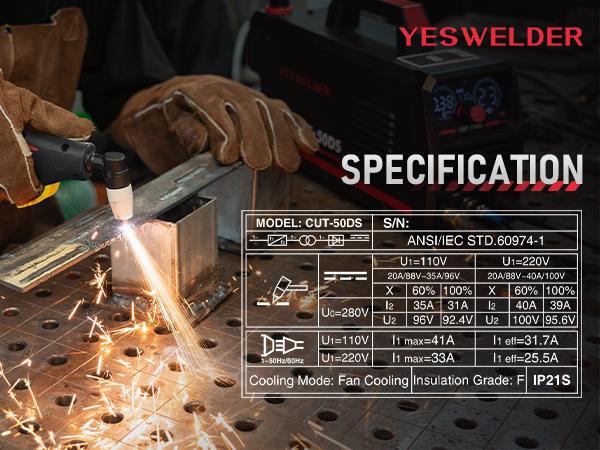

Specifications
·Model: CUT-50DS
·Input voltage: 110V/220V, 50/60Hz
·Input current: Recommend 63A breaker
·Recommend air pressure: 0.5MPA (72.52PSI)
·Post flow time: 5-20s
·Air compressor requirement: 7.5CFM
·Welding material: Stainless steel, alloy steel, mild steel, copper, and other metal materials.

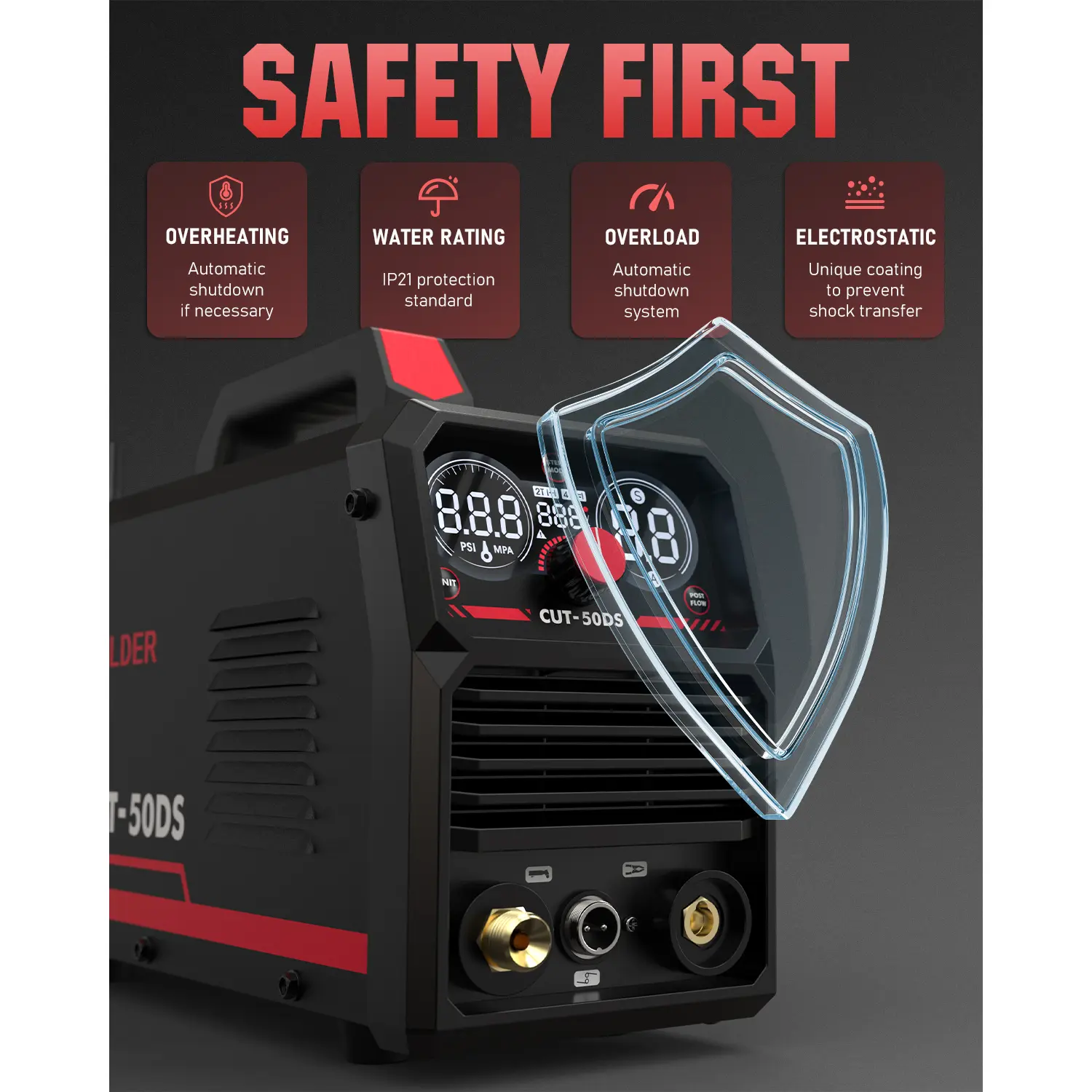

·Protection class: IP21S
