NOTE
·This DC TIG welder is Not suitable for aluminum welding. Please purchase TIG-200P-ACDC-PRO AC/DC TIG welder from our store.
·TIG foot pedal, tungsten electrodes and TIG filler rods are sold separately.
Multiple Welding Processes
·It combines DC TIG, pulsed TIG, and stick welding processes into a unit.
·Our High-Frequency (HF TIG) arc ignition guarantees a clean start, eliminating tungsten contamination and ensuring a perfect weld every time.
·The advanced stick welding features deliver a stable arc with minimal spatter and no electrode sticking.
·With Spot Welding functions also included, this machine is your all-in-one solution for diverse projects.

Advanced IGBT Inverter Technology
·It integrates advanced IGBT inverter technology, which delivers excellent arc stability and produces high-quality welds.
·This technology ensures a smooth and consistent arc, making it easier to achieve beautiful, precise welds across various materials and thicknesses.

Pulsed TIG Welding
·Pulsed TIG welding offers precise heat control, making it ideal for thin materials. It reduces the heat-affected zone, preventing warping and ensuring cleaner, more accurate welds.
·This technique enhances penetration control, allowing for strong joints without burning through.

High Frequency Arc Start
·High frequency arc start enables excellent ignition reliability, ensuring no failures during the welding process.
·This stable performance allows for non-touch arc initiation, making it easier to start the arc without contacting the workpiece, which is particularly beneficial for delicate materials and prevents contamination.

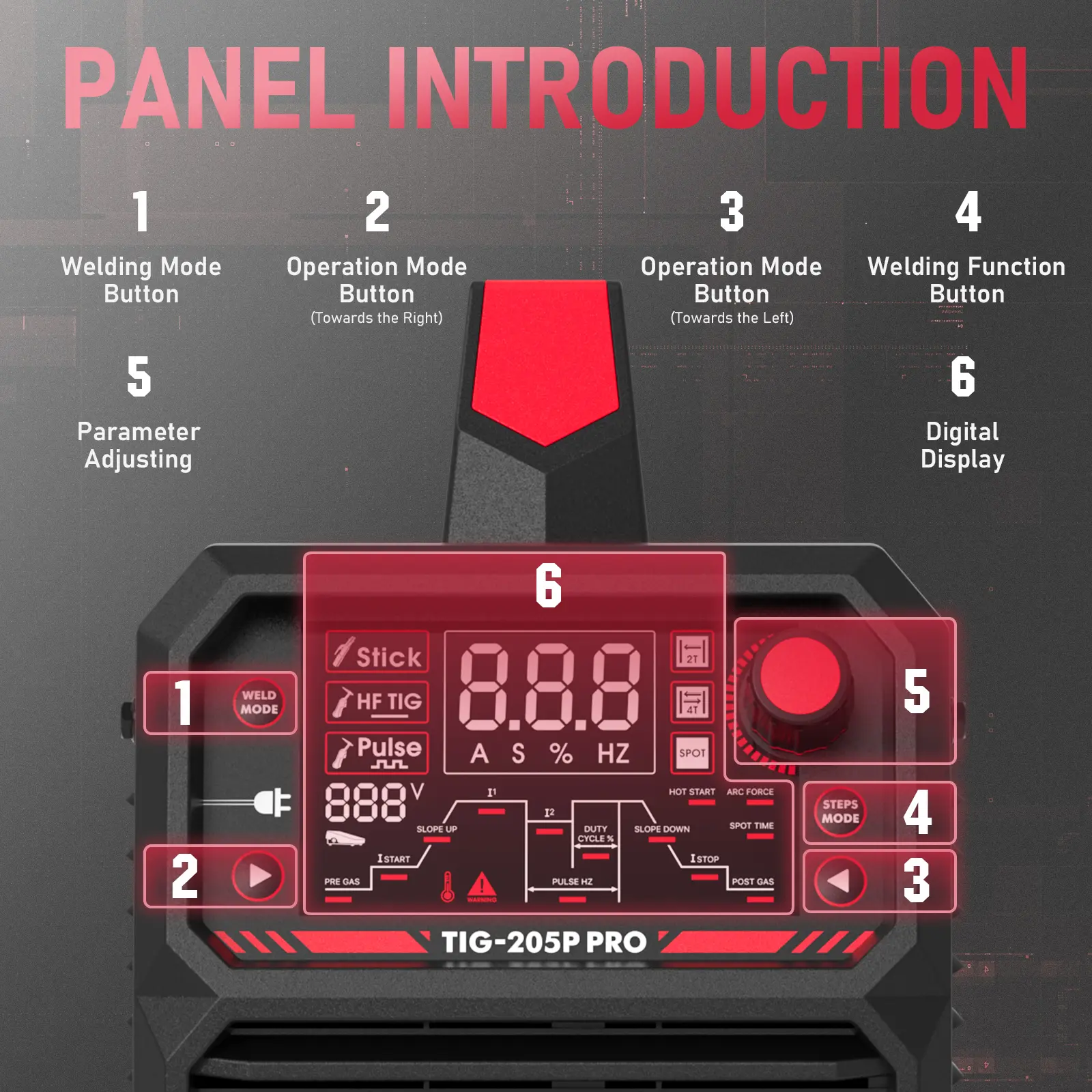

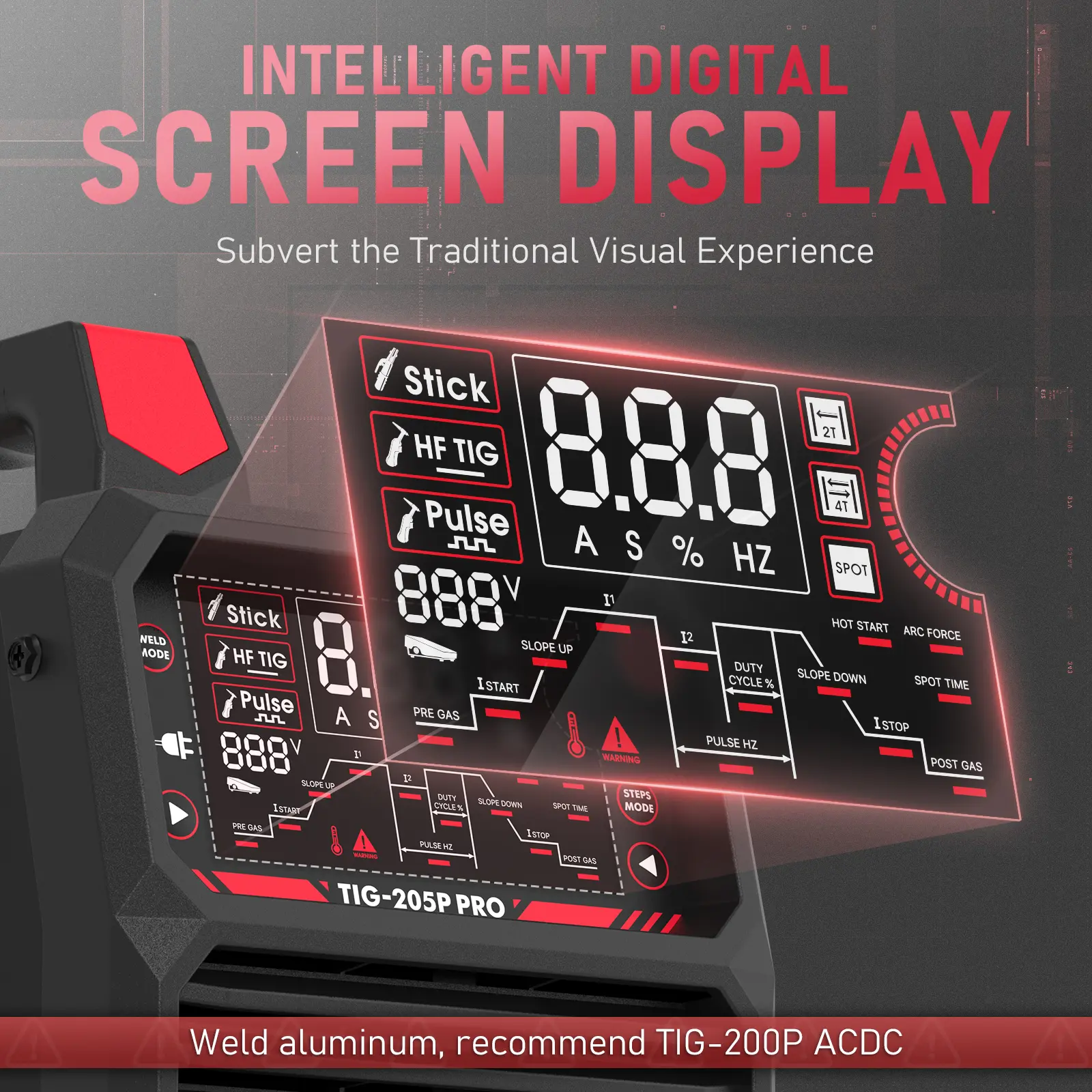

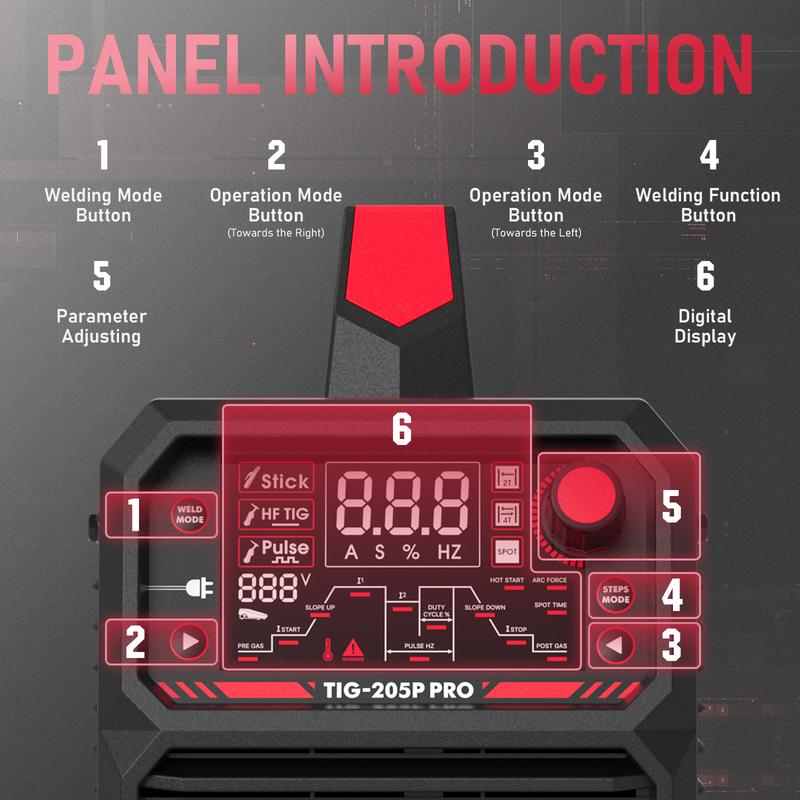

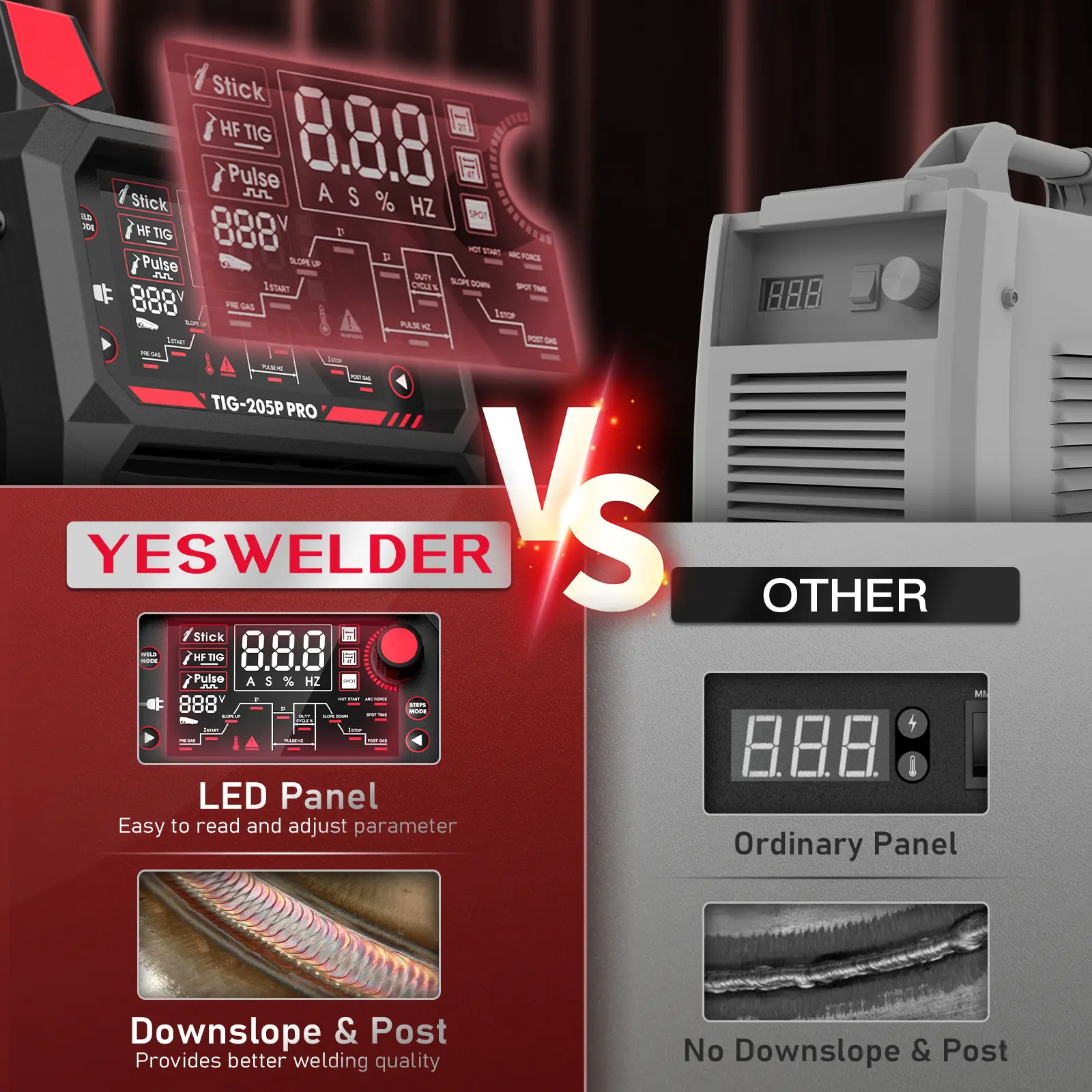

Digital Display with Precise Control
·Adjust peak current, base current, pulse frequency, and pulse width for tailored heat input, penetration control, and distortion reduction.
·Set pre flow time, start current level, up-slope time, down-slope time, finish current level, and post flow time along with 2 or 4T trigger functions for ultimate welding control. Adjustable output current, hot start current, and arc force current cater to specific welding requirements.

Remote Control Capability

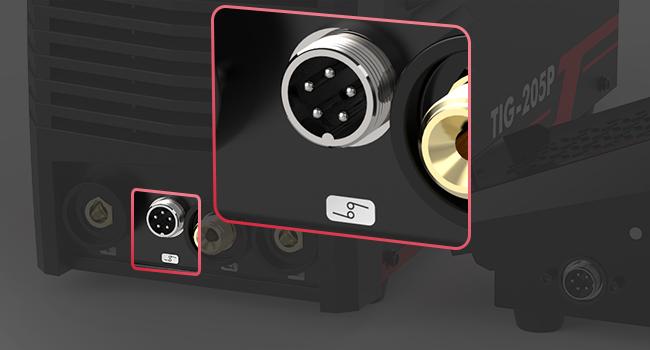

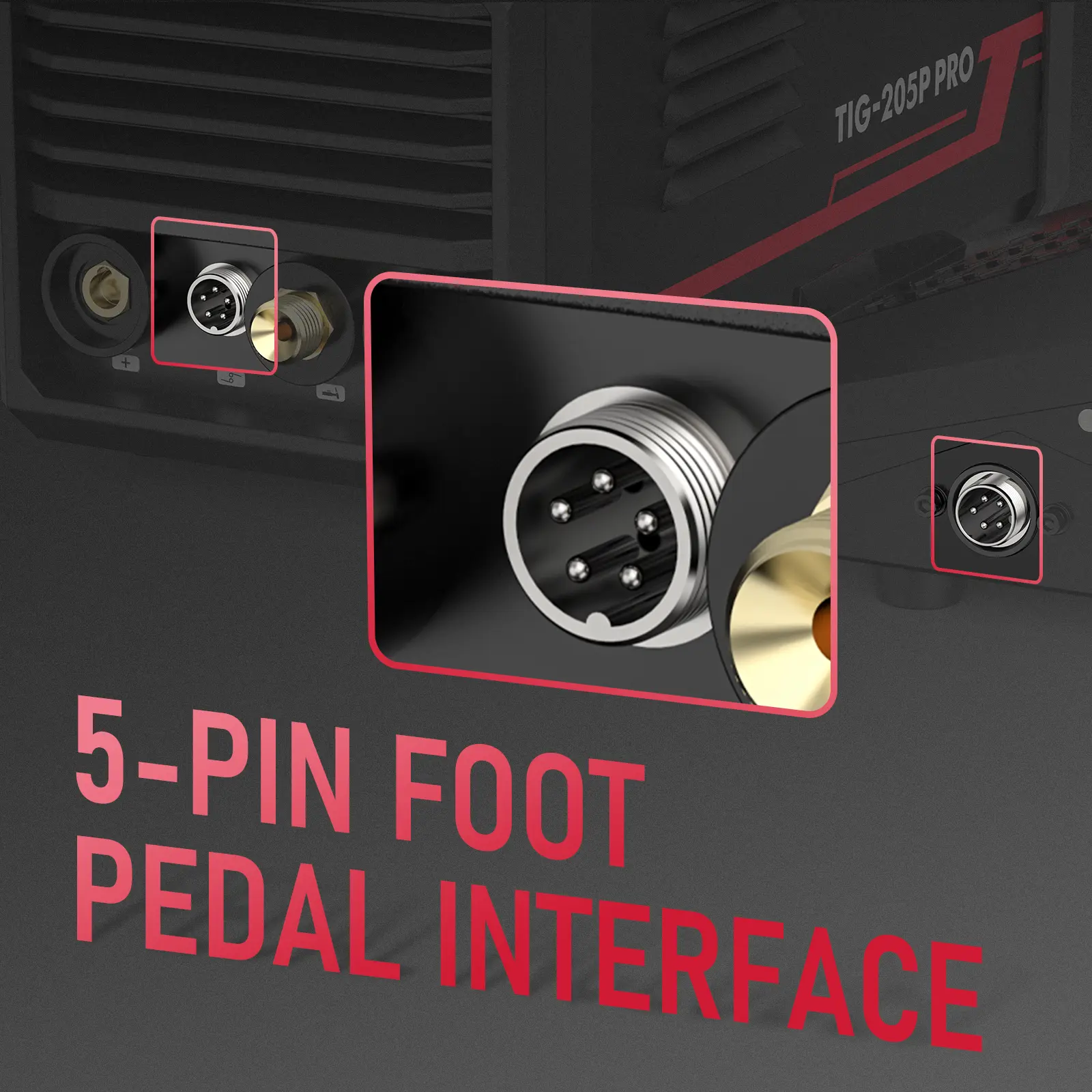

·Remote control capability allows the use of an additional torch with an amperage control knob or a 5-pin foot pedal, enabling remote operation.
·Supports both foot pedal (NOT included) and Torch Remote Control (NOT equipped).
NOTE: The foot pedal is NOT included. If you want to use another brand of TIG foot pedal, please ensure 5-PIN wire compatibility. 2T/4T mode is unavailable in foot pedal mode.

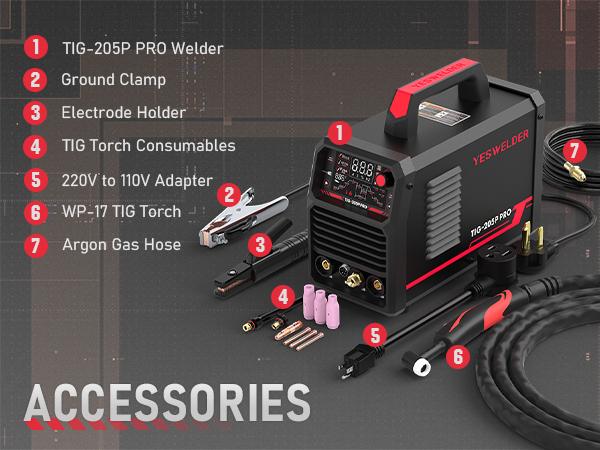

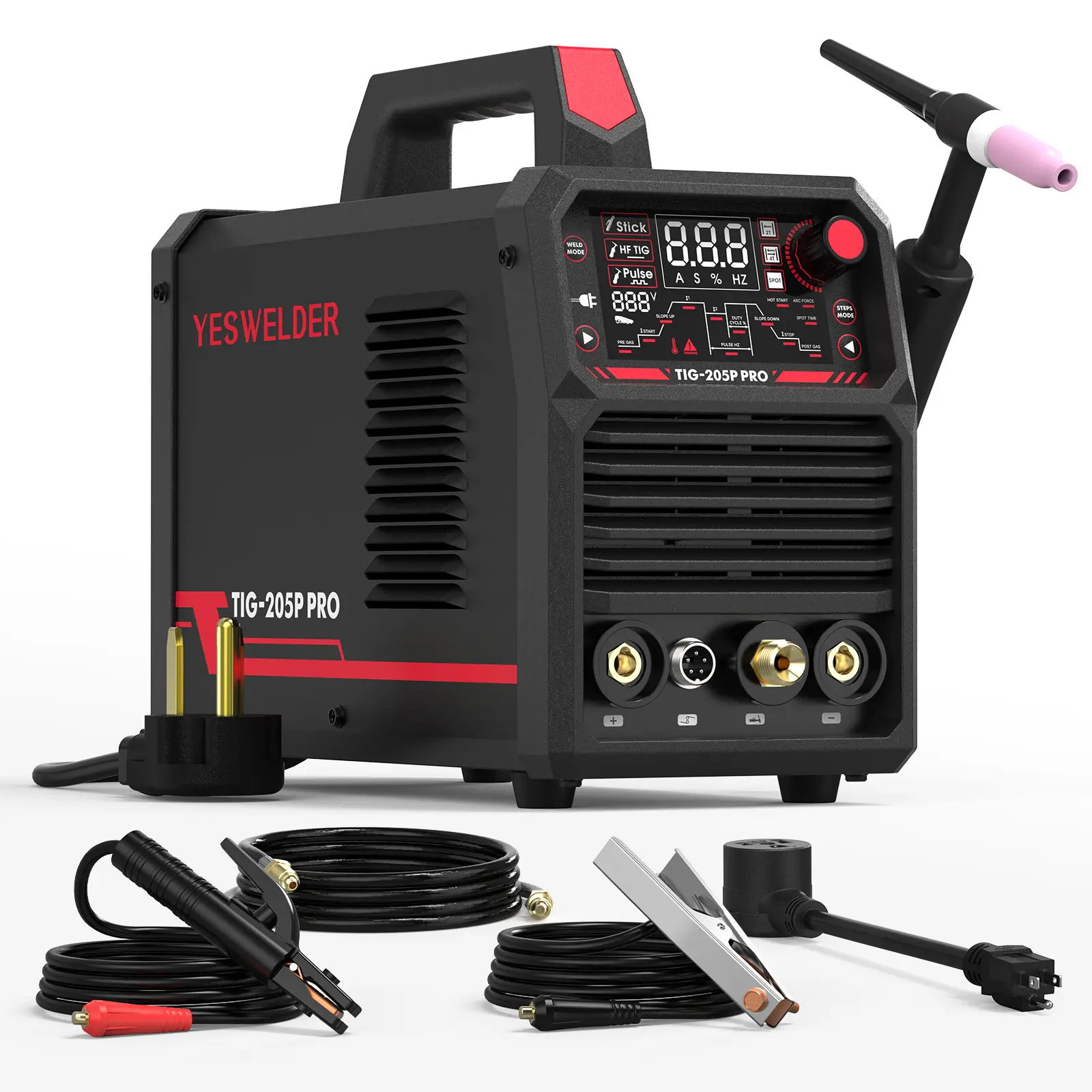

What's Included

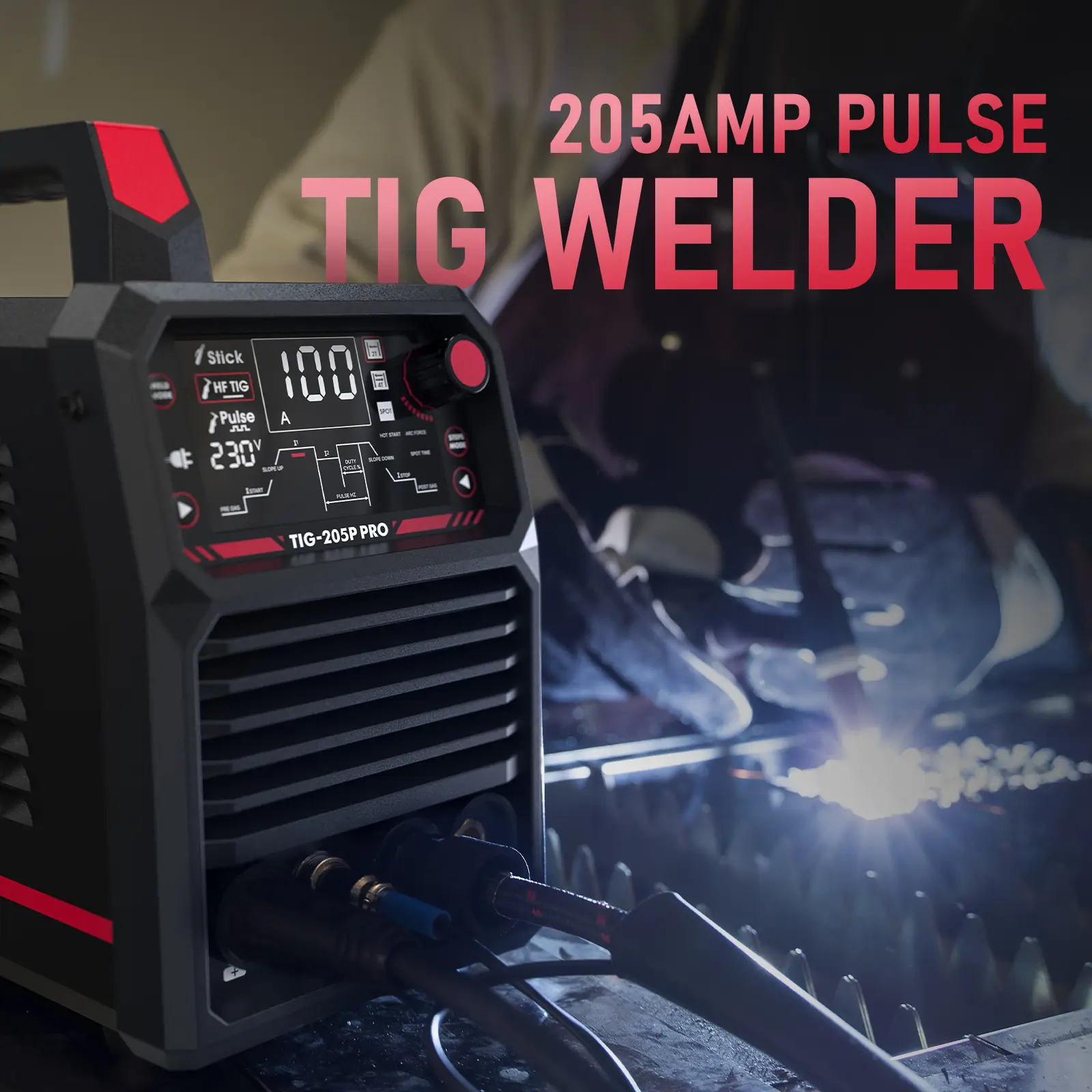

·TIG-205P-PRO TIG welder
·13ft WP-17 TIG torch
·10ft electrode holder
·10ft earth clamp
·8ft argon gas hose
·Additional TIG torch accessories: 3 × collets, 1 × collet body, 3 × alumina ceramic cups, 1 × long back cap, 1 × short back cap

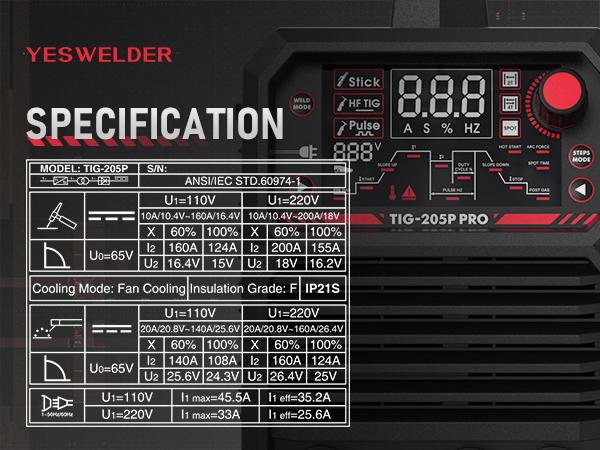

Specification
·Model: TIG-205P-PRO

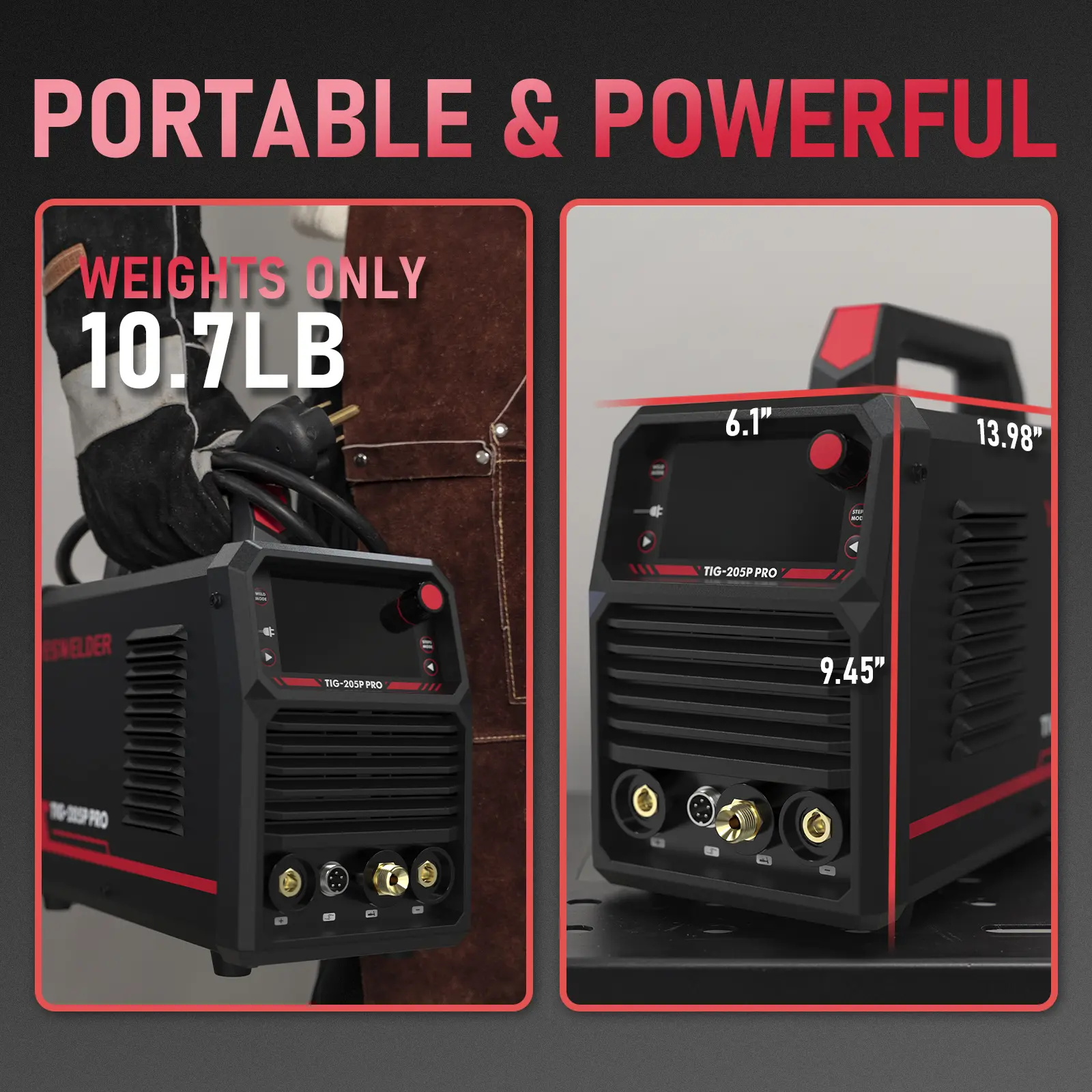

·Product dimension: 12.60*5.51*11.42 Inches
·Product weight: 10.14lb
·Function: DC TIG, DC pulsed TIG, stick
·Input power: 110/220V, 50/60Hz
·Output range: DC: TIG 10~200A@220V, 10~160A@110V; Stick: 10~160A@220V, 10~140A@110V
·Input current: 50A(110V) & 30A(220V)
