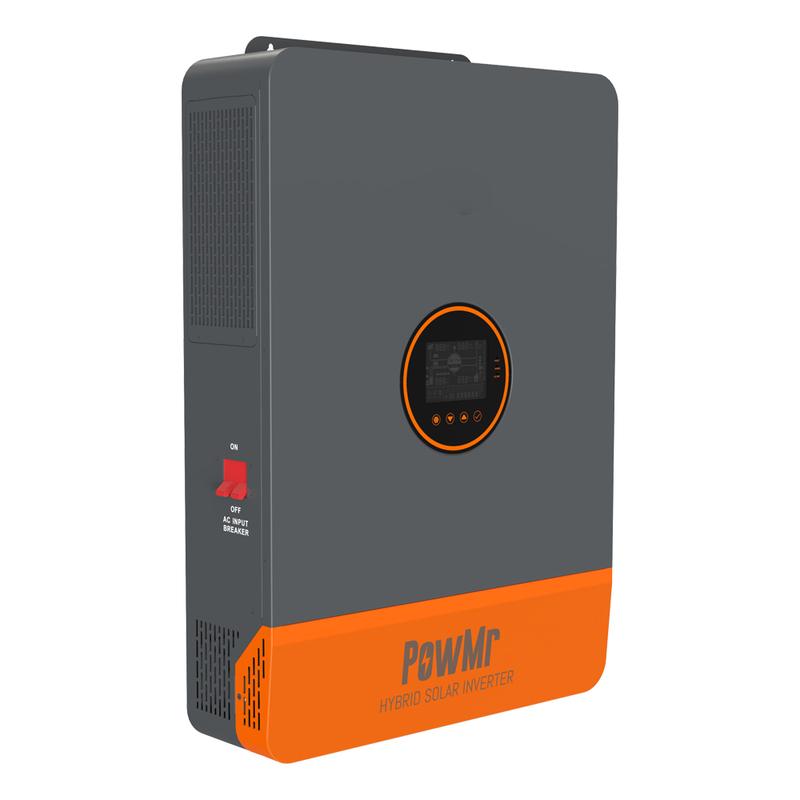

PowMr 10KW Solar Inverter
⚡ Parallel Capability: Supports up to 6 units in parallel, expanding to 60kW. Ideal for scalable power needs.

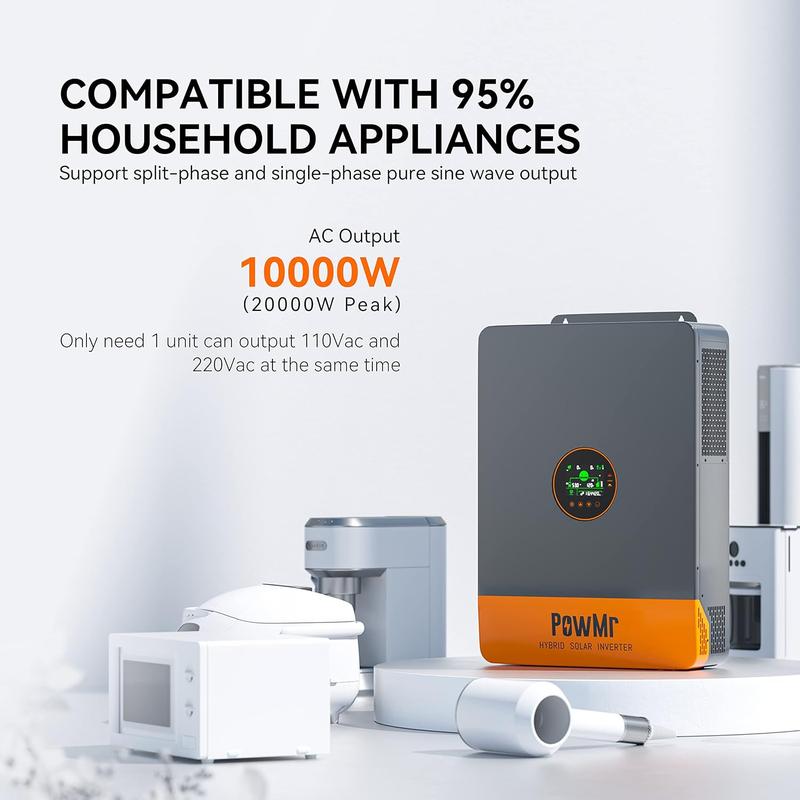

Dual Output & Phase Modes
·Outputs 120V and 240V simultaneously via different connections.
·Supports split-phase and single-phase pure sine wave output.

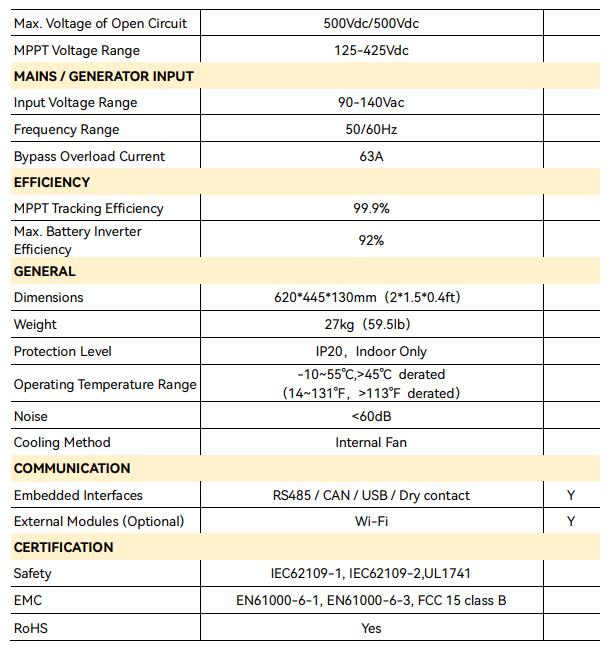

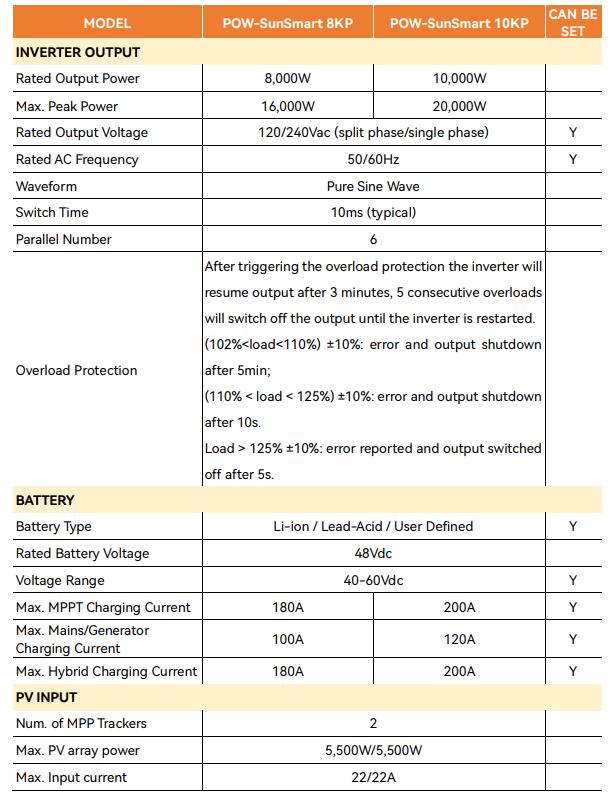

Technical Specs
·10,000W continuous output (20,000W surge).
·Output voltage: 120/240Vac (split/single phase).
·Max PV input: 11KW (5,500W per MPPT), 500V DC, 22A.
·PV start voltage ≥150V, uses 10AWG PV wire.

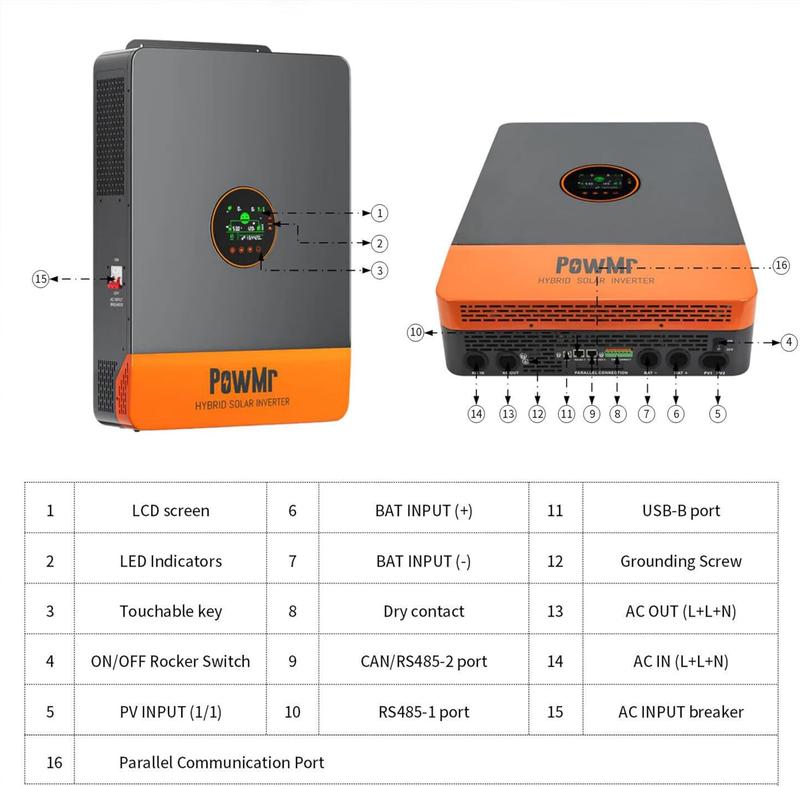

·Communication: CAN, USB, RS485.

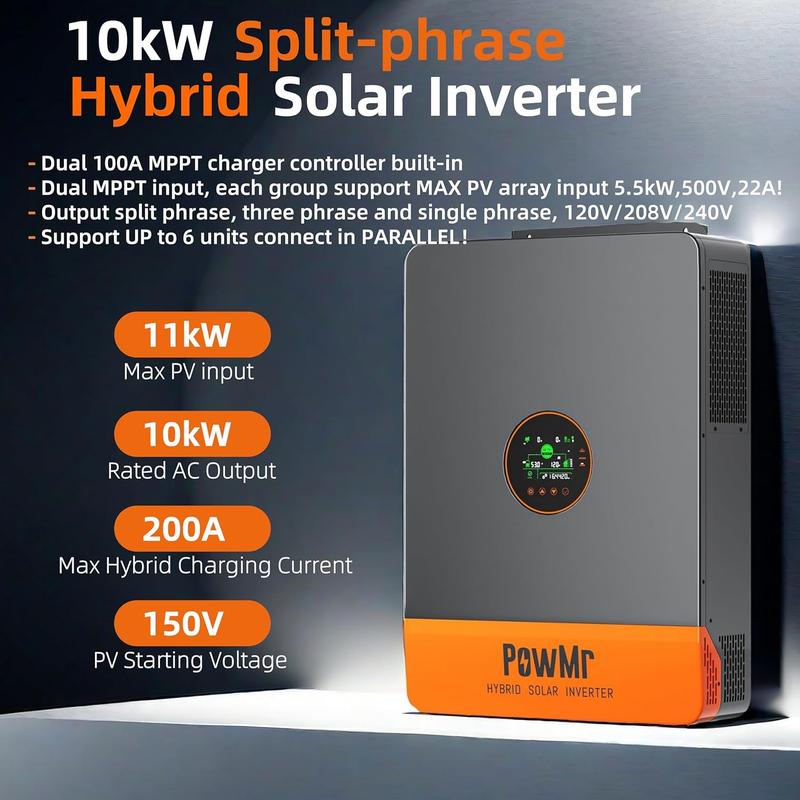

Dual MPPT
·2×100A MPPT (99.9% efficiency, 22A max per circuit).
·Independent dual inputs for simultaneous MPPT for two solar arrays.
Battery Compatibility
Works with 48V lead-acid (Seal, AGM, Gel, Flooded) and lithium batteries. Supports batteryless operation.
Operation Modes & Protection
·4 charging modes: Solar-only/Utility-first/Solar-first/Hybrid.
·4 output modes: PV-first/Utility-first/Inverter-first/Hybrid.
·Protections: short-circuit/overload/over-voltage/under-voltage/backfeed. Ideal for homes, cabins, RVs, boats, off-grid systems.
