Product Description

The Voyager 20A is a class leading 20-amp charge controller with an IP67 rating. It is perfect for outdoor use, and can withstand water spray, rain, and condensation. Equipped with advanced PWM technology, it supports both 12V and 24V off-grid applications, and is compatible with 4 different battery types, including Lithium Iron Phosphate. The Voyager 20A also ensures your system's longevity with solar panel, battery, and controller protections. Note: Please set the voltage manually to charge lithium batteries.

From the brand

Empowered

The Renogy Rover Series Charge Controller is suitable for various off-grid solar applications without wasted energy.

Since 2010 we have been on a mission to change the way the world uses energy. We are committed to making a lasting impact on the earth by removing barriers to sustainable living and energy independence.

Our mission is to empower the energy independence of 50M people with DIY-friendly and reliable renewable energy products by 2030.

We are optimistic humankind can achieve a sustainable future where renewables are at the core of our energy supply.

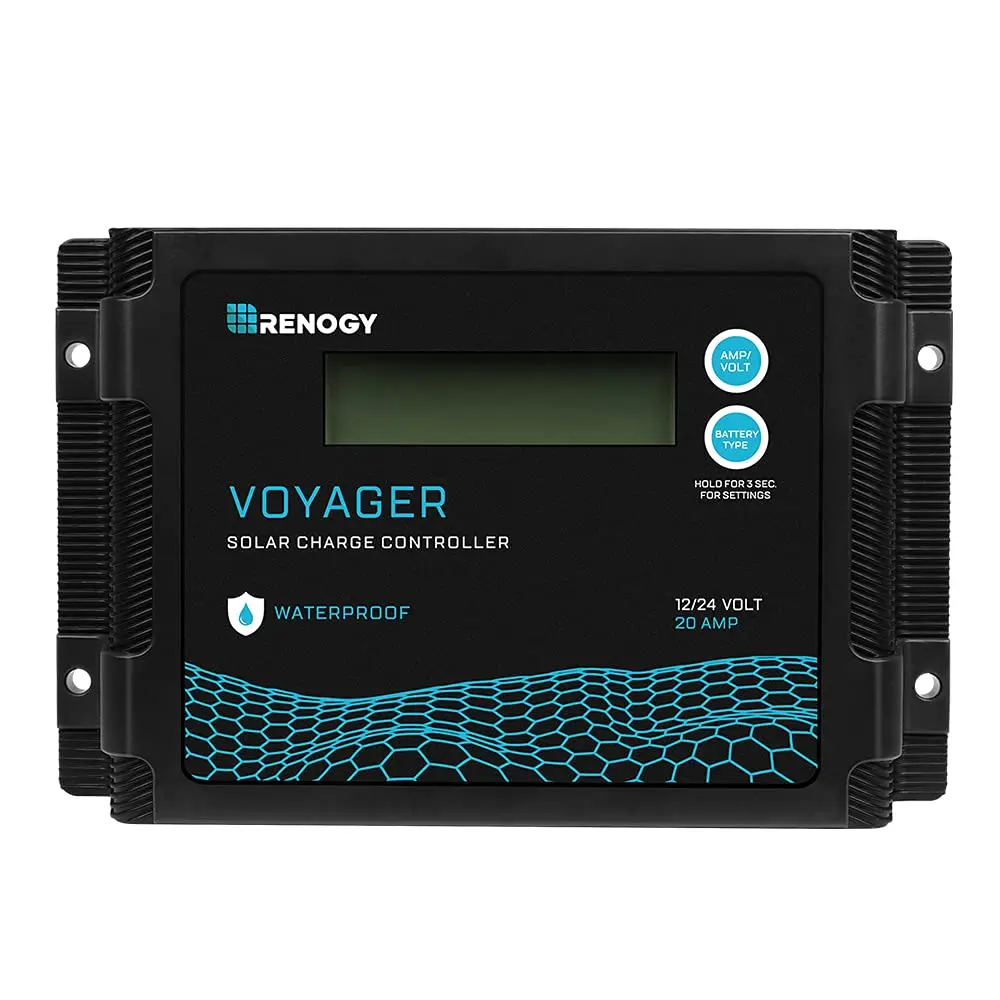

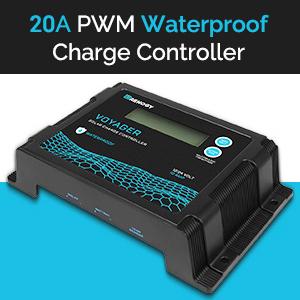

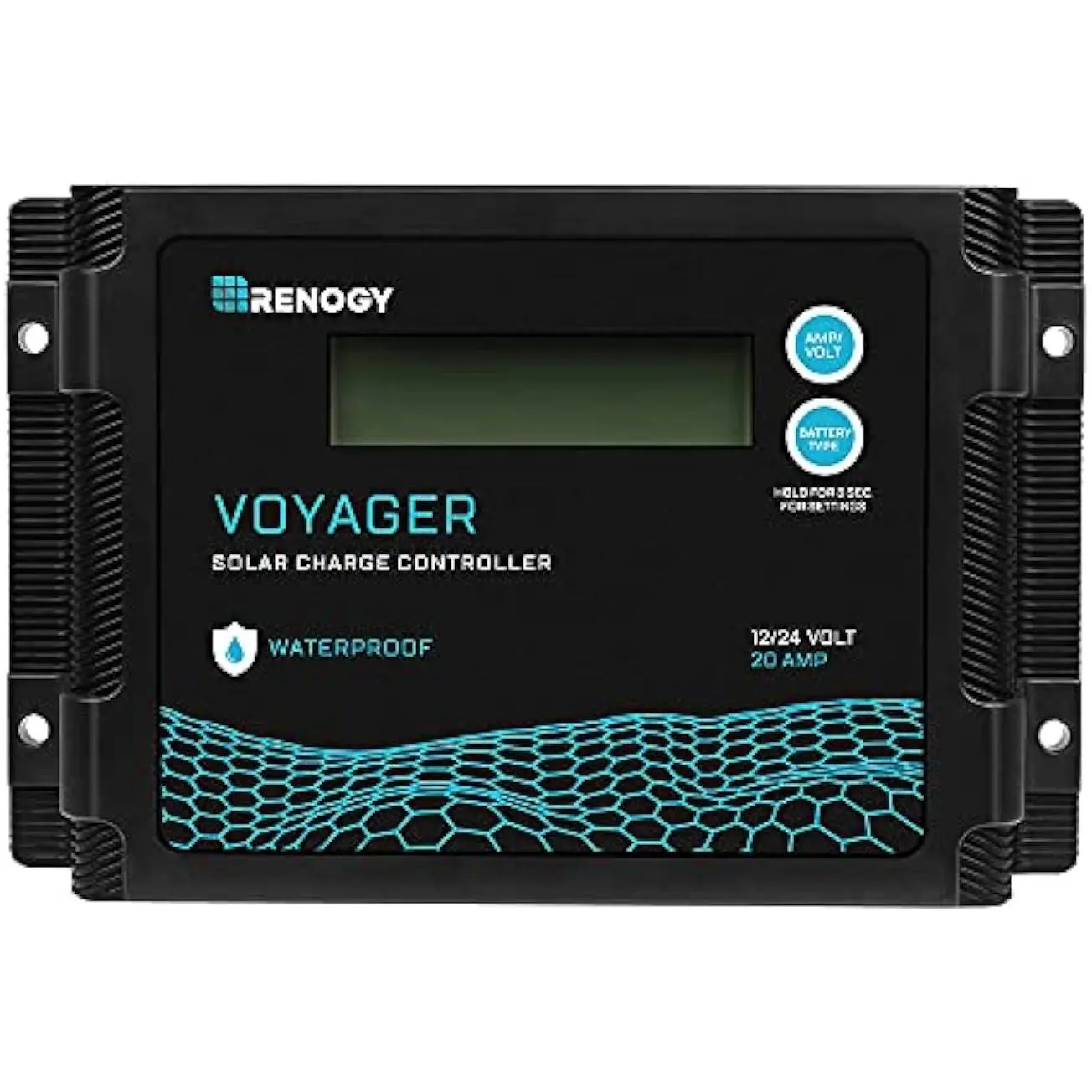

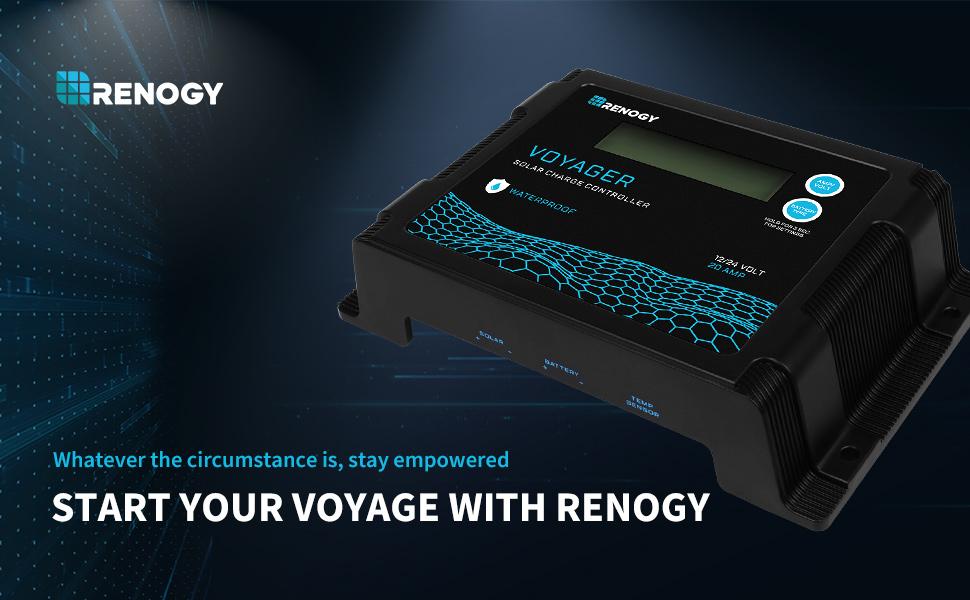

Renogy 20A PWM Waterproof Charge Controller

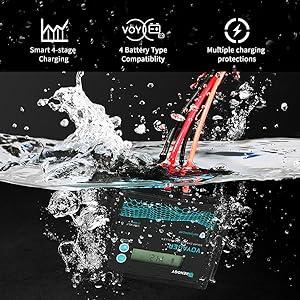

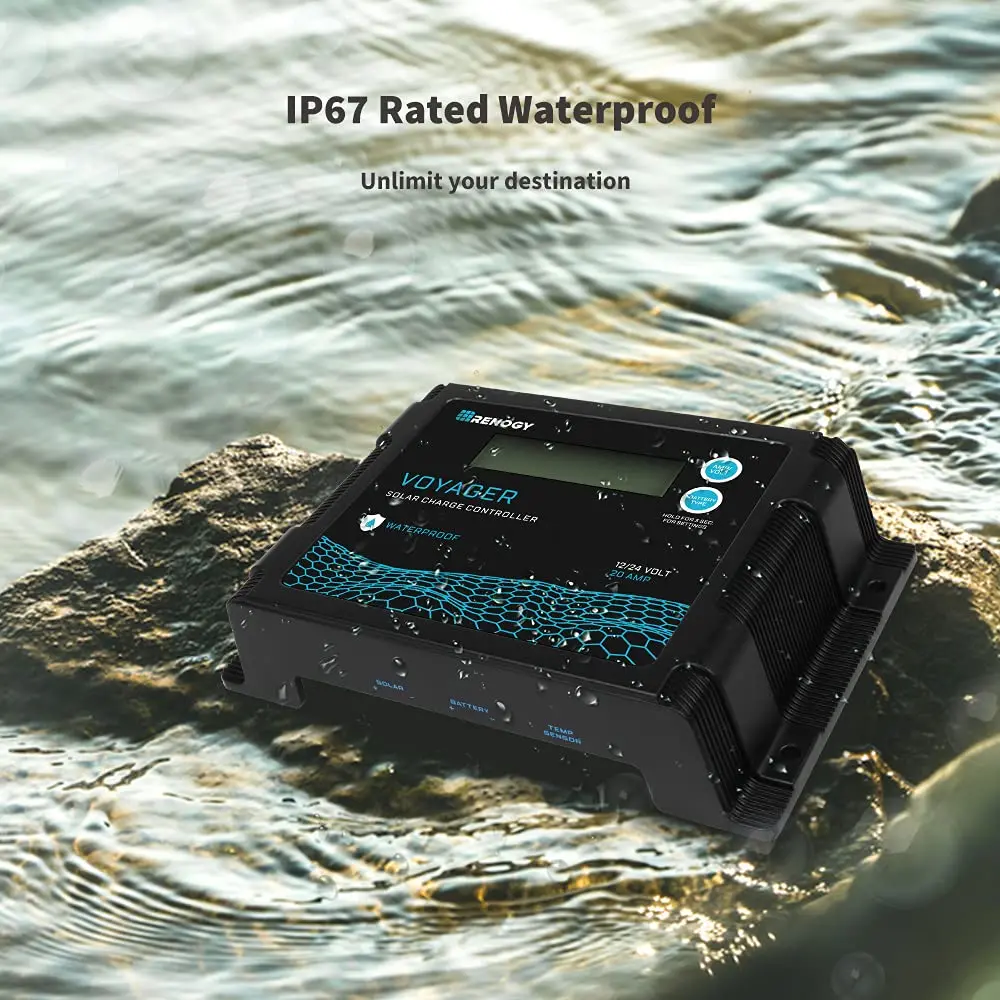

IP67 Rated Waterproof

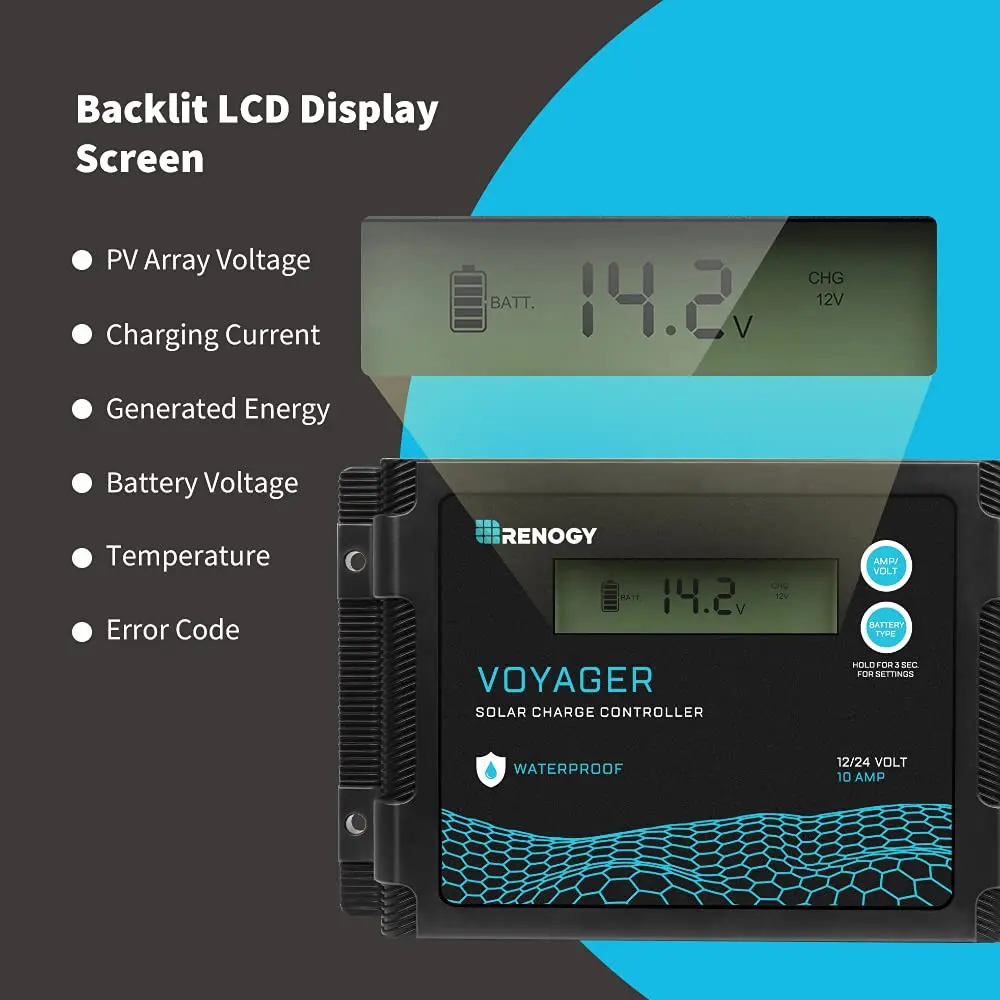

Featuring a bright blue back-lit LCD displaying system information including error codes, the Voyager 20 amp charge controller is engineered to be of world-class quality.

Not only is it waterproof, but it is also equipped with advanced PWM technology suitable for 12V and 24V off-grid applications, and compatible with 4 different battery types, including Lithium!

Ensure your system's longevity and stay assured as the Voyager also has you covered with multiple solar panel, battery, and controller protections. It's the perfect solar panel accessory.

Dimensions: 6.08 x 3.83 x 1.40 in

Weight: 0.55 lbs

Specification

Nominal Voltage: 12V/24V

Rated Charge Current: 20A

PV Input Voltage Range: 15V-55V

Max. PV Power: 260W (12V) / 520W (24V)

Self-Consumption: 0.24W (12V) / 0.74W (24V)

Operating Temperature: -31°F - 113°F

Enclosure: IP67

Common Ground: Positive

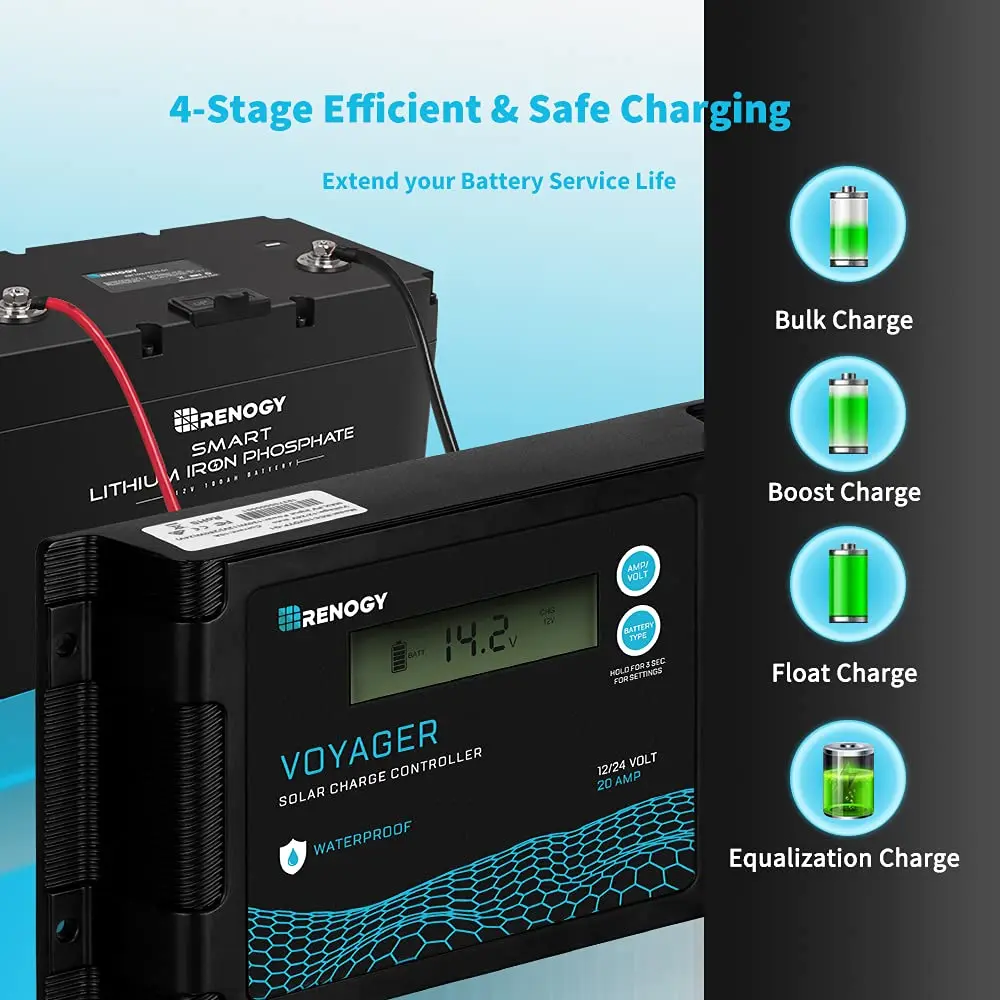

Efficient, Stable, and Safe Charging

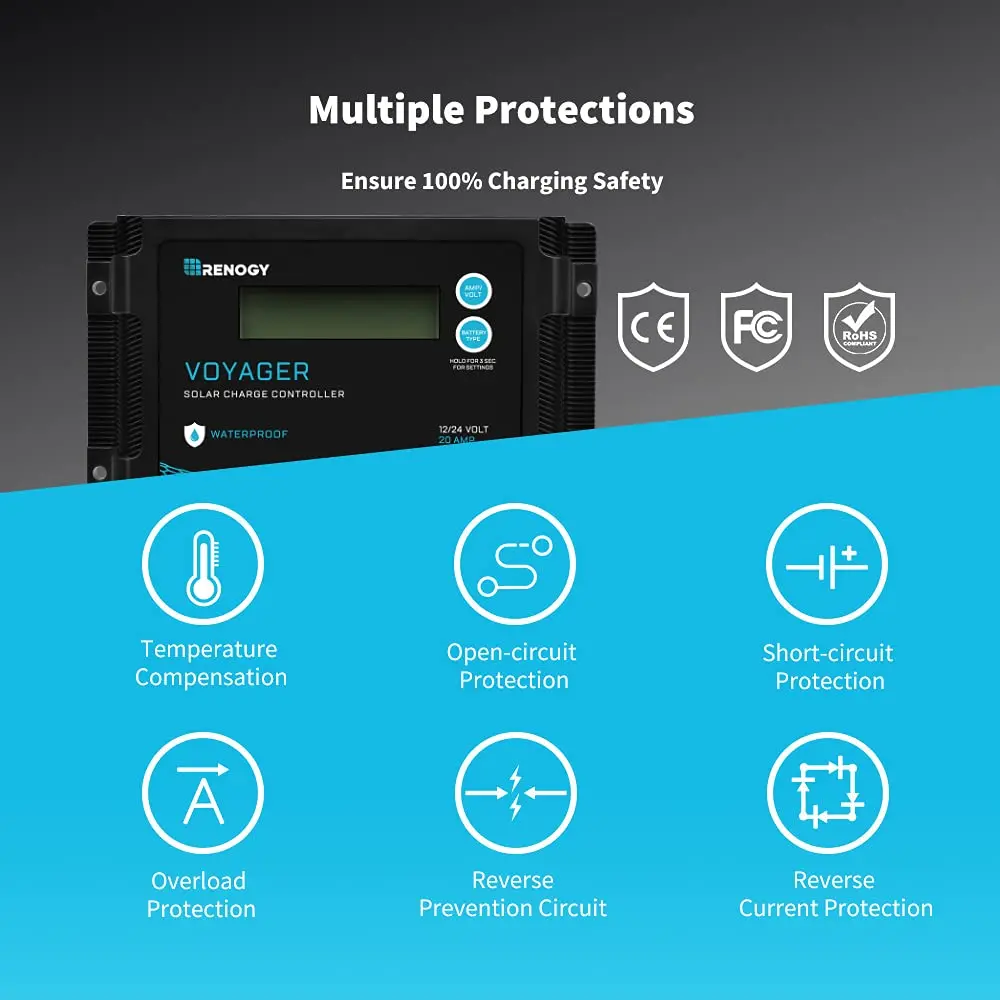

Utilizing smart PWM technology, the Voyager provides 4-stage charging (Bulk, Absorption, Float and Equalization) in order to protect the battery. It also provides multiple battery, controller, and PV electronic protections to ensure charging and usage safety.

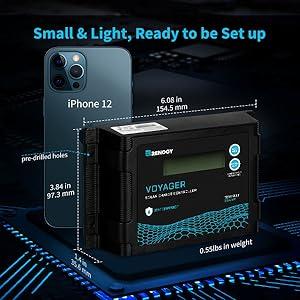

Compact and Lightweight

The Renogy Voyager PWM Waterproof Controller is compact and lightweight, making it perfect for applications with limited space. With a weight of only 0.55lb, a height of 3.84 inches and a width of 6.08 inches, this controller is ready to be installed in small spaces.

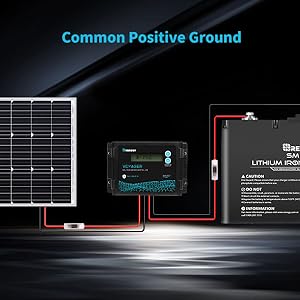

Common Positive Ground

The Voyager PWM Waterproof Controller is a common positive ground charge controller, beneficial in ensuring charging safety.

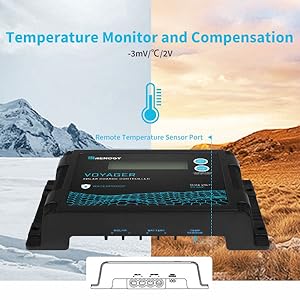

Temperature Monitor and Compensation

Fitted with a Remote Temperature Sensor Port, the Voyager can measure battery temperature in real-time and use this data for very accurate temperature compensation, assuring stable and constant charging.

Extremely Low Self-Consumption

In a 12V system, the Voyager PWM Waterproof Controller only needs 0.22w/h or 1.92kmh/365days. Therefore, consuming extremely low levels of energy while working to charge your battery.

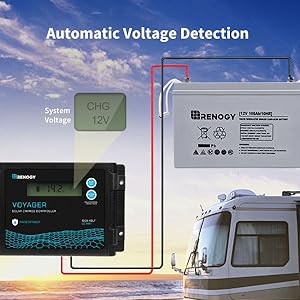

Automatic Voltage Detection

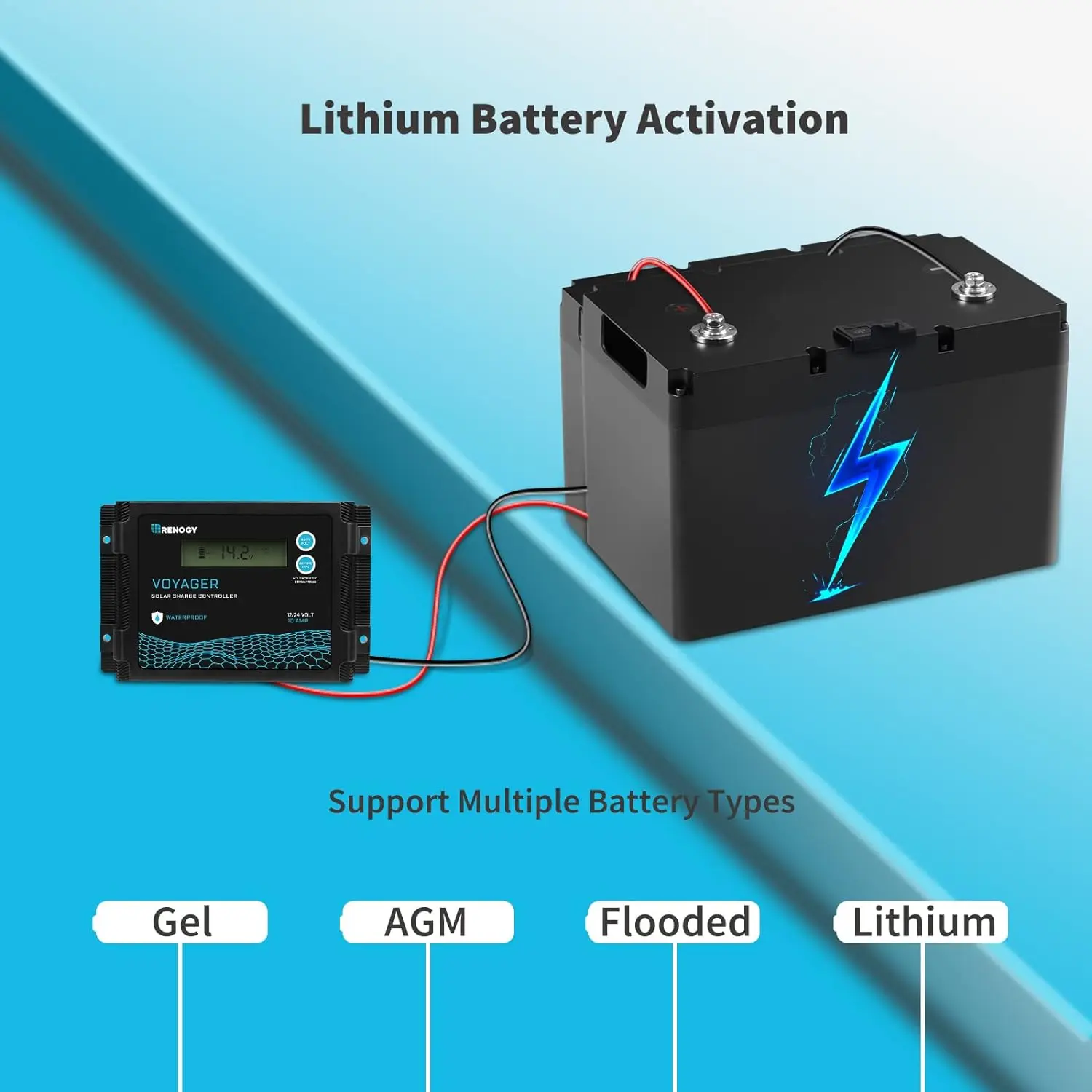

The Voyager PWM Waterproof Controller supports both 12V and 24V systems and can automatically identify system voltage once connected to a Gel, AGM, or Flooded battery bank. Please set the voltage manually to charge lithium batteries.

Renogy provides everything you needed for an off-grid solar power system. Easily follow the instructions and enjoy the fun of DIY solar!

Q&A

Can I connect the controller to my 12v/24v solar system?

Yes,the controller is suitable for both 12v and 24v systems, and it can sense the system voltage automatically once it is correctly connected to a GEL, AGM, or Flooded battery bank. Please set the parameters first before charging your lithium batteries.

Does it support the Lithium battery?

this controller supports Gel, AGM, Flooded, and Lithium batteries. Still, please set the correct battery type to use the charge controller with a Lithium battery. Please manually set the system voltage and other parameters to charge your lithium batteries.

What does IP67 mean?

IP67 rated indicates that the controller will remain protected and fully operational under various environments, including those where the controller is exposed to water spray, rain, etc., perfectly suitable for outdoor use.

What is 4-stage charging and how does it benefit the battery?

4-stage charging is an intelligent charging capability that allows the controller to monitor the battery status constantly. It will automatically adjust the converter output voltage to eliminate battery over & undercharging problems and fully, efficiently, and safely charge the battery. 1. Bulk charging charges batteries to 75-80% of full charge. 2. Boost Charging gradually completes the remaining charge to full. 3. Float Charging maintains battery charge. 4. Equalization Charging increases the battery voltage to higher than the standard complement voltage and gasifies the battery electrolyte, which is carried out every 28 days. Certain types of batteries benefit from periodic equalizing charges, stirring the electrolyte, balancing battery voltage, and completing chemical reactions.
