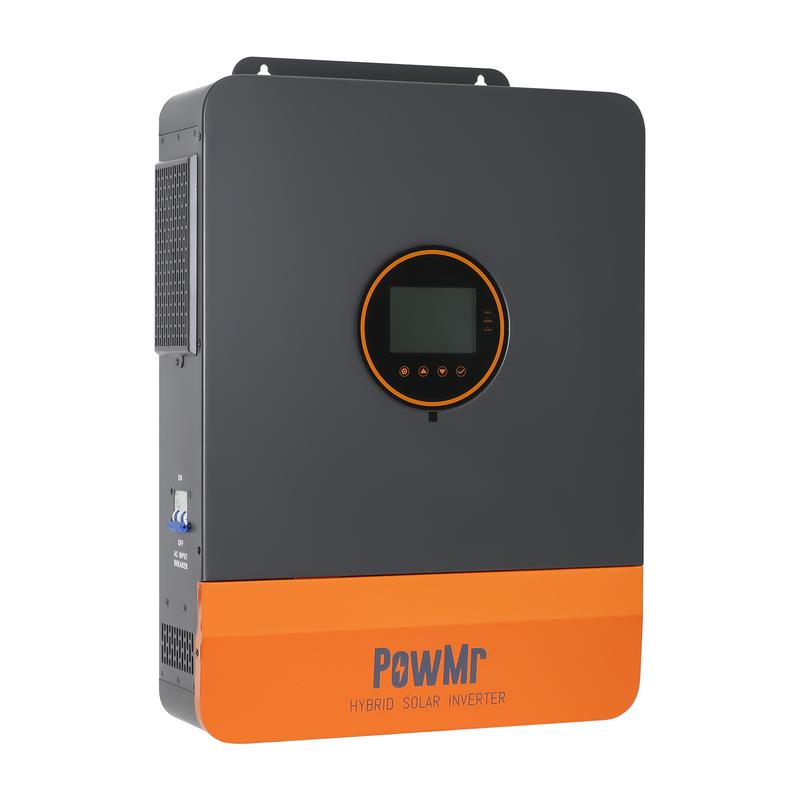

Split-Phase Parallel Solar Inverter (Simplified)

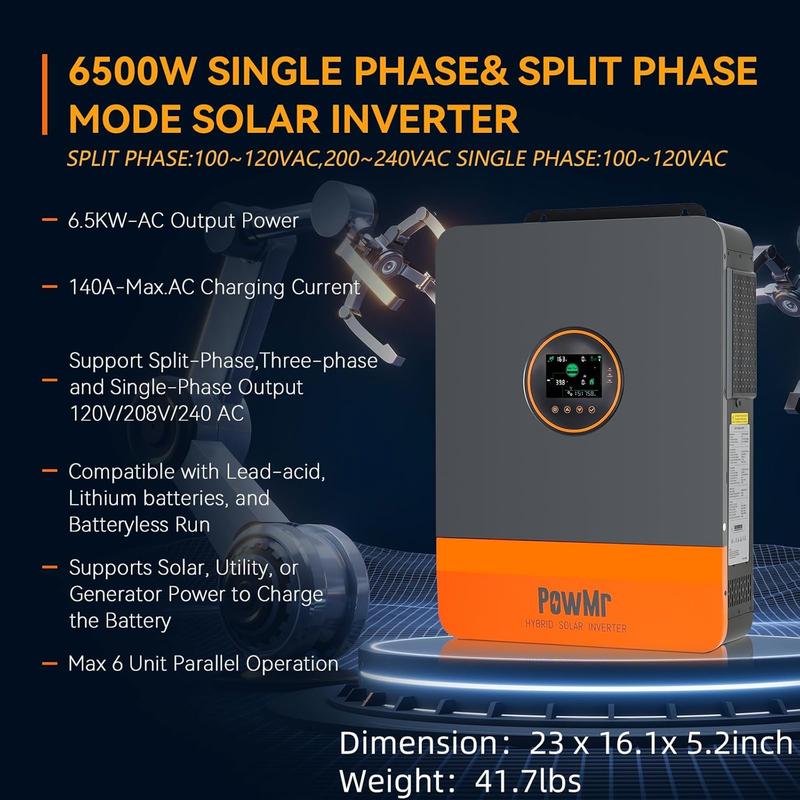

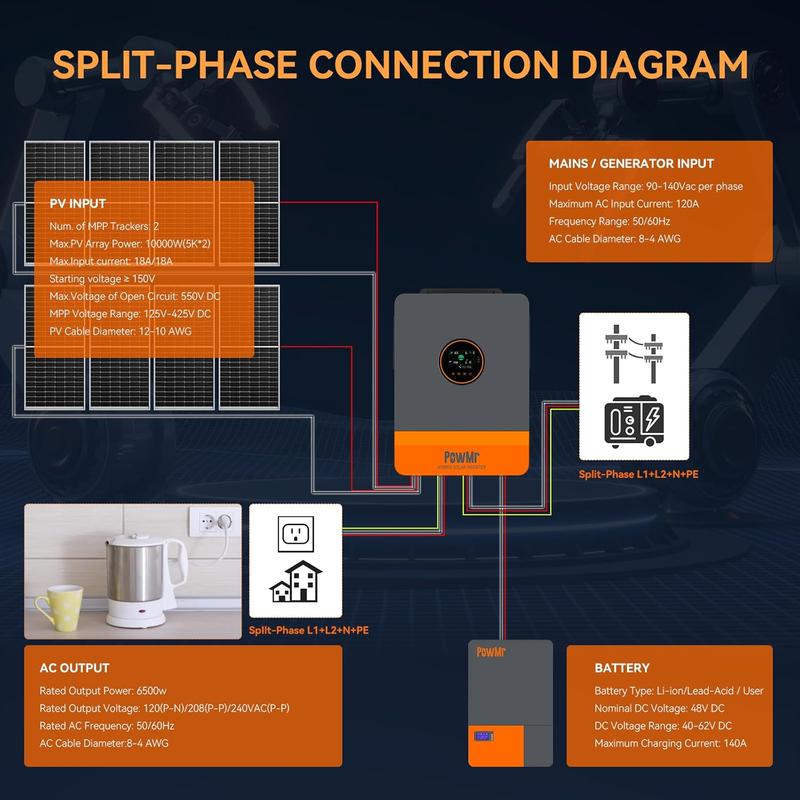

·Core Functions: Supports split-phase/single-phase pure sine wave output. One 6500W inverter can output 120V and 240V simultaneously via different connections. Parallel operation available—up to 6 units expand capacity to 39kW.

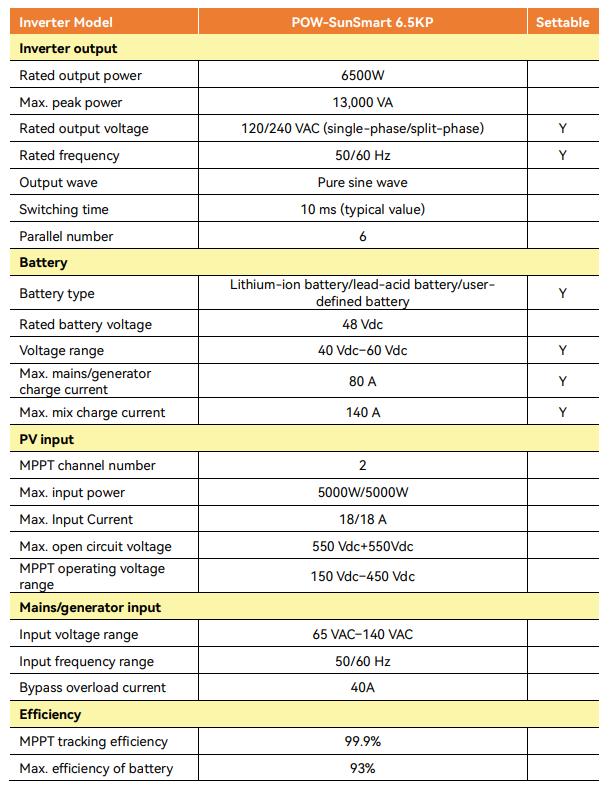

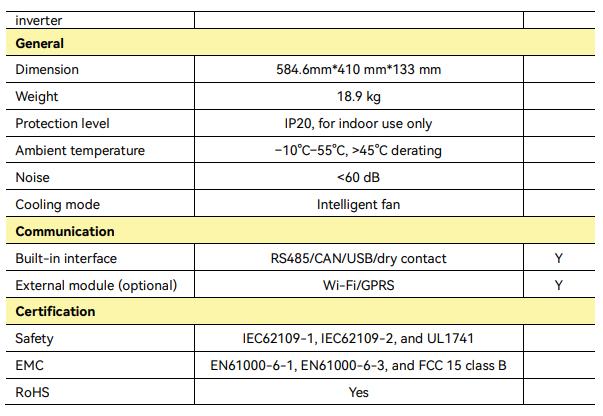

·Technical Specs: 48V 6.5KW inverter with built-in 140A (70×2) MPPT controller. Continuous output: 6500W (surge 13000W); output voltage: 120/240Vac. Switch time: 10ms. Max PV input: 10KW (5000×2), 550Vdc, 18A; PV start voltage >150V; PV wire: 12~10AWG. Supports CAN, USB, RS485.

·Built-in Dual MPPT: 99.9% efficiency, 22A max per circuit (fits high-power modules). 2 solar inputs, tracks max power for charging/discharging simultaneously.

·Charging & Output Modes: 4 charging options (PV only, mains first, PV first, mains+PV); 2 output modes (mains bypass, inverter) for uninterrupted power. LED-adjustable settings.

·Battery Compatibility & Protection: Full protection (short circuit, over-current, over-voltage, overload). Works with AGM, Gel, lead-acid, Li-ion, LiFePO4 batteries, or batteryless. Schedules charge/discharge; activates dormant Li-ion via mains/PV. Ideal for off-grid backup, homes, cabins, RVs, boats, power outages.
