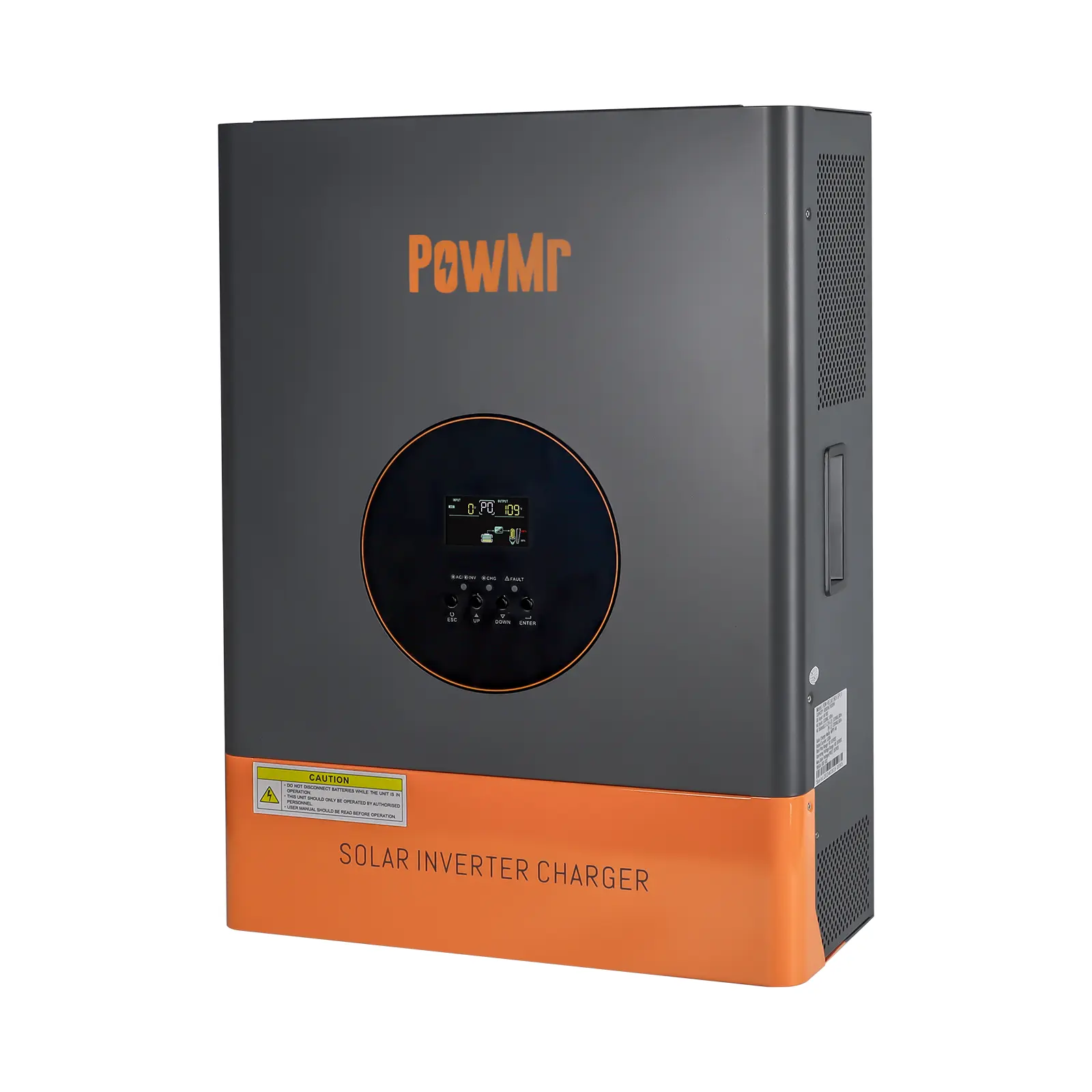

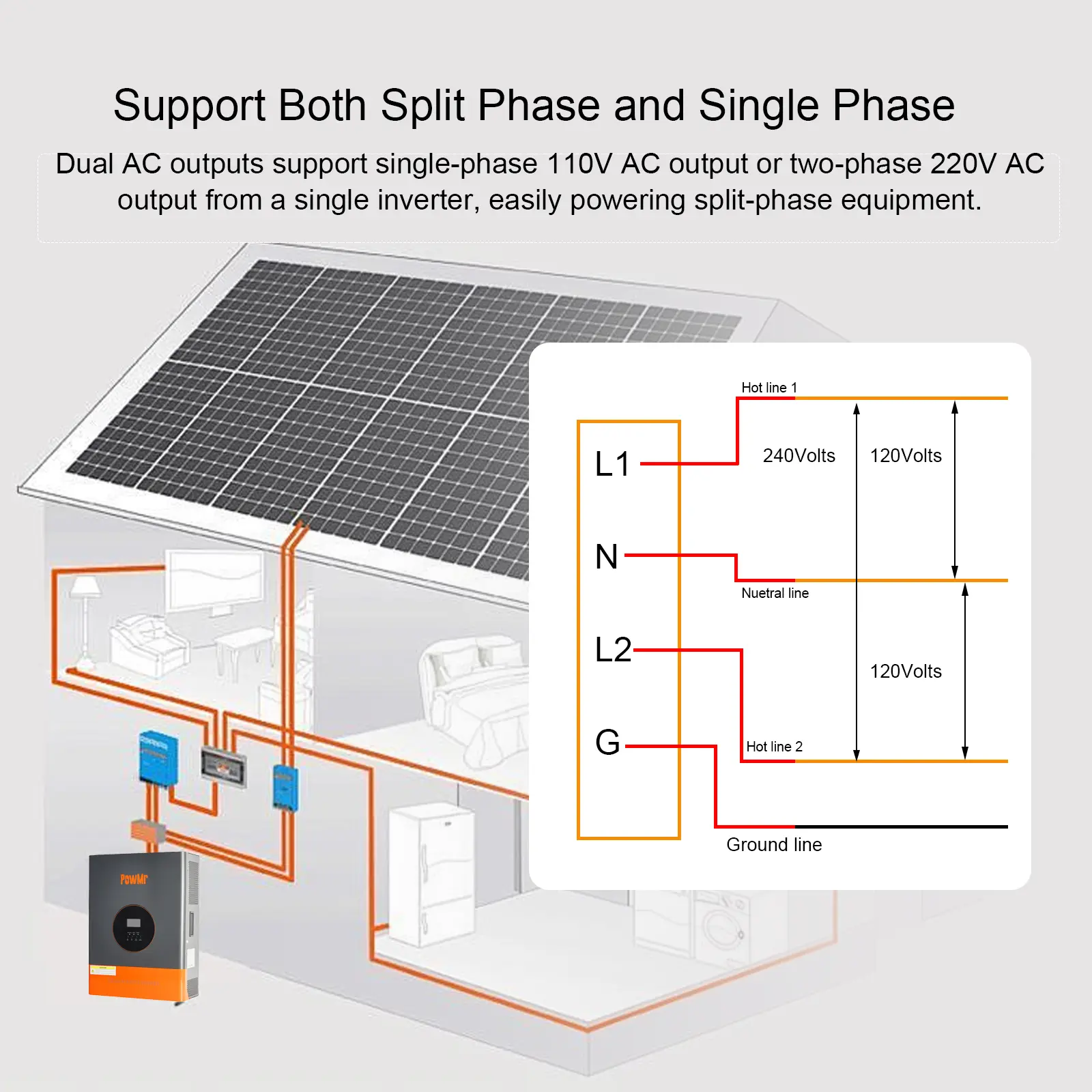

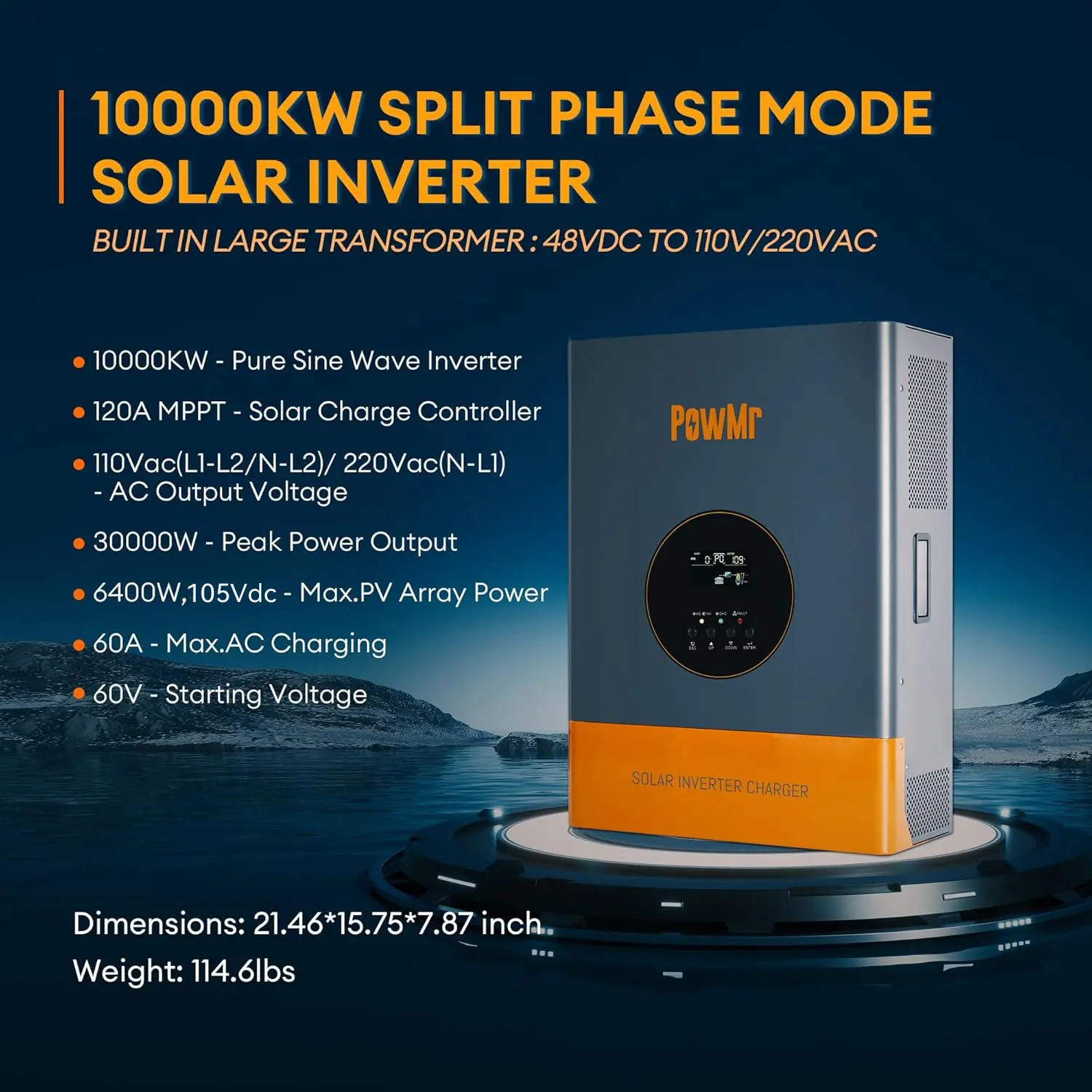

【10KW Split Phase with 110V/220V Outputs】

Upgraded from the original 110V-only design, this hybrid solar inverter now offers both 110V and 220V outputs to meet power needs in different scenarios.

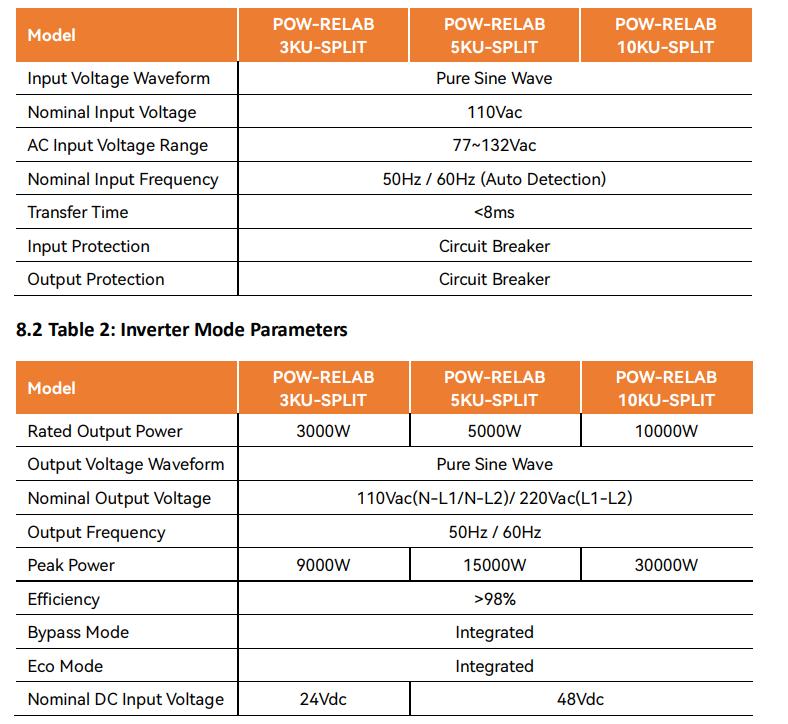

【Specifications】

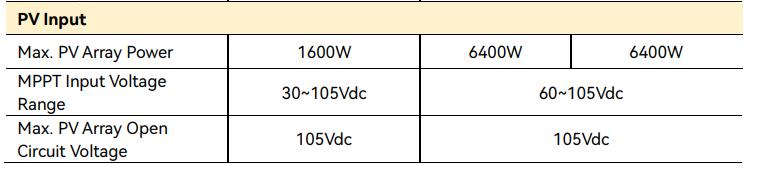

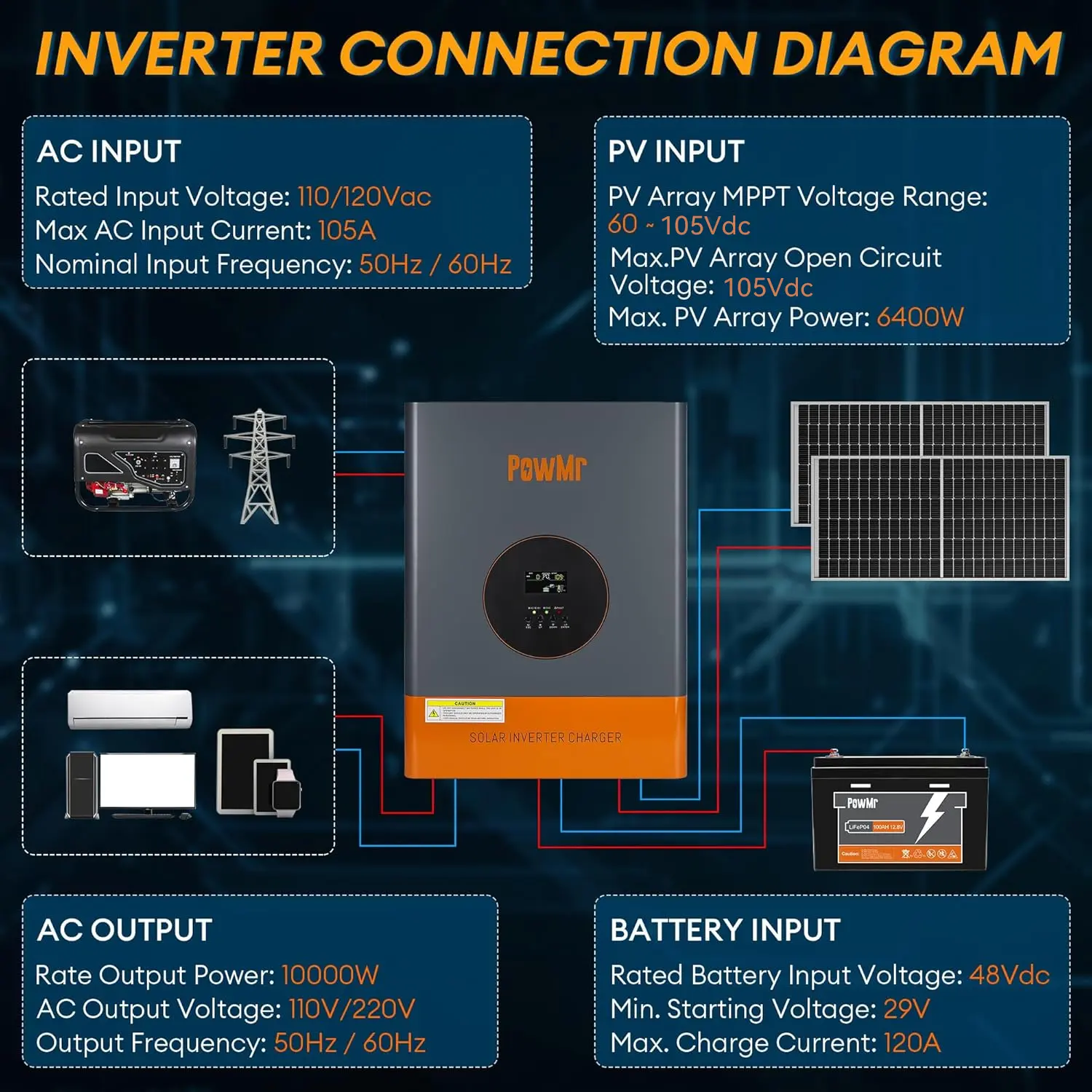

·Max PV input: 6400W (105V), max PV input current: 120A

·MPPT input voltage range: 60-105VDC, max AC input current: 60A

·Rated output power: 10000W (peak power: 30000W)

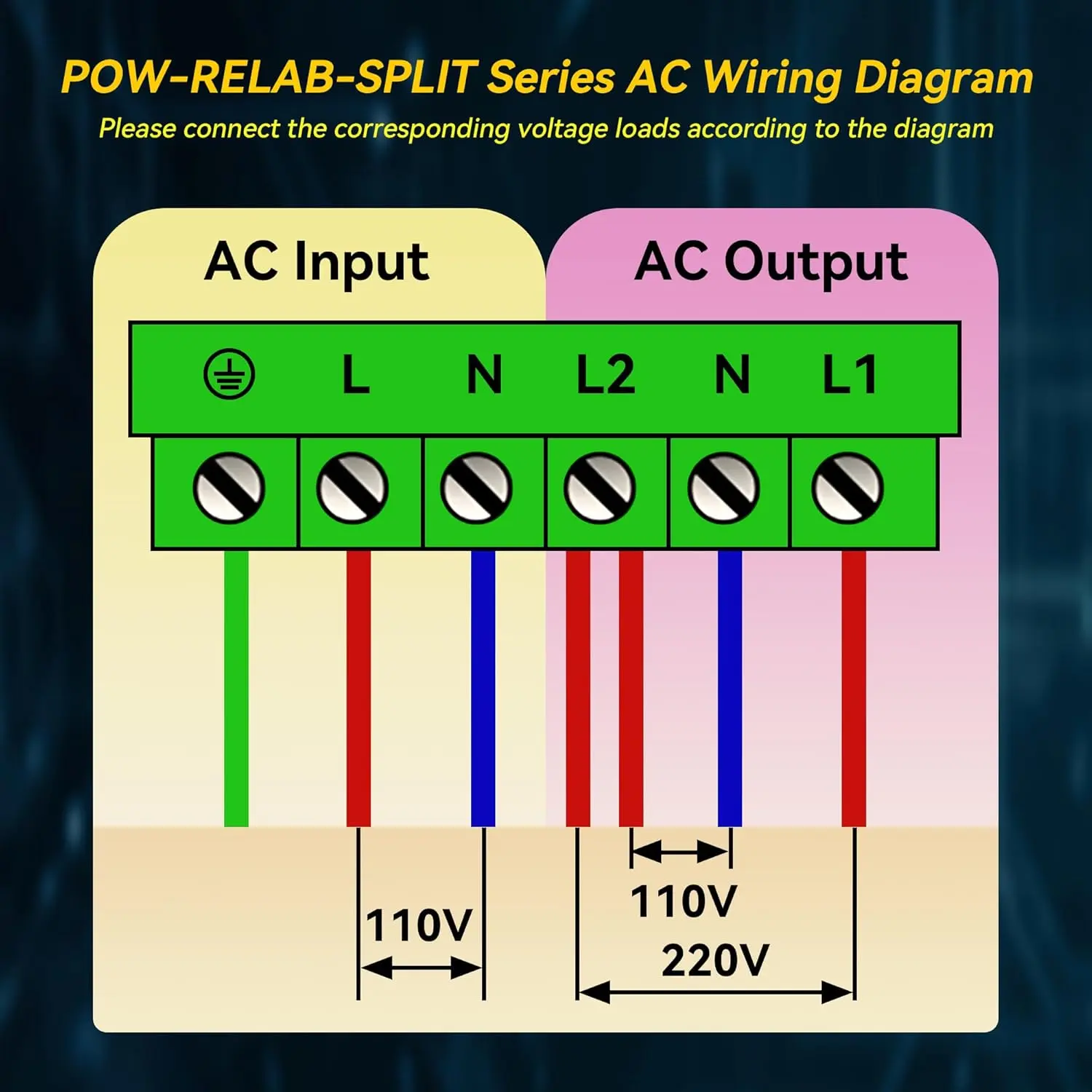

·Output frequency: 50Hz/60Hz, output voltage: 110V/220Vac ±10%

·Max hybrid charging current (AC + PV): 120A

·New 48V 10000W low-frequency pure sine wave inverter, built-in 105A AC charger (supports Utility/Generator/Solar Charge)

【Peak Power Up to 30000W】

With an enlarged toroidal transformer, it reaches 30000W peak power – far exceeding regular 48V 10000W models. Optimized to reliably power high-demand devices (refrigerators, industrial equipment) for residential and commercial use.

【High Load Handling & Multiple Protection】

Advanced transformers enable stable power for high-load devices (refrigerators, industrial machinery). Features: dual cooling fans, corrosion/dust-proof housing, LCD with LED indicators (real-time status). Integrated protections: short circuit, over/under voltage, overload, reverse polarity.

【3 Charging & 3 Discharging Modes】

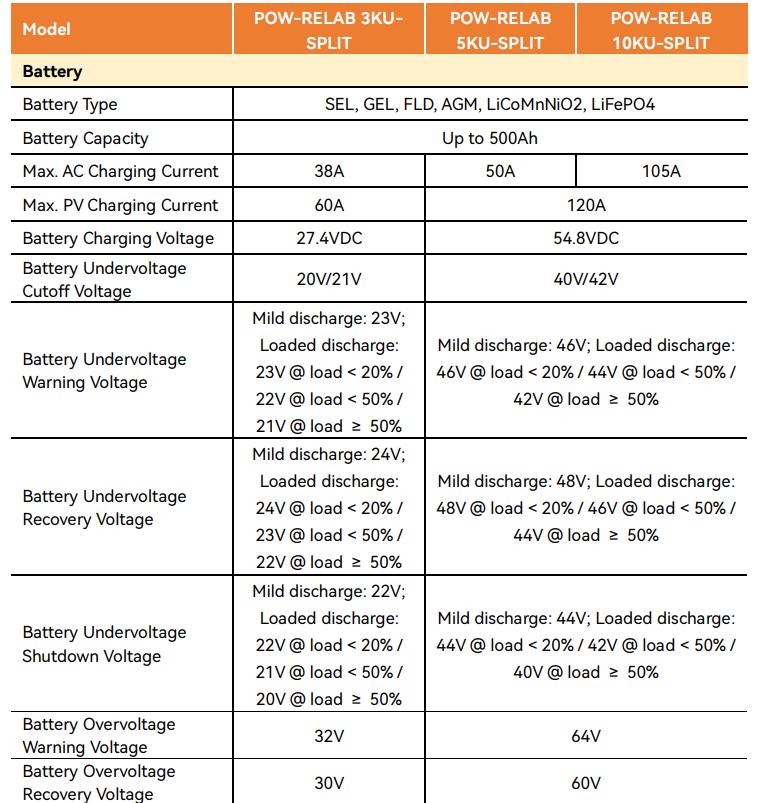

3 charging modes: Solar-Only, Utility Priority, Solar Priority; 3 discharge modes: PV Priority, Utility Priority, Solar-Only. Compatible with various 48V batteries (Flooded, LiFePO4, AGM, Gel, USER types).
