FAQs

Q/A

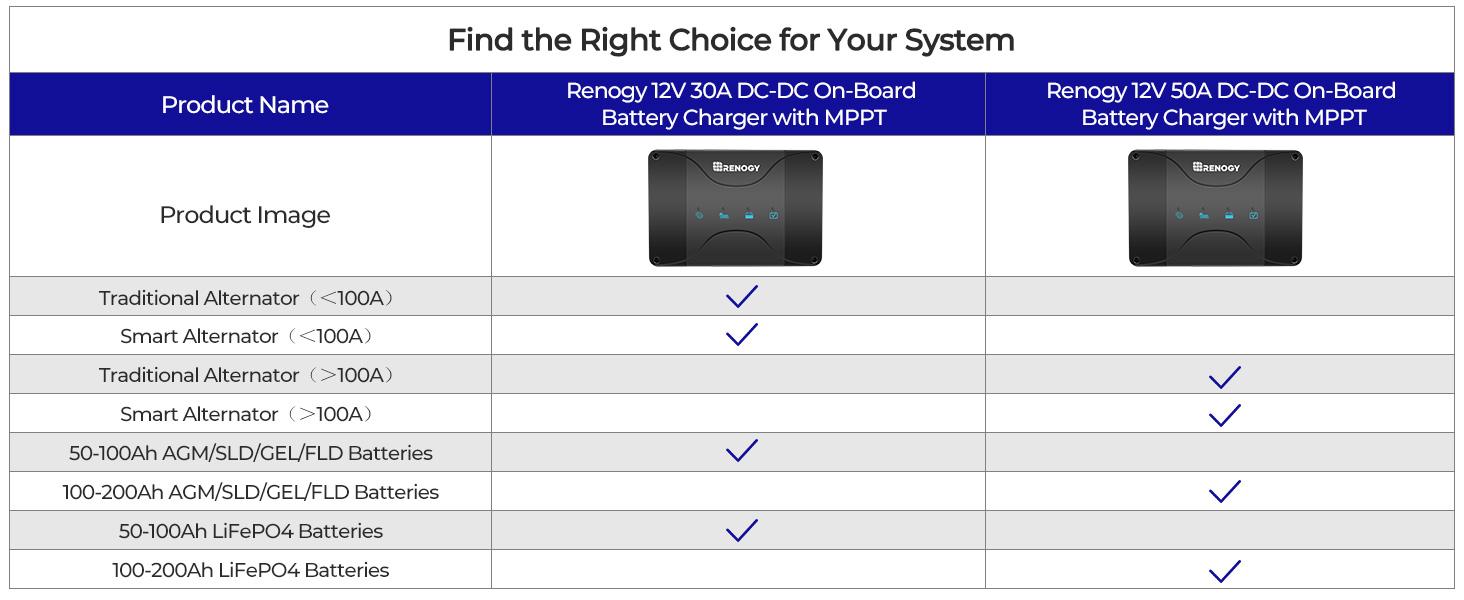

1. What type of alternator is this on-board battery charger compatible with?

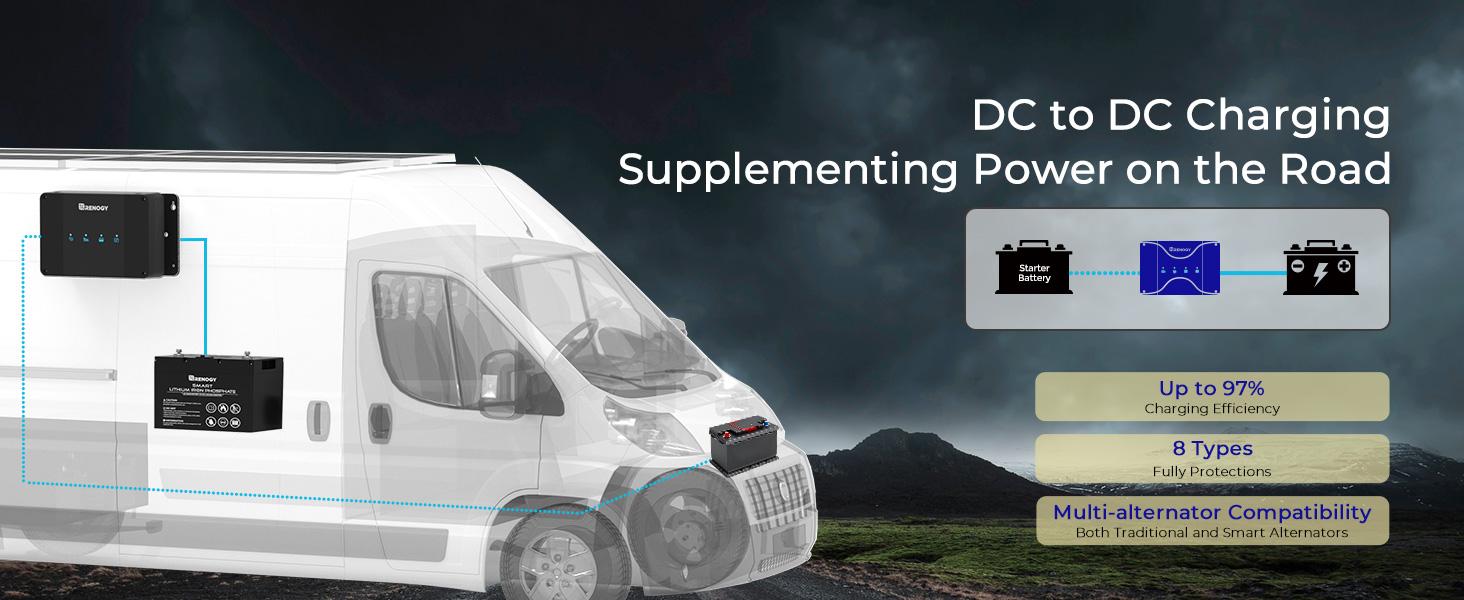

This battery charger is compatible with both traditional and smart alternators. However, since standard/traditional alternator has a fixed voltage when charging, while smart alternator has a controlled charging output based on operating conditions, it is required to connect the charger to the smart alternator through the Vehicle Ignition Port by the IGN Signal Wire comes with the package.

2. What will happen if the service battery is fully charged?

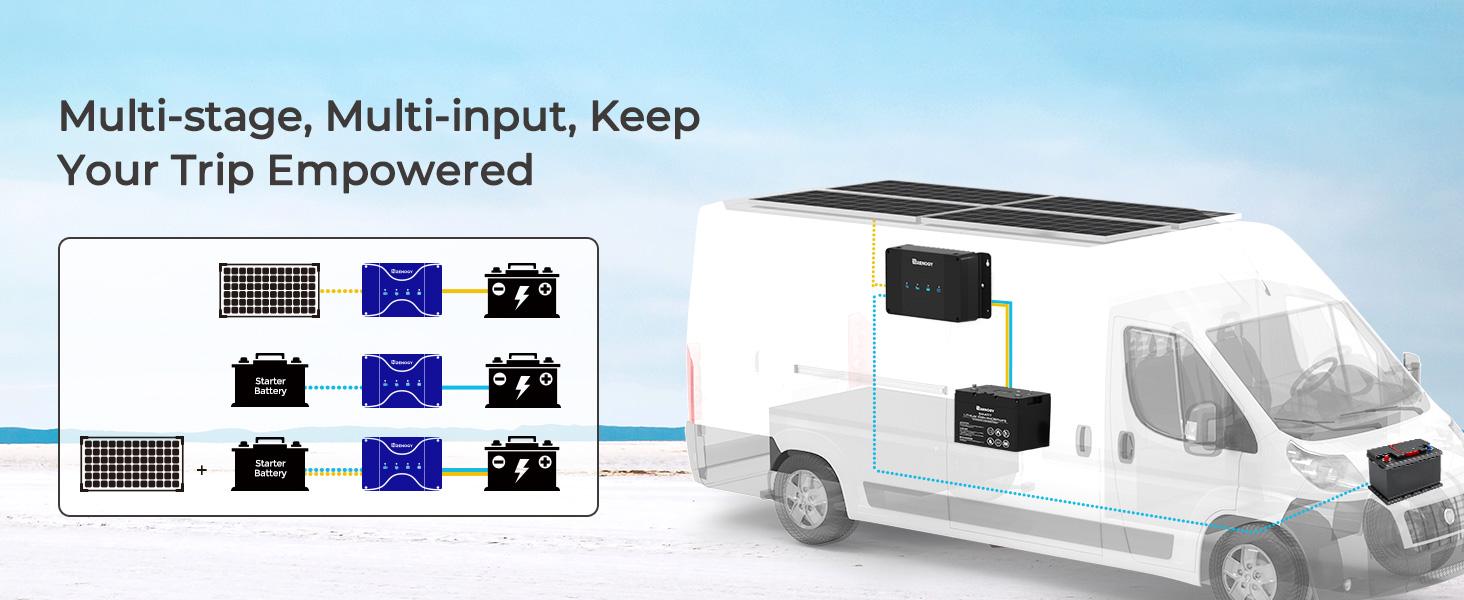

This Renogy's DC to DC MPPT on-board Battery Charger has a built-in Voltage Sensitive Relay (VSR), thanks to which the charger will Trickle Charge the service battery and maintain its fully charged status, and will also Trickle Charge the starting battery via solar panels. The VSR also ensures reliable isolation between the starting battery and service battery, avoiding charging interference.

3. What types of battery does the charger support?

This controller supports Gel, AGM, Flooded, and Lithium battery, but please make sure to set the correct battery type once it is installed. For battery settings please refer to the Manual Book on page 12&15.

4. How do I set the battery since there is no display screen?

To change the battery type you will need to press the push button that is located on the PV+ and ALT+ side of the DCDC, then continue to press the button and the LED will display different colors with each representing a single type of battery. Please refer to the manual on page 15 for Battery Type LED.
