·Gas Options: Supports 100% Argon for aluminum, 100% CO₂ for carbon steel, and mixed shielding gases for carbon steel and stainless steel, flux-cored (gasless) wires for carbon steel.
·Supports foot pedal control for both switch activation and amperage adjustment.
·Designed for DC TIG applications on stainless steel and carbon steel.
Notice: This welder cannot TIG weld aluminum. The foot pedal is sold separately.
POWERFUL HF CUT
·20-50A output cuts up to 5/8" (16mm) at 220V or 1/2" (12mm) at 110V.
·Equipped with high-frequency contact arc starting, it effortlessly slices through rough, painted, and rusty surfaces with minimal slag by using safe compressed air.
·Air Flow Control: Adjustable pre-gas and post-gas times to extend consumable life and improve cut quality.
·Works on stainless steel, alloy steel, carbon steel, copper, and aluminum.
STICK WELDING ENHANCEMENT
Optimized for stable and reliable stick welding performance, this machine includes the following pre-configured, non-adjustable features:
·Hot Start – Improves arc ignition by momentarily increasing current during start-up.
·Arc Force – Enhances arc stability, especially under low-voltage conditions.
·Anti-Stick – Automatically reduces current to prevent electrode sticking.
These features are factory-set and not user-adjustable, ensuring consistent operation without the need for manual tuning.

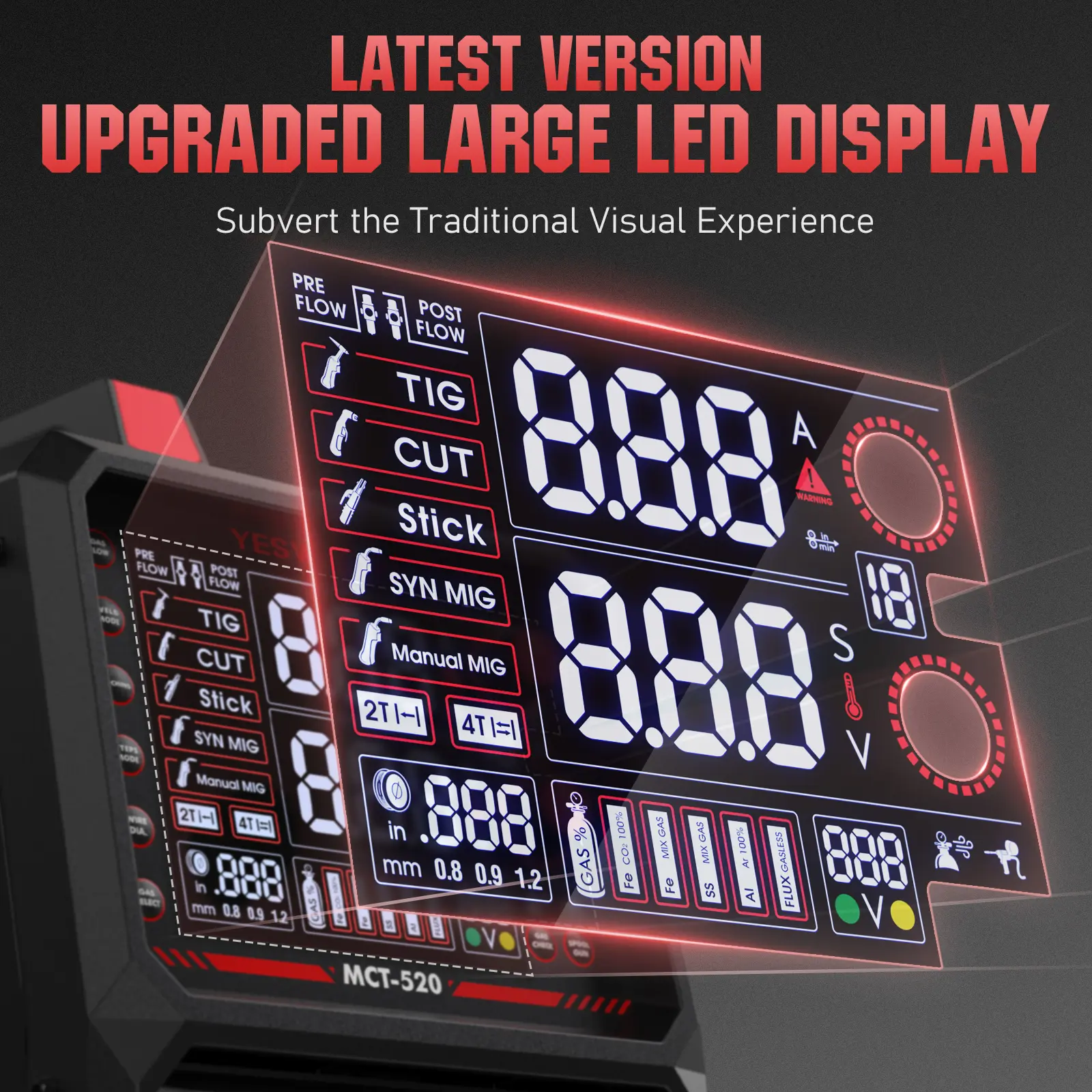

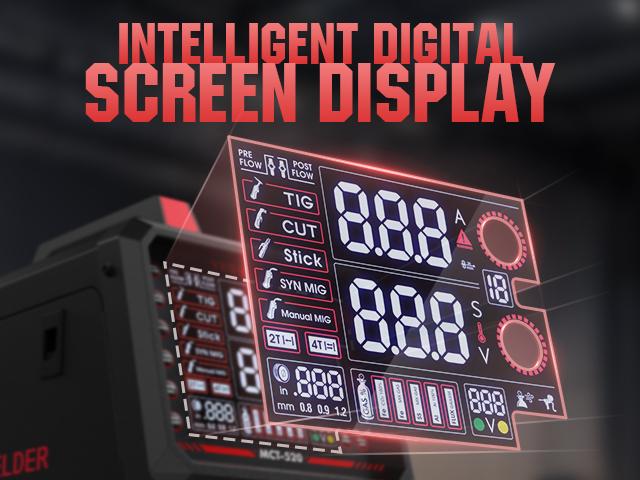

·Featuring a high-resolution screen, it delivers crystal-clear visibility for real-time monitoring of welding/cutting parameters.
·The intuitive interface enables precise adjustments with instant feedback, ensuring optimal control over voltage, amperage, and speed, which is designed to streamline workflows.
ACCESSORIES
SPECIFICATIONS
·Product Weight: 47.3lb
·Product Dimensions: 19.75"*16.87"*15.62" Inches
·Input Voltage: 110V/220V, 50/60Hz
·Input Current: At least 30A
·Recommended Receptacle: NEMA 6-50@240V, NEMA 5-30@120V
·This unit is covered by a 2-year limited warranty for purchases made on or after July 1, 2026. Machines purchased prior to this date remain under the original 1-year warranty. Coverage includes repair or replacement of parts or components failing due to defects in material or workmanship.
View more
Video
Introduction

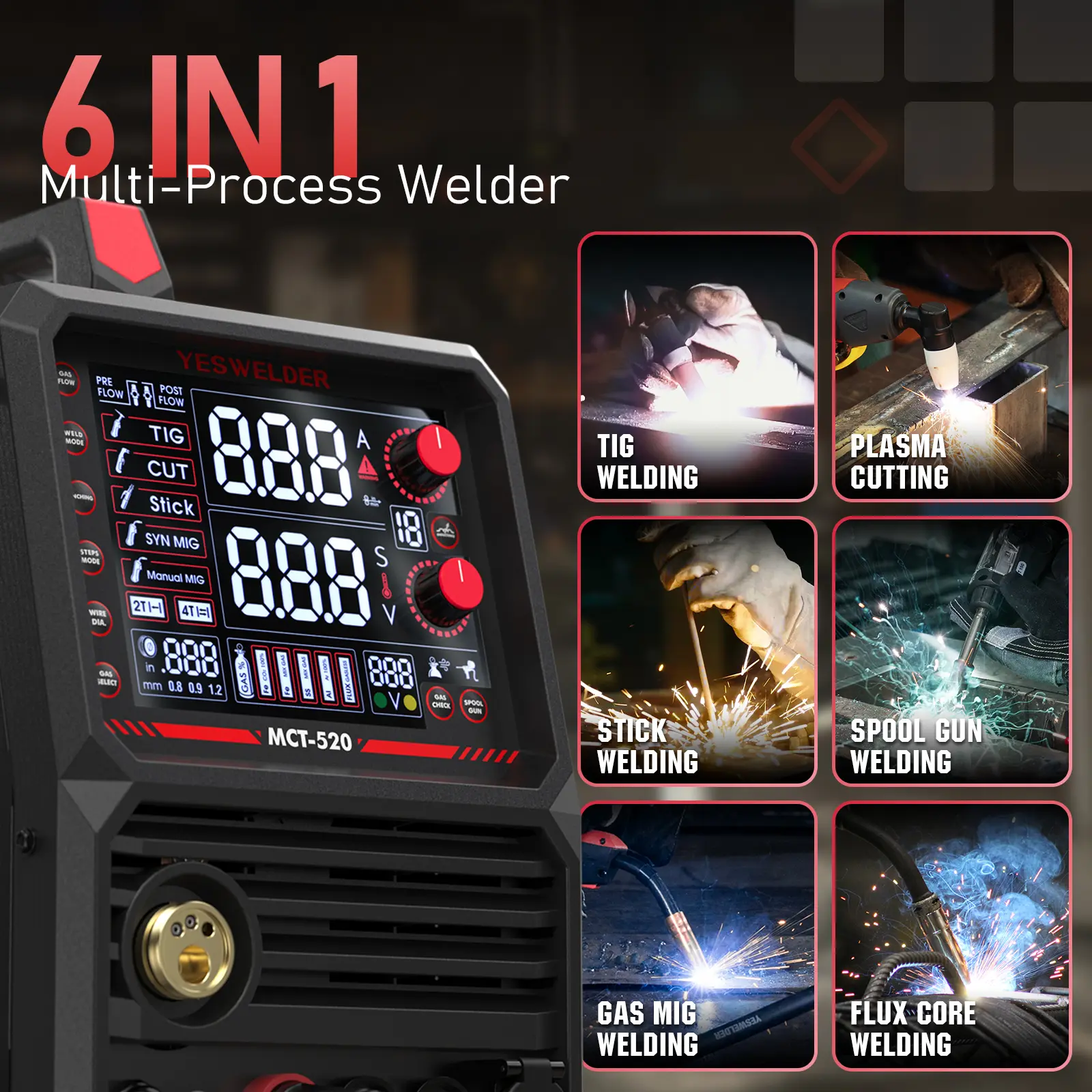

The YESWELDER MCT-520 110/220V Dual Voltage Welder & Plasma Cutter Combo is a compact, professional-use machine designed for metal fabrication and repair with 6-in-1 capabilities. It combines Synergic MIG, Manual MIG, Flux-Core, HF TIG, Stick welding, and HF CUT plasma cutting, providing one platform for a wide range of welding and cutting tasks.
For MIG work, the machine supports Synergic MIG mode (automatically matches voltage based on selected wire feed speed) and Manual MIG mode (independent voltage and wire speed control). It also includes spool gun readiness for aluminum welding, with one-button activation and auto-switch to Manual MIG mode. The product supports Fe/SS wire sizes of 0.8mm and 0.9mm, and aluminum wire sizes of 0.9mm and 1.2mm, with gas options including 100% argon for aluminum and suitable shielding gases for other materials.
HF TIG uses high-frequency, non-contact arc initiation for improved weld starts, with optional foot pedal control for switch activation and amperage adjustment (DC TIG applications on stainless steel and carbon steel; this machine cannot TIG weld aluminum). HF CUT provides 20–50A cutting for multiple metals with adjustable pre-gas and post-gas times. A high-precision digital display helps you monitor and adjust parameters in real time.
Question and answer
•
What welding and cutting processes does the YESWELDER MCT-520 support?
A:It supports Synergic MIG, Manual MIG, Flux-Core, HF TIG, Stick welding, and HF CUT plasma cutting.
•
Does the MCT-520 support aluminum TIG welding?
A:No. The description states this welder cannot TIG weld aluminum.
•
Is the aluminum spool gun included with the MCT-520?
A:No. The description notes that the LBT150 aluminum spool gun is sold separately.
•
What wire sizes are supported for MIG/aluminum welding?
A:Fe/SS: 0.8mm and 0.9mm. Aluminum: 0.9mm and 1.2mm.
•
What plasma cutting output is supported by HF CUT?
A:HF CUT output is 20–50A, cutting up to 5/8" (16mm) at 220V or 1/2" (12mm) at 110V.
•
What type of TIG arc starting does the machine use?
A:It uses HF TIG high-frequency contact arc starting for non-contact arc initiation.
