Product Feature

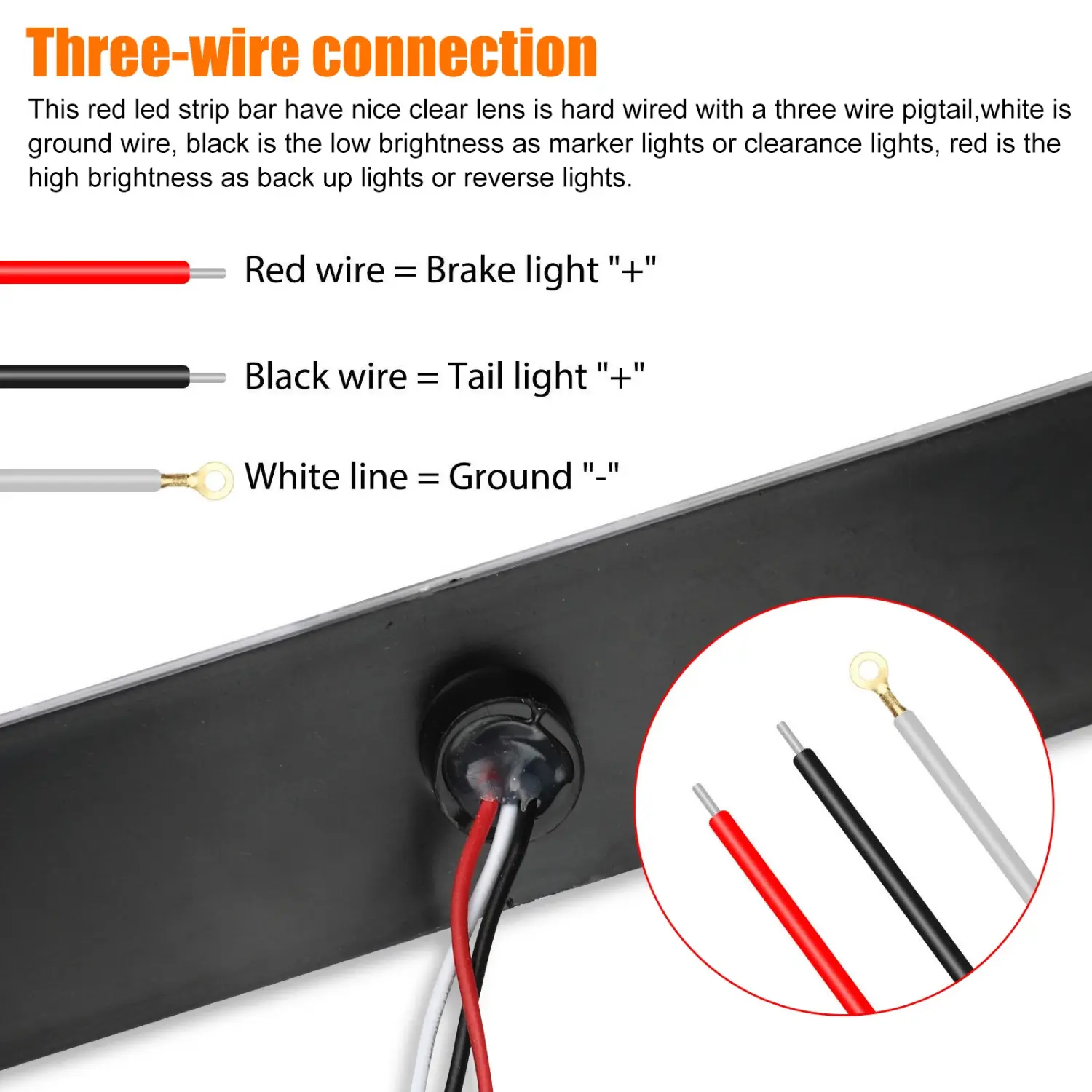

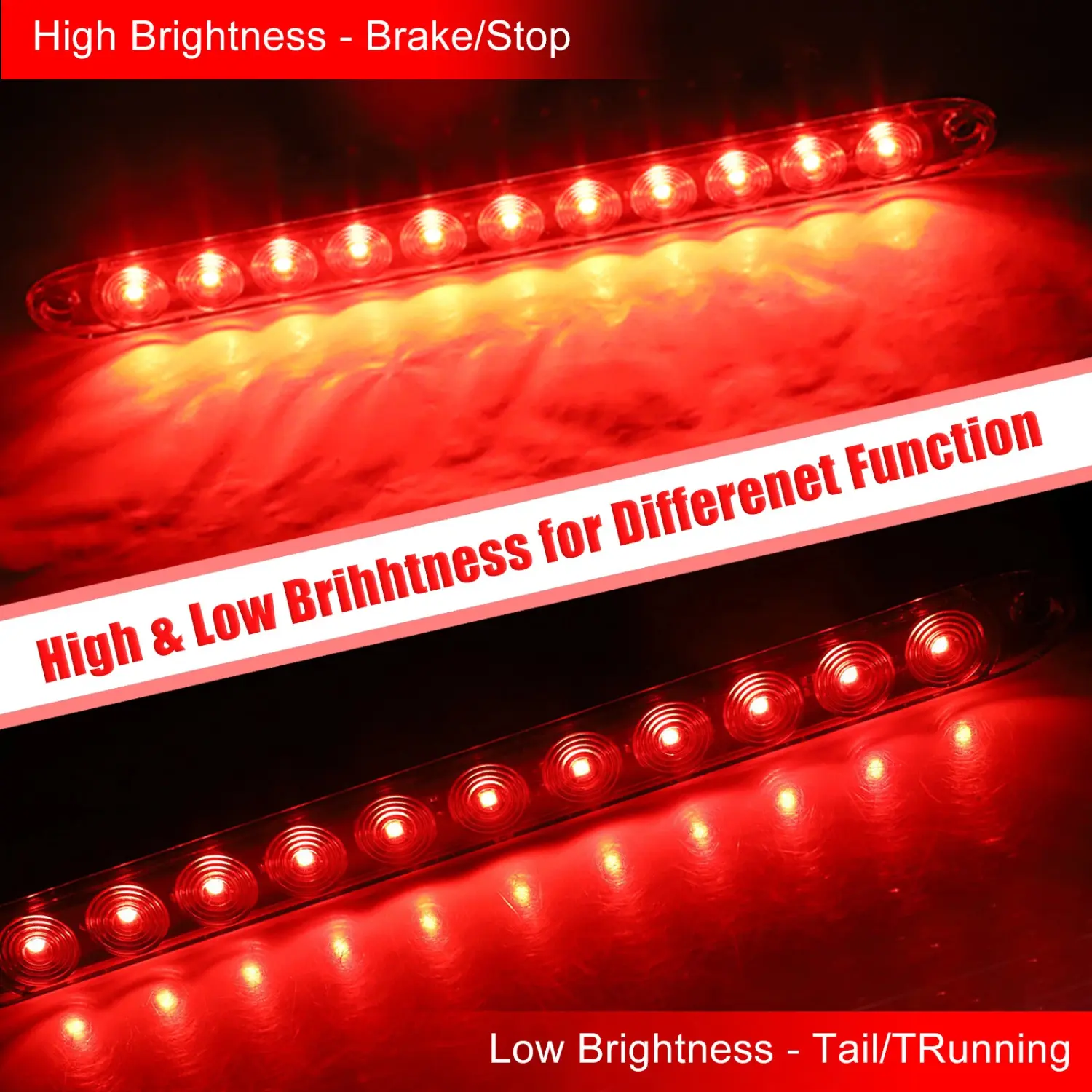

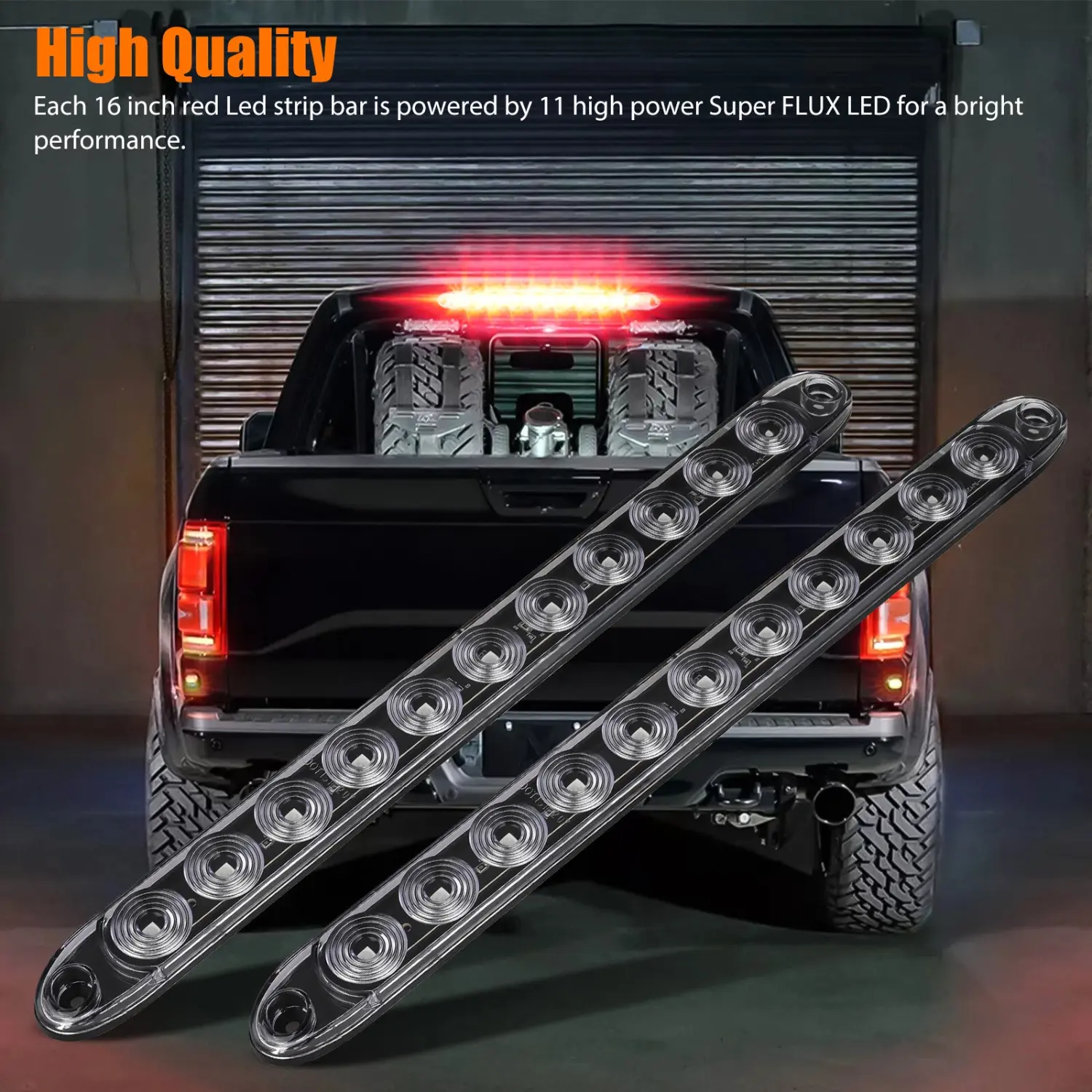

· 【 Clear Lens/Red Light 】: Each 16 inch red LED strip bar is powered by 11 high power Super FLUX LED for a bright performance. This Red LED Strip Bar have nice clear lens is HARDWIRED with a three wire pigtail: White is ground wire, Black is the low brightness as marker lights or clearance lights, Red is the high brightness as back up lights or reverse lights;

· 【 Sealed and IP65 Waterproof 】: Features sonically sealed, waterproof lens,High quality ABS mounting with 2 screw holes, can be mounted in the horizontal or vertical position.

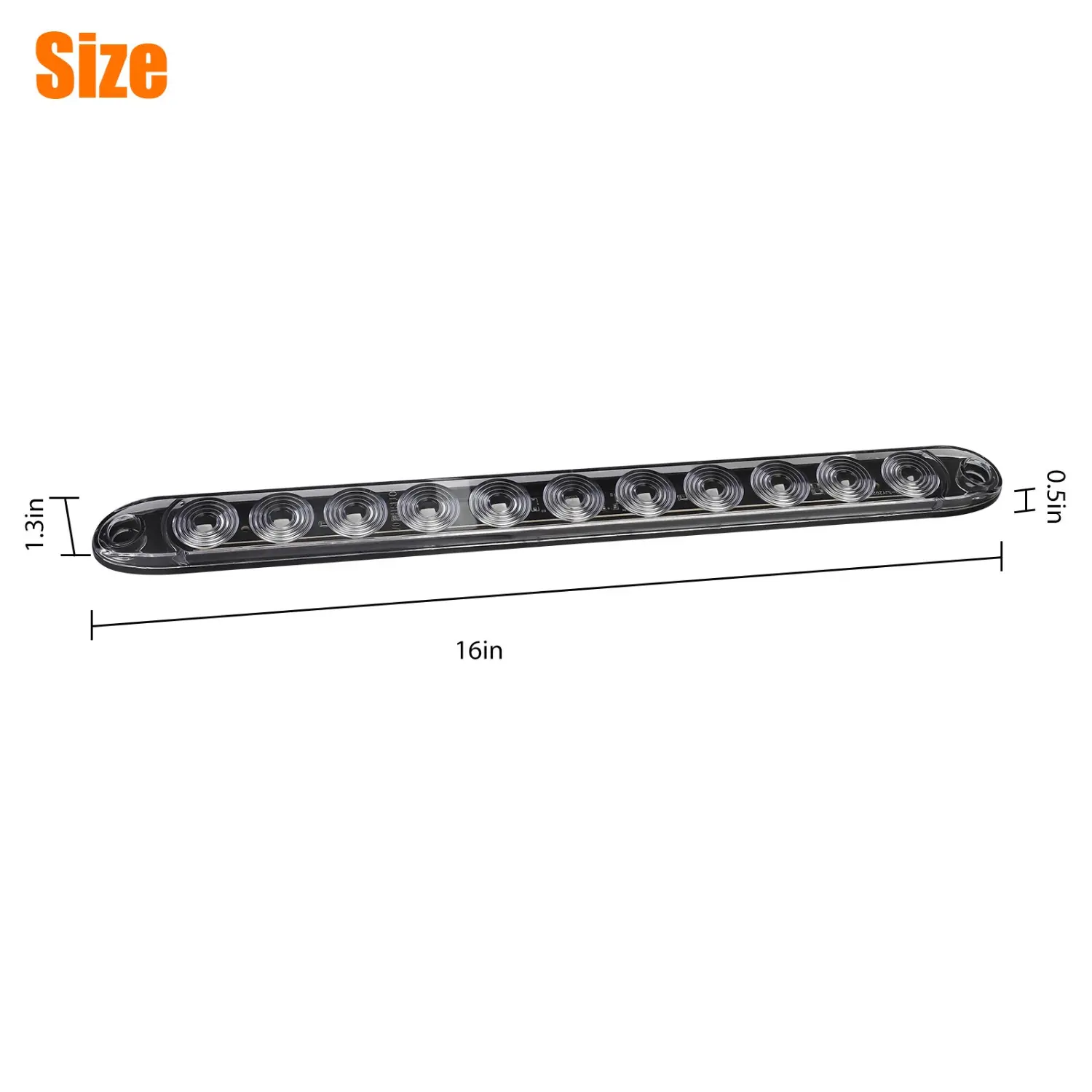

· 【 Dimension of the Red LED Light Bar 】: The overall length is about 16 inches, wideth is about 1.25 inch, and the thickness is about 0.5 inch. It's a nice low-profile red light bar. There is a little knob where the wires all come out, so the overall depth is about 1 inch, and you may need to cut out a hole to allow that to go in. The spot knob is about 0.57 inch in diameter. Really a nice slim profile unit;

· 【 Application 】: This Red LED trailer light bar is universal for almost all 12V DC vehicles as well as the size fit: for use on heavy duty trucks, semi trailers, cargo trailers, boat trailers, work vehicles and a wide or narrow overland vehicle requiring quality DOT rated lighting.

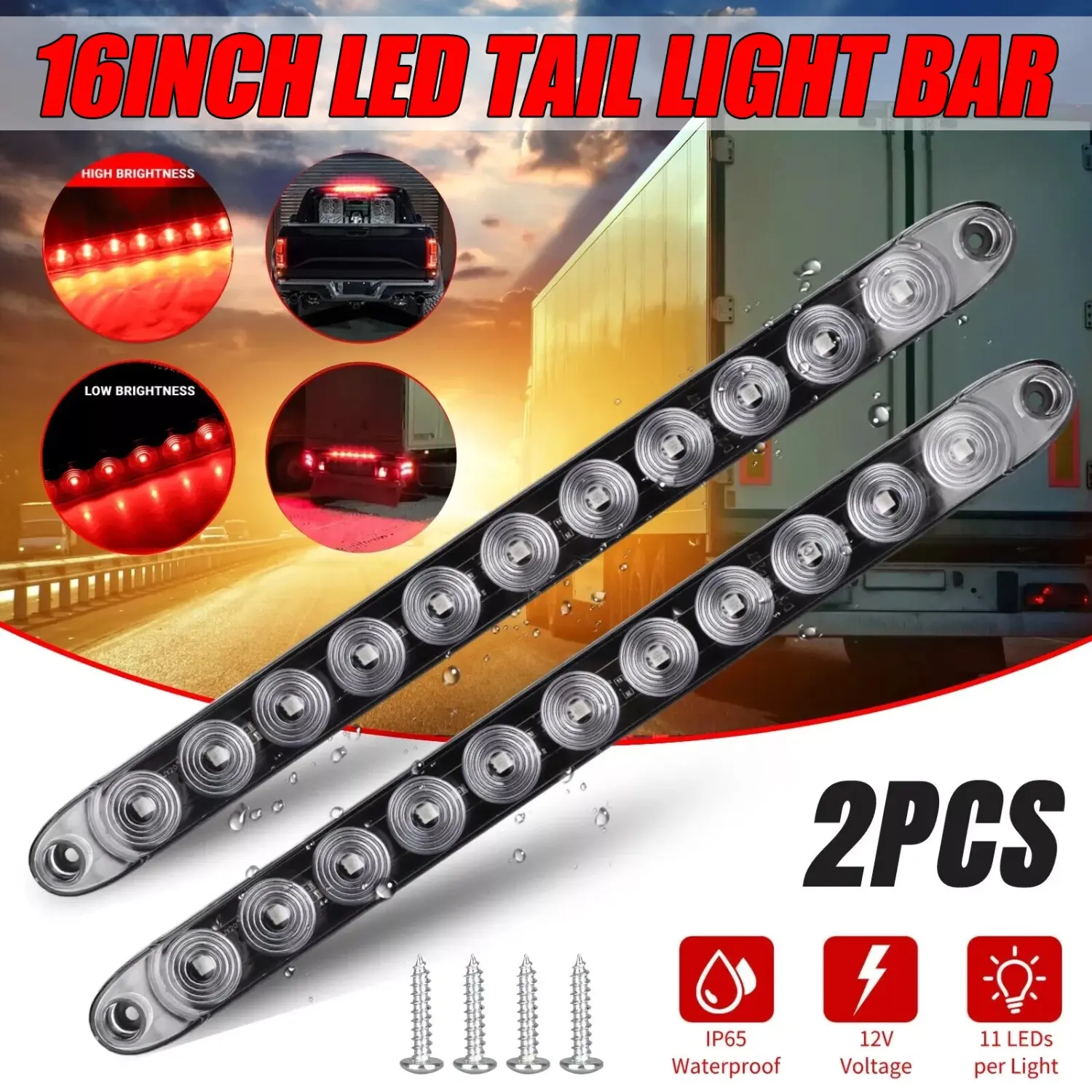

·️ 【 Package Includes 】: 2Pcs 16inch Red LED Trailer reverse light Bar. This trailer light functions as a side marker light and backup light for your trailer.

Note

·This light bar is IP65 waterproof, please do not use it under water for a long time.

Product Specification

TypeLight BarModel2pcs 16 inch Red 11 LED Brake light BarMaterialABSLens ColorClearNumber of Bulbs2To FitTail LightBulb ColorRedNumber of LEDs11 LED per lightVoltage12V DCDimensions16" x 1.25" x 0.5"Hole Center to Center14-1/2"Waterproof RateIP65Wire ConnectionsWhite Wire for Ground; Red Wire for High Brightness; Black Wire for Low BrightnessPlacement on VehicleVehicle Brake, Turn & Marker Light, RearVehicle Service TypeUniversal For any 12V Vehicles Pickup,Truck,Trailer,Boat,Lorry,Van,Caravan,etc.

Package Included

·2 x 16 inch 11 LED Red Light Bar

·4 x Screw for Mounting
