NOTE

·WP-17V-35 TIG torch and LBT150 aluminum spool gun are sold separately. You can check them in our store.

·Stick welding rods and MIG welding wire are sold separately.

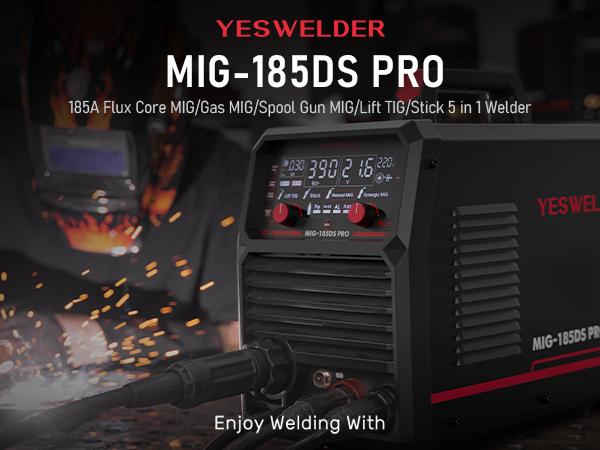

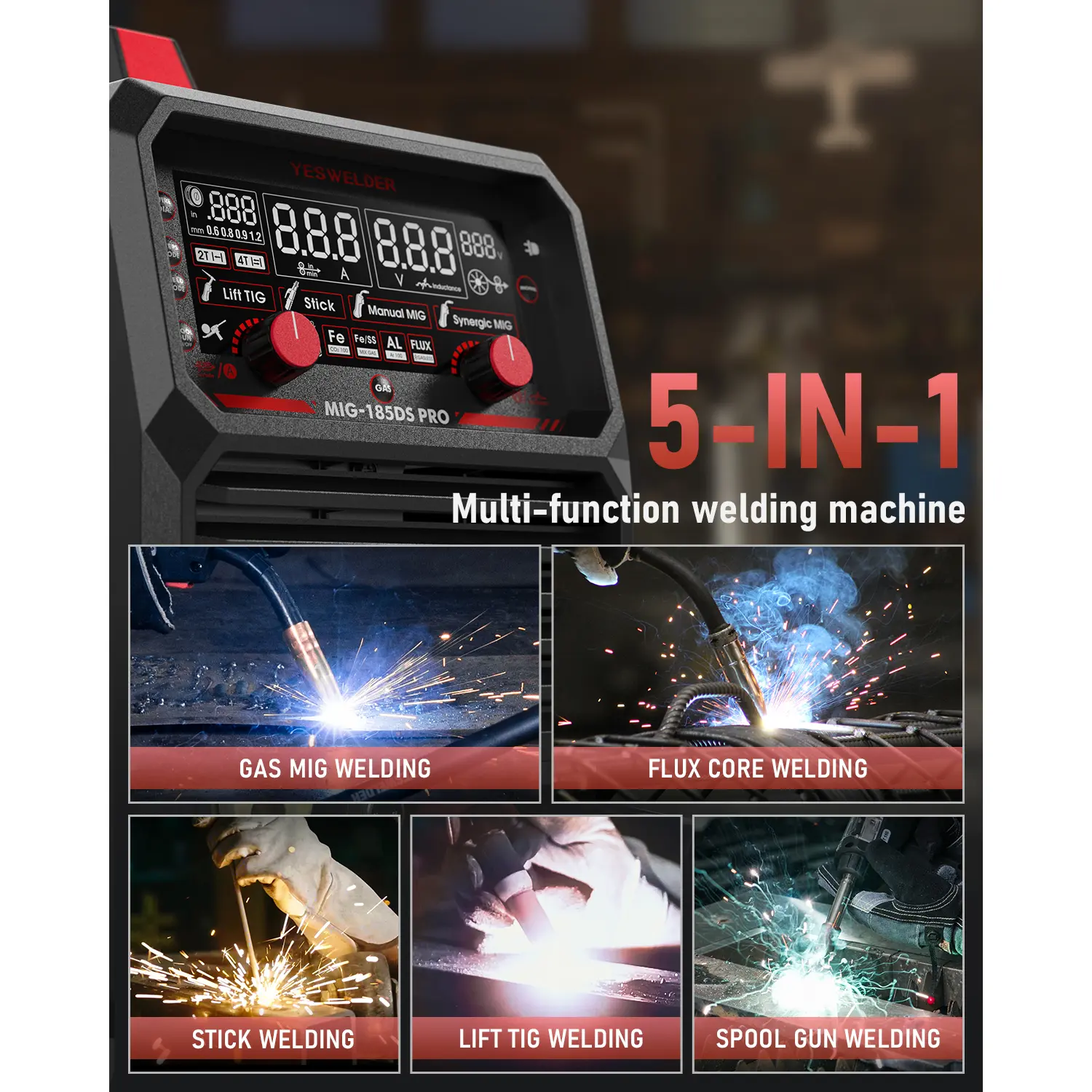

5-In-1 Welding Processes

·This machine supports gas MIG, flux MIG, lift TIG, spool gun MIG and stick welding functions, allowing it to handle a variety of materials and welding tasks.

·Whether you're working with steel, stainless steel, aluminum, or flux-cored wire without gas, this unit is versatile enough to meet the demands of industrial, repair, or home applications.

Note: Lift TIG torch and aluminum spool gun are sold separately.

Smart MIG Operation

·Synergic MIG Mode: Simply select the wire diameter, material, and gas type, and the machine will automatically match the wire feed speed and voltage, giving users flexibility while maintaining accuracy.

·Manual MIG Mode: Allow users to customize both wire feed speed and voltage according to personal preferences and welding habits. This mode also supports the spool gun, offering a tailored experience for more complex welding tasks.

Weld Aluminum, Spool Gun Ready

Capable of welding aluminum using 100% Argon using graphene liner with MIG torch or spool gun.

·Method 1: Graphene feeding liner with regular MIG torch with synergic MIG control.

·Method 2: Spool gun with manual MIG control. (Spool gun sold separately)

Recommended aluminum welding wire(1lb): Silicon aluminum ER4043 and magnesium aluminum ER5356 welding wire.

Wire Recommendation

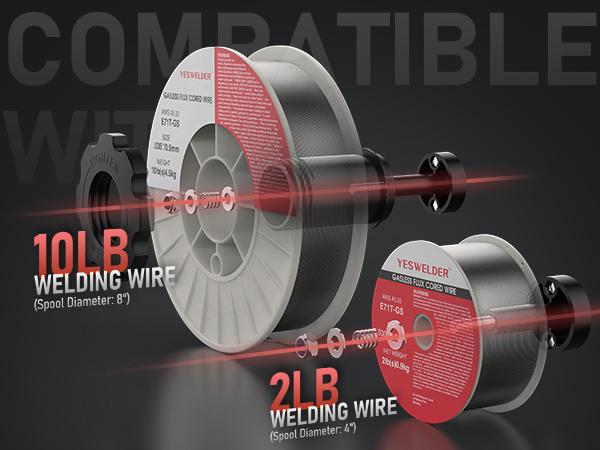

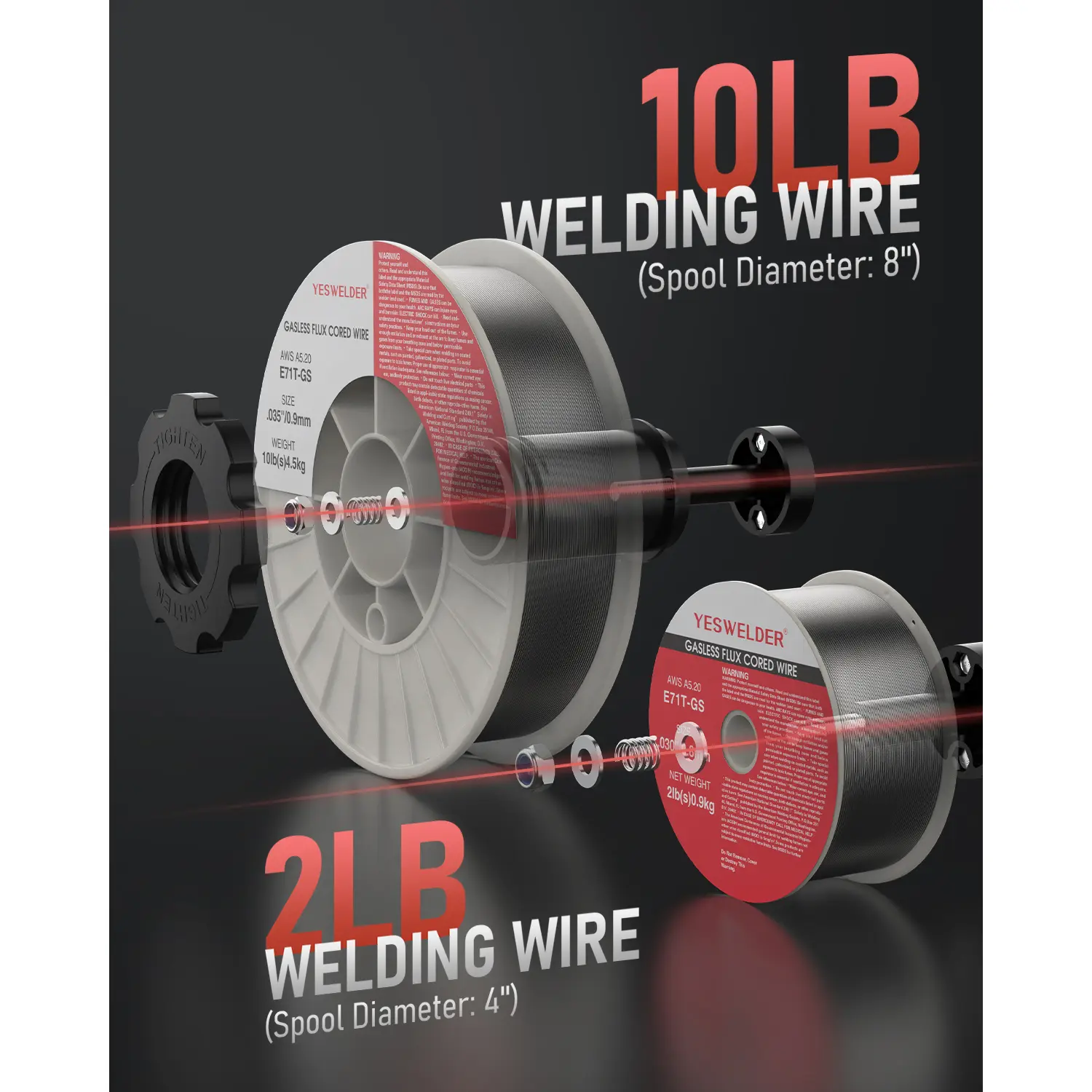

·Compatible with 2lbs and 10lbs welding wire (4" or 8" wire diameter: D100/D200). Suitable for several welding requirements.

·.023"/.030"/.035" ER70S-6 mild steel MIG welding wire/ER308L stainless steel wire.

·.023"/.030"/.035" E71T-GS flux core wire for manual MIG setting; Only .035" available in synergic MIG setting.

·.035"/.045" ER5356 magnesium aluminum welding wire/ER4043 silicon aluminum welding wire.

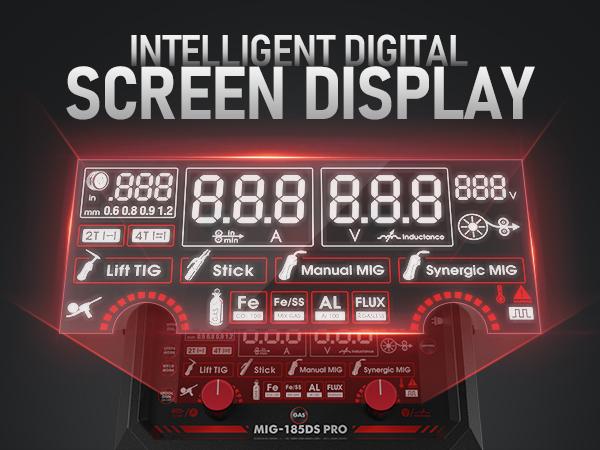

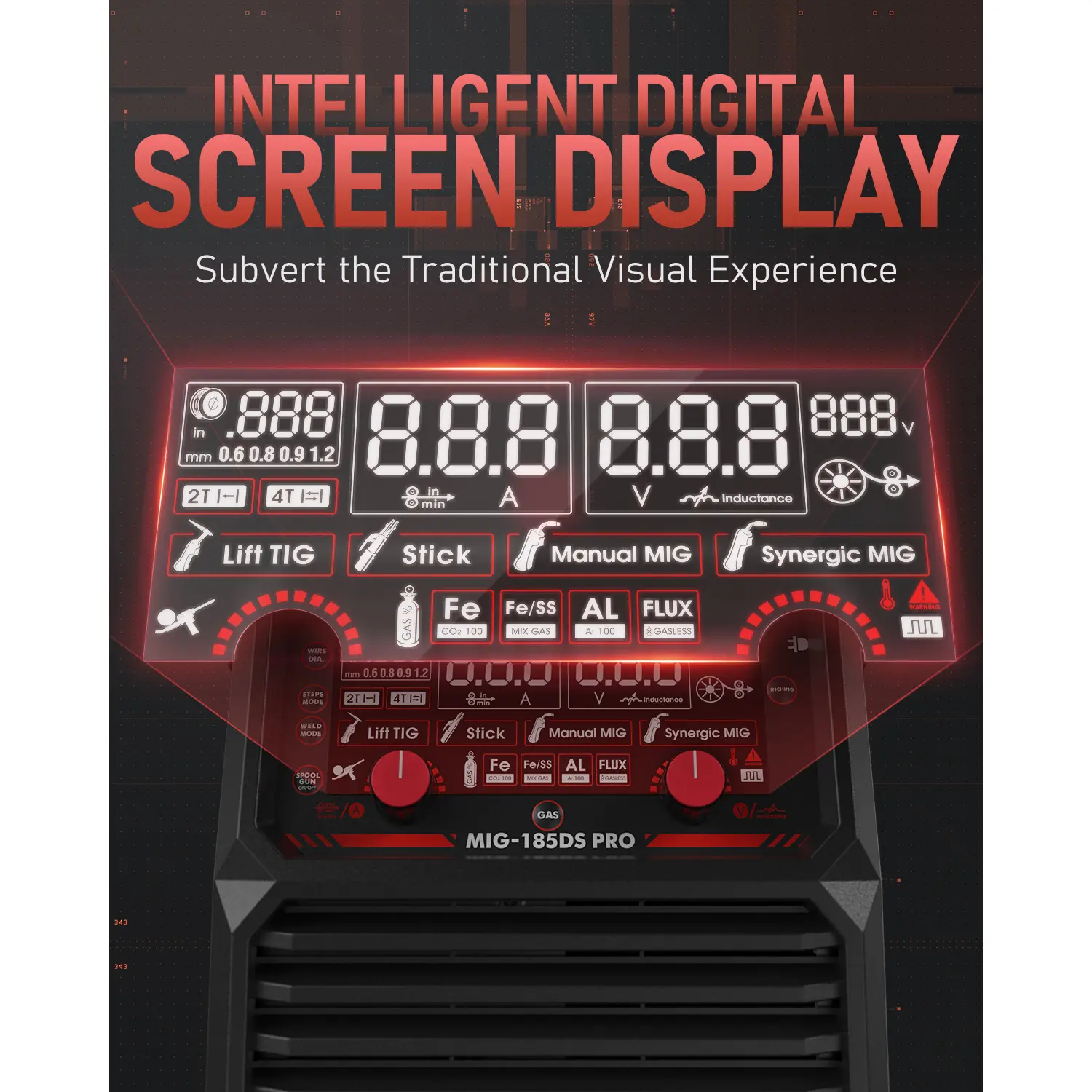

Advanced Digital Display

·Equipped with an intuitive digital display, it provides clear feedback on current, voltage, and wire feed speed.

·Users can easily adjust and monitor settings, ensuring optimal performance with each weld, making it especially user-friendly for both professionals and beginners.

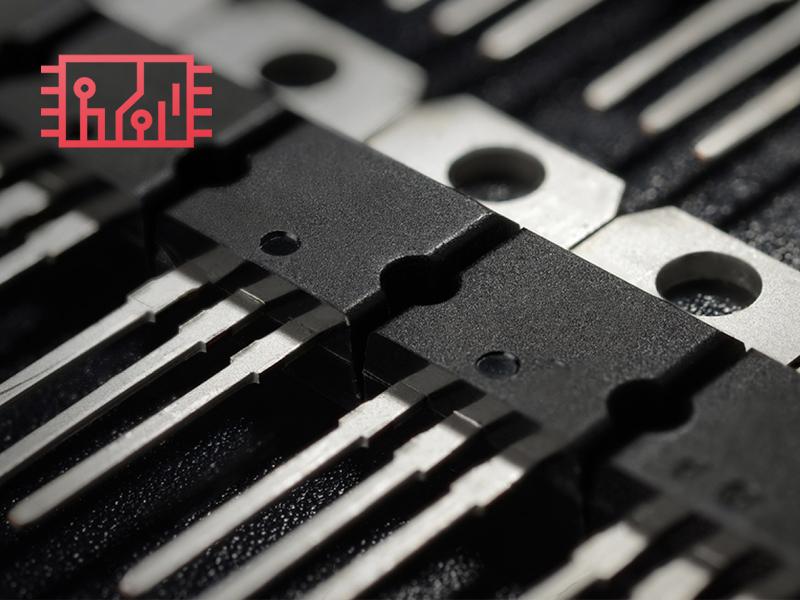

IGBT Inverter Technology

·Elevate your welding with the precise arc control afforded by advanced IGBT technology, resulting in consistently smoother and higher-quality welds.

·This innovative system ensures stable and reliable performance, empowering you to achieve professional results on every project.

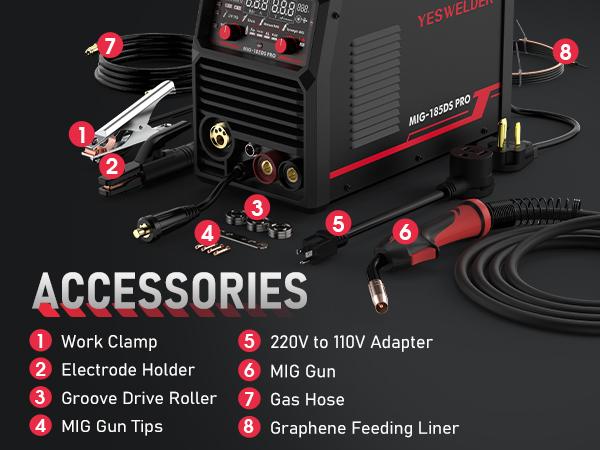

Accessories

·Work clamp

·Electrode holder

·Groove drive rollers: V Knurl Groove Drive Roller: .023"&.030" (solid wire/stainless steel wire); W Knurl Groove Drive Roller: .030"&.035" (flux-cored wire); U Knurl Groove Drive Roller: .035"&.045" (aluminum wire); V Knurl Groove Drive Roller: .030"&.035" (solid wire/stainless steel wire, on the machine)

·MIG torch tips: .030"/.035"/.045"

·220V to 110V power adapter

·MIG welding gun

·Shielding gas hose

·Graphene feeding liner

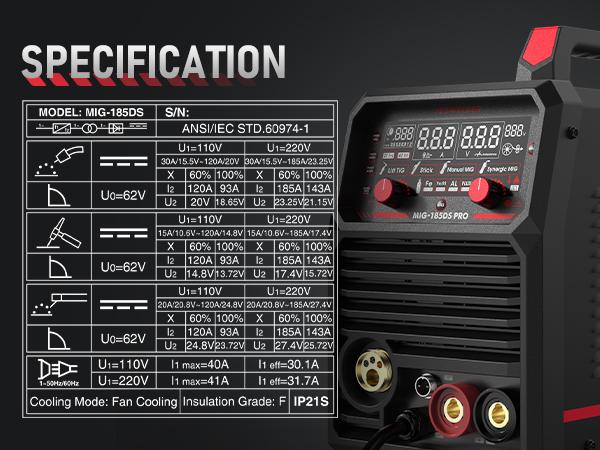

Specifications

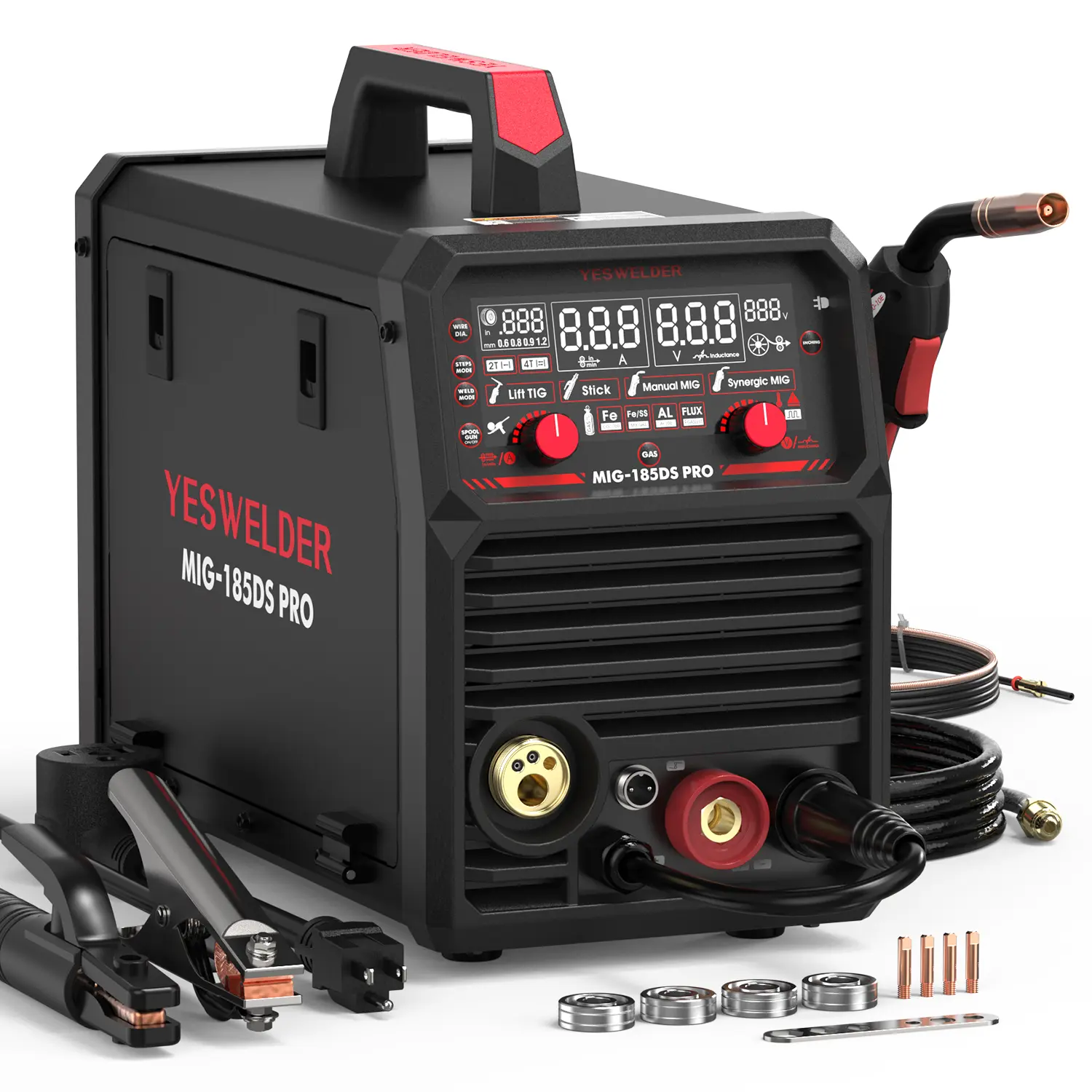

·Model: MIG-185DS-PRO

·Supply voltage: 110V/220V, 50/60Hz

·Input current: 40A@110V, 30A@220V

·Output current: @220V: 30-185A (MIG) 20-143A (Stick) 20-185A (TIG); @110V: 30-143A (MIG) 20-120A (Stick)

·Duty cycle (MIG): 60%@120A, 100%@93A (110V); 60%@185A, 100%@143A (220V)

·Wire spool: 2LB/10LB

·Welding material: Carbon steel/Stainless steel/Aluminum

·Protection class: IP21S
