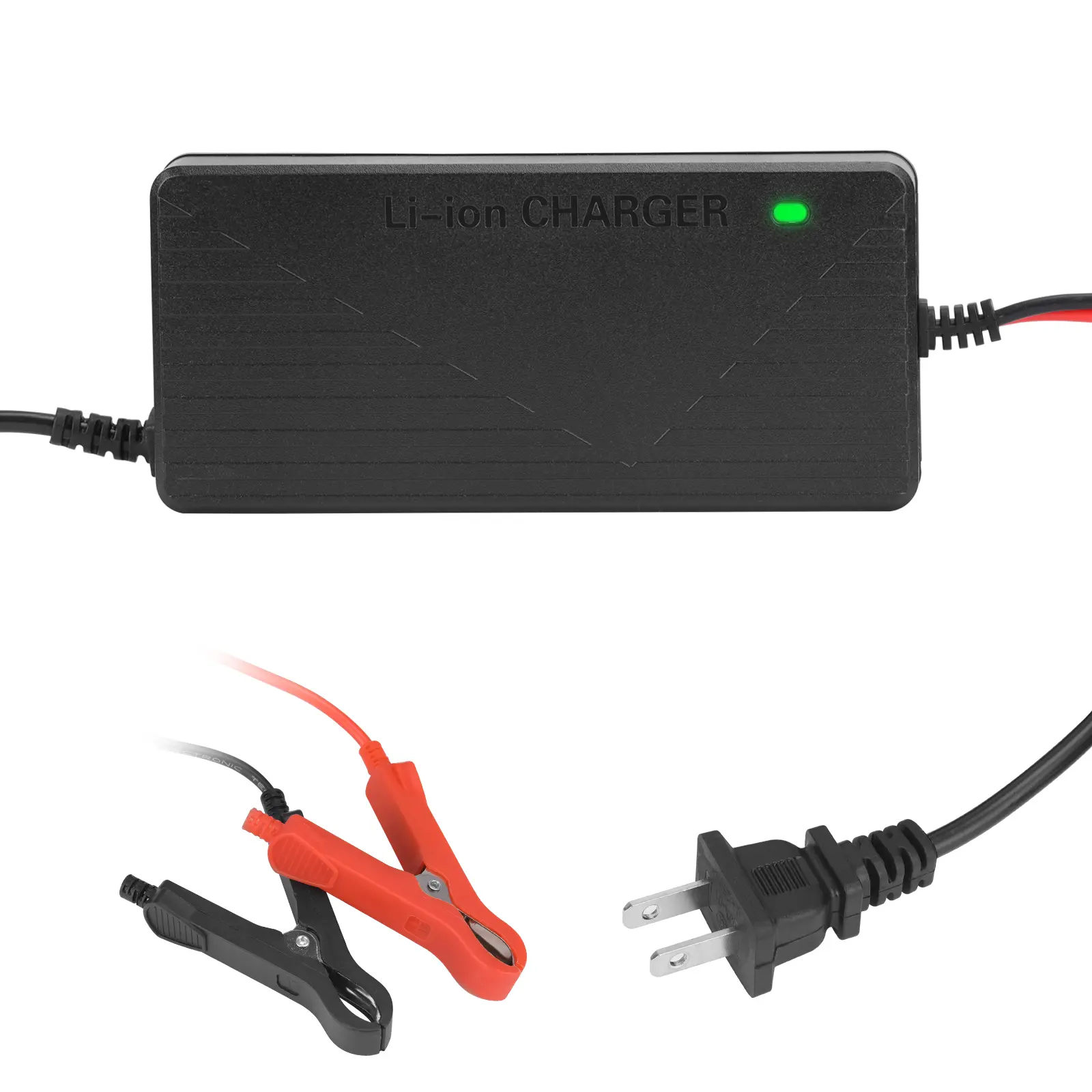

This 14.6V 10A LiFePO4 battery charger is uniquely designed for 12V LiFePO4 battery, it enables more than 90% high charging efficiency for lithium iron phosphate battery charging. It maximizes optimizes the lithium battery performance, and extends the battery lifetime to a large extent.

The single-channel voltage is up to 14.6V, with a maximum current of 10A. It can charge a 12V 50Ah LiFePO4 battery to 50% in 2.5 hours, 2 times faster than an ordinary 5A battery charger.

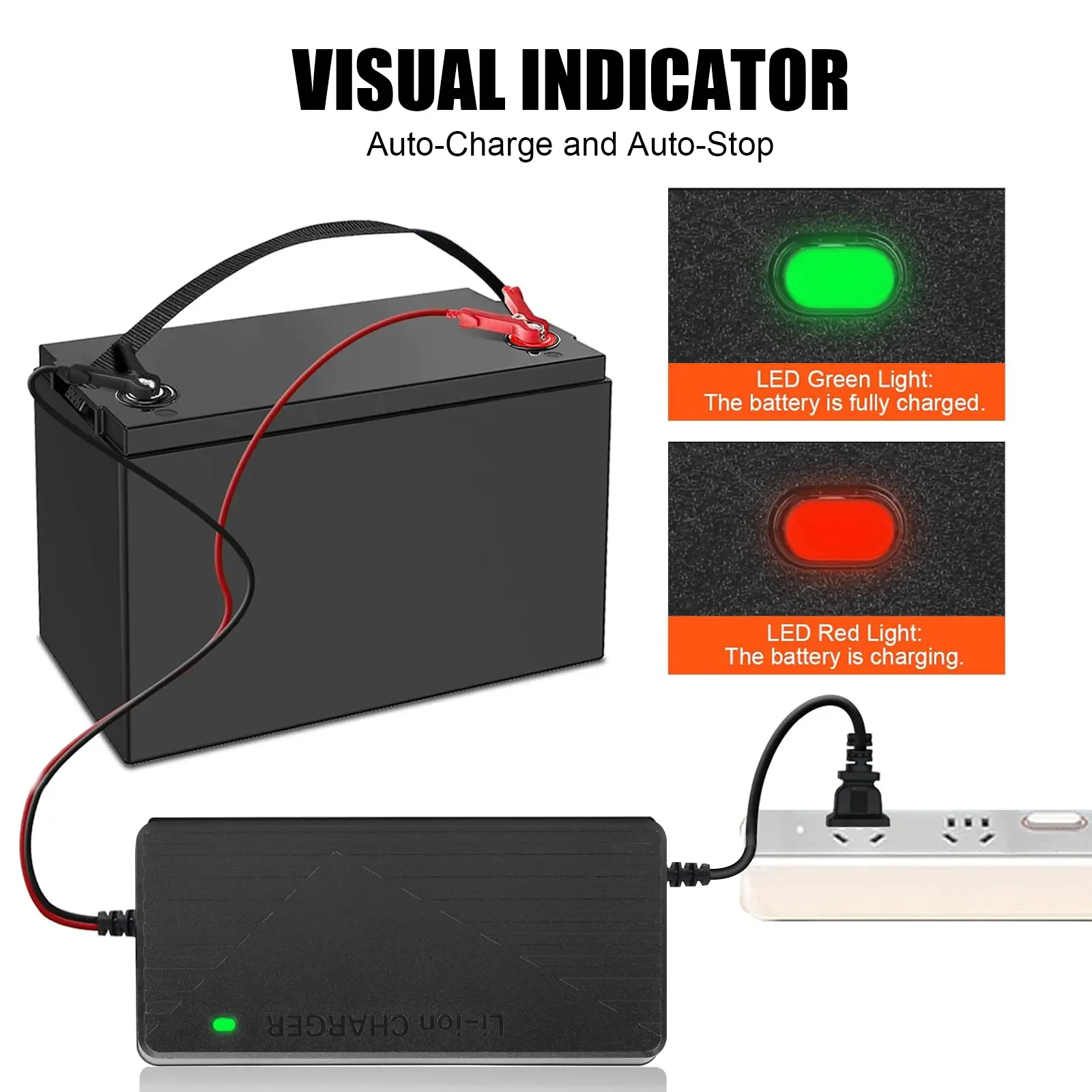

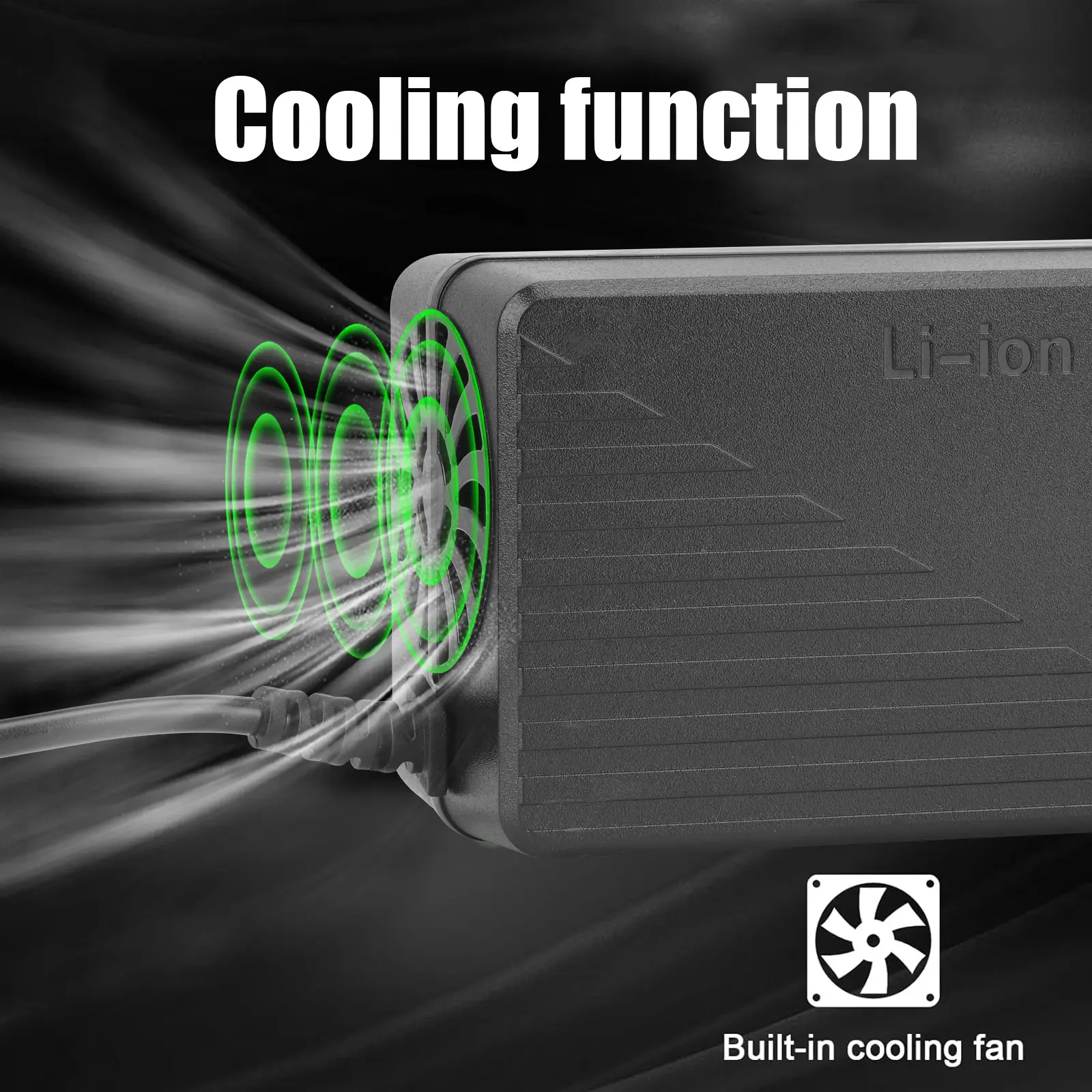

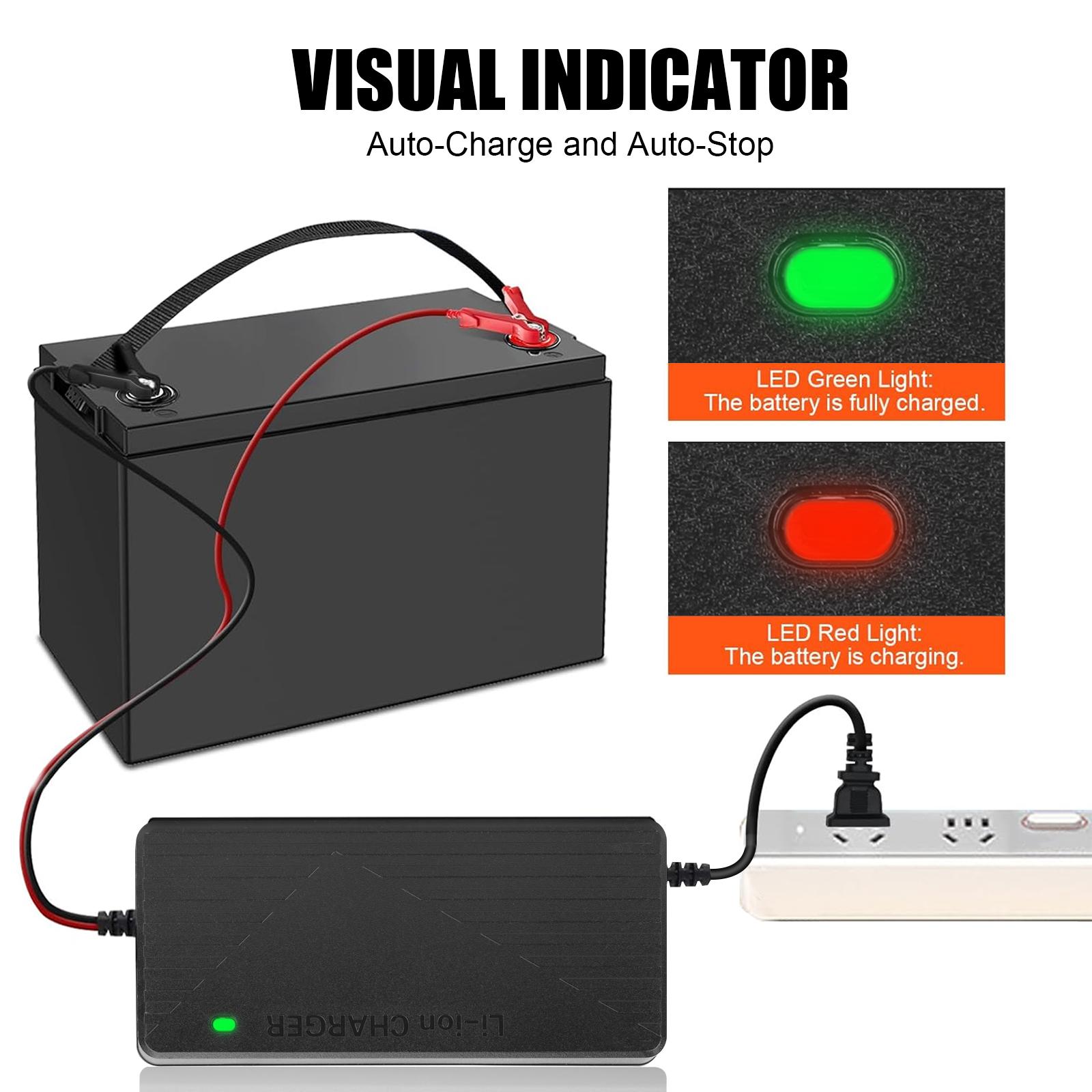

The battery charger with a LED indicator is easier to monitor the battery charging status. The durable shell and cooling fan allow the charger's exterior to function as a heat sink with over-heating protection.

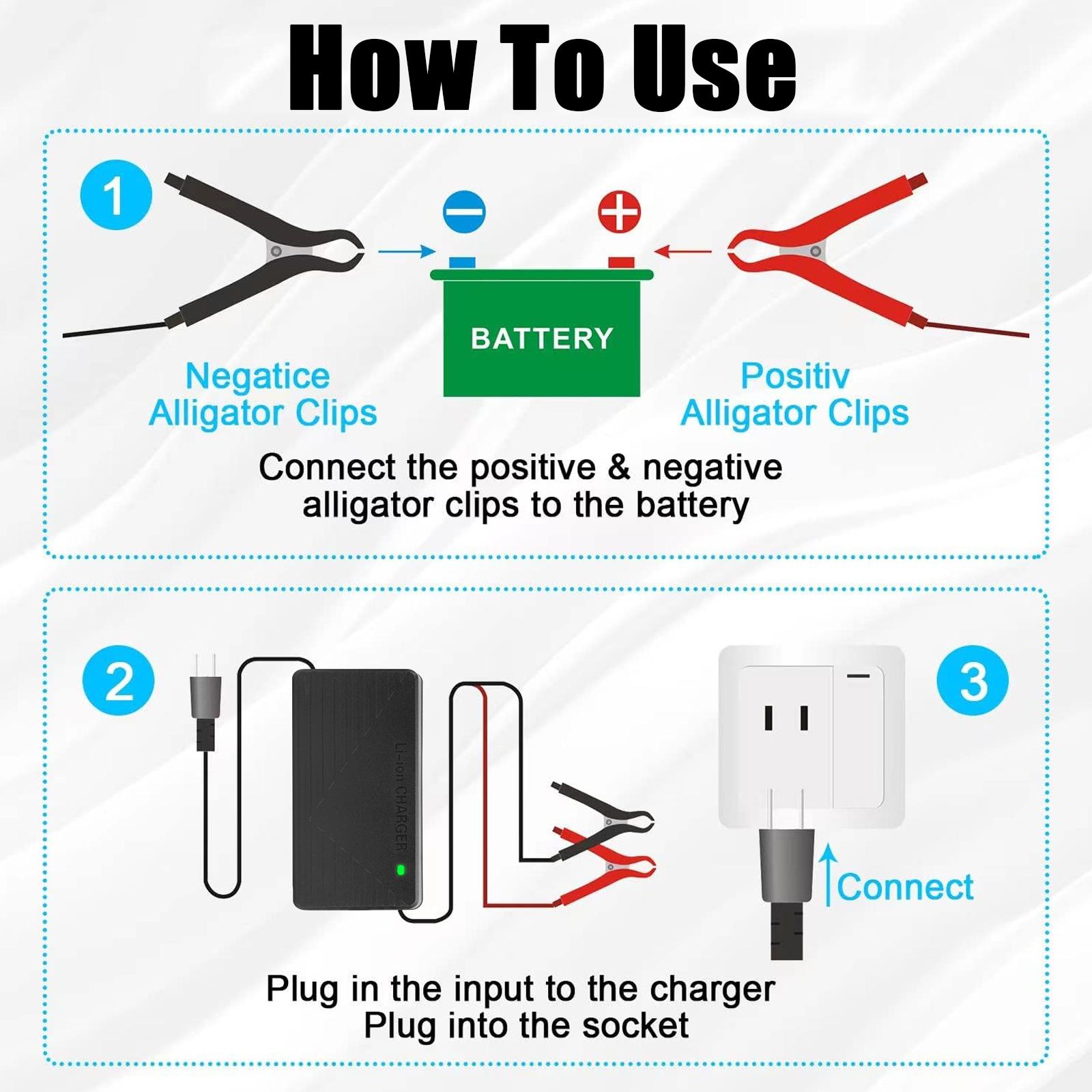

This is a dedicated charger for 12v (12.8v) LiFePO4 lithium battery and cannot be used to charge lead-acid batteries. Disconnect the power supply before connecting or disconnecting the battery charger from the battery. The anode of the charger is connected to the anode of the LiFePO4 battery, and the cathode of the charger is connected to the cathode of the LiFePO4 battery. (The red charging clip is anode(+) and the black charging clip is cathode(-).

Item Specification:

Output: DC 14.6V, 10Amps

Input: AC 100V~240V 2.0A, MAX 50~60Hz

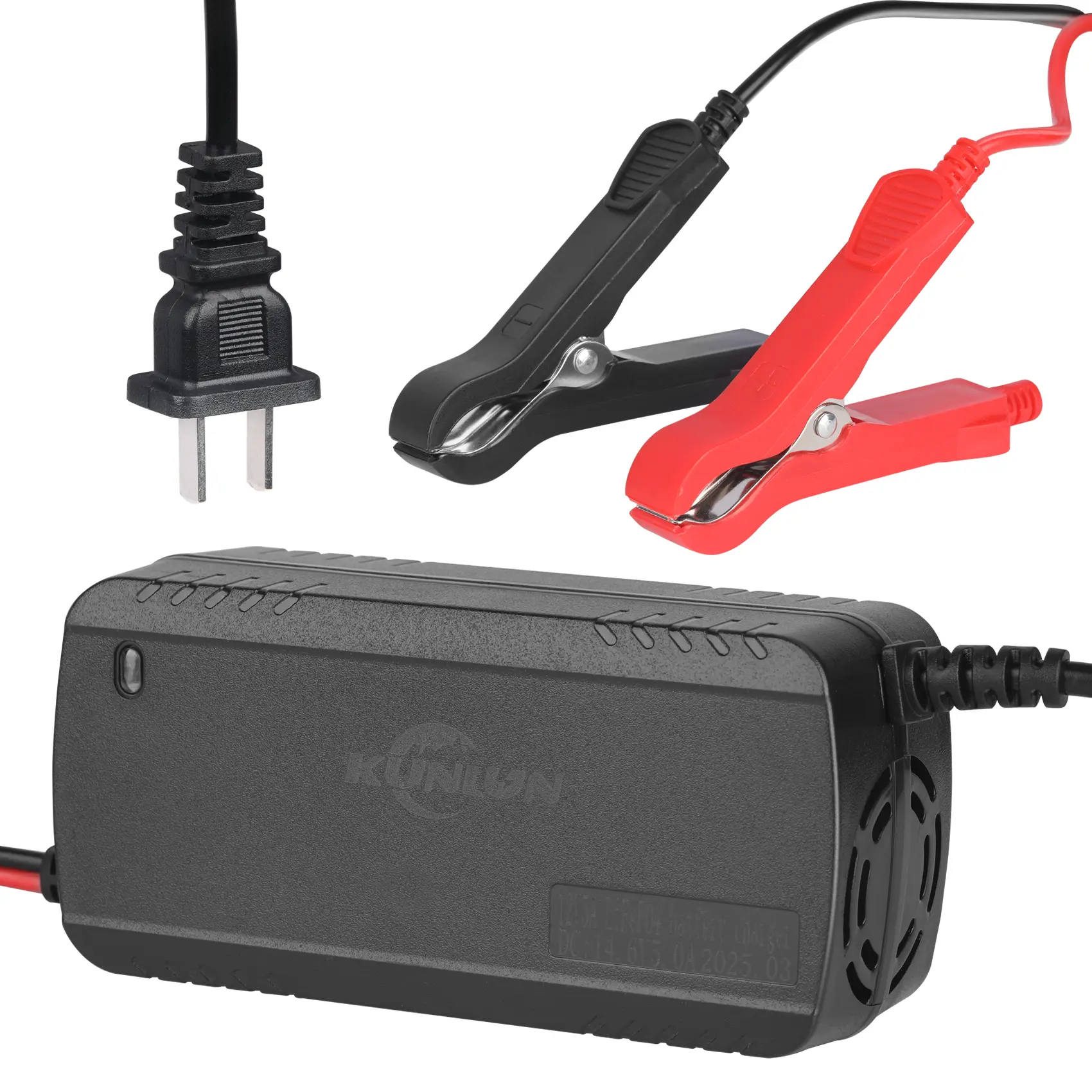

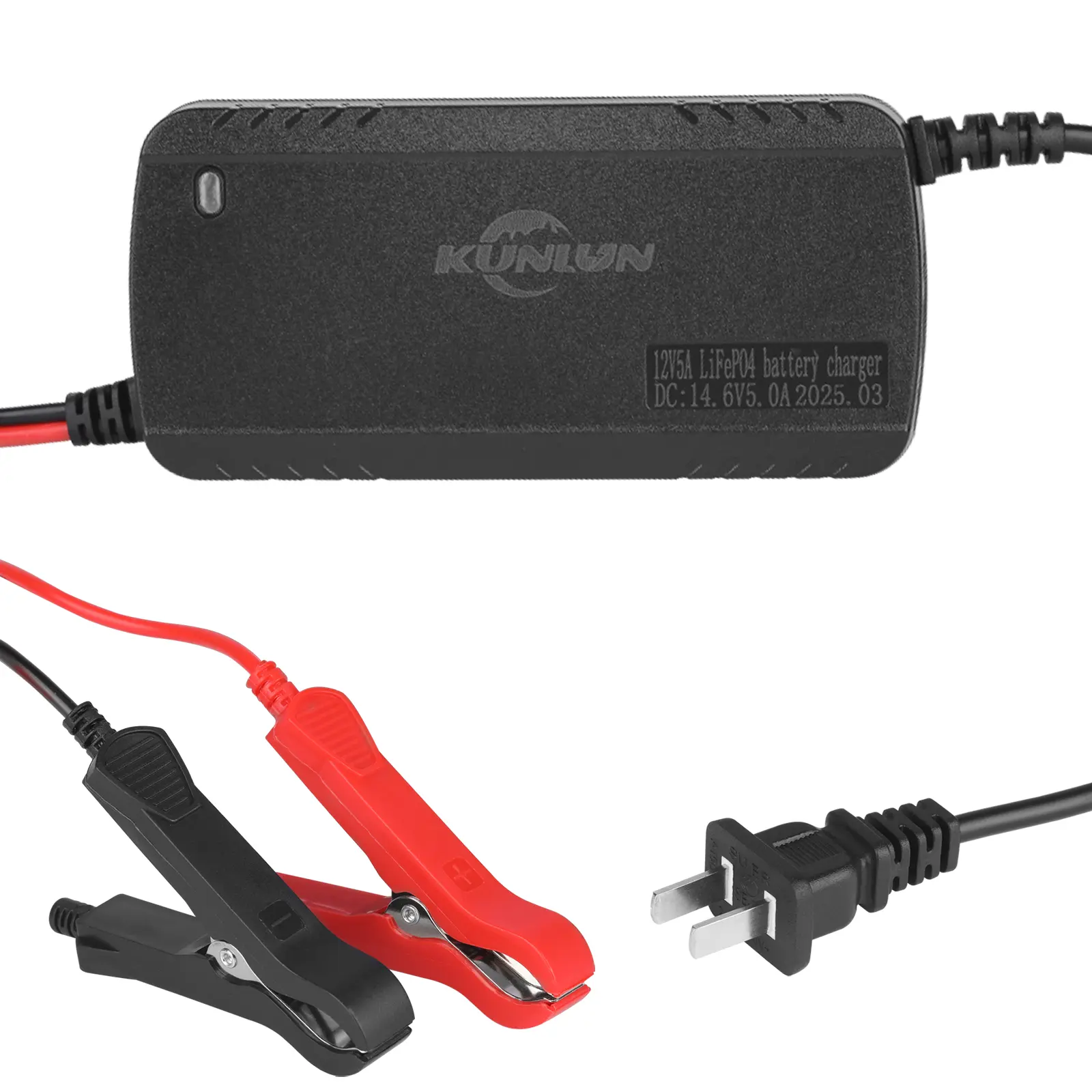

Out Connection: High Current Alligator Clip Couplers

Compatible Battery: For 12V LiFePO4 Battery 30Ah-200Ah

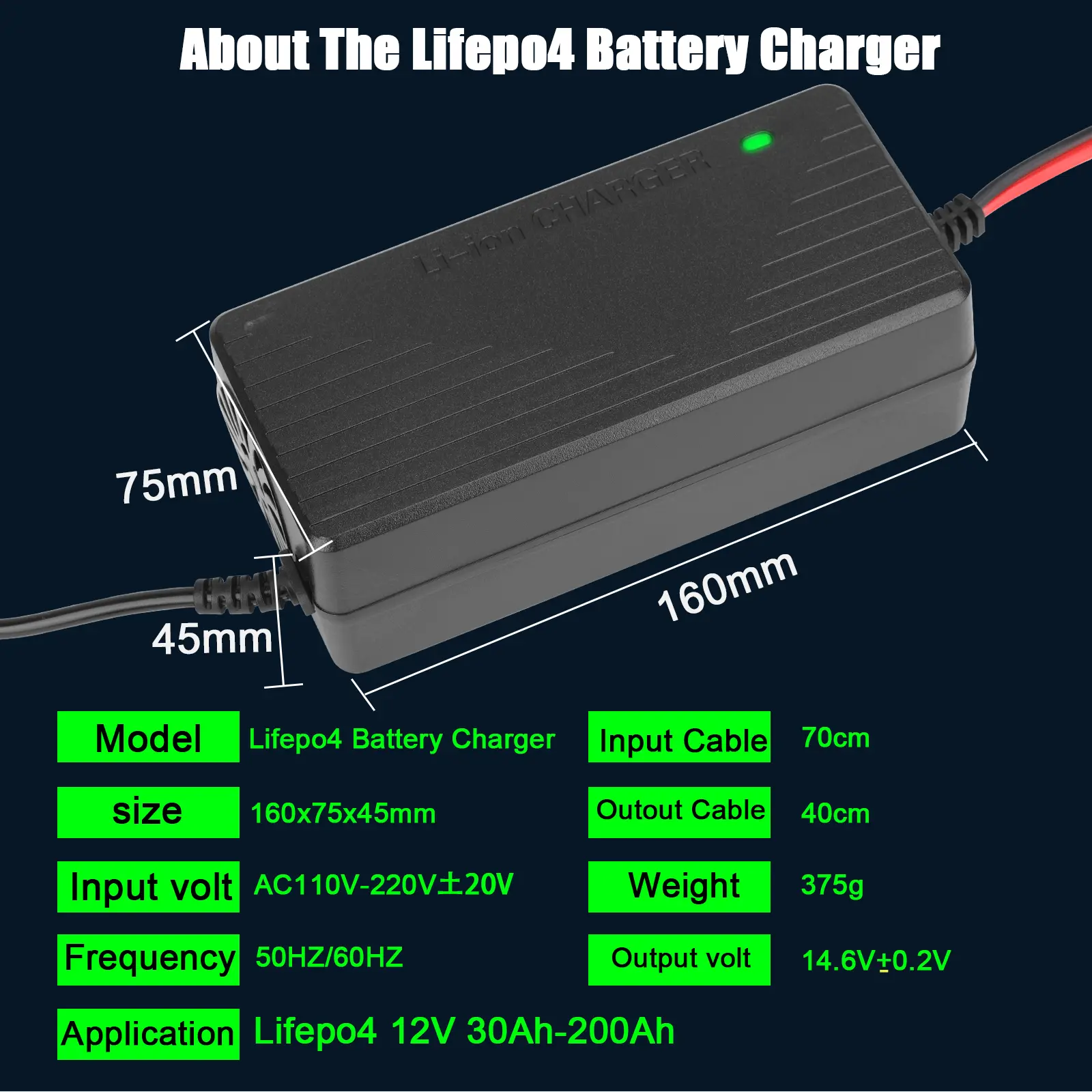

Size: (L x W x H) 160 x 75 x 45 mm

Weight: 375g

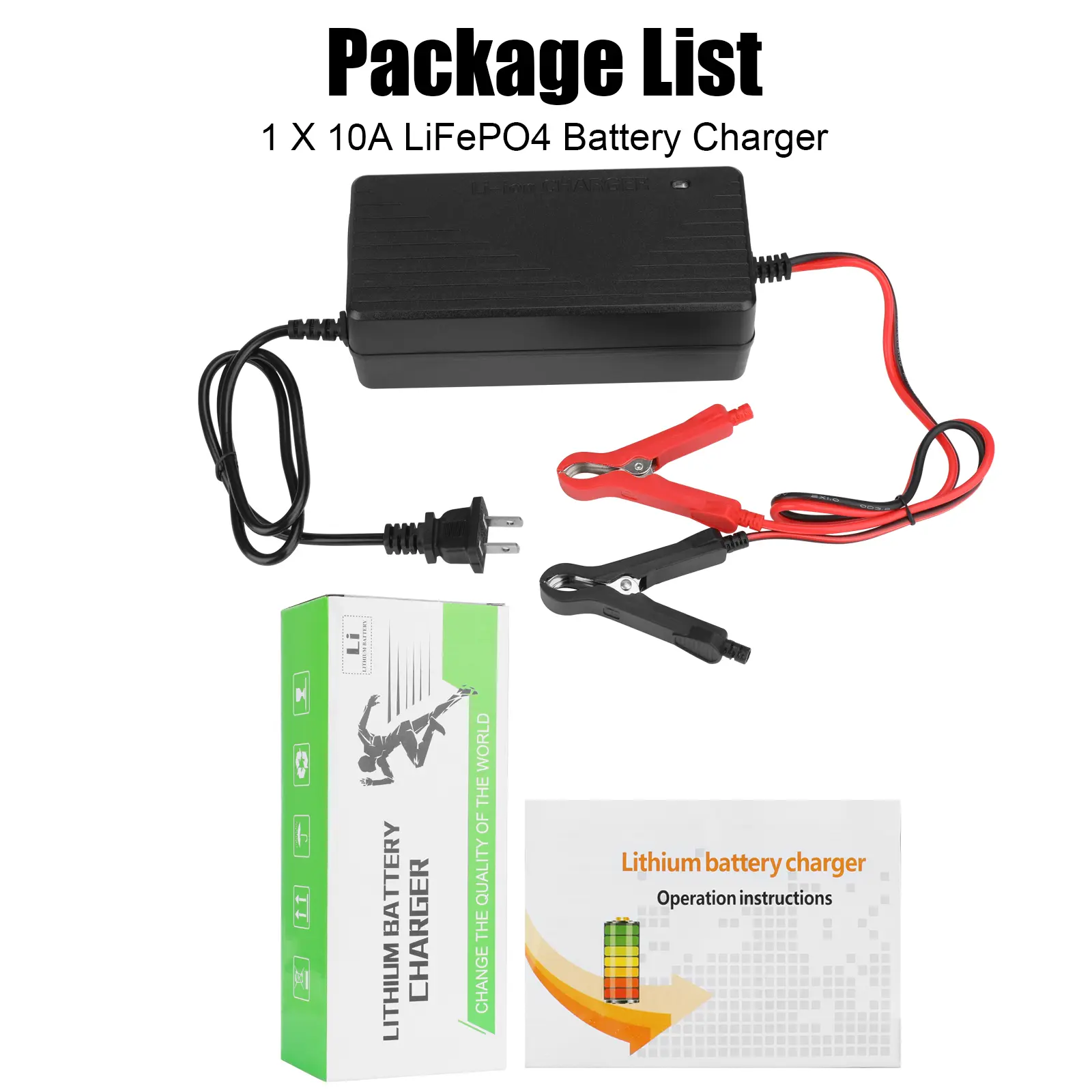

Package included:

1X LiFePO4 Battery Charger

1X User Manual



Note:

1. Indoor use. Keep in a dry environment.

2. Keep ventilation when charging, strictly forbid to cover, forbid to be near flammable gas.

3. Connect the battery correctly, reverse the positive and negative terminals will burn the internal fuse.
