Things to Know Before You Buy

·Not a cranking battery

·Not compatible with lead-acid chargers

·Store at 60% charge when not in use

·Charging time = Battery capacity / Charger current

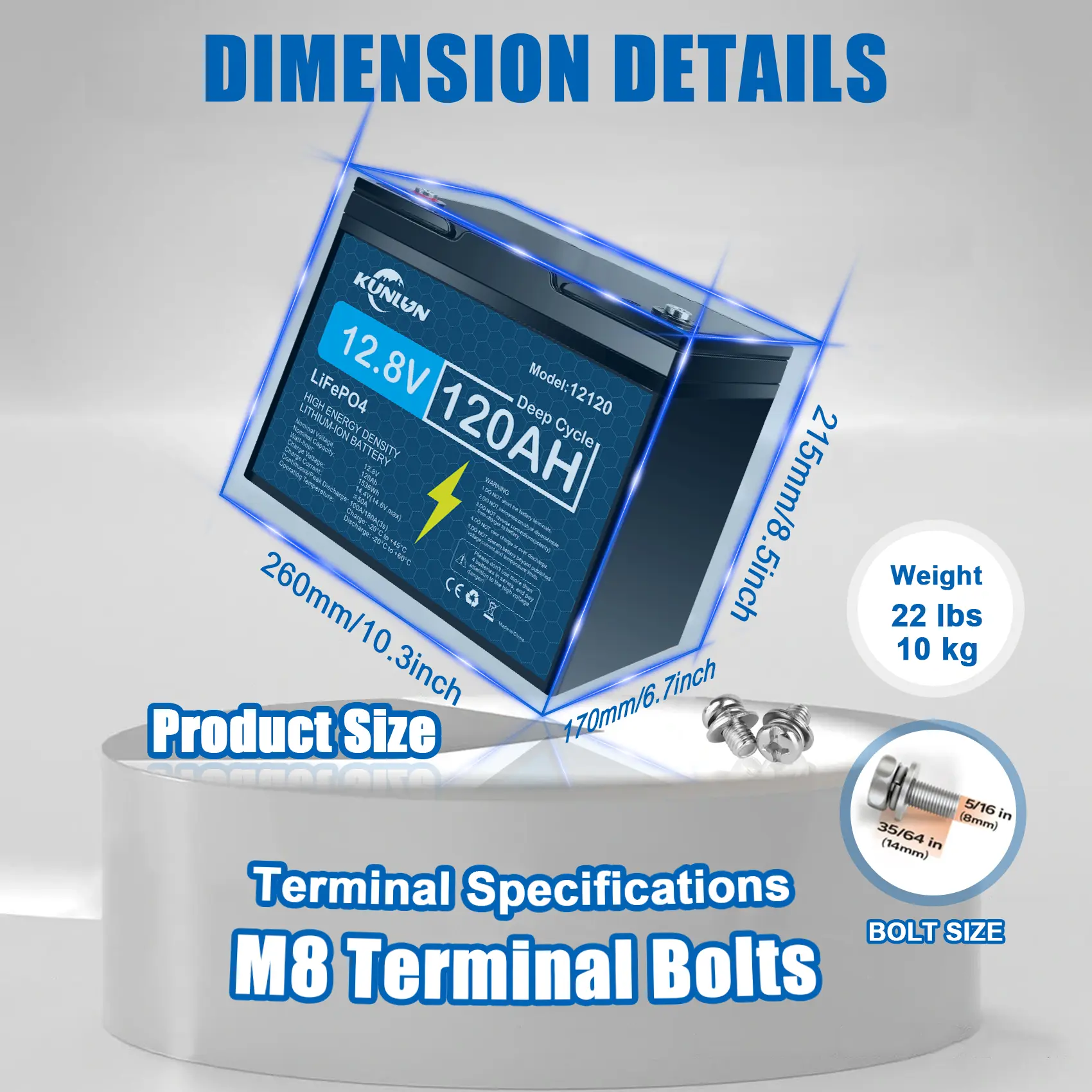

【Mini Size Maximum Power】The 12V LiFePO4 lithium battery measures only 10.3*6.7*8.5 inches and weighs 22 pounds, which suits BCI Group 24 battery box perfectly. The process makes the LiFePO4 battery small enough to be used as a miniature battery, but still as powerful as ever(100% of the 1536Wh storage capacity). Please make sure our lithium batteries are the right size for your needs before purchasing.

【120A BMS】LiFePO4 lithium batteries have a built-in BMS that protects against overcharging, over-discharging, over-current, and has an excellent self-discharge rate. The built-in high-temperature cutoff prevents charging temperatures from exceeding 50 °C. In addition, the battery can be recharged in three ways, including a lithium iron phosphate battery charger (14.6V charger), a solar panel with controller, and an generator.

【1536Wh of Usable Energy Output】The 12V 120Ah LiFePO4 Battery provides a maximum power output of 1536Wh, which is three to four times that of a typical SLA battery of the same size. The maximum 120A continuous discharge current can power most electrical equipment.

【Connections for Higher Capacity】 12V 120Ah LiFePO4 batteries can be connected in parallel or series for greater capacity. Expansion to 4S or 4P is allowed to obtain a maximum capacity of 480Ah or a maximum voltage of 48V(51.2V). 12V 120Ah LiFePO4 lithium batteries have a wide range of uses for backup power, home solar off-grid systems, lighting.

【10 Years Service Life】The battery can reach 4000~15000 deep cycles, 4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15000 cycles at 60% DOD & a 10-year lifespan compared to 200~500 cycles & a 3-year lifespan in lead acid battery, which is equivalent to 6 lead-acid batteries. Discharging lead-acid batteries below 50% will shorten battery life, but lithium batteries will not.

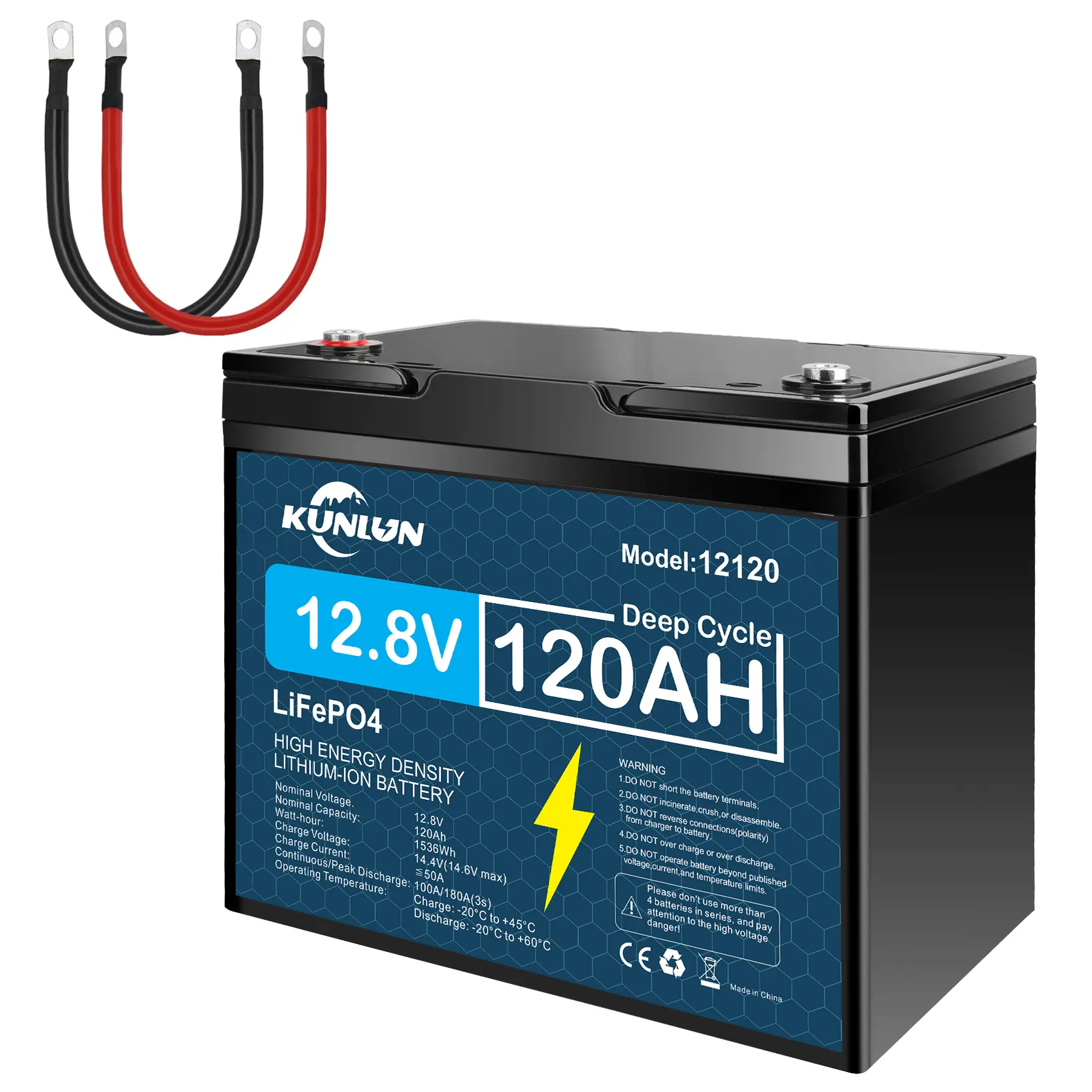

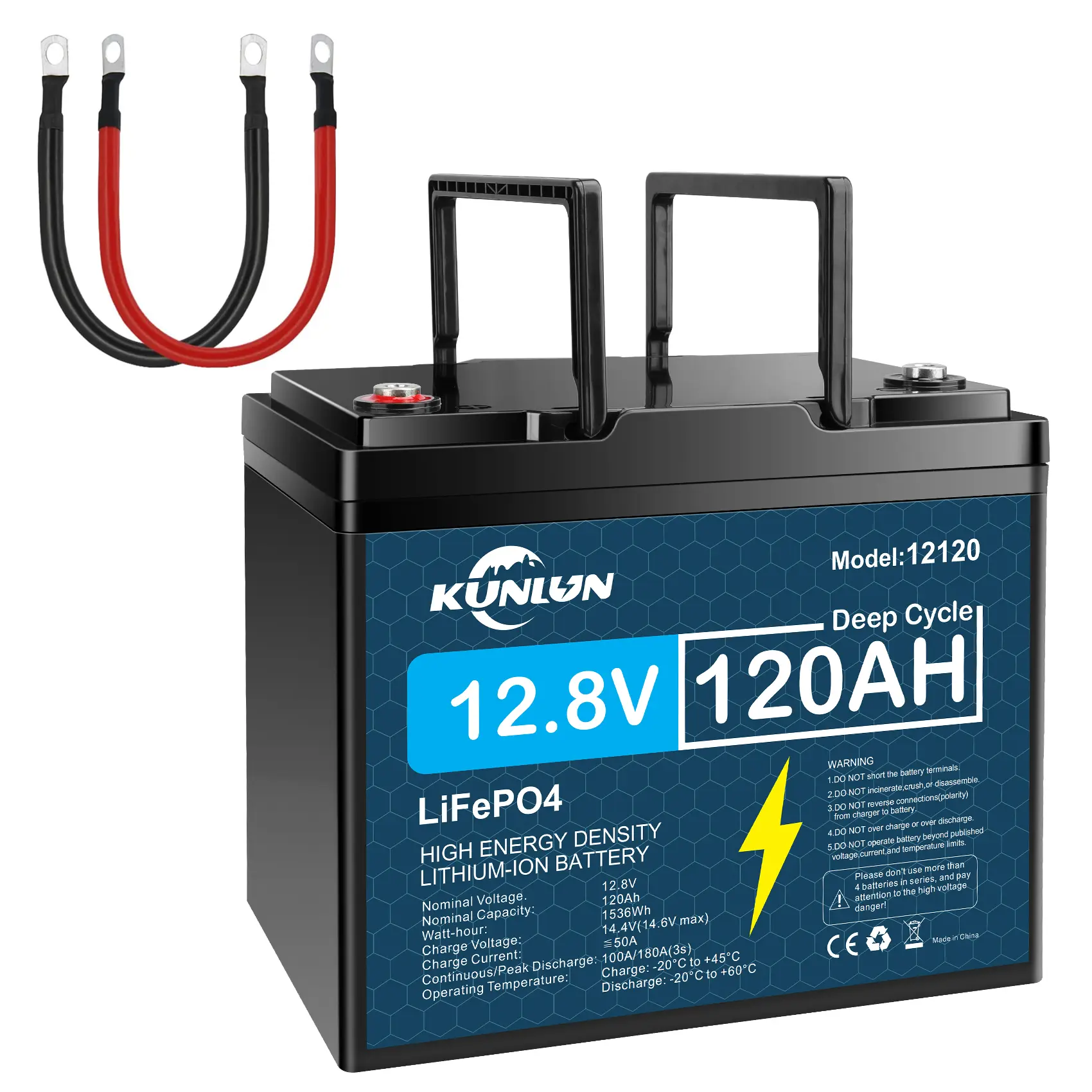

Item Specification: 1. Rated Capacity: 120 Ah

2. Nominal Voltage: 12.8V

3. Energy: 1536Wh

4. BMS: 120A

5. Max. Continuous Output Power: 1536W

6. Max. Continuous Charge Current: 120A

7. Max. Cont Discharge Current: 120A

8. Charging Voltage: 14.4V~14.6V

9. Discharge voltage: 8V~10V

10. Storage Temperature Range: 5°F~122°F

11. Charge Method: CC/CV

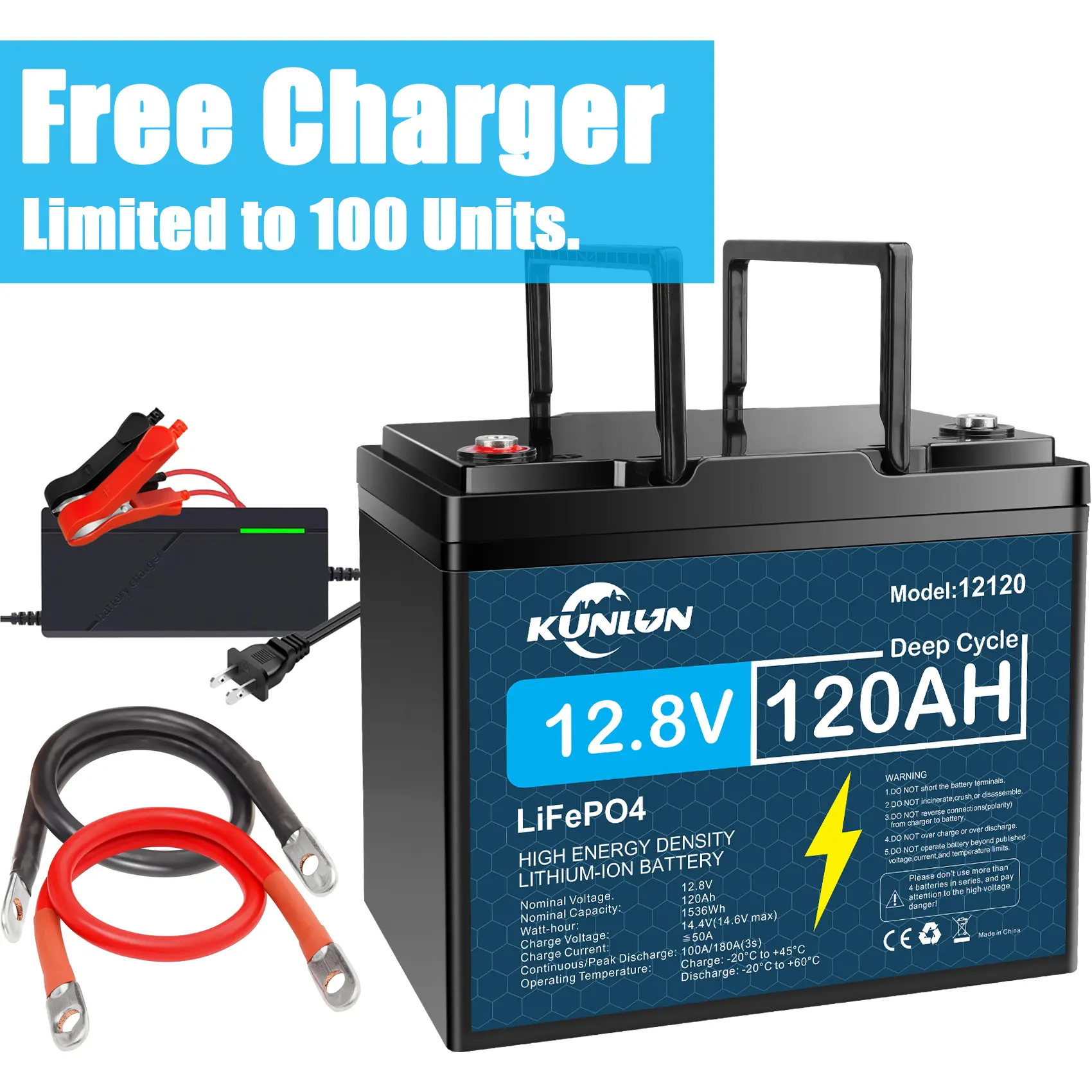

About the charger:

Output: DC 14.6V, 10Amps

Input: AC 100V~240V 2.0A, MAX 50~60Hz

Out Connection: High Current Alligator Clip Couplers

Size: (L x W x H) 160 x 75 x 45 mm

Weight: 375g

Compatible Battery: For 12V LiFePO4 Battery 30Ah-200Ah

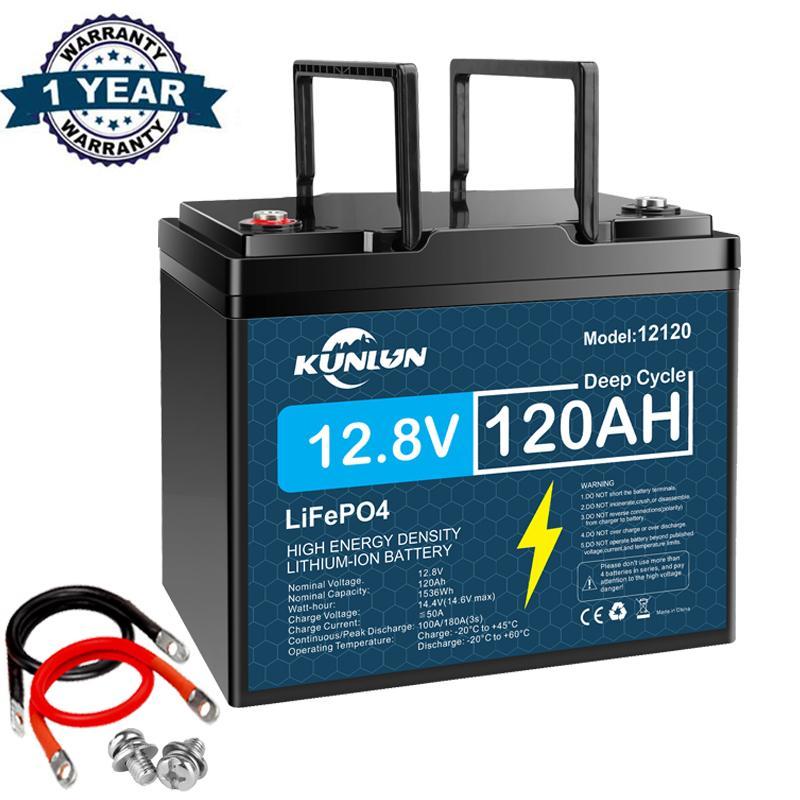

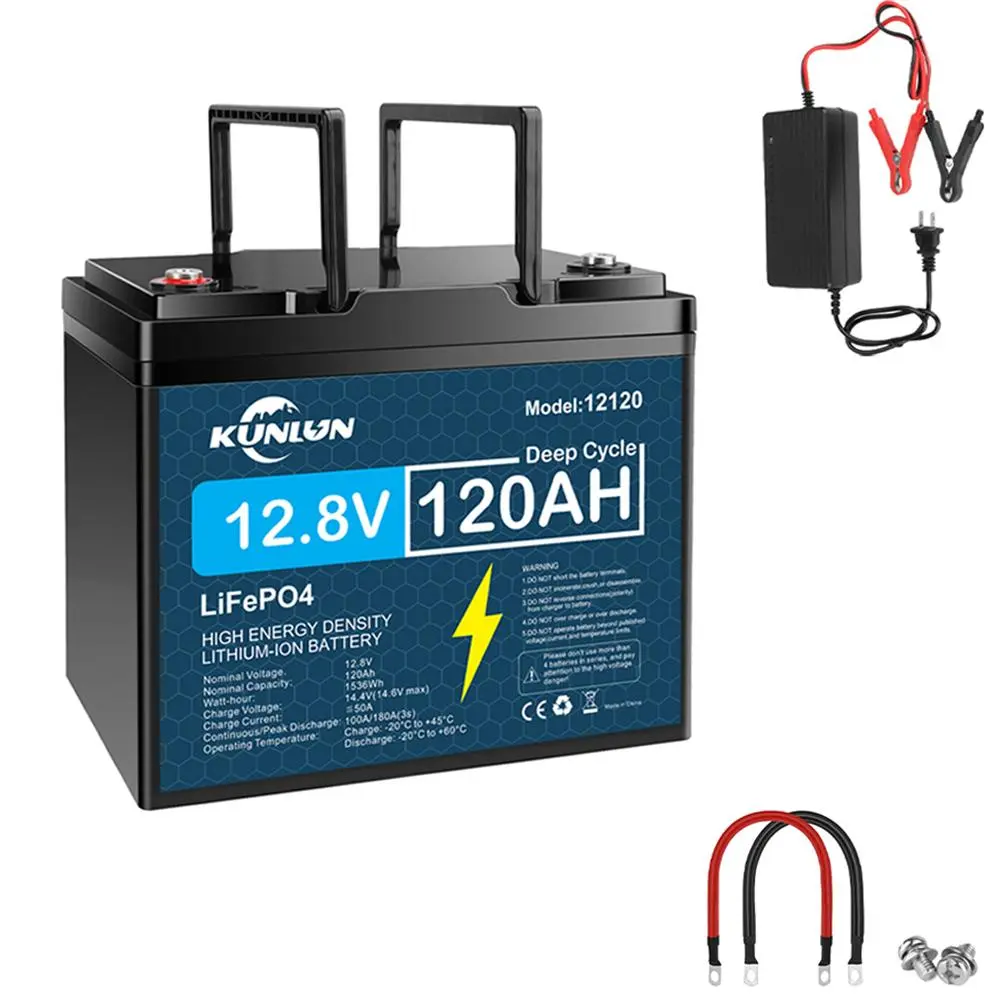

What's in the box?

1* 120ah 12v LiFePO4 Battery

2*Cables

2*Bolts

1*User Manual
