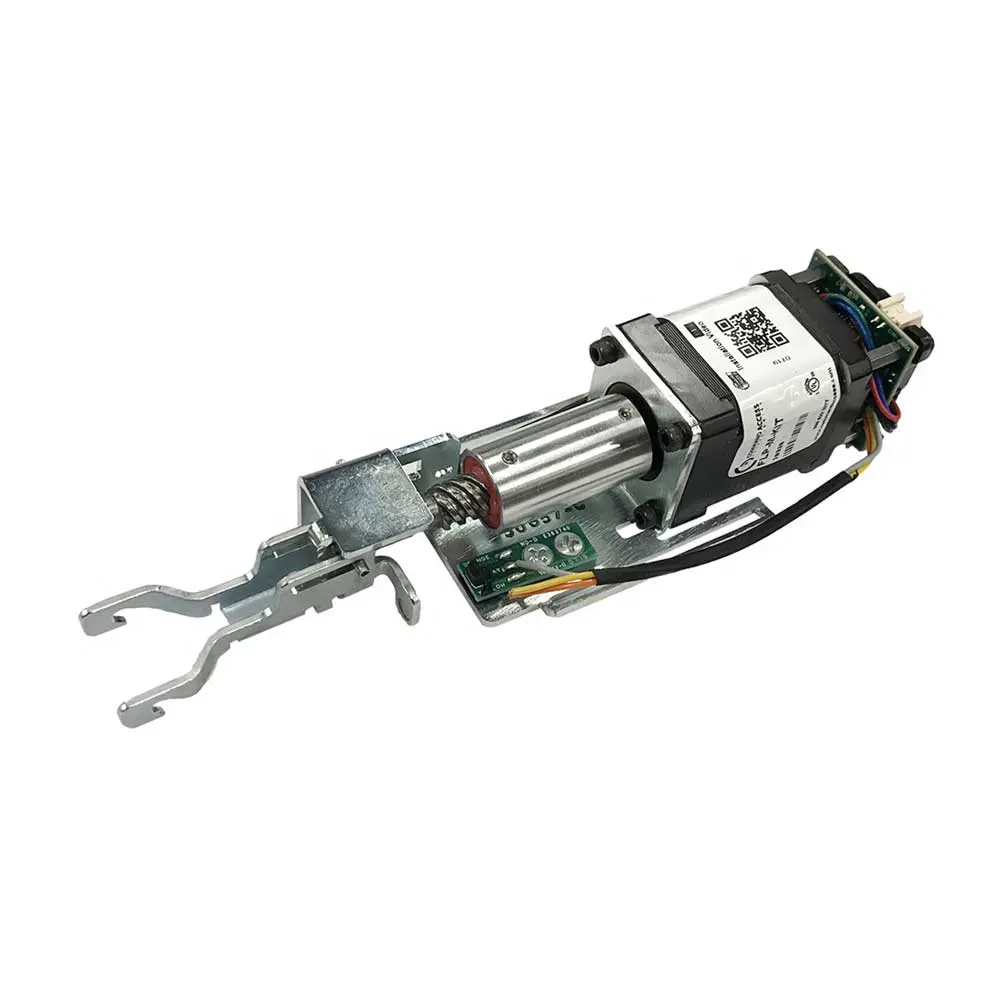

Command Access - MLRK1-FAL25 - Motorized Latch Retraction Kit for Falcon 24/25 Series Exit Device

The MLRK1-FAL17 is a robust, straightforward field-installable motorized latch retraction kit for Falcon Dor-o-Matic 1690/1790 & First Choice 3600/3700 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.

·“PTS” Push to set technology

·Easy installation

·Fast, quiet, smooth

·True Electronic Dogging - Full push pad retraction

·UL Listed

Features:

·MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

·“PTS”: 5 second electronic adjustment for easy post installation adjustment

·Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position

·Low Current Draw - Field switchable to “High Torque” mode

·Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel

·8’ cable with Quick Connect for MM4S module to easily connect to power supply lead

·Request-to-exit kit available

·3-year “no hassle” warranty

Voltage:

·Voltage range – 24 to 28 VDC

·System protection – unit shutdown when voltage exceeds 28VDC

·Standard - Average Current Peak: 900A, Average Current Hold: 215mA

·High Torque - Average Current Peak: 2A, Average Current Hold: 250mA

·PTS adjustment – approx. 1/4”

Wire Run:

·300' with 18ga wire

Product Details:

·Weight: 2 Lbs

Device Cutdown Details:

·36” - 2”

·48” - 8”

Accessories:

·Request-to-Exit - Built-in

Falcon Kit:

·Mechanical Device

·CAT Modified Motor

·SDC Motor (LR100-FRK)

·ACSI Motor (1550K-MDF)

Download:

·Installation Instruction
