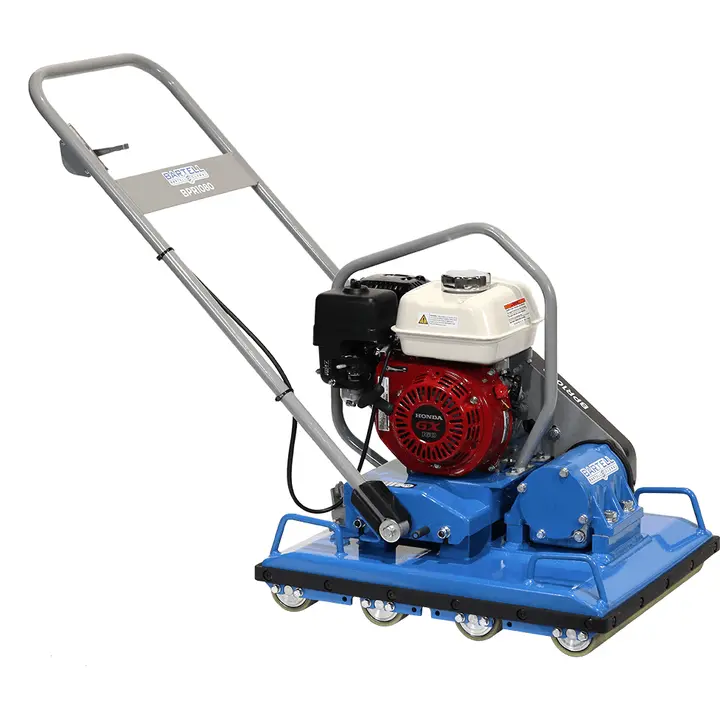

IN STOCK NO WAIT  Bartell Global Vibratory Paver Roller Compactor - BPR1080H - 4 Roller

Perfect for the Installation of Large Slabs and Pavers

The Bartell Global Pave Rollers are designed to work with all pavers and slabs to effectively work your polymeric sand material into the joints — right down to the bedding layer! The rollers are designed to gently roll over a wide range of stone and concrete textures and thicknesses to provide effective joint consolidation without the risk of cracking, chipping, or damaging, which can happen when using traditional compactors.

The FOUR-ROLLER option provides more force for tougher material. The FIVE-ROLLER option disperses the force over more surface area, providing a more gentle approach for more fragile materials. A Five-Roller can be switched back and forth from a 4 roller to a 5 roller. An extra roller can be purchased later on as an accessory when buying a 4 roller.

The Bartell BPR1080H- 4 is a must-have for any hardscape professional.

Features

·Roller locks prevent movement during transport

·Throttle on the handle for convenience & safety

·Durable plate steel body

·Convenient lifting handles double as tie downs

·Built-in hoist hook

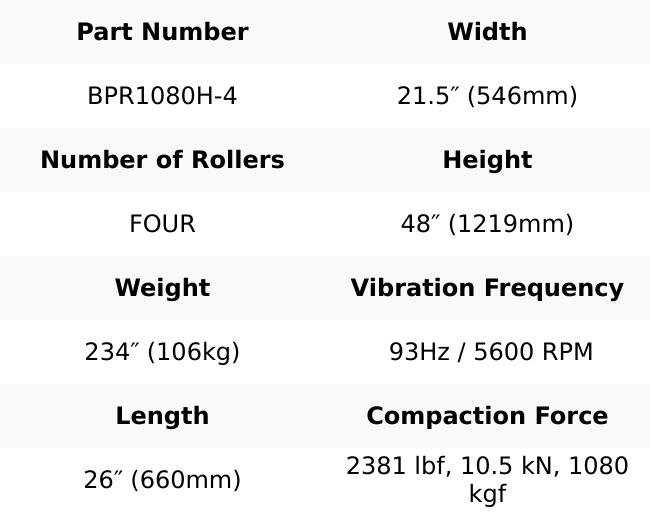

Specification

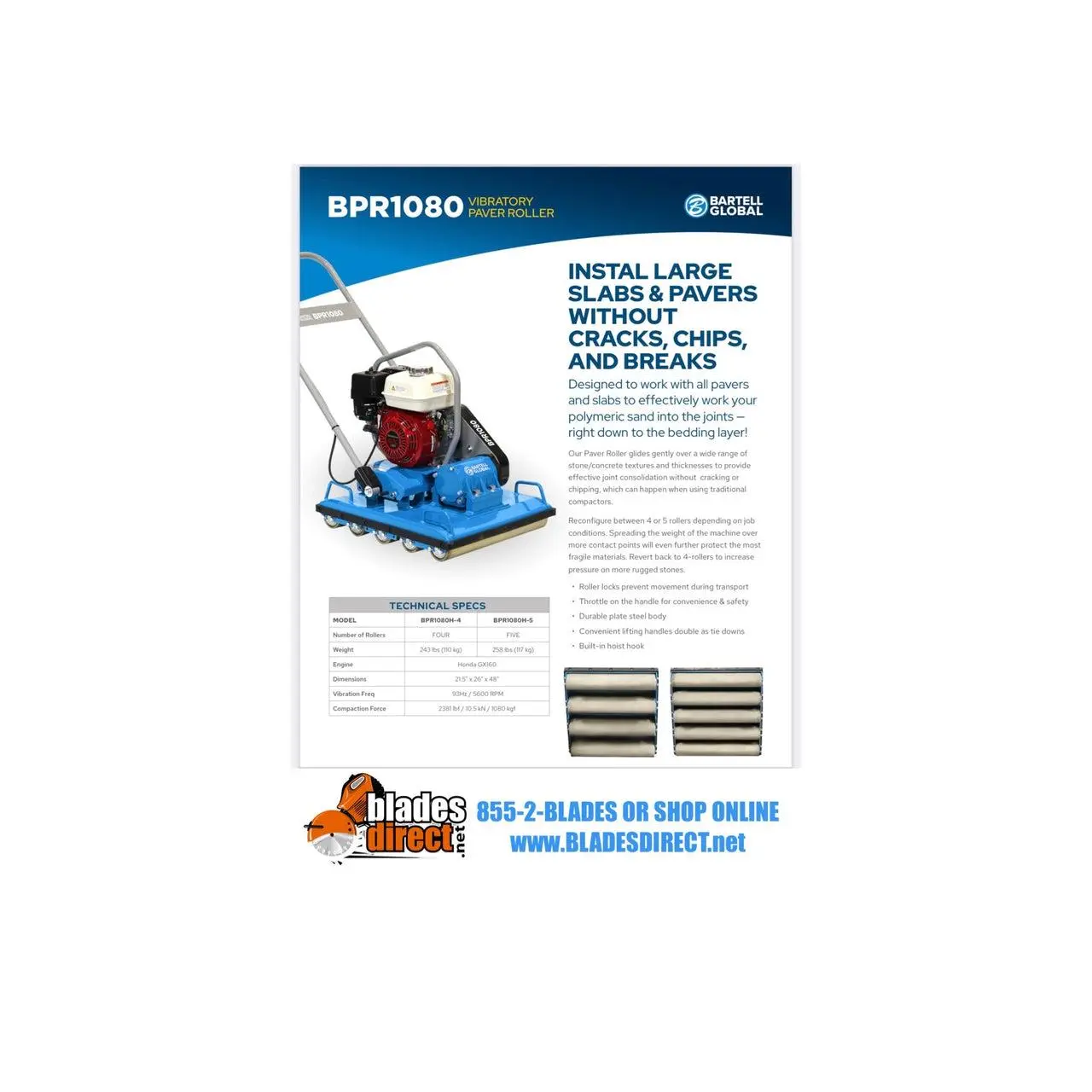

Specs Sheet

Specs Manual

SHIPPING RATES BASED ON A COMMERCIAL ADDRESS WITH FORKLIFT

Bartell Global Vibratory Paver – BPR1080H – 4 Roller: Precision Paving for Professionals

When it comes to finishing hardscapes, precision matters. The Bartell Global Vibratory Paver – BPR1080H – 4 Roller is purpose-engineered for contractors, landscapers, and municipalities who demand flawless results on sidewalks, patios, pavers, and overlays. With its four-roller design, vibration power, and thoughtful features, this machine ensures smooth, consistent, and efficient compaction of polymeric sand and bedding materials—without damaging delicate surfaces.

What Makes the BPR1080H – 4 Roller Stand Out?

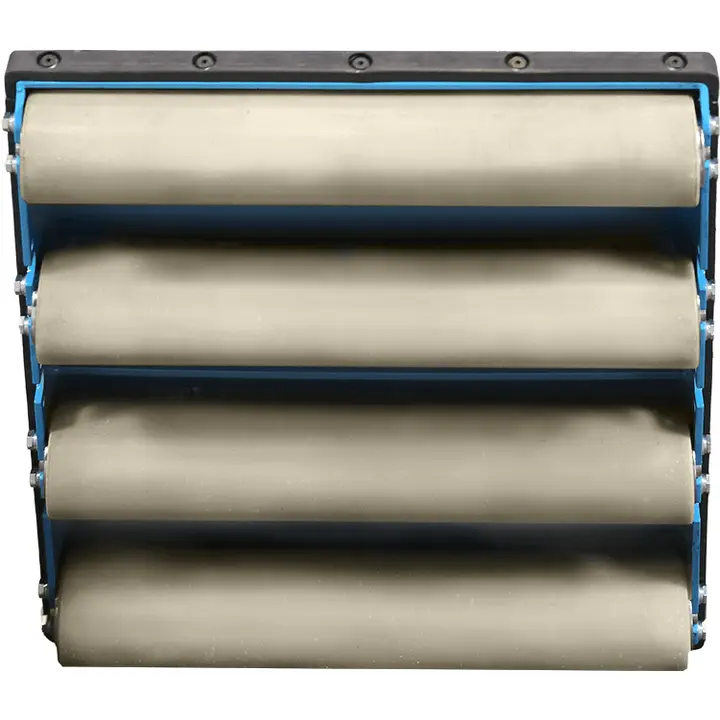

1. Four-Roller Configuration

The four steel rollers offer precise compaction by evenly distributing pressure across a 21.5″ width (546 mm). Compared to traditional two-roller plates, this design protects fragile stone while consolidating grout and base layers efficiently 

2. Honda GX160 Power

The trusted Honda GX160 engine delivers 4.8 HP (3.6 kW), providing reliable performance with less maintenance. Its four-stroke design and rugged construction ensure consistent vibration at 5,600 RPM / 93 Hz

3. Powerful Compaction Force

Generating a substantial 2,381 lbf (10.5 kN / 1,080 kgf) compaction force, the BPR1080H effectively works polymeric grout and bedding material into joints—deep into the base layer.

4. Operator Comfort & Safety

The adjustable handle features vibration isolation, reducing fatigue during extended use. Roller locks secure the unit during transport, while built-in hand‑holds and a protective roll bar simplify lifting and loading.

5. Compact Dimensions

At just 26″ long, 21.5″ wide, and 48″ tall, and weighing 243 lbs (110 kg), the machine is easily maneuvered by one operator and transported using standard equipment 

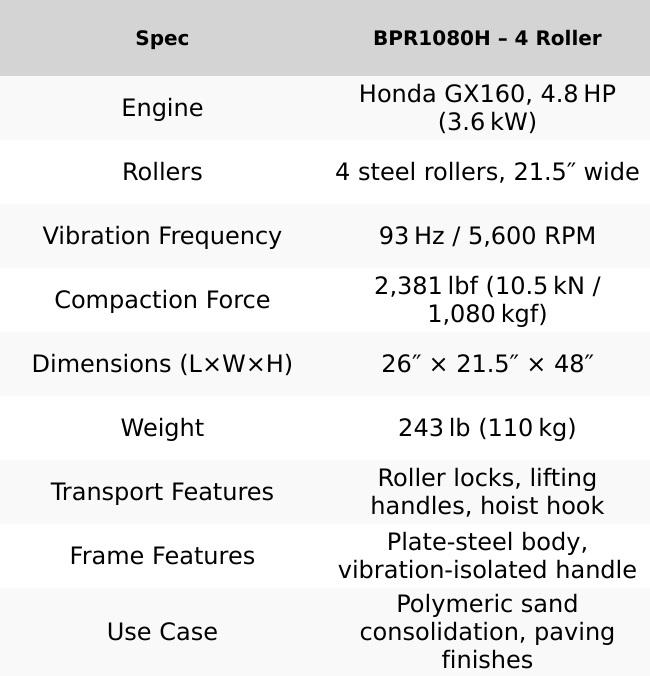

Detailed Specifications

Why Contractors Choose the BPR1080H – 4 Roller

Enhanced Joint & Bedding Compaction

The vibratory action and roller configuration ensure polymeric sand is thoroughly packed into paver joints—and bedding layers—without displacing tiles or causing damage 

Protects Surface Integrity

The gentle distribution of force minimizes surface marking, chipping, or cracking—ideal for fragile or high-end stone and concrete products 

Boosts Productivity

Thanks to roller locks and ergonomic handles, one operator can transport, start, and run the compactor on large areas in less time—reducing crew size and operational costs 

Durable & Low-Maintenance

Built with a steel chassis and belt-protected drivetrain, the BPR1080H is designed for longevity. Regular cleaning and routine oil changes help maintain peak performance 

Maintenance Guide

Best Use Cases

·Large patio and walkway installation – Consistent compaction across wide surfaces.

·Paver joint sealing – Enhances joint material consolidation post-installation.

·Decorative concrete finishing – Smooths overlays without surface damage.

·Municipal sidewalks and curbs – Prepares clean joints for sealing and longevity.

·Residential & commercial hardscaping – Ideal on delicate stone or thin pavers.

Buyer Tips & Customization

·Multiple roller options – Upgrade to a 5‑roller head for fragile or uneven surfaces; revert to 4‑roller in rugged conditions

·Joystick handle kits – Explore comfort upgrades from dealers.

·Spare parts – Keep an eye on roller bearings and belts; OEM parts ensure longevity.

·Warranty coverage – One-year parts warranty; dealer support across North America 

Final Verdict

The Bartell Global BPR1080H – 4 Roller vibratory paver sets a professional standard in surface finishing—combining efficient compaction for polymeric sands and bedding systems with gentle care for stone. Its four-roller layout, robust Honda engine, ergonomic design, and durability make it a premium choice for contractors in 2025. Whether you're laying pavers, sealing joints, or applying decorative overlays, this specialized compaction tool delivers quality, speed, and protection—making it essential equipment for serious hardscaping operations.
