Automotive Car Relay Tester RT01 Voltage Detector 4/5 Pin Relays Universal 12V-24V Vehicle Battery Check Diagnostic Tools Introduce:

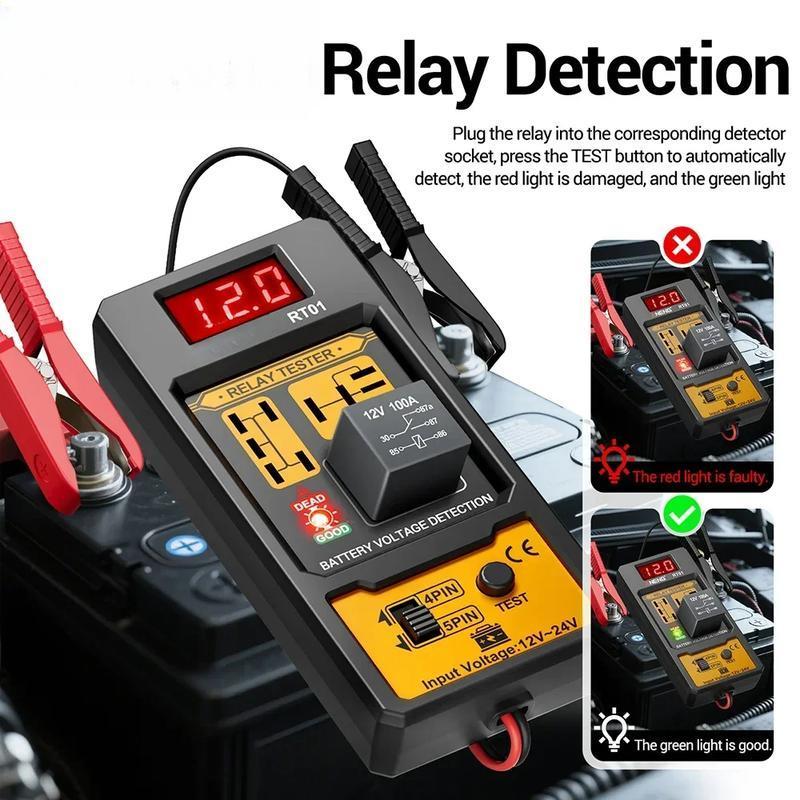

RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.

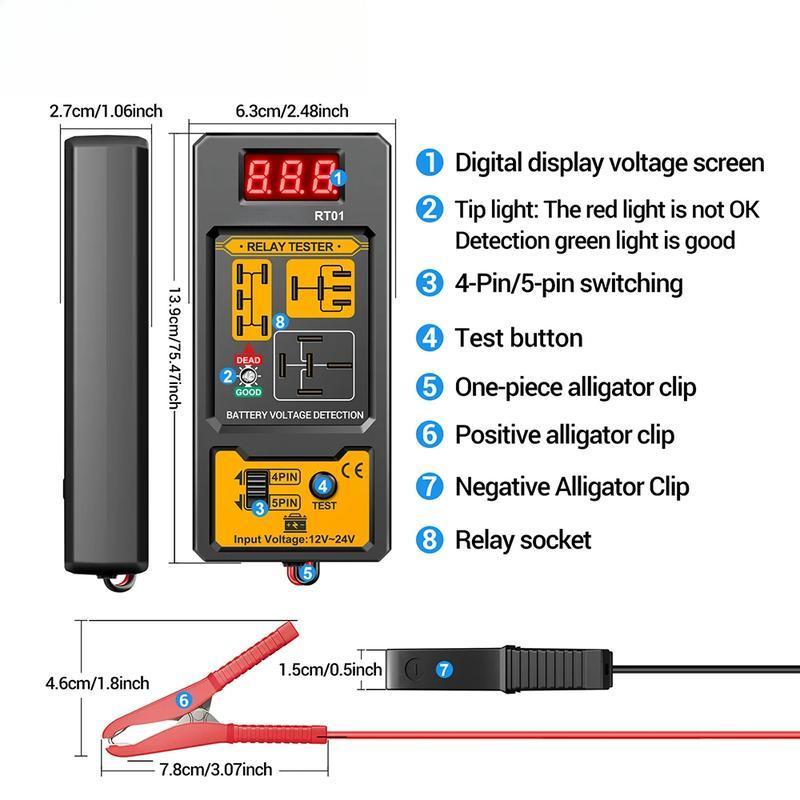

Specification: Product Model:RT01 Relay Detector Applicable pins:5 pins/4 pins Battery detection:11V~ 25V voltage Applicable coil resistance:≥20Ω Use power:Connect car battery power supply Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal. clip opening size:2.1cm/0.82inch clip length:42cm/16.54inch Digital display bright screen:Yes Operating instructions:

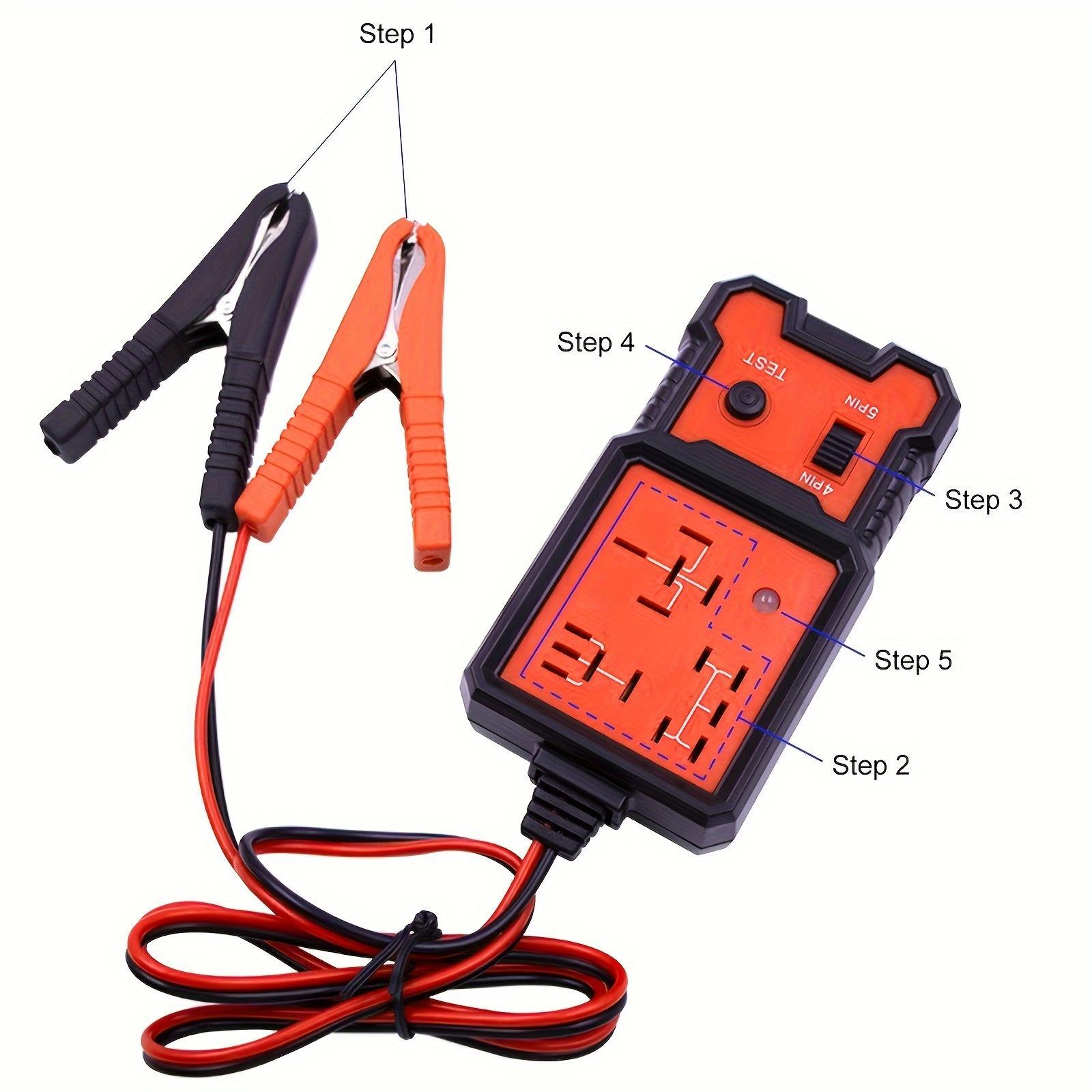

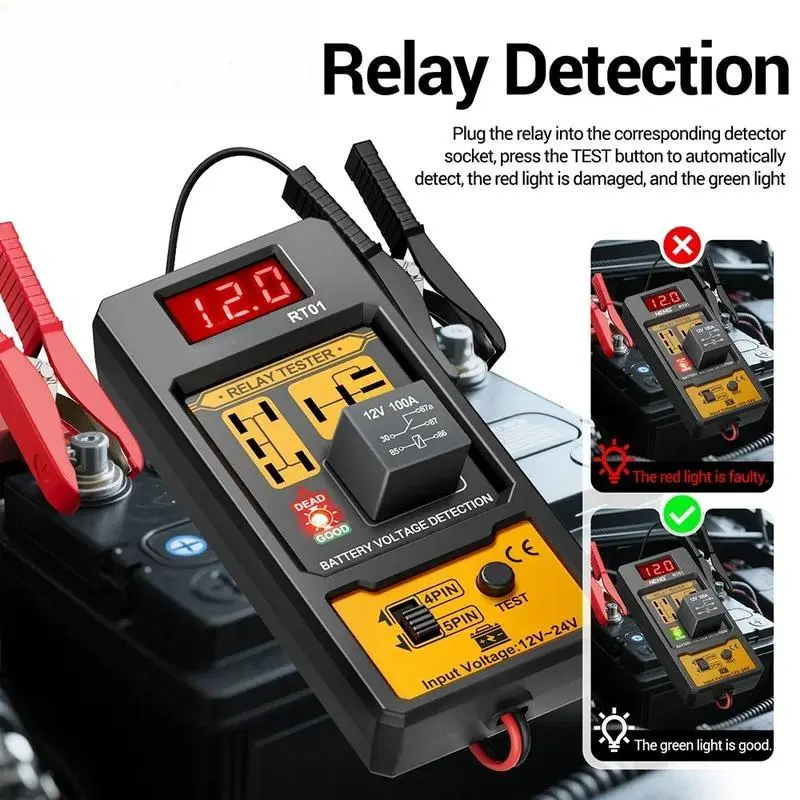

1)Clip the clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode. 2)When the red LED light is on, it indicates that the tester can start testing. 3)Check the relay before testing. lf it is 4 feet, choose a 4-foot socket on the tester; if it is 5 feet, choose a 5-foot socket on the tester. 4)Plug the relay into one of the three sockets 5)Press the "Test" button

6)The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light. 7)When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.

8)When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light. 9)After the test is complete, remove the clip from the battery and remove the relay from the tester. Package: 1*RT01 Relay Detector Attention: 1.The car battery must be a 12V battery, and the voltage of the battery must be between 11V and 25V.

2.The applicable coil resistance should preferably be above 20Ω.

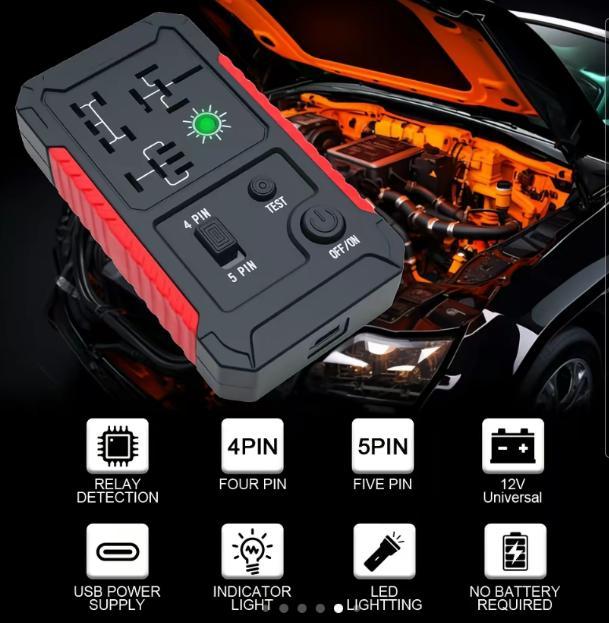

Introduction:

This product is a portable automotive relay tester poweredby TYPE-C,ensuring safe and reliable detection.

It can quickly test the coil on/off and contact status of 4-pin and 5-pin relays,completing the test and displaying theresult within 10 seconds.

Attention:Mobile phone power supply requires TYPE-C toTYPE-C cable(Not include),our product only provides USB to TYPE-C cable.

Specification:

Power interface: TYPE-C

Input voltage/current:5VDC, 1A-2A

Output detection voltage (coil): 12V DC

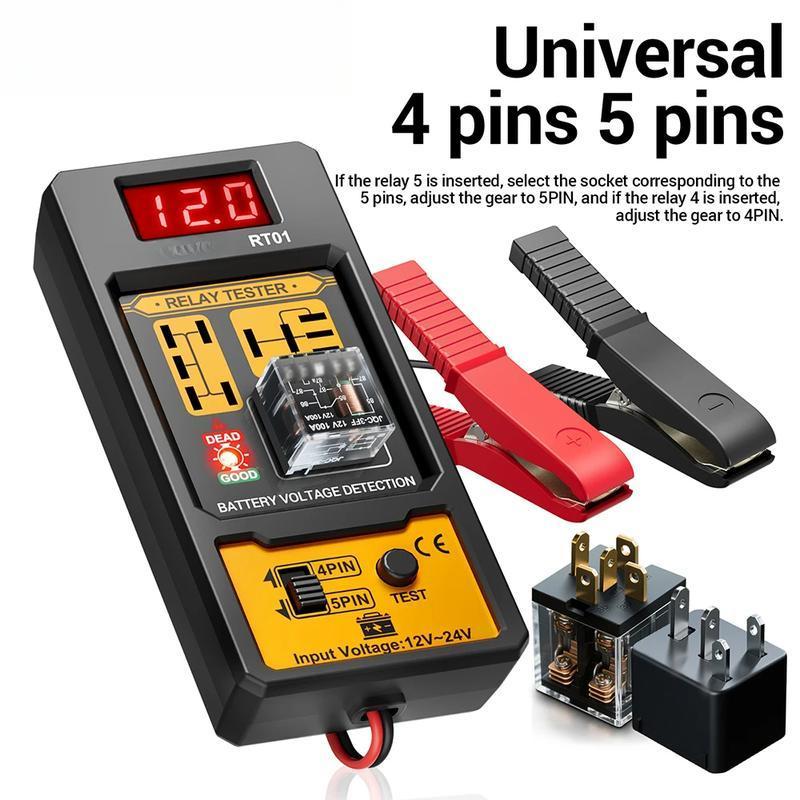

Applicable relay pin numbers: 4PIN, 5PIN (12Velectromagnetic relay)

Detection response time:1 second/time

Applicable pins:4-pin/5-pin

Working temperature range: -10℃-50℃

Rated power:

Use coil resistance:＞20Ω

Power supply: USB data cable

compatible with TYPE-C data cables, mobile phones, powerbanks, car power supplies, adapters

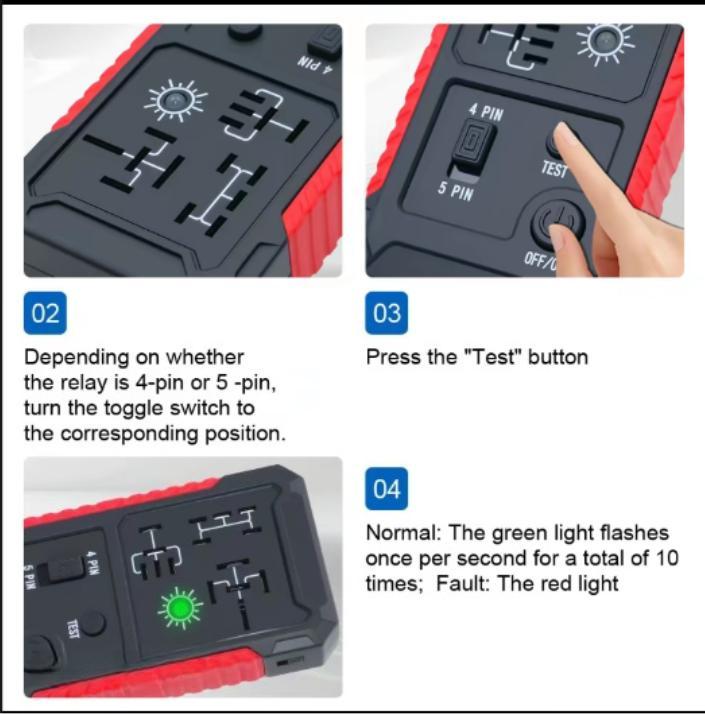

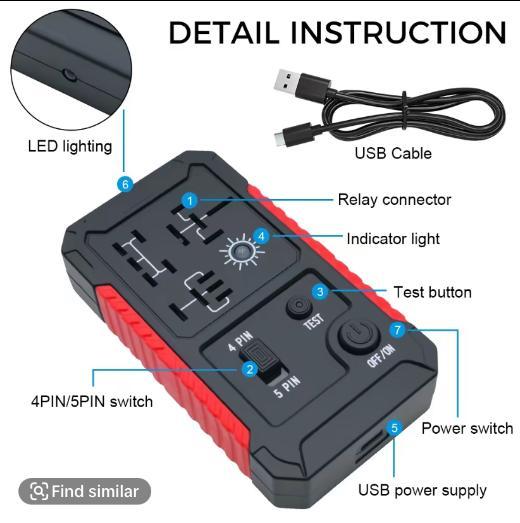

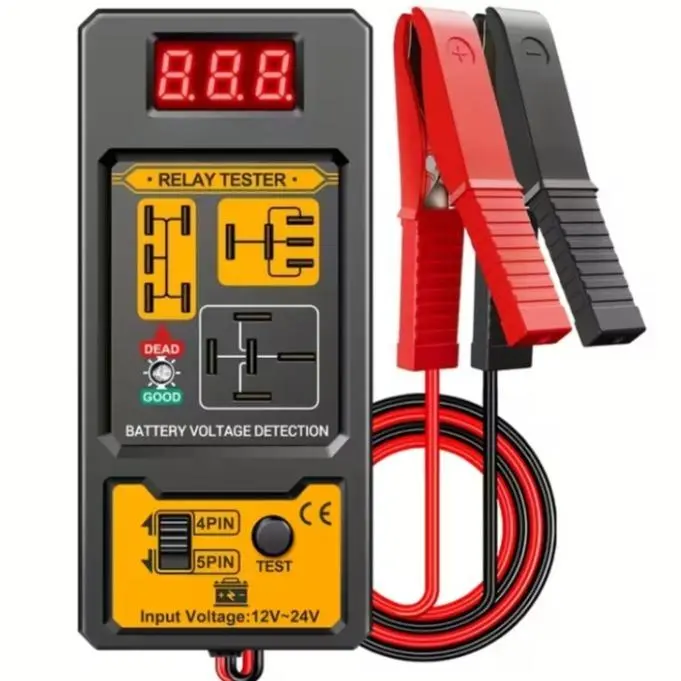

Appearance Description:

Power switch: The circular"ON/OFF"button controls theinstrument on/off.

Reset button: The circular "TEST' button is pressed totrigger the detection process.

Indicator light:Red/green dual-color LED light (center of thepanel) for displaying test results.

Toggle switch: Used to switch between"4- pin" and "5-pin"relay pins.

LED lighting: Side switch control for easy operation in darkareas.

Resuit judgment:

Normal: The green light flashes once per second for a totalof 10 times, along with "beep - beep.. The prompt soundindicates that the relay is functioning properly.

Fault: The red light remains on immediately,indicating thatthere is a fault with the relay.

Follow-up operations and maintenance:

After the TEST is completed, if you need to test again,simply press the "Test" button again; If you stop using it,press the 'ON/OFF* button to turn it off.

The operating temperature of the instrument should bebetween -10℃ and 50℃ and the ambient temperatureduring charging should be above 0℃

Package Included:

1x Car Relay Tester

1x USB cable
