Product Overview

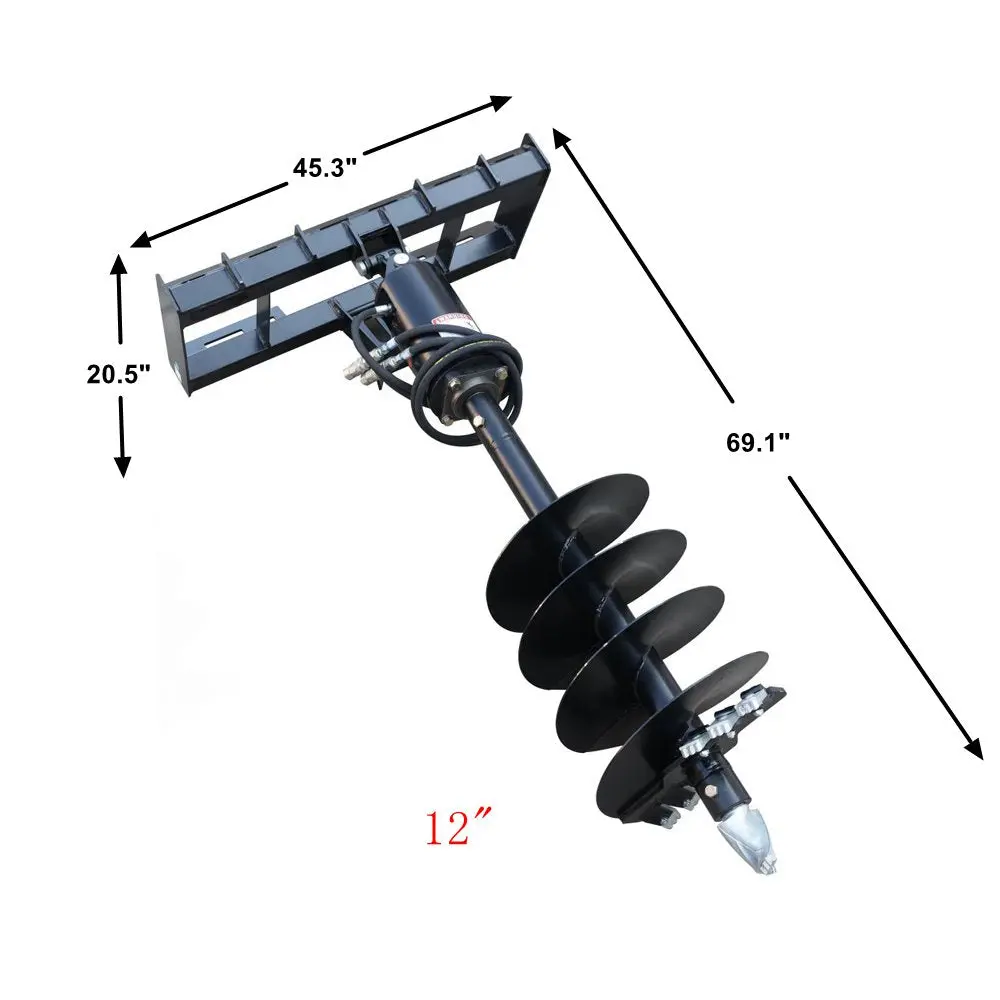

12" diameter compact drive & Auger for skid steer loader. Takes the effort out of digging the right sized hole for the task at hand. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.

Details

Features:

- Perfect for digging holes to plant trees, install fence posts & more - Fits Inner Width 44.9" Universal Skid Steer Quick Attach - Direct Drive Through Planetary Gear - Mounting Plate, Hoses and Couplings Included - All price include shipping

Specifications:

·Auger Diameter: 12"

·Hydraulic Flow Required: 20gpm

·Operating Pressure:2320 psi

·Rated Output Torque: 950N.m

·Max Output Torque: 2500N.m

·Max Input Speed: 1000rpm

·Blade Thickness: 0.15in

·Shaft Diameter: 3.3in

·Shaft Length: 45in

·Unit Weight: 364lb

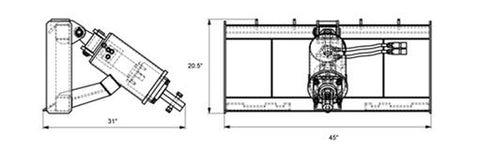

Technical Drawing：

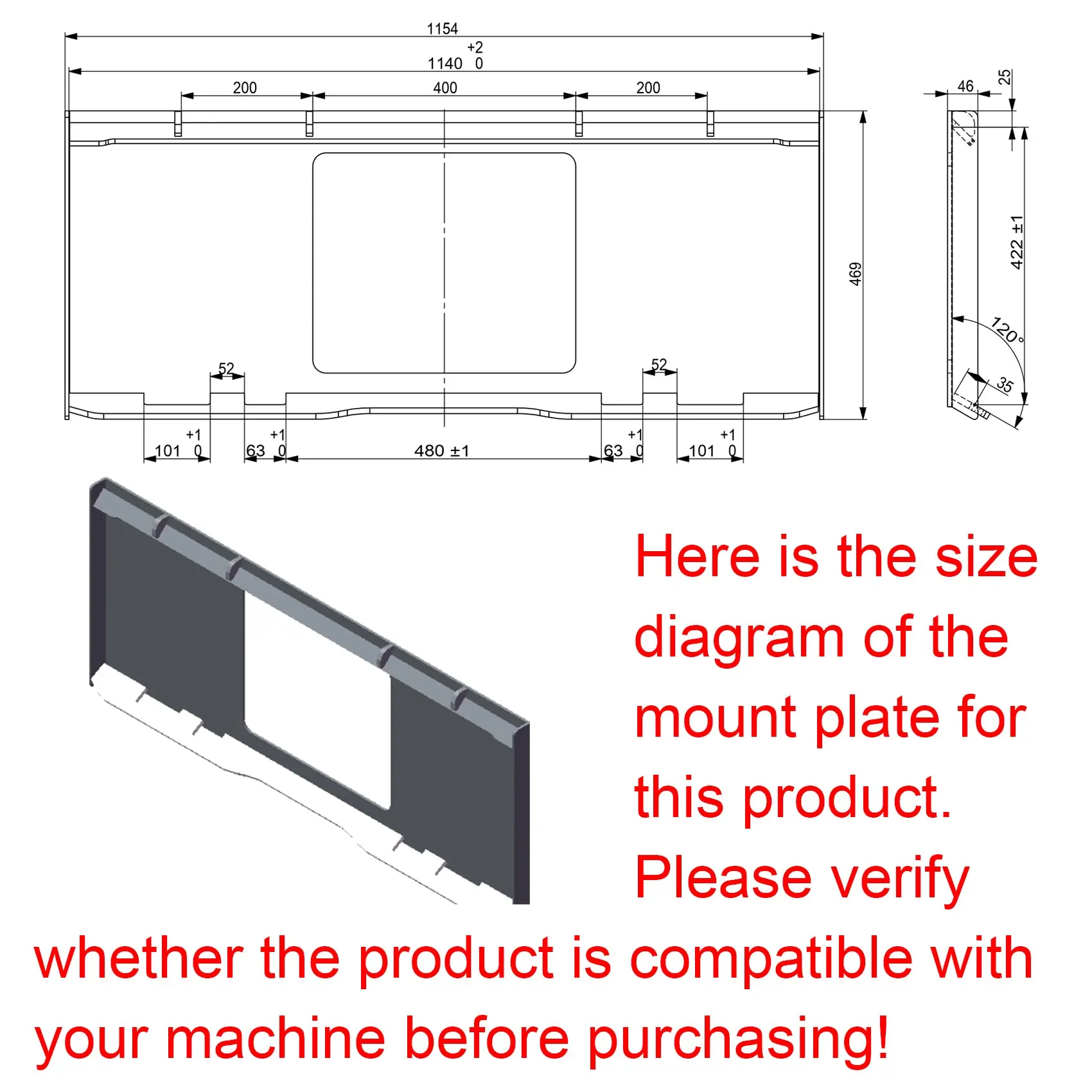

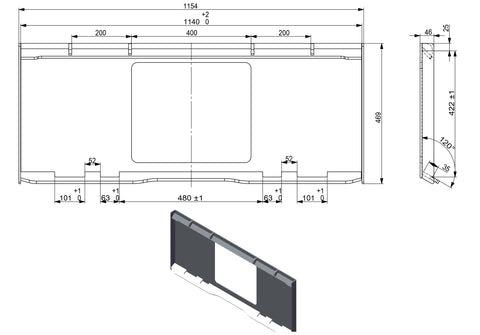

Inner Width 44.9" Universal Skid Steer Quick Attach：

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer's failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.

 Shipping Information:

Standard Shipping (Small Items): 2-3 business days after dispatch. Deliveries to remote areas may take longer. Freight Shipping (Large Items): 3-7 business days, with some deliveries to remote areas taking up to 8-13 business days.

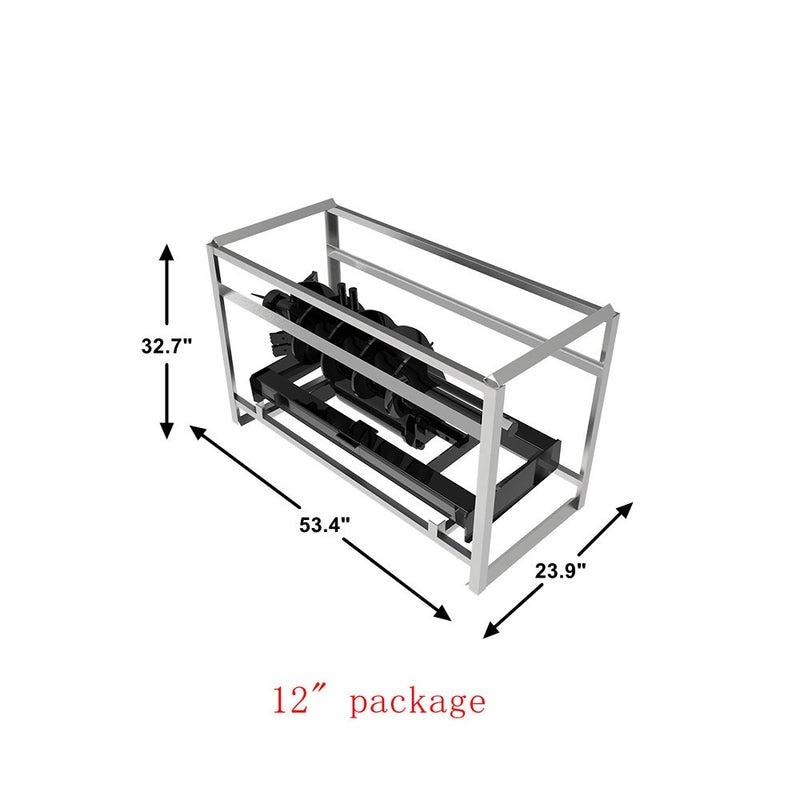

·This product is packed in a metal crate shipping box

·Shipping dimension: 53.4”” x 23.9'' x 32.7” (L x W x H)

·Shipping weight: 429 lb
