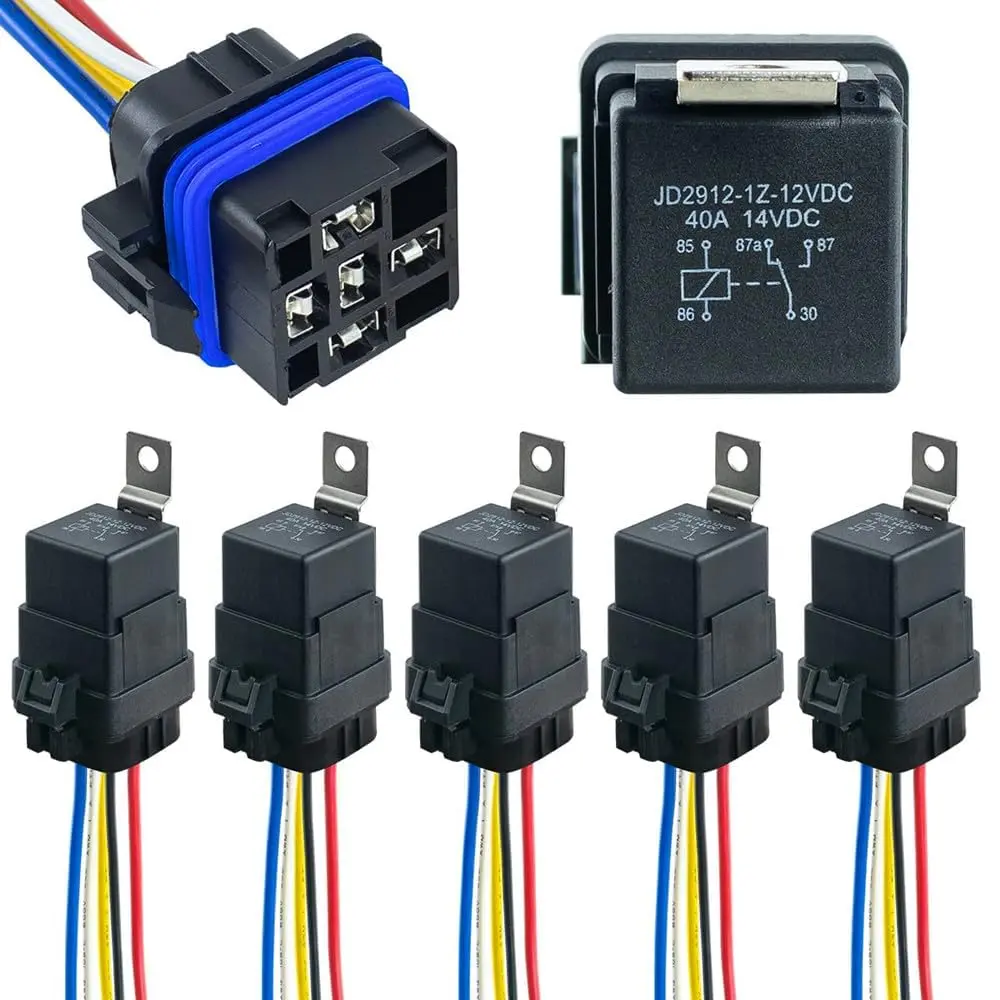

5-PIN SPDT Automotive Relay 40/30A AMP 12V DC 5 Pack Waterproof Starter Relay Kit with 12 AWG Tinned Copper Wires, Automotive Cars and Trucks
5-PIN SPDT Automotive Relay 40/30A AMP 12V DC 5 Pack Waterproof Starter Relay Kit with 12 AWG Tinned Copper Wires, Automotive Cars and Trucks
5-PIN SPDT Automotive Relay 40/30A AMP 12V DC 5 Pack Waterproof Starter Relay Kit with 12 AWG Tinned Copper Wires, Automotive Cars and Trucks
5-PIN SPDT Automotive Relay 40/30A AMP 12V DC 5 Pack Waterproof Starter Relay Kit with 12 AWG Tinned Copper Wires, Automotive Cars and Trucks
5-PIN SPDT Automotive Relay 40/30A AMP 12V DC 5 Pack Waterproof Starter Relay Kit with 12 AWG Tinned Copper Wires, Automotive Cars and Trucks
About this product
Product description
The relay adopts pure copper core cable, silver alloy contact, strong conductivity, better stability, and the relay kit adopts high-grade flame retardant materials to ensure safe use and long service life.Nominal Coil Voltage: 12 V DCCoil Power: 1.8 WCoil Resistance: 80 ΩMust Operate Voltage: 6~8 V DCMust Release Voltage: 0.6~3.6 V DCMaximum Applied Voltage: 15.6 V DCBe careful when inserting the relay into the socket.If you force it, you will bend the female connectors,Primary leads use 12 a.w.g tinned copper wire.Coil leads use 16 a.w.gThese DC waterproof relays and wiring harnesses feature quick-install design for effortless replacement of worn-out relays.This 12V relay engineered with industrial-grade composite housing and high-purity copper coils to ensure optimal conductivity and voltage stability.Our automotive relays are made of longer 12+16 gauge tinned copper wire, which is more resistant to corrosion and oxidation than bare copper wire.No reason to return within 30 days, 1-year warranty serviceIf you are not satisfied with this product, please contact us for an exchange or refund.We hope you will enjoy excellent service.
Product Description

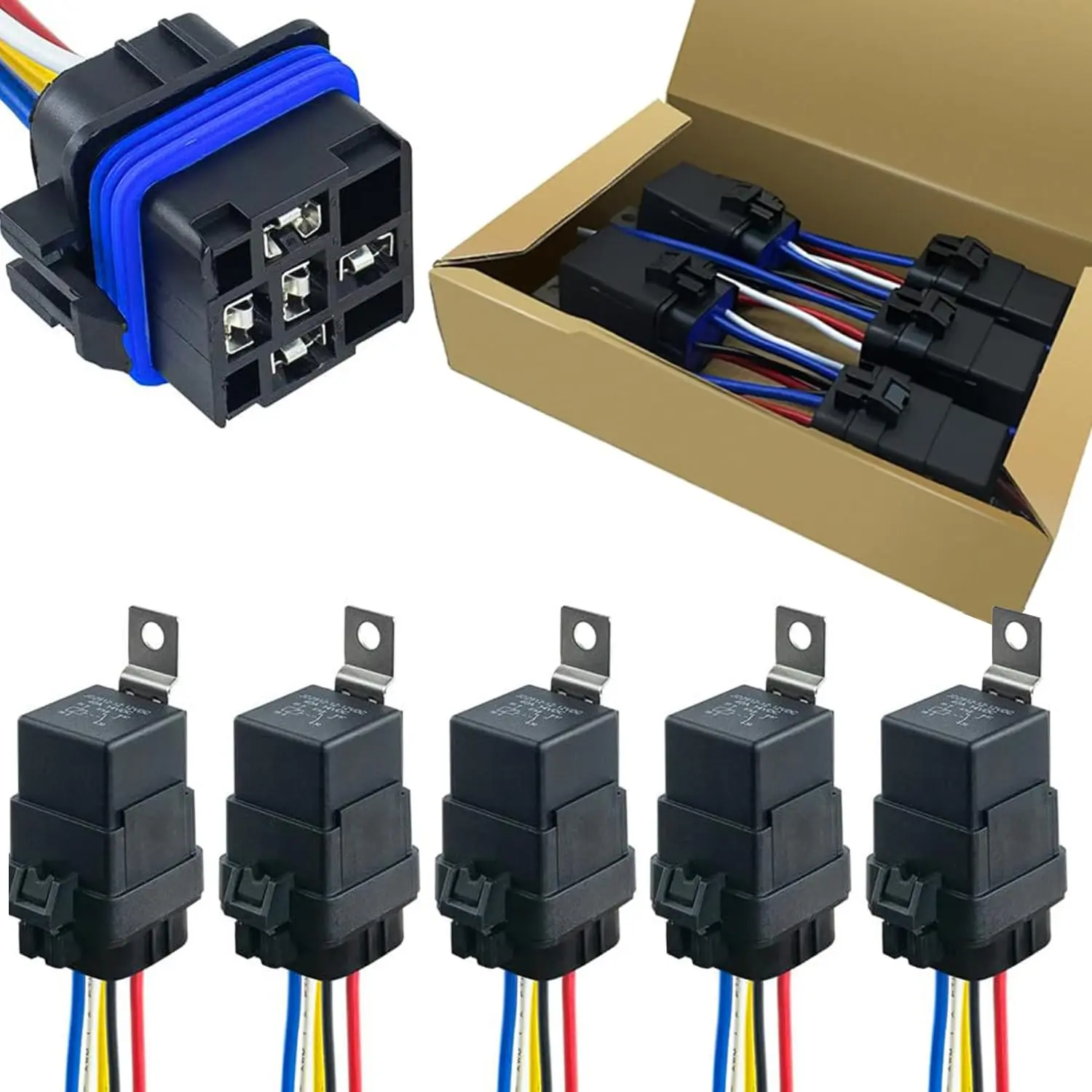

Nominal Coil Voltage: 12 V DC Coil Power: 1.8 W Coil Resistance: 80 Ω Must Operate Voltage: 6~8 V DC Must Release Voltage: 0.6~3.6 V DC Maximum Applied Voltage: 15.6 V DC Contact Ratings: NO 40A 14V DC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A Max Switching Power: 560 W Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute) Life Expectancy Machanical: 10,000,000 Operations Temperature Range: -30 ~ +80 degrees Celsius Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g.Damage Limits: 100g Hunidity: 40% ~ 85% Insulation Resistance: 100mΩ Min at500VDC Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contactw and coil: 750AC (for one minute/sec) Operation Time: 7ms Release Time: 5ms Package Content: 5 x 12VDC waterproof relay kit
