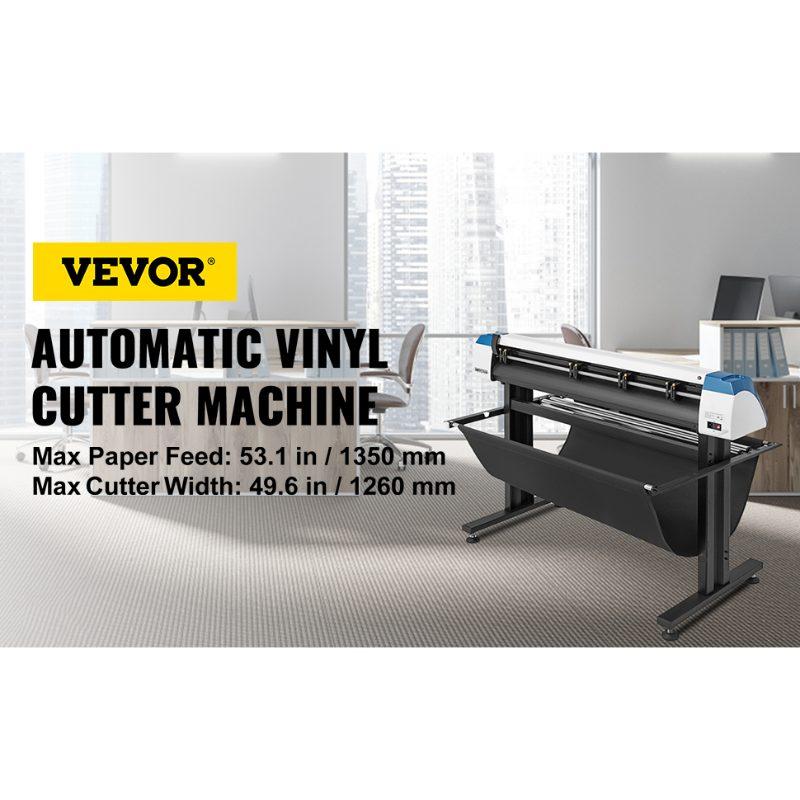

53-inch Automatic Vinyl Cutter Plotter

Large Cutting Width High-quality Carriage Precise Paper Feed

This handpicked vinyl plotter with floor is loaded with advanced features that will bring professional-looking projects. It delivers 1350 mm/ 53.1 max paper feed with 1260 mm/ 46.6 max cutting width. A built-in optical eye for accurate guiding will automatically and accurately scan all kinds of marks. It has a robust construction with a LED display helps you operate the machine clearly and easily. It can cut various intricate lettering and patterns, including paper, card stock, vinyl, and fabric.

Built-In Optical Eye

U-Disk Offline Operation

Efficient LED Panel, Popular styles for 2026 year

Precise Cutting, Popular styles for 2026 year

Powerful Design for Multiple Uses

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?, Popular styles for 2026 year

Premium Tough Quality

Incredibly Low Prices

Fast Secure Delivery

30-Day Free Returns, Popular styles for 2026 year

24/7 Attentive Service

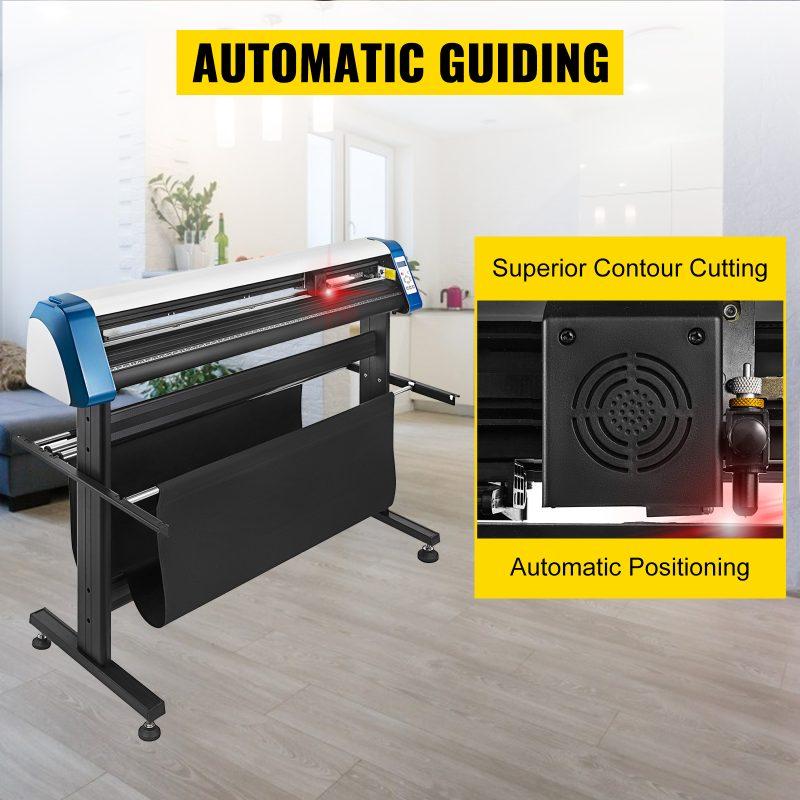

Automatic Guiding, Popular styles for 2026 year

An optical eye is able to automatically scan items, bringing a superior tracking capability and advanced contour cutting performance. Four adjustable double-spring pinch rollers and aluminum knurled rods ensure the vinyl plotter feeding paper steadily without paper jam.

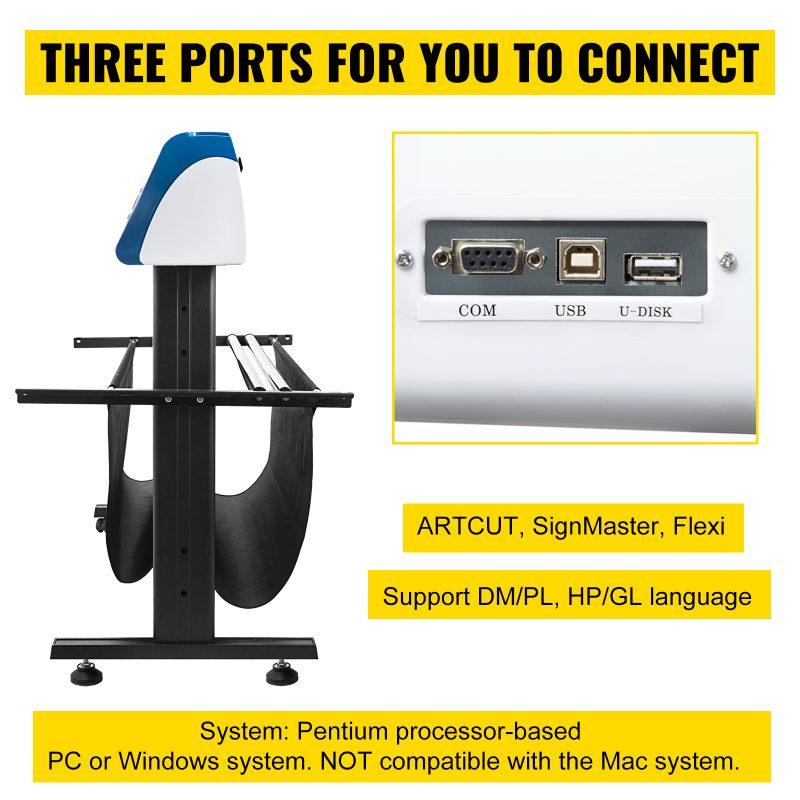

Three Ports for You to Change

Connect the vinyl plotter through three available ports, COM, USB U-Disk. Flexible input support offline processing with U-disk. Included SignMaster software is compatible with Windows XP/ VISTA/ 7/ 8/ 10. NOT compatible with the Mac system.

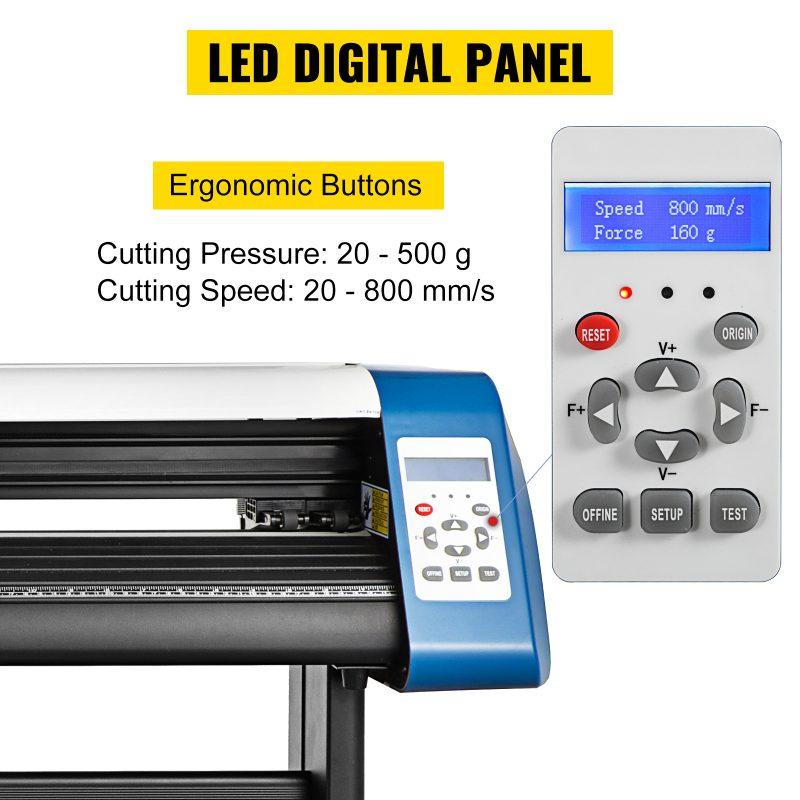

LED Digital Panel, Popular styles for 2026 year

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a maximum cutting speed of 800 mm/s and 500 g cutting force.

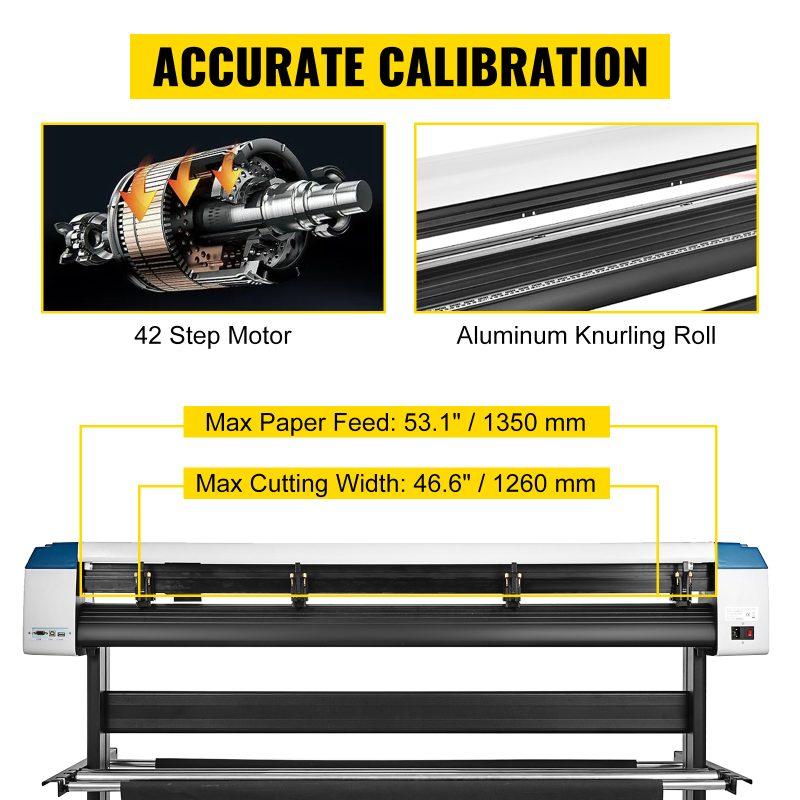

Accurate Calibration

The ruler guide is integrated for easier measurements, and the 4 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included biro pen component to sketch out your design before cutting.

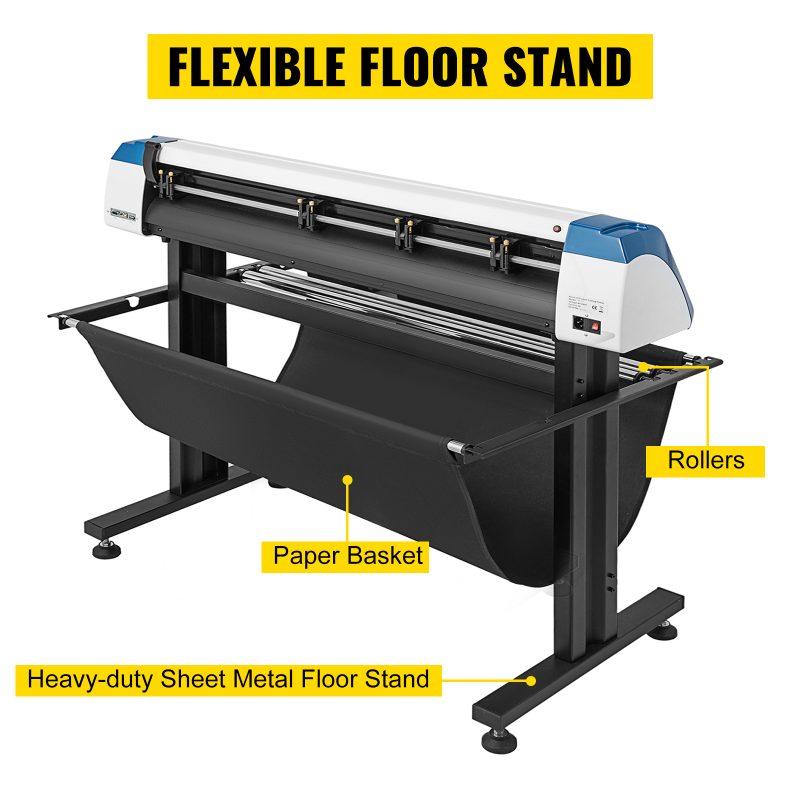

Flexible Floor Stand

This cutter is packaged with a heavy-duty sheet metal floor stand that can hold the paper steadily. Make it easy for users to carry without effort. The improved appearance is more in line with aesthetics.

Extensive Use, Popular styles for 2026 year

The vinyl cutter is capable to flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

Specifications, Popular styles for 2026 year

Max Paper Feed: 53.1 in/ 1350 mm

Max Cutter Width: 49.6 in/ 1260 mm

Voltage: 110 V, Popular styles for 2026 year

Cutting Accuracy:+ /- 0.0004 in/ 0.01 mm

Temperature: 5 - 35, Popular styles for 2026 year

Relative Humidity: 30 - 50

Driving Method: Stepper Motor

Positioning: Automatic

Carriage: Casting Pressure Carriage

Fill Light: LED Strip Light

Motherboard: ARM, Popular styles for 2026 year

Interface: Serial Port USB U-Disk

Language: DM/PL, HP/GL

System: Windows XP/Vista/7/8/10

Software: Signmaster

Cutter Pressure: 20 - 500 g

Cutting Speed: 20 - 800 mm/s

Number of Pinch Rollers: 4

Memory: 128 M, Popular styles for 2026 year

Product Size (Lx Wx H): 59.84x 24.81x 43.31 in/ 152x 63x 110 cm

Net Weight: 44.09 lbs/ 20 kg

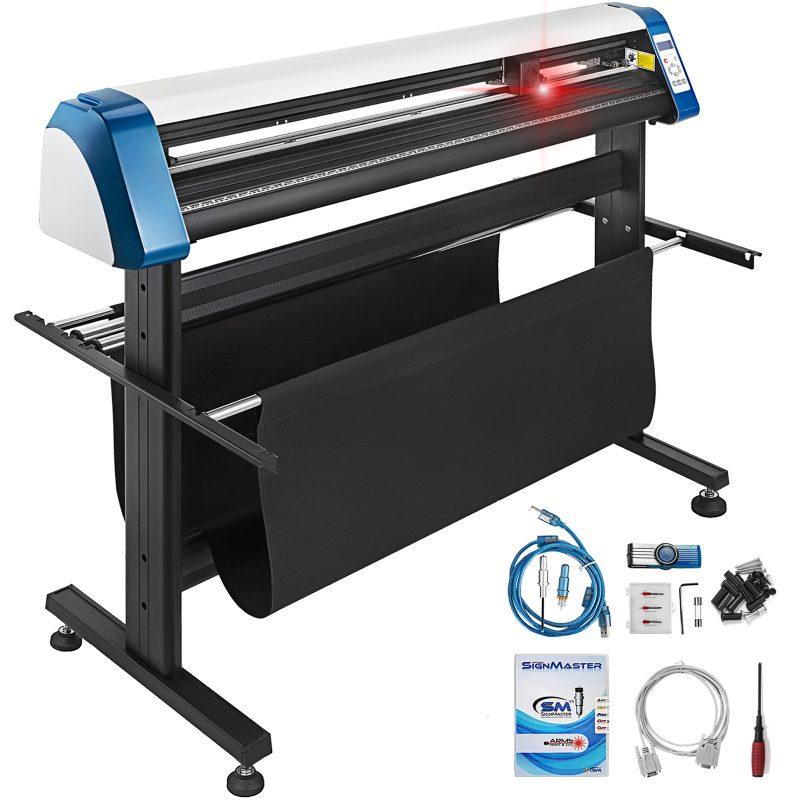

Package Content, Popular styles for 2026 year

1x Cutter Plotter Machine Set

1x Signmaster Software

1x Floor Stand, Popular styles for 2026 year

2x Cables (USB Serial)

1x Power Cord, Popular styles for 2026 year

1x USB Flash Disk, Popular styles for 2026 year
