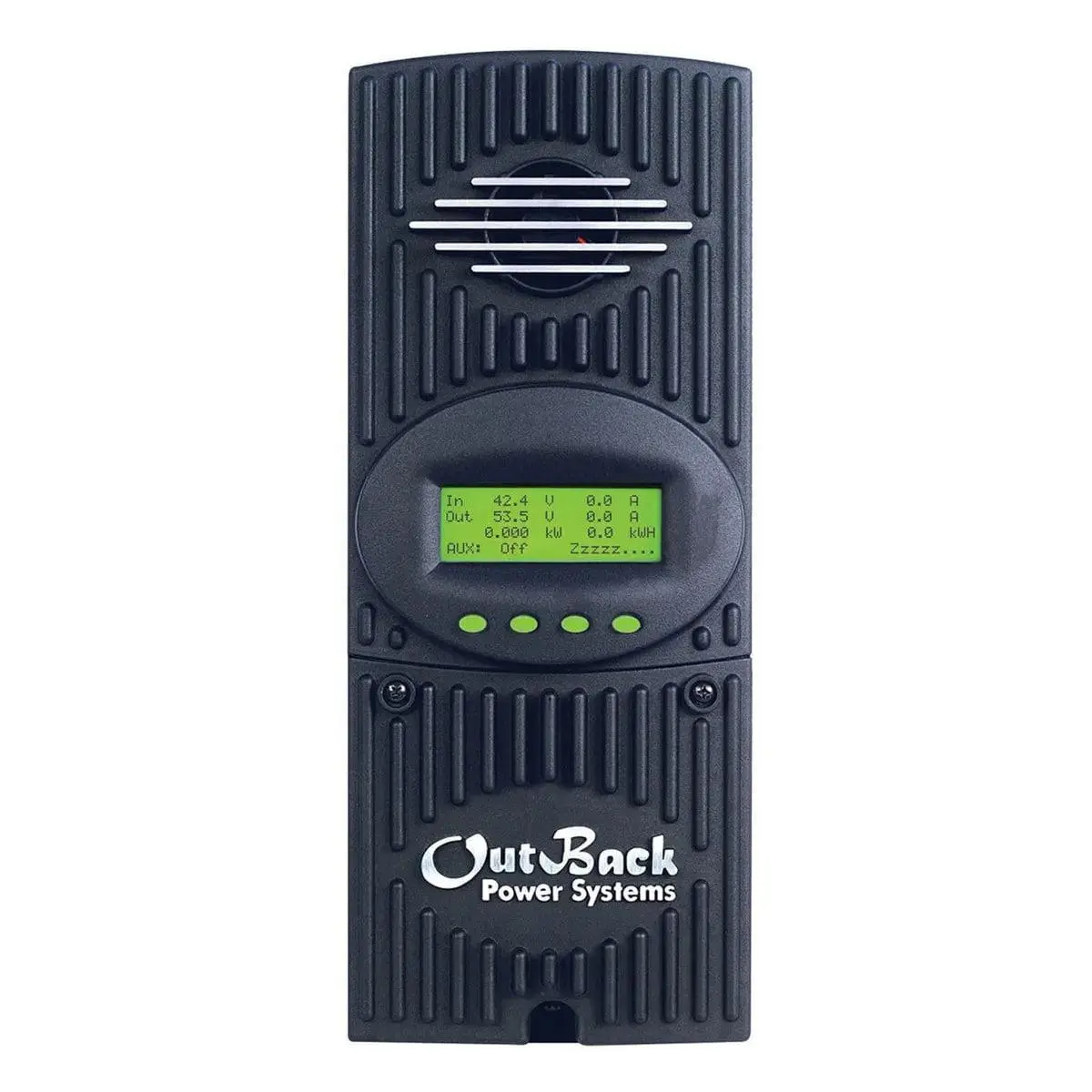

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104 deg F (40 deg C). Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration. FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

Features

·Maximum power point tracking (MPPT)

·Active cooling and intelligent thermal management cooling

·Full power output in ambient temperatures as high as 104 deg F (40 deg C)

·Built-in, backlit 80 character display

·Integrated OutBack network communications

·Increases PV array output by up to 30%

·Advanced continuous maximum power point tracking

·Battery voltages from 12 to 60 VDC

·Programmable auxiliary control output

·Built-in 128 days of data logging

Specifications

·Type: MPPT

·Nominal Battery Voltage: 12, 24, 36, 48, 60 VDC (Single Model, Selectable via Field Programming at Start-Up)

·Power Consumption:

·Enclosure Rating: Indoor Type 1

·Operating Temperature: -40 to 60°C

·Conduit Knockouts:One 1 in (25.4 mm) on the BackOne 1 in (25.4 mm) on the Left SideTwo 1 in (25.4 mm) on the Bottom

·Type of Charging/Charging Regulation: Bulk, Absorption, Float, Silent, and Equalization

·Maximum Output Current: 60 A

·PV Open-Circuit Voltage (VOC):150 VDC Absolute Maximum (Coldest Conditions)145 VDC Start-Up and Operating Maximum

·Power Conversion Efficiency: 98.1% at 60 ADC in a 48 VDC System (Typical)

·Network Cables: Proprietary Network System Using RJ-45 Modular Connectors with CAT5 Cable (8 Wires)

·Peak Efficiency: 68 VDC Input with 48 V Battery at 52.8 VDC (98.31%)

·NEC Recommended Solar Maximum Array STC Nameplate:12 VDC Systems: 750 W24 VDC Systems: 1500 W48 VDC Systems: 3000 W60 VDC Systems: 3750 W

·CEC Weighted Efficiency: 97.3% (at 48 VDC)

·Voltage Regulation Set Points: 13 to 80 VDC, User Adjustable with Password Protection

·Equalization Charging:Programmable Voltage Setpoint and DurationAutomatic Termination when Completed

·Battery Temperature Compensation:Automatic with Optional RTS Installed5.0 mV per °C per 2 V Battery Cell

·Voltage Step-Down Capability: Down Convert from Any Acceptable Array Voltage to Any Battery VoltageExample: 72 VDC Array to 24 VDC Battery, 60 VDC Array to 48 VDC Battery

·Programmable Auxiliary Control Output:12 VDC Output Signal, Programmable for Different Control ApplicationsMaximum of 0.2 ADC

·Status Display:3.1 in (8 cm) Backlit LCD Screen4 Lines with 80 Alphanumeric Characters Total

·Remote Display & Controller: Optional MATE3s, MATE, or MATE2

·Data Logging: Last 128 Days of Operation, Including:Amp-Hours, Watt-Hours, Time in Float, Peak Watts, AmpsSolar Array Voltage, Maximum Battery Voltage, Minimum Battery VoltageAbsorb Time, Accumulated Amp-Hours, and kWh of Production

·Options: Remote Temperature Sensor (RTS), HUB4, HUB10.3, MATE, MATE2, MATE3s

·Dimensions: 13.75 in x 5.75 in x 4.5 in

·Standards: ETL Listed to UL1741, CSA C22.2 No. 107.1

·Weight: 11.65 lb/kg

·Warranty: Standard 5 Years, Extended 10 Years
