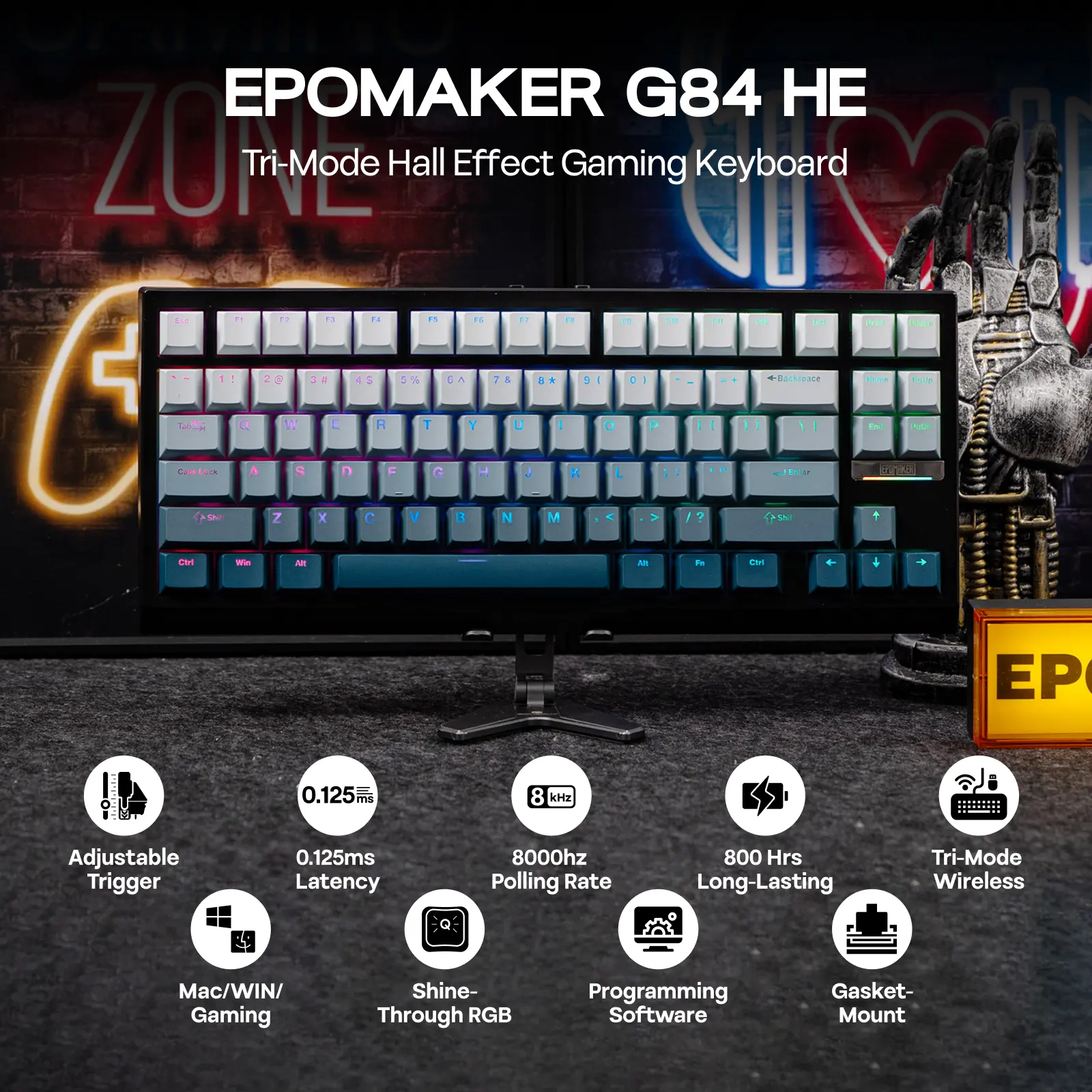

Fast Trigger & Zero Dead Zone:

Achieve unmatched fluidity and precision with the G84 HE Hall Effect Keyboard. Get every flick of keystroke delivered instantly with actuation as sensitive as per 0.01mm, with trigger and release travel adjustable from 0.1 to 3.3mm with zero dead zone.

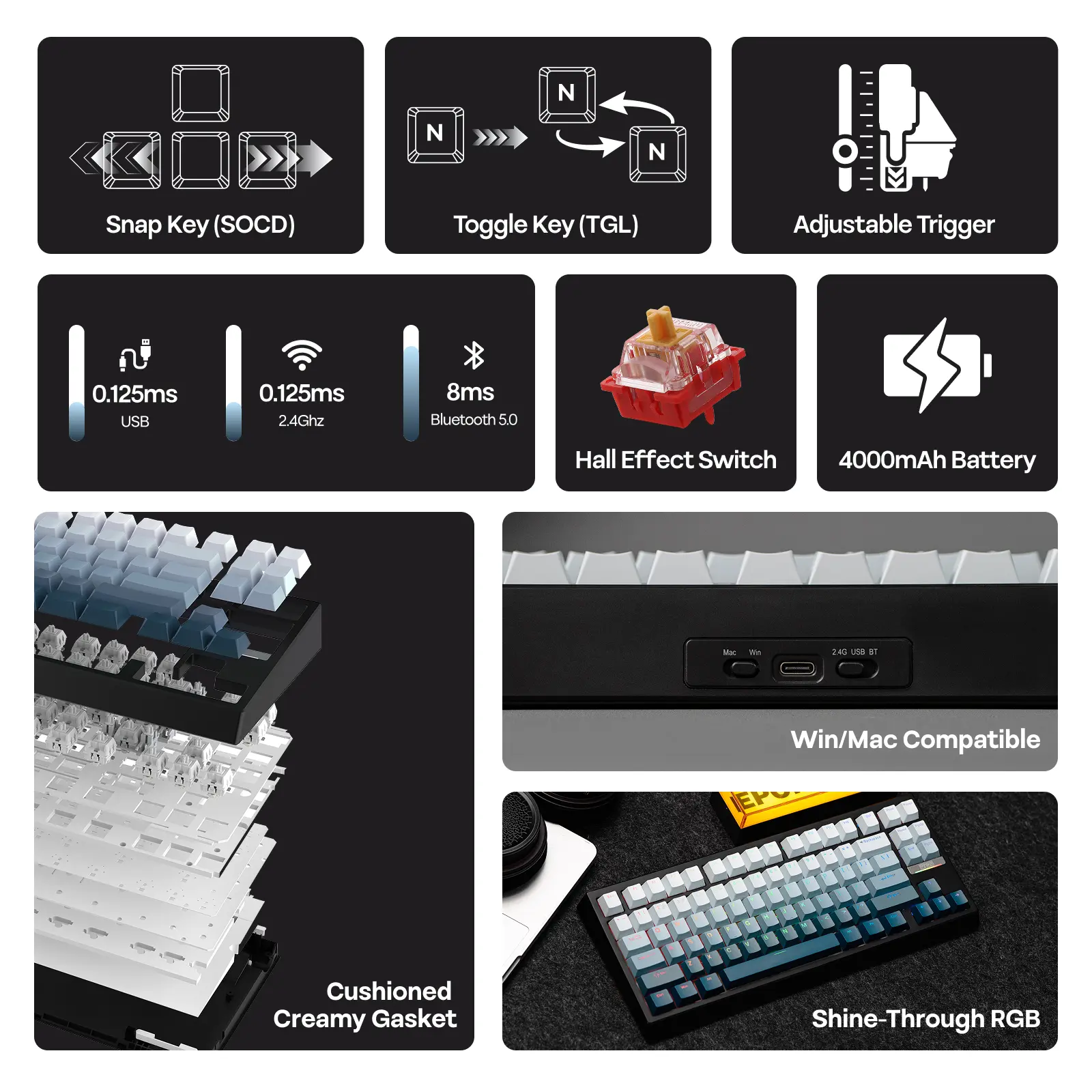

Snap Key (SOCD) & DKS:

Tired of neutral block or accidental stops in games with conflicting inputs? The SOCD logic of our G84 HE gaming keyboard intelligently prioritizes the last input, for hyper-precise movement like instant air dashes or counter-strafe. While DKS (Dynamic Key Rollover) gives you unadulterated control, where one keypress can execute up to 4 commands based on how far you press it.



8K Hz Polling & 256K Scan Rate:

Equipped with lubed magnetic switches and E-sport level circuit design, the G84 HE gaming keyboard boasts a 8000hz polling and a 256K scan rate, giving you the edge needed for fast paced gaming. The elimination of physical contact in the trigger of hall effect switches, slashing the latency of G84 HE to a mere 0.125ms, significantly boosts speed and precision in control.



0.1 to 3.3mm Adjustable Actuation:

Whether you are competitive for FPS, MOBA and Rhythm games, or want to level up on typing speed, the programmable actuation and end travel of G84 HE magnetic keyboard will be the helper you need. With the EPOMAKER software, functional on WIN and Mac system, trigger and release of input can be as precise as 0.01mm of finger movement.

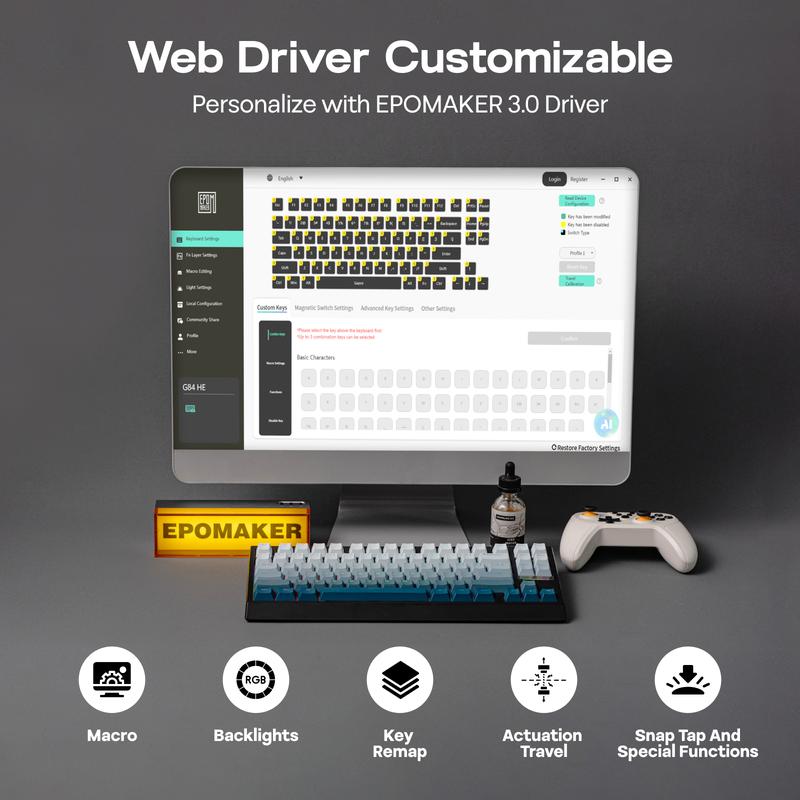

Custom Driver (Mac/WIN):

Customize key functions, actuation travel, macro or backlight across devices and OS systems with the EPOMAKER software. Record macros to automate repetitive actions, or try out the advanced functions such as SOCD, DKS, MT and RT. Design personalized backlight effect, tailor keyboard sensitivity or remap key layout, all is available with real-time visual feedback.

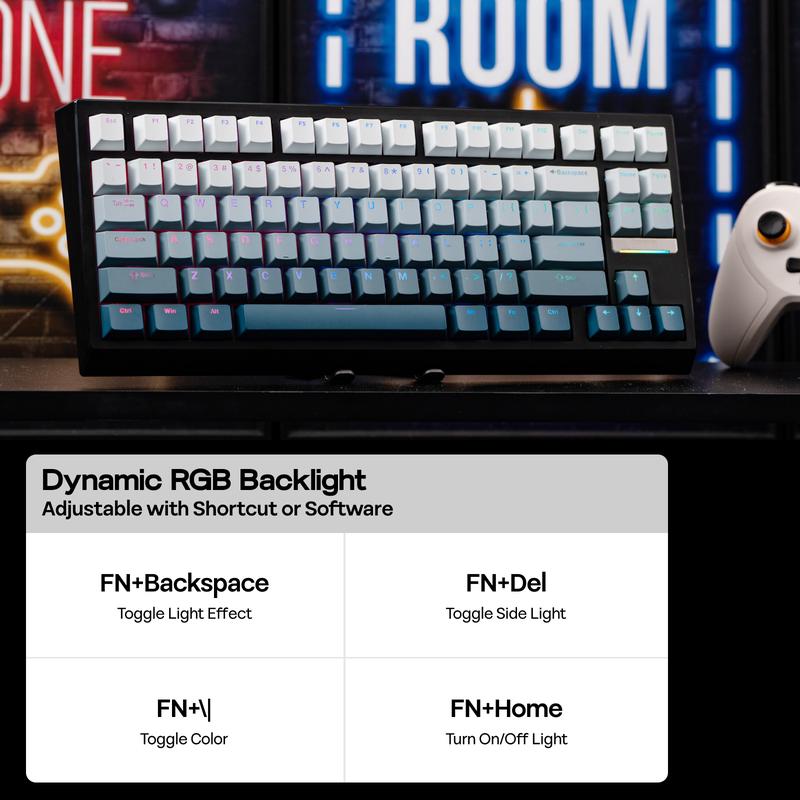

Shine-Through RGB Backlit: Bath in the dynamic RGB backlight of G84 HE that response instantly to all your gaming actions, while your fingers glide effortlessly over durable PBT keycaps with shine-through legends that remain crisp and clear for years. With double-shot technique, these greasy-resistant keycaps adopt front-printed transparent letters to be bright and clear without a lamp or other light source. No more fumbling on keyboard at dark hours, all keys will be clear and easy to read in premium condition. Unlock a world of customization and visual flair with the true backlit G84 keyboard, for a boost in productivity and gameplay style.



Tri-Mode Wireless for Mac/WIN: Experience ultimate flexibility with our G84 HE Wireless Gaming keyboard with 3 connection modes and a unique 80% layout. Modern sleek and versatile compatibility, G84 HE takes it all into consideration in designing by featuring an intuitive tri-mode control on top and a built-in hidden storage space for 2.4Ghz receiver under its kickstand, which is 2-stage adjustable to offer comfortable typing angle in varied scenarios. Whether you prefer PC, Android tablet, Mac laptop or phone, enjoy the stable connection G84 offers free from the clutter of wires



Creamy Gasket Keyboard with Sound-Dampening: Take delight in the rich, creamy sound our G84 HE Gasket-Mount Keyboard delivers, for enhanced acoustic and typing experience significantly differ from traditional tray-mount keyboard. The unique Gasket-Mount introduces layers of buffer for a soft landing every time a key is pressed, contributing to a mellow and switch-focused typing sound quieter than non-padded ones. With 5 layers of Poron, IXPE, Silicone and Sound Enhancement Pad as further dampening materials, the acoustic is further enhanced to be creamy and buttery smooth, giving you the immersive tune needed for immersive gaming and productive work

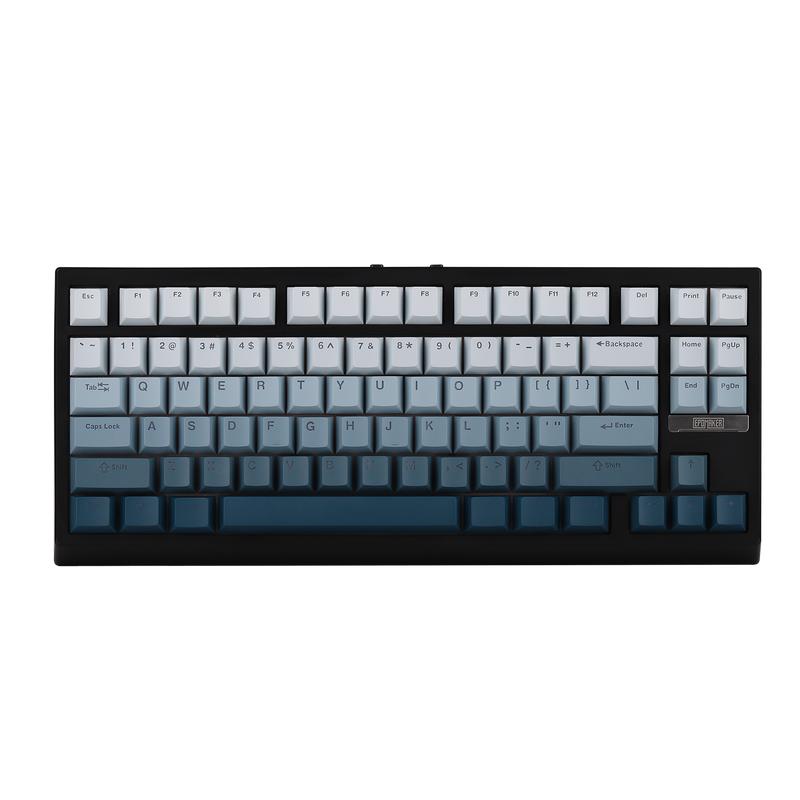

Specifications:

Brand: EPOMAKER

Model: G84 HE

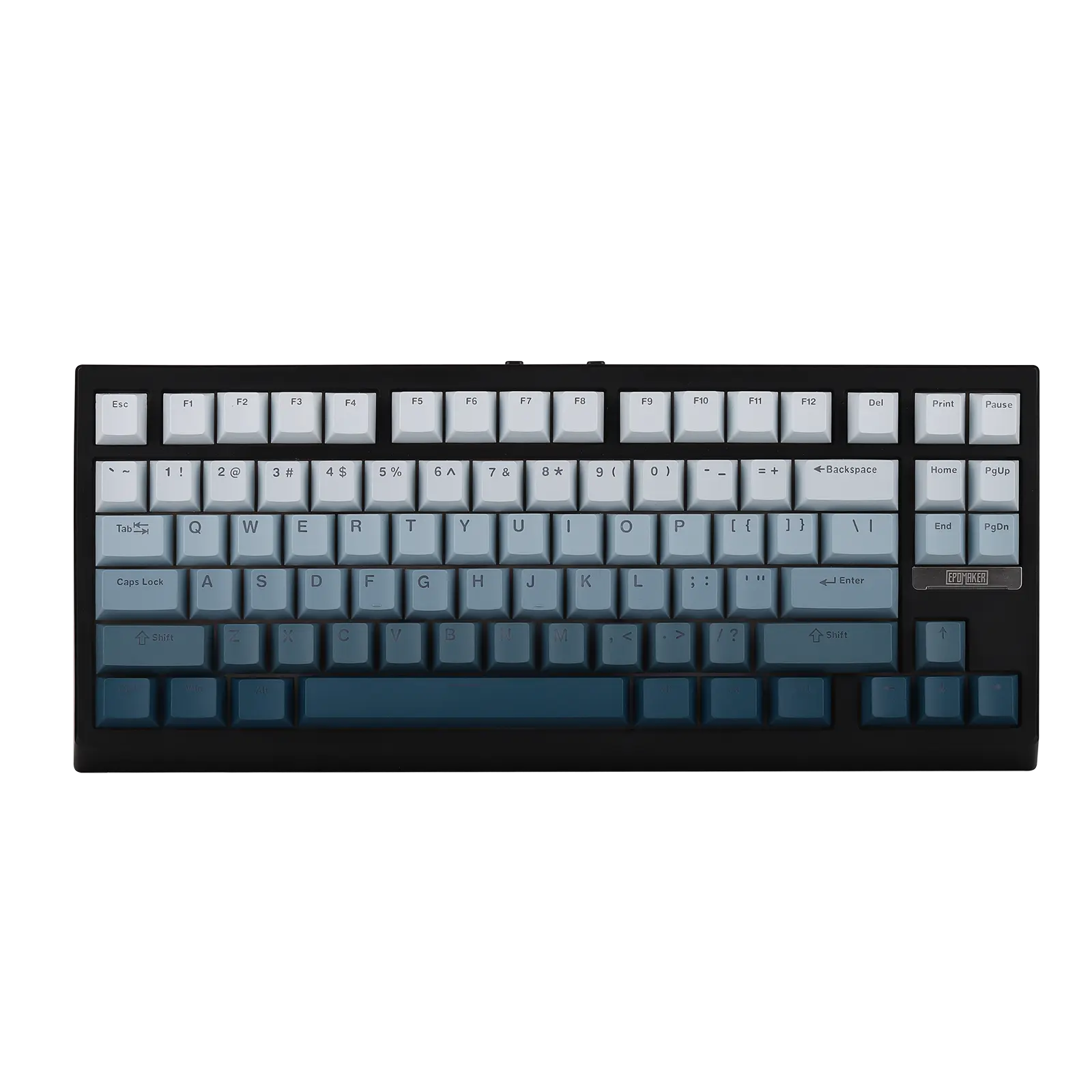

Layout: 75% Layout, QWERTY ANSI US Layout

Number of Keys: 84 Keys

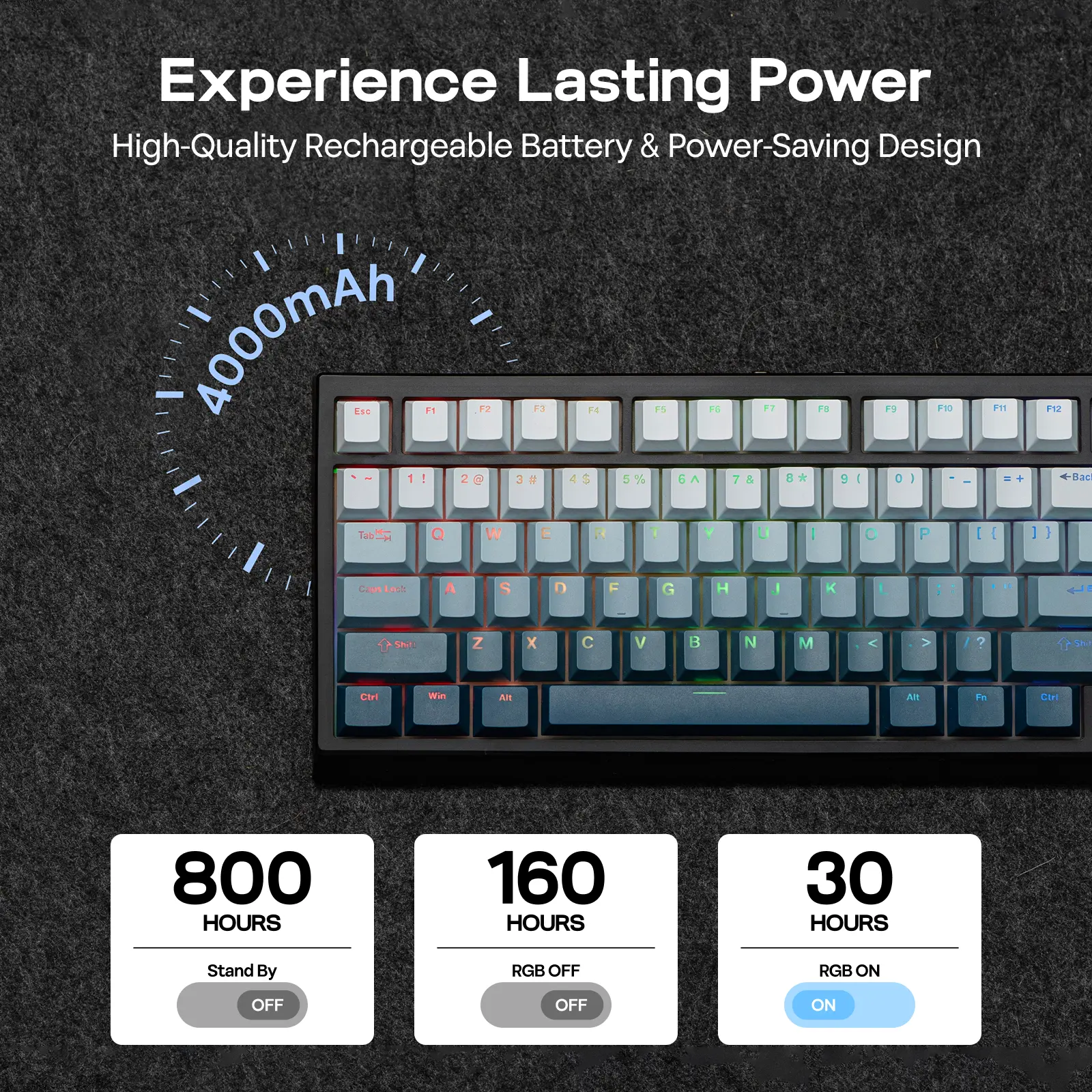

Battery: 8000mAh (2*4000mAh)

Battery Life: 30 Hours of Continued Use with Backlight On, and 160 Hours of Continued Use with Backlight Off. It lasts 800 hours in stand-by mode.

Connectivity: 2.4Ghz Wireless/Bluetooth/USB A-C

Compatibility: Mac/WIN/Android. (Physical Switch for Mac/WIN swap)

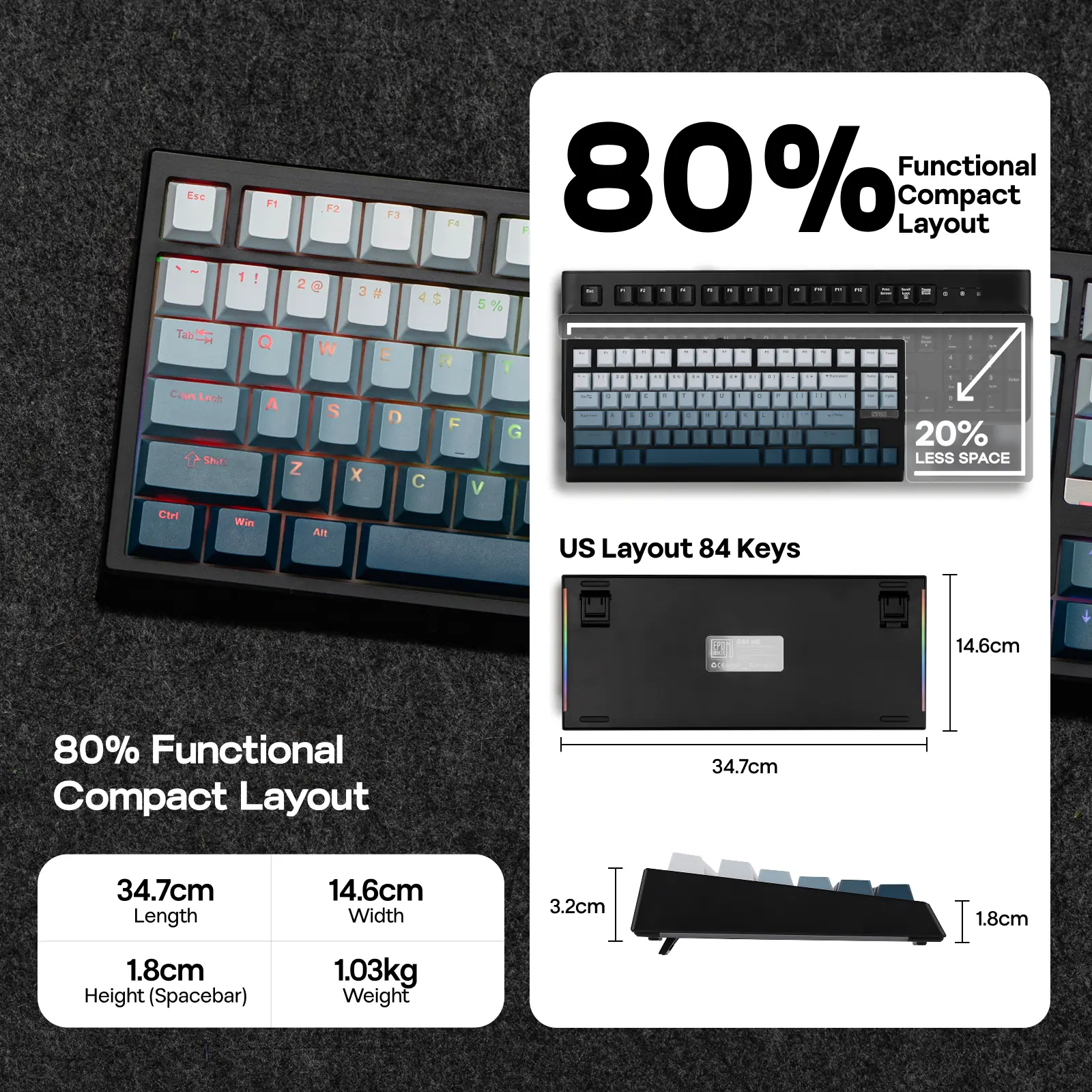

Keyboard Dimensions: 34.7cm in Length, 14.6cm in Width, and 4.2cm in Height

Keyboard Weight: 1kg

Front Height: 1.85cm

Typing Angle: 6 degrees, 8 degrees and 10.5 degrees

Case Material: ABS Plastic

Plate Material: PC Plate

Flex-Cut: Flex-Cut

Stabilizers: Plate-Mounted Stabilizer

Mounting Structure: Gasket-Mount

Sound Dampening: PORON Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, PORON Switch Socket Pad, and Bottom Silicone

Keycaps Profile: Cherry Profile

Keycaps Material: PBT Plastic

Keycaps Manufacturing Technique: Double-Shot

Switch: North-Facing Magnetic Switch

Hot swappable: Yes, with North-Facing Magnetic Switches

RGB: Yes, with per-key north-facing RGB LEDs

Polling Rate: 8,000hz in 2.4G and Cable Mode, and 125hz in Bluetooth Mode.

Latency: 0.125ms in Wired and 2.4Ghz Wireless Mode, and 8ms in Bluetooth Mode.

Anti-Ghosting: Yes, G84 HE Magnetic Keyboard support NKRO and software calibration for anti-ghosting typing.

Programming Software: Yes, G84 HE Hall Effect Keyboard supports EPOMAKER software for customization on WIN and Mac devices.

Hall Effect Dead Zone: Zero Dead Zone

Hall Effect Snap Key (SOCD): Yes

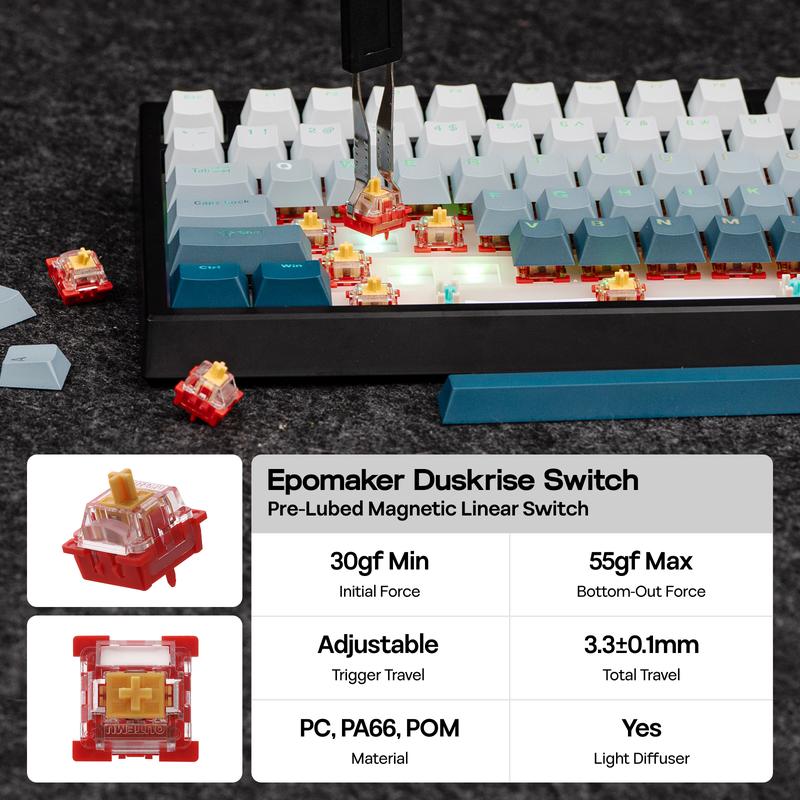

Switch Specs



Switch Type: Hall Effect Magnetic Switch

Initial Force: 30gf Min

Bottom-out Force: 55gf Max

Initial Magnetic Flux (if PCB=1.6mm): 95±15GS

Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS

Trigger Travel: Adjustable per 0.01mm, from 0.1mm to 3.3mm

Total Travel: 3.3±0.1mm

Top Case: PC, Transparent

Bottom Case: PA66, Red

Stem/Kone: POM, Yellow

Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser
