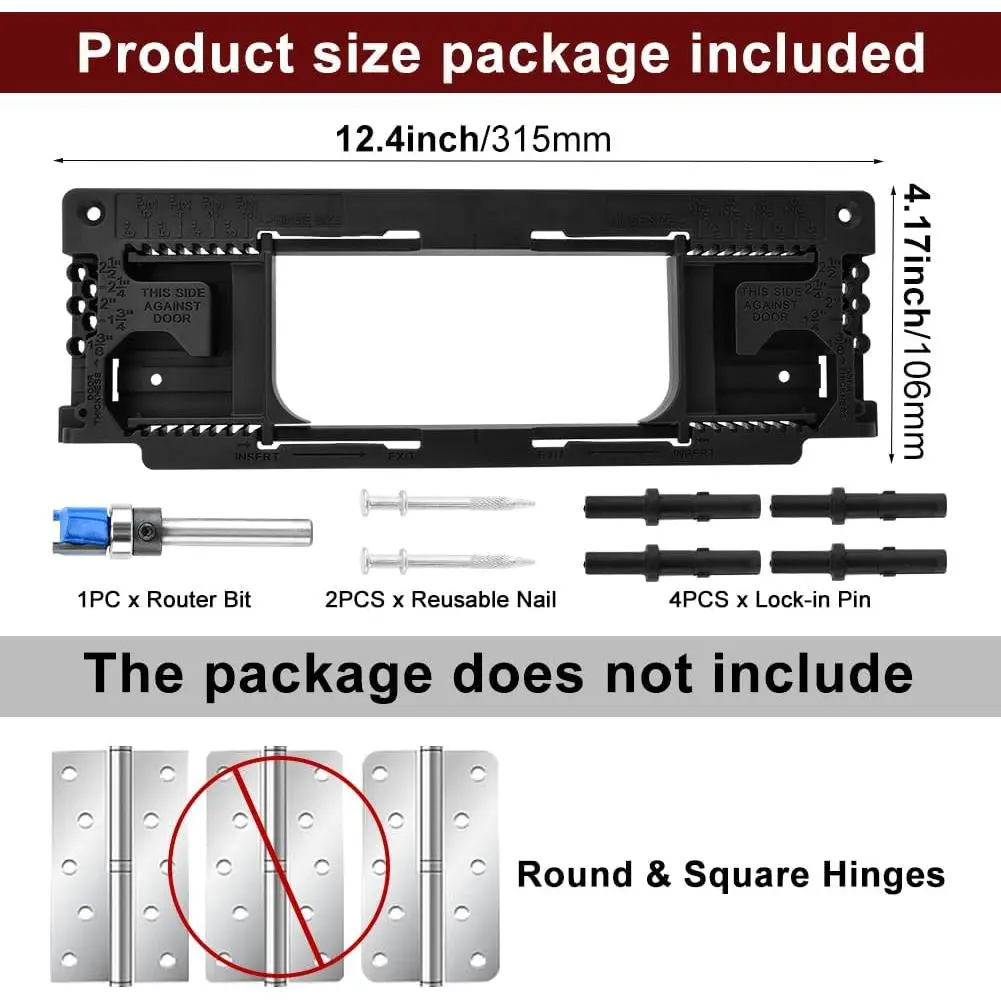

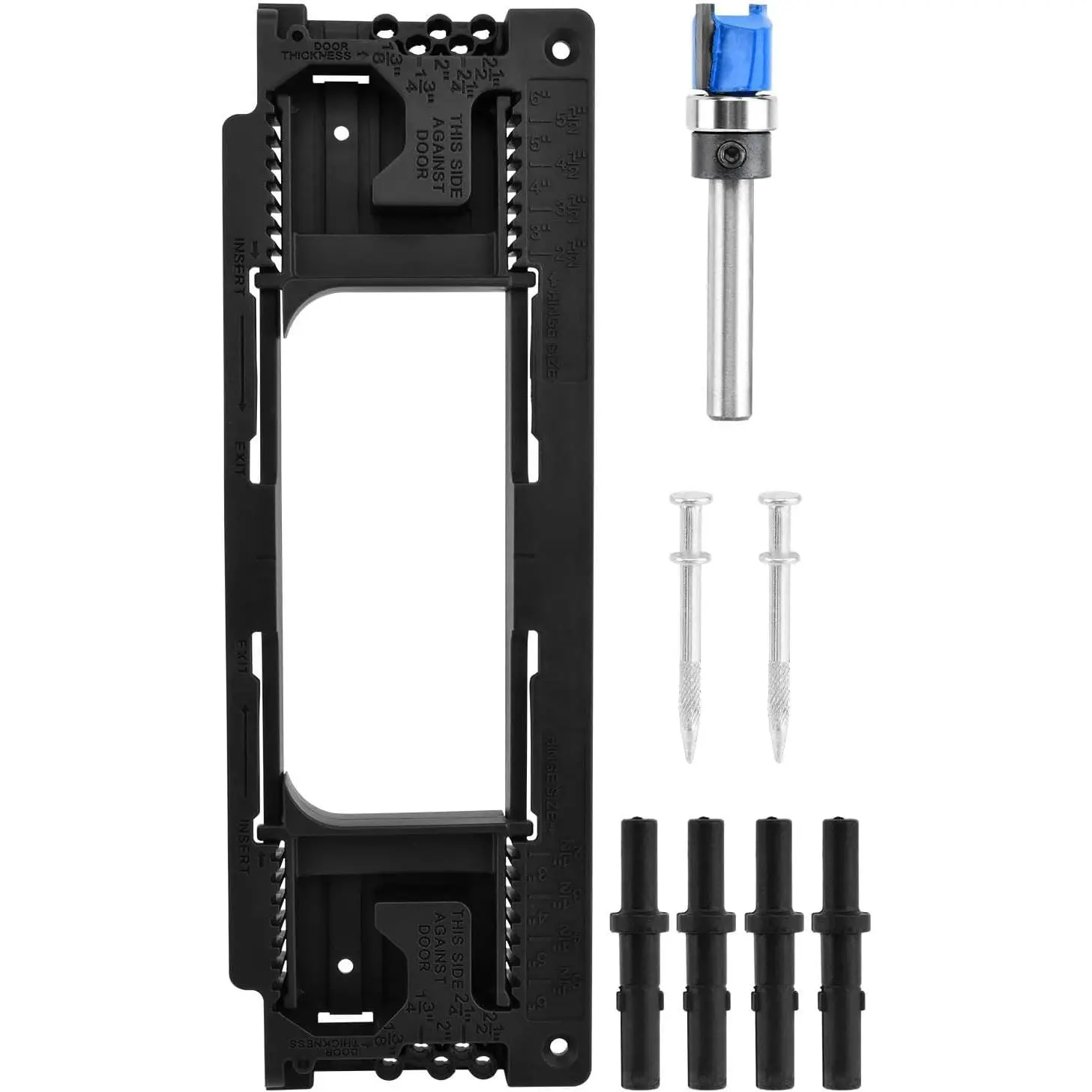

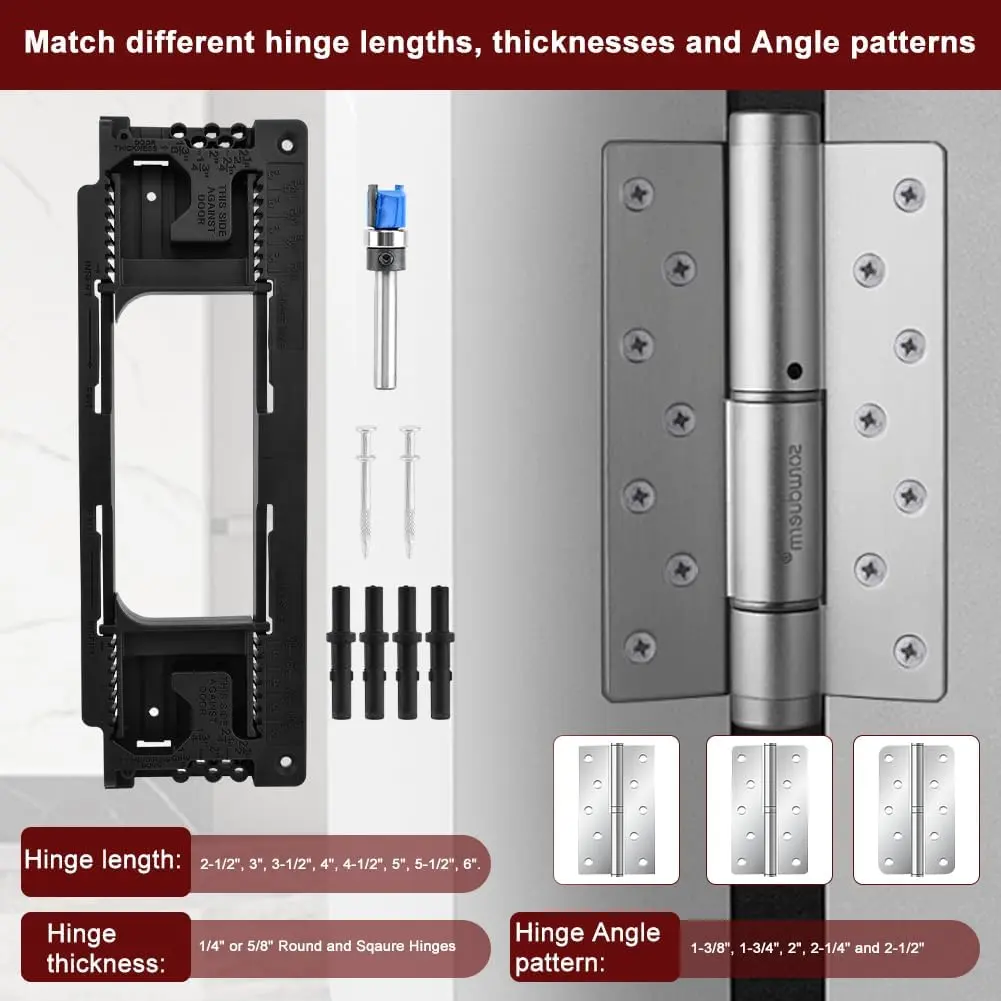

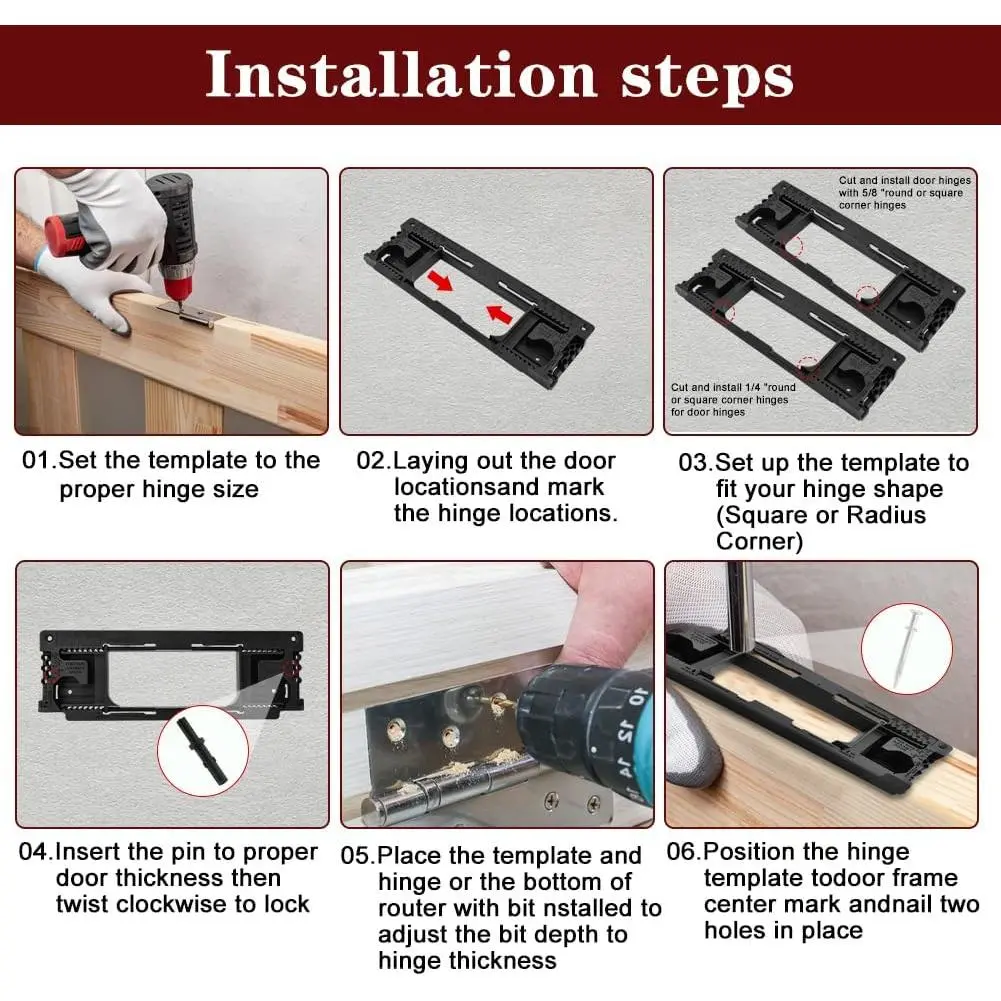

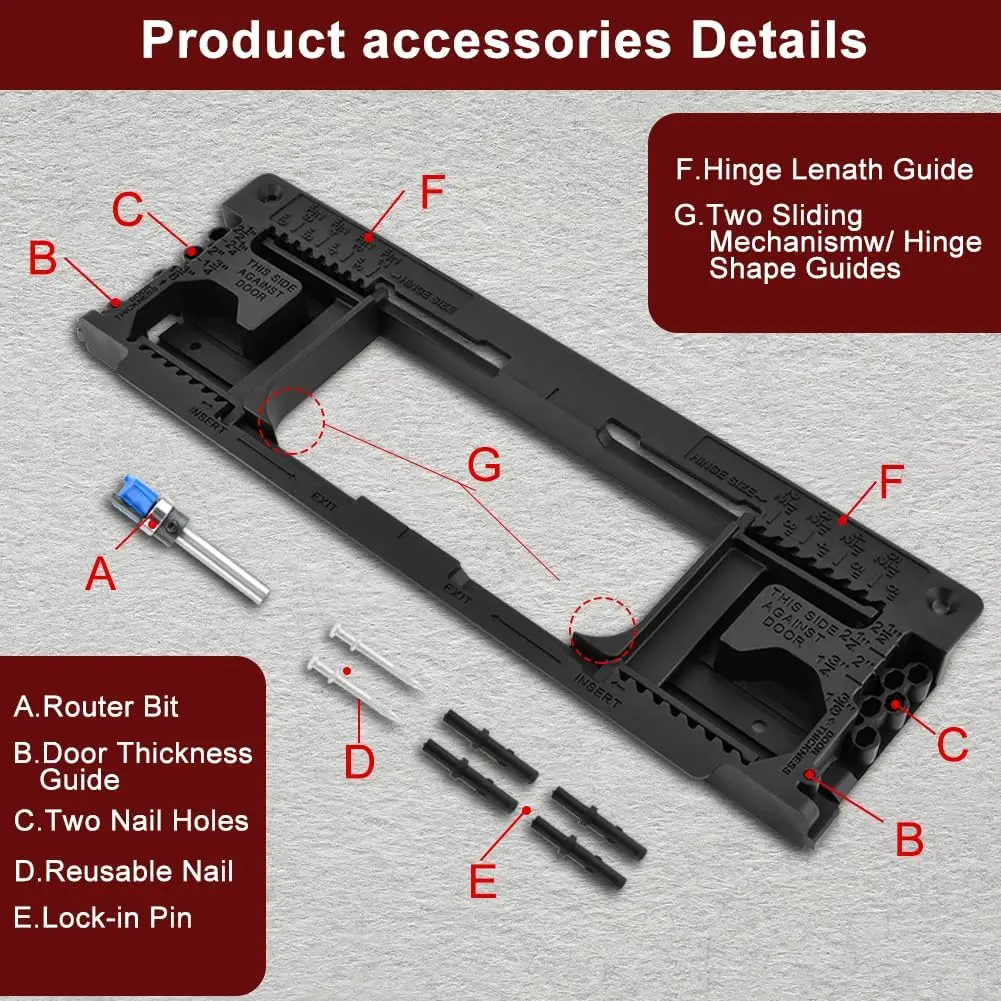

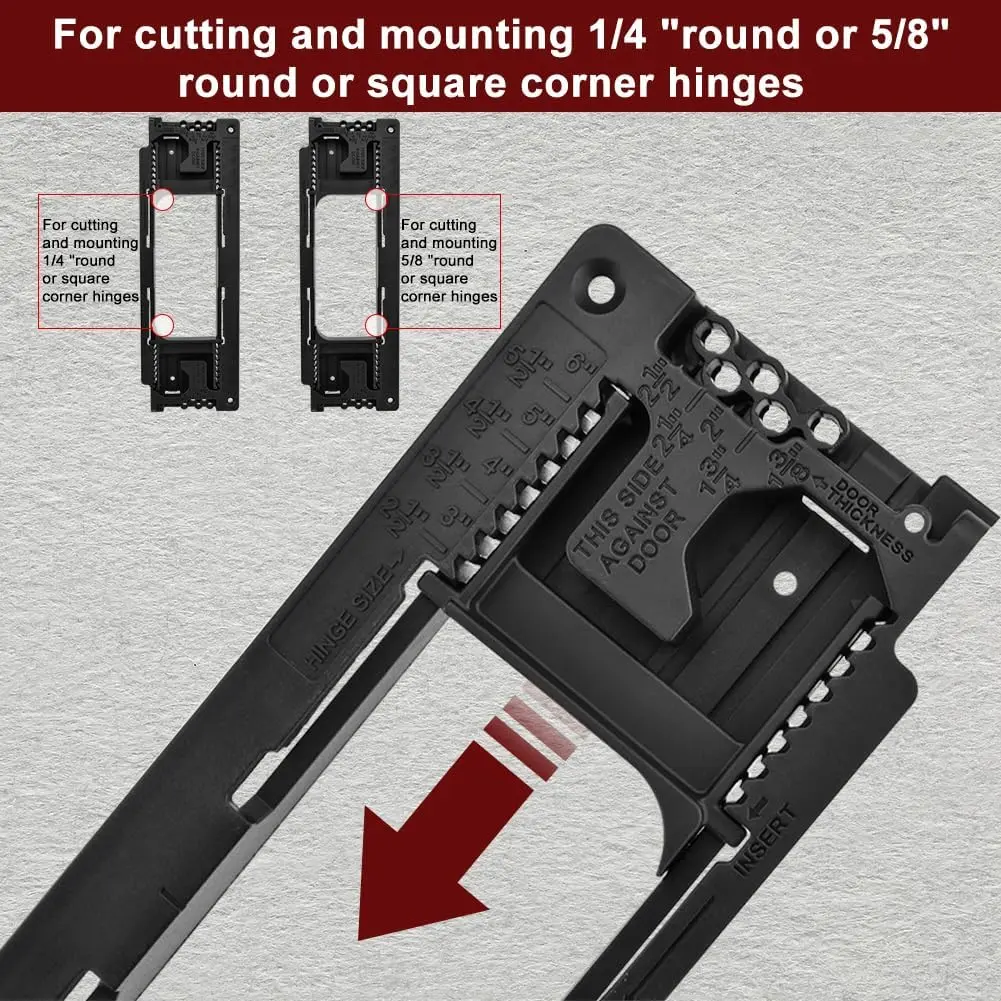

[MAIN FUNCTION]For cutting and installing door hinges of 1/4" round or 5/8" round or square corner hinges.allows you to cut professional looking mortises in the doors and door frame of hinge from 2-1/2" to 6" length and door from 1-3/8" to 2-1/2" thickness.[ADJUSTMENT TOOL]The adjustable features ensure a precise fit for different hinge lengths, thicknesses, and corner styles, providing a comprehensive solution for your routing needs.[PACKAGE INCLUDED]You will get 1pc x router bit, 2pcs x reusable nail, 4pcs x lock-in pin, 1pc x manual, 1pc x door hinge mortiser.With this template, you can ensure a smooth and secure operation.[EASY TO INSTALL]Laying out the door locations and mark the hinge locations.Set the template to the proper hinge size.Set up the template to fit your hinge shape (square or radius corner).Insert the pin to proper door thickness then twisting clockwise to lock.Place the template and hinge on the bottom of router with bit installed to adjust the bit depth to hinge thickness.Position the hinge template to door frame, center mark and nail two holes in place.[CUT HINGE SHAPE]Route hinge area on the door frame until all material is removed.Use a claw hammer to pull nails out and remove template from frame.Align template with marks on door and nail at two holes to door.Route hinge area on the door then remove the template from door.

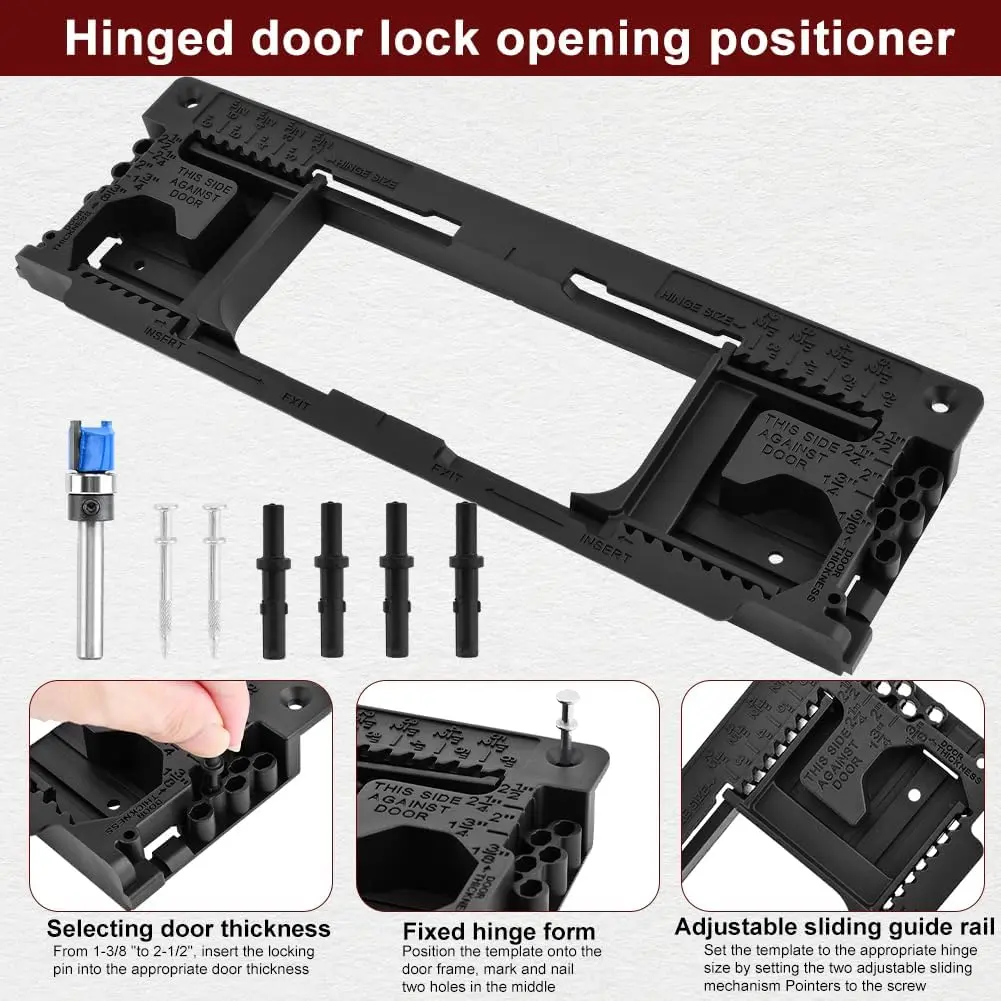

Features: [ADJUSTMENT TOOL]The adjustable features ensure a precise fit for different hinge lengths, thicknesses, and corner styles, providing a comprehensive solution for your routing needs. [MAIN FUNCTION]For cutting and installing door hinges of 1/4" round or 5/8" round or square corner hinges.allows you to cut professional looking mortises in the doors and door frame of hinge from 2-1/2" to 6" length and door from 1-3/8" to 2-1/2" thickness. [EASY TO INSTALL]Laying out the door locations and mark the hinge locations.Set the template to the proper hinge size.Set up the template to fit your hinge shape (square or radius corner).Insert the pin to proper door thickness then twisting clockwise to lock.Place the template and hinge on the bottom of router with bit installed to adjust the bit depth to hinge thickness.Position the hinge template to door frame, center mark and nail two holes in place. [CUT HINGE SHAPE]Route hinge area on the door frame until all material is removed.Use a claw hammer to pull nails out and remove template from frame.Align template with marks on door and nail at two holes to door.Route hinge area on the door then remove the template from door. [PACKAGE INCLUDED]You will get 1pc x router bit, 2pcs x reusable nail, 4pcs x lock-in pin, 1pc x manual, 1pc x door hinge mortiser.With this template, you can ensure a smooth and secure operation. Specifications: Type: Door Hinge Jig Material: ABS Color: Black Size(L*W): About 315x106mm/12.4x4.17inch Package Included: 1pc x Router Bit 2pcs x Reusable Nail 4pcs x Lock-in Pin 1pc x Manual 1pc x Door Hinge Mortiser Note: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures. 2. Please allow 0.5-2 cm differences due to manual measurement.
