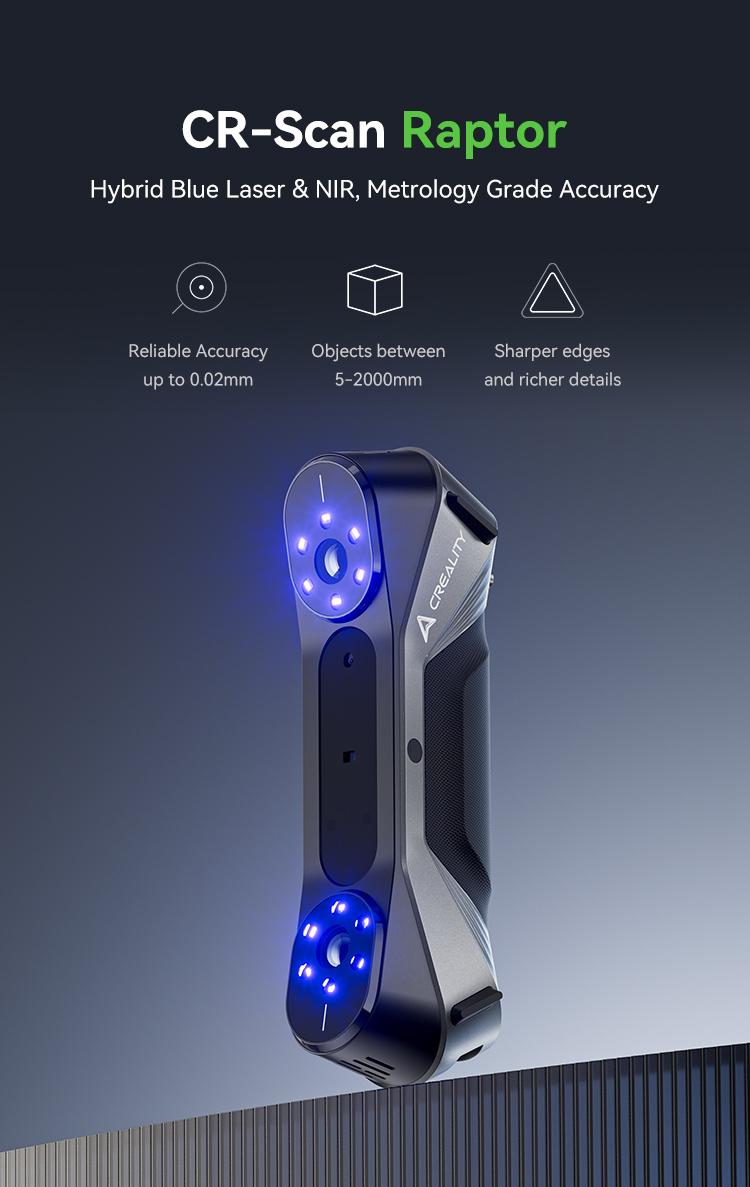

The First Multiple-line Blue Laser Consumer 3D Scanner.
·7 Blue Parallel Laser Lines

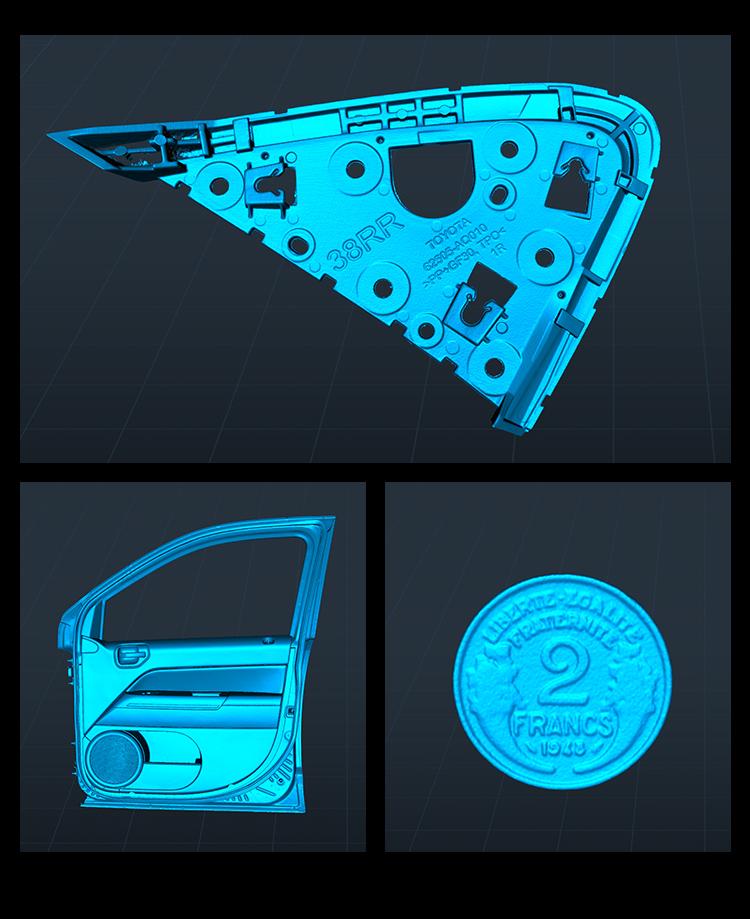

·Metrology Grade Accuracy, up to 0.02mm

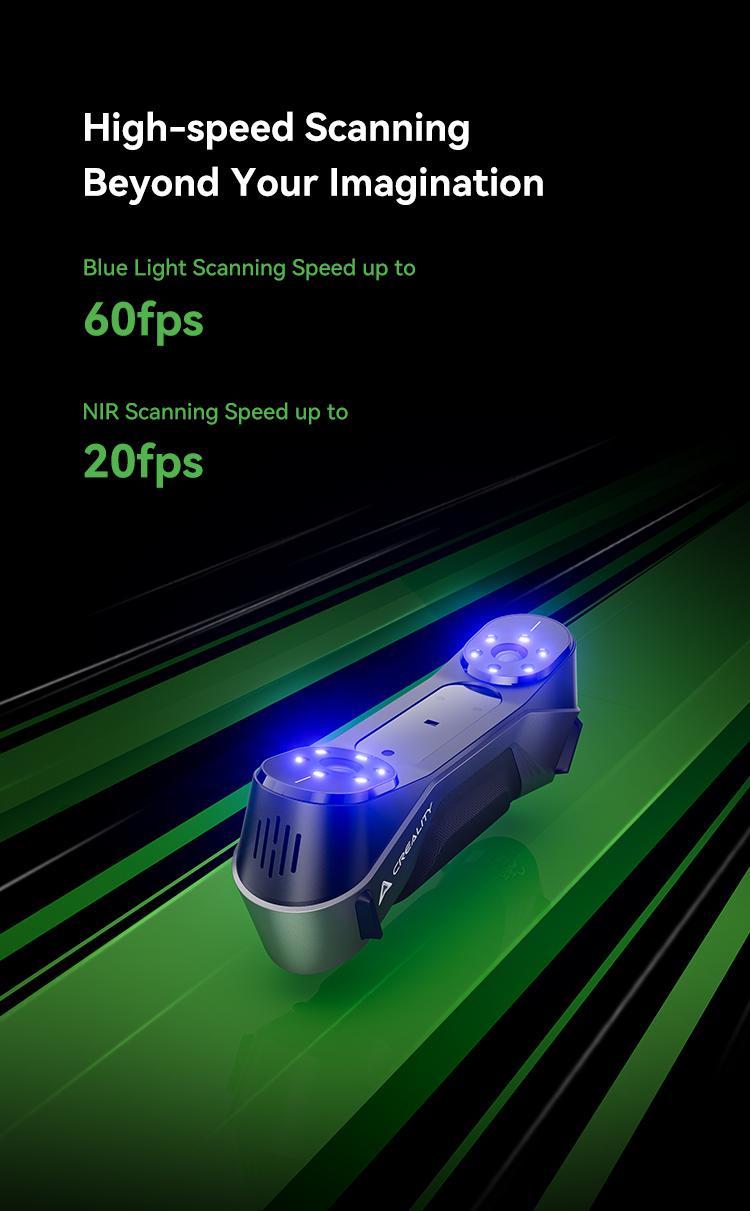

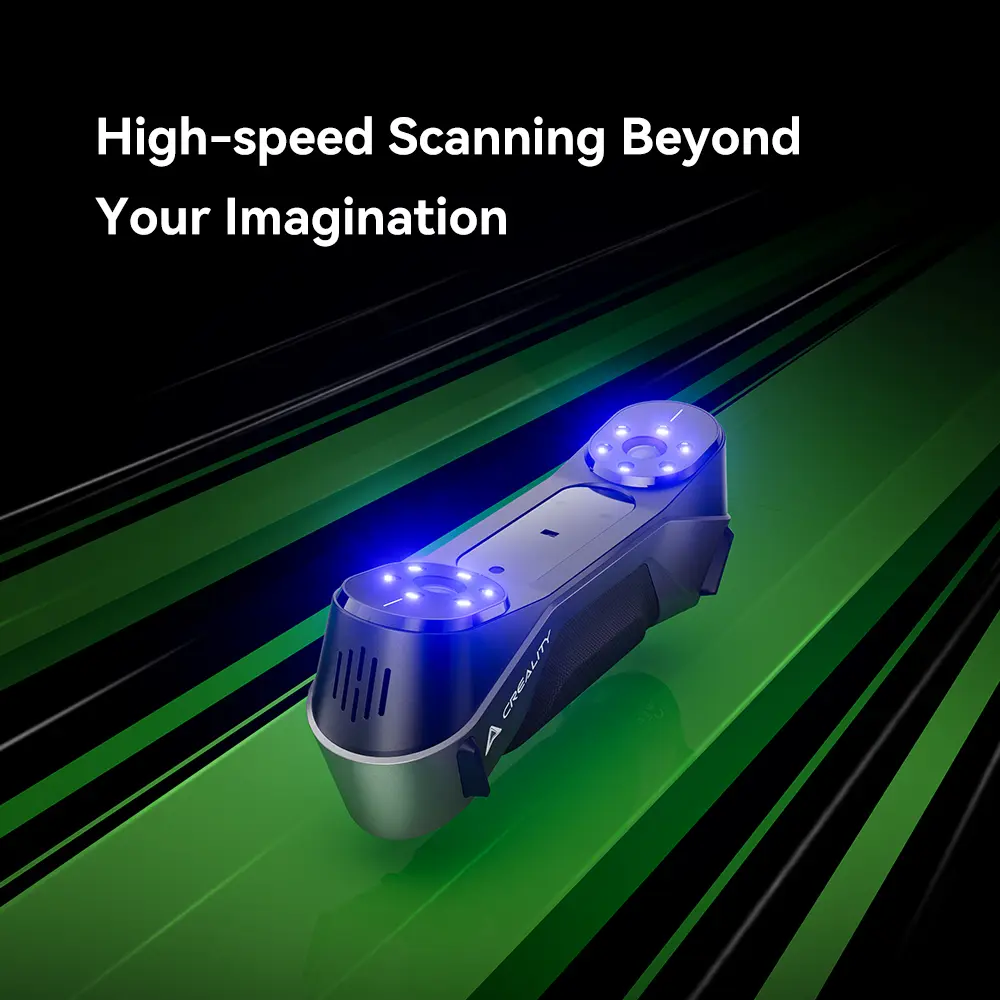

·Scanning Speed up to 60fps

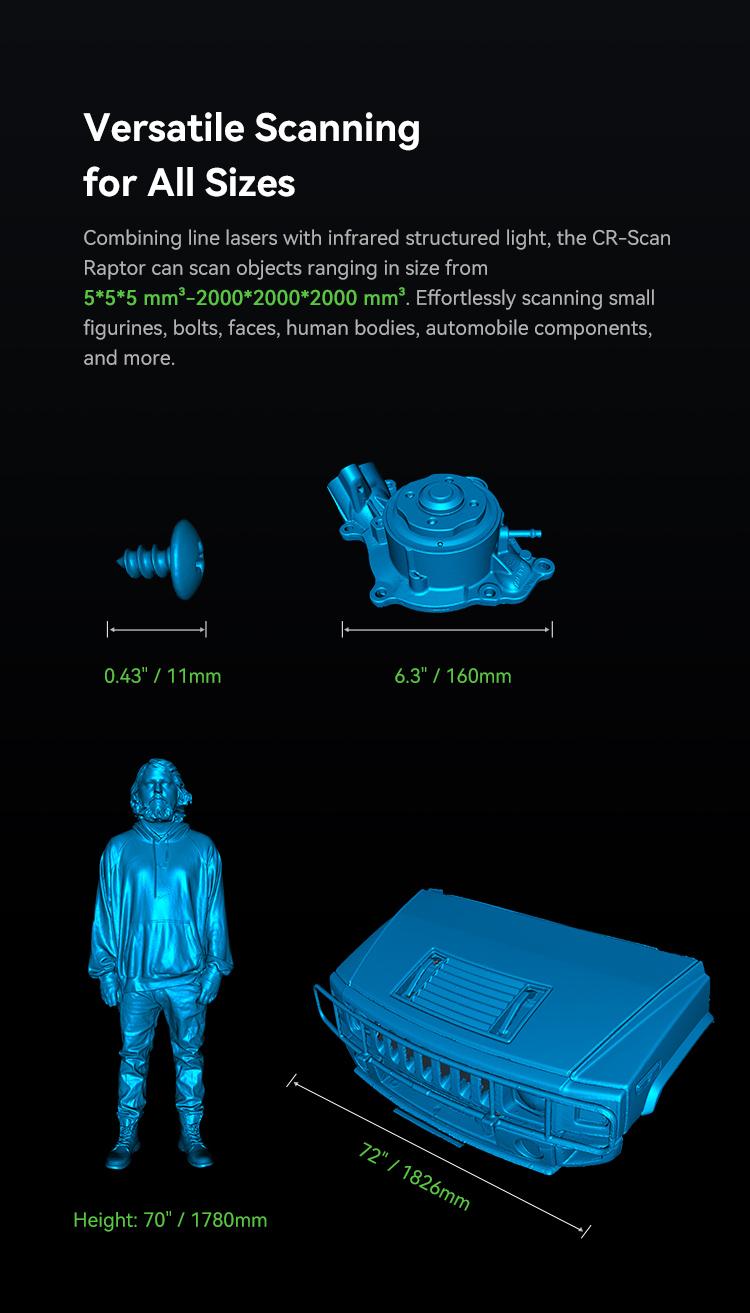

·Objects between 5-2000mm

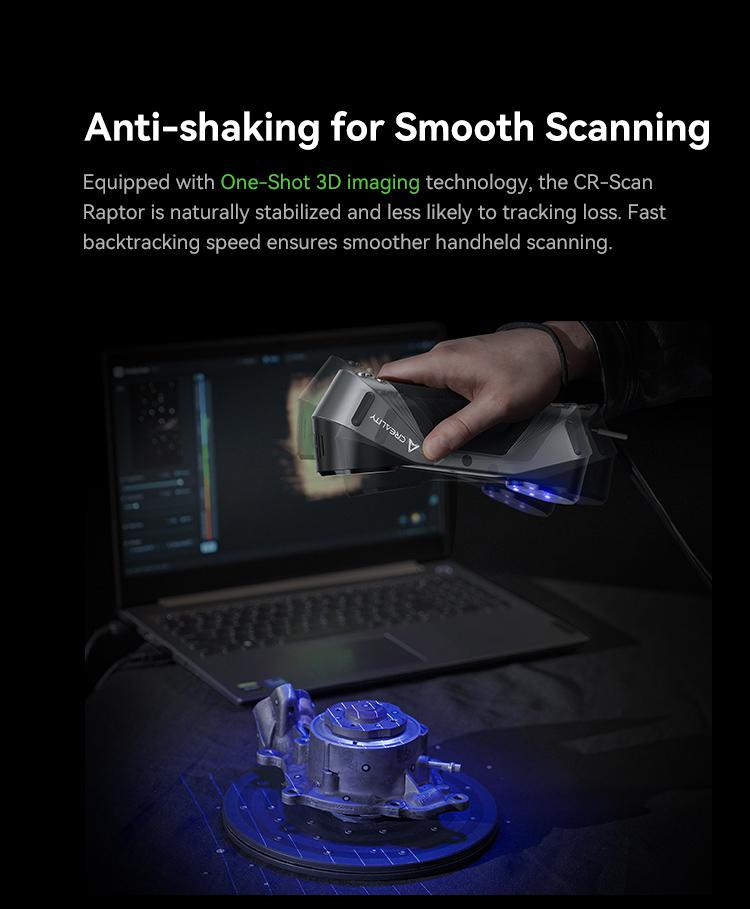

·Anti-shaking for Smooth Scanning

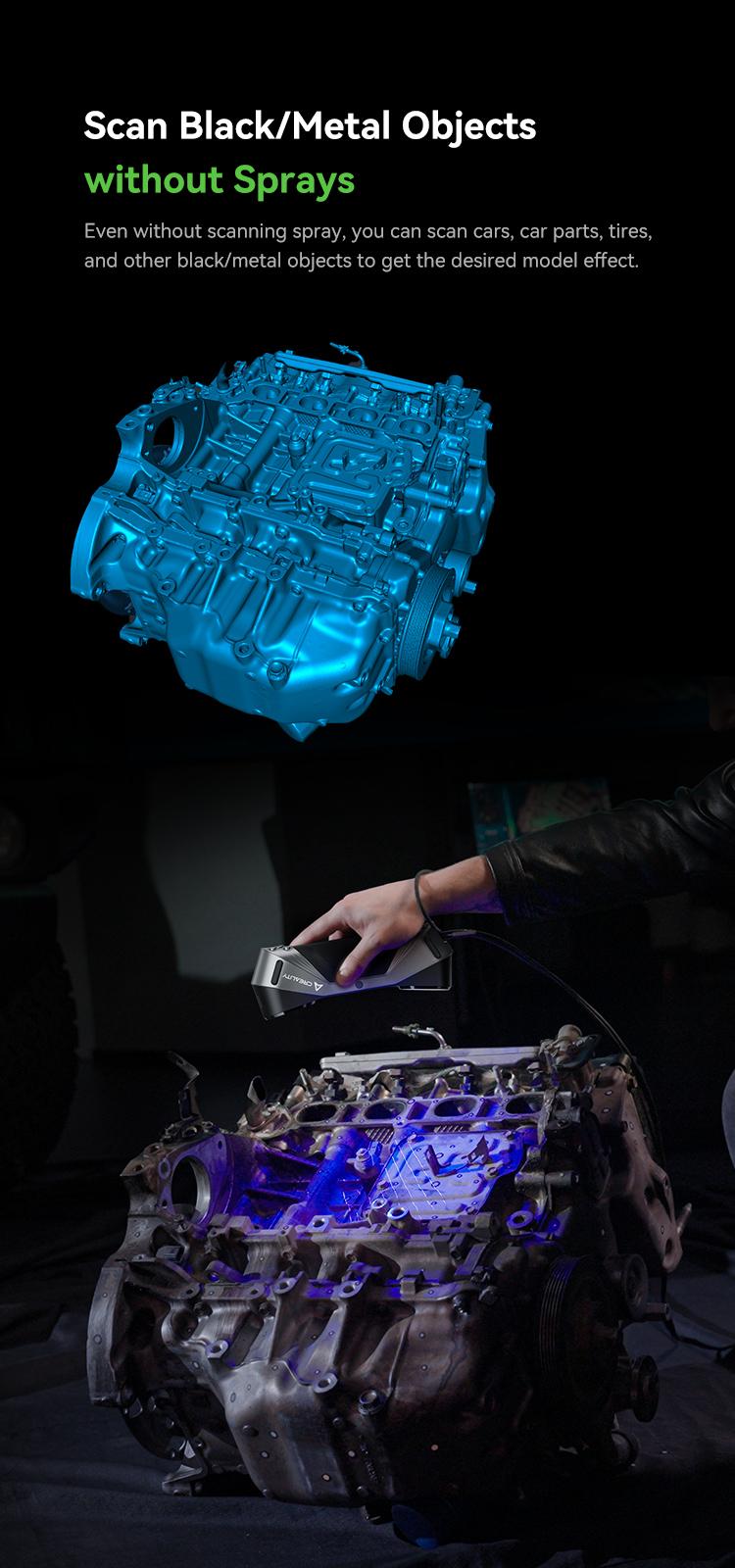

·Scan Black/Metal Objects Without Sprays

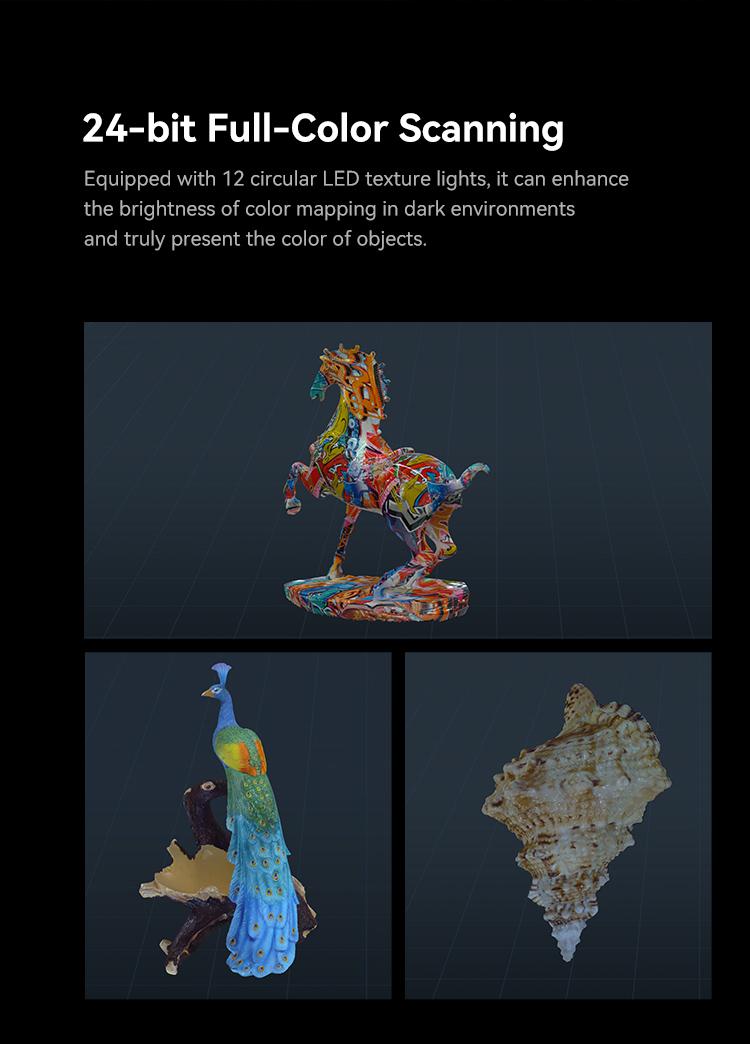

·24-Bit Full-Color Scanning

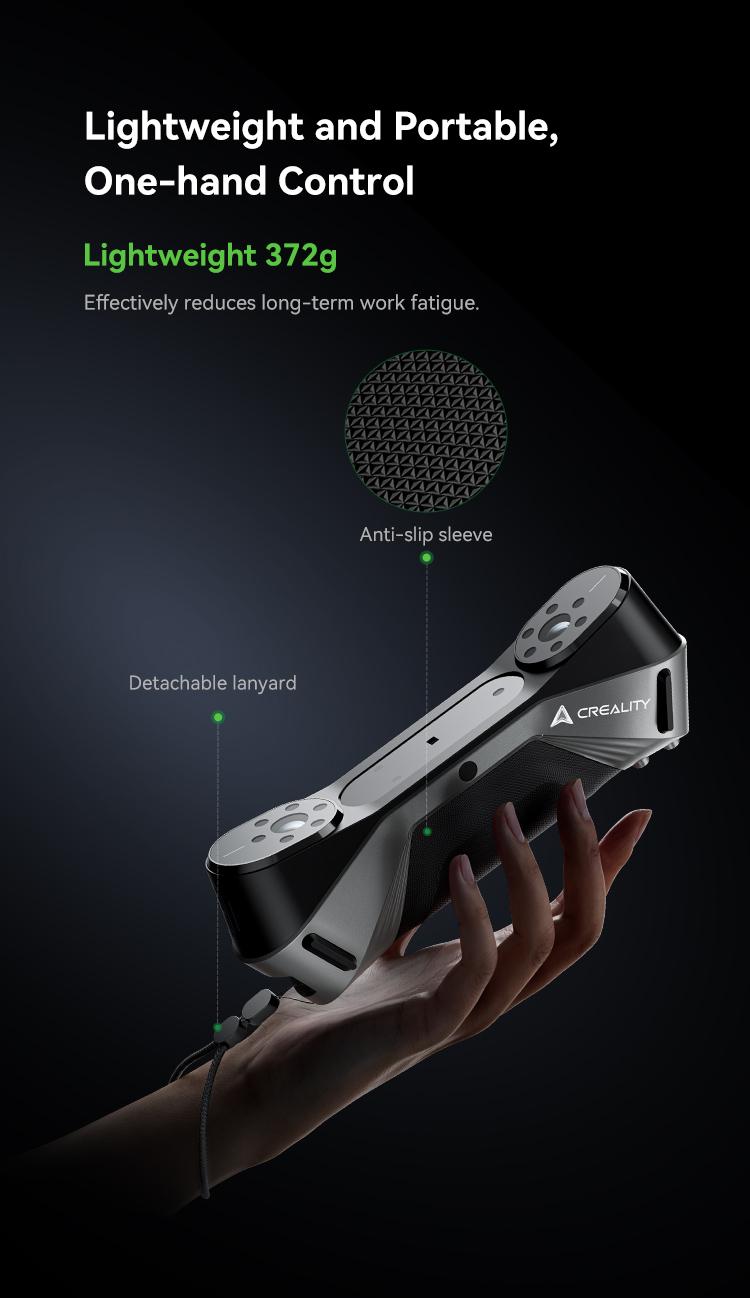

·Light and Compact (215mm x 50mm x 74mm), only weight 372g

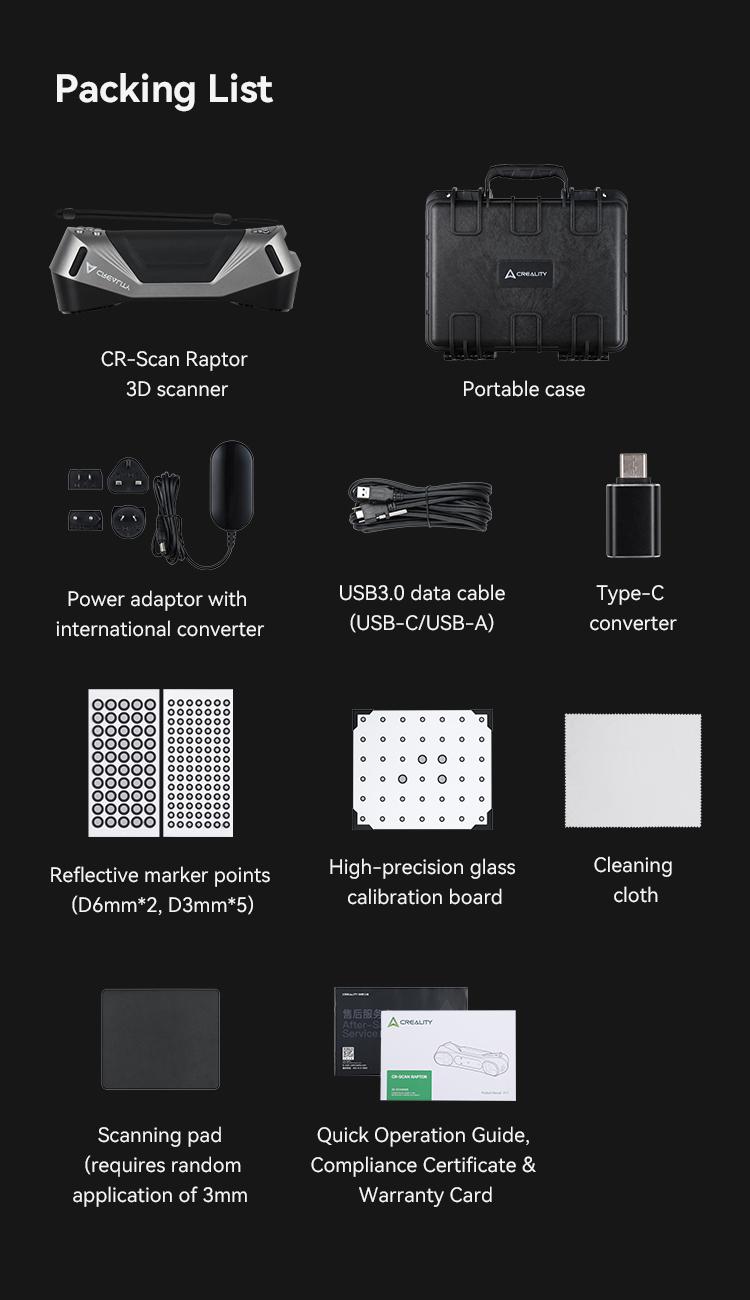

What's in box?

Product Information

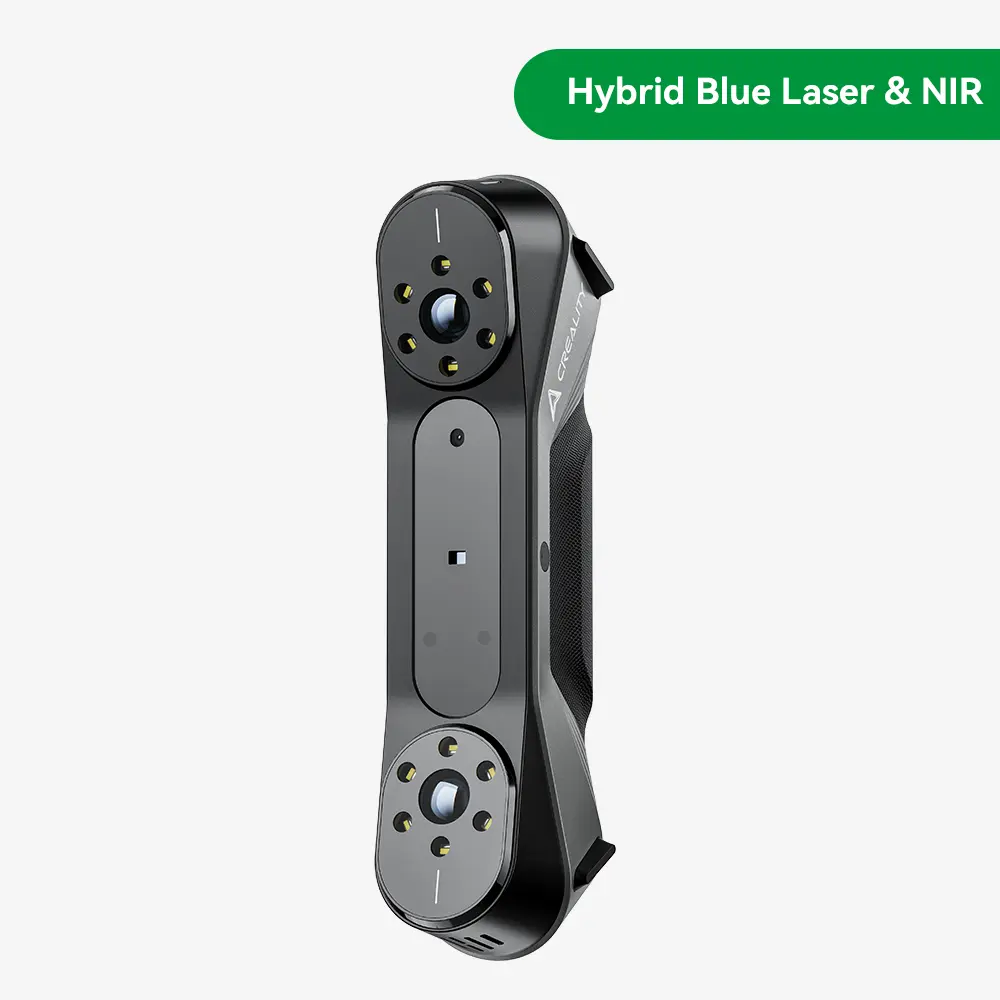

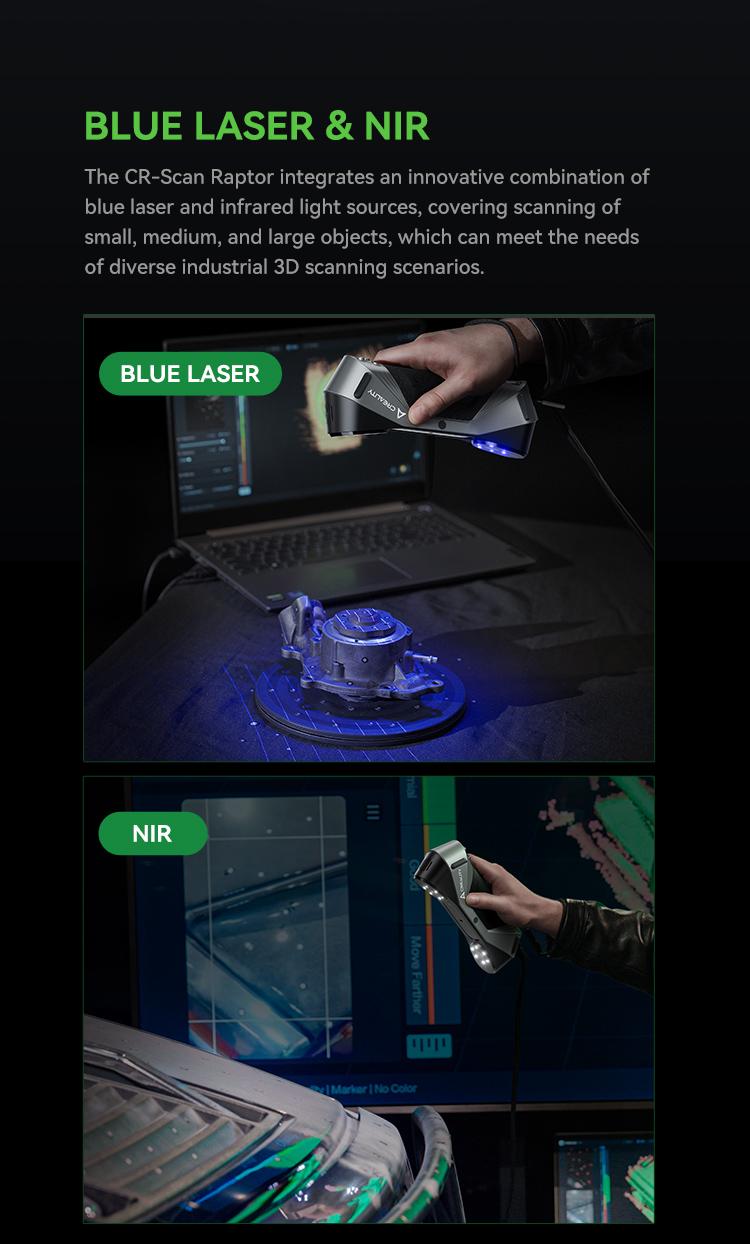

Scanning Mode: Blue Light(Blue 7-line laser) / NIR(infrared binocular structured light)
·Blue Light(Blue 7-line laser) Mode
·Accuracy: Up to 0.02mm @ 100mm [1]
·3D Resolution: 0.02-2mm
·Scanning Speed: Up to 60fps
·Min. scanvolume: 5mm x 5mm x 5mm
·Single Capture Range: 270mmx170mm@300mm
·Working distance: 150mm-400mm
·Color Mapping: Yes
·Alignment mode: Marker

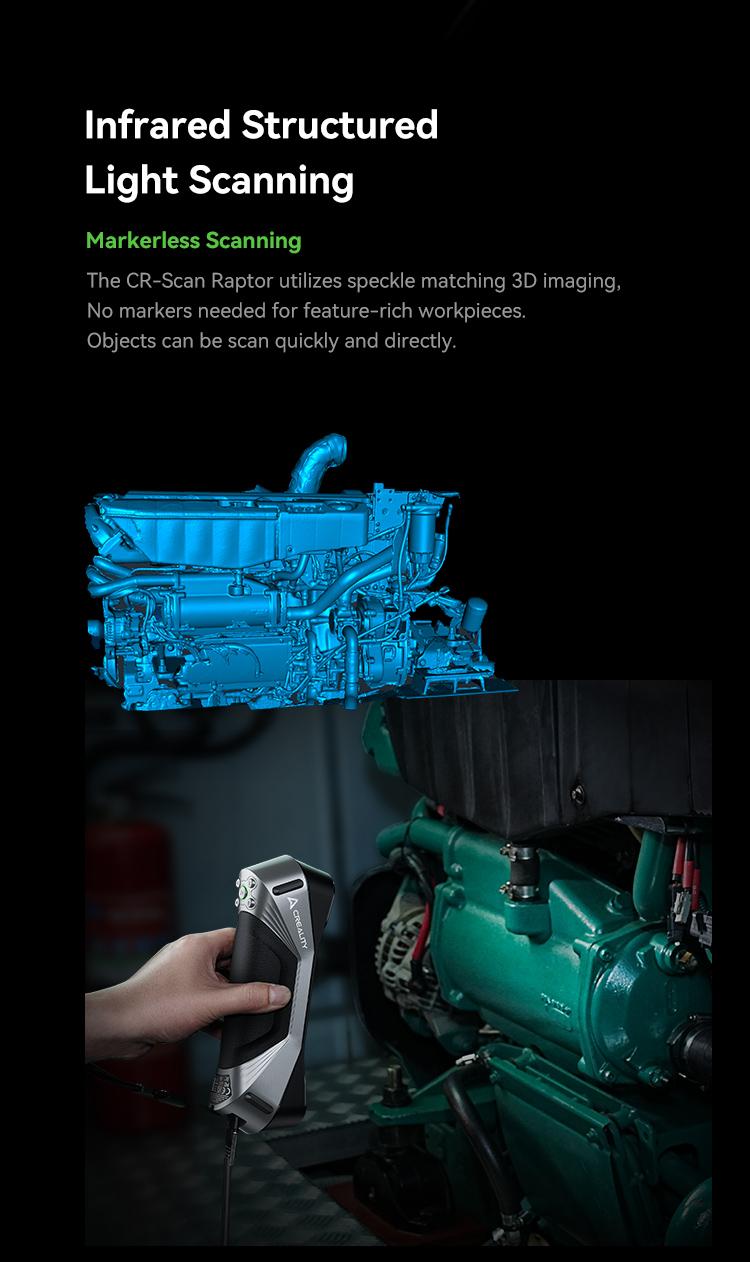

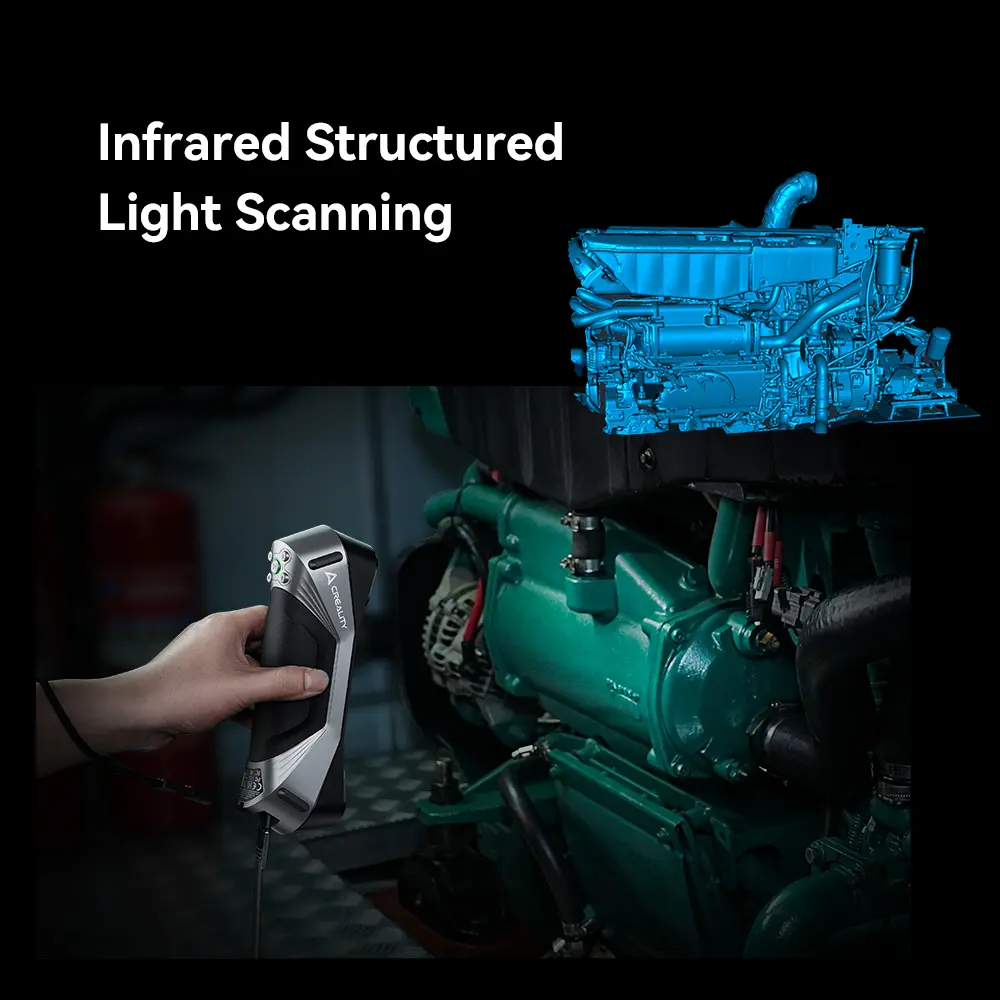

·NIR (infrared binocular structured light) Mode
·Accuracy: Up to 0.1mm
·3D Resolution: 0.1-2mm
·Scanning Speed: Up to 20fps
·Single Capture Range: 930mmx580mm@1000mm
·Working distance: 170mm-1000mm
·Color Mapping: Yes
·Alignment mode: Marker / geometry / texture
·General Parameters
·3D imaging camera resolution: 1920x1200

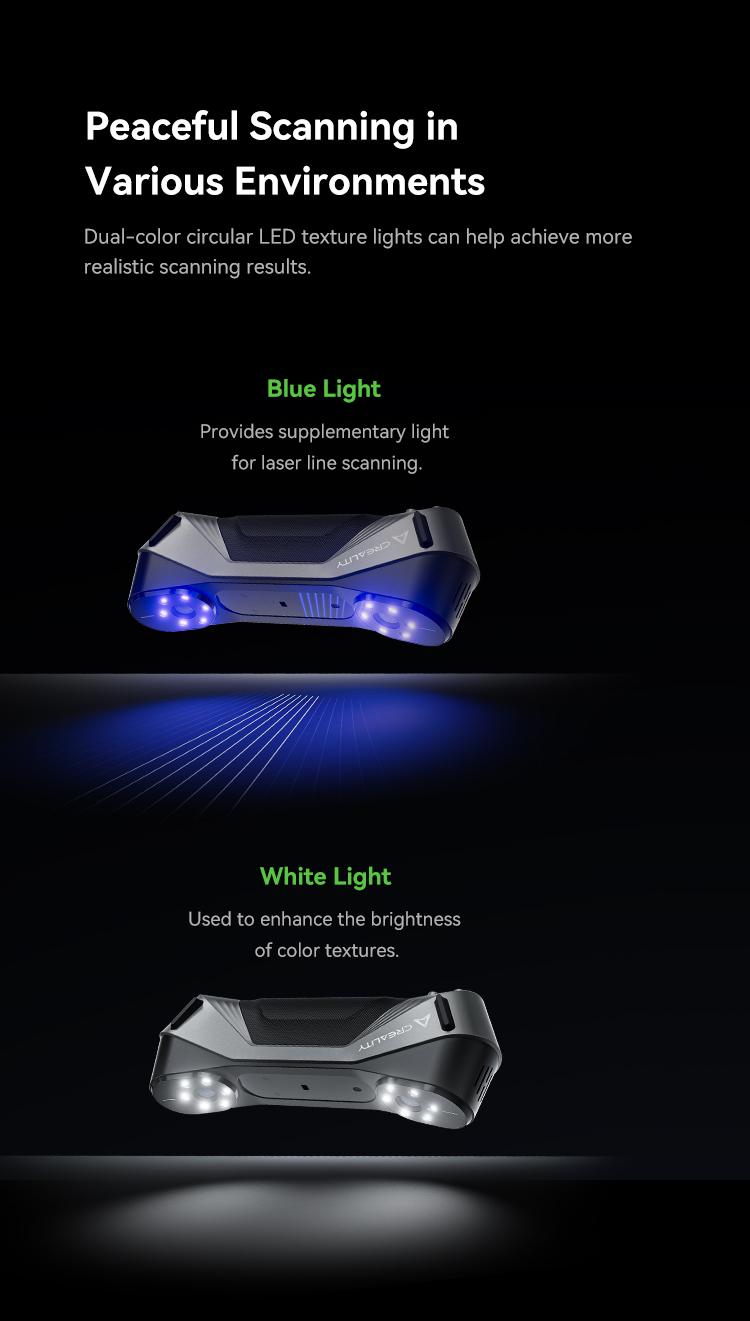

·Color Supplemental Light: 12 white LEDs
·Marker Recognition Enhancement: 12 blue LEDs
·Laser Safety: Class I (eye safe)

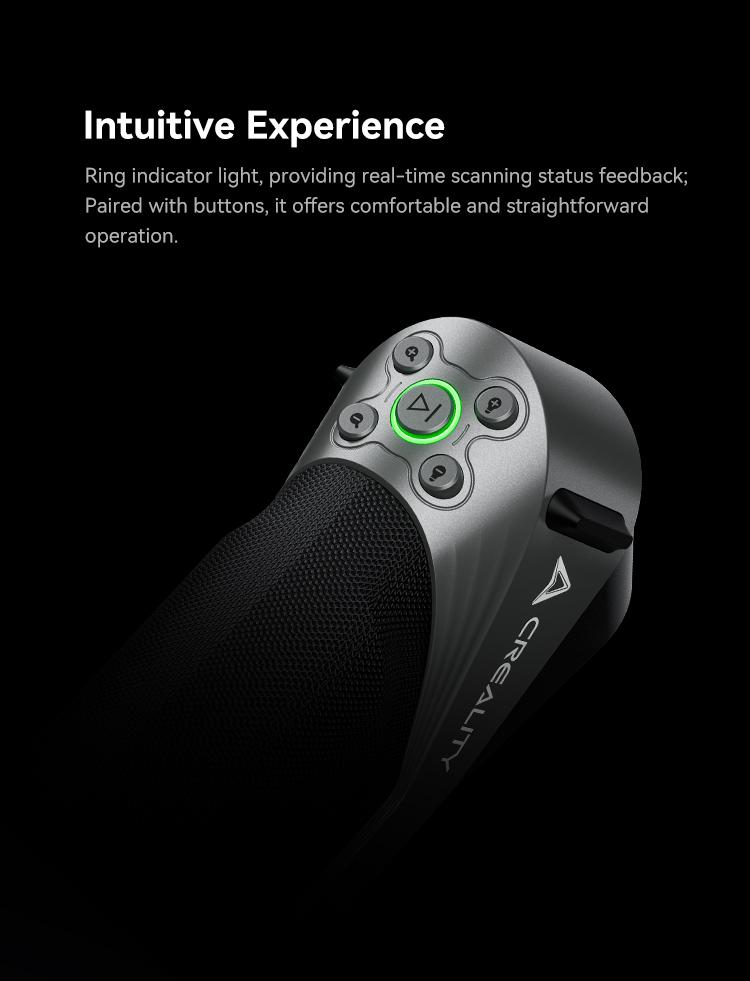

·Button: Mechanical
·IMU: Yes
·Output format: OBJ/STL/PLY
·Input Power: 12V 2A
·Data interface: TypeC/USB3.0
·Device Dimensions: 215mmx50mmx74mm
·Device Weight: 372g

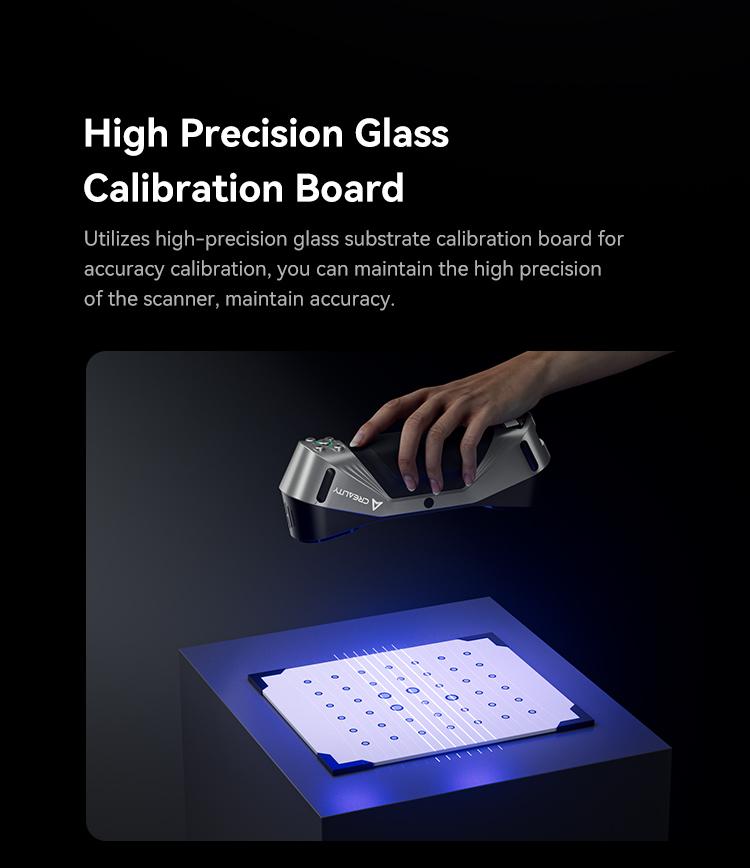

·Calibration board: High-precision glass calibration board
·Wireless Scanning: Supported in conjunction with future wireless scanning accessories
·System Support: Windows/macOS
·Operating temperature: -10°C to 40°C
·Operating humidity: 0-90%RH
Note: Accuracy is evaluated in laboratory conditions (measurement object is 100mm sphere pair) and actual results may be affected by operating environments such as temperature, vibration, and other factors.
For detailed information about the scanner, visit the official free knowledge-sharing platform: Creality Wiki.
