3536 10 Ton Hydraulic Cylinder Hoist Only Kit – 3.5" Bore × 36" Stroke
Product Description

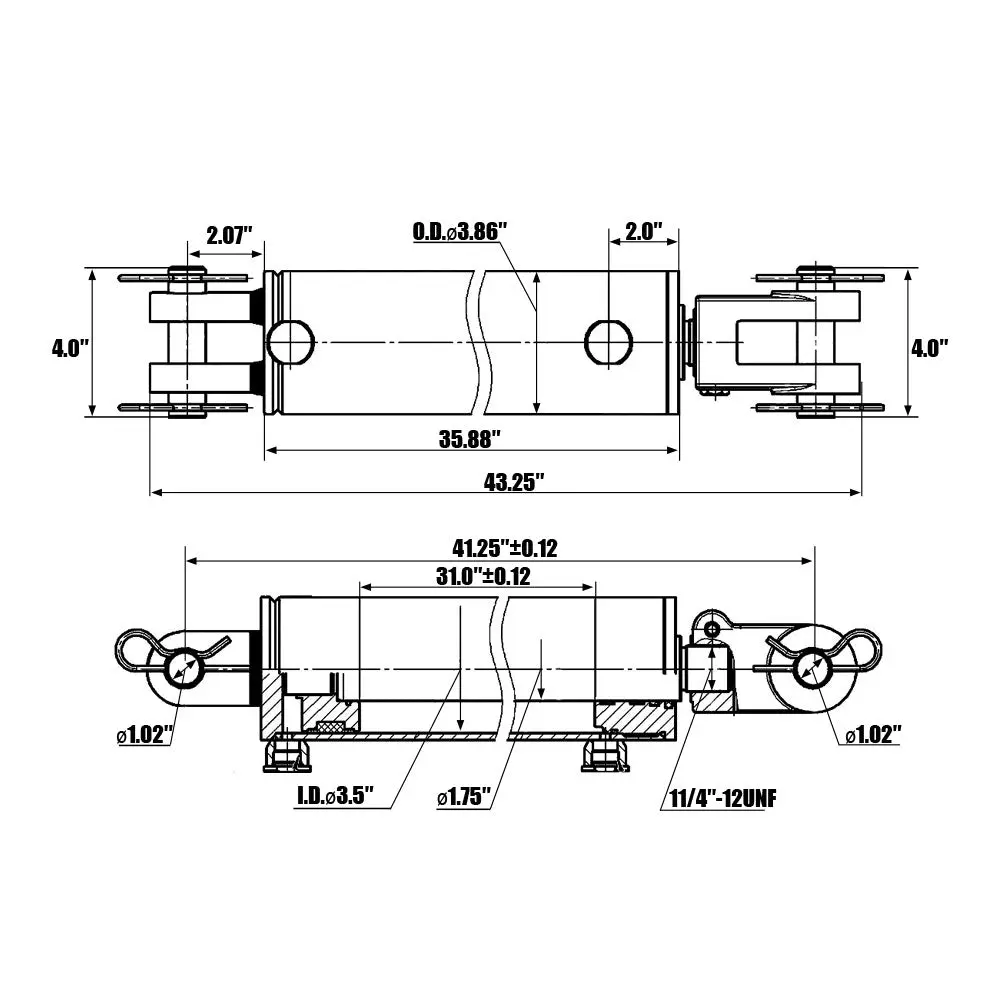

The 3536 10 Ton Hydraulic Cylinder Hoist Only Kit features the heavy-duty 3536 hydraulic cylinder with a 3.5" bore, 36" stroke, and 1.75" chrome-plated rod.
Rated for up to 3,000 PSI with a maximum cylinder force of 28,863 lbs, it is designed for compatible dump trailer, truck, agricultural, and industrial hydraulic applications.
The kit includes the hydraulic cylinder, upper and lower mounting brackets, and two mounting pins.
Key Features
·3536 heavy-duty hydraulic cylinder
·3.5" Bore × 36" Stroke
·1.75" Rod Diameter
·3,000 PSI Maximum Working Pressure
·28,863 lb Maximum Cylinder Force
·Heavy-duty welded steel construction
·Precision-honed cylinder tube
·Ductile iron piston
·Chrome-plated induction-hardened rod
·Corrosion-resistant black finish
·Includes mounting brackets and pins
What's Included
·1 × 3536 Hydraulic Cylinder
·1 × Upper Mounting Bracket
·1 × Lower Mounting Bracket
·2 × Steel Mounting Pins
Important Note
Hydraulic power unit, hoses, fittings, wiring, and controller are NOT included.

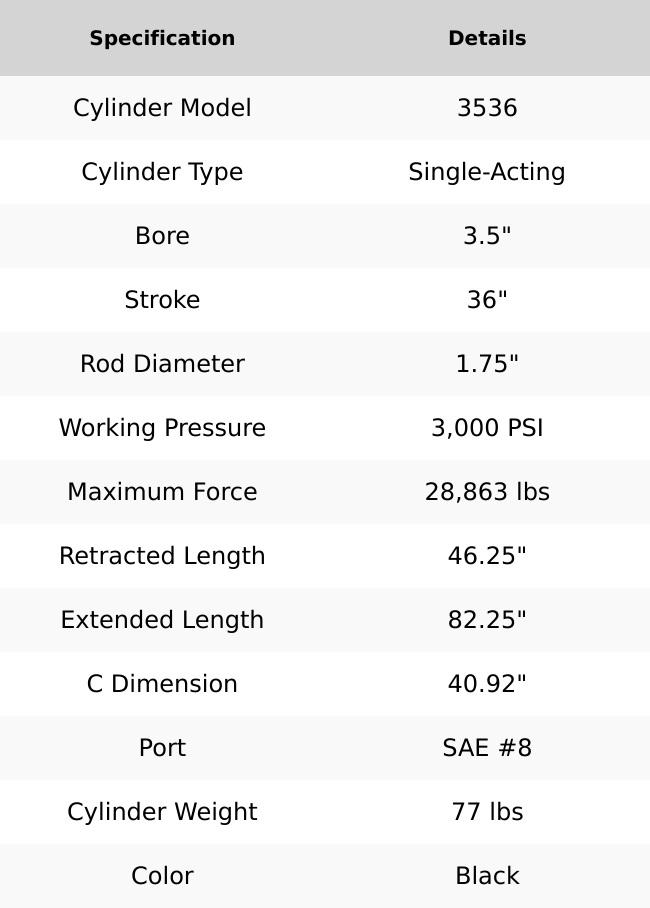

Technical Specifications
Cylinder Construction
·Rod: Induction-hardened steel, chrome plated
·Piston: Ductile iron
·Tube: Honed and precision-finished steel
·Construction: Heavy-duty welded
·Gland: Threaded
·Seals: High-quality hydraulic seals
·Finish: Corrosion-resistant black paint
Applications
Suitable for compatible hydraulic applications including:
·Dump Trailers
·Scissor Hoist Trailers
·Gooseneck Trailers
·Tilt & Load Trailers
·Waste Management Equipment
·Agricultural Equipment
·Material Handling Equipment
·Industrial Hydraulic Systems
Frequently Asked Questions
Q1: What is included in this kit?
The kit includes 1 3536 hydraulic cylinder, 2 mounting brackets, and 2 mounting pins.
Q2: Does this kit include a hydraulic power unit or hoses?
No. Hydraulic power unit, hoses, fittings, wiring, and controller are not included.
Q3: What are the main cylinder specifications?
The HCL3536 features a 3.5" bore, 36" stroke, 1.75" rod, 3,000 PSI maximum working pressure, and 28,863 lb maximum cylinder force.
Q4: Can this kit be used on a dump trailer?
Yes. It is suitable for compatible dump trailer and hydraulic hoist applications. Please verify dimensions and mounting requirements before purchasing.
Q5: Is this a complete hydraulic hoist system?
No. This is a cylinder and mounting-component kit only. Additional hydraulic components are required to complete the system.
View more
Safety & compliance
Seller info
•Business name: DAT HOIST LLC
•Business address: 4500 Mercantile Plz Dr Ste 300, Fort Worth, Texas, 76137, United States
$440.00
Free shipping
