About this item

·Momentary Switch: Heavy duty DPDT reverse polarity switch resetting automatically (returns to off) when released. Controls the up/down, clockwise/counterclockwise motion of DC loads (e.g. motors, hoists, cranes, linear actuators etc)

·Dual Operation: This momentary electrical system switch is used for jogging or inching operations. A DPDT switch is equivalent to two SPDT switches. It routes two separate circuits. Connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which two contact can be routed. Always make sure you are using a switch and wire sufficient to handle the load you are carrying. In higher draw applications, a relay may be needed

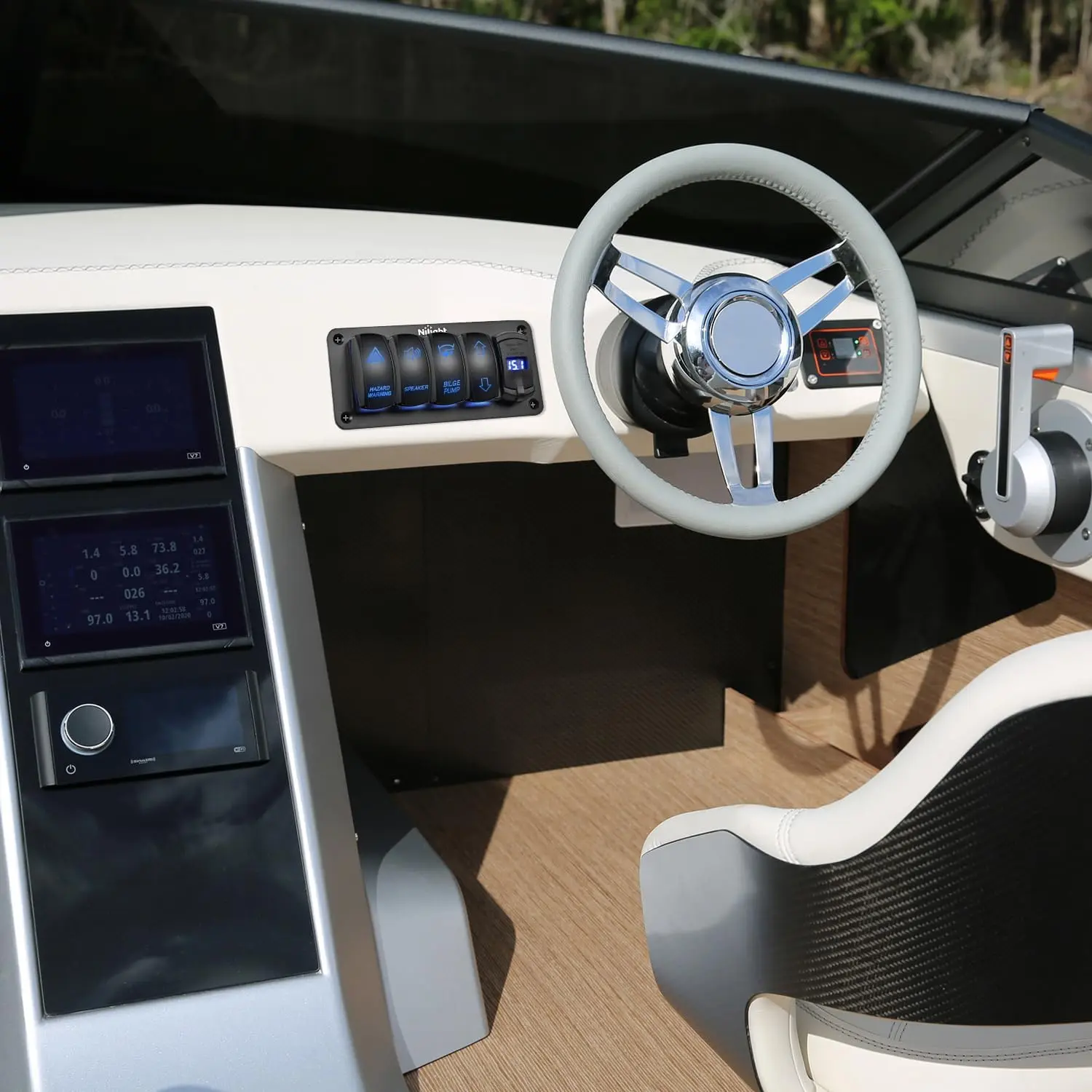

·Wide range of application: Universal fit for all cars, RVs, SUVs, ATVs, UTVs, Cans, Buses, Marine boats, Yachts, Trailers, Jeeps, Prerunners, Campers, Caravans etc; Mainly used to control Winch, Pump, Horn, Reclining Media Room Seats, Auto Bilge Pump or led light bar, led work lights, fog lamps, headlights, taillights and auxiliary lamps, etc

·Sturdy and durable: Made of high-quality plastic and well-conductive pins; ensure long lasting durability, highly optimized for general use and will give you a pleasant experience

·Package Includes: A 7 pin arrows switch, jumper wires set, switch panel and a wiring diagram

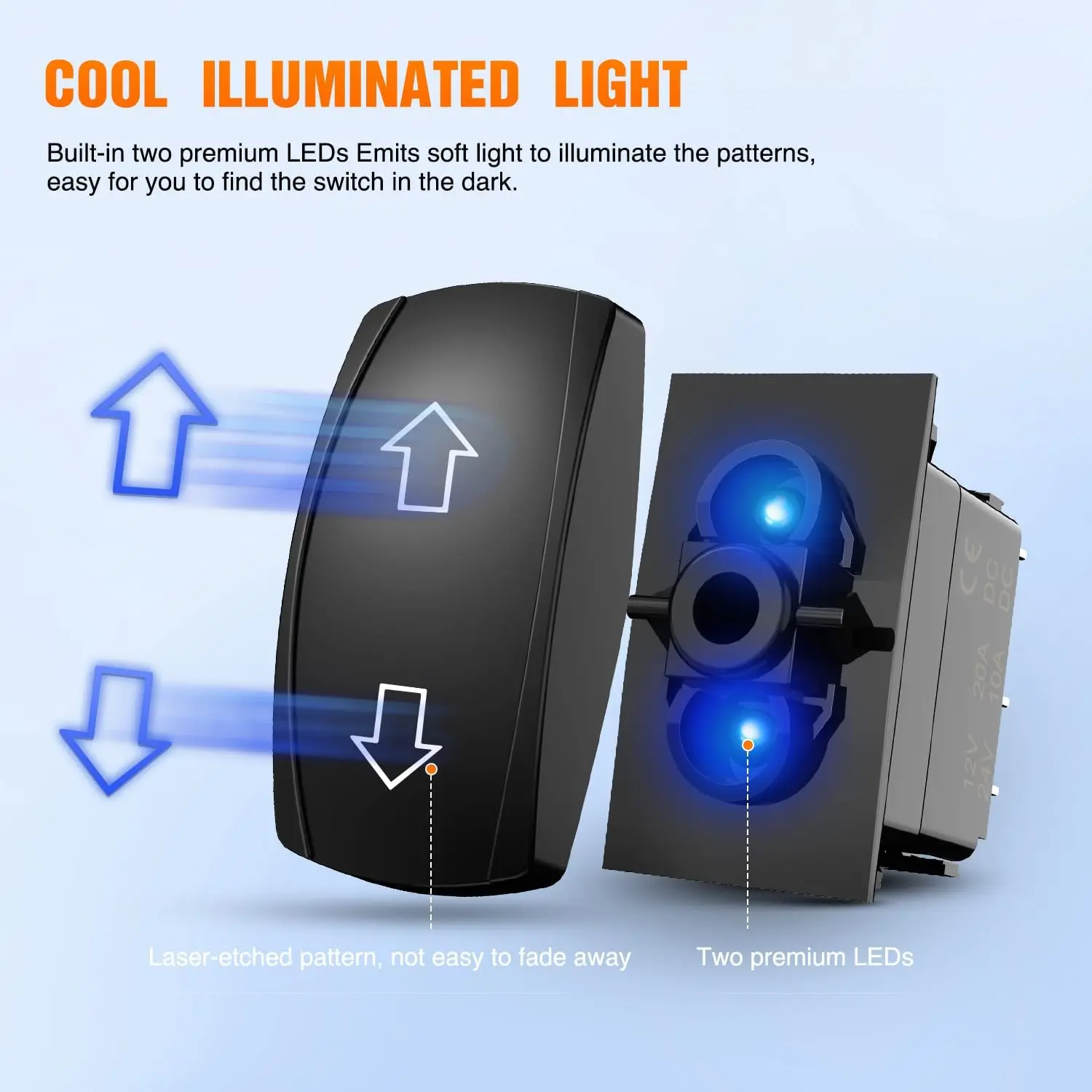

LED Lighting Effect

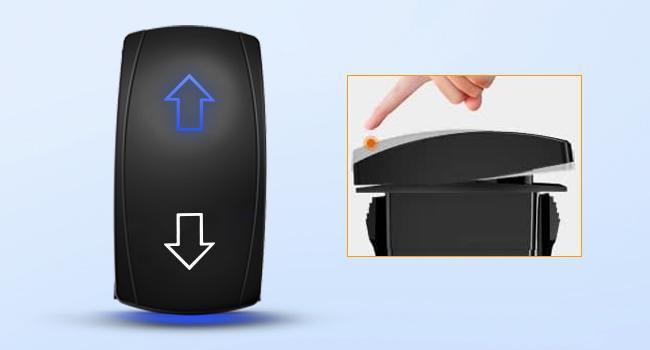

Upper LED Illuminated

The upper light is on when the switch is pressed, and it stops working when let it off.

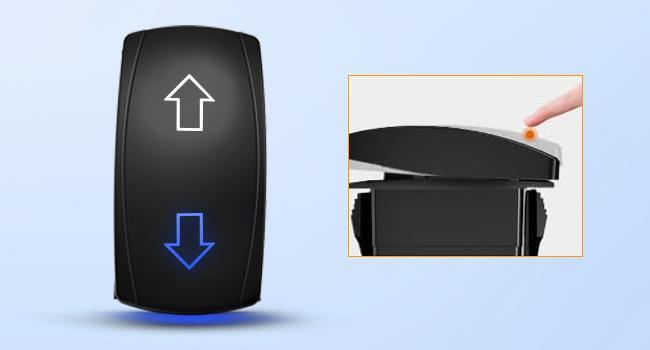

Lower LED Illuminated

The lower light is on when you press the switch down, and it will return off position when you remove your finger.

Product Features

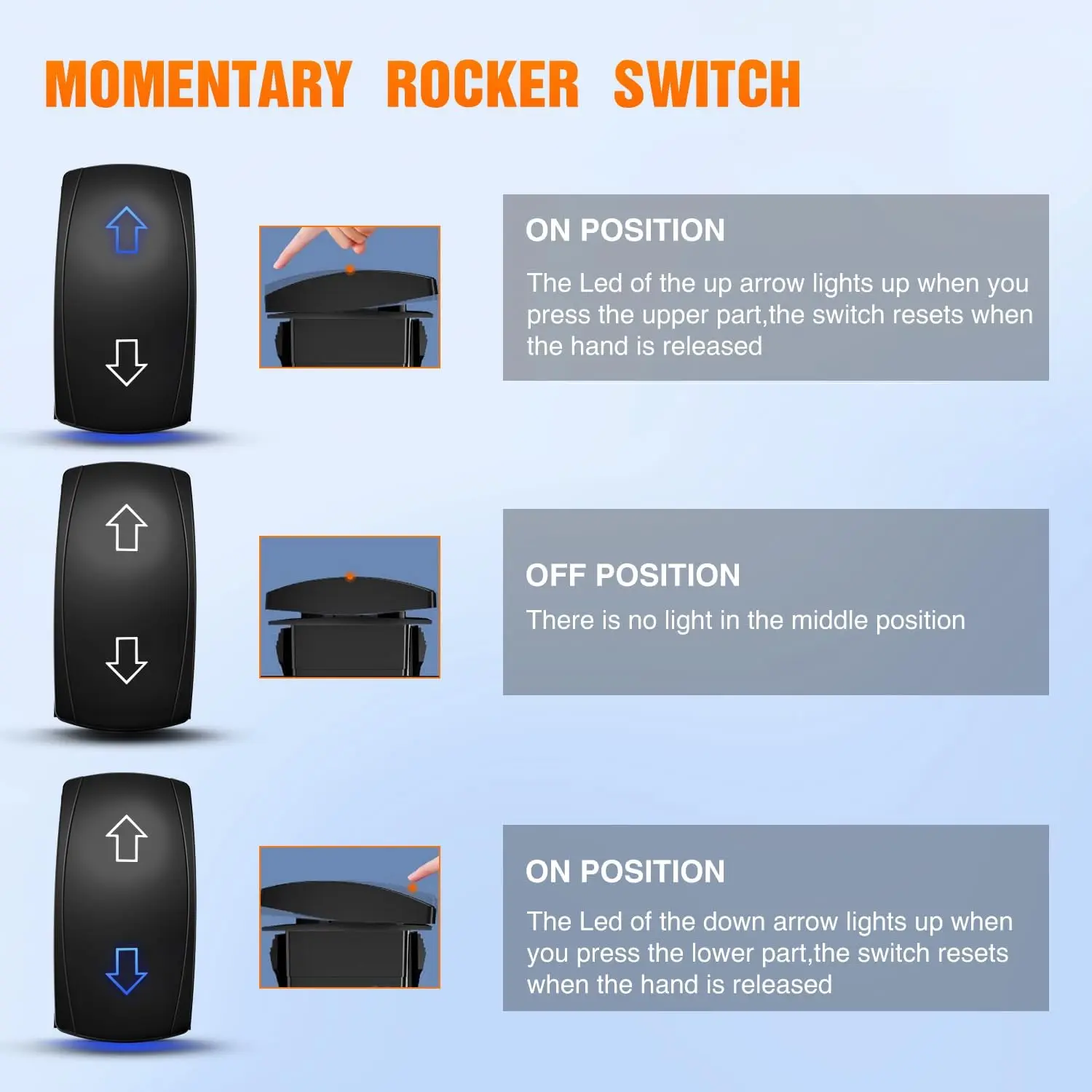

Non-Locking Design

The switch is very flexible for turning on or off. Automatic rebound when finger released. It can stand up to 10,000 times pressing under normal use.

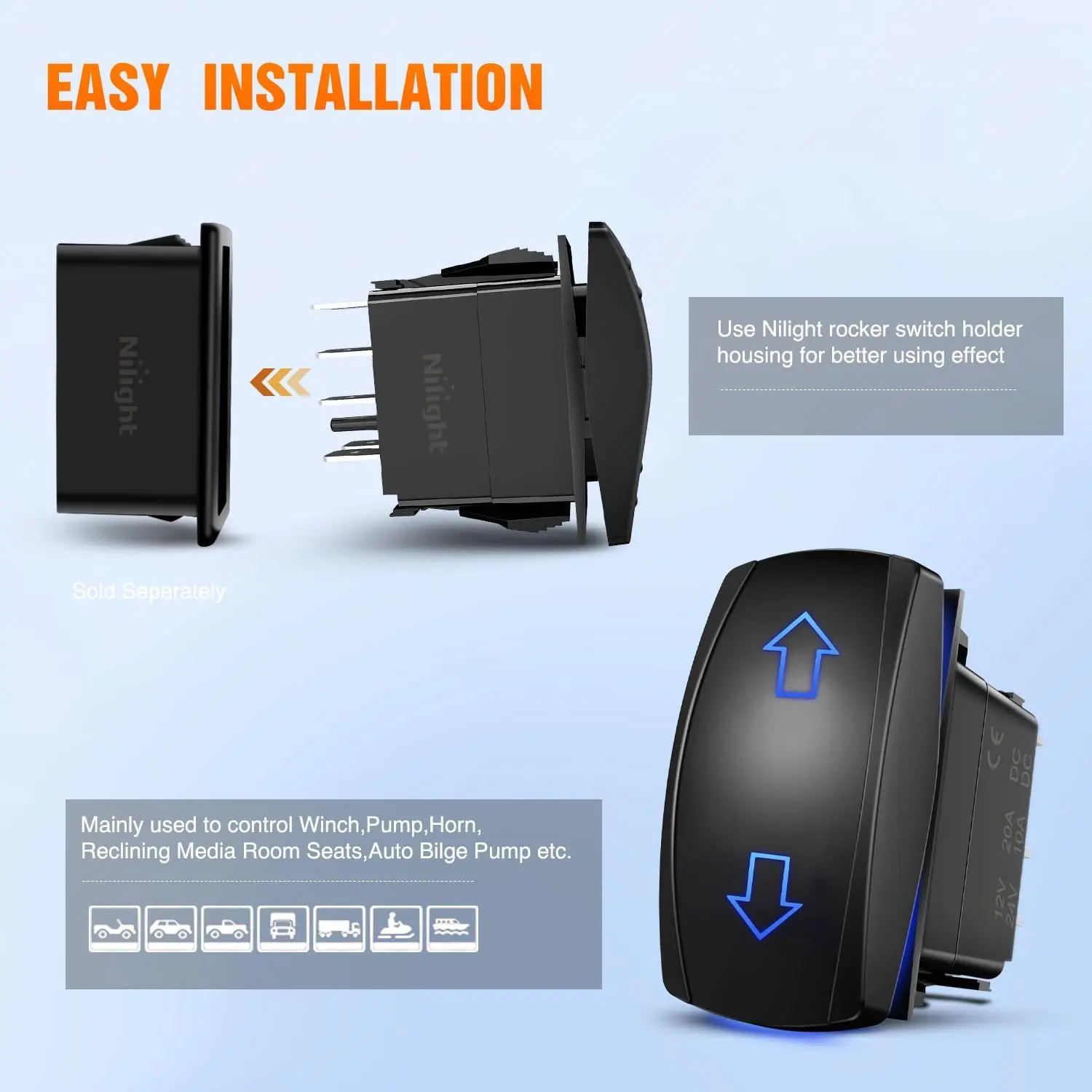

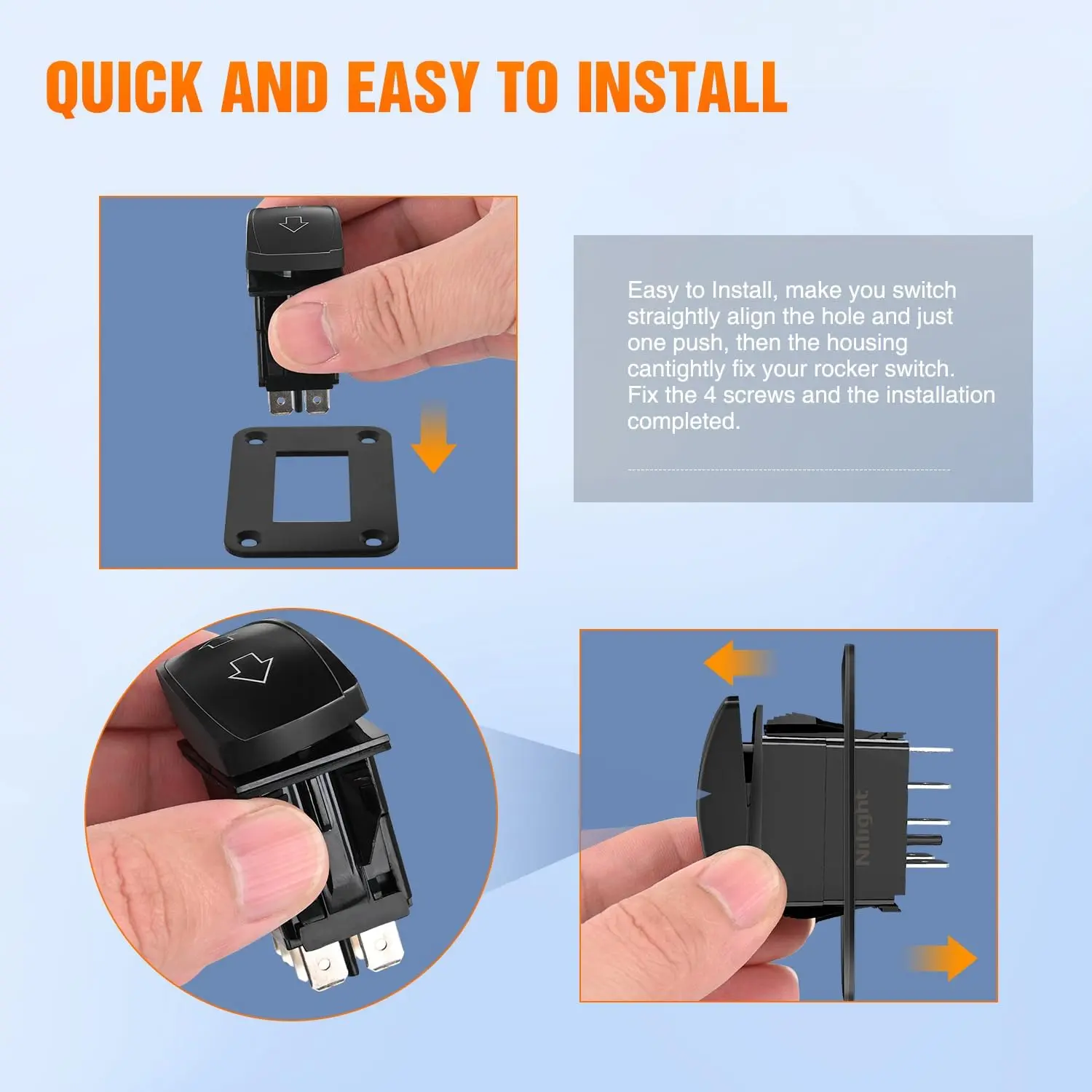

Easy Installation

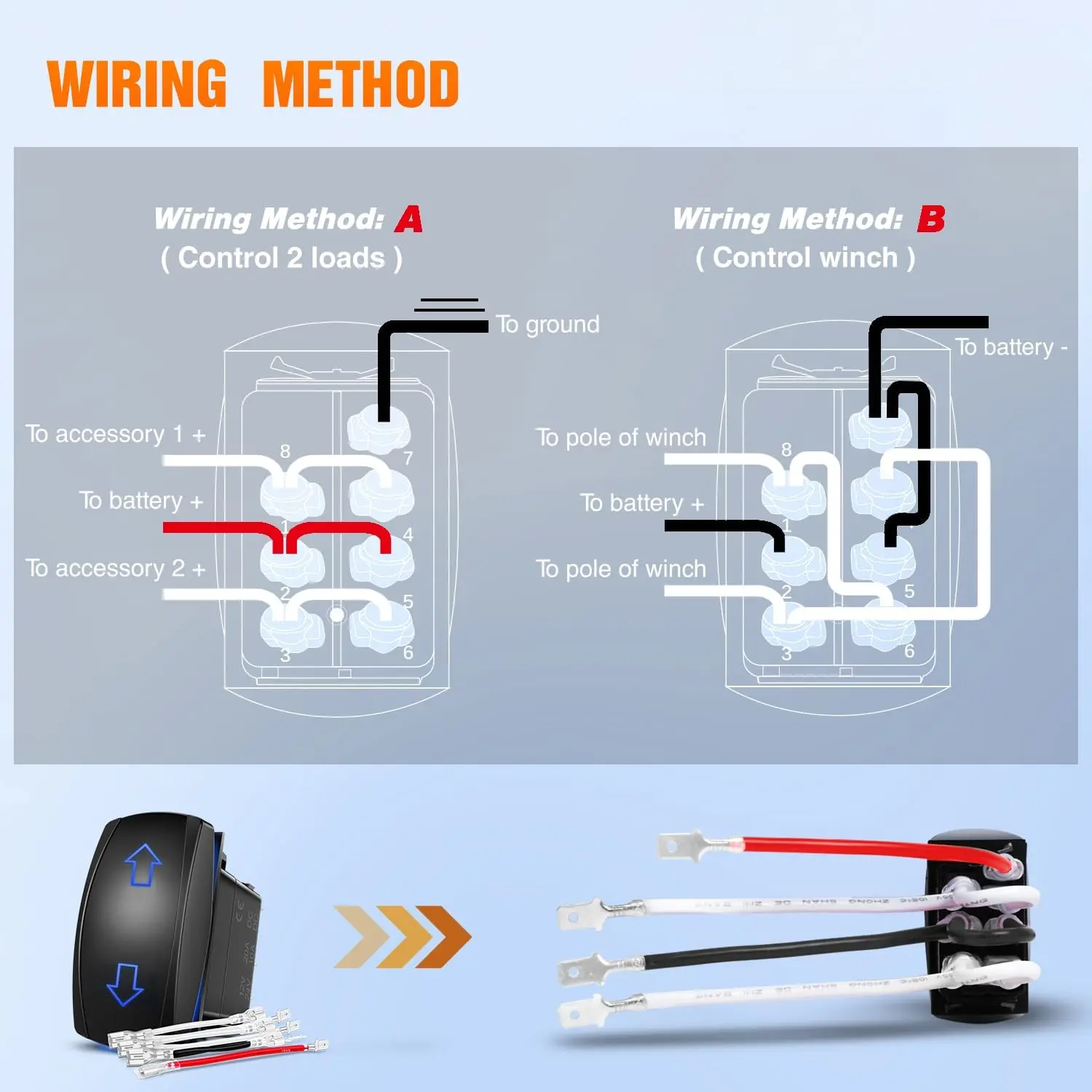

This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires in two seconds.

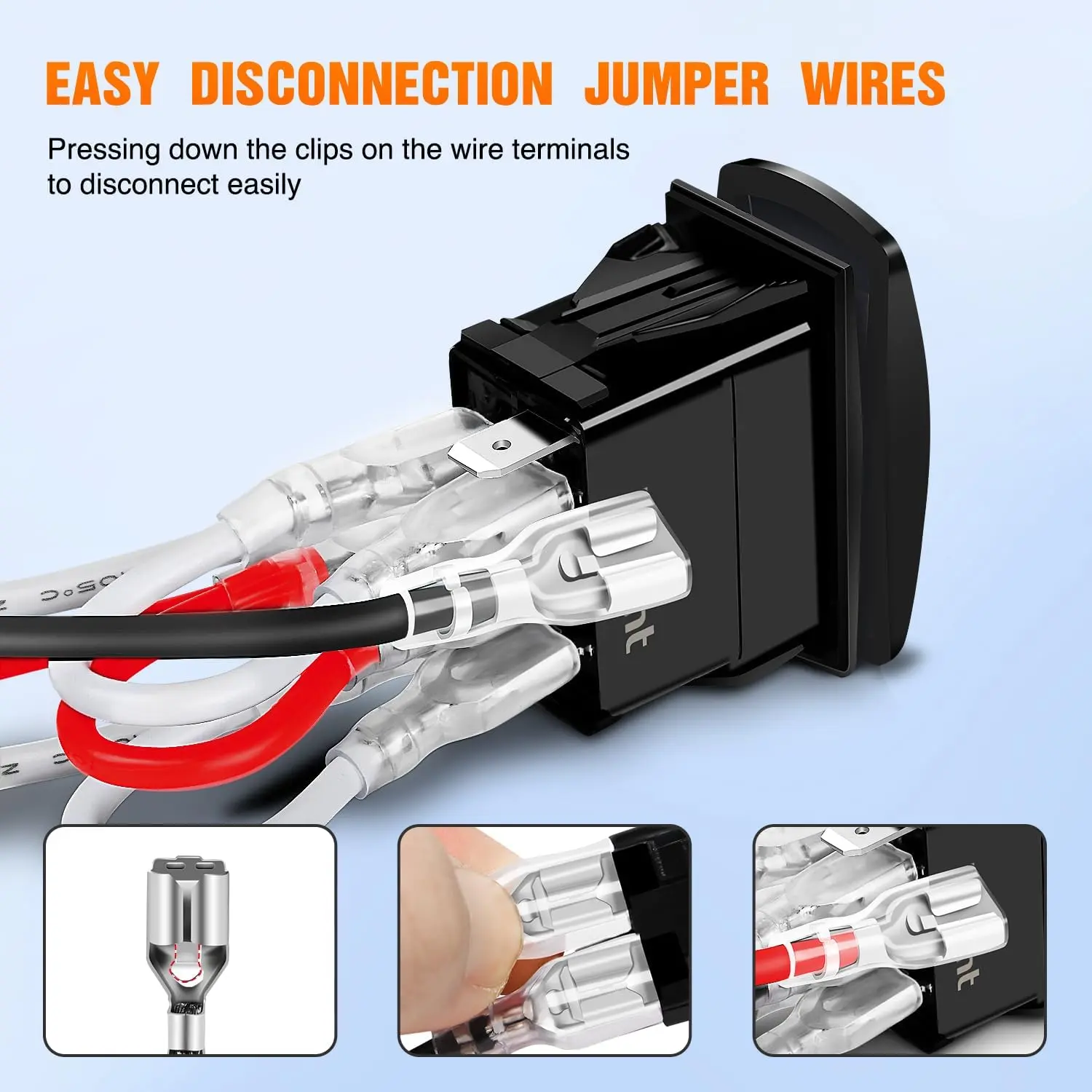

Premium Jumper Wires

High quality 14 gauge jumper wires, the Tin-plated copper terminals on the wire is of good stability, wear resistance, corrosion resistance.

Excellent Product

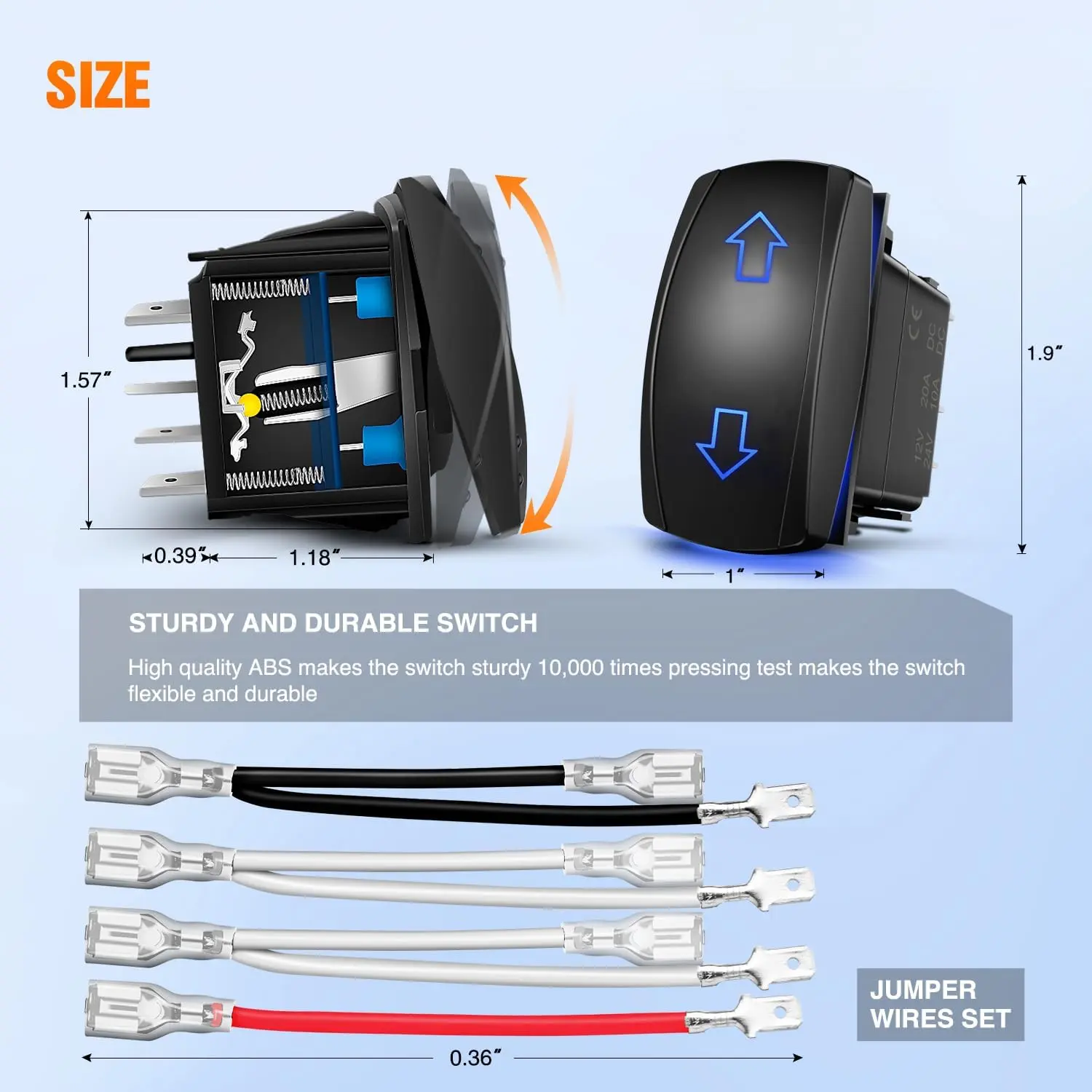

Made of ABS and PC of premium quality, the switch is impact and heat resistant. DPDT design, this on off on switch can control 2 loads.
