Installation & User Guide

1.Battery Installation & Charging

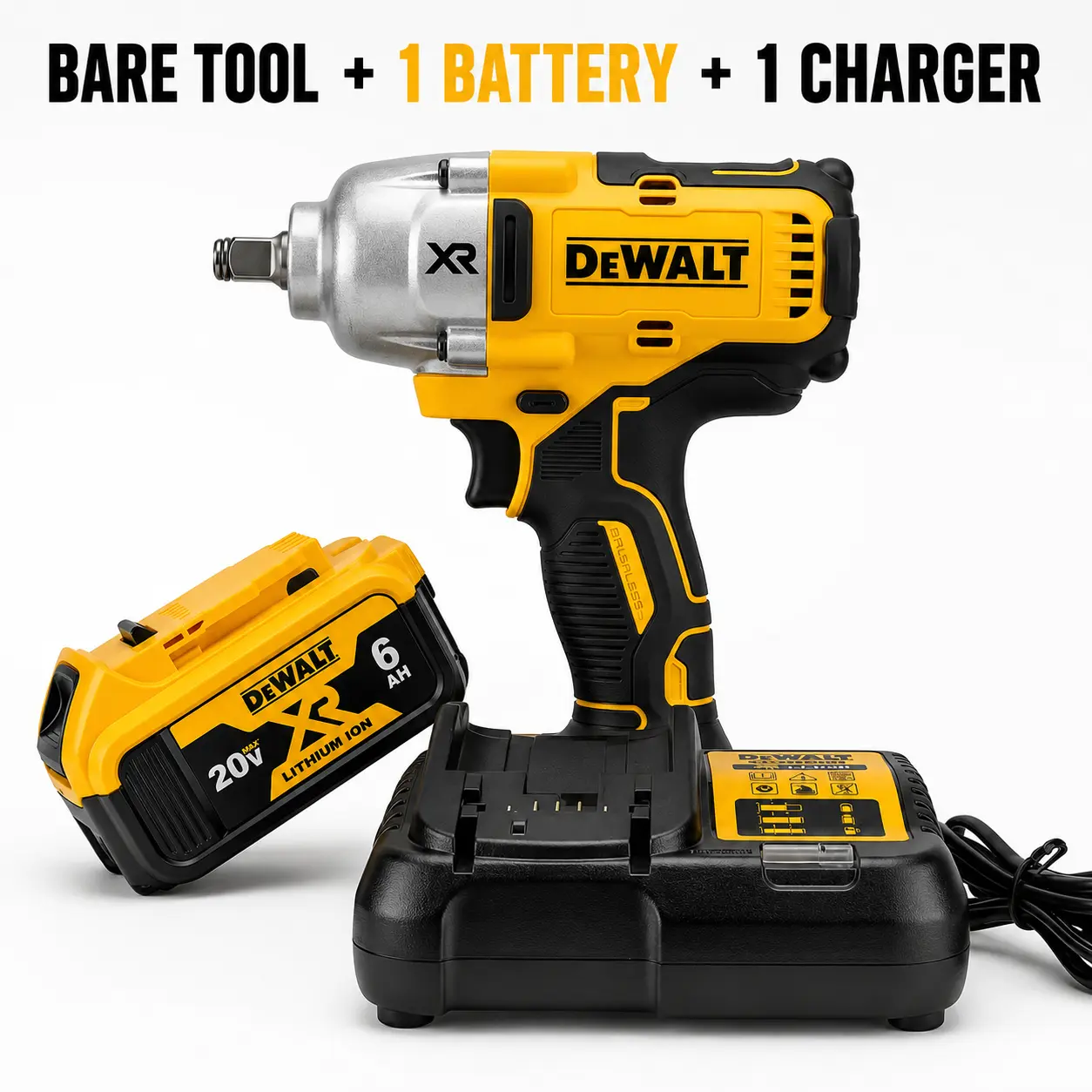

Slide the 20V battery into the wrench until it clicks into place. Press the side buttons to remove the battery. Fully charge the 6.0Ah battery before first use. Avoid overcharging and high-temperature storage to protect battery life.

2.Socket Installation

Fit a standard 12-inch socket onto the hog ring anvil. Push firmly for tight locking and anti-drop performance. Pull directly to replace the socket quickly for different tasks.

3. 3-Speed Adjustment

This impact wrench supports 3-speed adjustable modes. Switch lowmediumhigh speed via the control button. Low speed for precise fastening, medium speed for daily maintenance, and high speed for max 1396N·m torque to remove stubborn bolts and tires.

4.Operation Steps

Install the battery and socket, select forward or reverse mode, then gently squeeze the trigger to work. Release the trigger to stop immediately. Keep stable during operation for safe and efficient work.

Maintenance & Tips

Clean after use and store in a dry place. Avoid long continuous operation to prevent overheating. Wear protective gear during use and keep the tool away from children.
