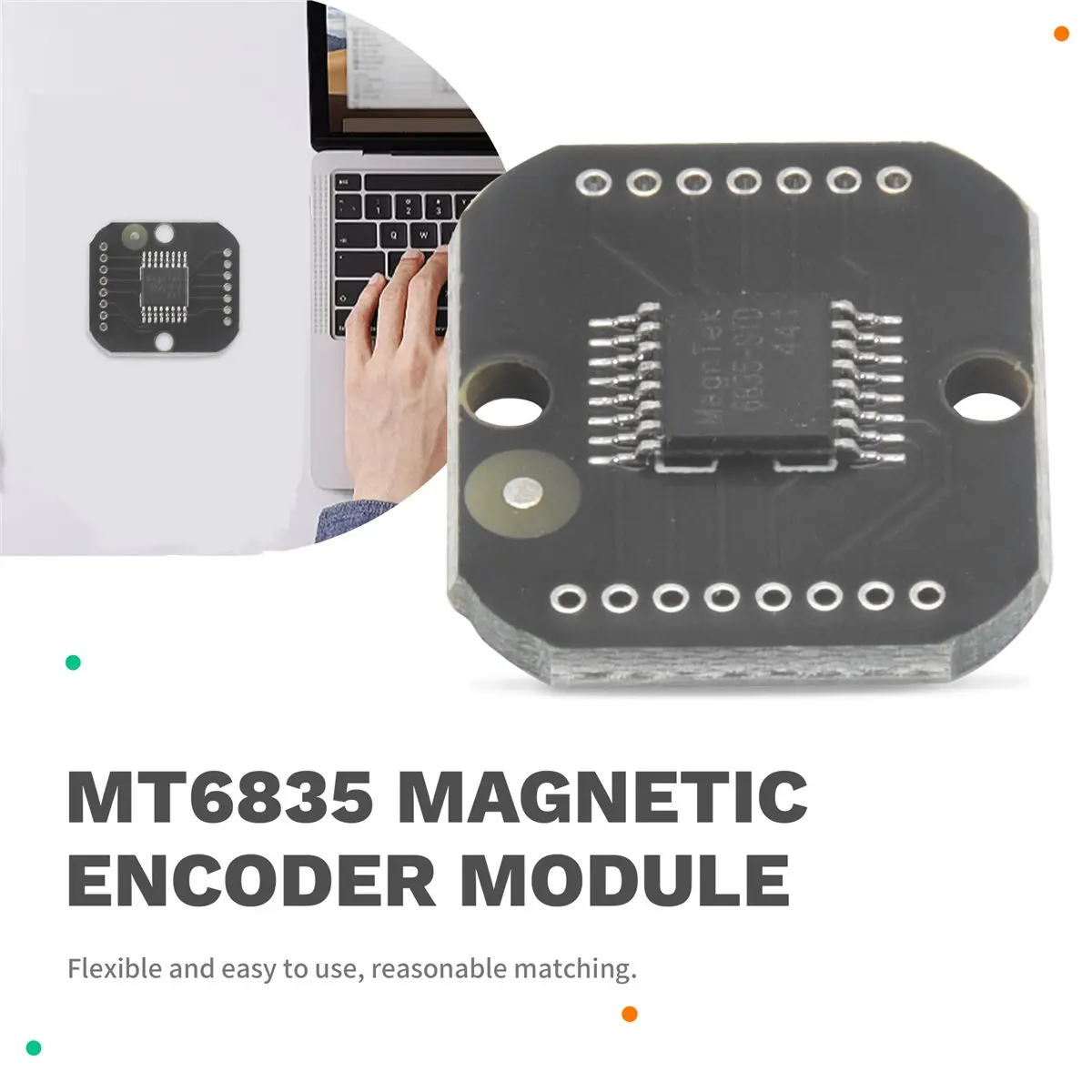

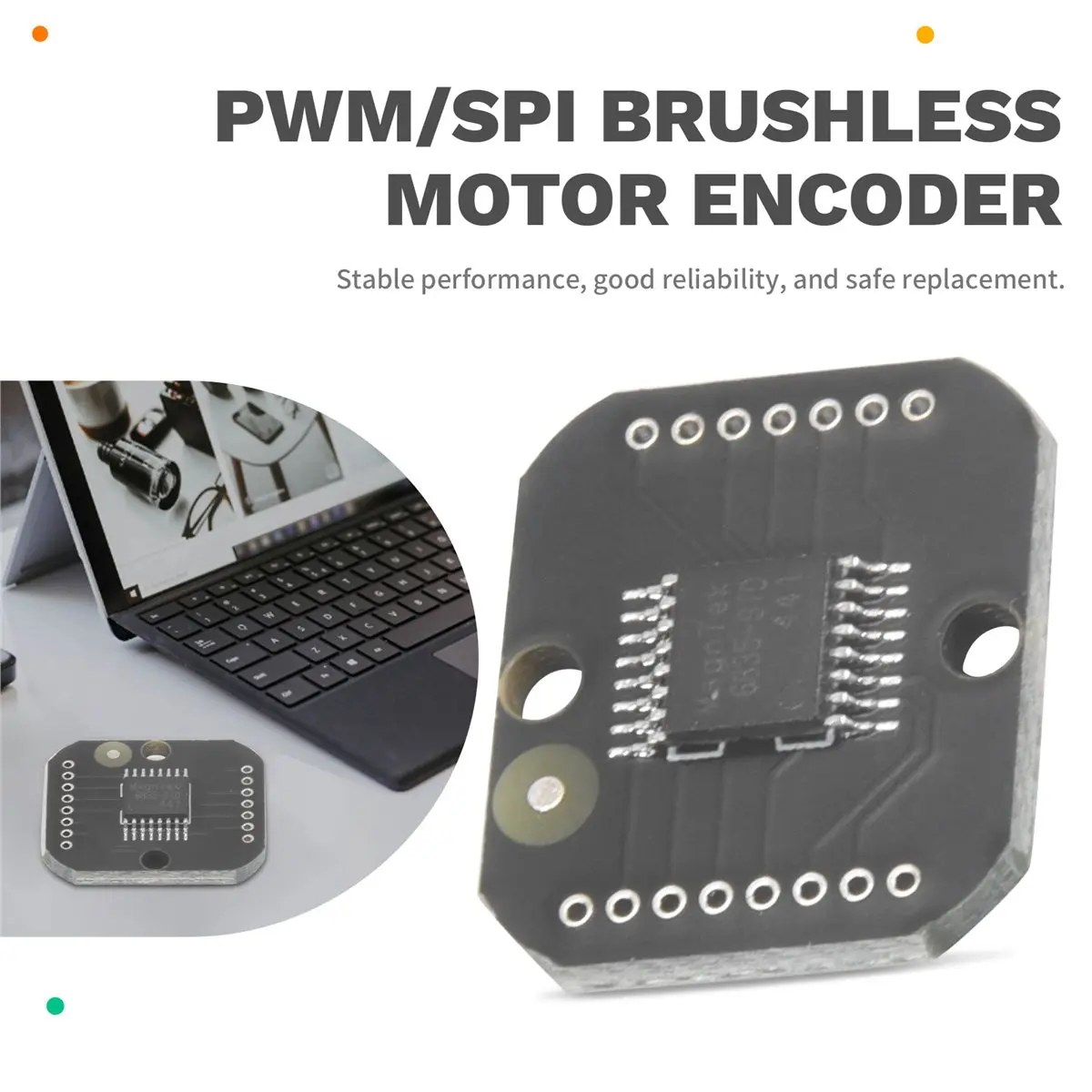

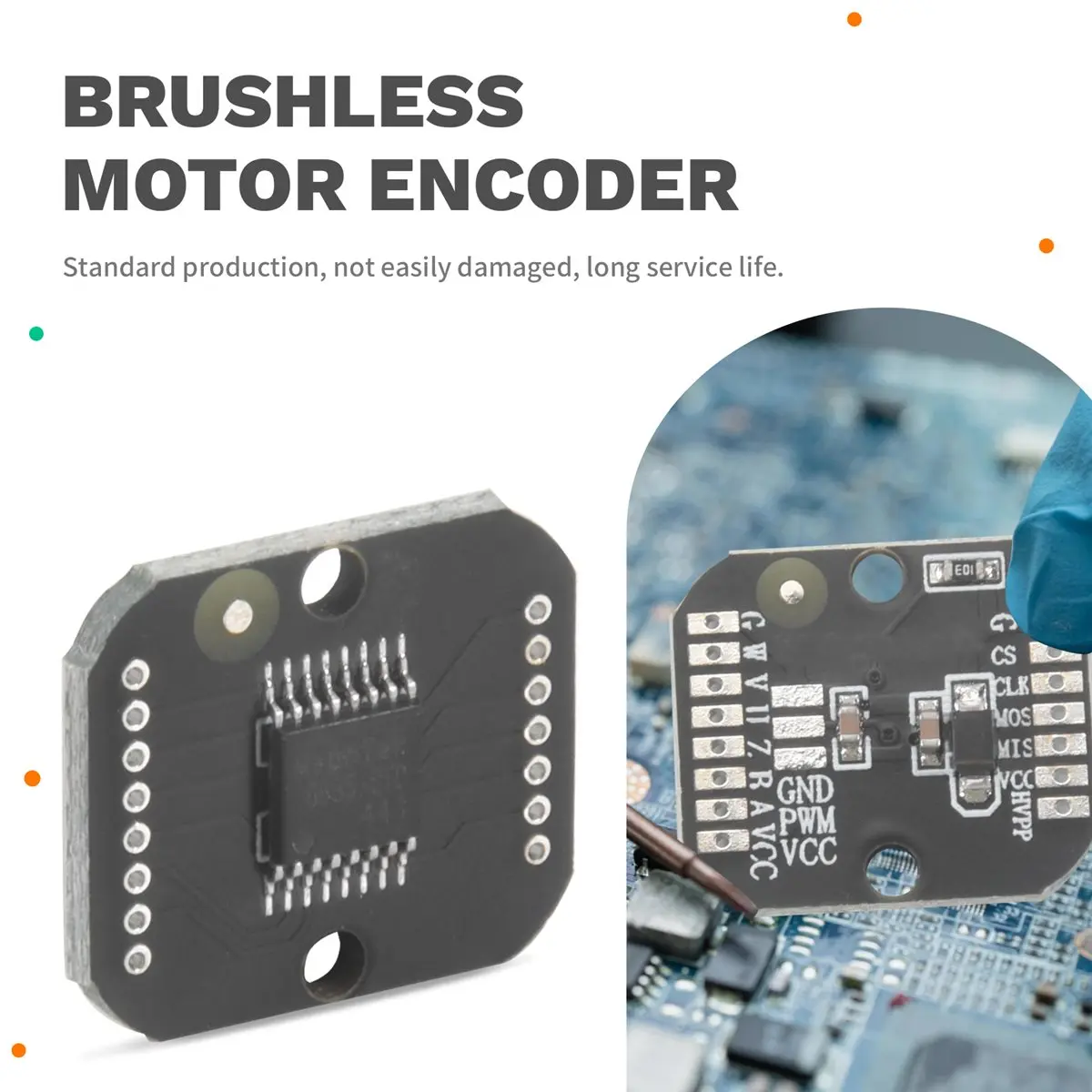

Based on technology, it provides absolute angle measurement from 0° to 360°

Working voltage 3.3~5.0V

Working temperature -40℃~125℃

Typical value of linearity deviation Less than ±0.5° (factory value), typical value of linearity deviation Less than ±0.07° (typical value self-calibration), typical value of linearity deviation Less than ±0.02° (typical self-calibration)

The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip

Incremental output ABZ supports any resolution from 1 to 16384 lines

Incremental output UVW supports 1~16 arbitrary pole pairs

Support up to 5 times online zero programming

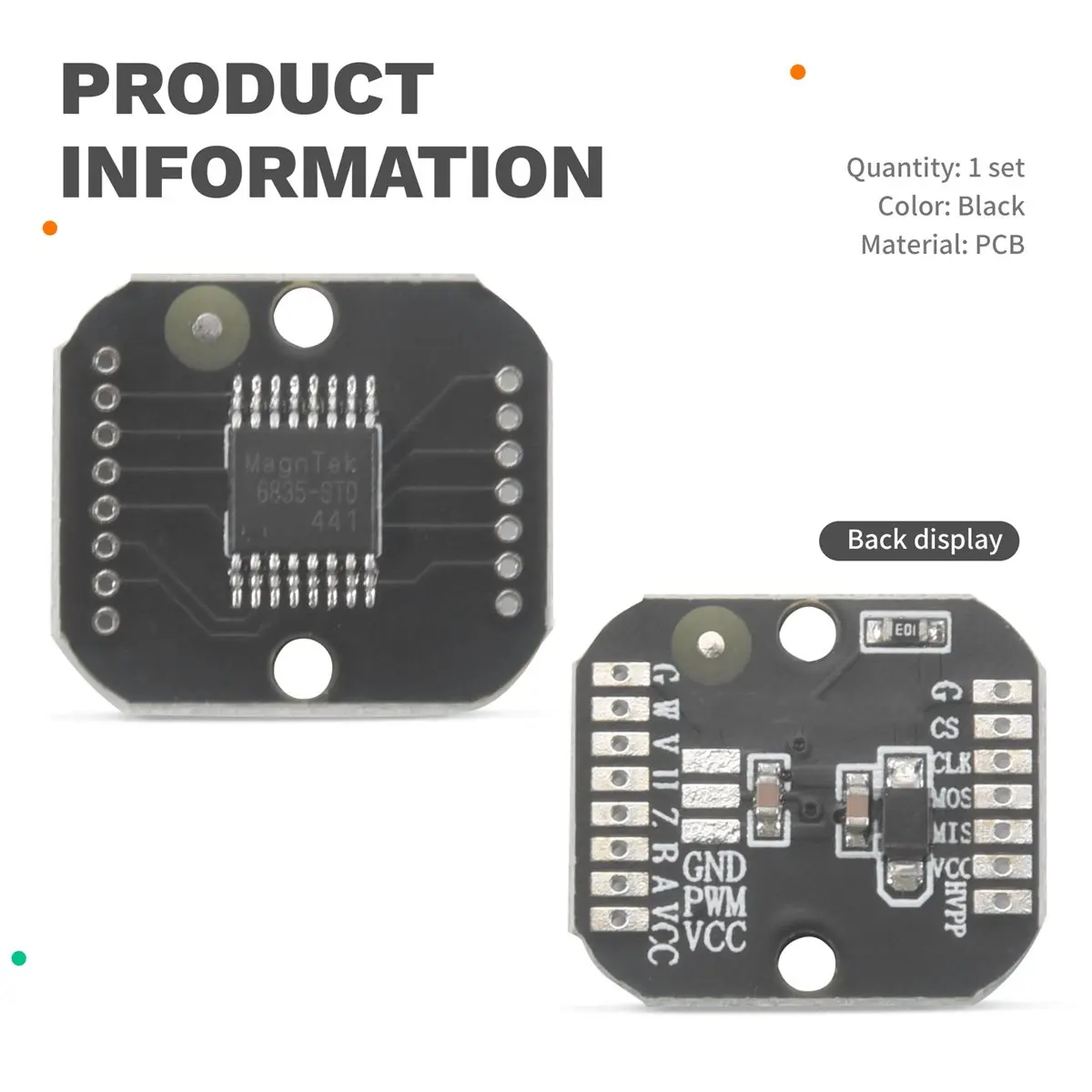

The output is SPI

Colour:

Material:PCB Package Contents:

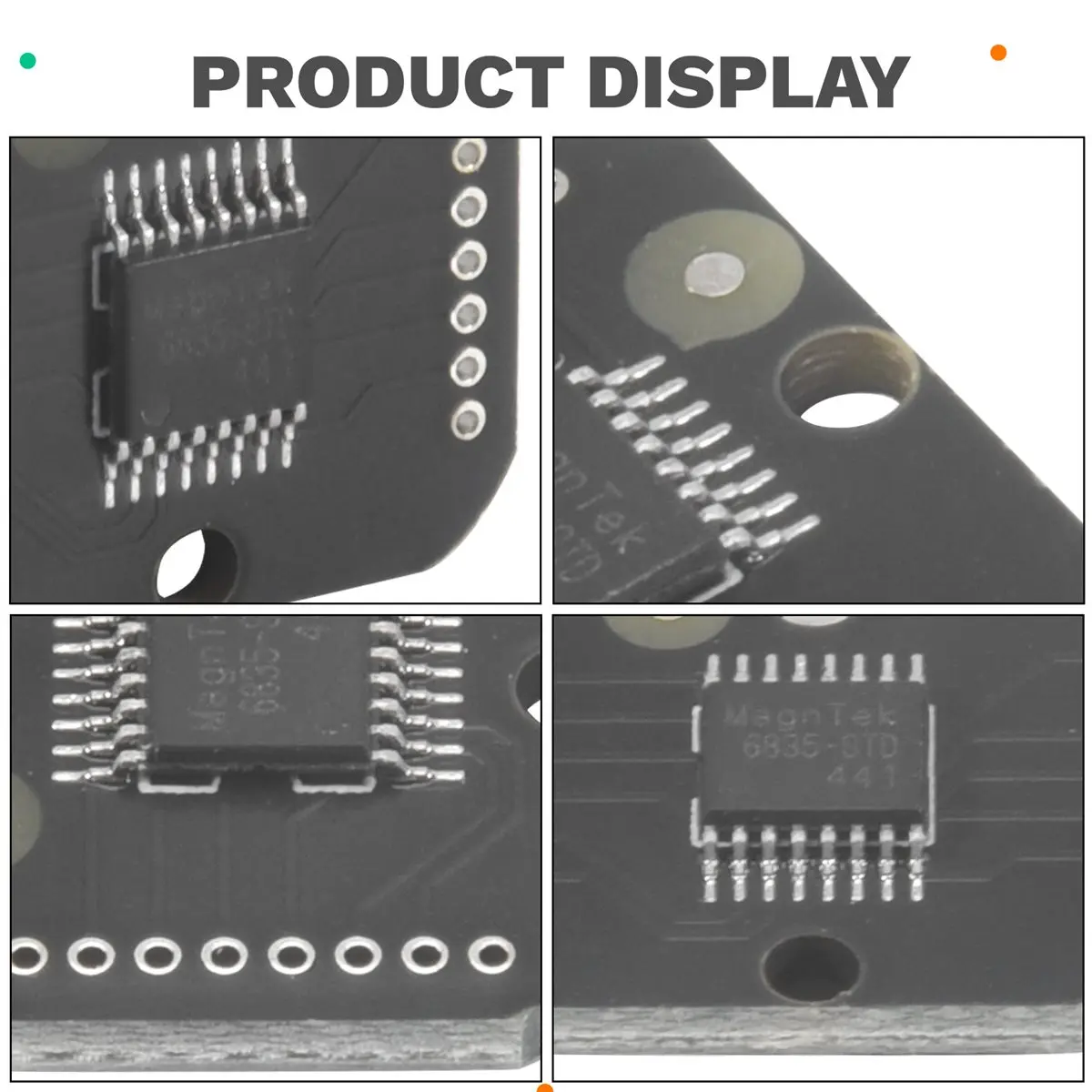

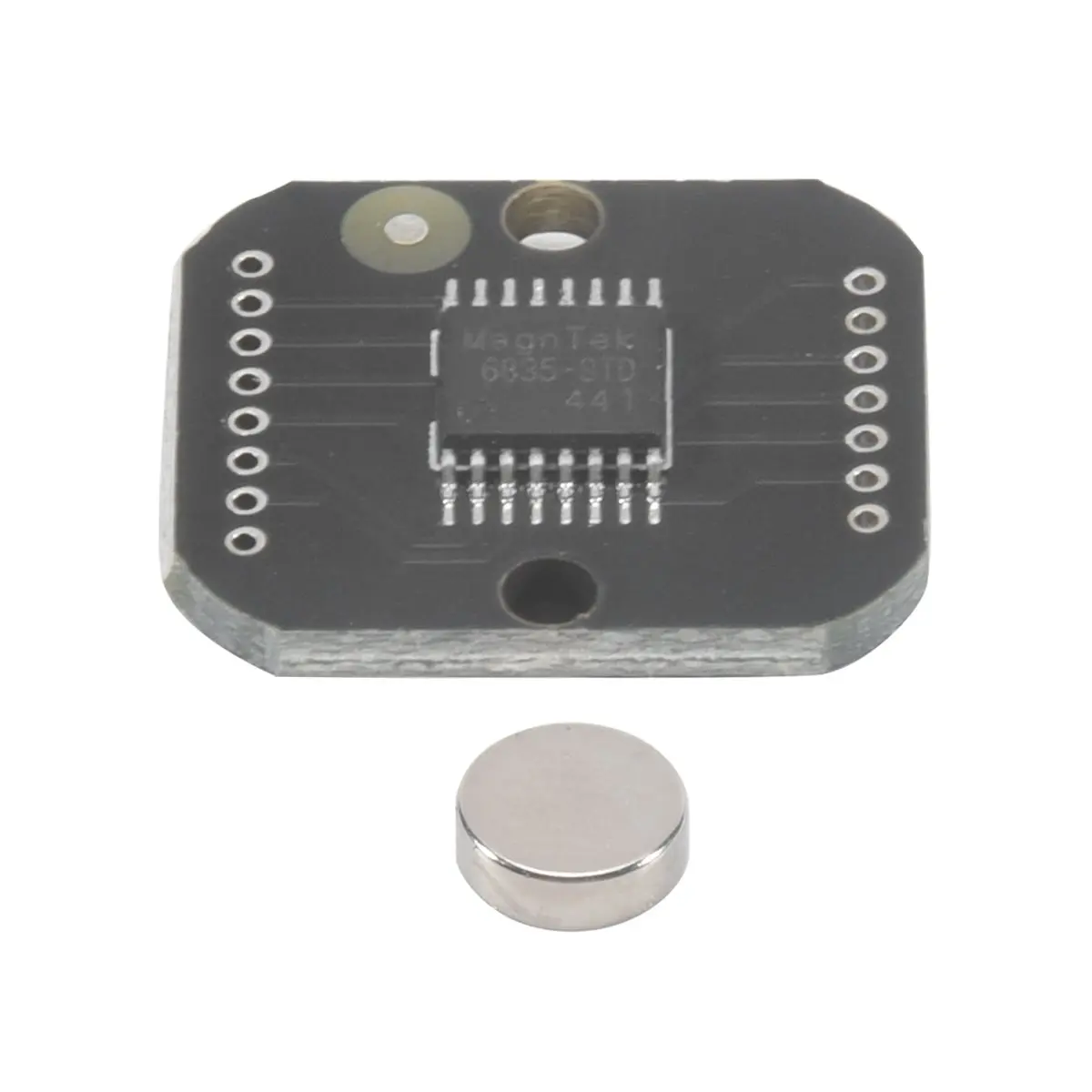

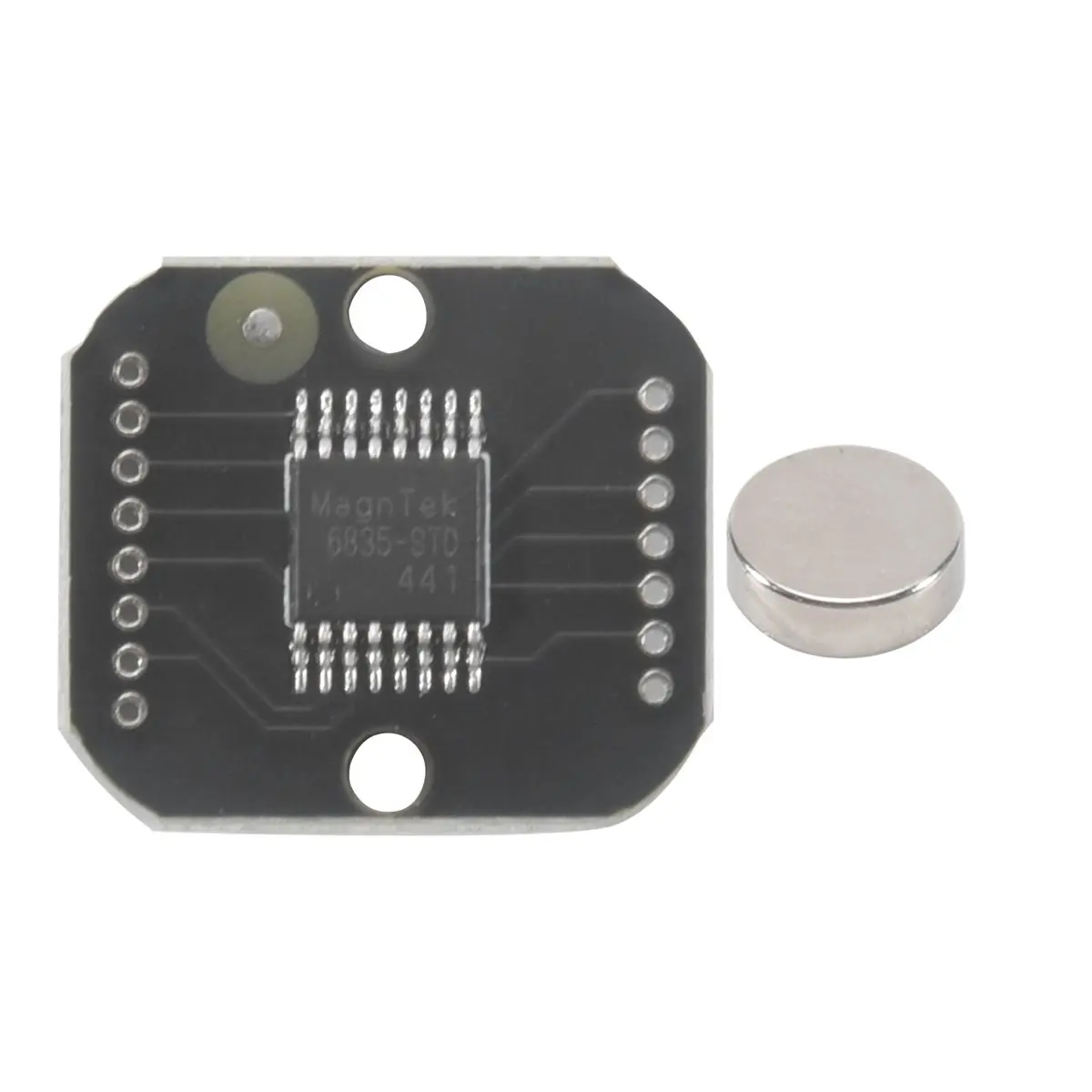

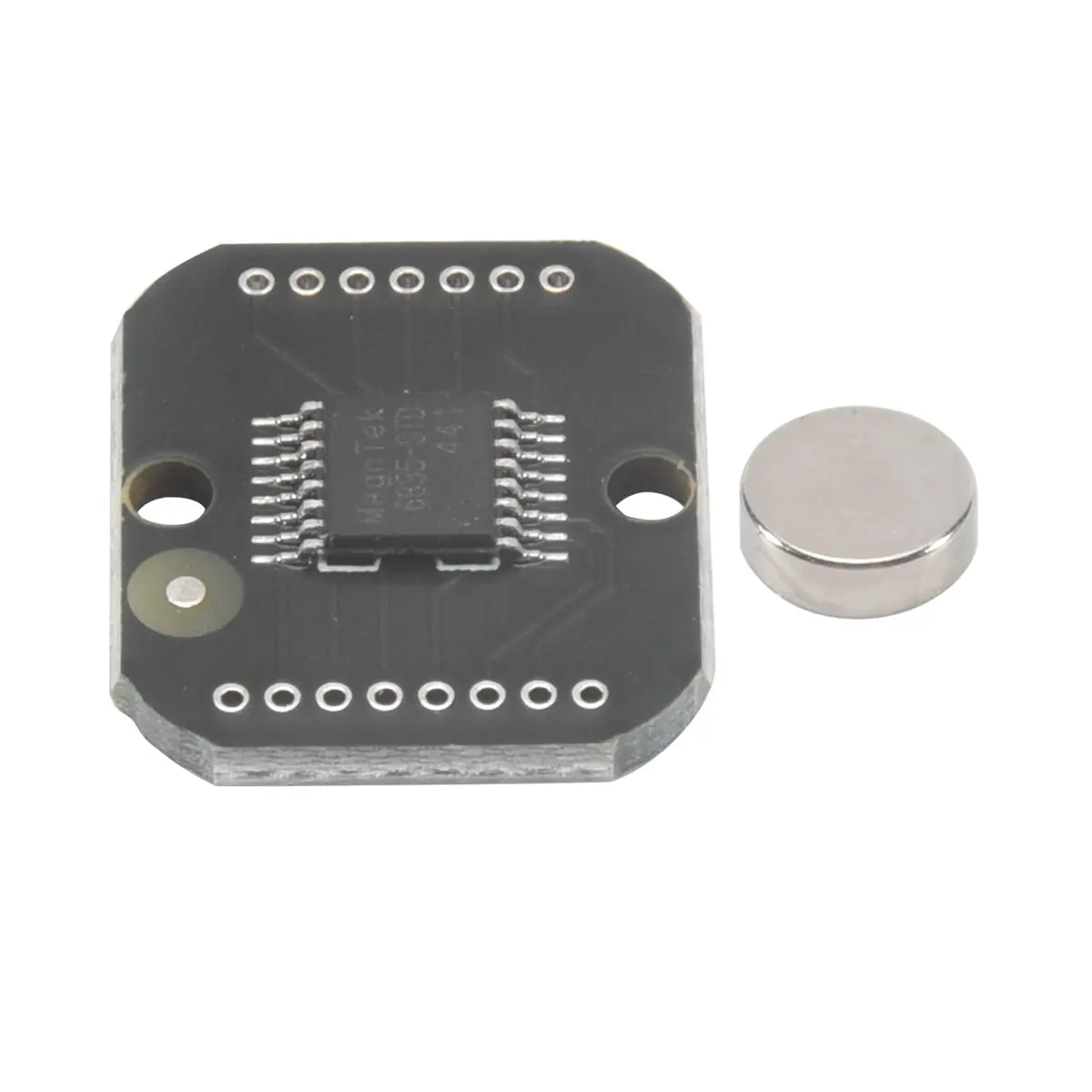

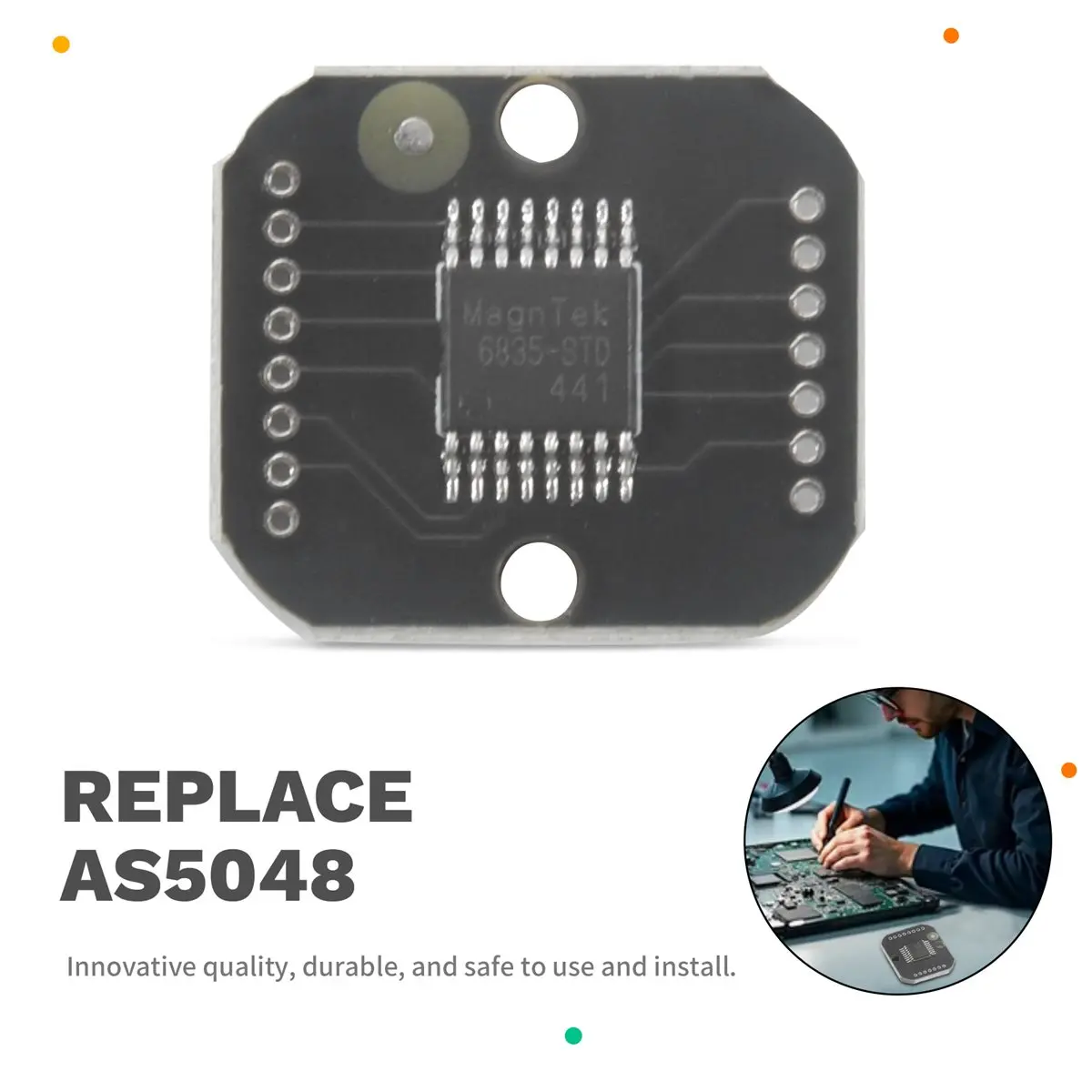

1 x Magnetic encoder

1 x Magnet Only the above package content, other products are not included.
