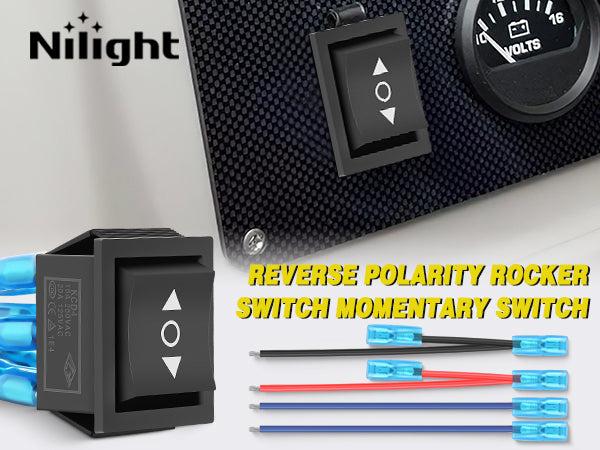

About this item
Specification: 20A@12VDC; 10A@24VDC; 20A@125VAC; 10A@250VAC, this reverse polarity switch can be used under DC and AC circuits
Switch Type: DPDT on off on Momentary. Reset automatically ( returns to off position ) when released

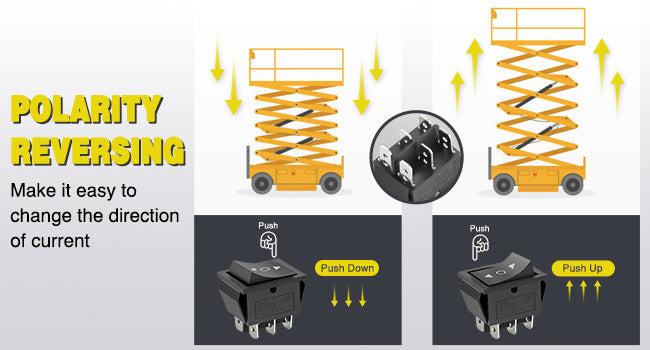

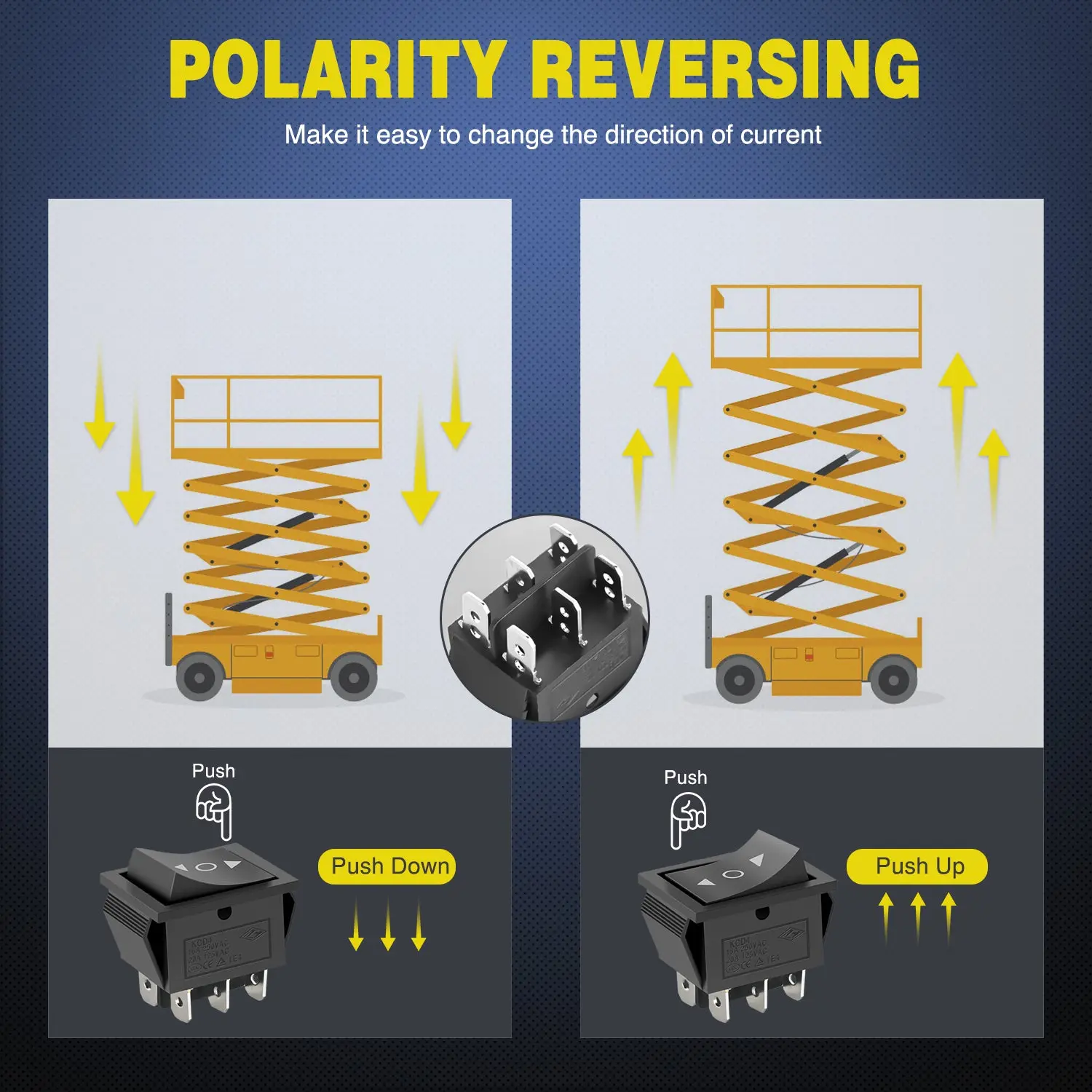

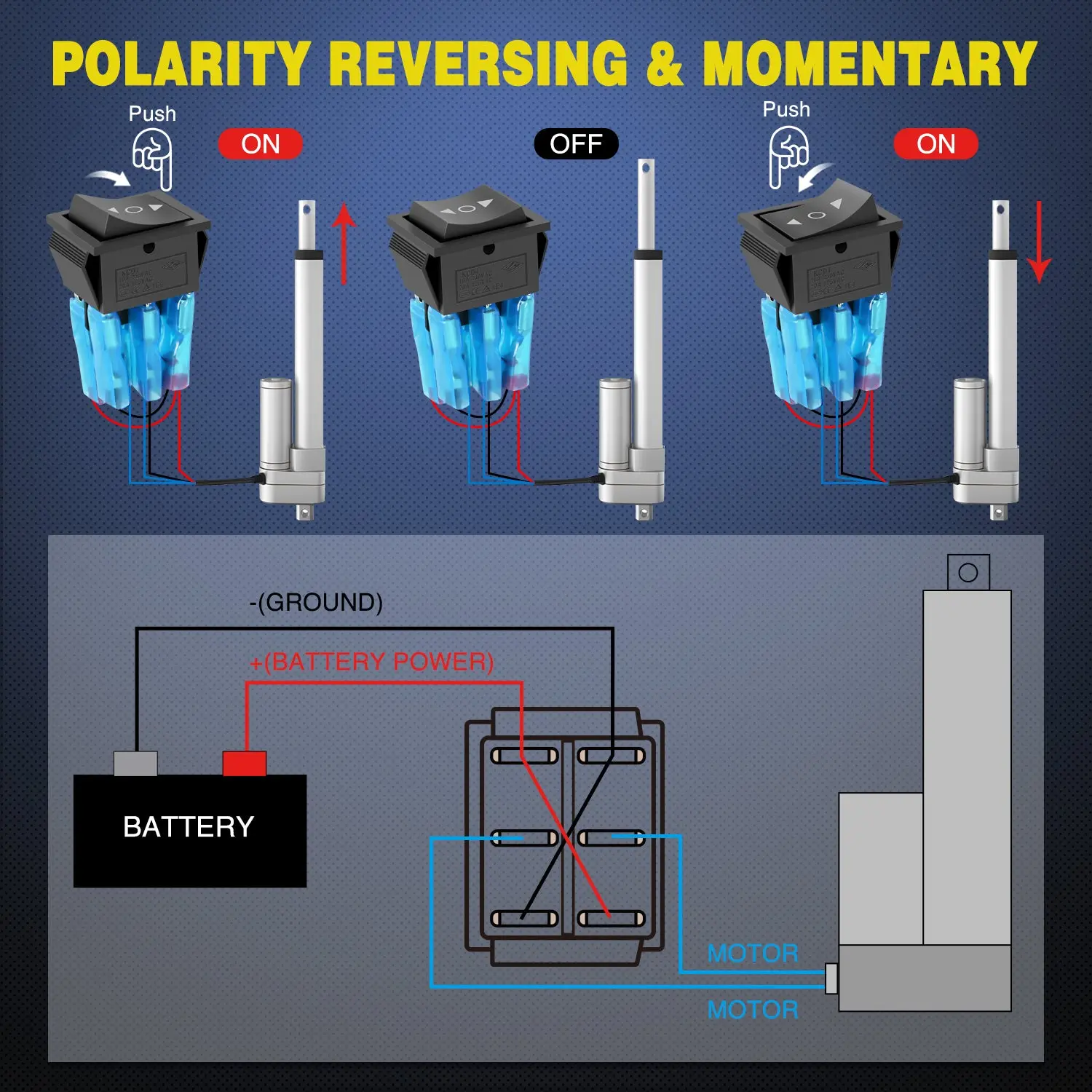

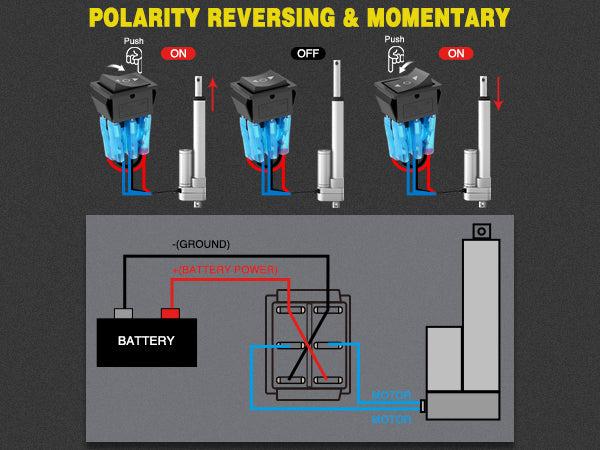

Usage: The DC motor will reverse the motor direction with the switch when hooked red to + VDC and Black to - VDC, and Blue to the Motor. It is configured for polarity reversing. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction
Mounting Hole Size: 29 x 21mm/1.14inch x 0.83inch (LxW); Product Size: 31 x 25 x 35mm/1.21inch x 1inch x 1.4inch (LxWxH)

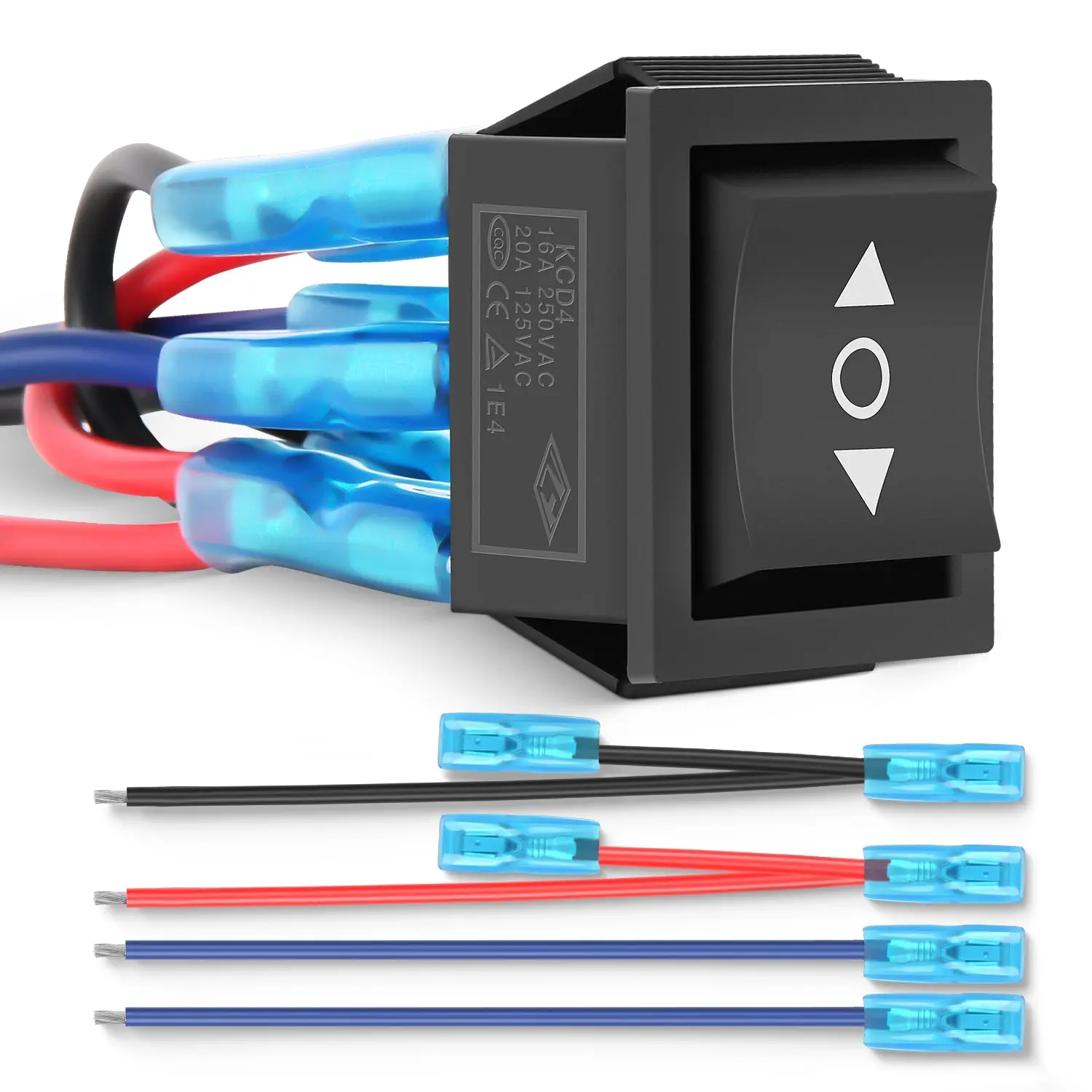

Product Includes: 1PC 6Pin Polarity Reverse Rocker Switch, Jumper Wires

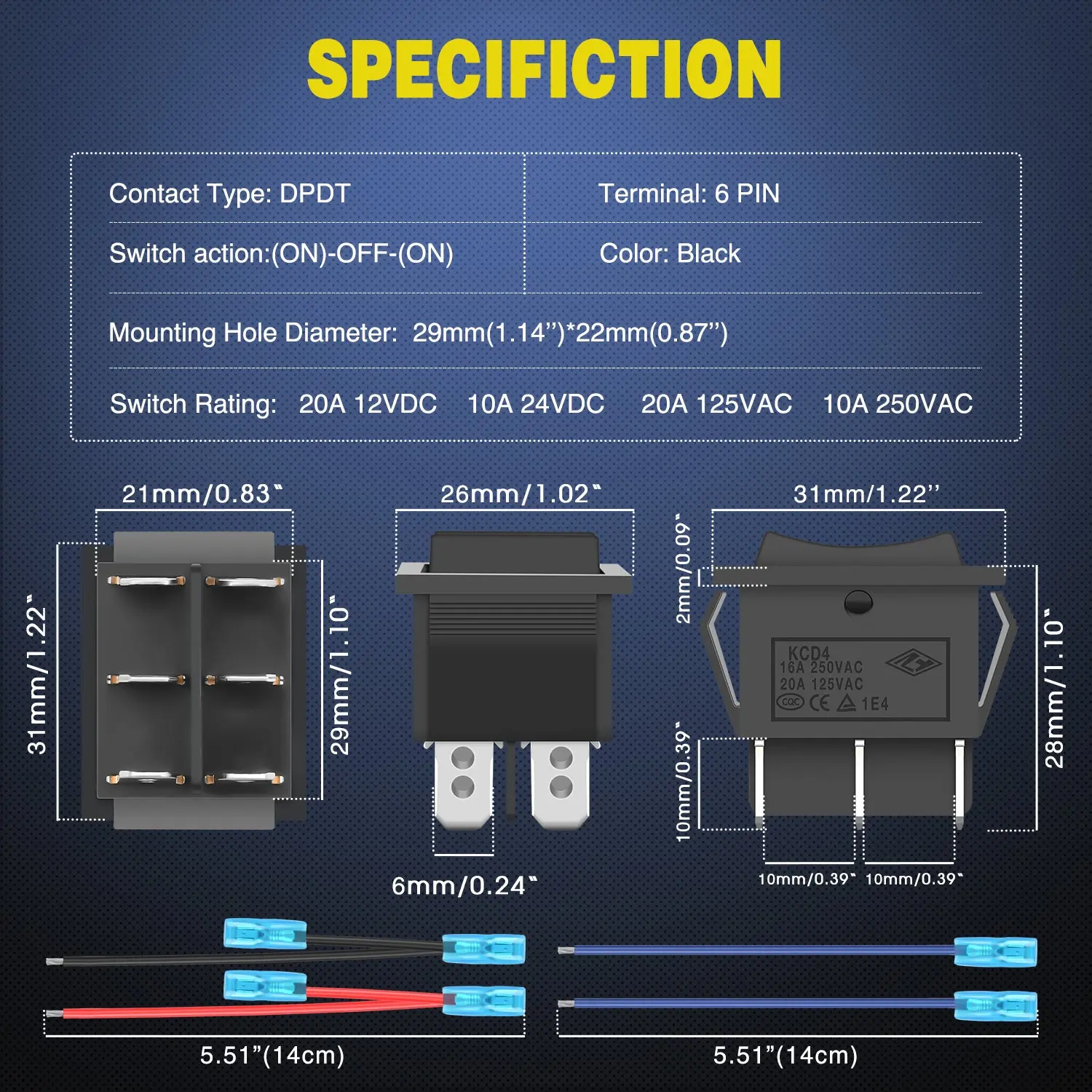

Specification
Connect Type: DPDT
Switch Rating: 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC
Terminal: 6PIN
Switch Action: (ON)-OFF-(ON)
Mounting Hole Diameter:29mm(1.14inch)*22mm(0.87inch)

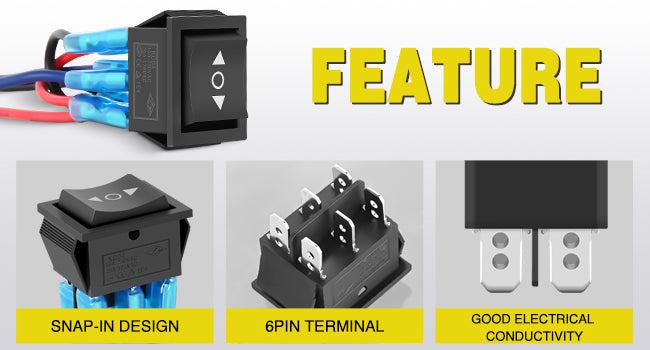

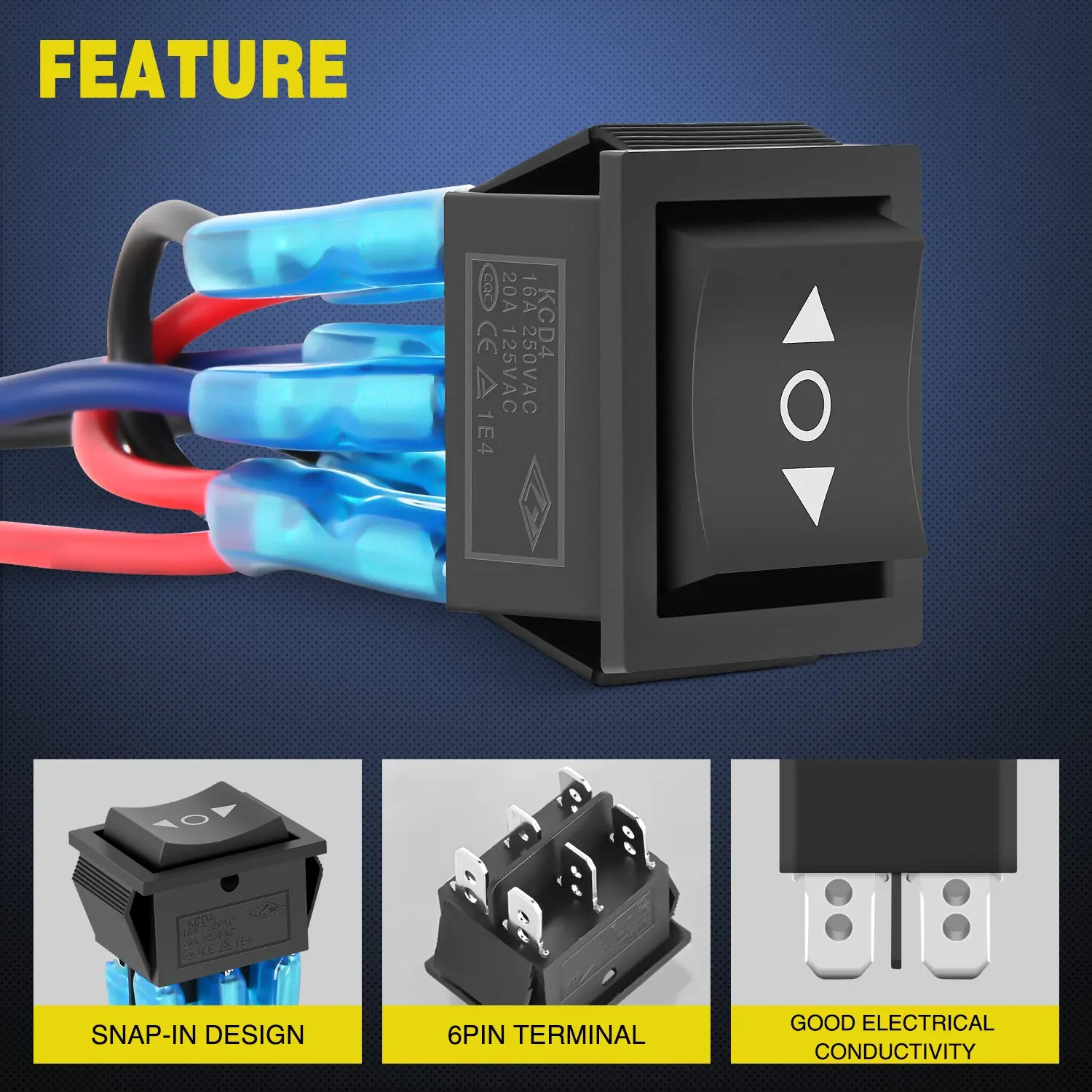

Features

Momentary ON/OFF/ON Switch
Momentary switch design, the button need to be pressed and held to make the momentary rocker switch ON; and release the button to make it OFF.

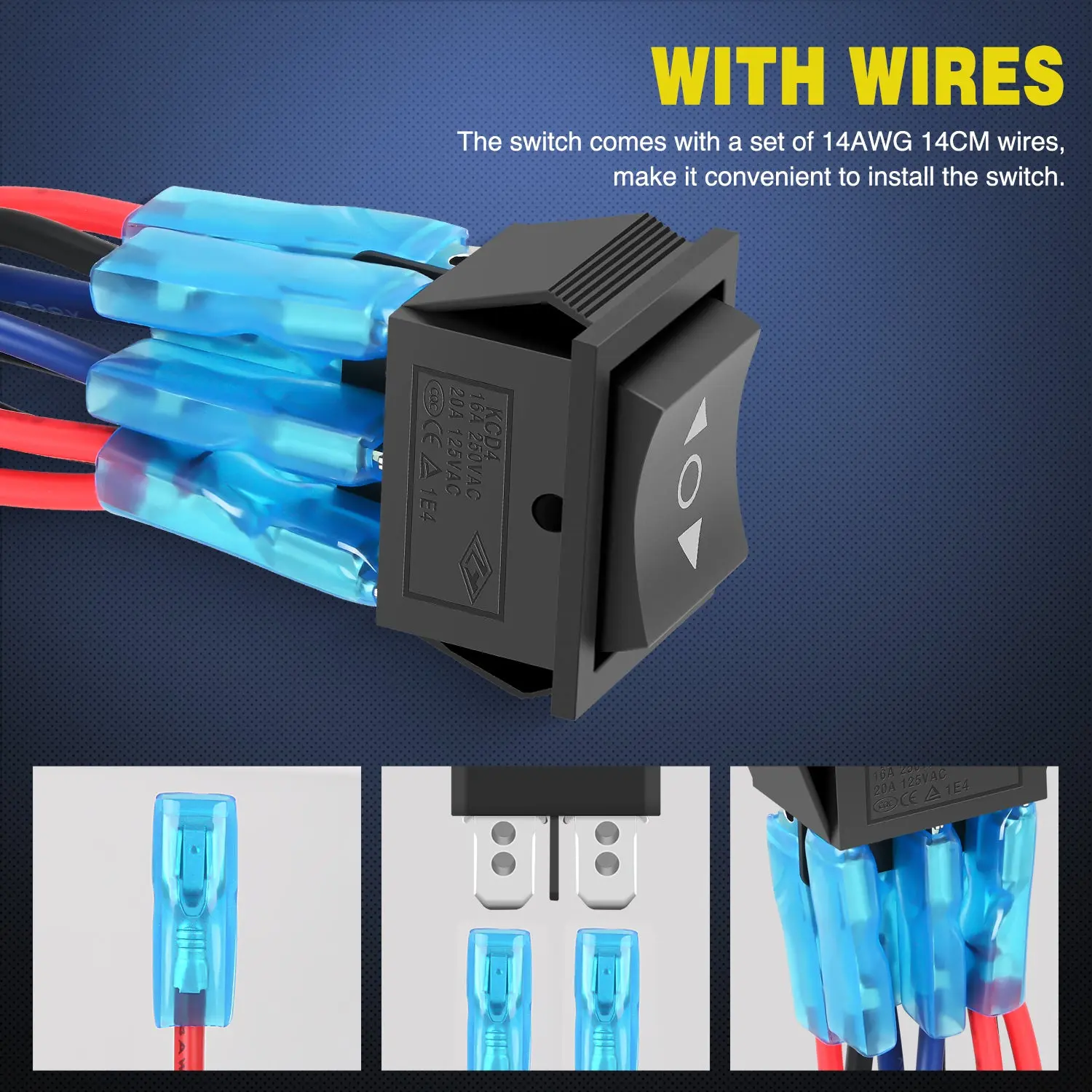

With Wires
The switch comes with a set of wires, make it more convenient to install.

Silver-plated Terminals
Thickened silver-plated terminals make the switch operate stably under 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC.

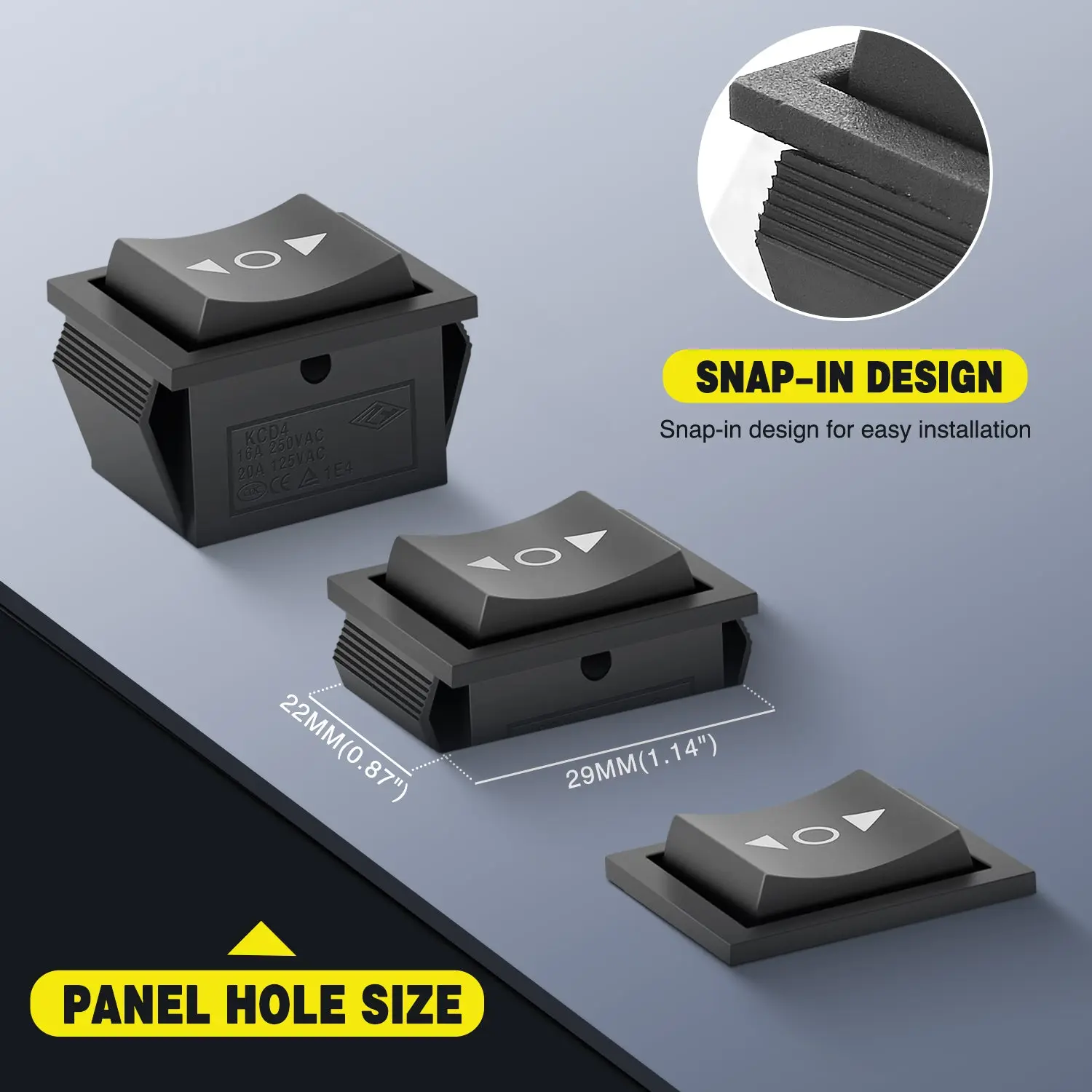

Snap-In Design
Snap in Design make the switch easy to install. Extruding the plastic part, then Push in to the Panel.
