Feature:

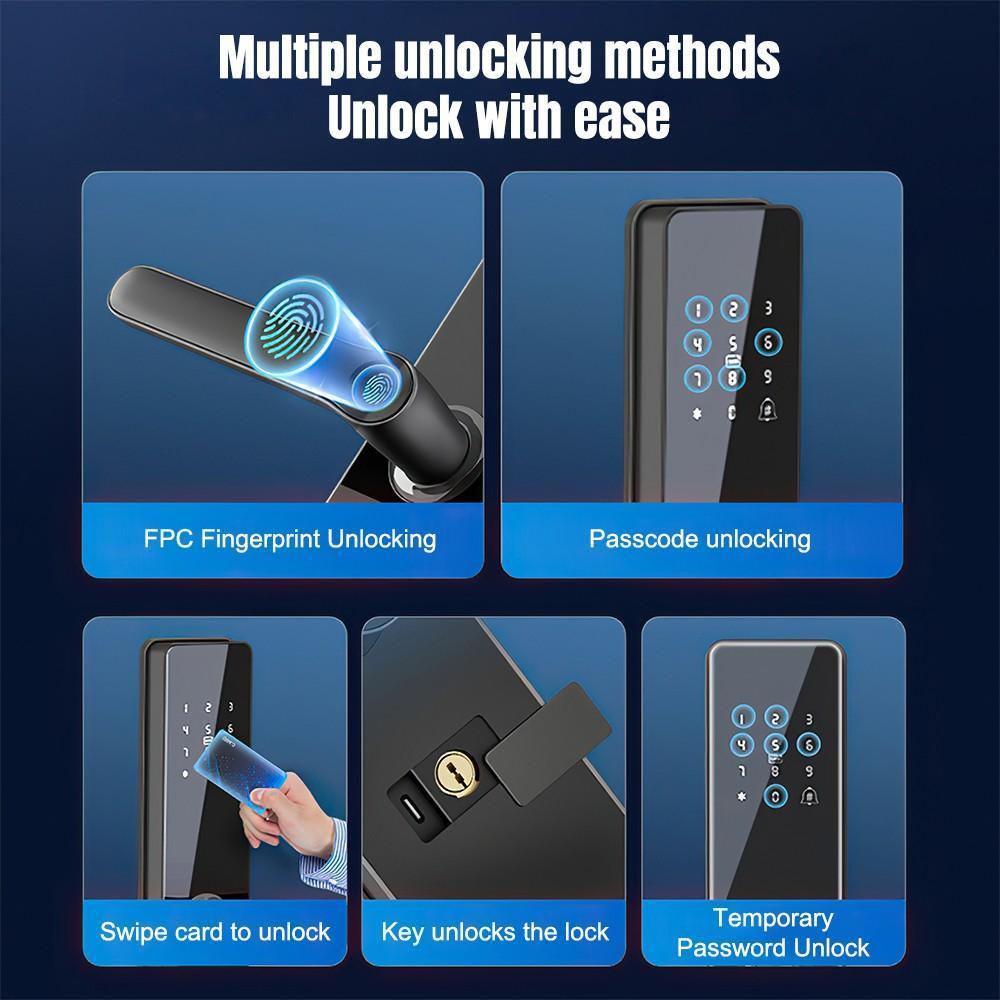

1. Multiple unlocking methods: This 7-in-1 smart door lock can be unlocked by TTLOCK WIFI remote control, fingerprint, anti-peep digital password, IC card, TTLOCK application, temporary password, and mechanical key. Front door lock with short response time, security and convenience are essential for a smart home.

2. Smart door lock: This keyless entry door lock can easily manage your smart lock through the "TTLOCK" APP, and you can authorize multiple administrators to manage it. You can modify the volume and opening direction of the door lock and use the mechanical key and emergency power supply when the door lock is out of power.

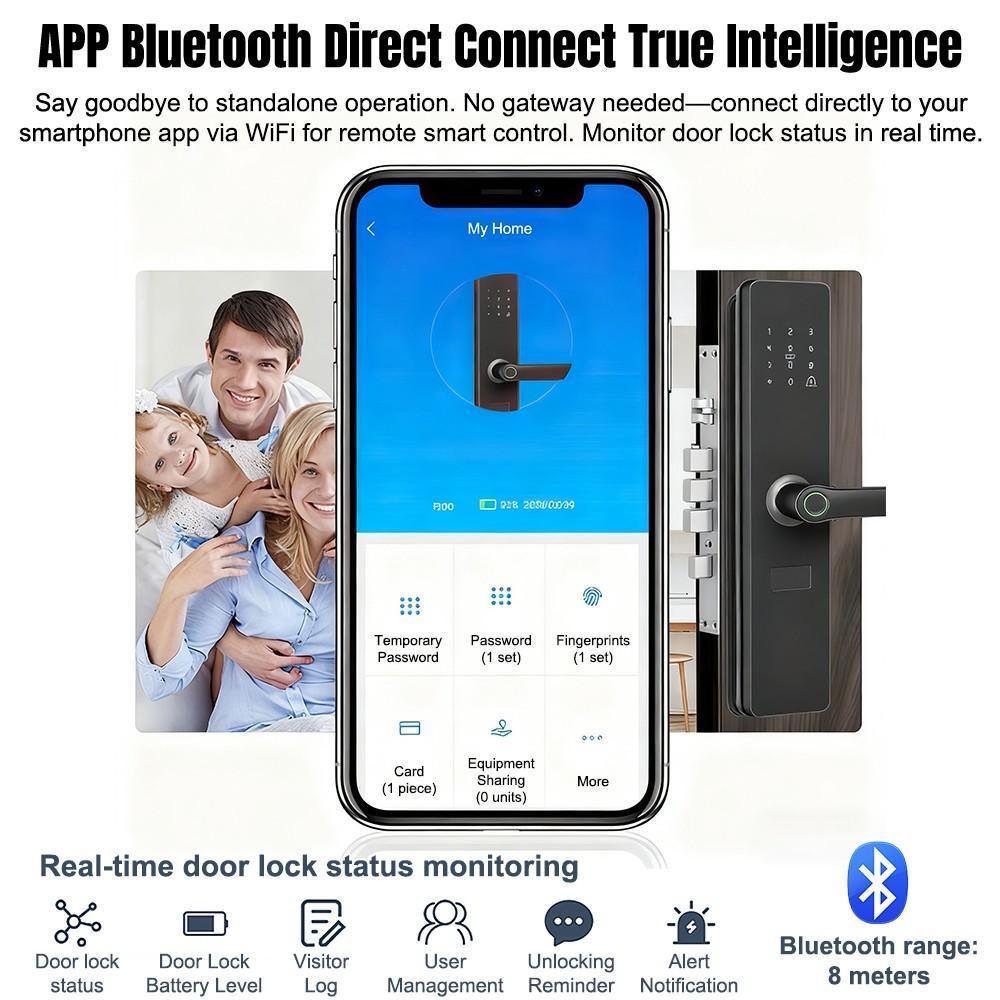

3. APP remote control: This keyless entry door lock allows you to view visitor records on the Tuya APP, check which visitor unlocked at what time, and improve the security level of you

4. Ultra-safe lock body: equipped with a 24*240MM super strong lock body, with 5 stainless steel lock tongues, greatly improving your home's security level.

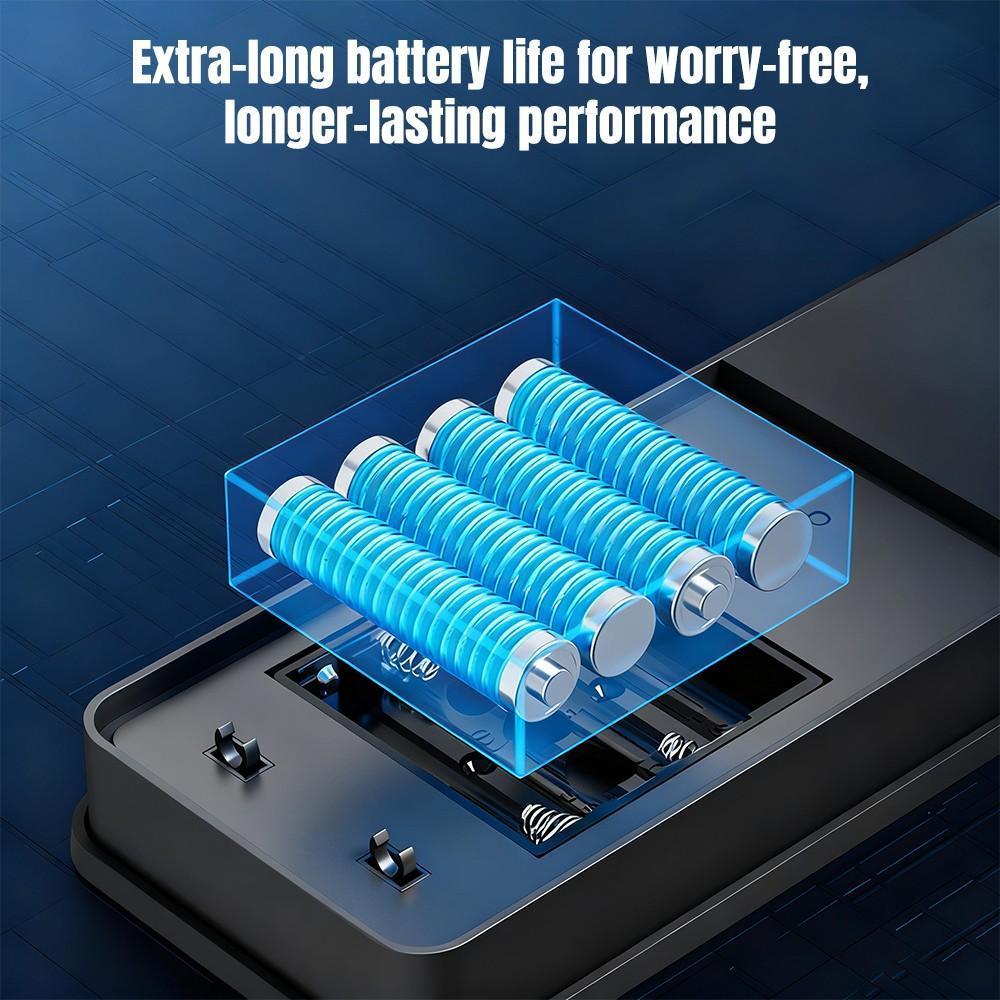

5. Long battery life: 4 AA batteries (not included) can provide 5000 openings (about 6 months). Upgrade the anti-touch function. As long as the number you enter contains the correct sequence code it will unlock.

6. Easy to install: The fingerprint electronic door lock can be easily installed by yourself in a few minutes with just a screwdriver, no additional drilling, and no need for professional locks. Suitable for door thickness: 60mm

Specifications:

APP:ttlock

Product Material: Iron

Supported mobile operating systems: Android 4.3/iOS 7.0 and above

Power supply mode: 4 alkaline dry batteries (without batteries)

Low voltage alarm voltage: 4.8V

Voltage range: 4.5~9V

Standby current: 85 microamperes

Working current: less than 200mA

Working temperature range: -20~70 degrees Celsius

Button type: capacitive touch button

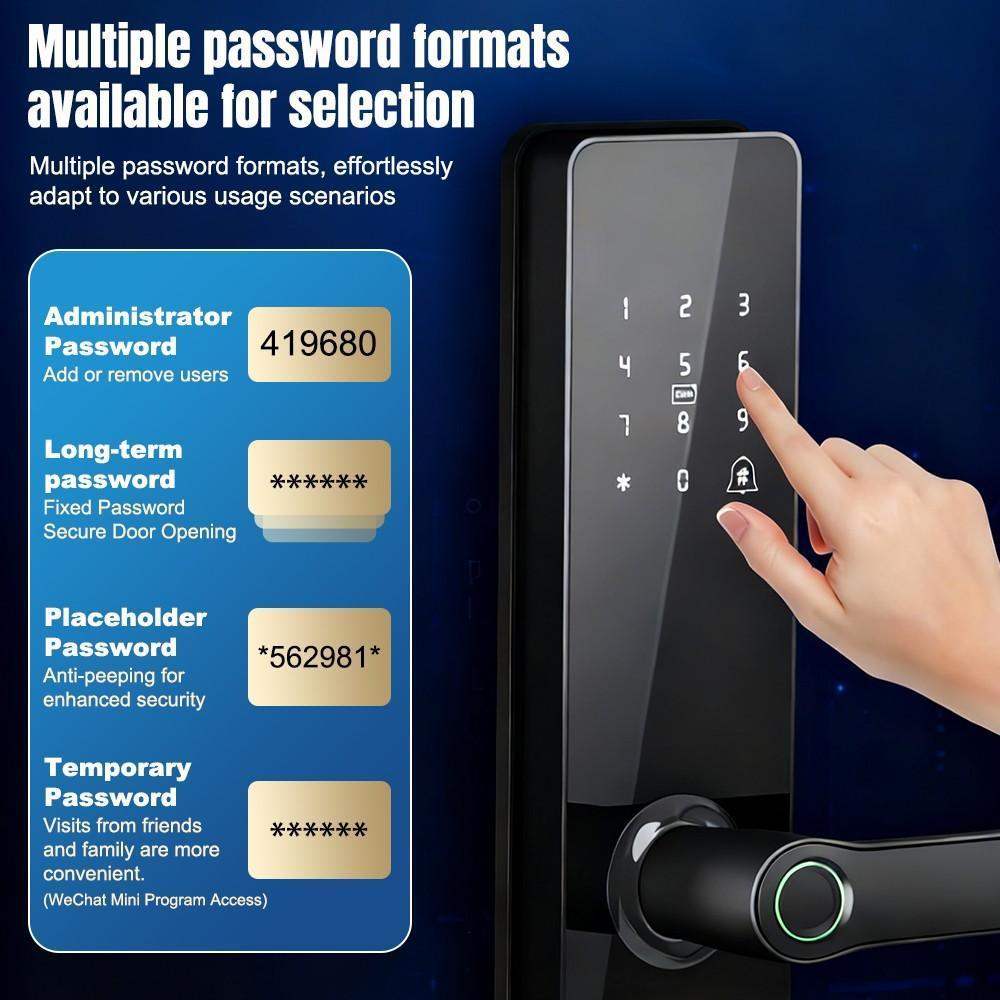

Password quantity: 250 custom and permanent passwords

Other dynamic passwords: unlimited

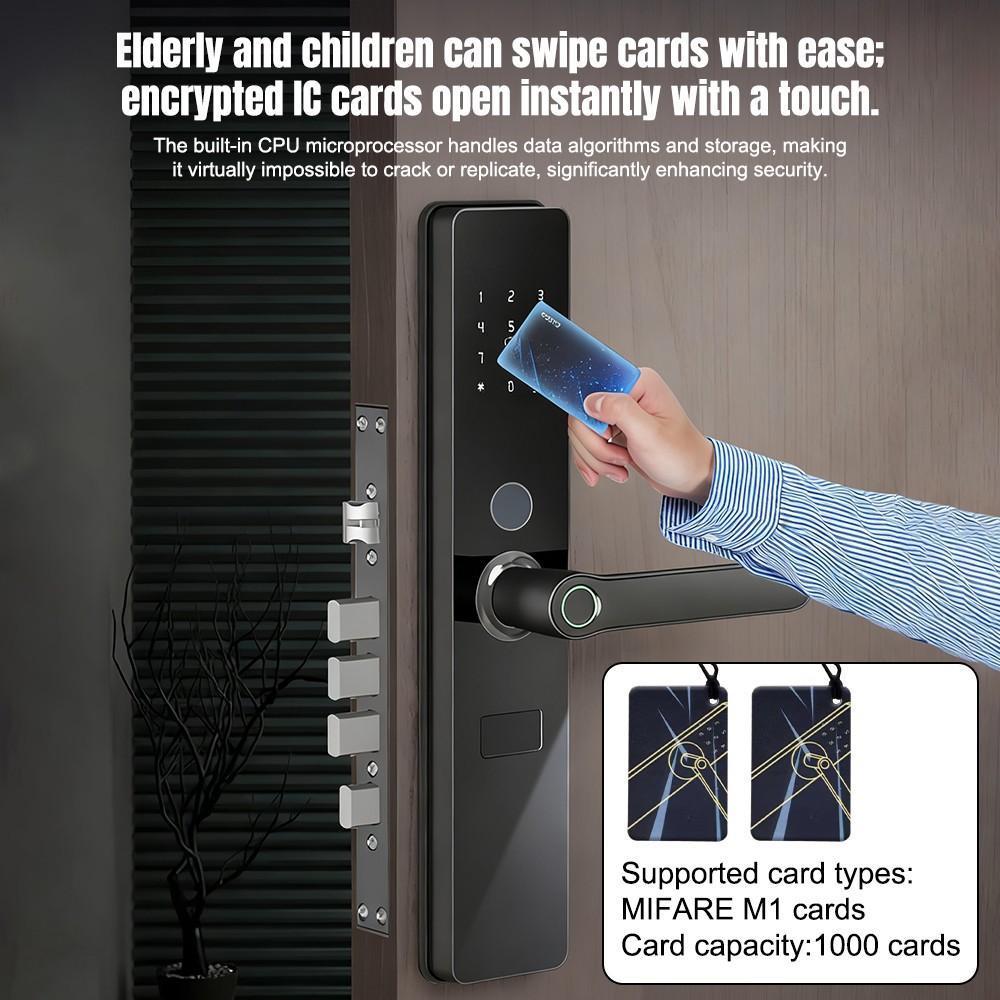

Supported card types: MIFARE M1 card

Unlocking methods: App, password, fingerprint, card, remote control, mechanical key

Bluetooth range: 8 meters

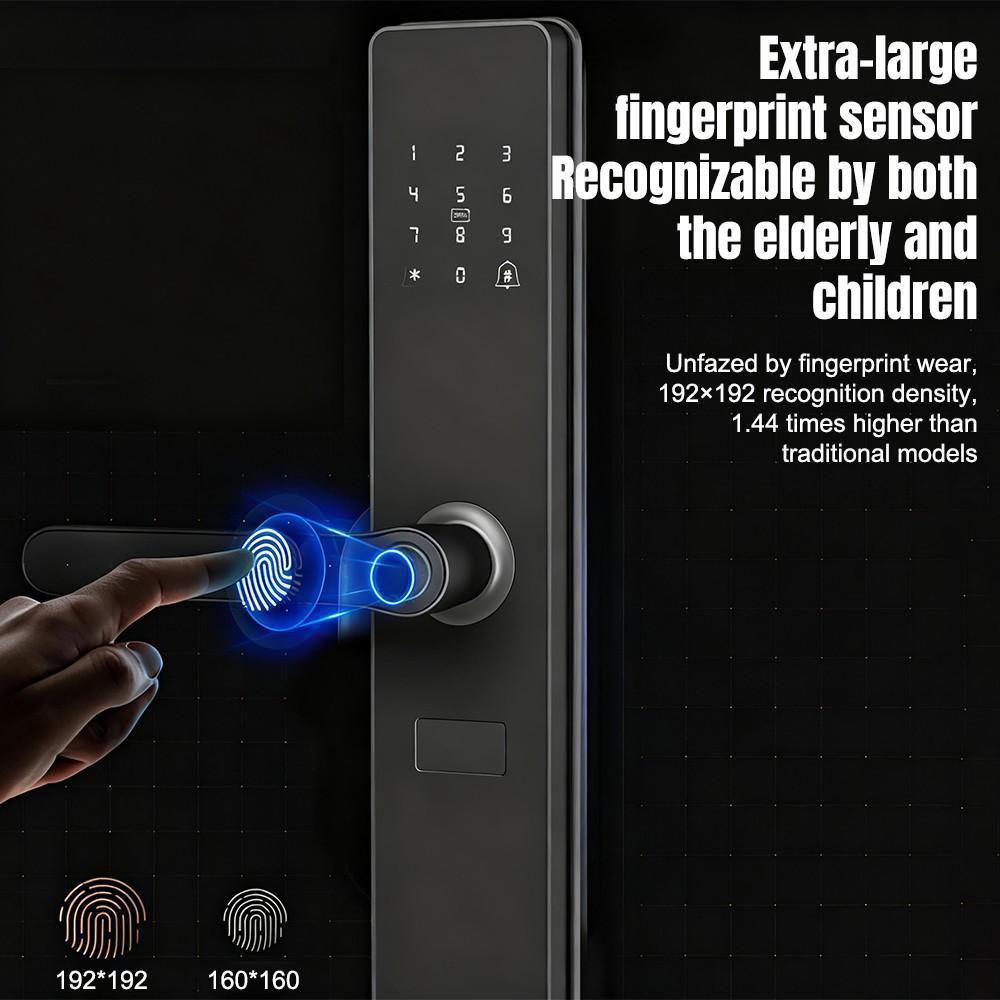

Fingerprint head type: semiconductor fingerprint head

Fingerprint capacity: 100 pieces (adjusted according to actual usage model)

False recognition rate: (FAR) ＜ 0.001%

Rejection rate: (FRR) ＜ 1.0%

Suitable door thickness: 60 (mm)

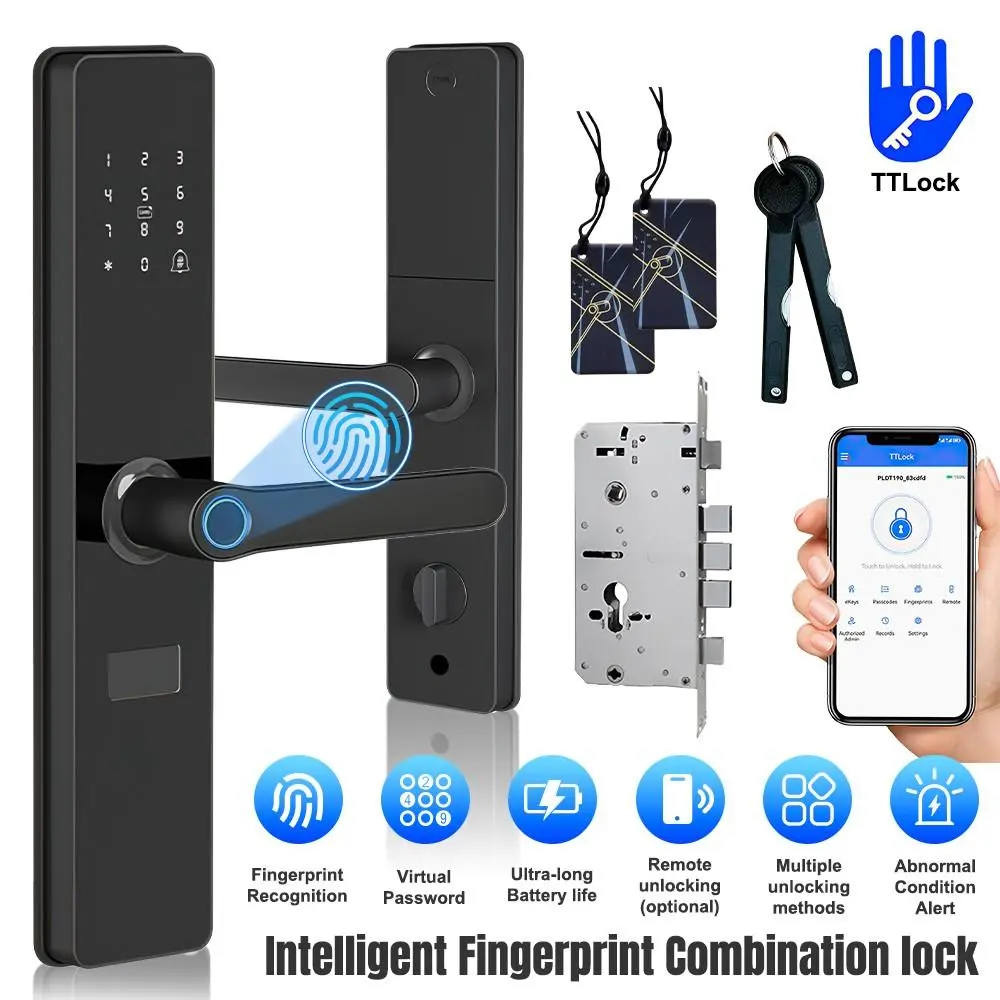

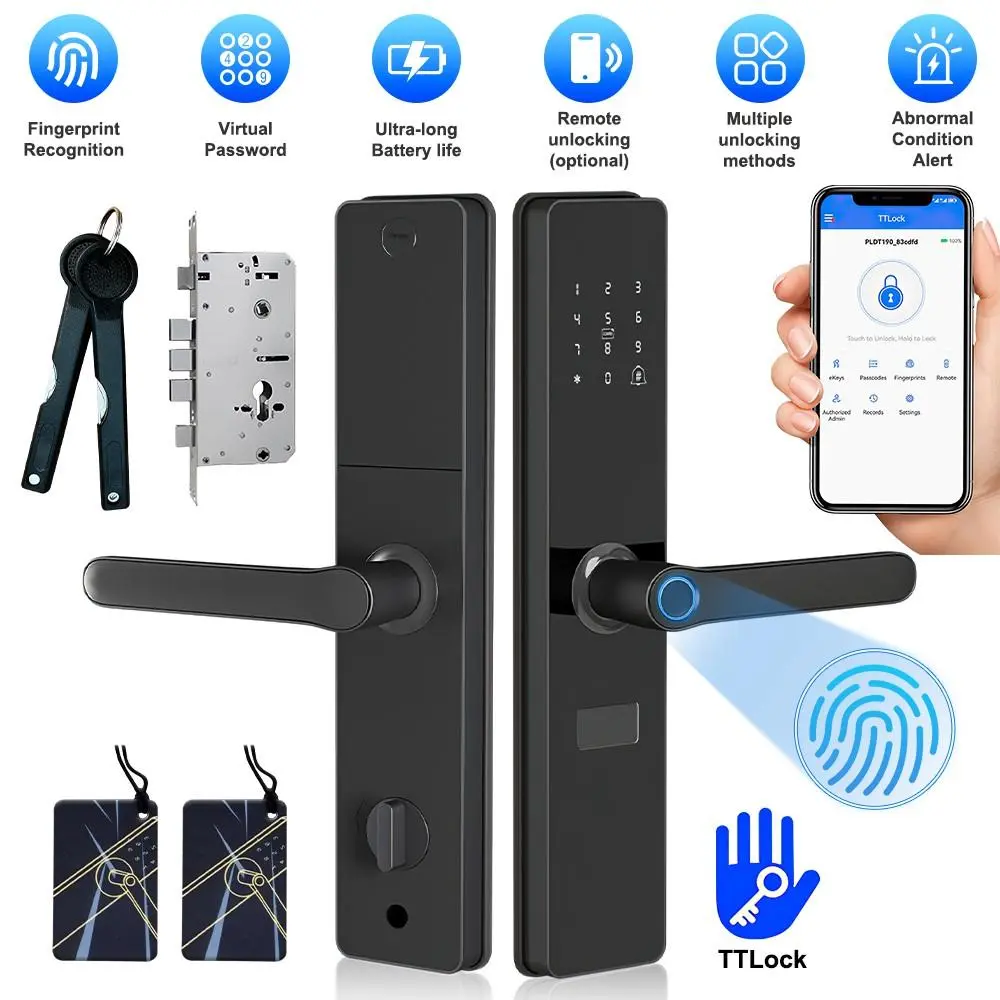

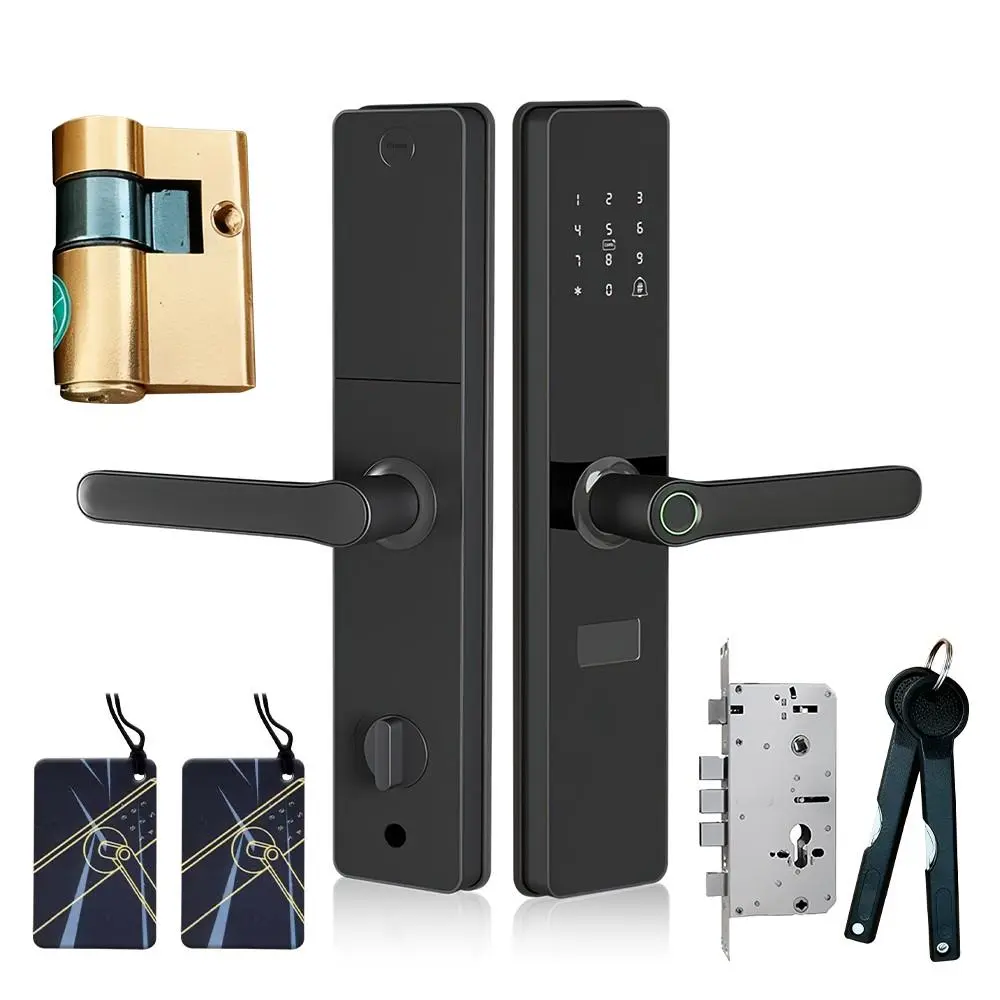

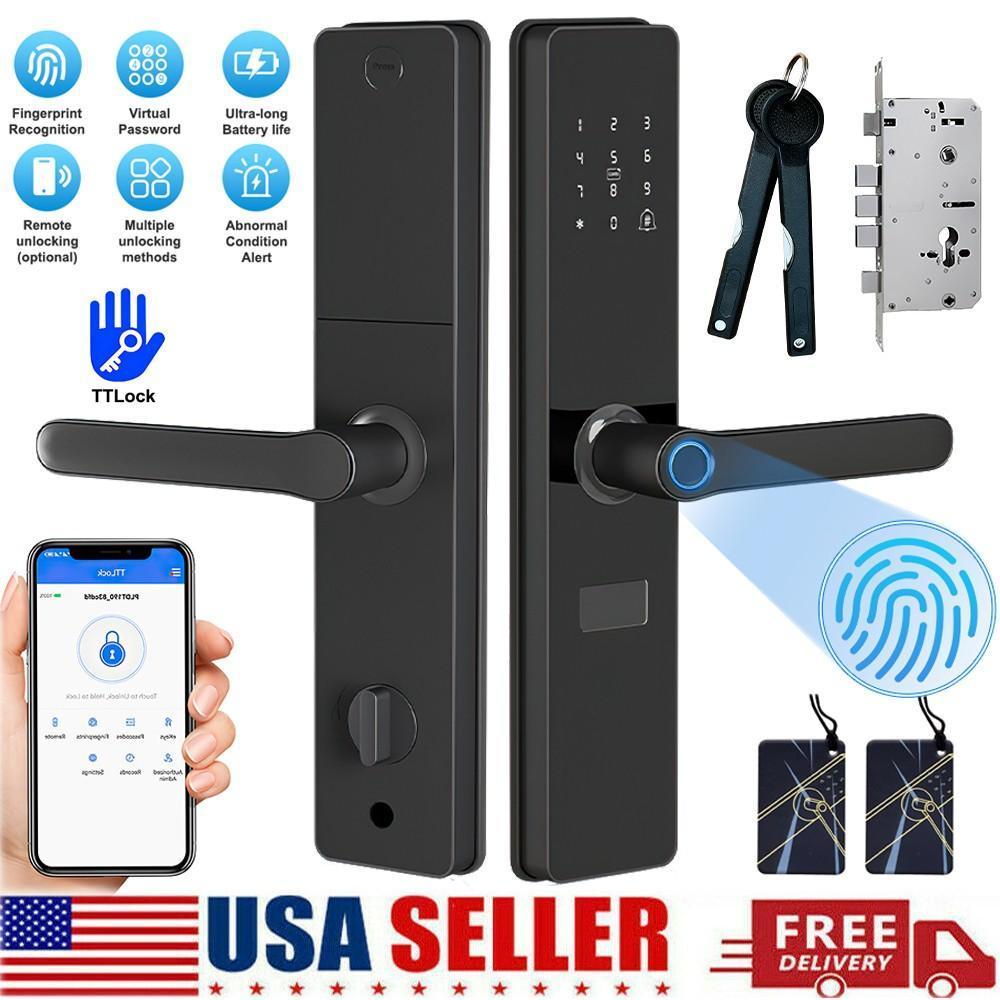

Package List:

1 x Front and Rear Panels

1 x lock body

1 x Lock Head

2 x keys

2 x cards

1 x accessory kit

1 x Instruction Manual

Operate:

1. Add fingerprints (the first 3 fingerprint users are administrators, and the fourth and above fingerprints are ordinary users)

A: Add a user for the first time: Press the setting button - the blue light flashes - press your finger 5 times until the green light is always on, indicating success, the entry is completed and the setting is automatically exited

B: The second addition: press the setting button - the blue light flashes - verify the administrator once - the verification is successful, the blue light is always on - enter a new fingerprint and press the finger 5 times until the green light is always on, indicating success

2. Delete fingerprint

Press and hold the setting button for 9 seconds - the blue light flashes, and the red light flashes after 9 seconds, release the hand, and the green light appears, indicating that the factory reset is successful

Note:

The product comes with English instructions, please follow the instructions to install and set up the smart door handle.

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.  Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
