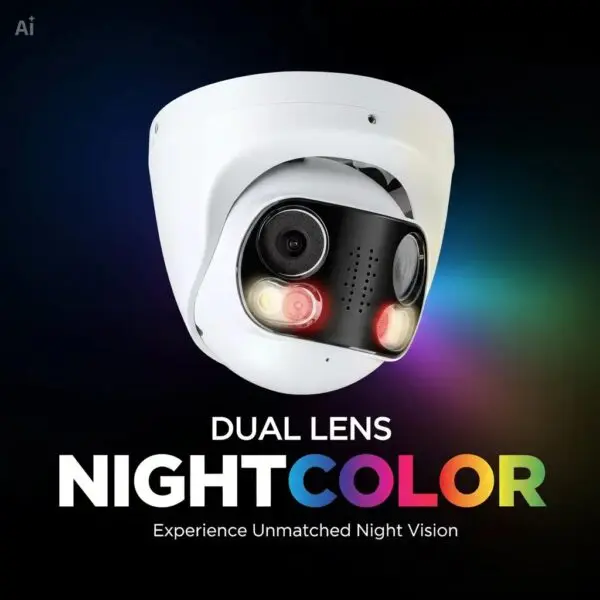

8MP Super Wide Angle Night Color Network Turret Camera, NDAA NDAA Compliant • 2.8mm Fixed Lens x 2 • Night Color • D-WDR • H.265 / H.264 • 98ft (25m) IR Range • 65ft (20m) White Light Range • Dual Illumination • Built-in Microphone • Built-in Speaker • 12VDC & PoE • IP66 • P2P Support • SD Card Slot

Description

FEATURES NDAA Compliant Binocular stitching 8MP (4096*1944) Super wide angle coverage, high- definition image effect Max. 4096*1944@20fps(50Hz/60Hz) The double lens splicing technology is adopted to realize the horizontal viewing angle of 170.00° Support RTSP & Onvif(17.2 with profile S) Compatible with many third-party NVRs and CMS Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc. Support Alarm Snapshot to Email and FTP Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT, D-WDR, Mirror, Image Flip etc. Functions 2.8mm fixed Lens*2 98.43ft (30m) w/ 4pcs LEDs 65.62ft (20m) White Light IP66 Weather-Resistant 12V DC & PoE Built-in Microphone Built-in Speaker SD Card Slot

SPECIFICATIONS

CameraImage Sensor1 / 2.9" CMOS SensorSignal SystemPAL / NTSCMin. Illumination0.05lux @(F1.6, AGC ON) 0 lux with IRShutter Time1 / 25 s to 1 / 10,000 sLensTwo 2.8mm Fixed LensDay&NightIR cut filter w / auto switchImage EnhancementBLC 3D DNR D-WDRMotion DetectionSupportPrivacy ProtectionSupport (4 custom areas)Smart functionHumanoid detection Vehicle detectionWather-ProofIP66Illumination for Infrared Switching1 ~ 5LuxInfrared Wavelength850nmMimimum Illumination0 Lux(IR ON)IR Range98.43ft (30m) w / 4pcs LEDsWhite Light Range65.62ft (20m)Compression StandardVideo CompressionH.265 / H.264Video Bit RateMain Stream: 512Kbps~12288Kbps (H.265) Sub Stream: 64kbps~1024Kbps (H.265)Audio CompressionG711U / G711A / AACDual StreamsYesTriple StreamsNoImageMax. Image Resolution4096*1944@20fps(8MP)Frame Rate8MP ( 4096*1944), Max 20fps.MAX main stream 1280*360, Max 20fps .MAX sub streamImage Settings3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone AppDay / Night SwitchEXT / Day / Night / Auto / TimeAudioVolume adjustYesBuilt-in MicYesBuilt-in SpeakerYesNetworkNetwork ProtocolsHTTP, TCP / IP, IPv4 / v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS,IP Search(Support P2P, NVR, NVS etc.)General FunctionAnti-Flicker, heartbeat, password protection, privacy mask, WatermarkSystem CompatibilityONVIF(17.2 with profile S)On-line ViewingMax. Support 2 Users SimultaneouslyInterfaceCommunication Interface1 RJ45 10M / 100M Ethernet InterfaceSD card interfaceSupport TF card (Micro TF card, up to 256GB)GeneralOperating Conditions−10 °C ~ 60 °C Humidity 95% or less (non-condensing)Power Supply12 VDC ± 10% PoEPower Consumption12 VDC ± 10% Max Power consumption Less than 8W (When the infrared lamps turn on)
