PROFESSIONAL RAPID TRIGGER F-CLAMP
USER GUIDE & DUAL-MODE OPERATING INSTRUCTIONS
Versatile, Durable, and Engineered for Precision. This F-clamp features a quick-release mechanism that allows for seamless switching between Clamping and Spreading modes.

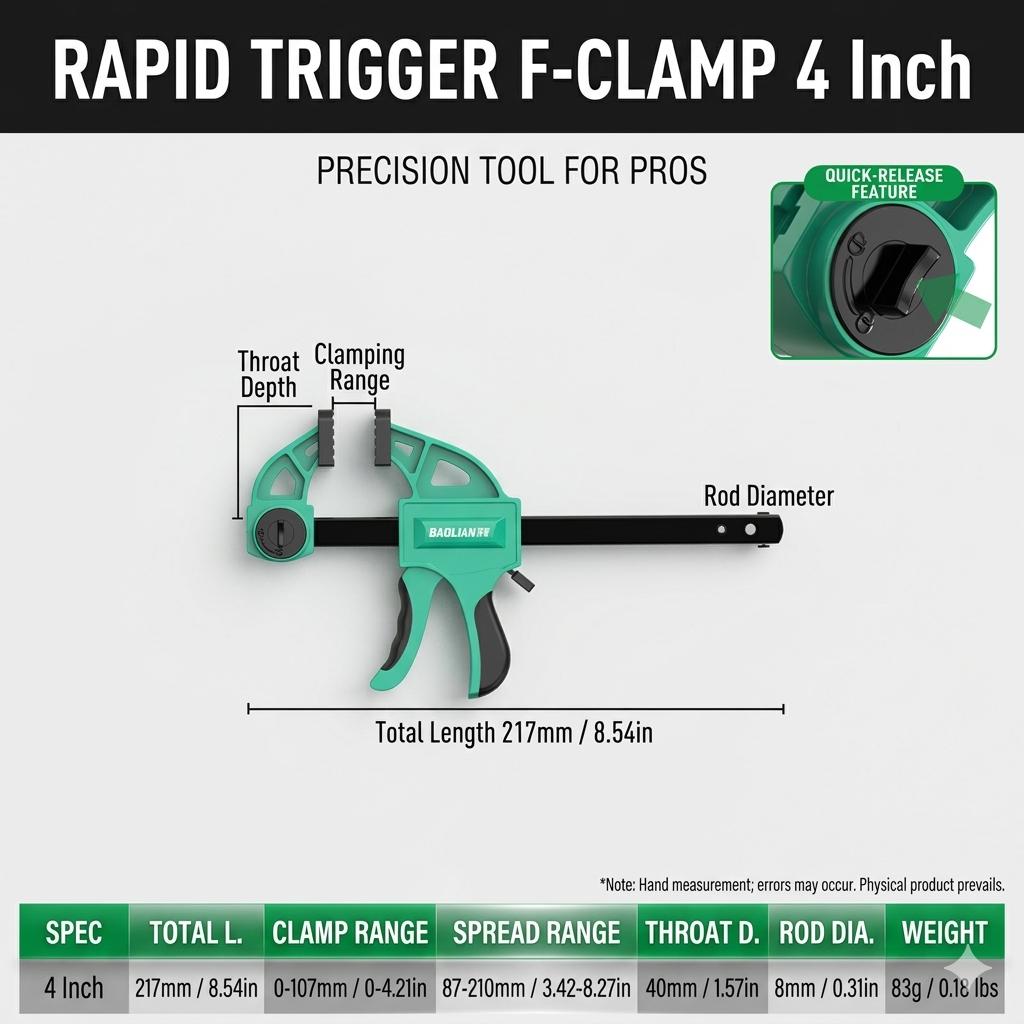

1. SPECIFICATIONS
Size: 4 Inch (Total Length: 217mm / 8.54in)
Clamping Range: 0-107mm (0-4.21in)
Spreading Range: 87-210mm (3.42-8.27in)
Material: Reinforced Cast Steel & High-Strength Engineering Polymer
Max Load: Heavy-duty load-bearing, fracture-resistant body.
2. DUAL-MODE TRANSFORMATION (4 EASY STEPS)
No screwdriver required. Seamlessly switch functions in seconds.
PRESS & RELEASE: Press the quick-release button to unlock the jaw.
SLIDE OFF: Slide the movable jaw completely off the steel rail.
REVERSE: Reverse the direction of the jaw and slide it back onto the opposite end of the rail.
READY TO USE: Your tool is now in Spreader Mode. Simply trigger the handle to apply outward pressure.
3. KEY FEATURES
Quick-Release Trigger: Instant one-handed adjustment and pressure release.
Rotating Jaws: Non-marring pads protect delicate surfaces while providing a firm grip.

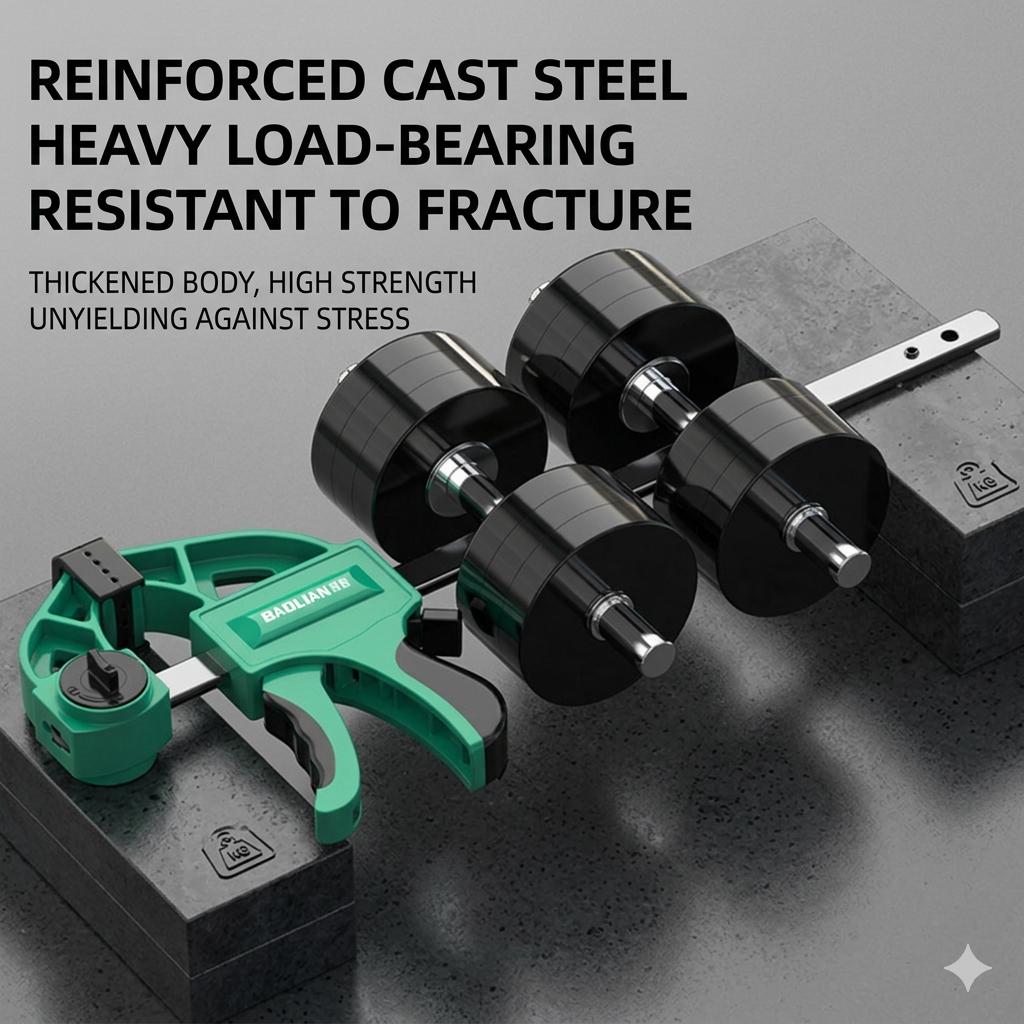

Thickened Body: Reinforced cast steel rod for unyielding strength against high stress.
4. SAFETY & MAINTENANCE
Eye Safety: Wear protective gear when working under high tension.
Load Limit: Do not exceed the maximum spread/clamp capacity.
Cleaning: Periodically wipe the steel rail with a light coat of oil to ensure smooth sliding and prevent rust.
