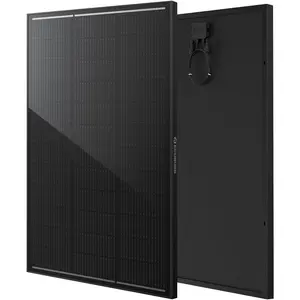

ECOBOSS 100W solar panel Specification details

Maximum Power - 100W

Maximum Power Voltage - 20.88 V

Maximum Power Current - 4.79 A

Open-circuit Voltage - 23.1 V

Short-circuit Current - 6.05 A

Cell Type - Monocrystalline Silicon (N-Type)

Efficiency - 25.6%

Maximum System Voltage - 1000V DC

Dimension - 35.8 in * 23 in * 1.18 in

Weight - 12 lbs

IP Rating - IP68

Max.Wind Load/Snow Load - 2400Pa/5400Pa

Frame - Anodized Aluminium Alloy

Glass - 3.2mm Tempered Glass

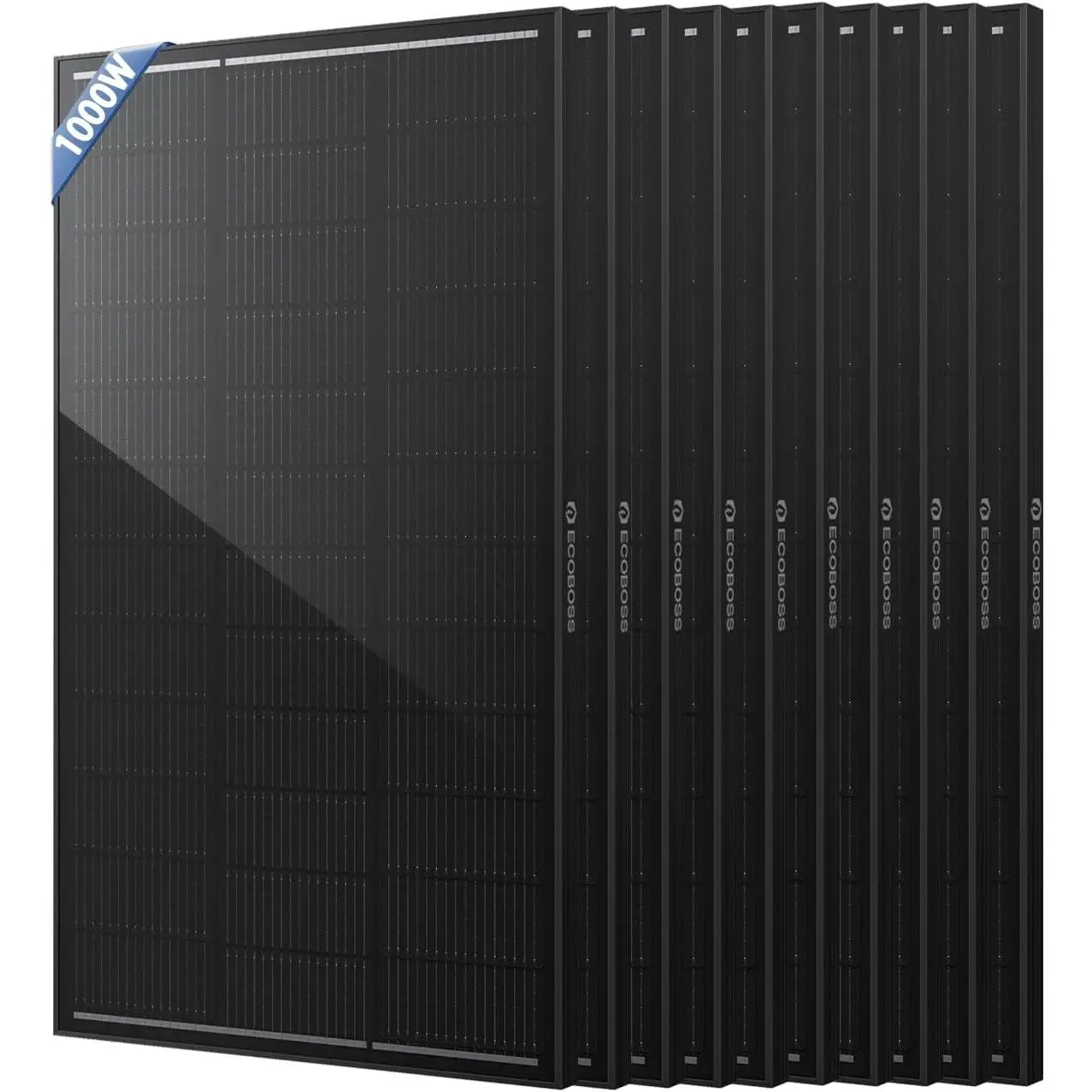

ECOBOSS 100W Solar Panel – High Efficiency Power for Off-Grid Life

Performance – Next-Gen N-Type High Efficiency

The ECOBOSS 100W solar panel features advanced N-Type monocrystalline cells with 16BB busbar technology, delivering up to 25.6% conversion efficiency.Compared with traditional P-Type panels, it provides higher power output, better reliability, and significantly lower long-term degradation.

Advantages – Stronger Output & Stable Performance

The optimized 16BB structure improves current collection efficiency and reduces internal resistance, effectively minimizing hot spots and micro-cracks.This ensures stable and consistent energy output even under demanding conditions.

Application – Designed for 12V Off-Grid Systems

Designed for 12V battery systems, fully compatible with MPPT and PWM charge controllers, and suitable for most portable power stations.

Ideal for:

• RVs

• Vans

• Boats

• Cabins

• Off-grid solar systems

Weather Resistance – Reliable in High Heat

With a low temperature coefficient, this panel maintains strong efficiency even in high-temperature environments, reducing power loss during hot weather and ensuring stable performance in desert, coastal, and high-heat regions.

Durability – Built for 30 Years Outdoor Use

Built with 3.2mm low-iron tempered glass, corrosion-resistant aluminum frame, and reinforced structure, engineered for long-term outdoor durability and harsh environments.

Why Choose ECOBOSS?

• Higher efficiency output

• Lower long-term degradation

• Strong performance in heat

• Built for off-grid reliability

Product Highlights

• Power: 100W

• Cell Type: N-Type Monocrystalline

• Efficiency: Up to 25.6%

• Structure: 16BB Busbar

• Lifespan: Up to 30 years

• Application: 12V Off-grid systems
