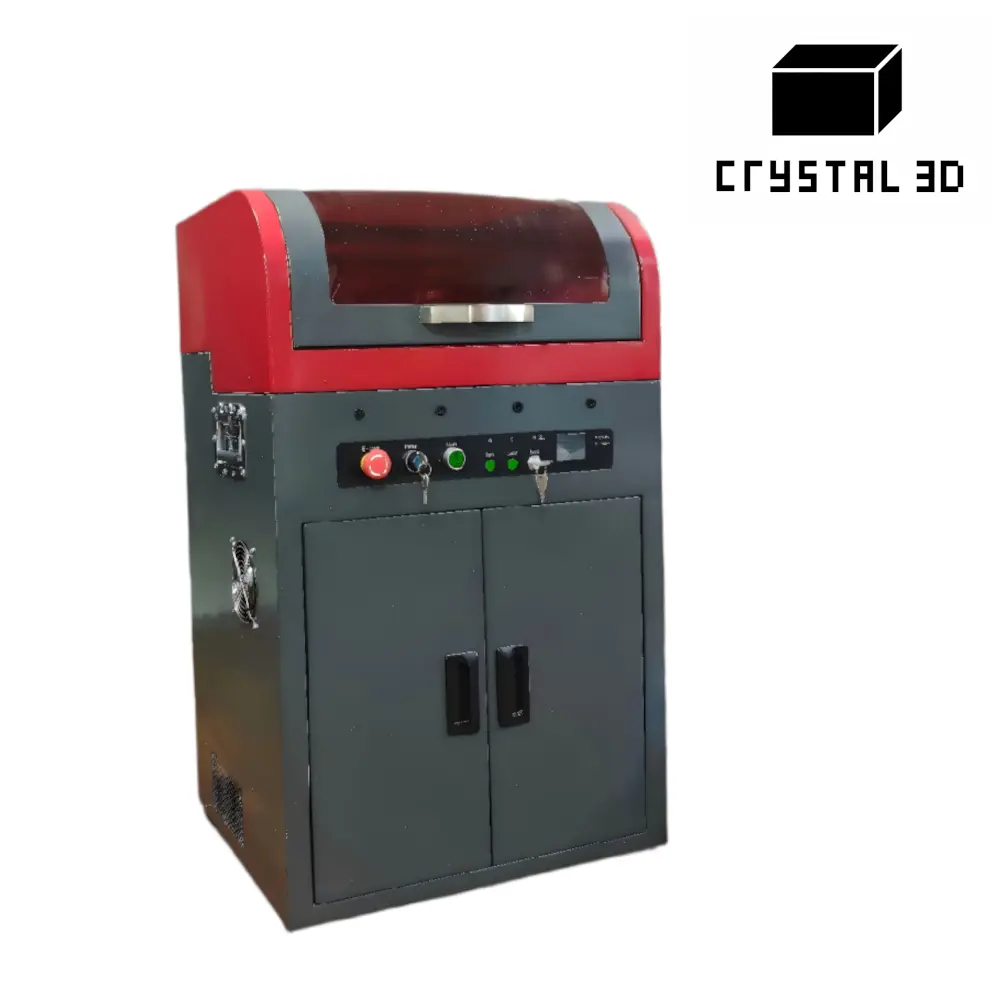

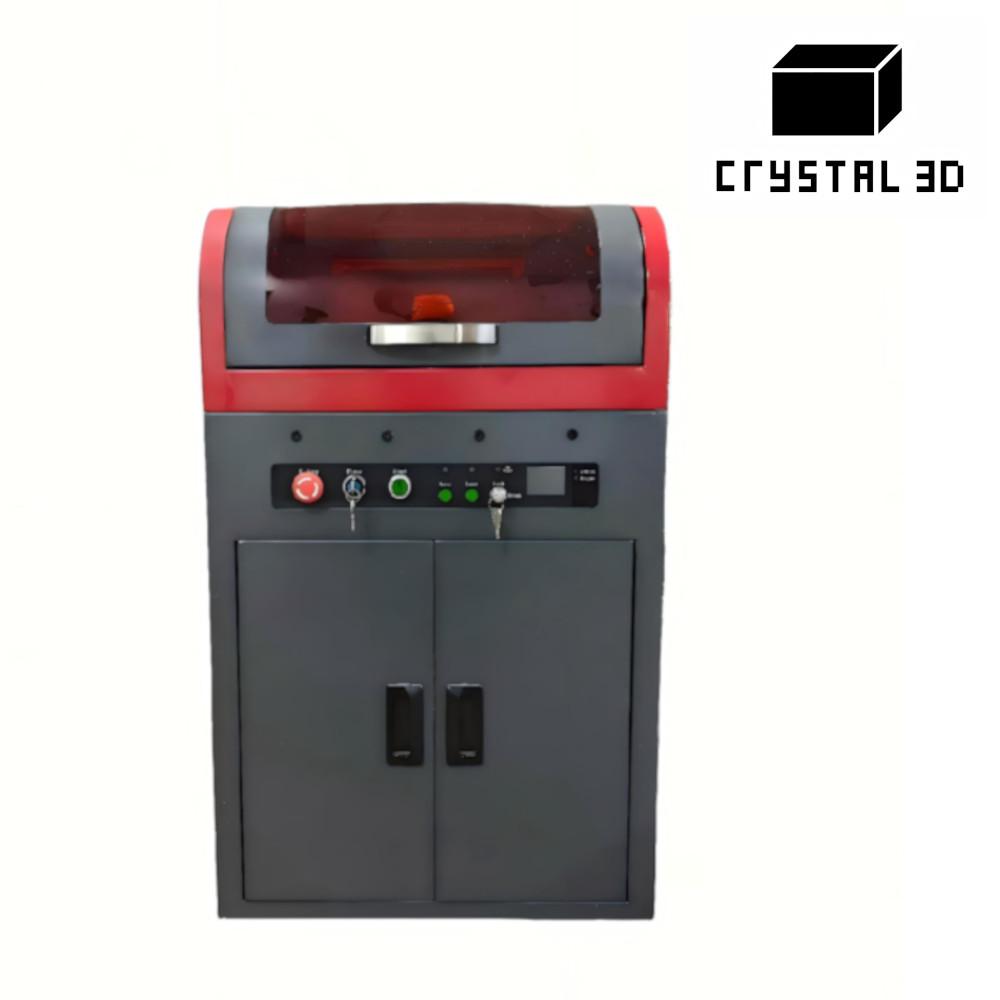

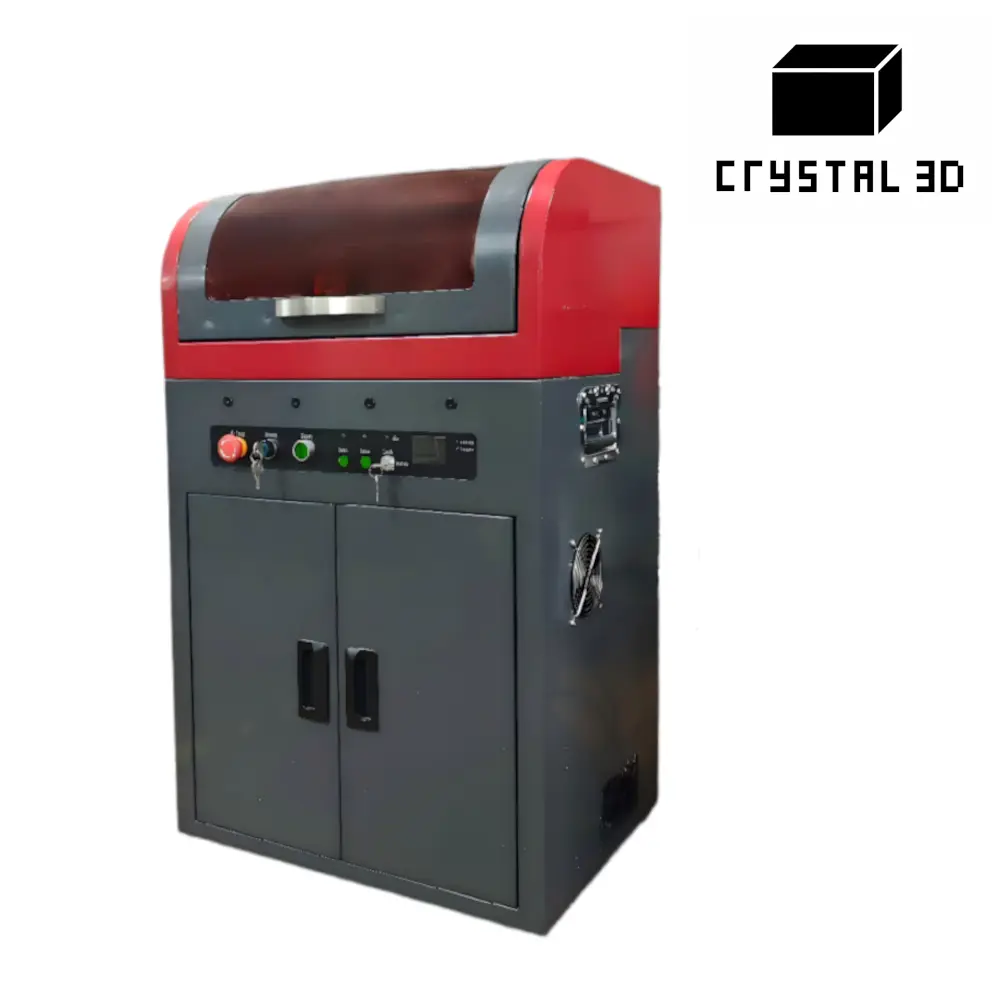

What is a 3D Crystal laser engraving machine?

The 3D crystal laser subsurface engraving machine, usually also called a 3D Laser machine, Crystal laser machine, 3D crystal Engraver, is a special kind of laser machine used to make 3d laser images or 2d images into crystals. Wuhan crystal 3d laser technology team has more than 20 years of experience in research and production of this kind of machine.

Model : CLM-801Ball

Max engraving size (mm) : 200mm Ball

Max crystal size (mm) : 200mm Ball

No tilling area : 200mm Ball

Laser Type : Diode pumped Nd:YAG,532nmgreen laser,3000Hz

Laser Frequency : 3000HZ

Motors : Chinese Stepper Motor

Pulse width :≤7ns

Engraving Speed :Maximum:3000 points/s;180000dots per minute

Diameter of a point : 40-80μm

Repeated location accuracy :

Continuous work time :>24 hours

Cooling : Air Cooling

Diode laser module life : >20000 hours

Power consumption :

Electrical connection :Single 220V or 120V (+/-10%),50Hz or 60Hz

Bulk engraving ability : No

File Format : BMP,Jpg,cad,dxf,obj

Operation demands Room temperature :5~35℃,room humidity:

Net Weight : 70 Kg

Machine Size (L*W*H)(mm) :500x500x720

Warranty : 1 Year for whole machine

Advantages ： This machine still adopts our advanced laser technology. Which can support the start level business at a lower cost.

Please note that this is only a deposit to confirm the machine's availability.

For pricing information regarding different regions, please contact customer service.
