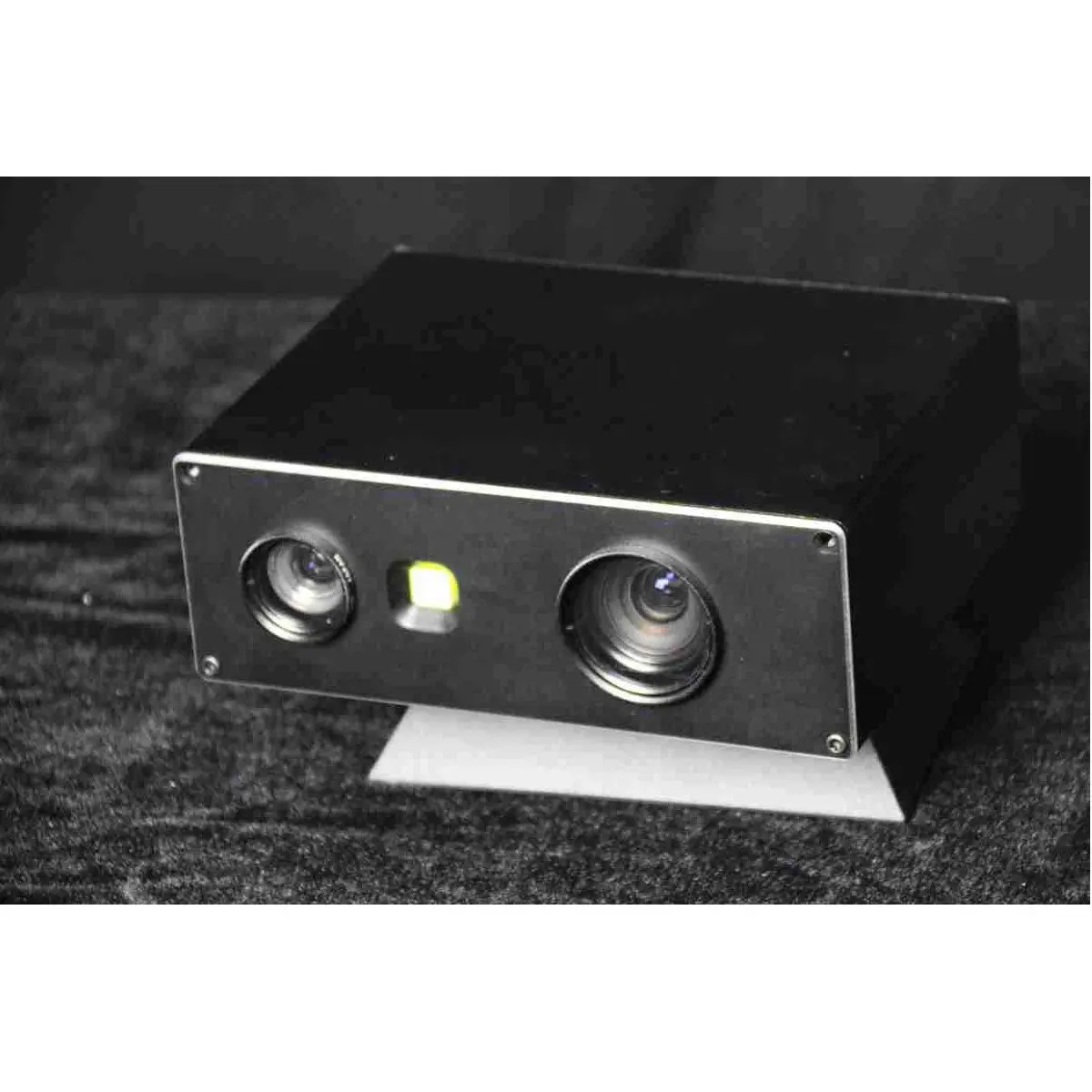

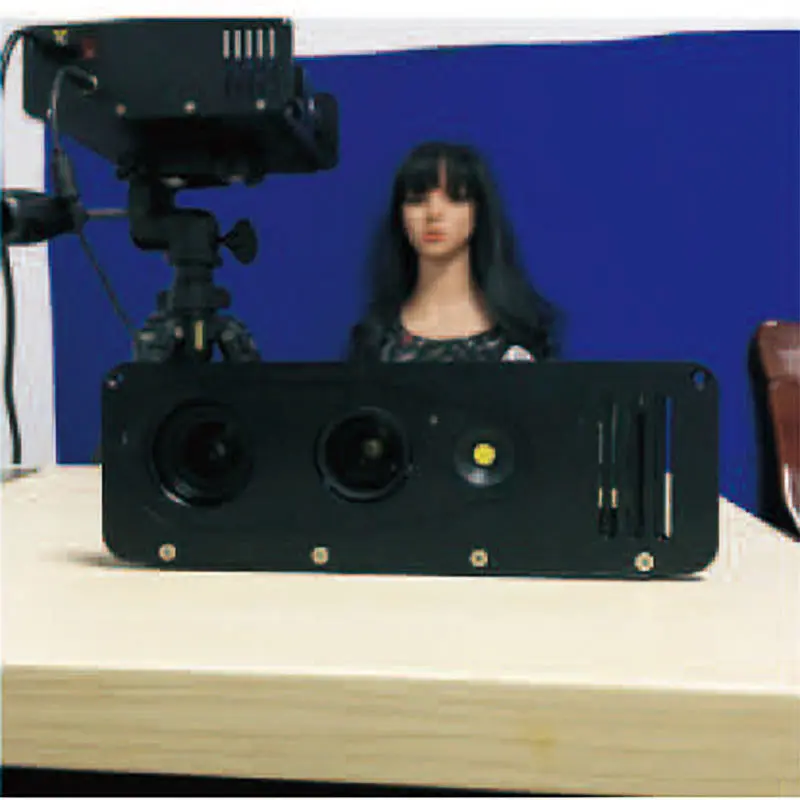

3D camera Facephase

Product Details

A 3D camera (also known as a 3D stereoscopic camera, 3D portrait camera, or 3D imaging device) utilizes the measurement principle of colored structured light and the imaging principle of basic cameras with gratings. It instantly captures images to generate a 180-degree real 3D model along with surface color and texture information in a single operation. This technology is widely applied in laser engraving, medical aesthetics, digital entertainment, 3D identity recognition, and personalized customization industries.

3D imaging distinguishes itself from conventional 3D portrait capture methods, with its system boasting rapid imaging speed and high precision as standout advantages, making it widely adopted. The Facephase 3D camera, independently developed by Wuhan Kerust 3D Technology Co., Ltd., is our proprietary 3D imaging device featuring our exclusive 3D camera control software (with proprietary software copyright). This system enables rapid imaging while its unique software design ensures user-friendly operation. The quick adaptive parameter adjustments further outperform the complex positioning systems of other commercial cameras.

1、Technical parameters

◆Number of people per photo: 1 to 3；

◆ Exposure time: 1/120-1/80 seconds；

◆ 3D reconstruction accuracy: ≤0.5mm；

◆ Maximum image capture range: ≥800mm×500mm×400mm；

◆ Object shooting distance: 1.5-1.1 meters; recommended: 1.4 meters；

◆3D reconstruction angle: true imaging in the range of 180 degrees in a single direction；

◆ Visible light technology: no harm to eyes；

◆ Data output formats: DXF, OBJ, STL, WRL, etc.；

◆ Effective pixels: 6 million；

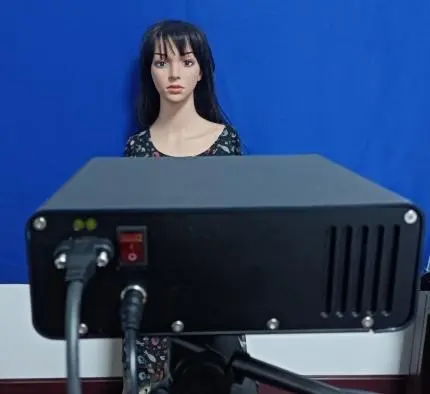

◆ Peripheral interface: USB3.0；

2、Camera features ◆ Fast image capture; supports USB3.0 high-speed transmission for rapid image transfer.

◆ Easy to use: Automatic positioning, one-click photo capture, and user-friendly editing software.

3、outline dimension, physical dimension, external dimensions

◆ Weight: 3.5 kg；

◆ length, width and height：200mm×170mm×75mm；

4、Environmental requirements

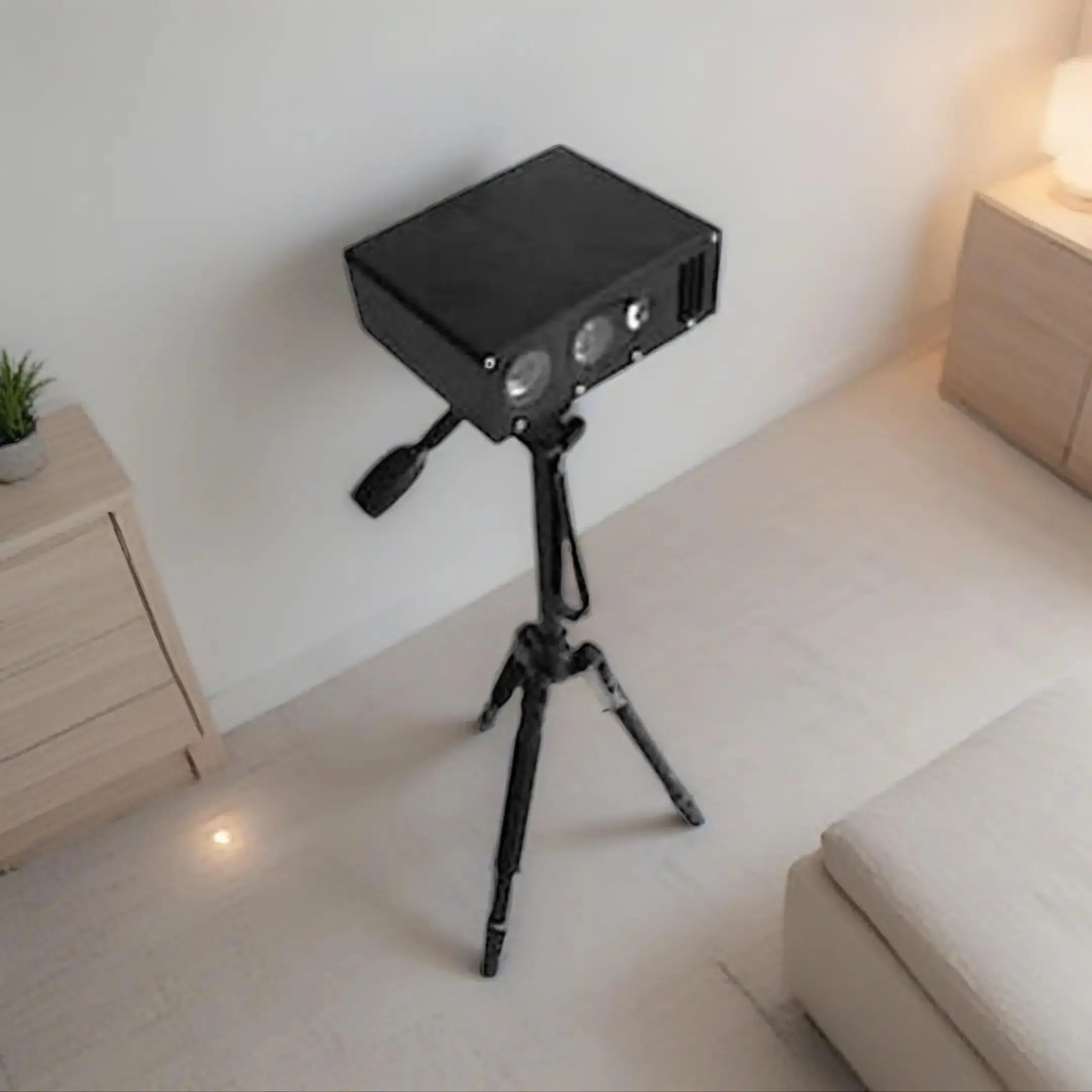

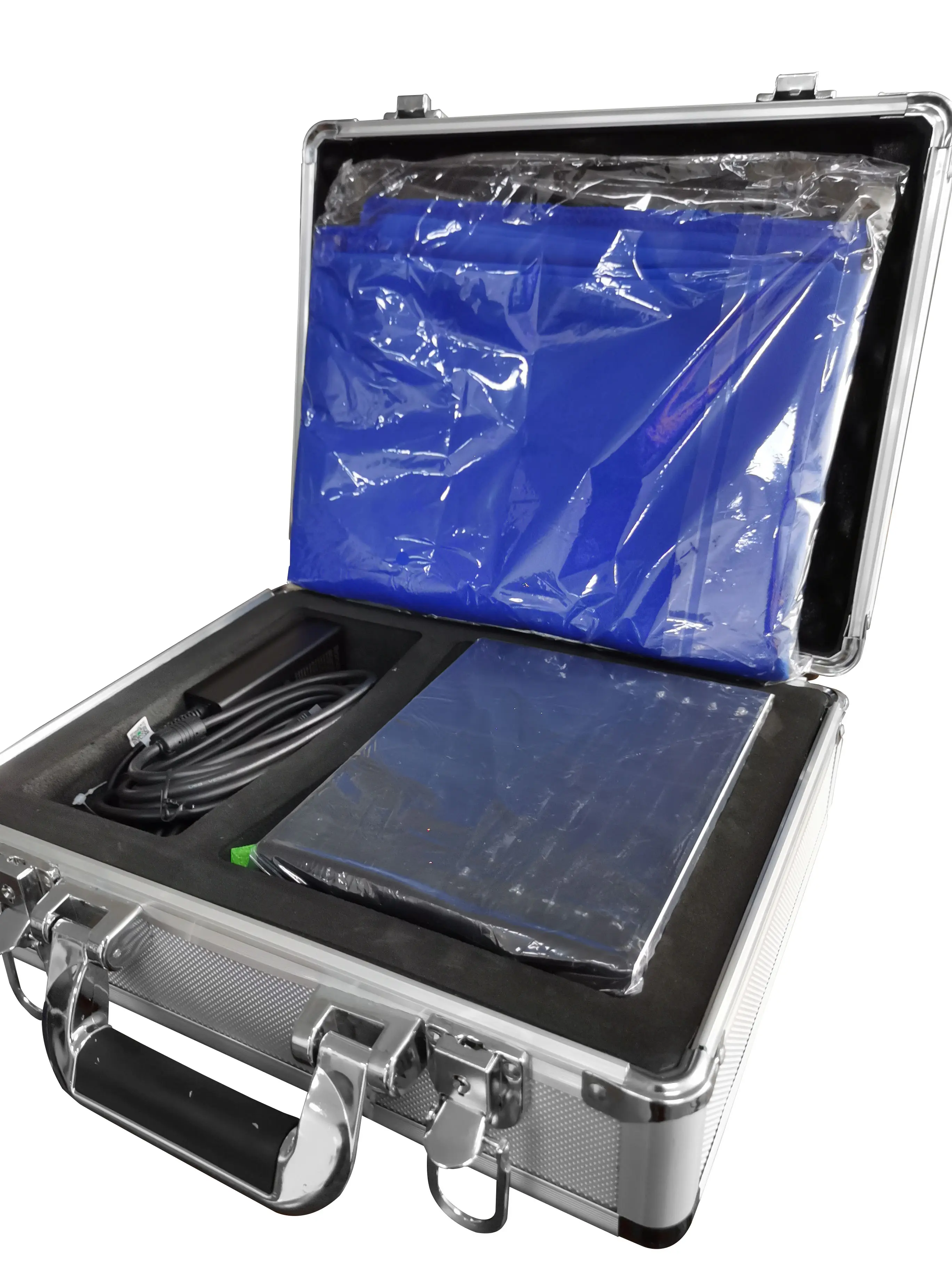

◆ PC System Requirements: Minimum configuration: Windows 7, 8GB RAM, dedicated graphics card, and USB3.0 port. Packaging includes a 3D camera, tripod, and dedicated packaging box.
