·Product Size: 3/8" Tube OD x 1/4" NPT Female Straight Thread (Notice - NPT Thread Size is a Nominal Pipe Size, and it Does Not represent the actual diameter)

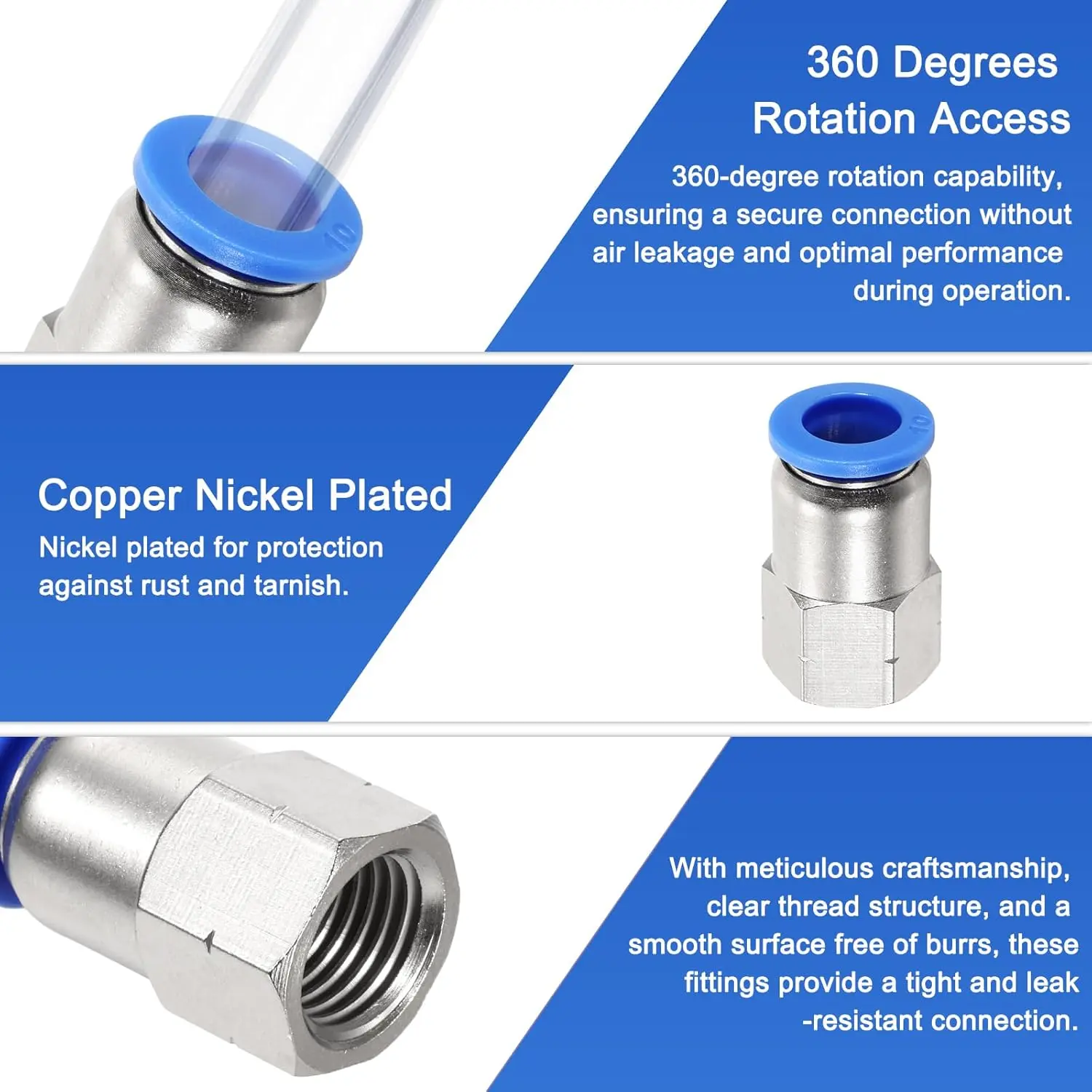

·360 Degrees Rotation Access: These straight-thread push-to-connect fittings offer a 360-degree rotation capability, ensuring a secure connection without air leakage and optimal performance during operation.

·Brass Material: The push-to connector is constructed from brass for durability and wear-resistant with nickel plated for protection against rust and tarnish. The stainless steel spring increases clamp force efficiency and strength.

·Compact Connection: With meticulous craftsmanship, clear thread structure, and a smooth surface free of burrs, these fittings provide a tight and leak-resistant connection.

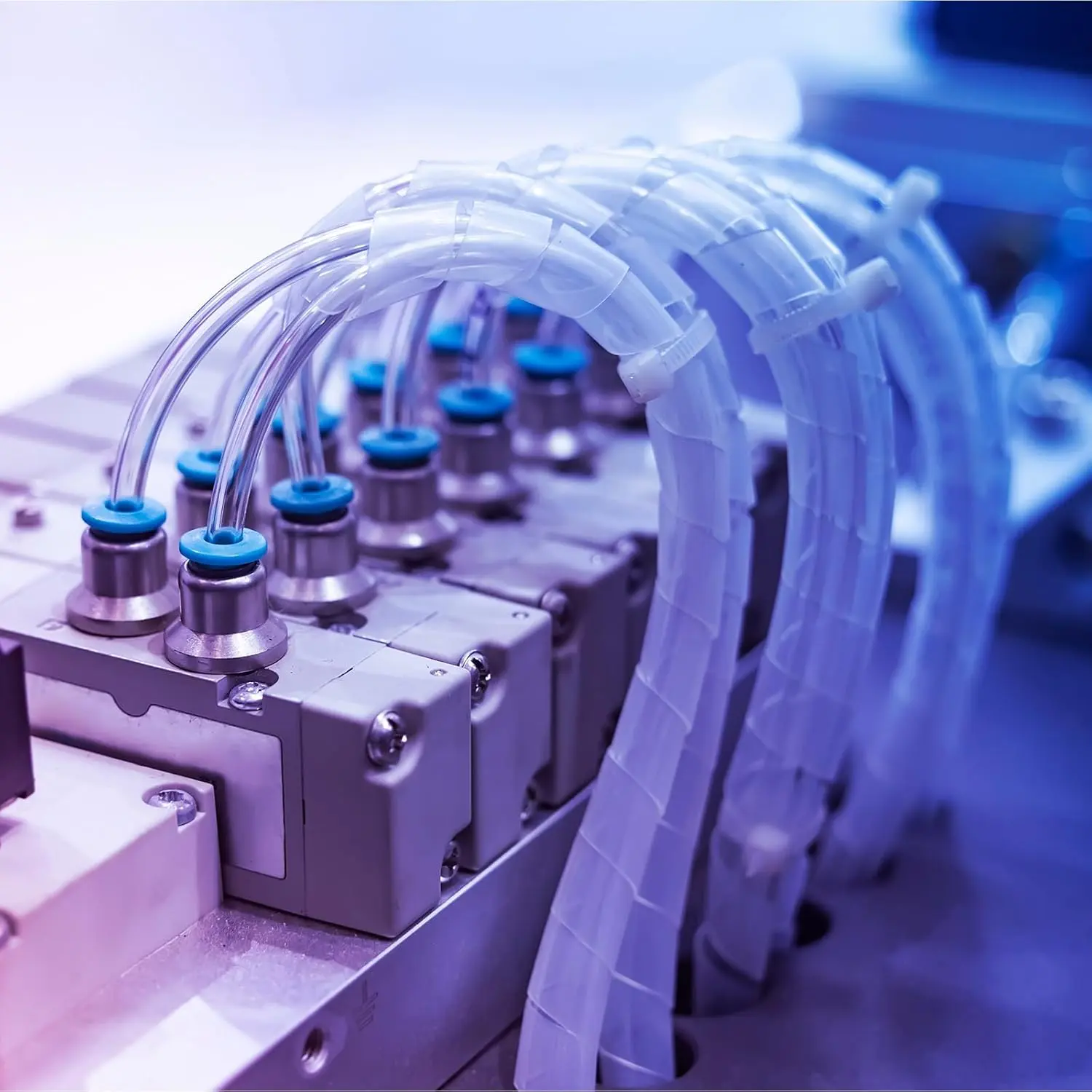

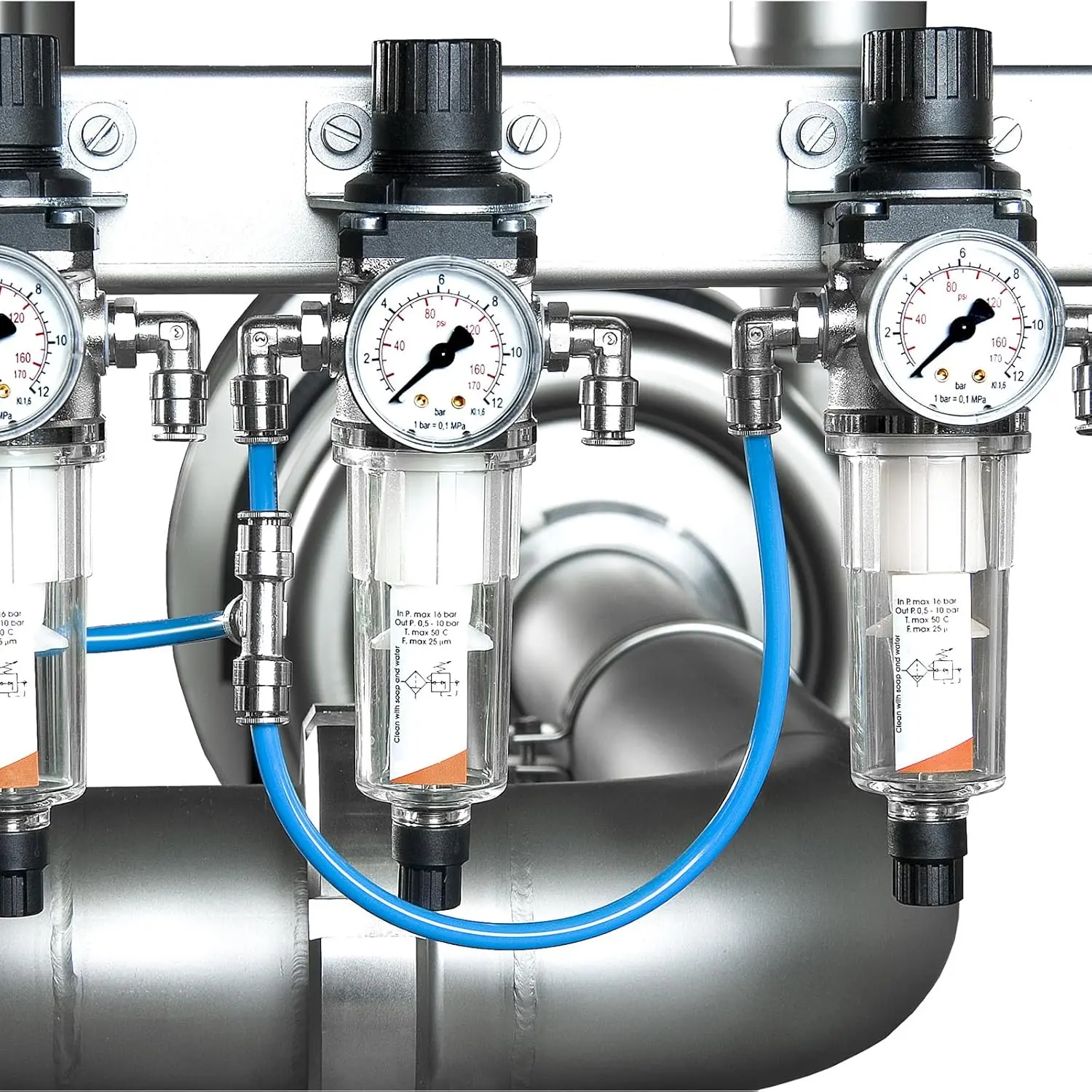

·These brass push-to-connect fittings are commonly used in pneumatic systems to connect air lines, valves, cylinders and other components. It can be used in fluid transfer, pneumatic systems, automotive and HVAC systems.

Product description

Description:

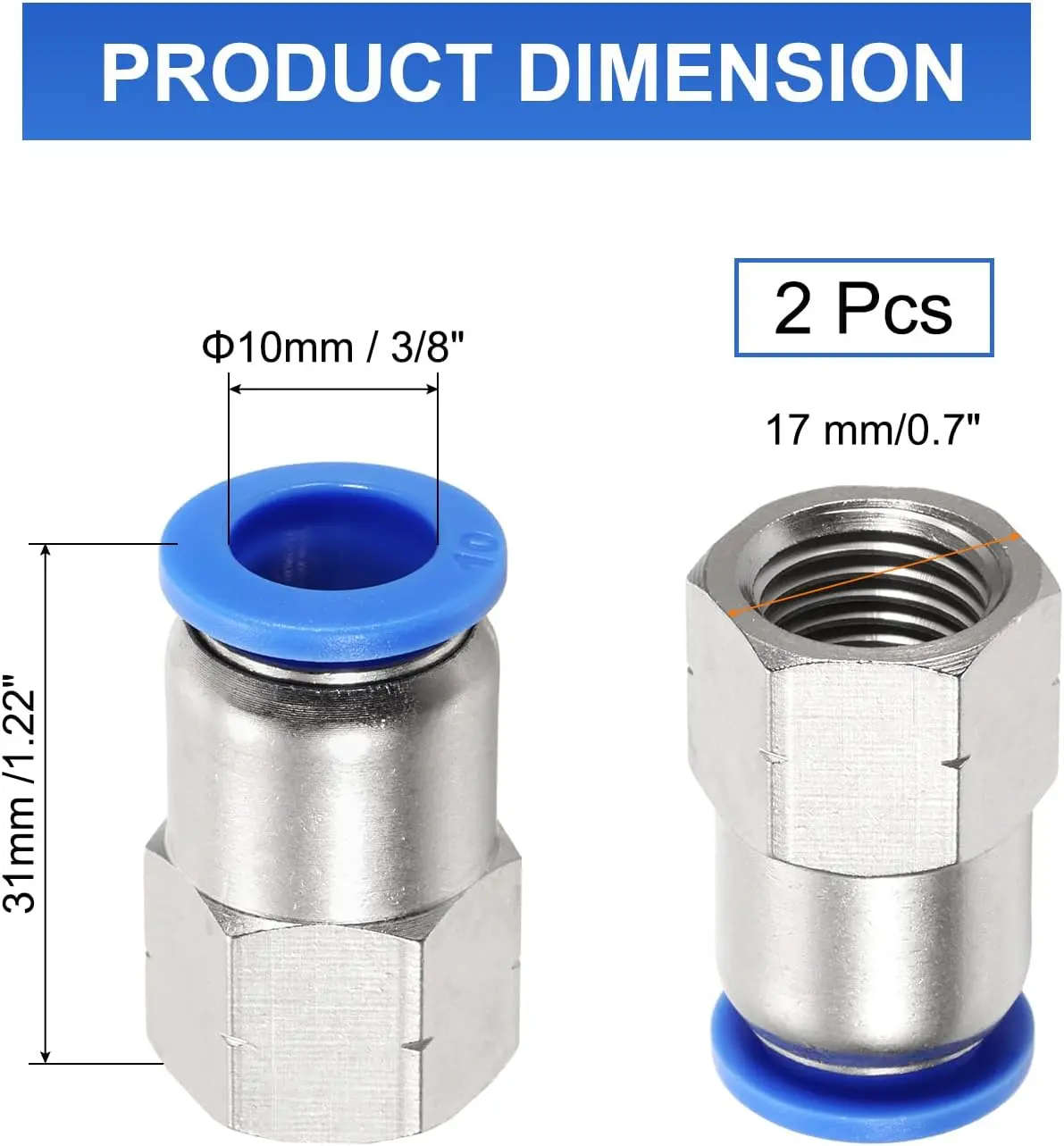

·Inner Diameter: 10mm(3/8“)

·Outer Diameter: 16 mm/0.6 inch

·Hex Width: 17 mm/0.7 inch

·Thread Size: 1/4" NPT

·Sealing Ring Material: NBR

·Fluid Admitted: Air, Vaccum, Water (no freezing), Steam

·Body Material: Nickel Plated Brass, POM and PBT

·Lock Claw: Zinc Alloy Nickel Plated

·Applicable Tube: PU/PA/PE/Tubing

·Lock Spring: Stainless Steel

·Thread Material: Nickel Plated Brass

·Package Content: 2 x Push to Connect Fittings
