About this item

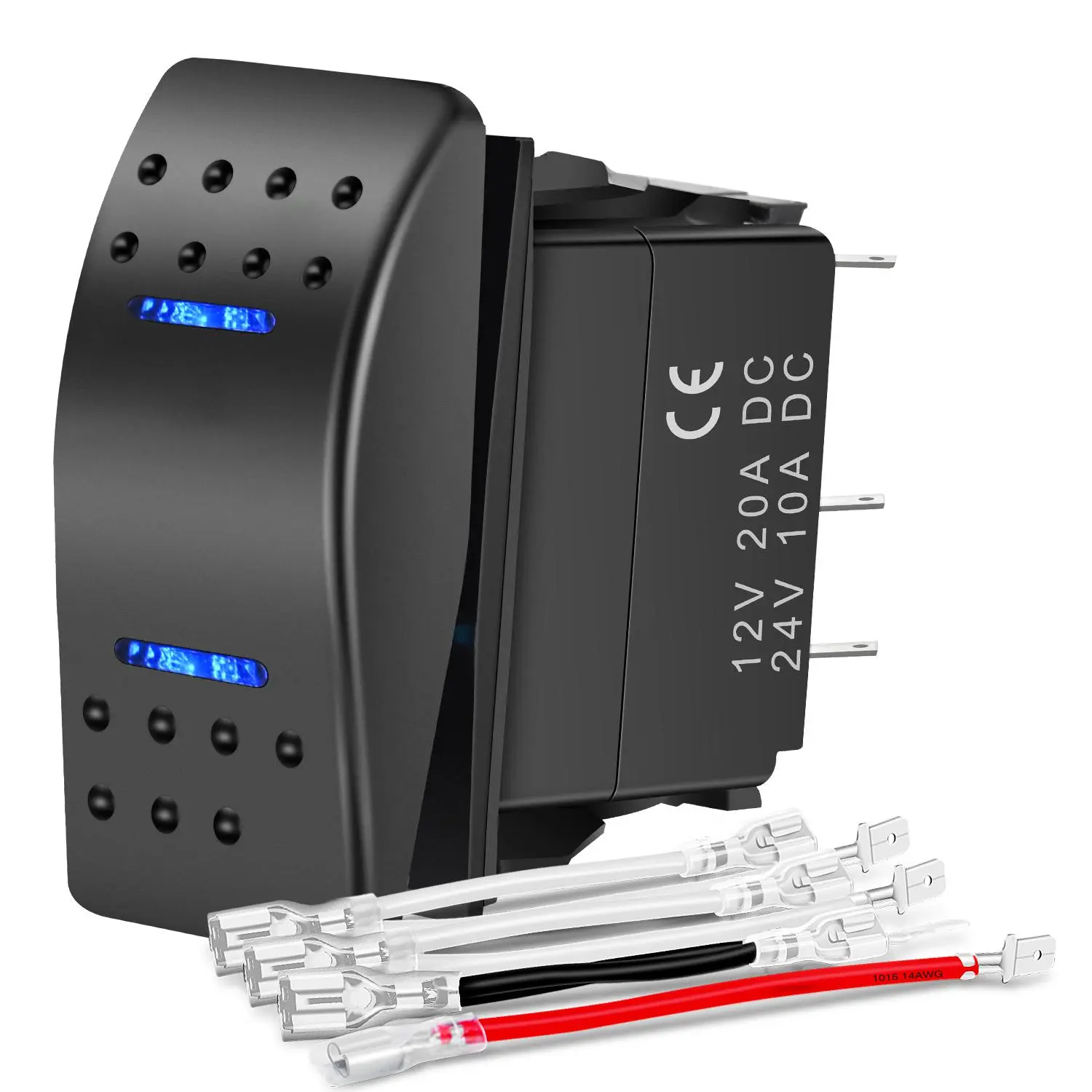

·Momentary Switch: 7PIN (ON)-OFF-(ON) rocker switch with DPDT design (double pole double Throw), rated at 20AMP/12VDC and 10AMP/24VDC. Can be installed or replaced on the Nilight rocker switch panels. It is easy and simple to set up. Can control 2 loads. Please note: The switch is a 7 Pin type, the upper and lower LED of this switch will light up only when it is turned to ON position

·Dual Operation: This momentary electrical system switch is used for jogging or inching operations. A DPDT switch is equivalent to two SPDT switches. It routes two separate circuits. Connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which two contact can be routed. Always make sure you are using a switch and wire sufficient to handle the load you are carrying. In higher draw applications, a relay may be needed.

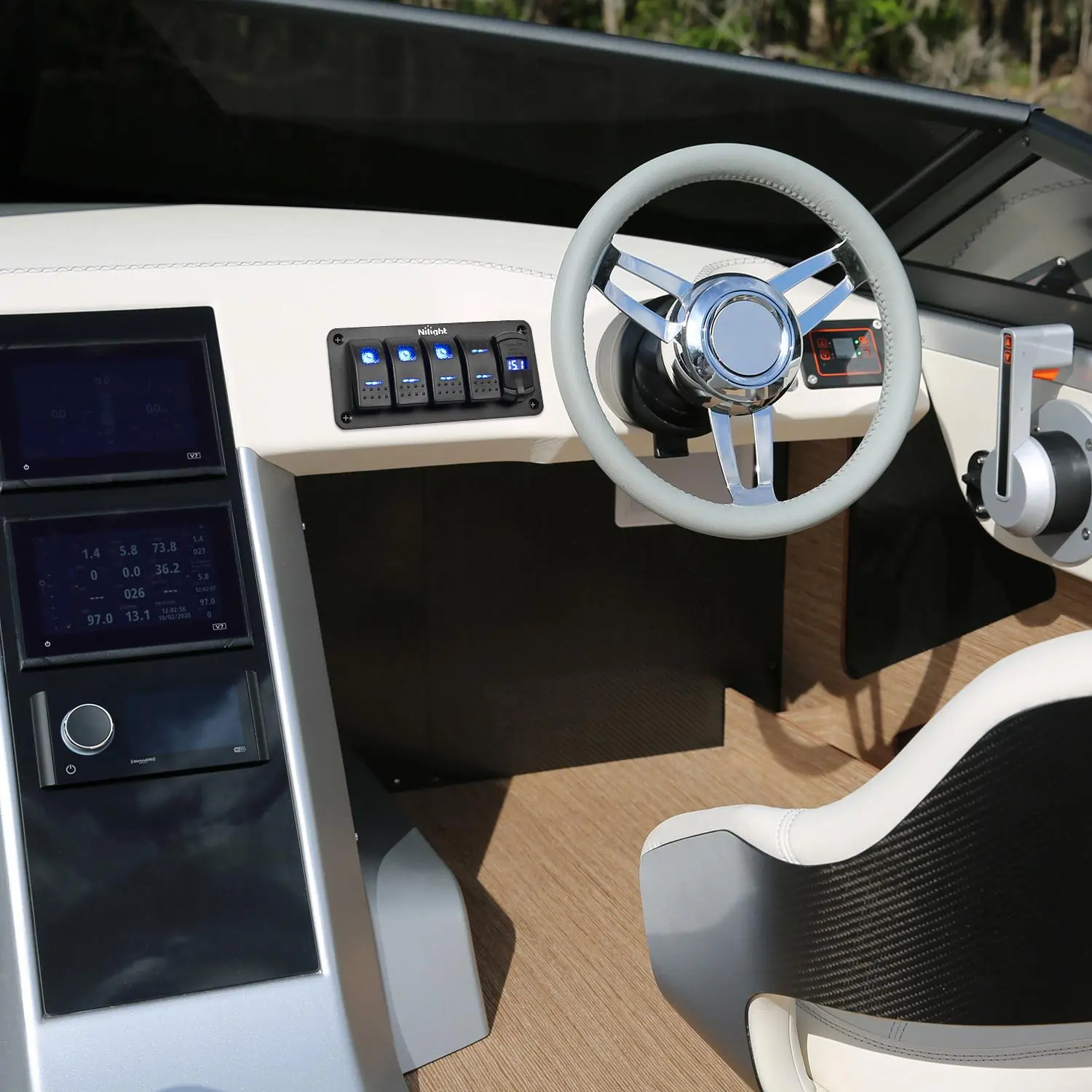

·Wide Application: Can be used to replace Rotary, Drum, Cable and used to control Winch,Pump,Reclining Media Room Seats,Auto Bilge Pump. Fit for all cars, SUVs, ATVs, UTVs, Yachts, Trailers,Campers, Caravans etc; Also a great replacement for RV or Electric Trailer Power, Travel Trailers and slideout Power awning switches. Momentary Automatic Reset action, Resetting returns to off when released. Simply connect power and ground and two DC motor leads and the switch will reverse the motor direction.

·Sturdy and durable: made of high-quality plastic and well-conductive pins; ensure long lasting durability,highly optimized for general use and will give you a pleasant experience.

·Package Includes: A 7 PIN switch,jumper wires set and a wiring diagram. Note: The switch is not waterproof and it is recommended to avoid direct contact with water during use

Features

Non-Locking Design

The switch is very flexible for turning on or off. Automatic rebound when fingers are released. It can stand up to 10,000 times pressing under normal use.

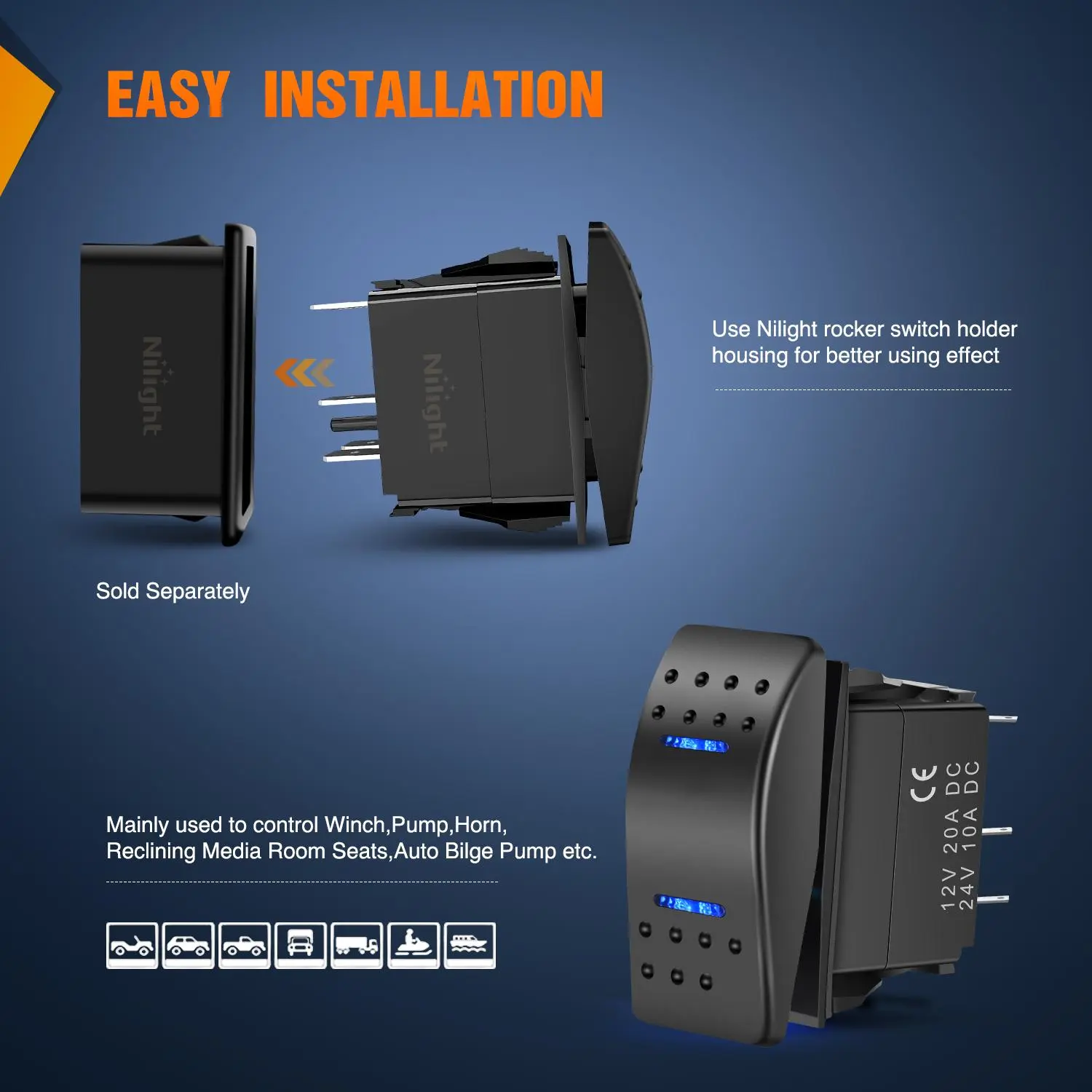

Easy Installation

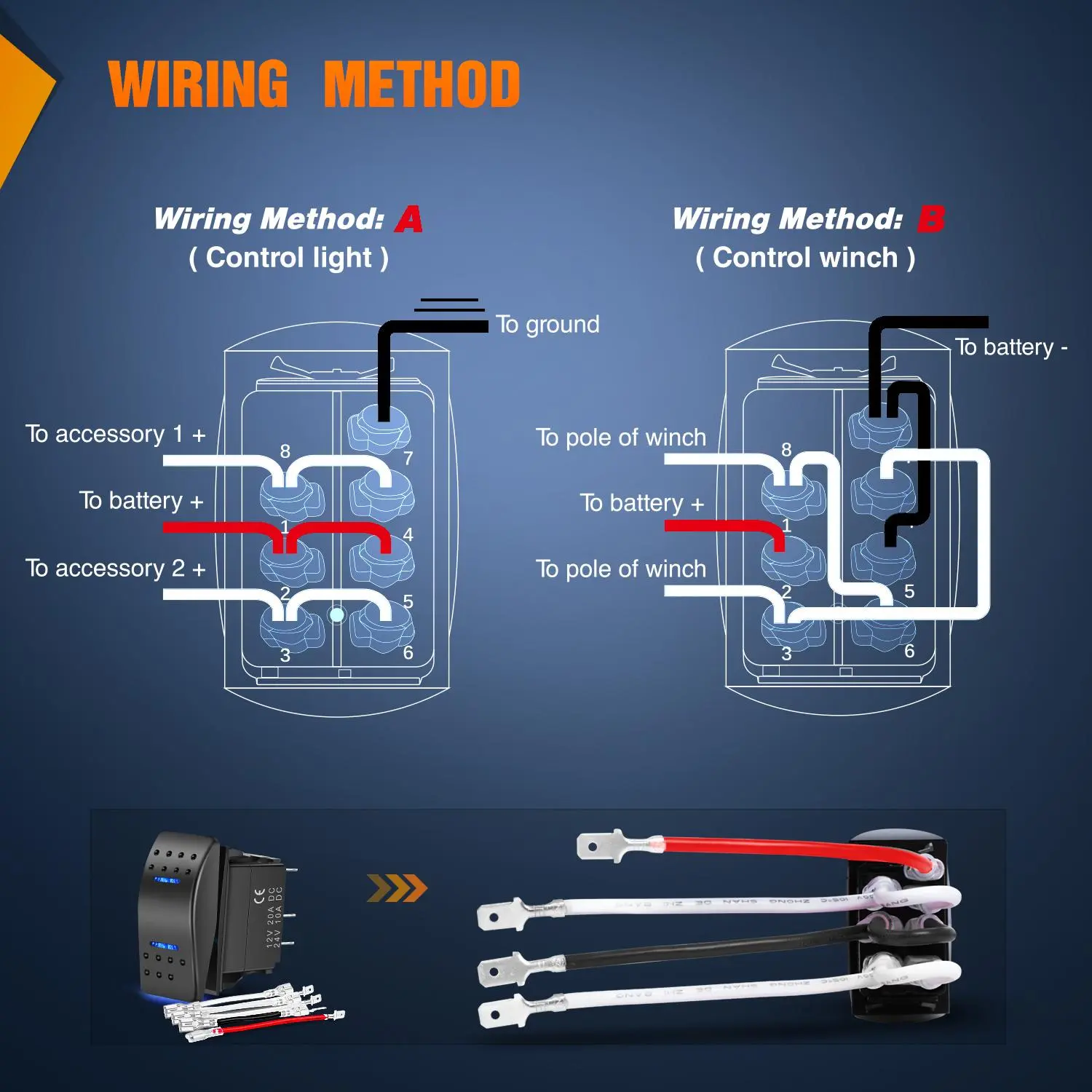

This switch is simple to install, product comes with a wiring diagram which make it easy to wire the jumper wires within several seconds.

Note: The switch is 7 Pin terminal, please chekc the model before purchasing

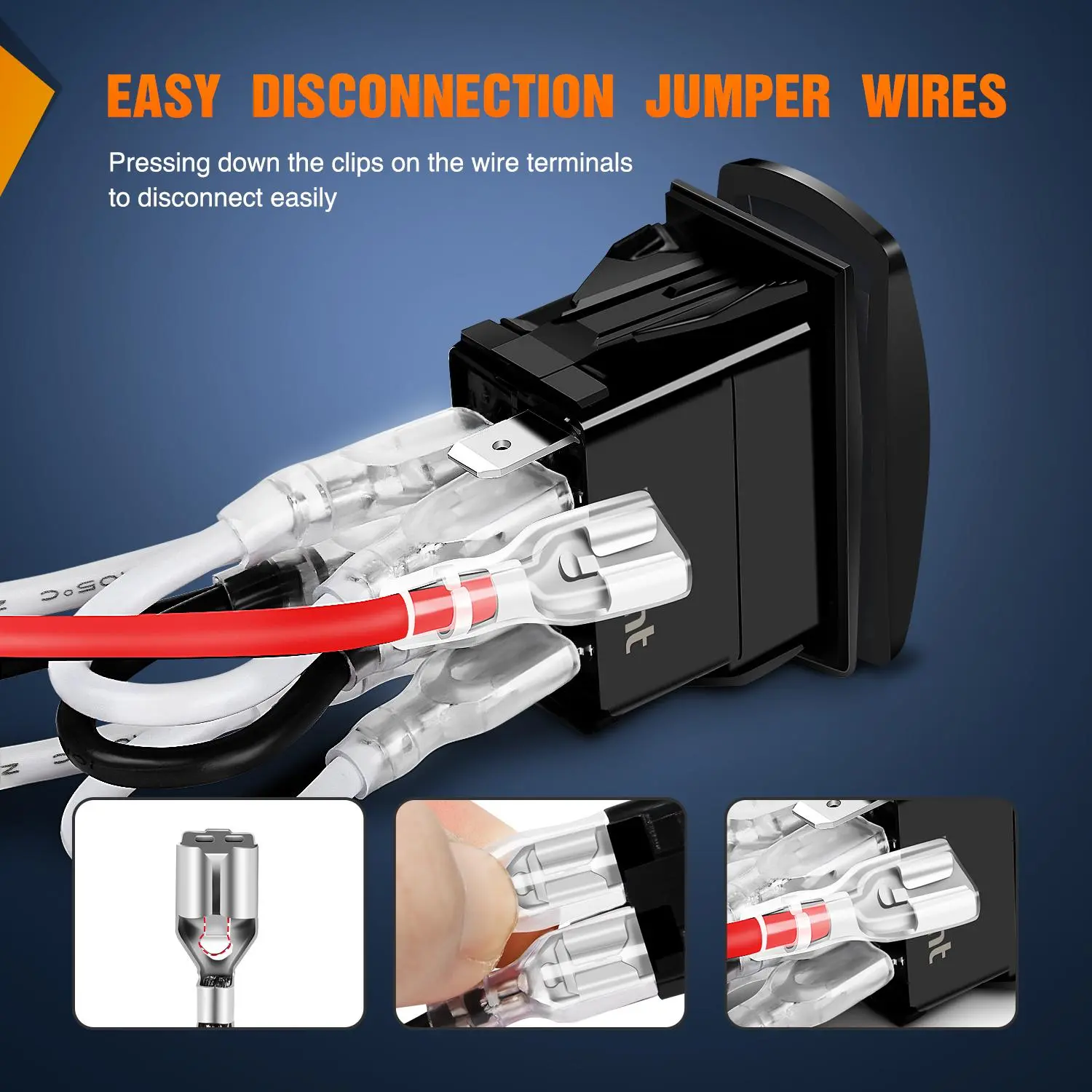

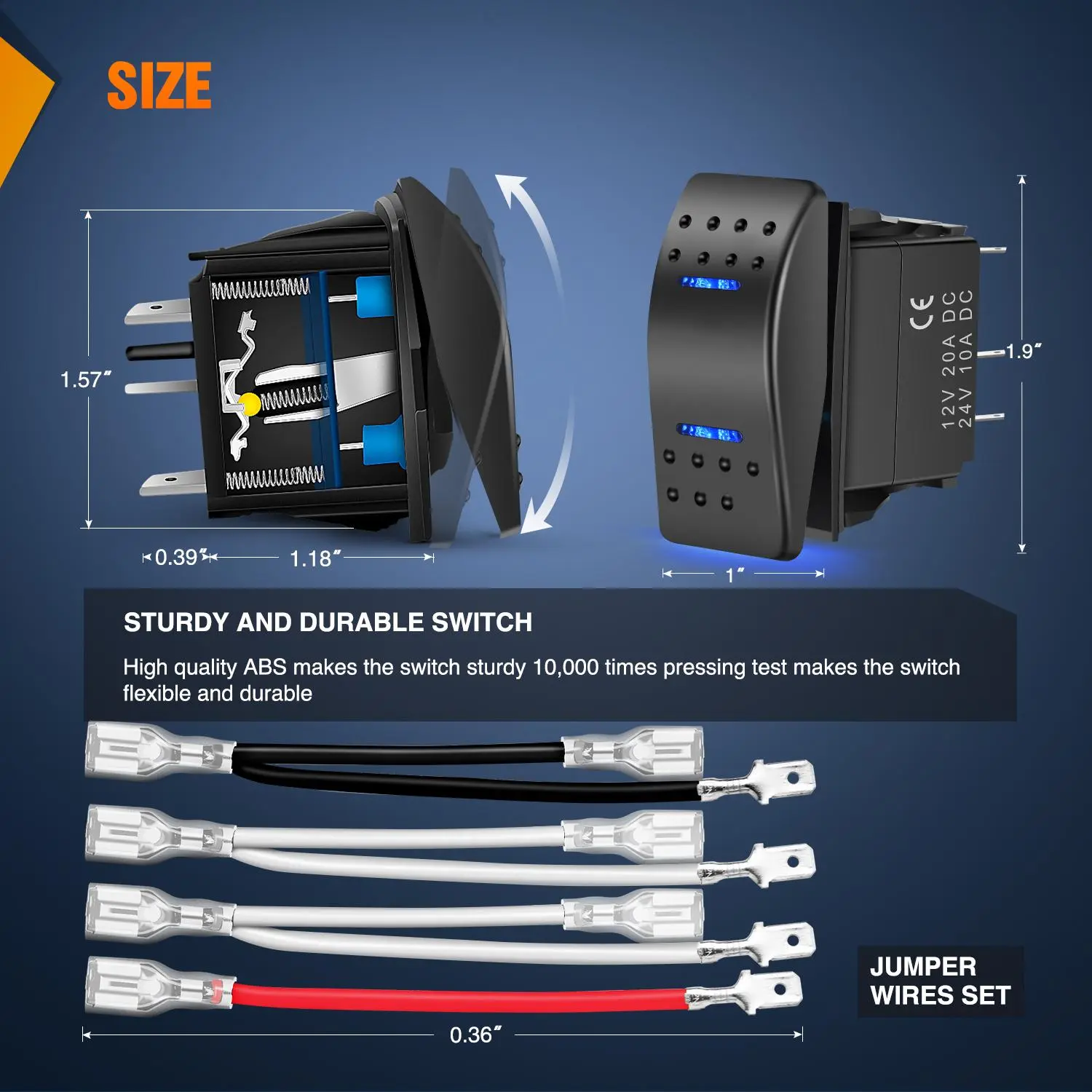

Premium Jumper Wires

The jumper wires is made of high quality 14 gauge wires.

The Tin-plated copper terminals on the wire is of good stability, wear resistance, corrosion resistance, which improves the oxidation resistance of copper and maintains its conductivity better.

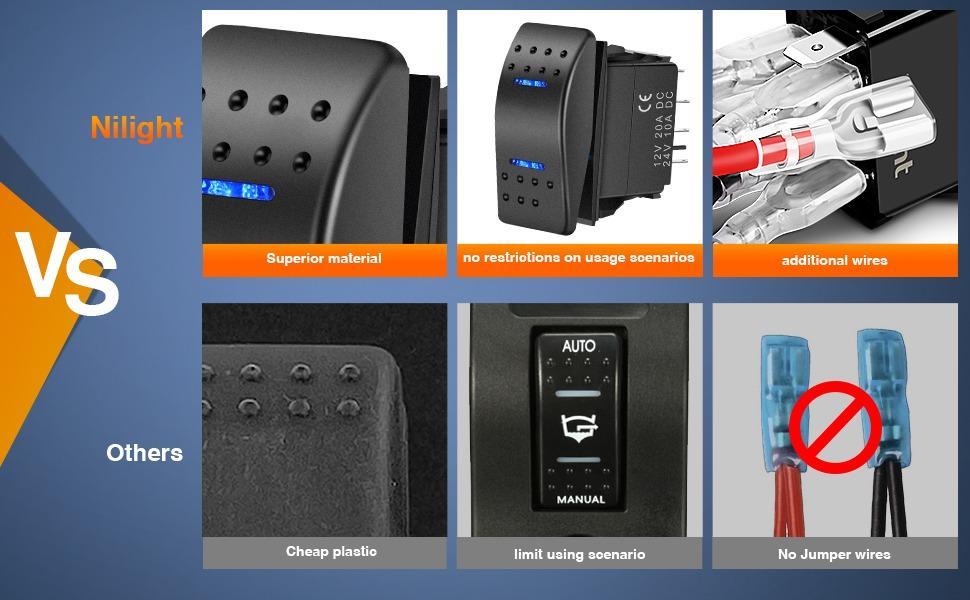

Excellent Product

Made of ABS and PC of premium quality, the switch is impact and heat resistant. DPDT design, this on off on switch can control 2 loads.

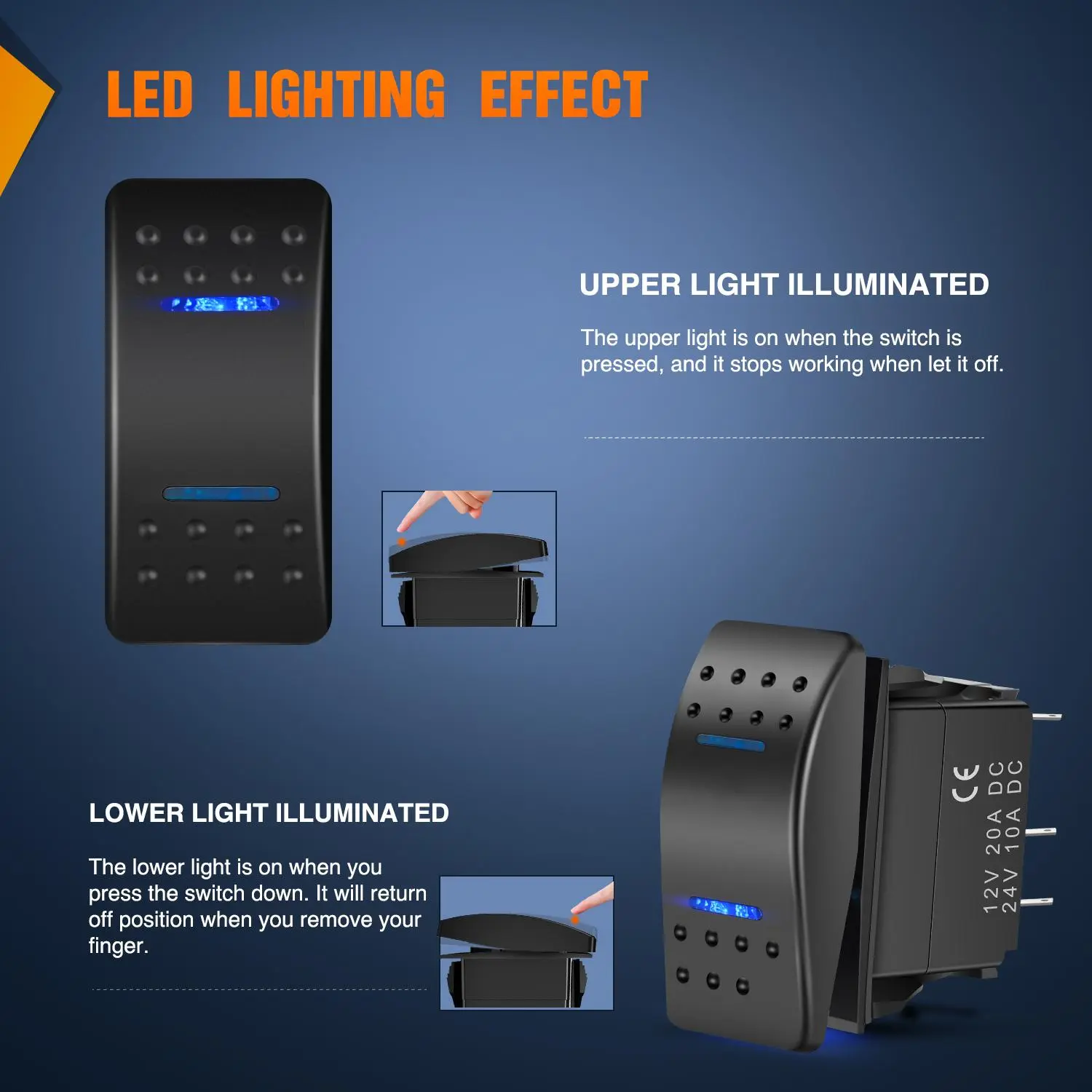

The upper and lower LED of this switch will light up only when it is turned to ON position

Applications

Horn Switch

This switch is ideal for controlling all horns installed on 12V-24V vehicles such as SUVs UTV/ATV, trucks, trailers, RV, caravan, bus, marine boat, yacht, airplane, etc.

Winch Switch

The switch is very flexible for turning on-off-on. It can stand up to 10,000 times pressing under normal use. And it's an ideal switch to control winch.

Lift Seat Switch

The momentary switch is suitable for all 12V and 24V cars with lift seats. Such as SUVs UTV/ATV, trucks, trailers, RV, caravan, bus, marine boat, yacht, airplane, etc.
