Universal PCB Holder Fixture - The "Third Hand" for Circuit Board Welding & Repair

This Universal PCB Holder Fixture is designed for electronic engineers, repair enthusiasts, and DIY players. It is a must-have tool to solve the problem of "busy hands" during circuit board assembly, soldering, and debugging! With the combination of magnetic positioning pins and a non-slip base, it achieves quick fixing and multi-angle adjustment of circuit boards, making your operation more stable and precise.

Core Functional Highlights

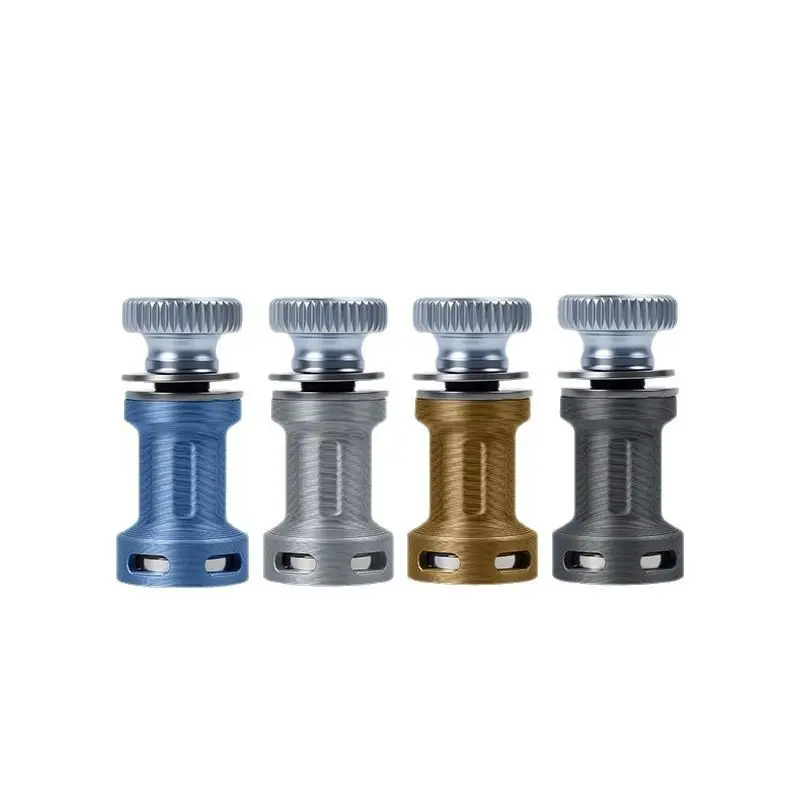

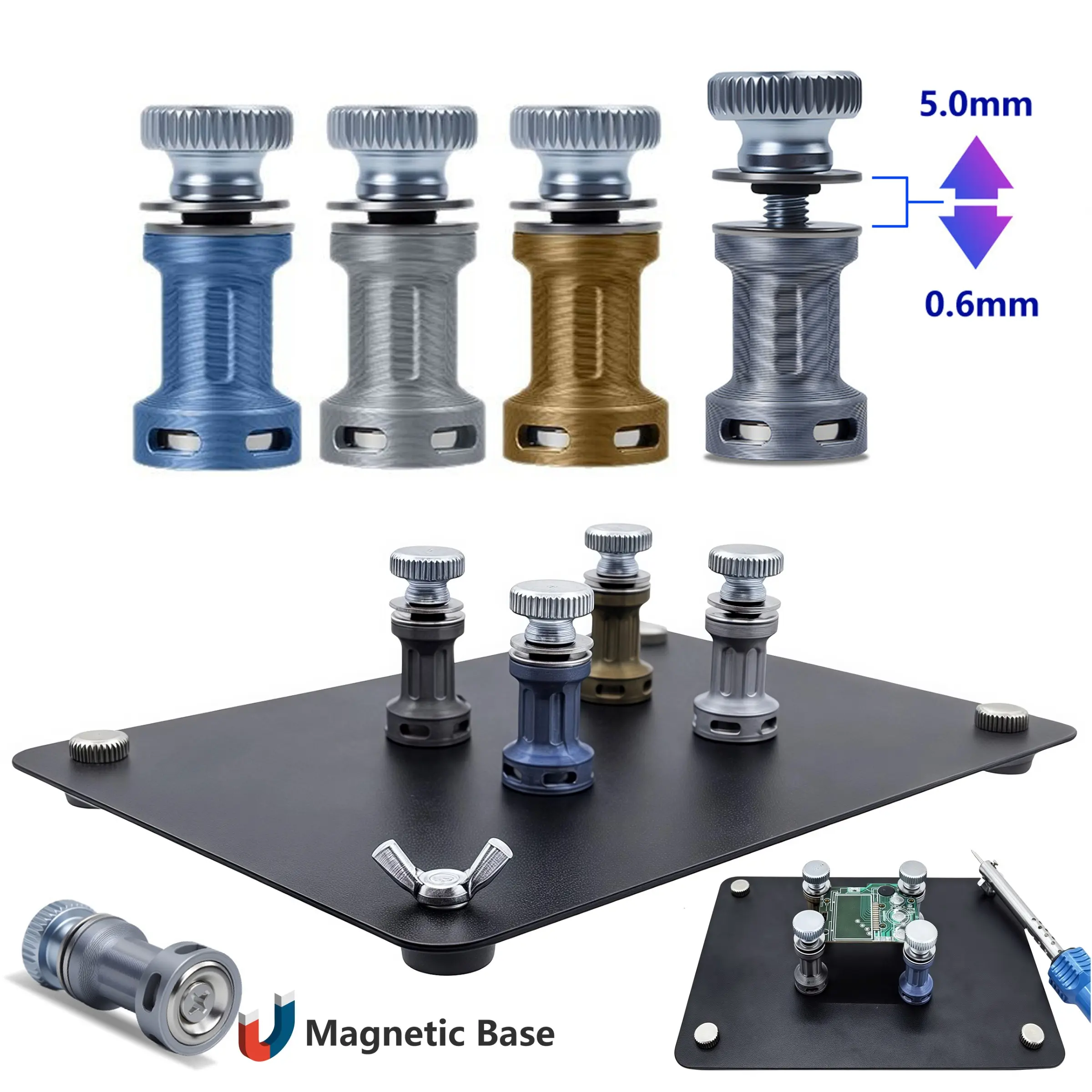

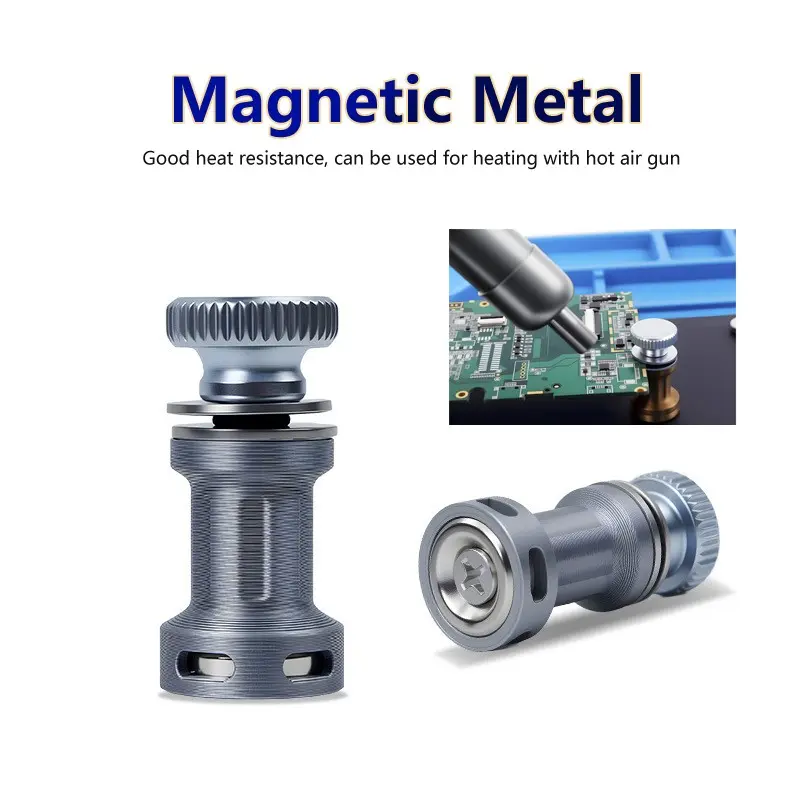

·Magnetic Positioning Pins for Flexible Fixing of Various PCB Sizes: The fixture is equipped with multiple sets of magnetic positioning pins (silver, blue, gold, etc.), which can be freely adjusted in spacing and angle to adapt to various PCBs, from tiny microcontrollers to large motherboards. The magnetic adsorption design ensures the pins are stable and immovable, while also supporting quick removal, allowing for the installation and replacement of circuit boards without any tools.

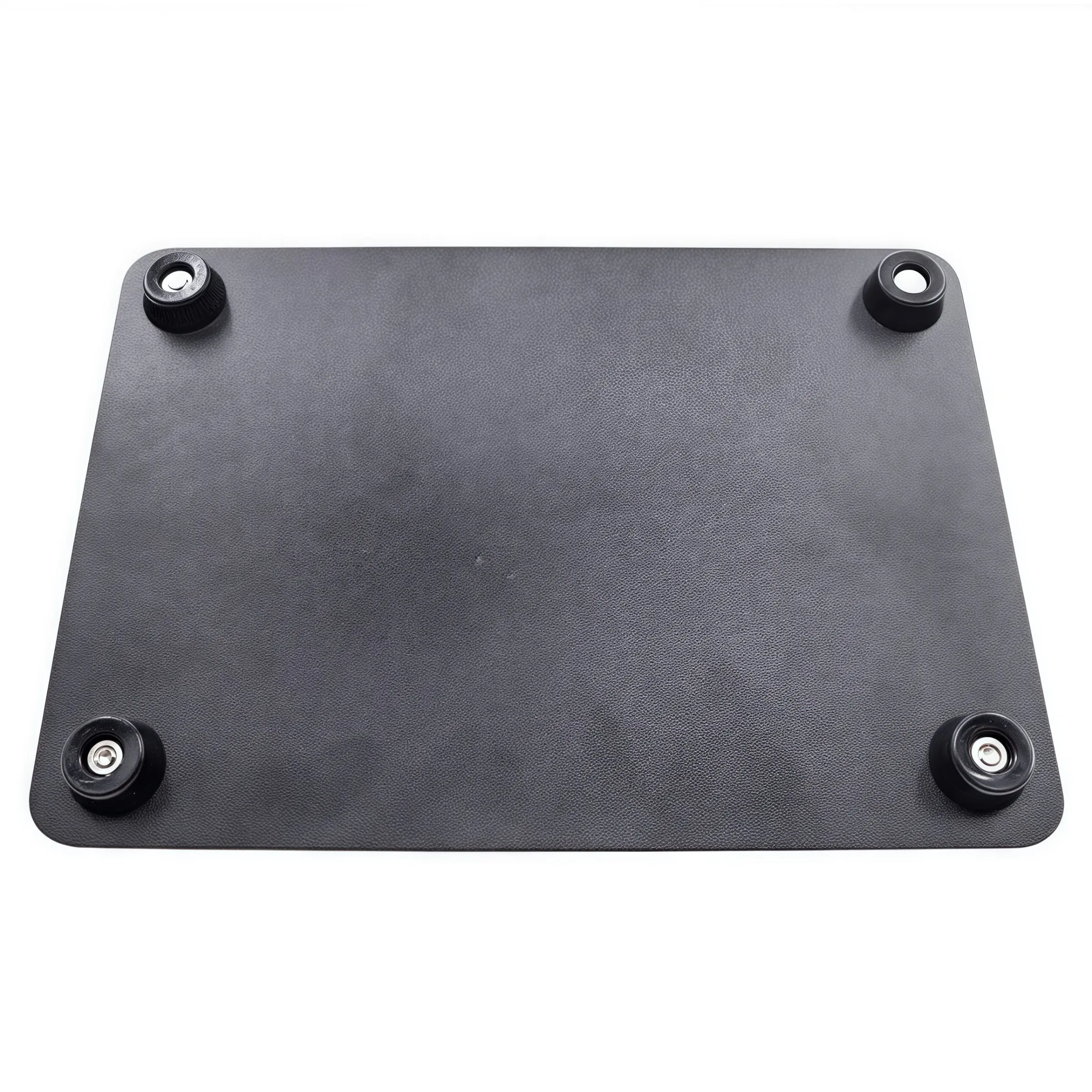

·Non-slip Rubber Feet for Rock-Solid Stability: The four corners and key positions of the base are fitted with non-slip rubber feet, effectively increasing friction to prevent the fixture from sliding or tipping during operation. Whether it's desktop soldering or complex repair scenarios, it can maintain platform stability, avoiding welding errors or PCB damage caused by shaking.

·Multi-functional Design Covering the Entire Operation Process: From initial inspection and component soldering to chip replacement and circuit debugging, this fixture provides reliable support. Combined with the "Y" -shaped auxiliary tools shown in the picture (possibly tweezers or a removal tool), it can further improve operation efficiency, making it an essential tool for electronic repair and assembly.

Applicable Scenarios

·Electronic Engineers: Quickly fixed circuit boards for precision welding and debugging.

·Repair Enthusiasts: Repair circuit boards of mobile phones, computers, home appliances, and other devices.

·DIY Players: Assemble Arduino, Raspberry Pi, and other development boards, or create personalized electronic projects.

·Teaching Scenarios: Used in electronic courses to demonstrate circuit board operations, improving teaching efficiency.

Product Parameters

·Material: High-strength aluminum alloy base + magnetic positioning pins + non-slip rubber feet.

·Color: Black base + multi-colored positioning pins (silver, blue, gold, etc.).

·Applicable Range: All types of circuit boards (PCBs), including single-sided, double-sided, and multi-layer boards.
