Specifications (Detailed Parameters)

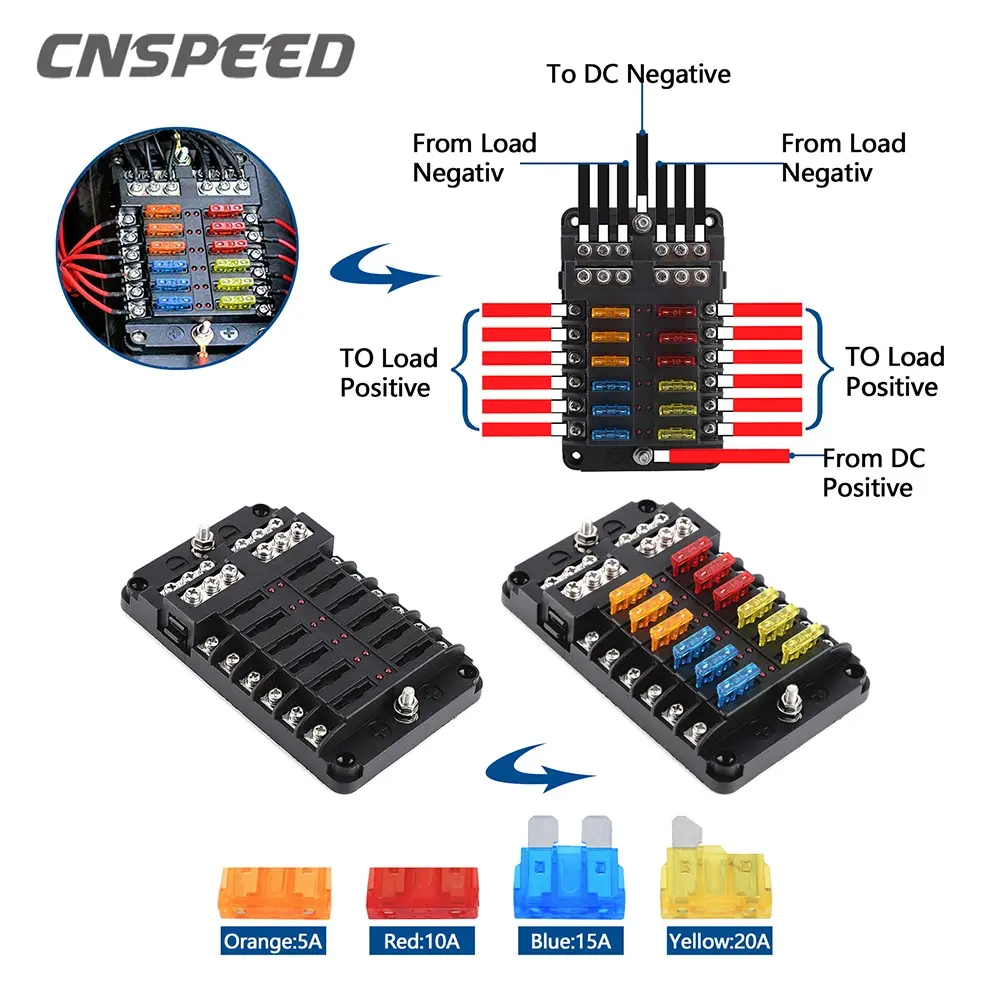

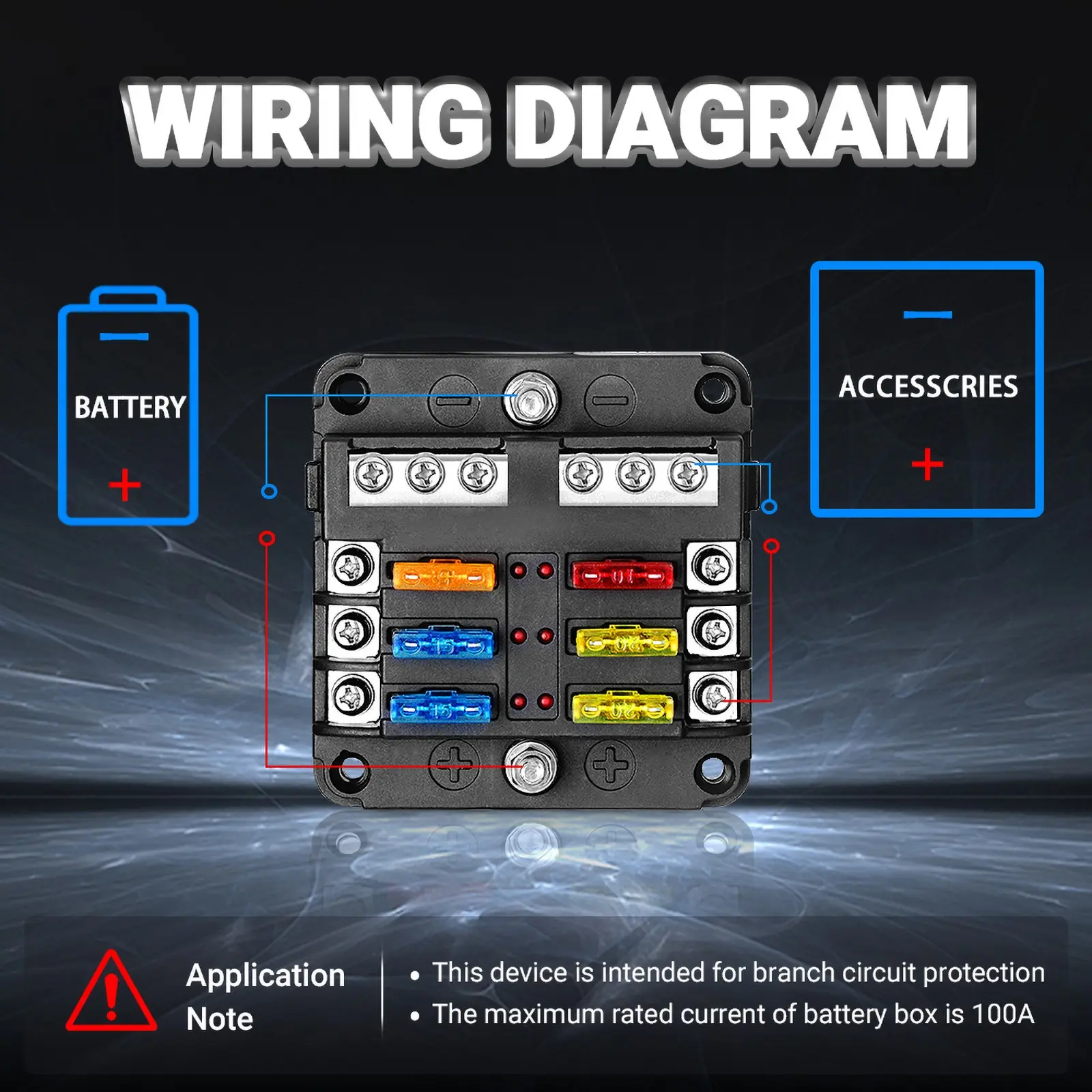

- Please attention we have 2 models:

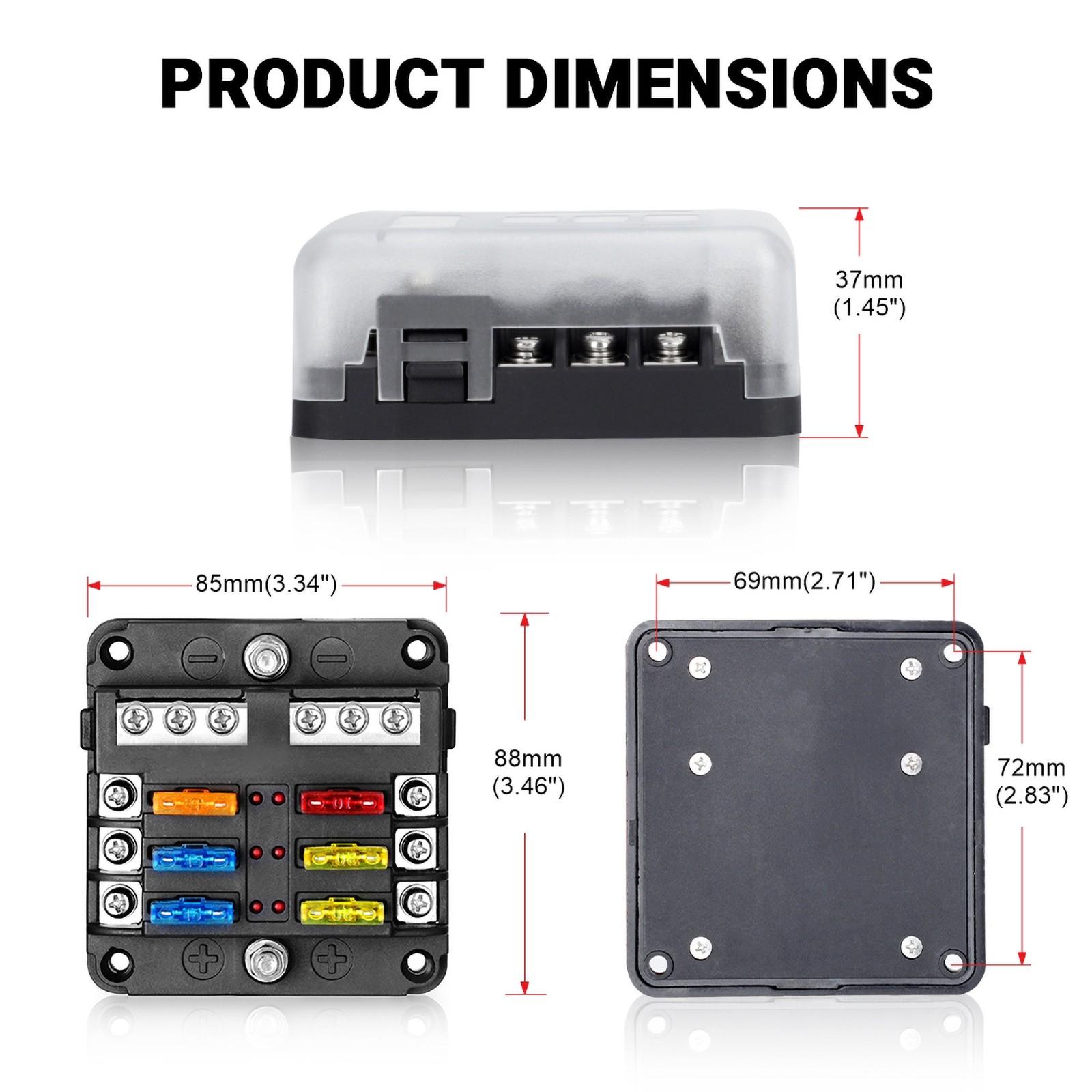

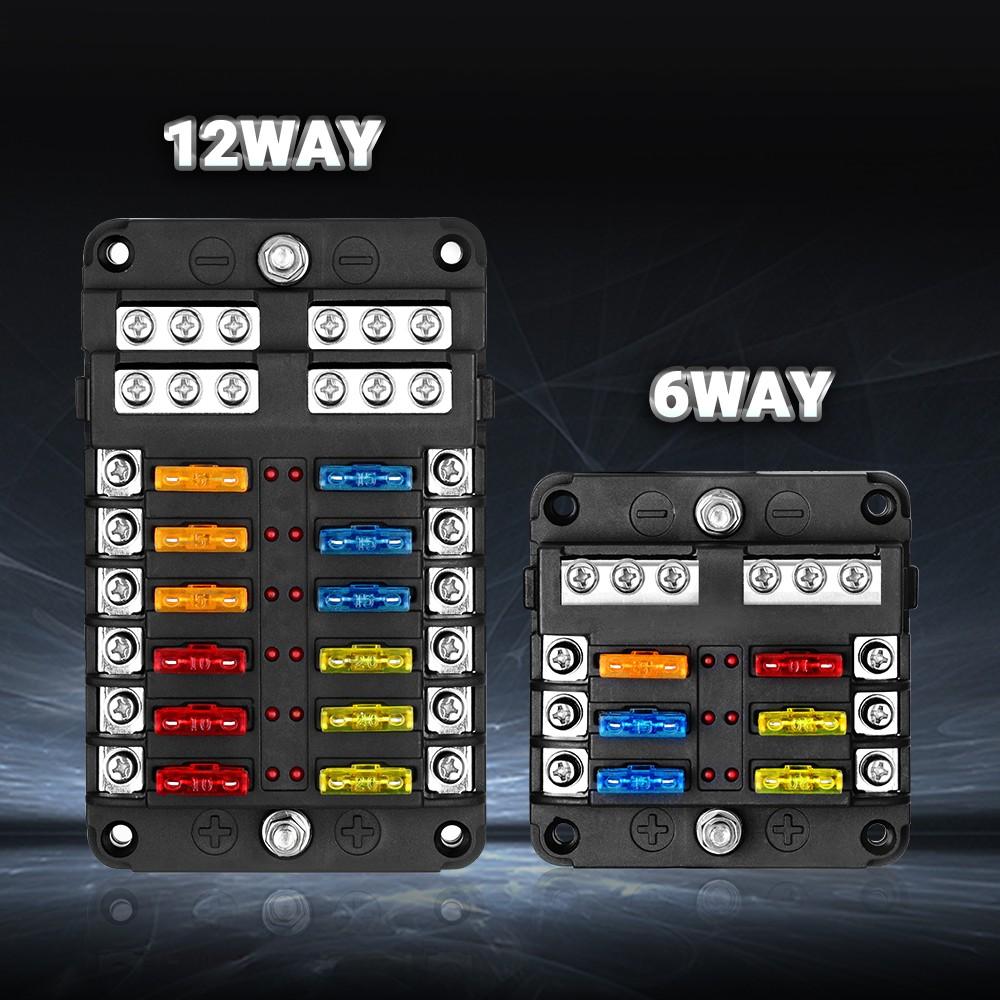

6-Way Fuse Box and 12-Way Fuse Box
- Operating Voltage: 12V DC / 24V DC (compatible with most vehicles)

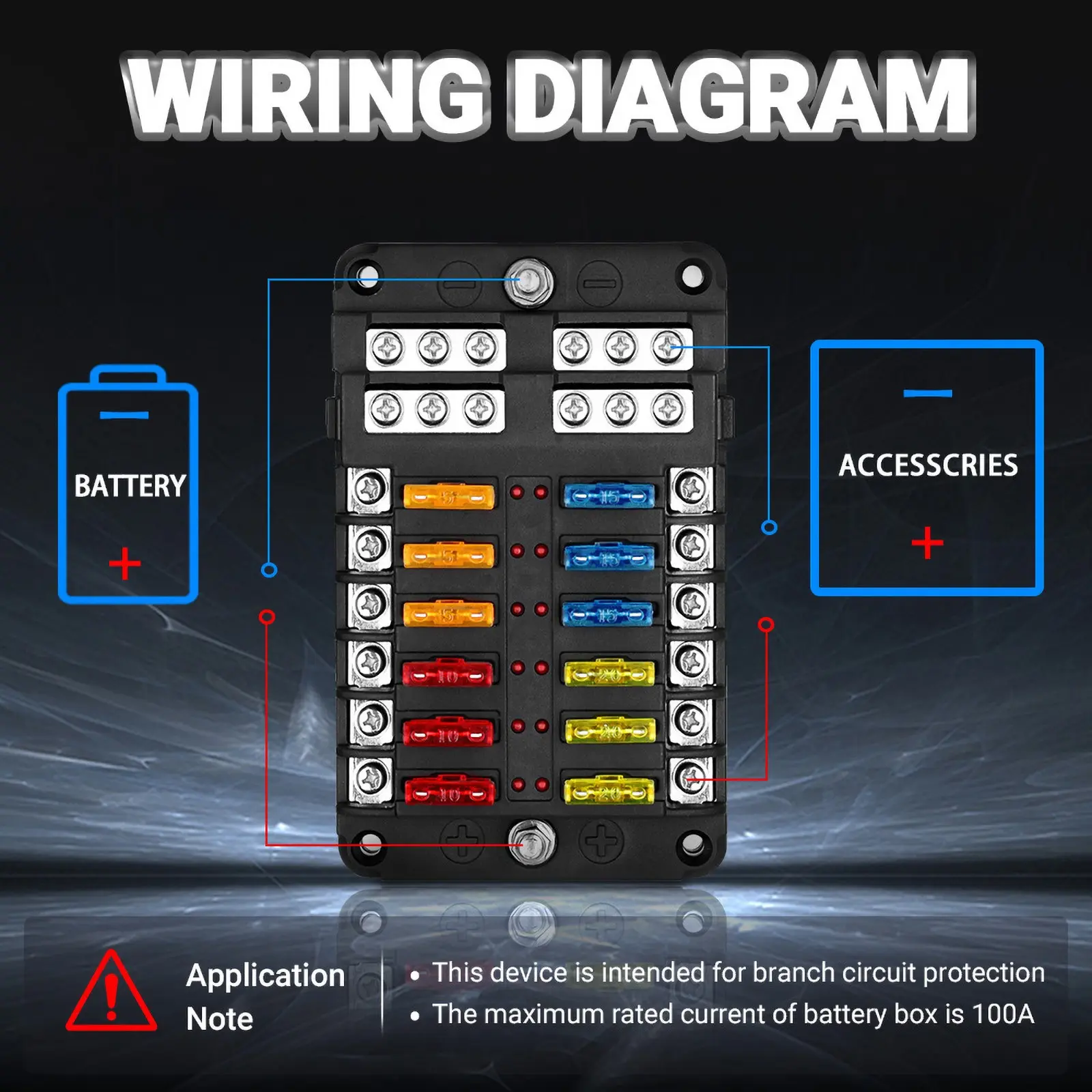

- Input Rated Voltage: 32V
- Input Rated Current: 100A Max
- Max Output Current: 30A per circuit

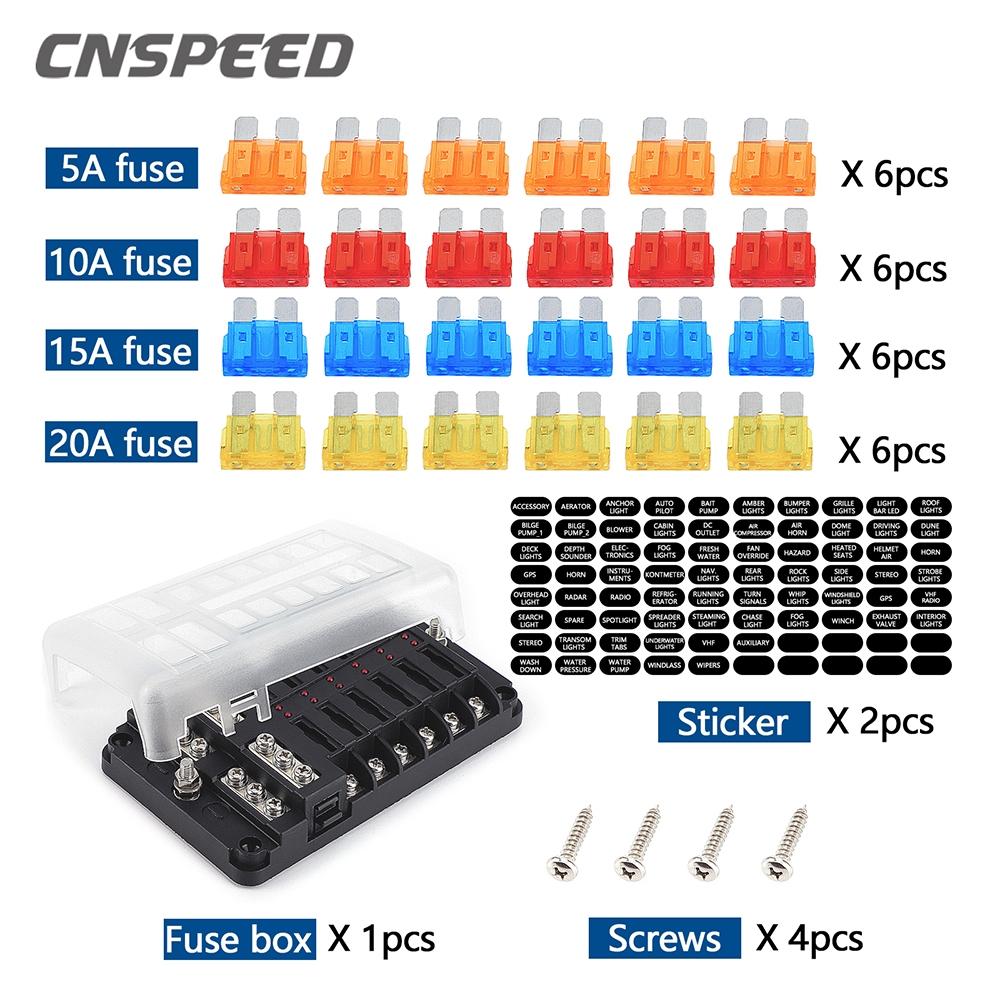

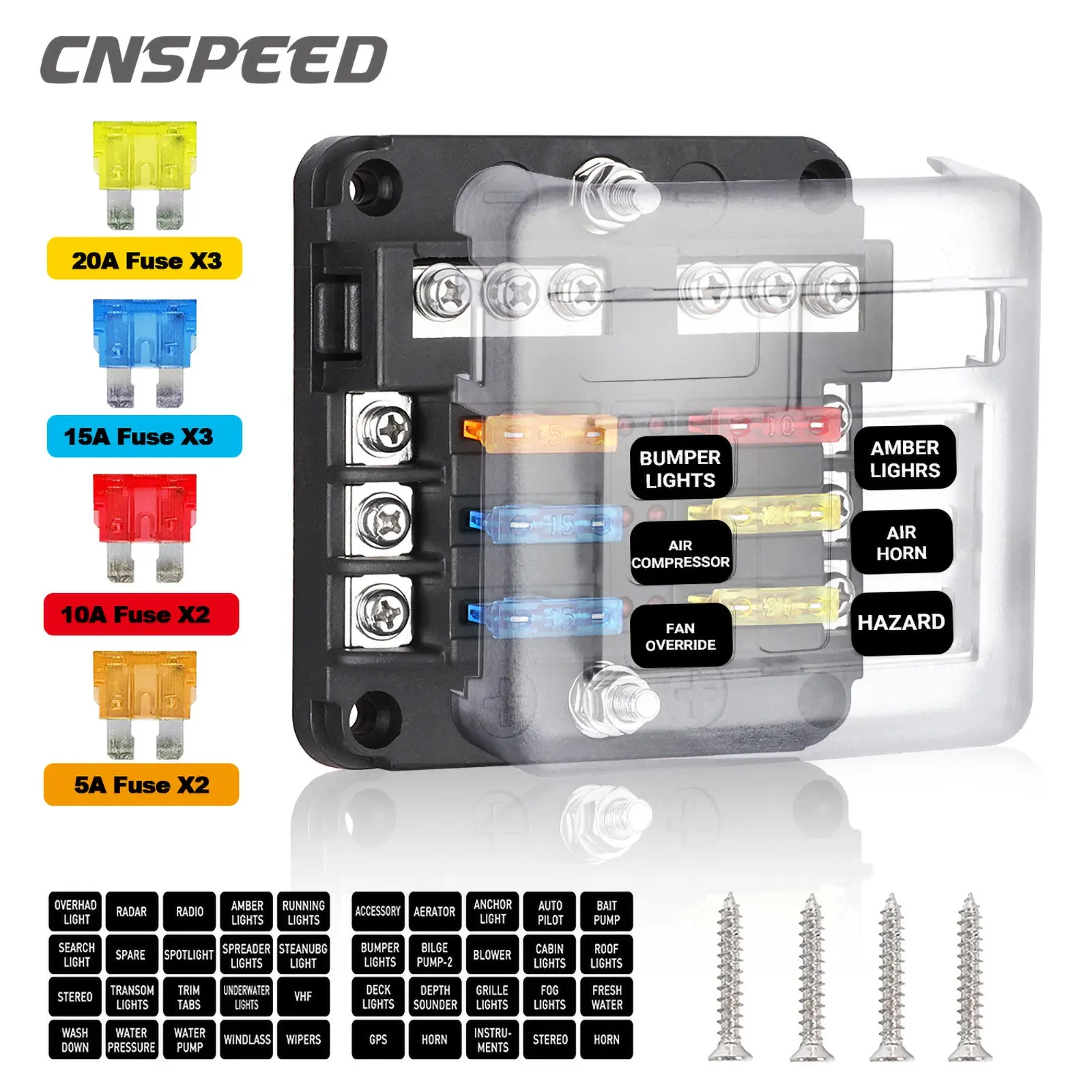

- Fuse Type: Standard ATC/ATO blade fuses
- Terminal Material: Tin-plated copper (high conductivity, corrosion-resistant)
- Housing Material: Flame-retardant PC plastic + metallic-finish waterproof cover

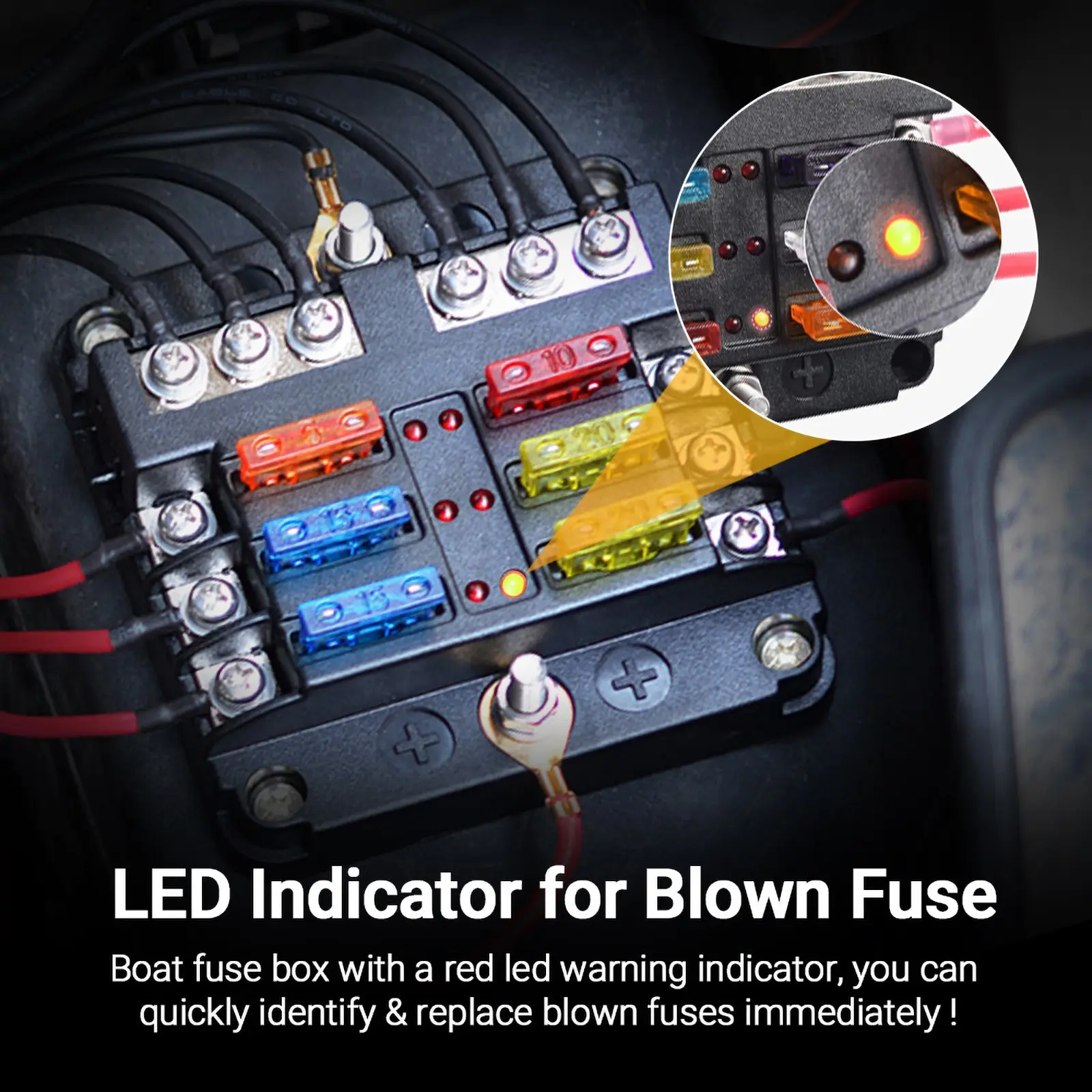

- Indicator: Red LED per circuit (illuminates on fuse failure)

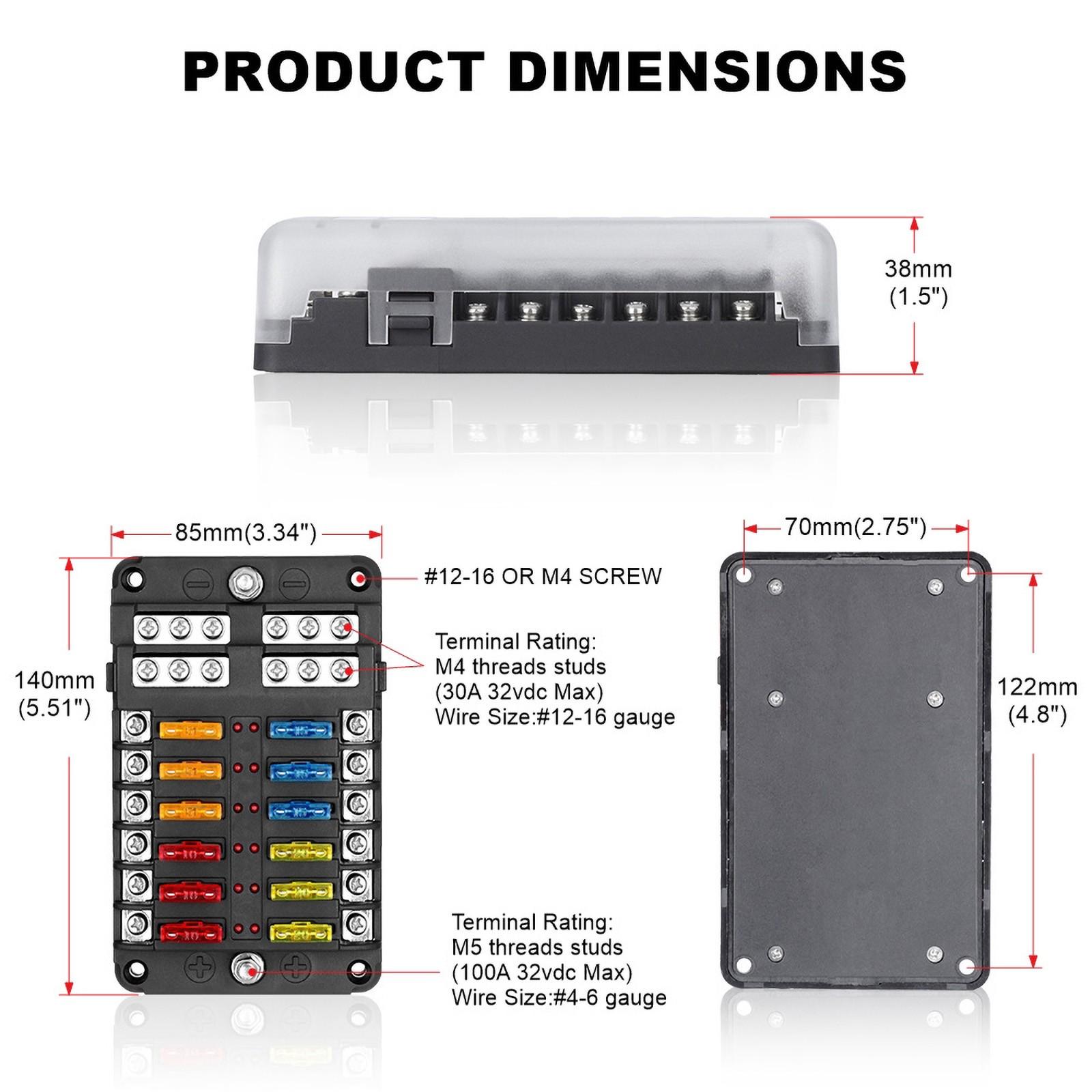

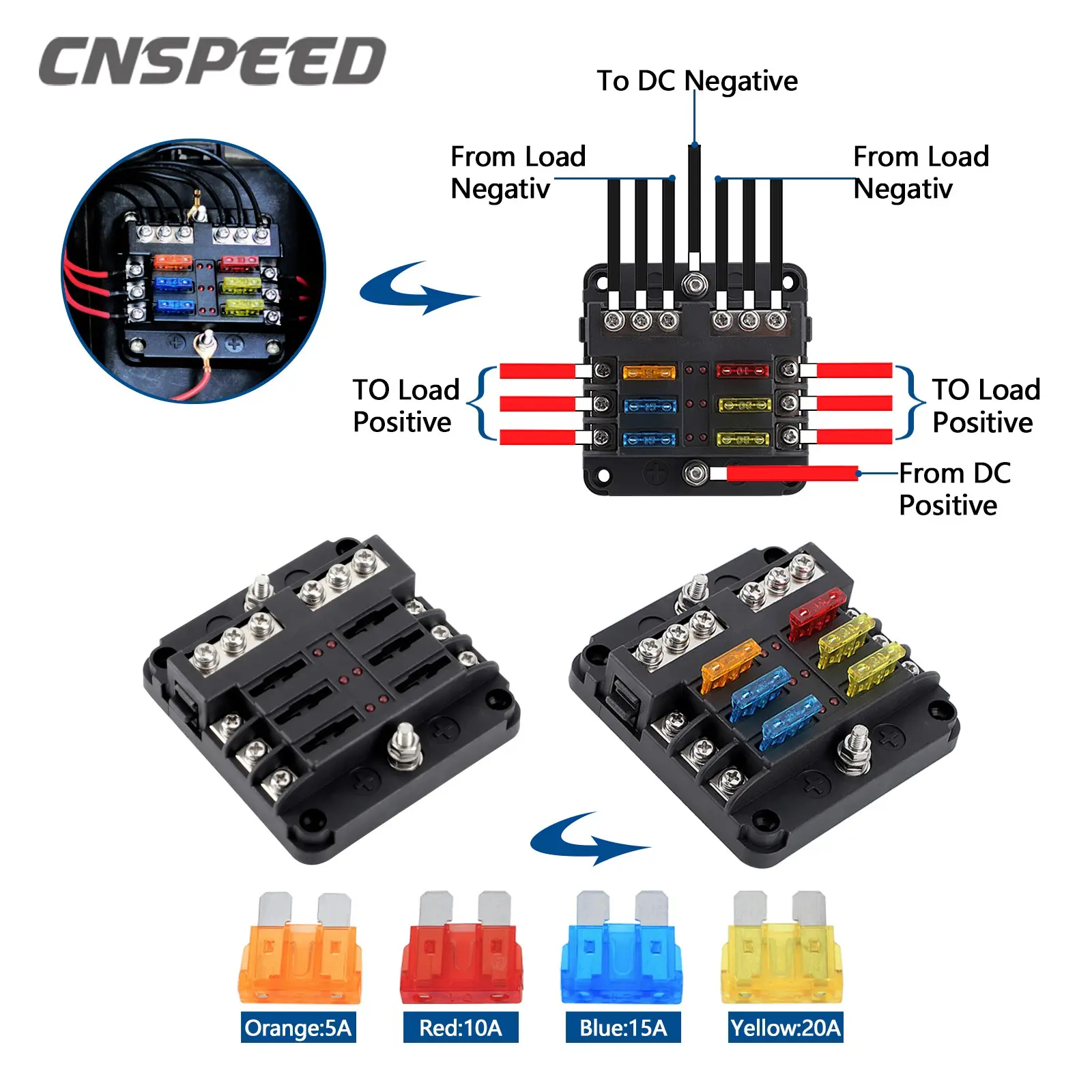

- Input Wire Size: #4-6 AWG
- Output Wire Size: #12-16 AWG
- Main Line Terminal: M5 threaded stud
- Single Wire Terminal: M4 threaded stud
