EDIAG BM410 12V & 24V Car Battery Tester 7 LED Lights Display

ediag BM410 is a portable car battery analyzer tool for daily use, perform fast and effective.BM410 battery detector with clips, perform outside vehicle, have to open hood to test the battery condition, but in very fast respone and accurate data.

Connection:

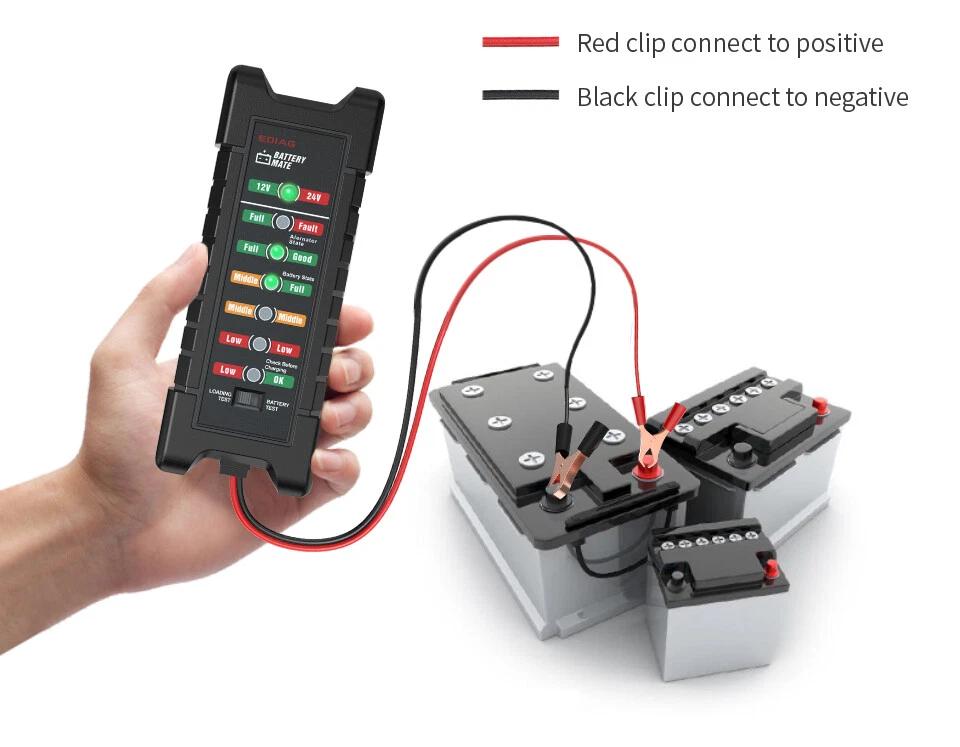

Attch the cabla clip of the red cable to the positive(+) of the battery and the black to the negative (-).

Works on 12V &24V Vehicles:CARS / MPV/ TRUCK

Checking The Charging Level:Switch on the headlights for 1-2 minutes, then switch off. Remove the cable clips from the battery, wait approx. 10 mins then switch the testing device on again. A signal LED will shine according to the charging status of the battery indicating " Full" " Half-full" or "Very low charge".

Checking The Dybamo:

Connect the testing device. Start the engine and switch off the headlights, radio etc. Star the engine again and switch on the headlights, radio etc. In both cases, then green signal LED "GOOD" should shine. The red signal LED " Defective" will start to shine if the dynamo in bad condition. If the situation happen, please go to local car workshop in your earliest time.

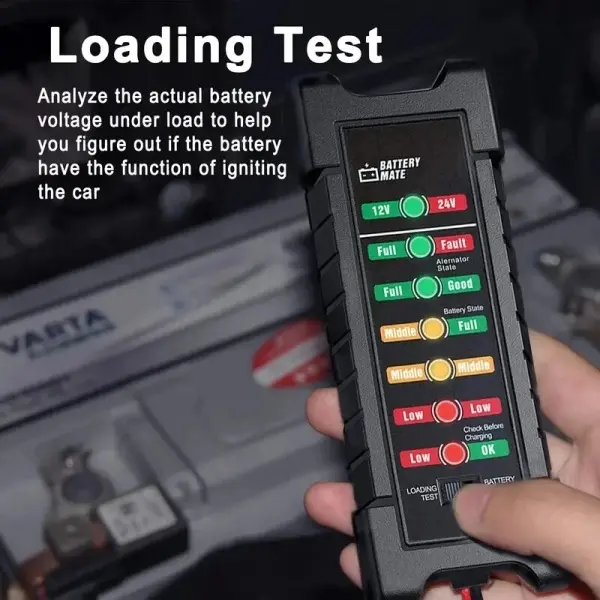

Battery Load Test Mode:

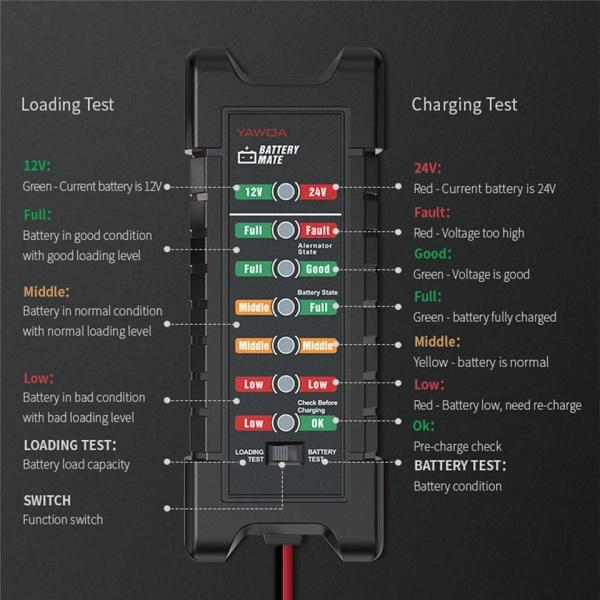

12V Green LED: Current test battery is 12V

Full Green LED: Indicates that the battery is in good condition and has a good load capacity

Middle Yellow LED: Indicating that the battery is in very moderate condition, the carrying capacity is average

Low Red LED: Indicates poor battery condition and low load capacity

Battery Charging Test Mode:

24V Red LED: Current test battery is 24V

Fault Red LED: Abnormal battery condition, high voltage

Good Green LED: Normal working voltage

Full Green LED: Good battery condition

Middle Yellow LED: Medium battery

Low Red LED: Low power, need to be charged

OK Green LED: Check before charging
