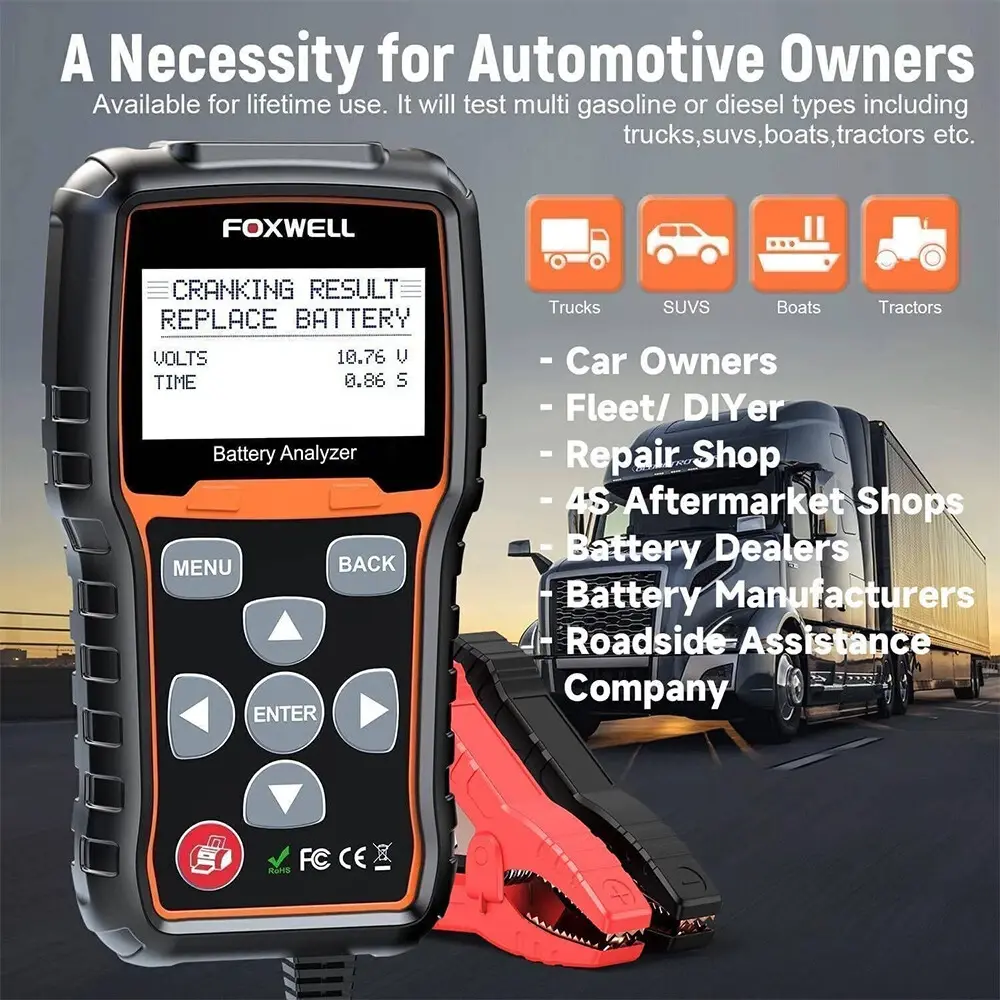

The latest BT705 (100-2000CCA)Battery Analyzer form Foxwell is dedicatedly developed to test 12V regular flooded, AGM flat plate,AGM spiral and gel batteries and 12V & 24V starting and charging system. It detects the failure of the starting and charging systems in 12V & 24V cars, ATV, SUVs, Sedans, RV, electric mower, Mini-Vans, light duty trucks, pickup trucks, marines, boats, motorcycles and even lawnmowers etc. It provides a quick,easy and affordable solution for technicians to check battery health and detect faults of starting and charging system. It is a professional battery tester for enthusiasts or DIYers, small garages, auto repair shop, independent repairs etc.

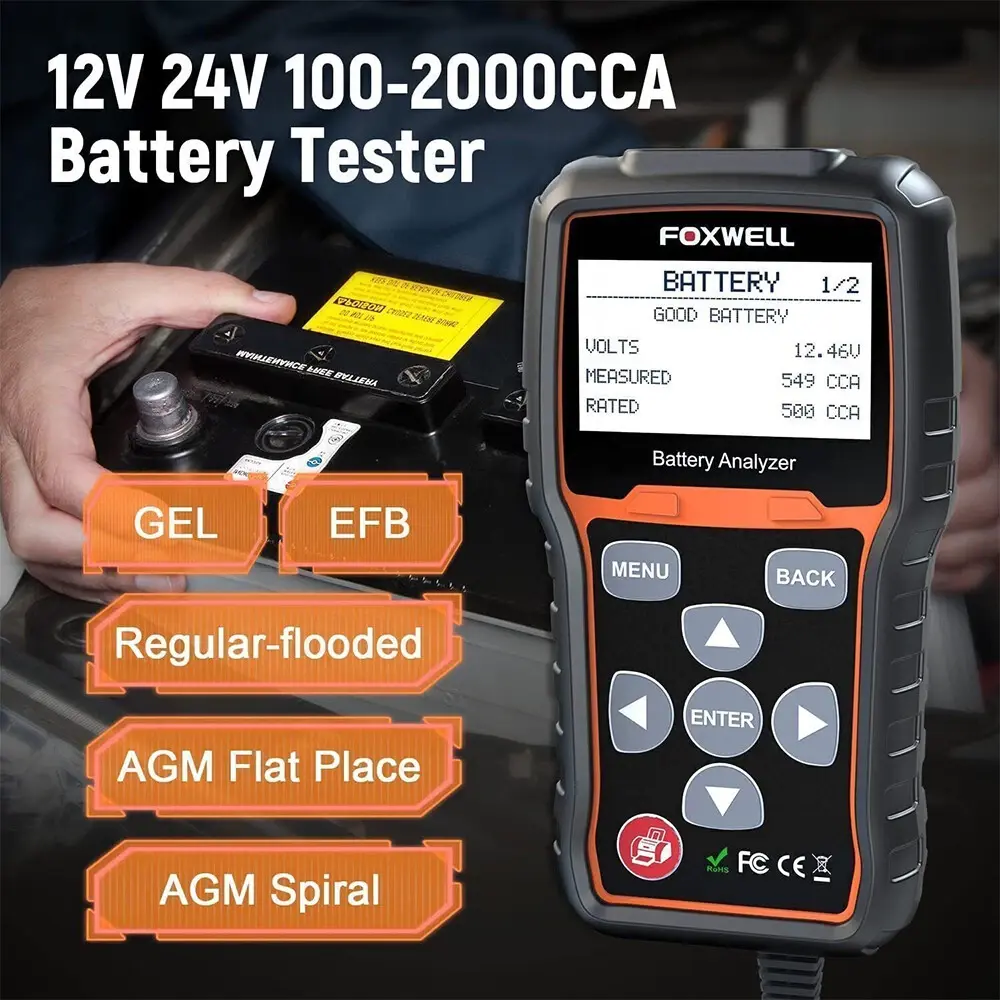

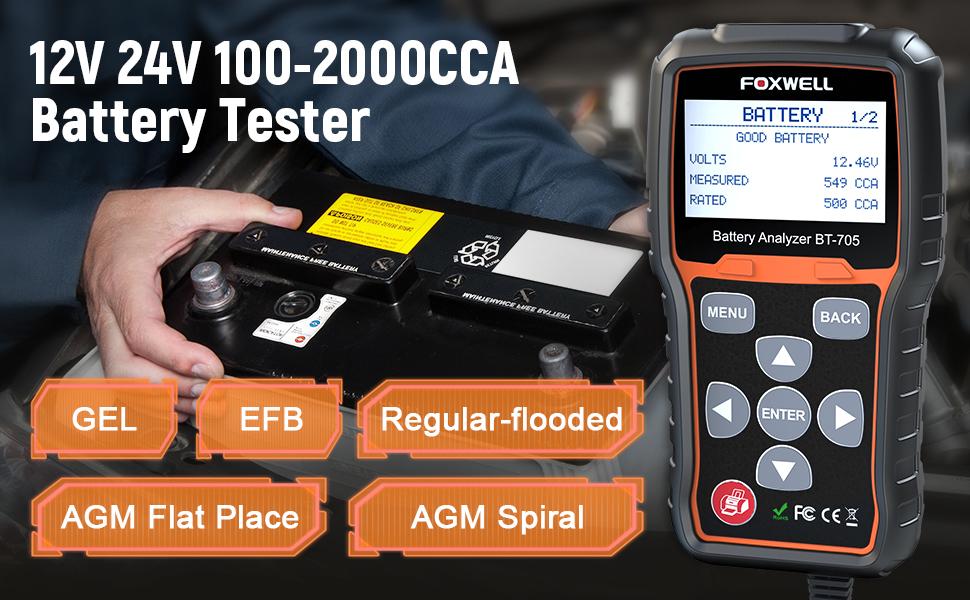

FOXWELL 12V 24V 100-2000CCA Battery Tester Automotive Load Tester

️ Test regular flooded, AGM flat plate ,AGM spiral, GEL and EFB batteries which standard is CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB.

️ CCA- Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C).

️ BCI- Battery Council International standard.

️ CA- Cranking Amps standard. The effective starting current value at 0°C (32°F).

️ MCA- Marine Cranking Amps standard. The effective starting current value at 0°C(32°F).

️ JIS- Japanese Industry Standard, shown on a battery as a combination of numbers and letters. Test range is 26A17--245H52.

️ DIN- Deutsche Industrie-Norm.

️ IEC- International Electrotechnical Commission.

️ EN- Europa-Norm.

️ SAE- Society of Automotive Engineers.

️ GB- China National Standard.

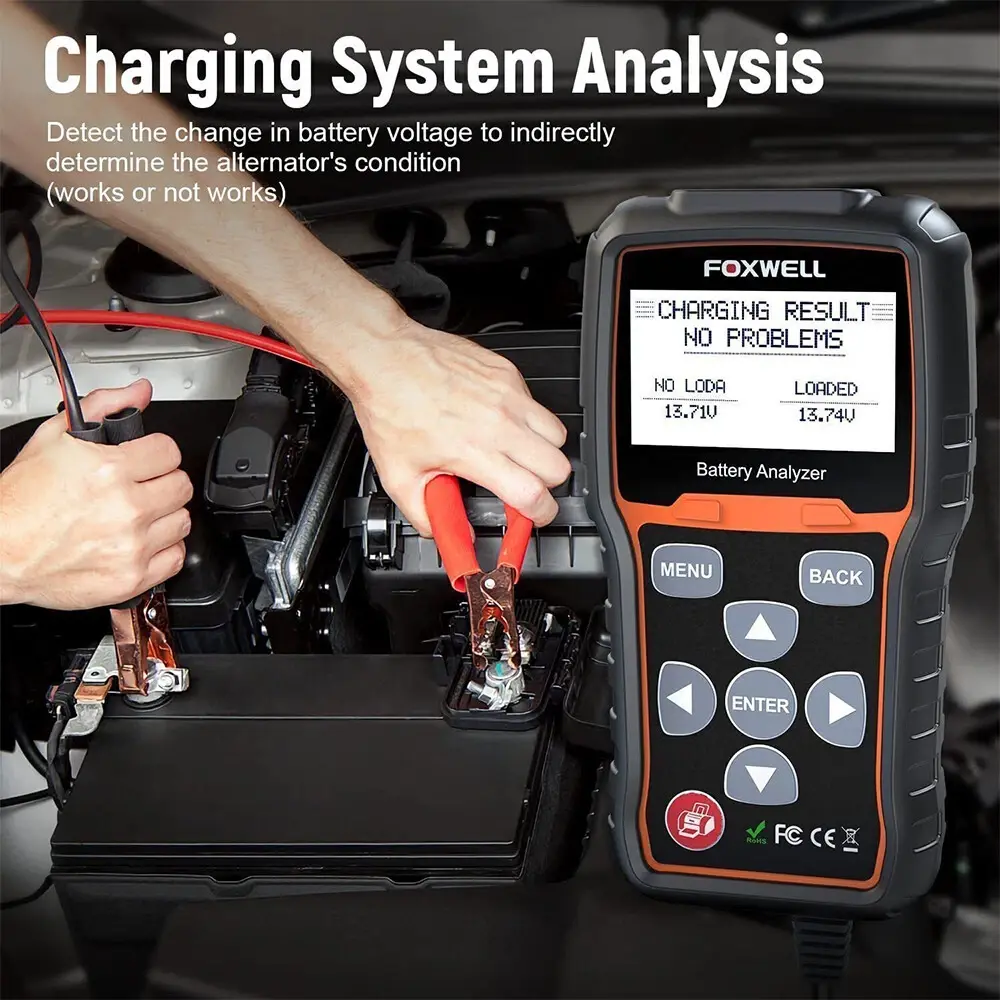

Car Charging System Tester

NO PROBLEMS: System is showing normal output from the alternator.

NO OUTPUT: No alternator output detected. Check all connections to and from the alternator, especially the connection to the battery. If the connection is loose or heavily corroded, clean or replace the cable and retest. If the belts and connections are in good working condition, replace the alternator. (Older vehicles use external voltage regulators, which may require only replacement of the voltage regulator.)

LOW OUTPUT: Alternator not providing sufficient to power the system's electrical loads and charge the battery. Check the belts to ensure the alternator is rotating with the engine running. Replace broken or slipping belts and retest.

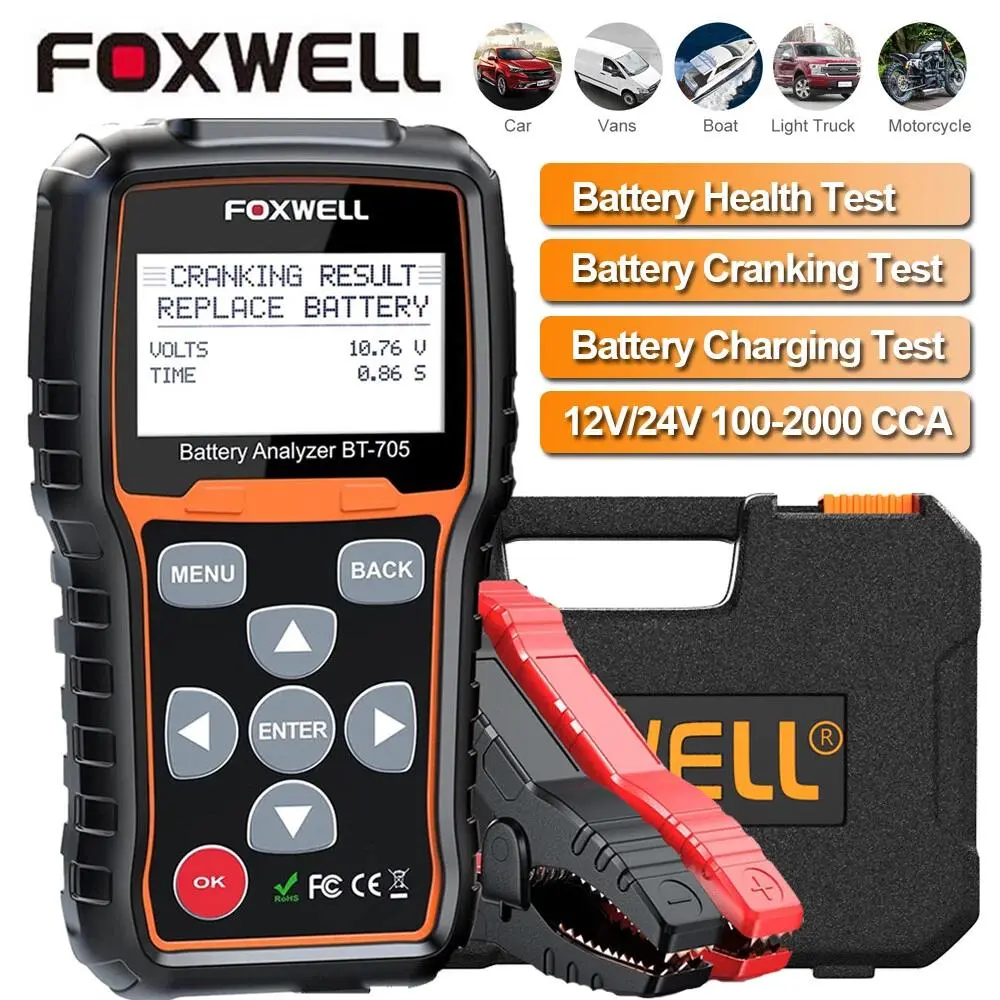

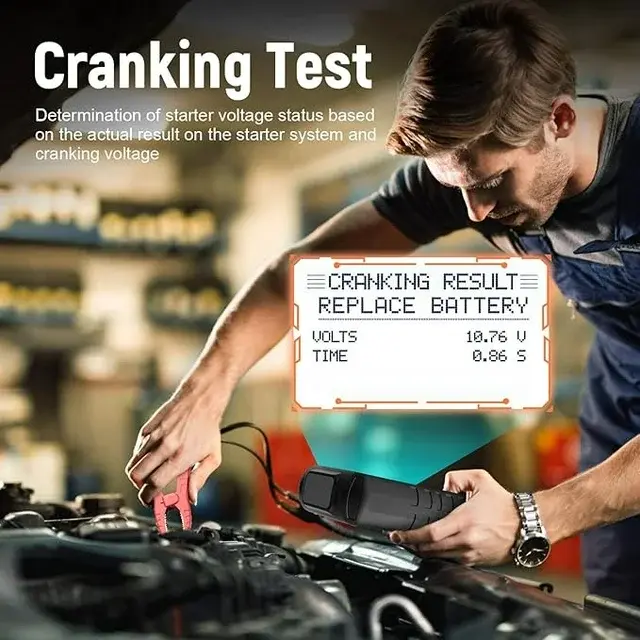

Cold Cranking Battery Tester

·CRANKING NORMAL: The starter voltage is normal and the battery is fully charged.

·LOW VOLTAGE: The starter voltage is low and the battery is fully charged.

·CHARGE BATTERY: The starter voltage is low and the battery is discharged. Fully charge the battery and repeat the starter system test.

·REPLACE BATTERY: Battery must be replaced before the starting system can be tested.

·NO START: No vehicle start detected.

·CRANKING SKIPPED: A start was not detected.

Note: Before starting the test, inspect the alternator drive belt. A belt that is glazed or worn, or lacks the proper tension, will prevent the engine from achieving the rpm levels needed for the test.

Car Battery Health Analyzer

·GOOD BATTERY: Battery is in good condition.

·GOOD-RECHARGE: Battery is in good condition but low current.

·CHARGE & RETEST: Fully charge the battery and retest. If you still get CHARGE & RETEST after fully charge the battery, replace it.

·REPLACE BATTERY: The battery is almost dead or the connection between the battery and battery cable is poor. Replace the battery and retest; or disconnect the battery cables and retest the battery using the out-of-vehicle test. BAD CELL-REPLACE:The battery may be damaged.

The battery life tester keeps the results of last test only. When you start a new test, the last results are overwritten.

Specifications:

Brand: ‎FOXWELL

Power Source: ‎Corded Electric

Style‎: 2.8" LCD Screen Digtal Battery Tester

Color‎: BT705 auto battery load alternator testers

Min. Operating Voltage‎12 Volts

Maximum Operating Voltage‎24 Volts

Item Dimensions L x W x H‎: 13 x 3.2 x 9.1 inches

Item Weight‎: 325 Grams
