Using a vernier caliper can seem daunting at first, but with a little practice, it becomes an invaluable tool for precise measurements. This versatile instrument is essential for anyone working with engineering, woodworking, or any field requiring accurate dimensions. Here’s a step-by-step guide on how to use a vernier caliper effectively.

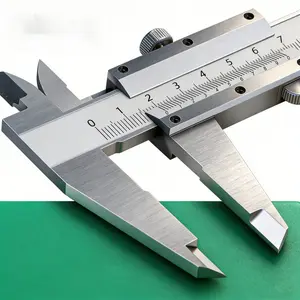

1. **Understanding the Parts**: Familiarize yourself with the main components of the vernier caliper: the main scale, the sliding scale (vernier), the jaws for measuring external dimensions, the depth probe for depth measurements, and the internal jaws for internal dimensions.

2. **Measuring External Dimensions**: To measure the external dimensions of an object, open the jaws and place the object between them. Ensure the jaws are snug against the object without applying excessive force. Read the measurement on the main scale where the zero of the vernier scale aligns.

3. **Measuring Internal Dimensions**: For internal measurements, use the internal jaws. Insert them into the object and gently open them until they touch the walls. Again, read the measurement as you did for external dimensions.

4. **Measuring Depth**: To measure depth, extend the depth probe into the hole or recess until it touches the bottom. Then, read the measurement as before.

5. **Reading the Scale**: The main scale provides whole units, while the vernier scale provides fractional units. To determine the final measurement, combine the readings from both scales.

By following these steps, you can ensure accurate measurements with your vernier caliper. Remember, practice makes perfect, and with time, you'll find using a vernier caliper becomes second nature. It’s a trusted tool for thousands of professionals, known for its proven quality and precision.
