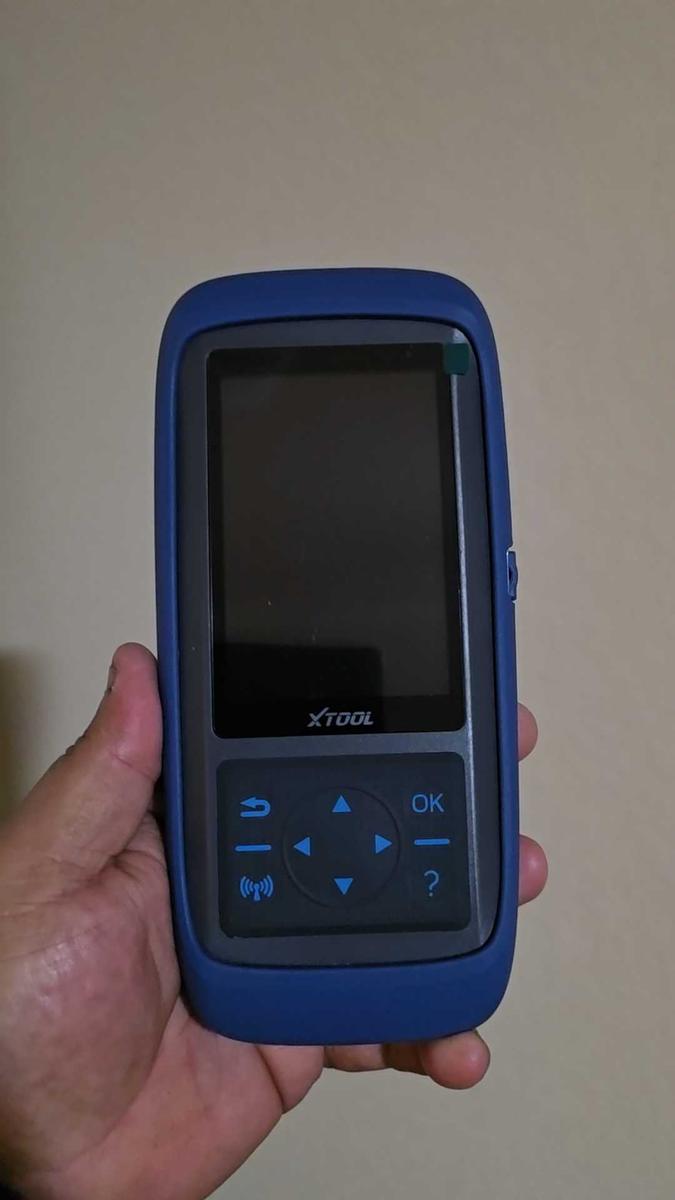

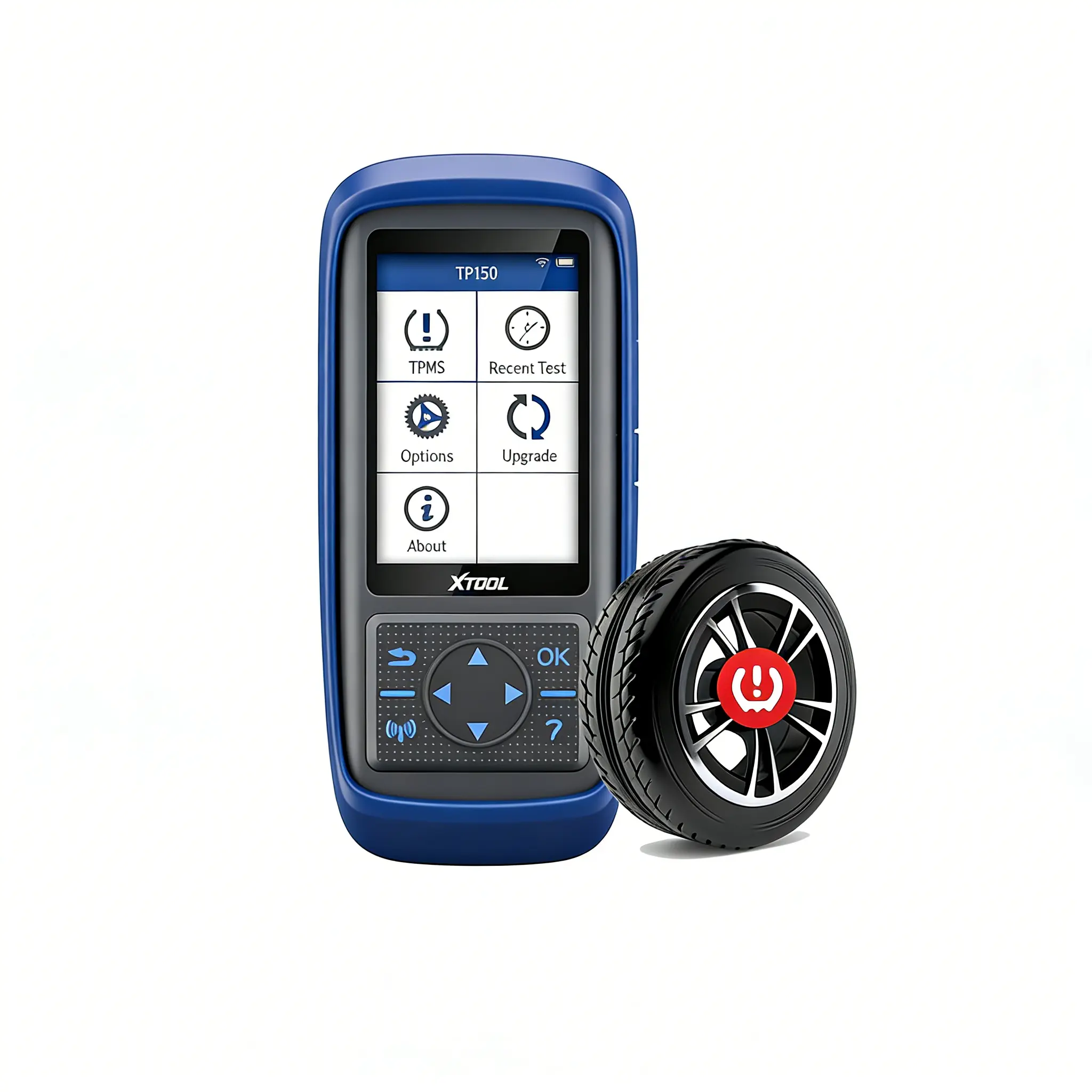

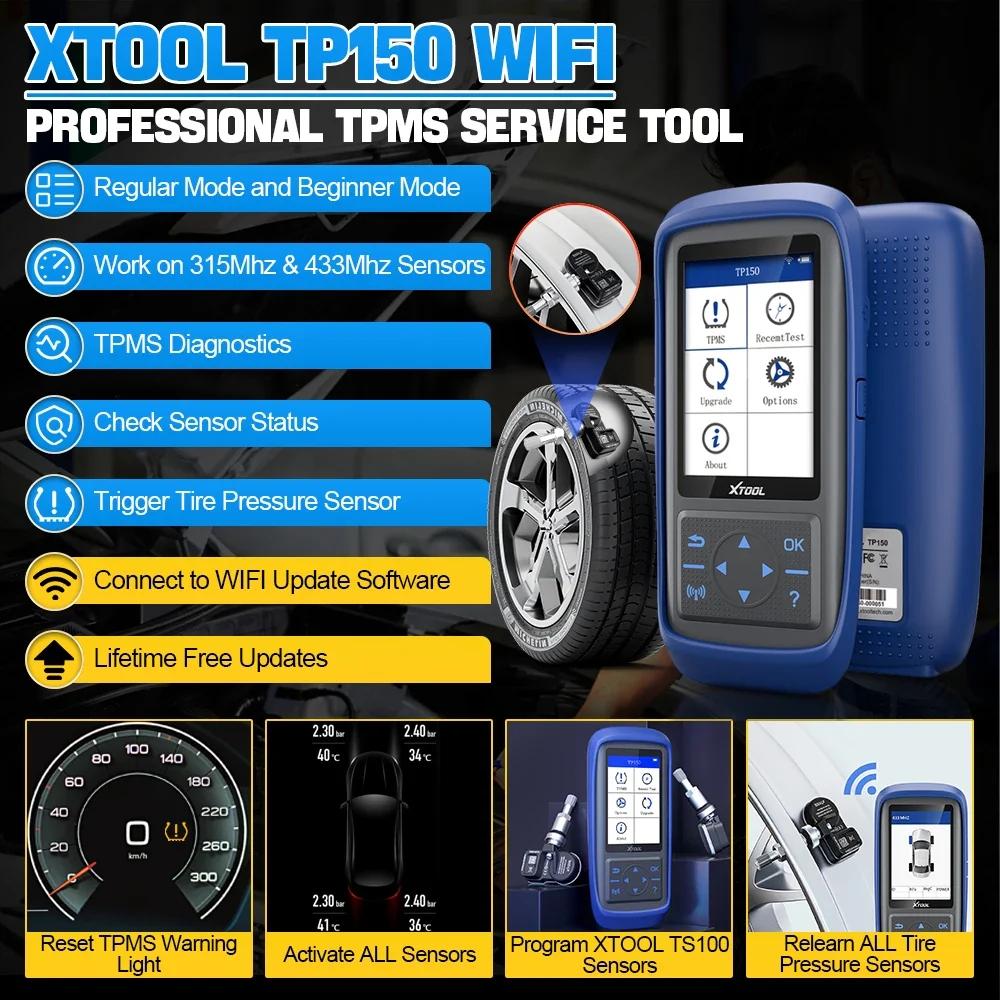

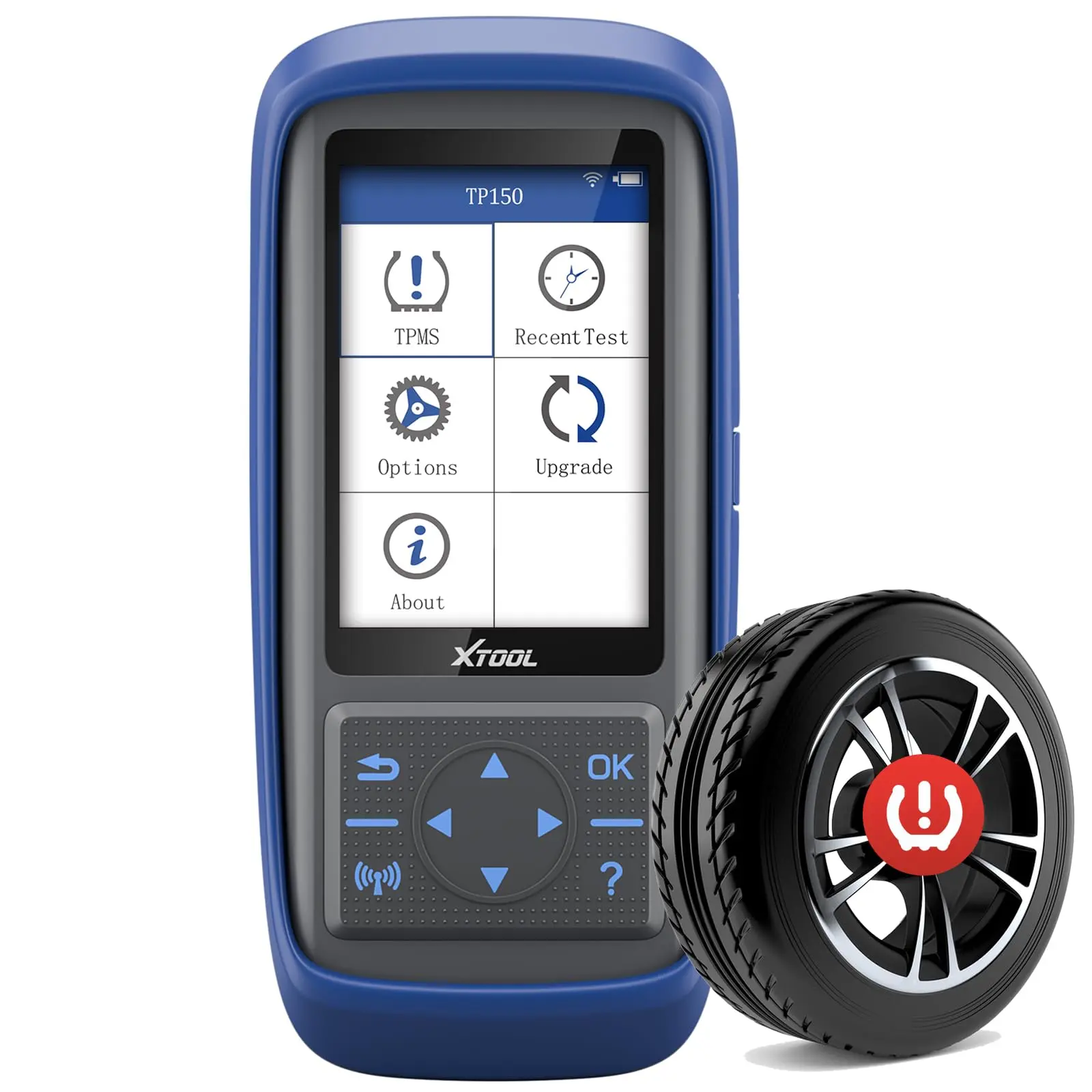

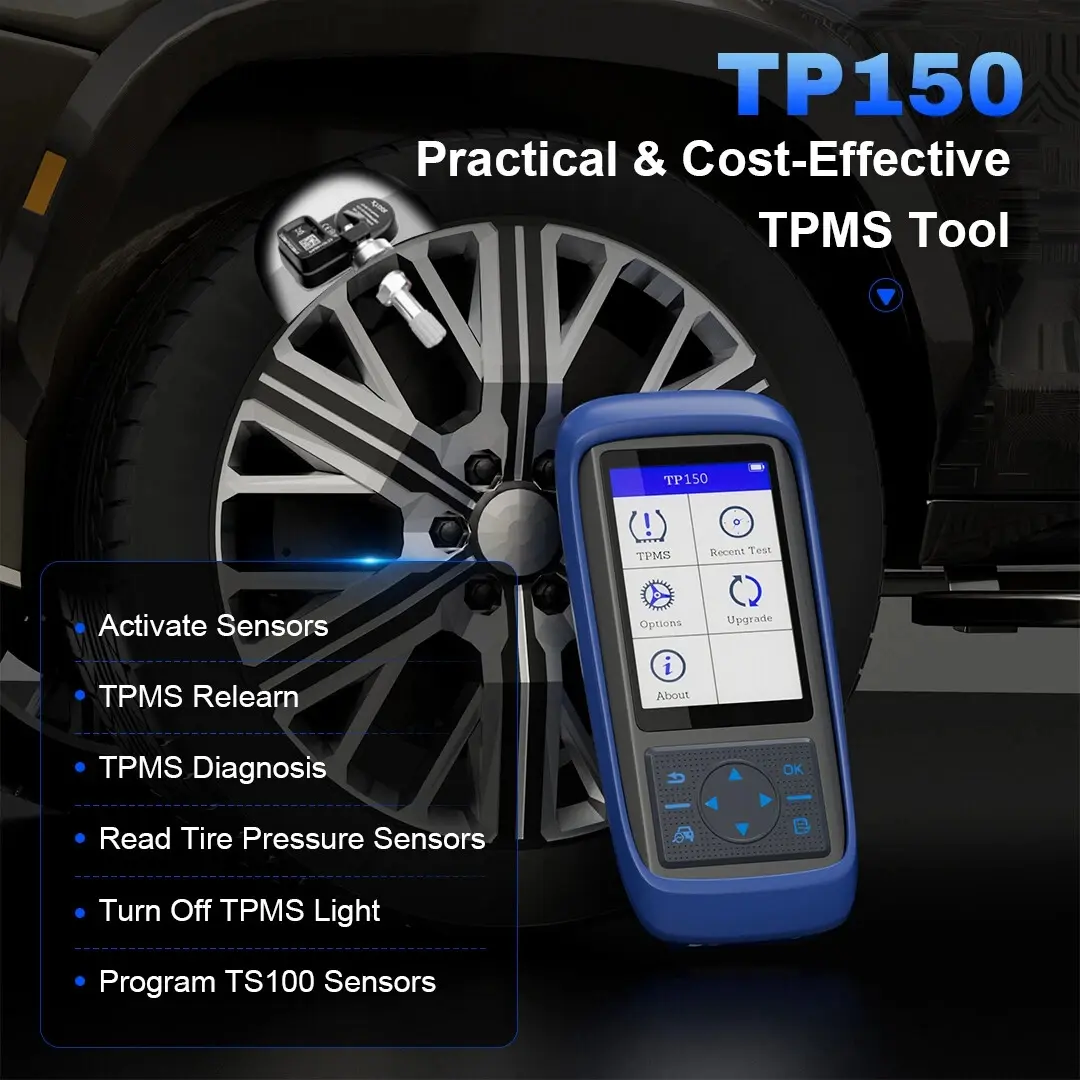

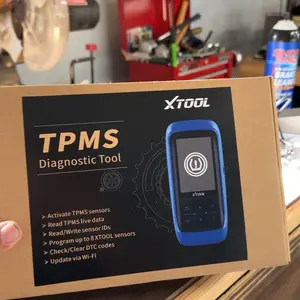

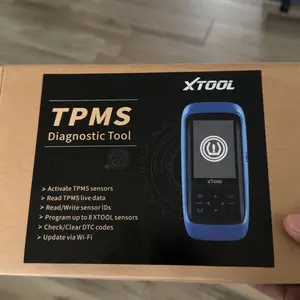

XTOOL TP150 PROFESSIONAL TPMS SERVICE TOOL

·Works on Both 315Mhz & 433Mhz Sensors

·Relearn 99%OE Sensor TPMS Sensors

·Activate 99%OE TPMS Sensors

·Check ECU-ID Matching Status

·Check Sensor Real-Time Data

·Programming Only for XTOOL TS100 Sensors

·Diagnose TPMS System: Read and clear TPMS codes

·Reset TPMS Warning Light

·Check OE Sensor Information: Check OE Sensor Brand, Part No., sensor frequency etc.

·Test Records

·Built-In Rechargeable Battery

·Internet Update via WIFI and USB Connection

·Lifetime Software Updates

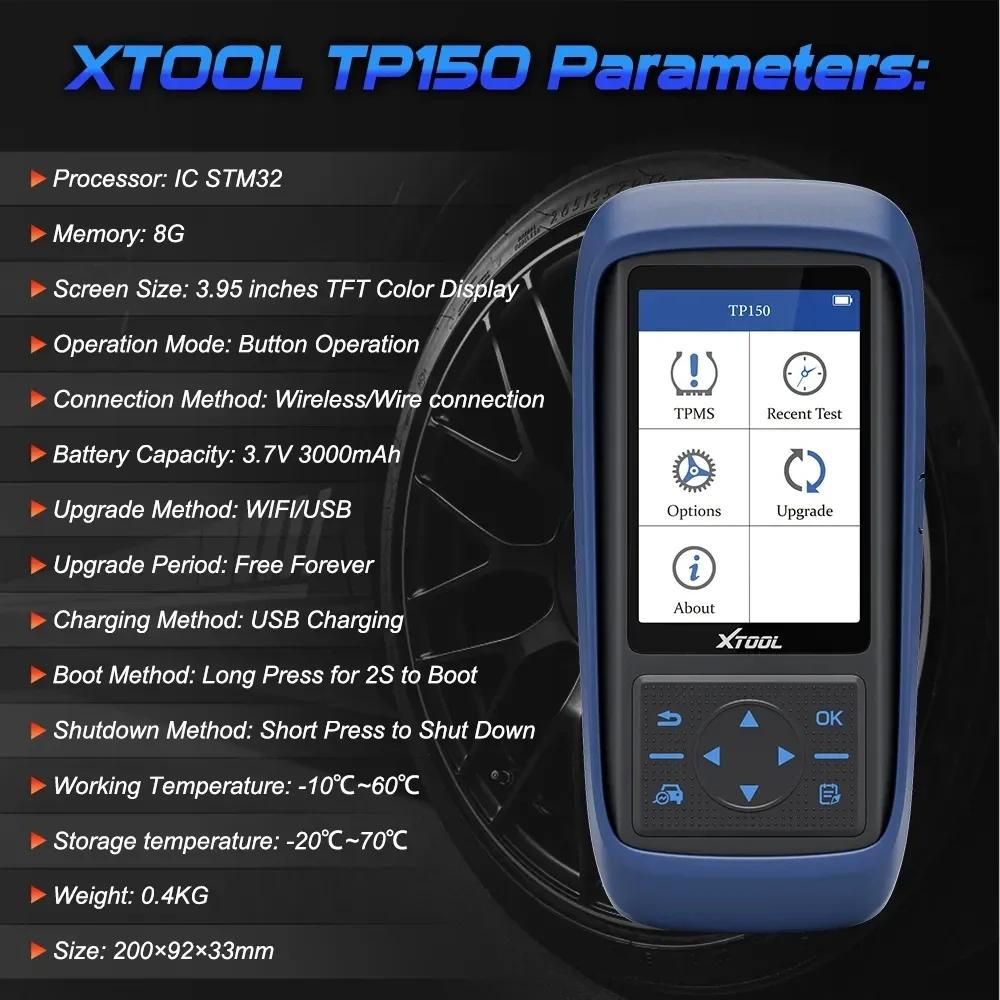

XTOOL TP150 Parameters

·Memory: 8G

·Screen Size: 3.95 inches TFT Color Display

·Battery Capacity: 3.7V 3000mAh

·Weight: 0.4KG

·Size: 200x92x33mm

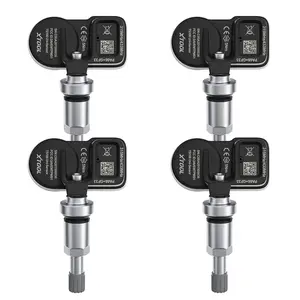

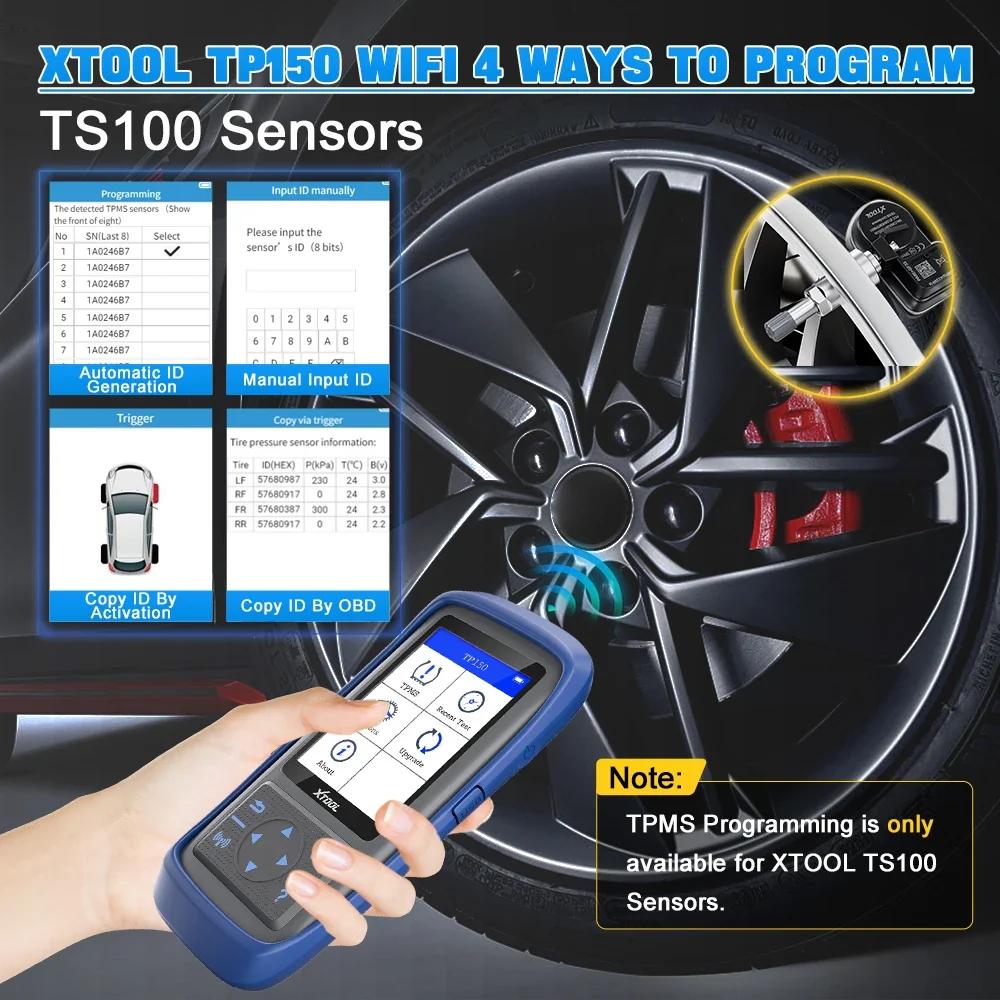

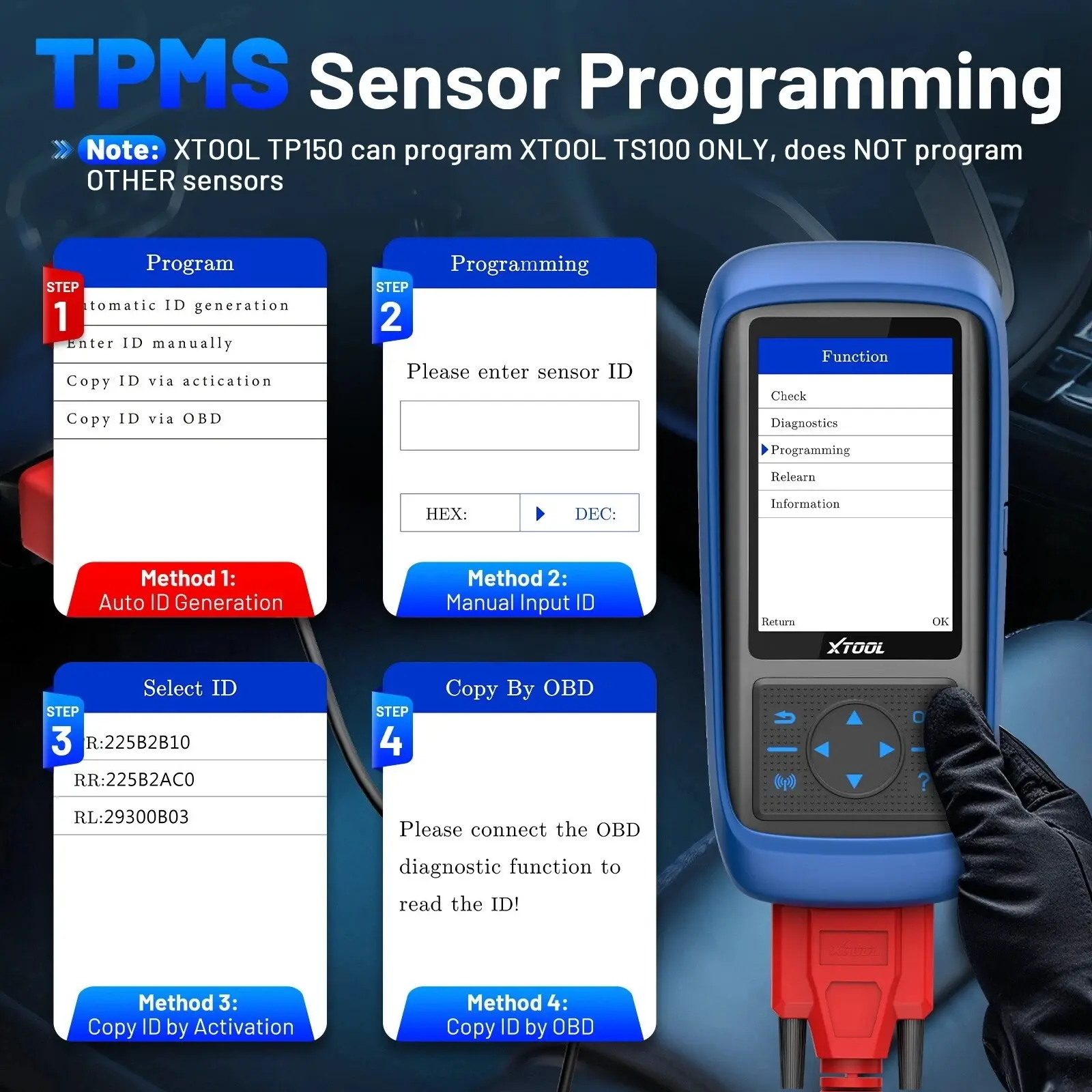

Generate Sensor ID Automatically:

Automatically create a new unique ID(s) into TS100 sensors. After programming the TS100, you need to perform tpms relearn to match the new sensor ID to vehicle's ECU. If you don't know the original sensor ID or your original sensor was bad, you could choose this method.

Input Sensor ID Manually:

Input the ID manually into the new installed TS100 sensor. You can find the ID on the original sensor. If you know the original sensor ID(the original sensor cannot be activated) and the tire/sensor position has not been changed, you could choose this method.

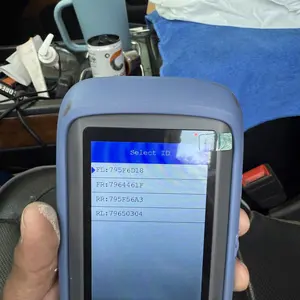

Via Activate Copy Sensor ID:

Trigger the original sensor, get the ID and and copy the ID to the new sensor. If your original sensor works and can be activated, and the tire/sensor position has not been changed, you can choose this method.

Via Read ECU Copy Sensor ID:

Diagnose the vehicle TPMS and get the ID, copy it to the new sensor. If your original sensor is missing and the ID can be read after diagnosis on the car, and the tire/sensor position has not been changed, you can choose this method.

TPMS Check/Activation

·Wirelessly activate 99% OEM TPMS sensors on the market, enables you retrieve TPMS sensor data like Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery Voltage at ease.

·Click key, the detailed information of senor will be displayed on the screen which is include sensor ID, pressure, temperature and battery voltage.

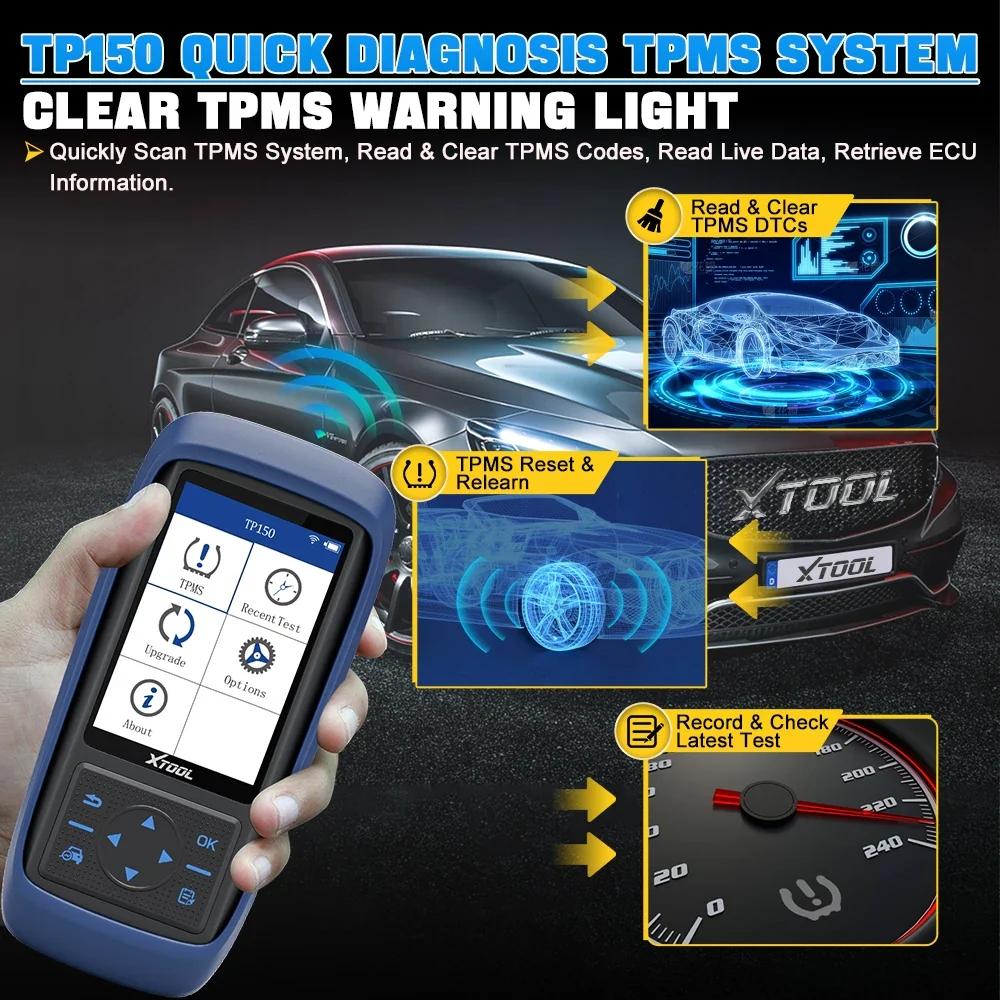

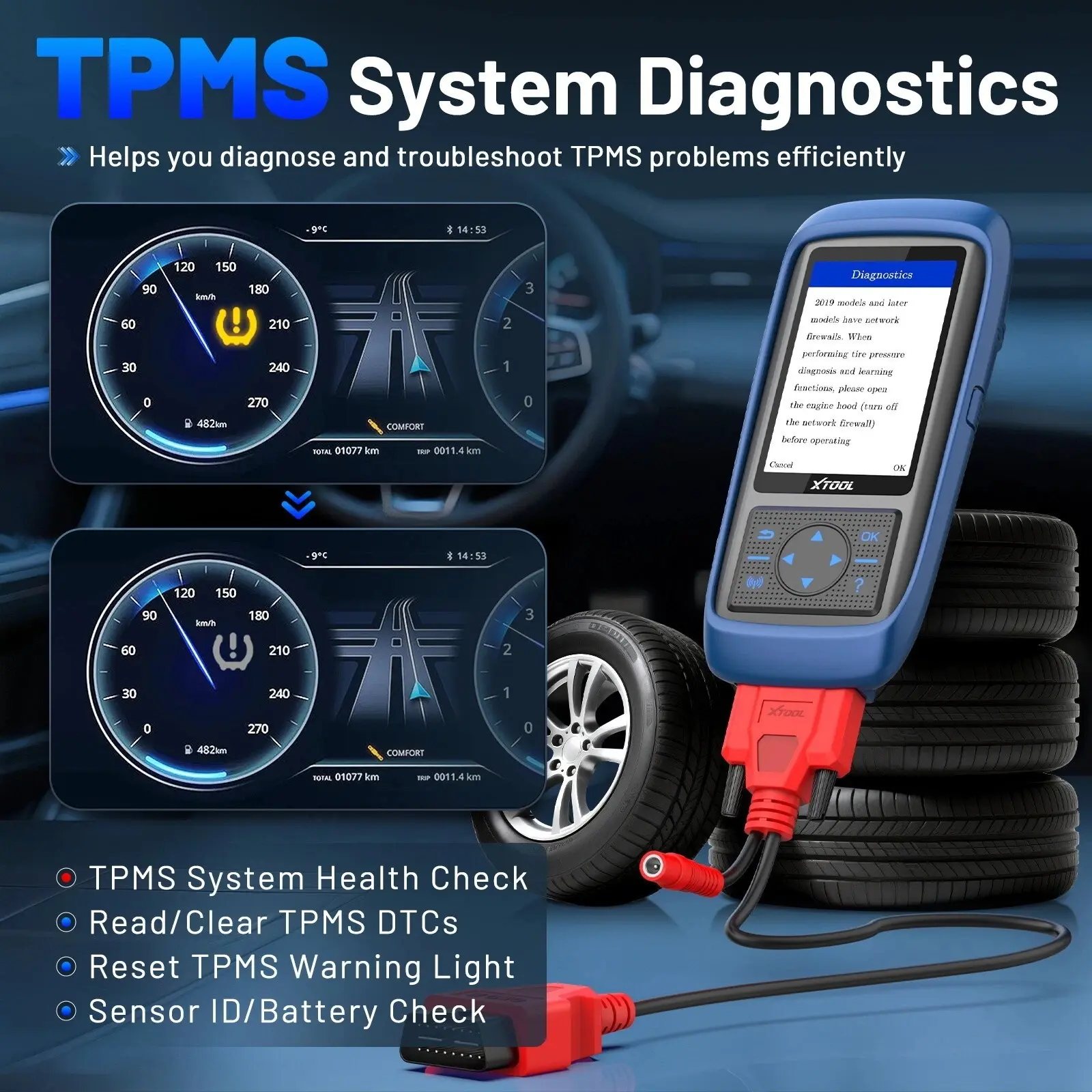

Read & Clear TPMS DTCs:

Read and clear TPMS fault codes, and turns off the TPMS warning light.

TPMS Reset & Relearn:

Reset the TPMS after accurate diagnosis and issue located and solved.

Record & Check Latest Test:

Latest tested vehicle and operations can be remembered, and it helps to lead to the same vehicle for activating sensors faster.
