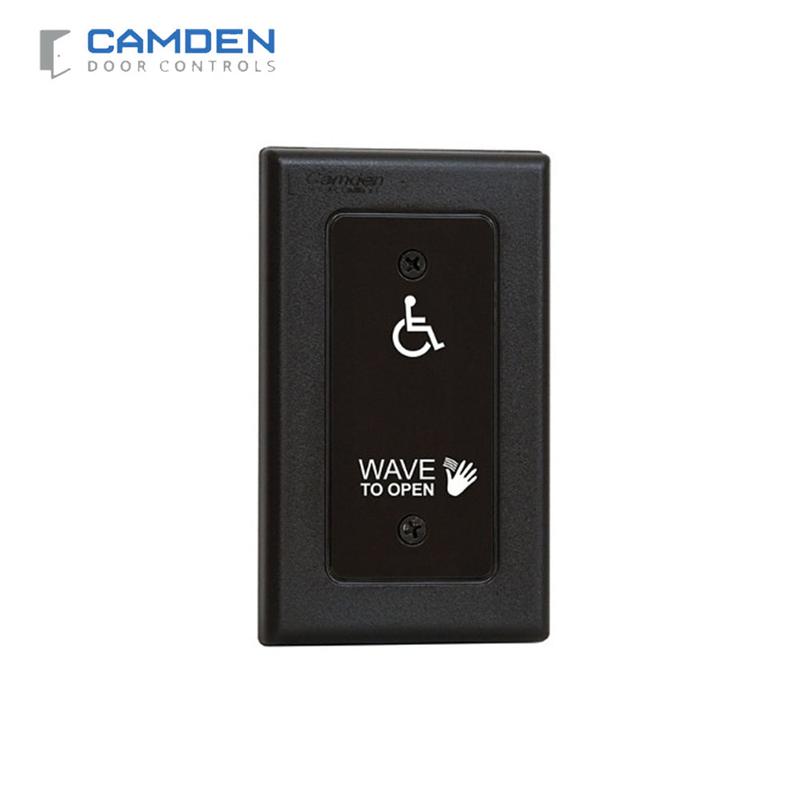

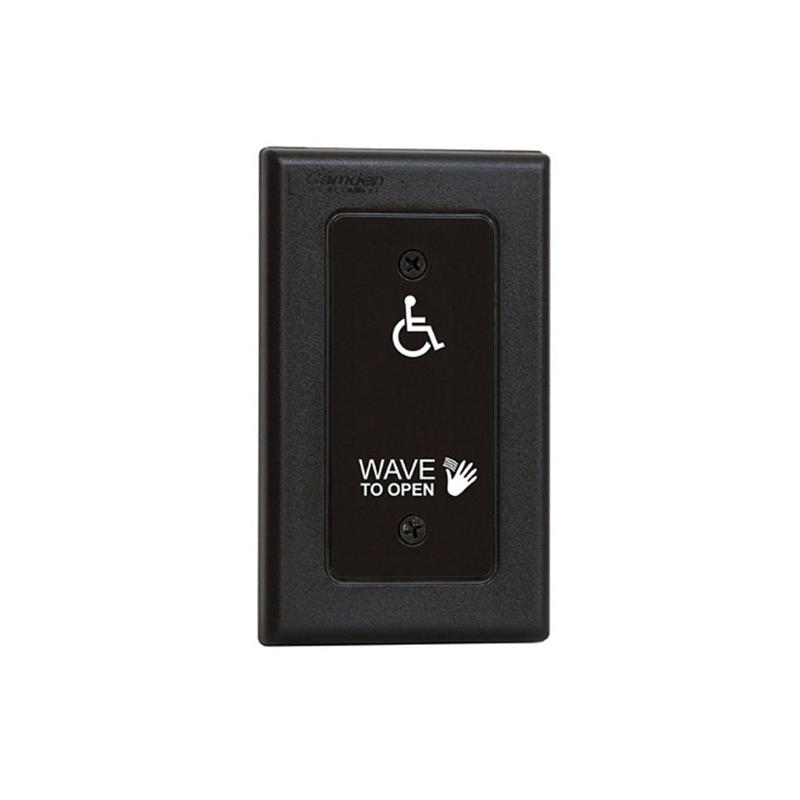

Camden - CM-336/42 - SureWave Battery Powered Wireless Touchless Switch - Wheelchair Icon - Wave to Open with Hand Icon - Black Polycarbonate Faceplate

CM-336 Series are 2nd generation hands-free wireless switches provide superior door activation in new and retrofit access control and automatic door applications. Supplied with (2) AA alkaline batteries. Camden CM-RX90 Wireless Receiver required. Lithium batteries recommended for environments below 0°C (32°F).

Features:

·Wired, wireless and hybrid (wirless/wired) models

·Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package

·CM-336 Series: battery powered wireless models offer industry-leading 4 year battery life using standard 'AA' alkaline batteries

·Line powered models offer 12/24V AC/DC operation

·1 and 2 relay wired models, SPDT, Form 'C'

·Narrow (jamb), single and and double gang faceplates

·Polycarbonate (black) faceplates

·Advanced active infra-red technology with fast response

·Heavy duty 3 or 5 Amp rated relay

·Adjustable operating range up to 28", refer to model specification

·Adjustable time delay, refer to model specifcation

·Selectable fail safe/fail secure operation

·CM-336 Series: 'Request to exit' and external door contact inputs

Specifications

Installation Instruction:

·CM-336_Manual

·CM-336_Manual_FR
