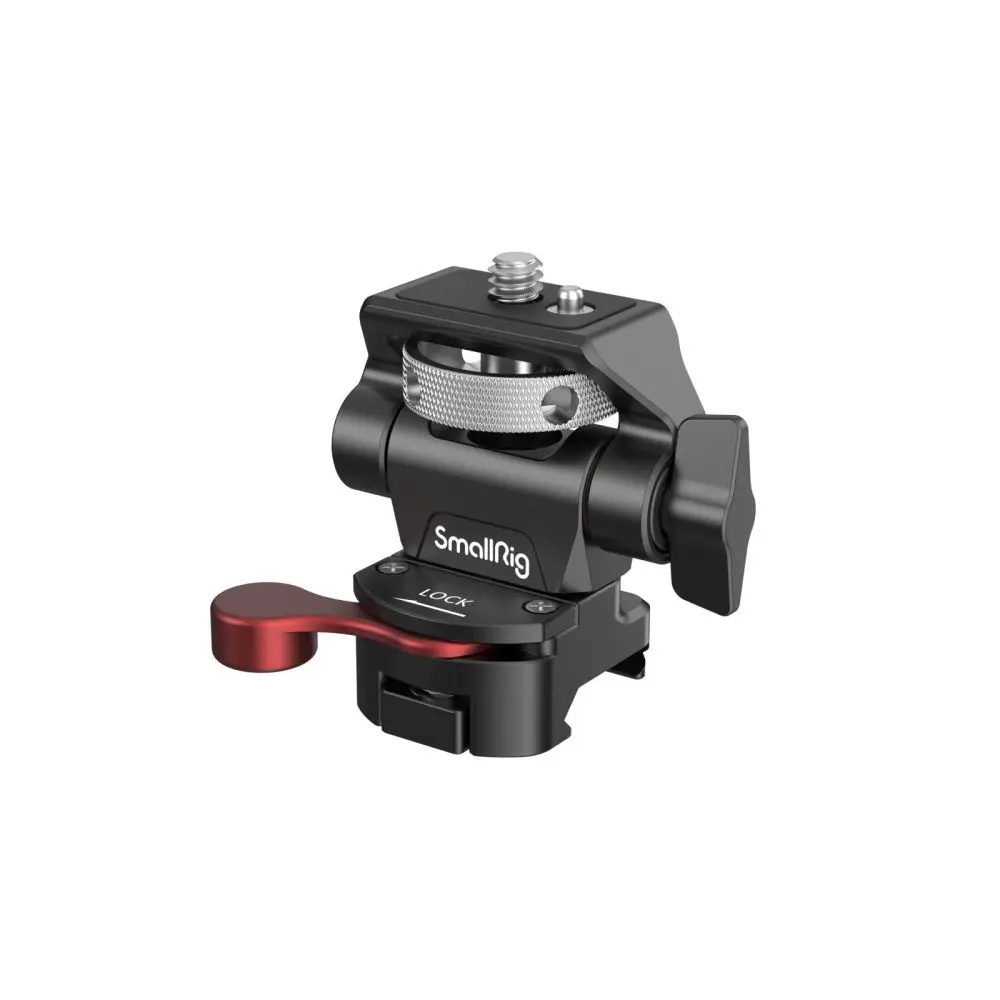

SmallRig Field Monitor Mount with NATO Clamp, Camera Monitor Holder for 5” and 7” Monitor, Swivel and Tilt Adjustable - 2906B

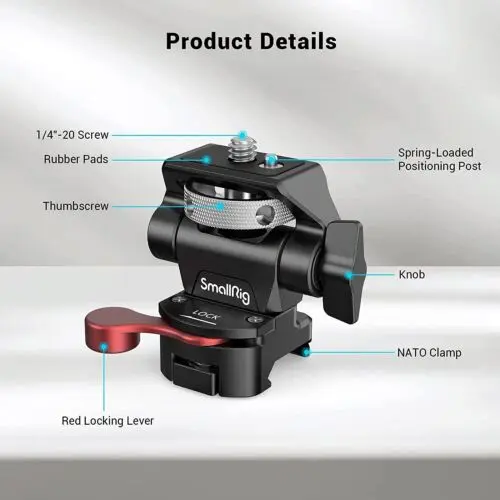

Key Features:

Quick-release NATO clamp mount, suitable for standard NATO rail

Tightness adjustable on each axis, swivels 360° and tilts 180°

Tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts

Bouncy locating pins and silicone pad prevent twisting

Holes in thumbscrews for quick release of the mount

SmallRig Swivel and Tilt Adjustable Monitor Mount with NATO Clamp Mount 2906 is designed to hold your monitor for easy monitoring. It fits standard NATO rail for quick release and comes with a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure for Ninja V/ V+. The thumbscrews have holes for Allen wrench to facilitate assembly and disassembly.

Note:

1. This product does not include NATO rail. Please purchase 1409 or 2172 separately.

2. 90° load capacity: ＜4.2kg; 45° tilt load capacity: ＜2.5kg; 30° tilt load capacity: ＜2.3kg.

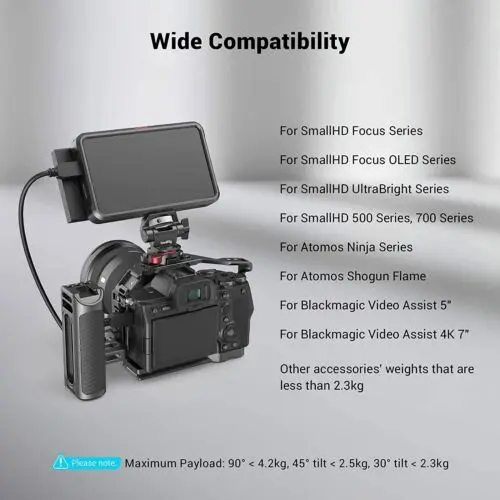

Compatibility:

5” and 7” monitor

In the Box:

1 x Monitor Mount

1 x Allen Wrench

Product Parameters

Product Dimensions: 53.8 x 52.6 x 36mm

Package Dimensions: 78 x 67 x 42mm

Net Weight: 85g±5g

Package Weight: 105g±5g

Material(s): Aluminum Alloy, Stainless Steel

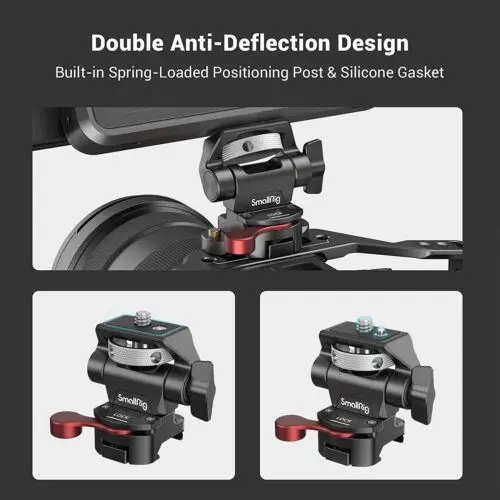

RELATED PRODUCTS: 3601, 3809,3514, 2903, 2904, 2905, BSE2346, 2100, BSE2385, 2172More Durable Tilt Axis: The swivel and tilt monitor mount supports 180° tilt and 360° swivel adjustment, you can quickly adjust the tightness of the tilt axis through the knob. The attenuation rate after 10,000 times of tilt adjustment is less than 20%.Hand-Tighten Knob: The monitor holder adds a hand-tighten knob, so that the tightness can be quickly adjusted by your hand, and it also has a wrench reinforcement hole for easy disassembly and assembly with the included Allen wrench.Stronger Load-Bearing Capacity: Maximum load-bearing: 90° < 4.2kg, 45° tilt < 2.5kg, 30° tilt < 2.3kg. Excellent weight capacity makes it suitable for almost all 5" & 7" monitors.Double Anti-Deflection Design: The top of Field Monitor Mount 2906B has a built-in spring-loaded positioning post and a silicone gasket, which is designed for Ninja V / V+ monitors to prevent deflection.Quick-Release NATO Clamp: The NATO clamp mount can be used with standard NATO rails, such as SmallRig 1409/2172, which can realize quick disassembly and assembly, and makes your shooting more efficient and time-saving.
