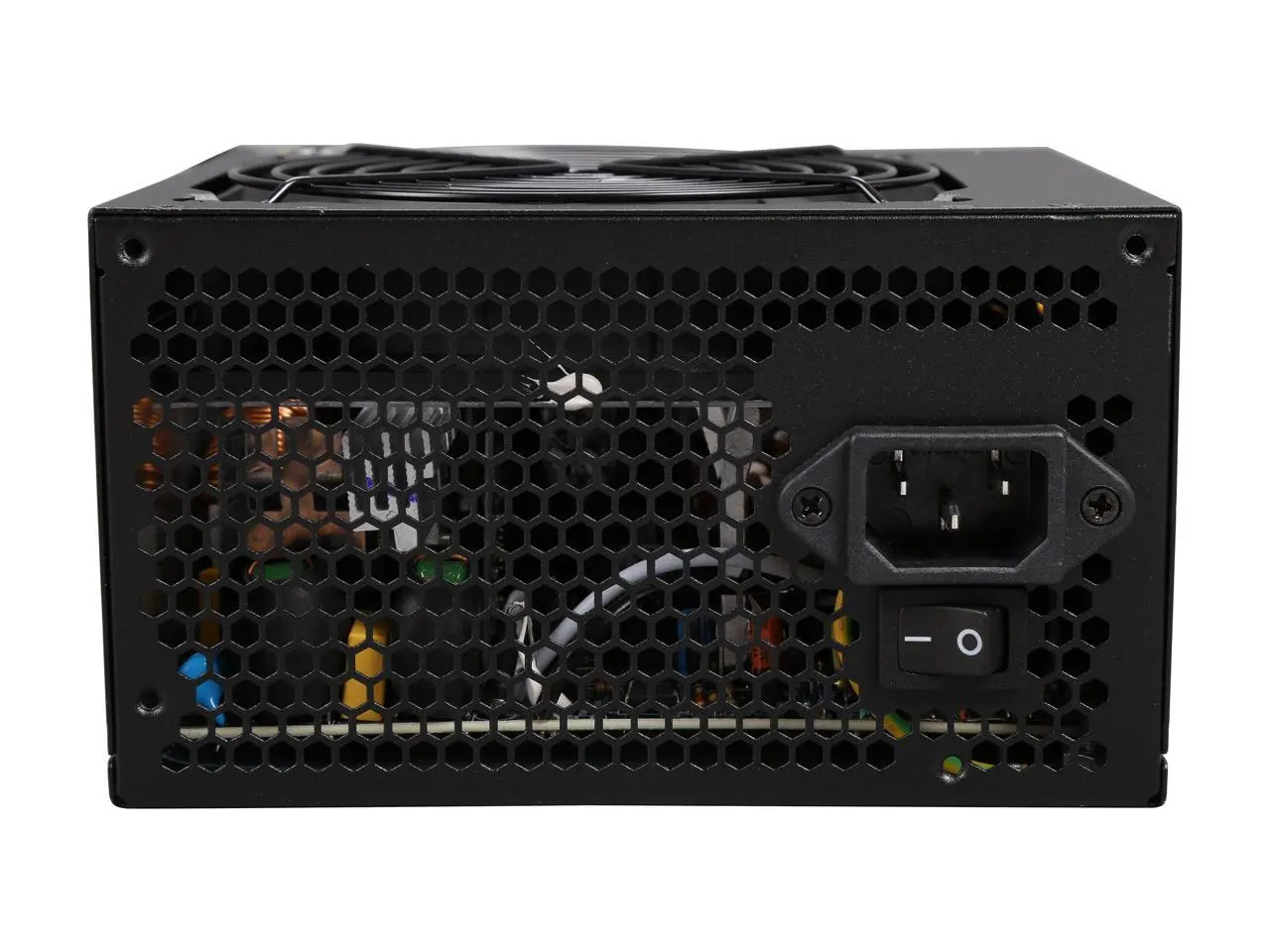

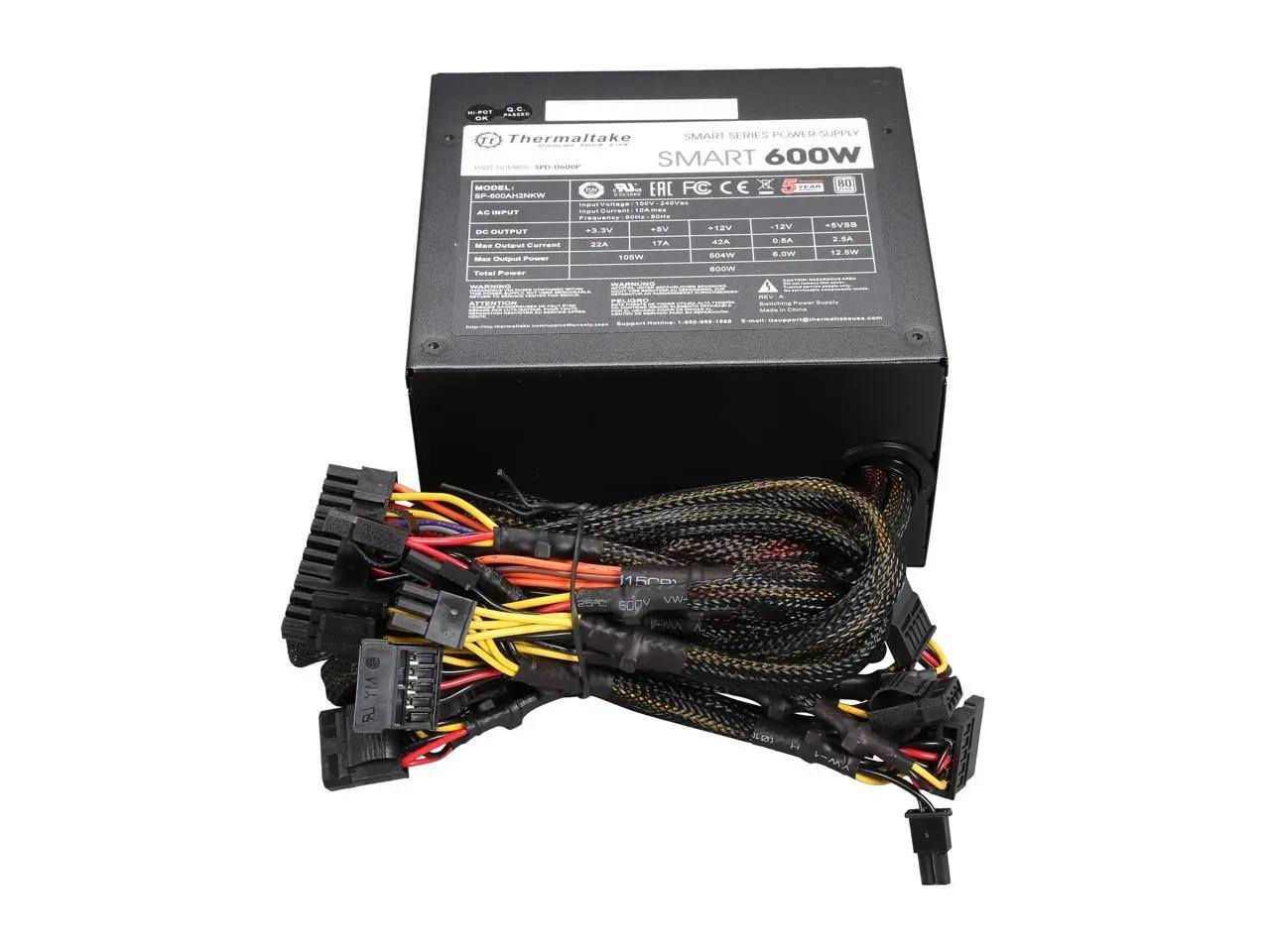

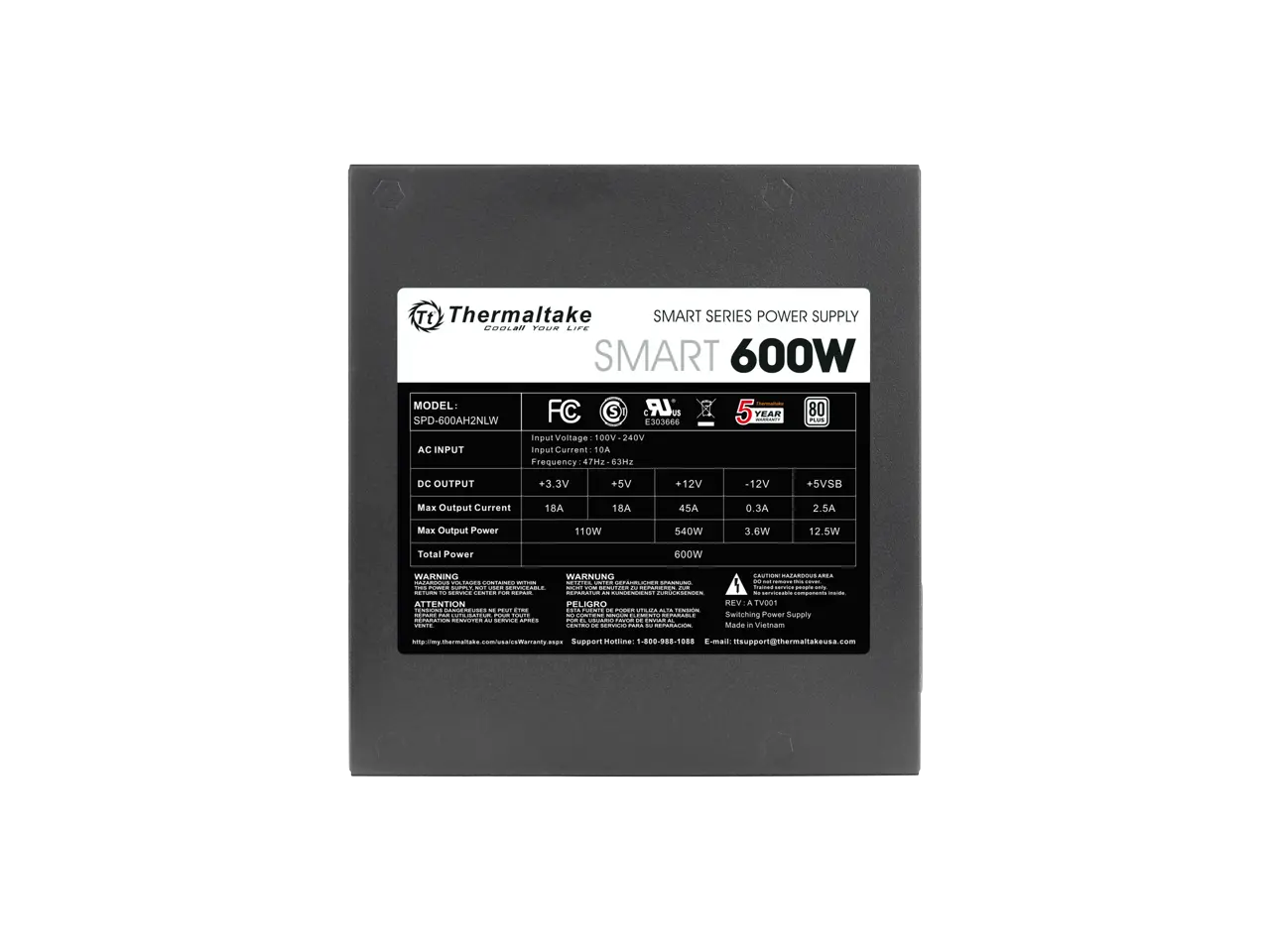

Thermaltake SMART 600W ATX 12V V2.3/EPS 12V 80 PLUS Certified Active PFC Power Supply PS-SPD-0600NPCWUS-W

Product Details

Style: Quite Fan

Size: 600W

Brand: Thermaltake

MPN: PS-SPD-0600NPCWUS-W

UPC: 841163062241

EAN: 0841163062241

·Number of USB 2.0 Ports: 1

·Brand Name: Thermaltake

·Series: TMT-PSSPD0600NPCWUSW

·California residents: Click here for Proposition 65 warning

·Item model number: PS-SPD-0600NPCWUS-W

·Item Weight: 2.2 pounds

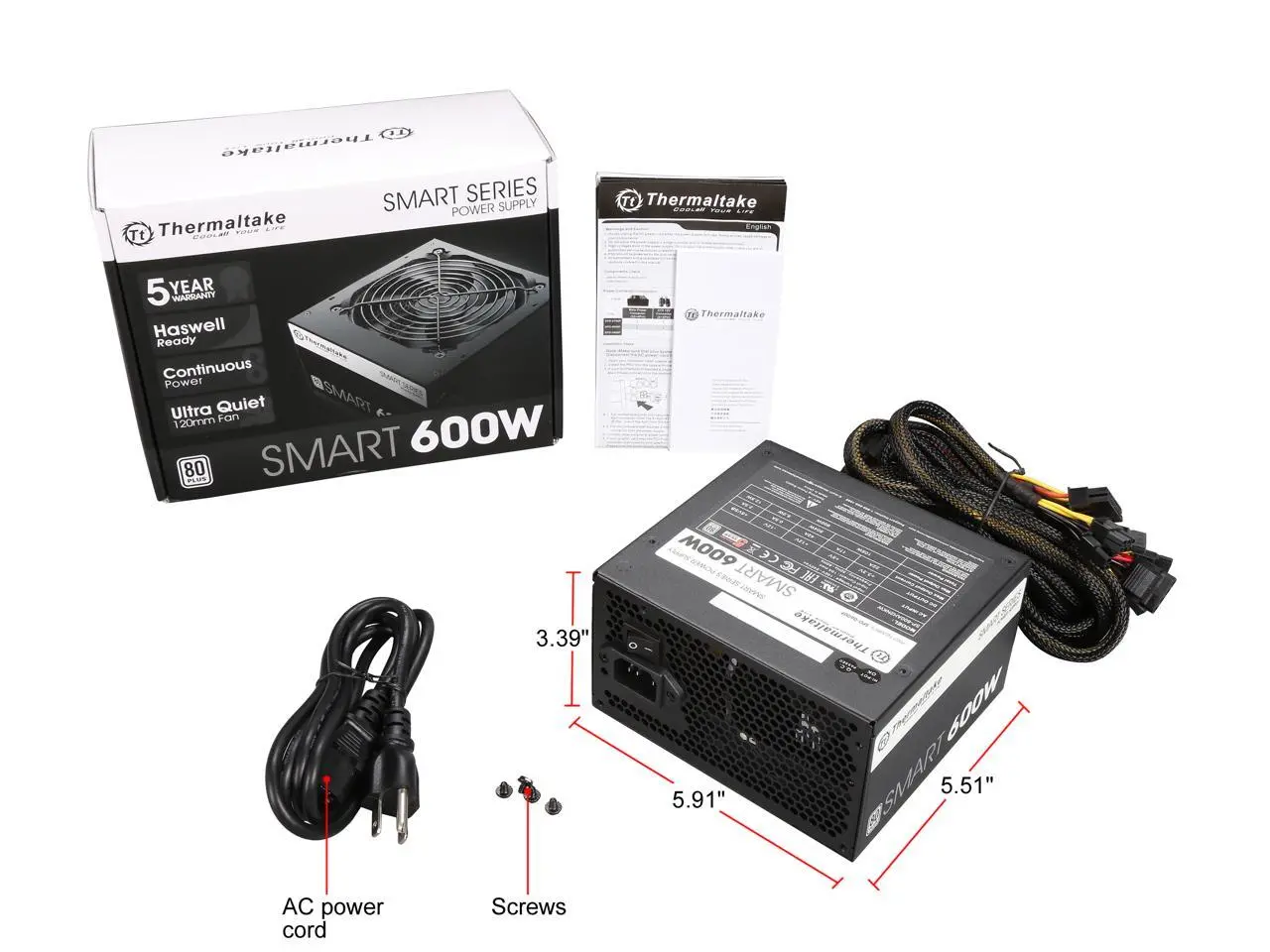

·Product Dimensions: 8.9 x 4 x 7 inches

·Item Dimensions L x W x H: 8.9 x 4 x 7 inches

·Voltage: 120 volts

·Shipping Weight: 4.15 pounds

·Date First Available: September 1, 2015

·Delivers 600 watt Continuous output @ +40C. Compliance with Intel ATX 12 Volt 2.31 & EPS 12V 2.92 standards

·80 PLUS Certified 80percentage efficiency under typical load. Power good signal is 100 to 500 millisecond

·Supports (2) PCI E 6+2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100,000 hours

·Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection

·Hold up time is 16 millisecond minimum within 60 percent load. Input frequency range 50 to 60 in Hertz

·High Quality Components

·Equipped with a powerful +12V rail, superior performance under all types of system loading

·5 Year Warranty

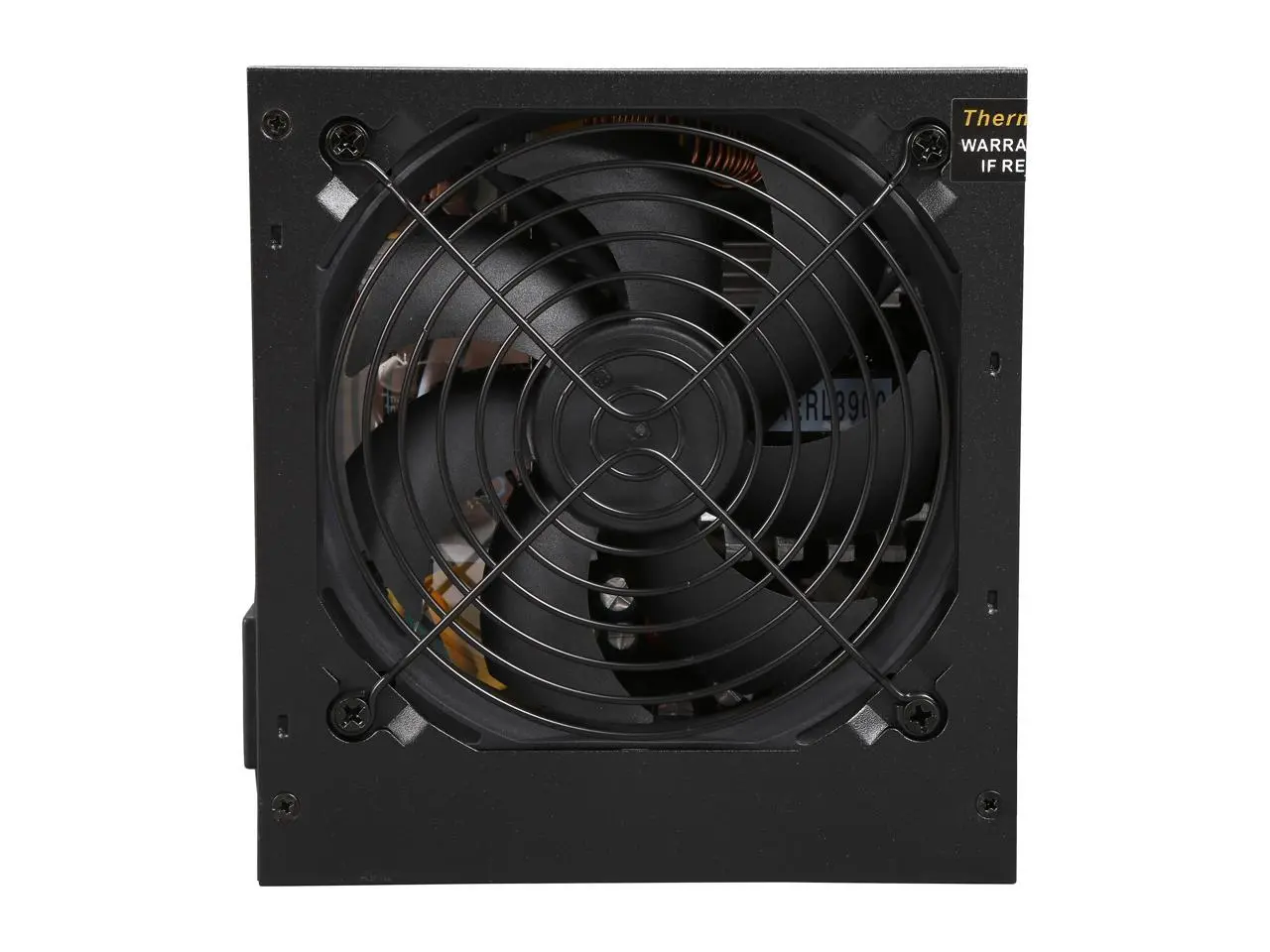

Style:Quite Fan | Size:600W Incorporating various high-quality components, theSmart Series - models are rated from 500W to 700W - saves energy through itshigh efficiency of up to 86% and accommodates any mainstream build with themost demanding requirements. An embedded intelligent cooling fan deliversexcellent airflow at an exceptionally low noise level. Additionally, theSingle +12V rail design enables non-stop usage with stable and reliableperformance. P/N: PS-SPD-0600NPCW-W Short P/N: SPD-0600P Model: SP-600AH2NKWType: Intel ATX 12V 2.3 Max. Output Capacity : 600W Color: Black Dimension (Hx W x D): 86mm x 150mm x 140mm PFC (Power Factor Correction): Active PFC PowerGood Signal: 100-500 msec Hold Up Time : 16msec (minimum) within 60% loadInput current: 10A max Input Frequency Range: 50 Hz - 60 Hz Input Voltage:100Vac - 240Vac Operating Temperature: 5? to +40? Operating Humidity: 20% to85%,non-condensing Operating Temperature: -40 ? to +55 ? Storage Humidity: 10%to 95%, non-condensing Cooling System: 120mm Fan: 1800 R.P.M. ± 10%Efficiency: 82-86% efficiency @ 20-100% load MTBF: 100,000 hrs minimum SafetyApproval: CE/CB/TUV/ UL/ FCC PCI-E Connector: PCI-E 6+2pin x 2
