DESCRIPTION

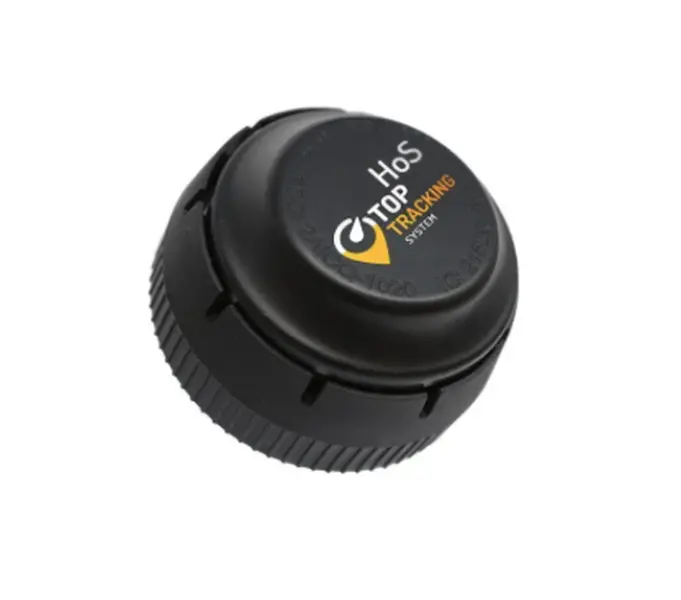

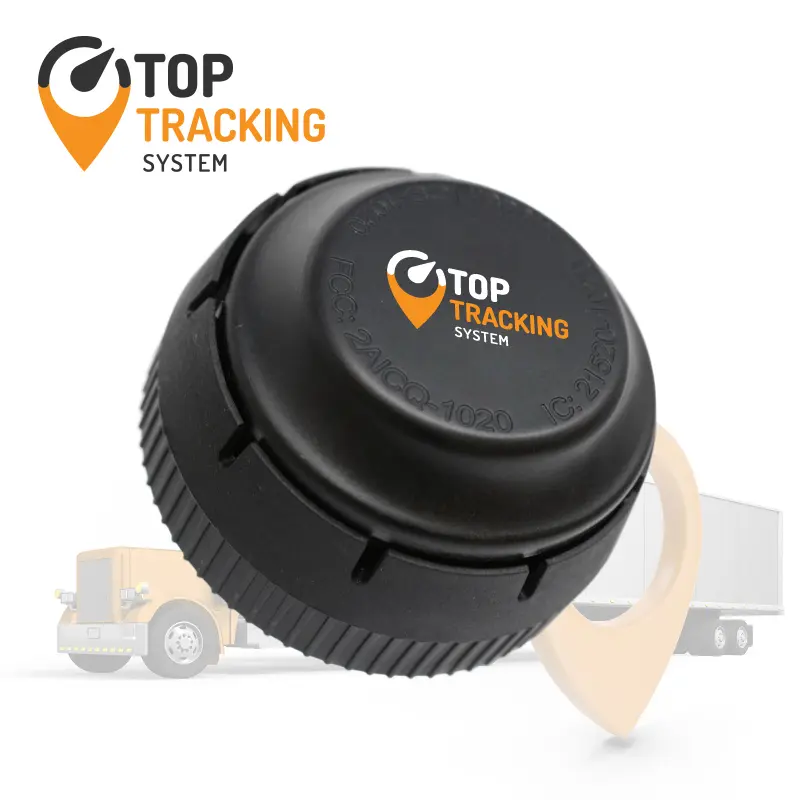

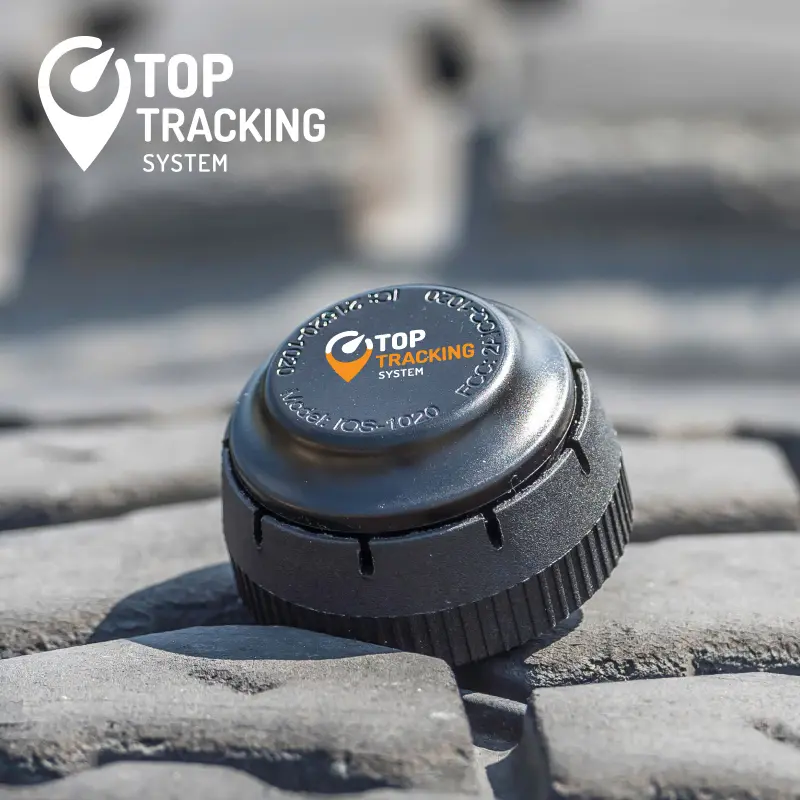

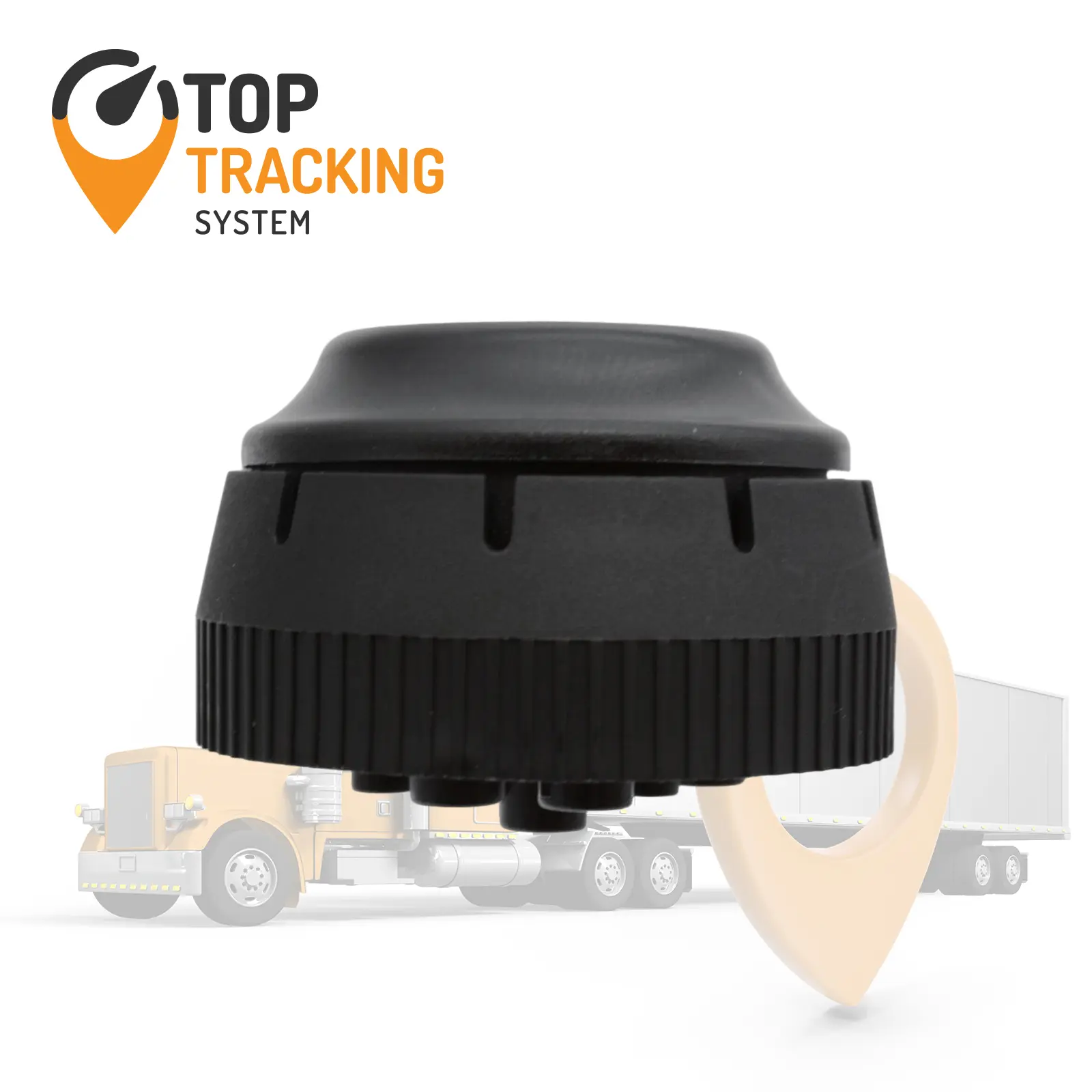

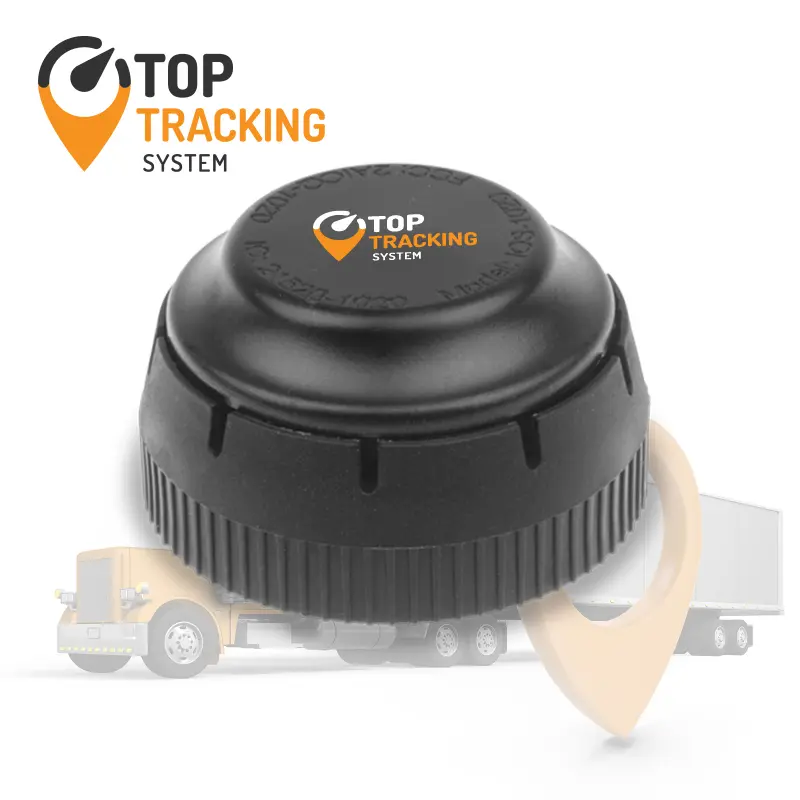

Designed to handle a large number of known vehicle-specification deviations in the field, the Micro ELD provides robust data acquisition across a wide range of makes and models.

Data gathered by the Micro ELD can be transferred to a phone or tablet via a Bluetooth or WiFi connection, enabling trouble-free hours-tracking and document submission. You can connect this device directly to the J1939 port found in most heavy-duty trucks, or easily adapt it to RP1226, OBD-II, or J1708 with a converter cable.

KEY SPECIFICATIONS

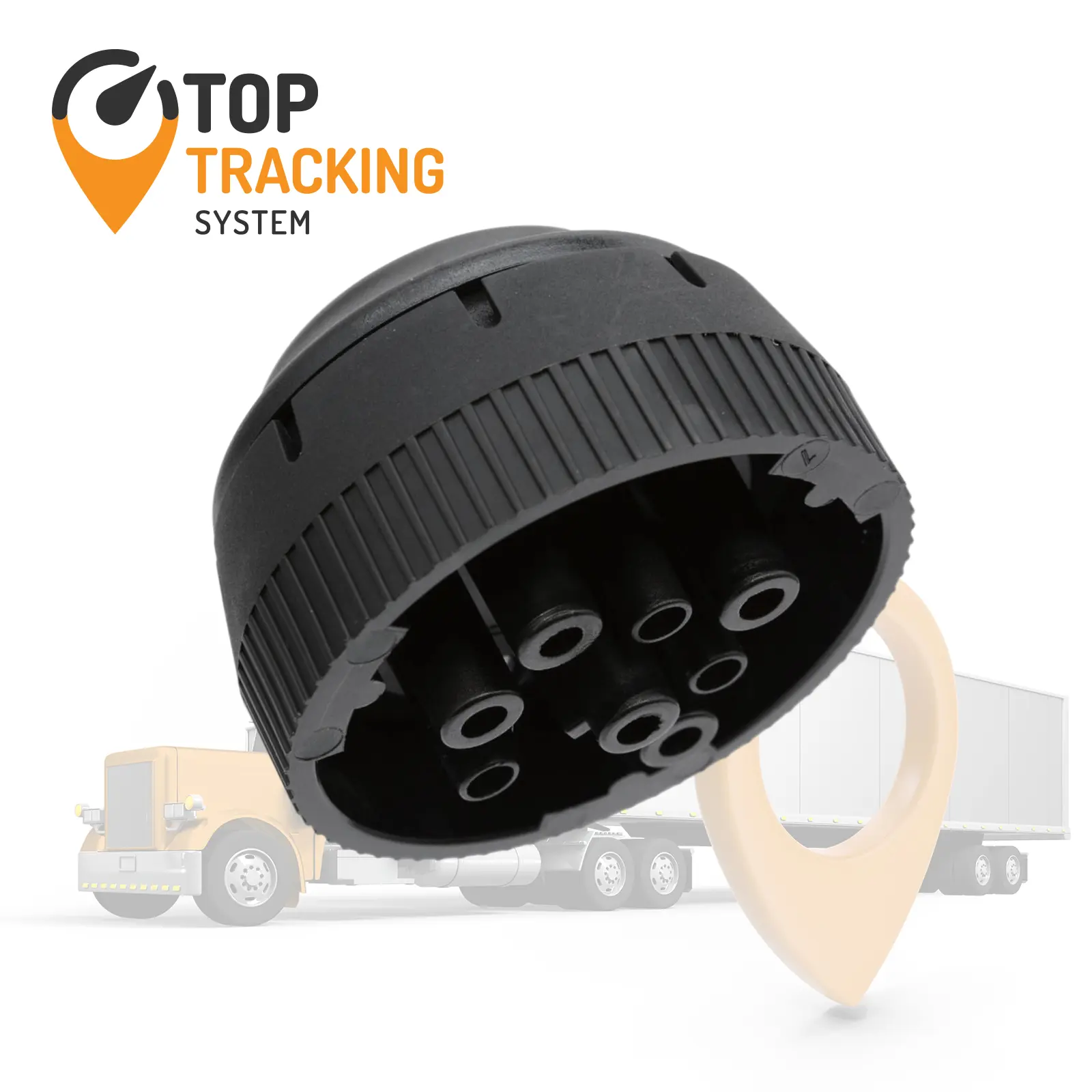

Built-in J1939 Type II 9-pin connector supporting both new and legacy vehicles

WiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modes

Bluetooth 4.2 Class 1 supporting BR/EDR and LE dual-mode

Multi-constellation GNSS receiver with built-in high-gain antenna

FEATURES

·WiFi 801.11b/g/n up to 150Mbps and simultaneous AP and Station modes

·Bluetooth 4.2 Class 1 supporting BR/EDR and LE dual-mode

·Multi-constellation GNSS receiver with built-in high-gain antenna

·High-efficiency switching power supplies for low temperature operation

·Over-, under-, and reverse-voltage protection exceeding automotive standards

·ESD protection exceeding automotive standards

·Full-color RGB LED for status indication

·Dual-core 32-bit Tensilica processor at 240MHz

·Built-in J1939 Type II 9-pin connector supporting both new and legacy vehicles

·Physical layer and protocol auto-detection/auto-bauding

·Dual-wire CAN interface supporting 1Mbps [1]

·Dual-wire J1708 interface

·J1939 protocol support

·ISO 15765 and ISO 14229 (OBD-II) protocol support

·J1587 protocol support

·Built-in flash memory

·Support for IOSiX ELD APIs for Android and iOS

·Support for IOSiX Advanced Vehicle Parameter Database

·FCC/IC (US/Canada and other countries)

·CE (Europe and other regions)

·Dimensions: 40x40x28mm

·Mass: 28g

·Temperature range: -40 to +125 C

·Material: Nylon/Polycarbonate
